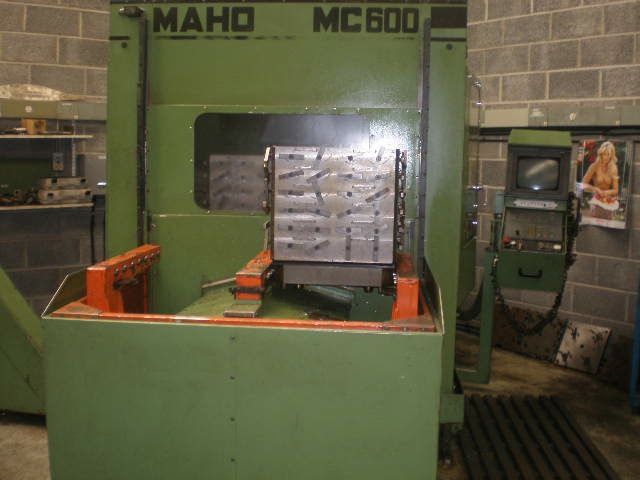

Maho MC600 Twin Pallet Horizontal Machining Centre

Lot 27 - Maho MC600 Twin Pallet Horizontal Machining Centre

Description:

Year 1985

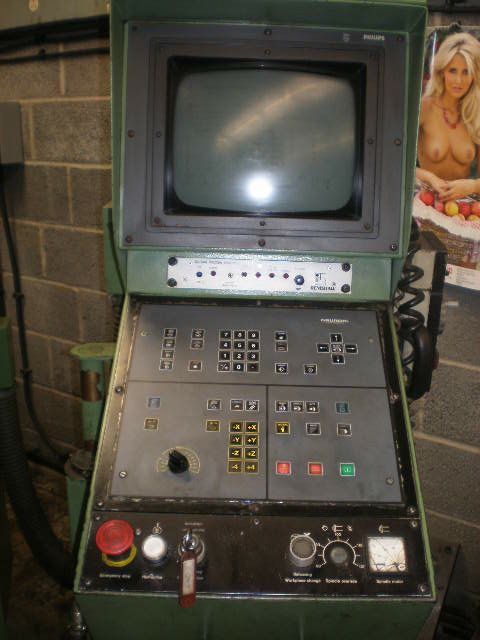

Maho Phillips 432 CNC Control

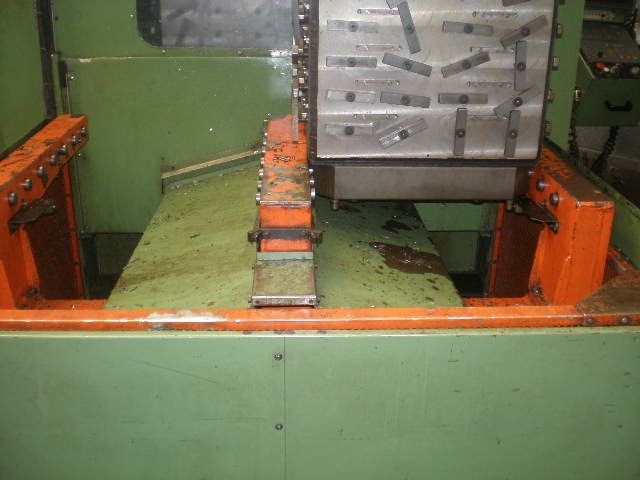

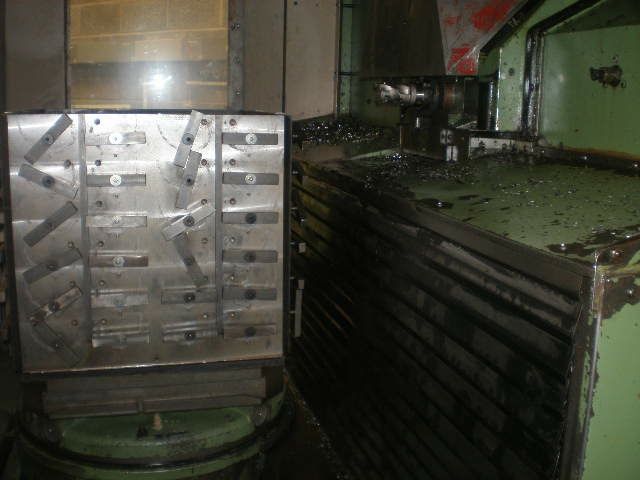

2 x Pallet Size 500mm x 500mm
Pallet Load 300Kg
Pallet Change Time approx 20sec.

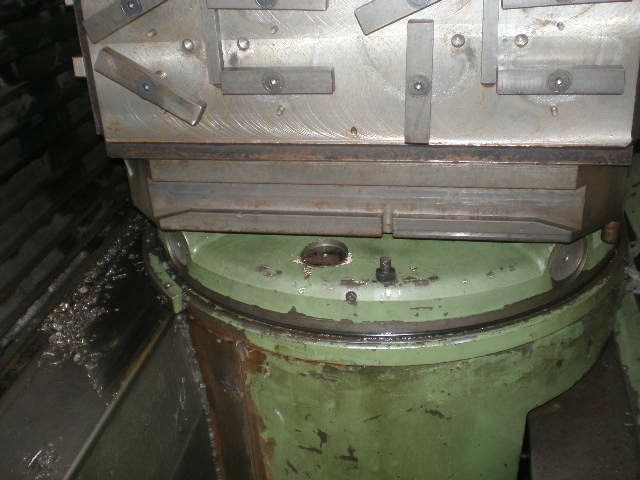

Full B Axis 360,000 degrees
X Axis Longitudinal Travel 600mm
Y Axis Vertical Travel 450mm
Z Axis Transverse travel 500mm

Rapid Feed Rates X, Y, Z 10m/min
Rapid Feed Rate B Axis 11rpm

Main D.C. Motor 8.4kW
Spindle Speeds 20-5000rpm (infinitely variable within 4 steps)

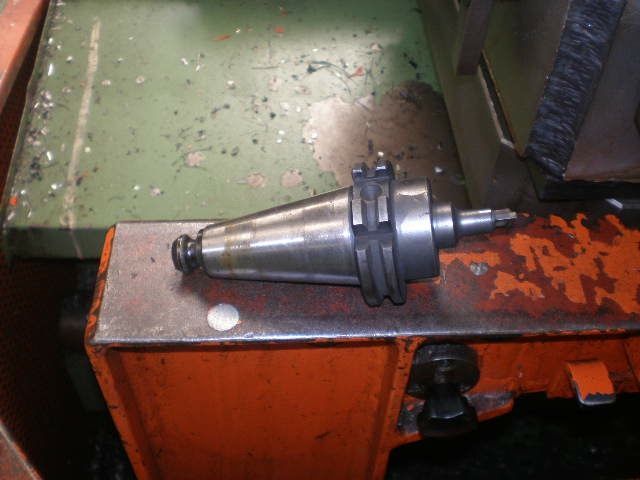

Spindle Taper 40ISO
48 Station Automatic Tool Changer

Connection Rating:
Power : 33kVA
Compressed Air: min. 5bar

Area Required approx 5m x 5m
Machine weight approx 5500kg

Complete with:

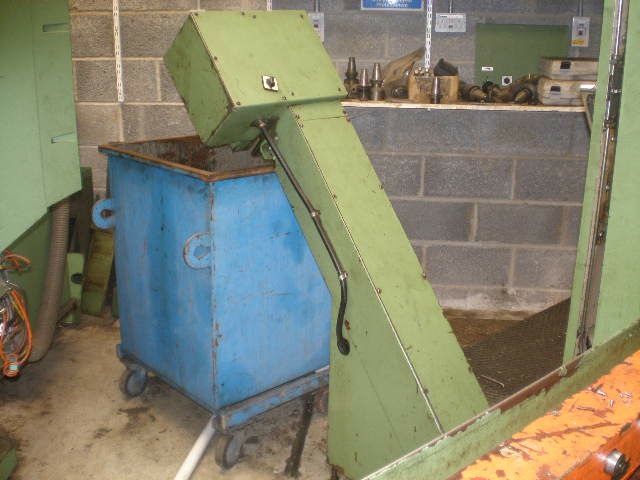

Swarf Conveyor

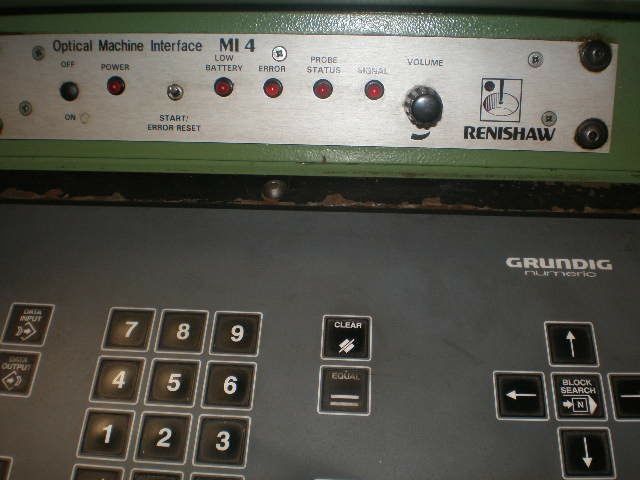

Renishaw probe MI4 Interface
Coolant
Guarding
Manuals

Location: Glastonbury.
The machine can be inspected under power. The machine has been serviced and maintain on a regular basis. A crane lorry will be required to load the machine to transport.

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
