Lot 3 - Makino 74 VMC

Description:

Makino 74 VMC

Year 1983,
Fanuc 6M Control,

Technical details
Table Size: 700 x 450 x 450mm
Maximum Table Load: 997kg
Spindle Nose To Table Top: 200.02 - 650.87mm
X Axis Travel: 700.02mm
Y Axis Travel: 450.09mm
Z Axis Travel: 450.09mm
Rapid Traverse Rate X & Y Axes: 710 IPM
Rapid Traverse Rate Z Axis: 472 IPM
Cutting Feed Rate: 0.004 - 157 IPM
Spindle Taper  Cat: 40
Spindle Speeds (2 Speed Geared): 10 - 7,000 RPM
Spindle Motor: 10 HP AC
Tool Changer Capacity: 20 Station ATC
Tool Change Time (Tool To Tool): 3 Seconds
Machine Dimensions (Approximate): 2489.2 x 3403.6 x 2616.2mm
Machine Weight (Approximate): 5896kg

Location: Leicester

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport

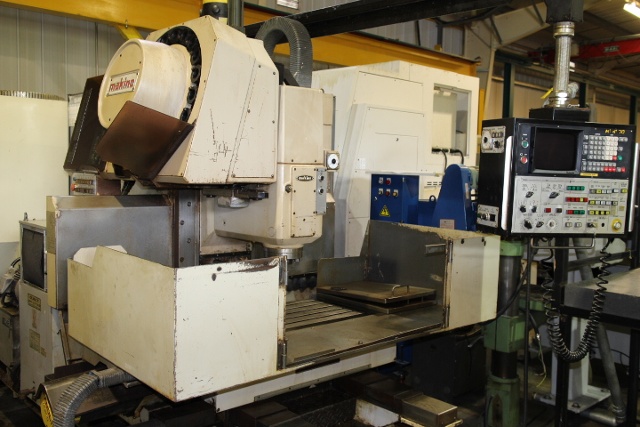

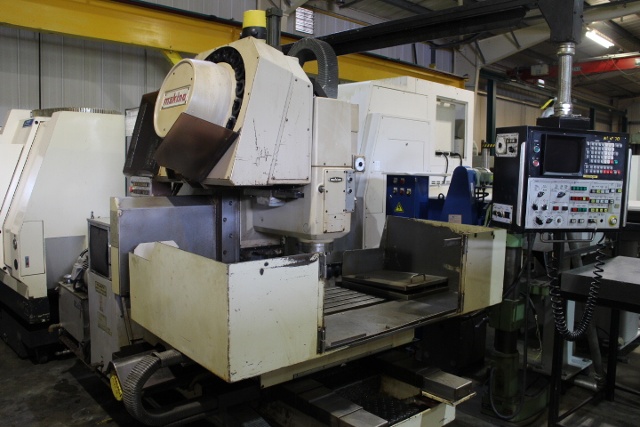

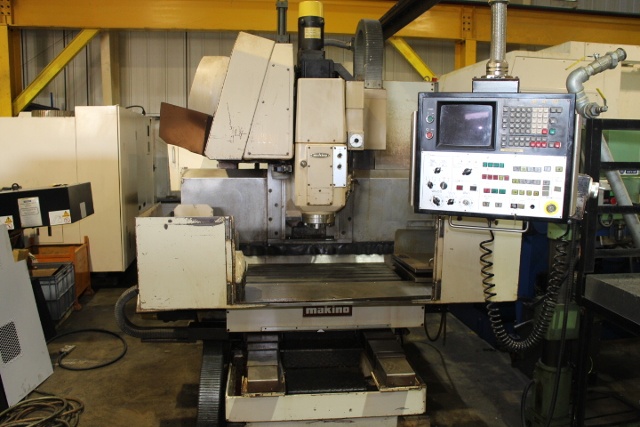

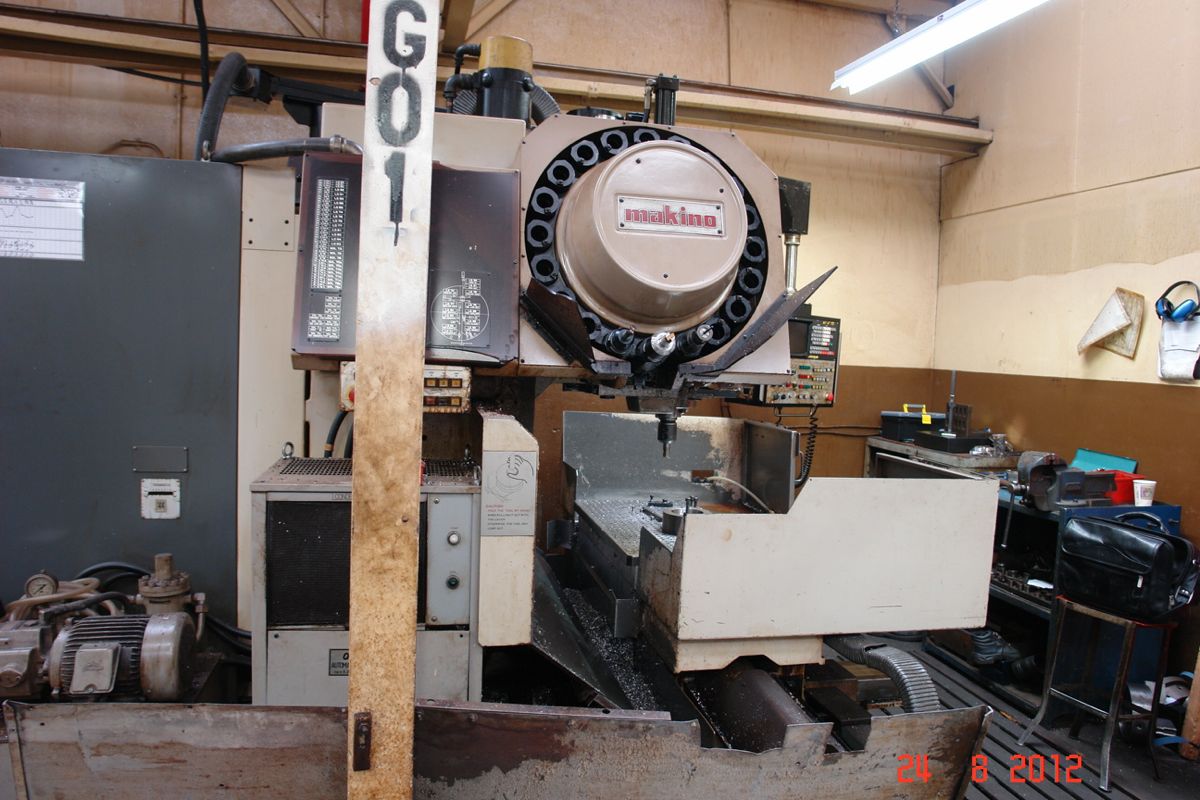

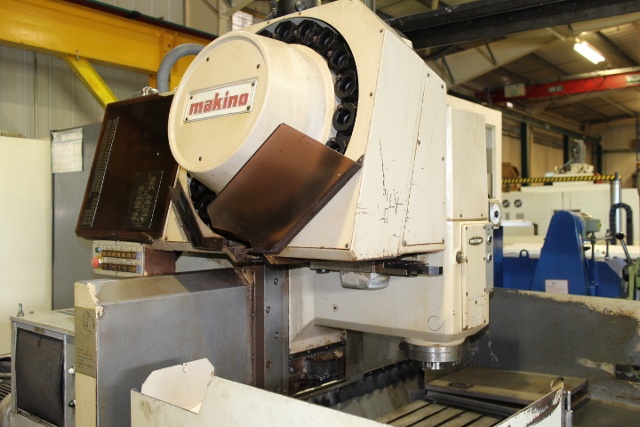

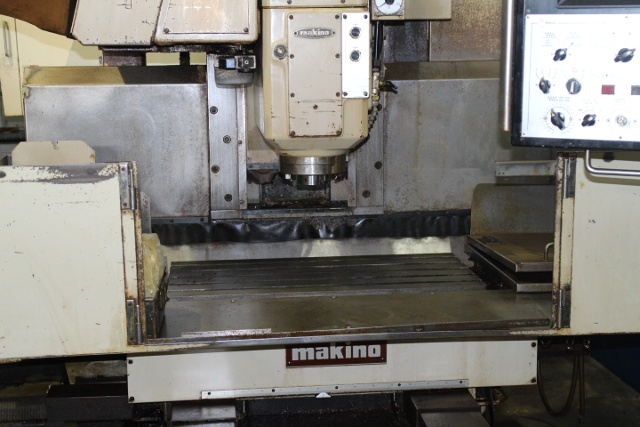

• Photos
