Lot 1 - Makino MC1513 Twin Pallet HMC
Description:

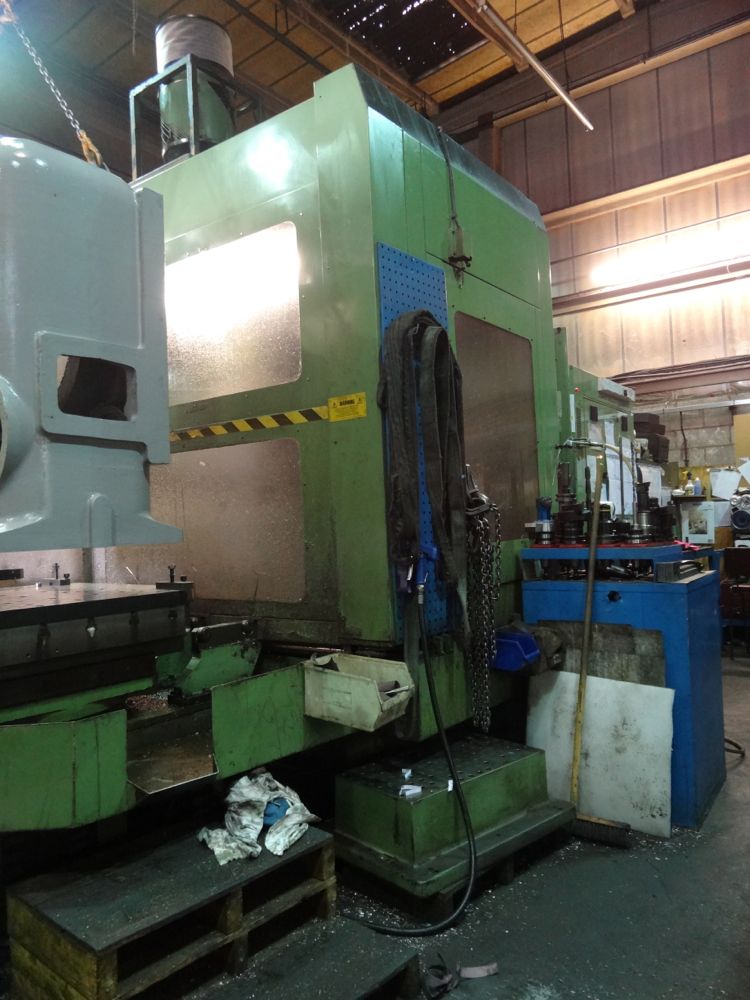

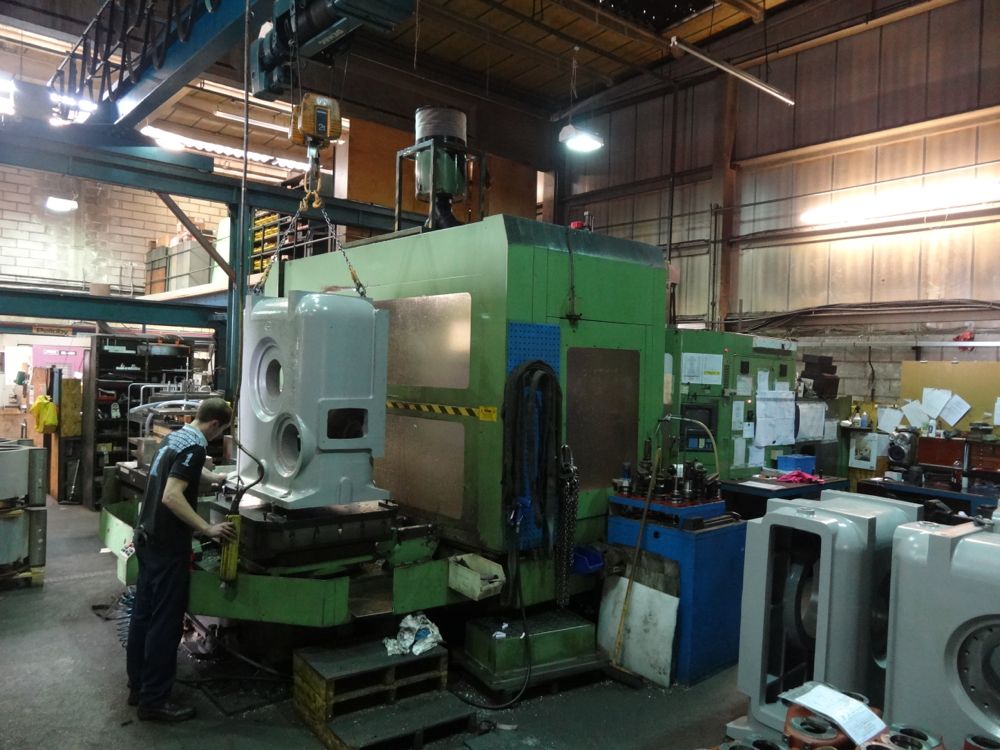

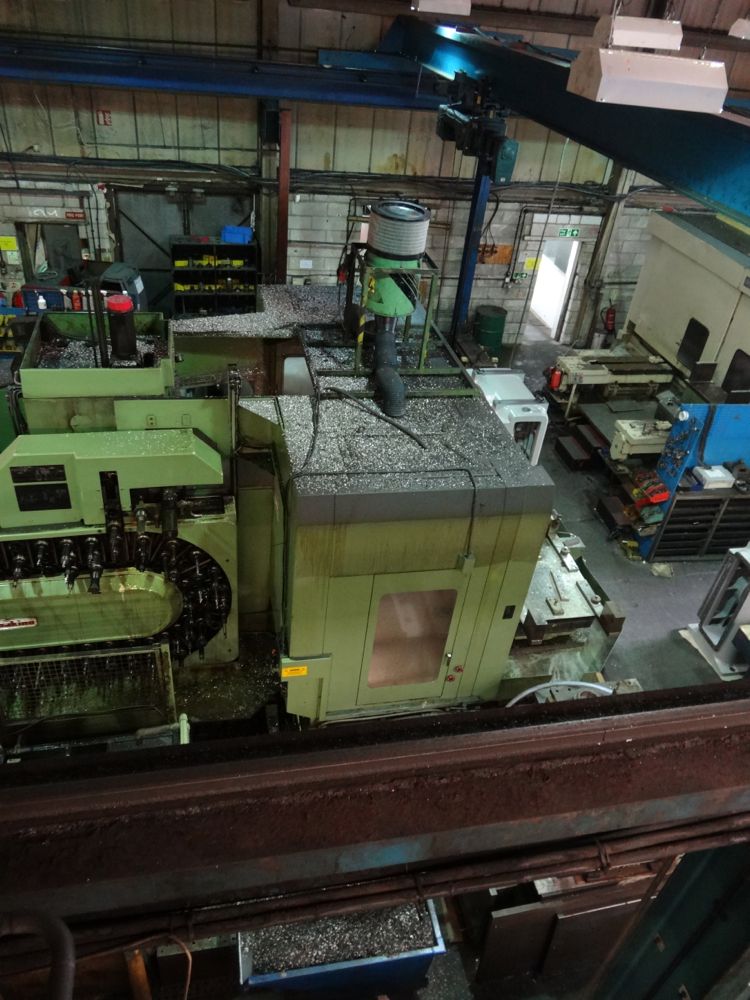

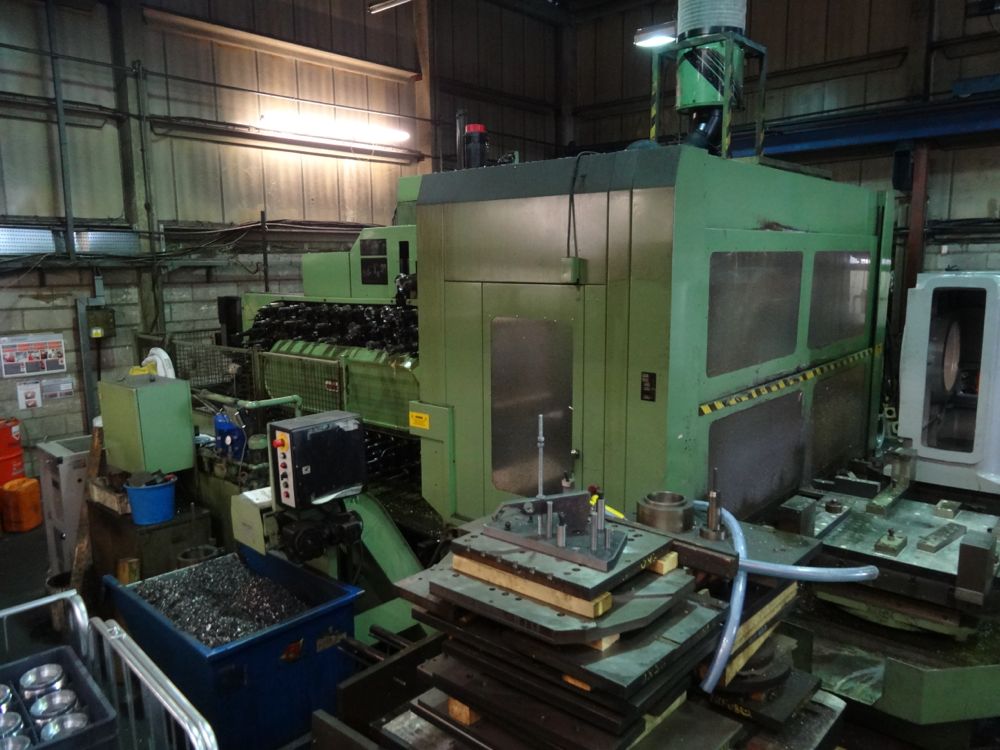

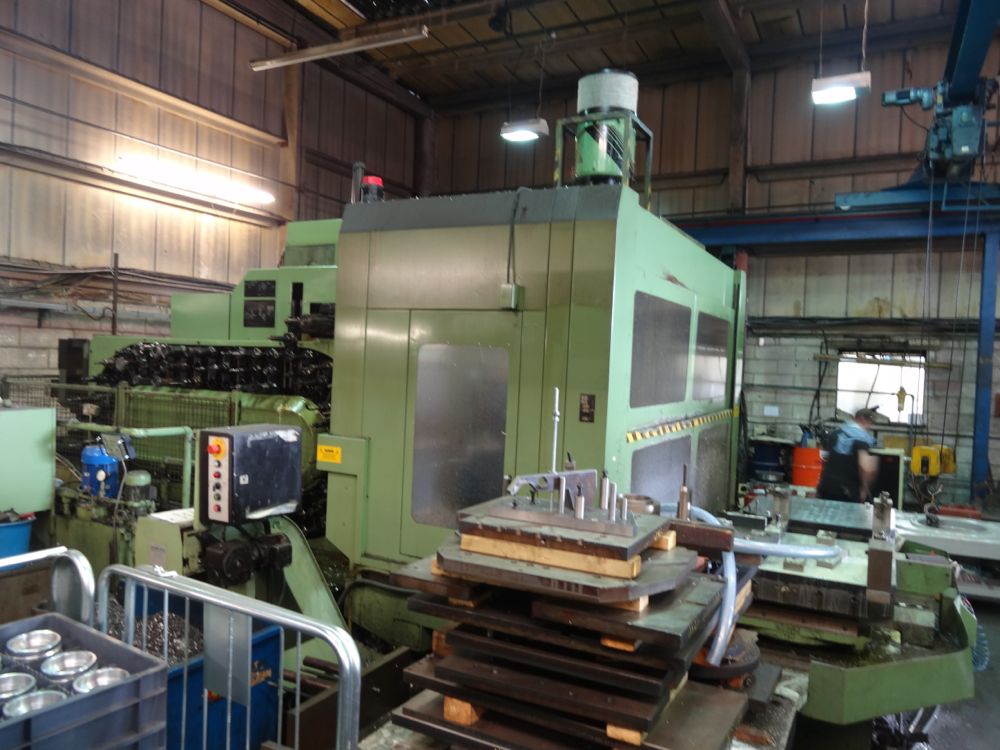

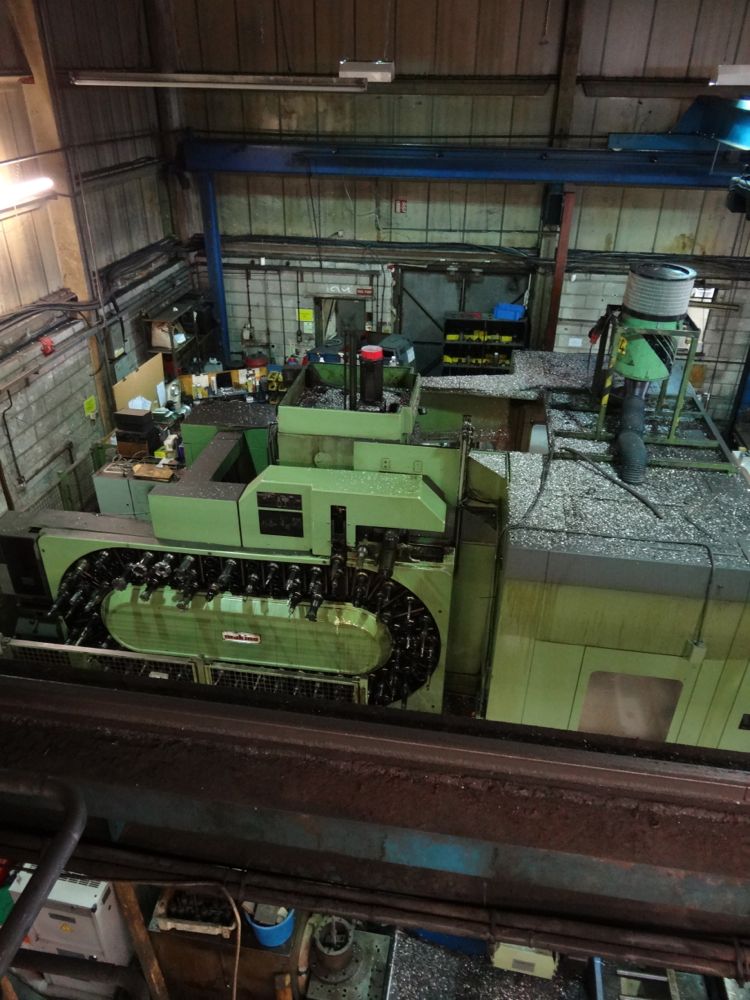

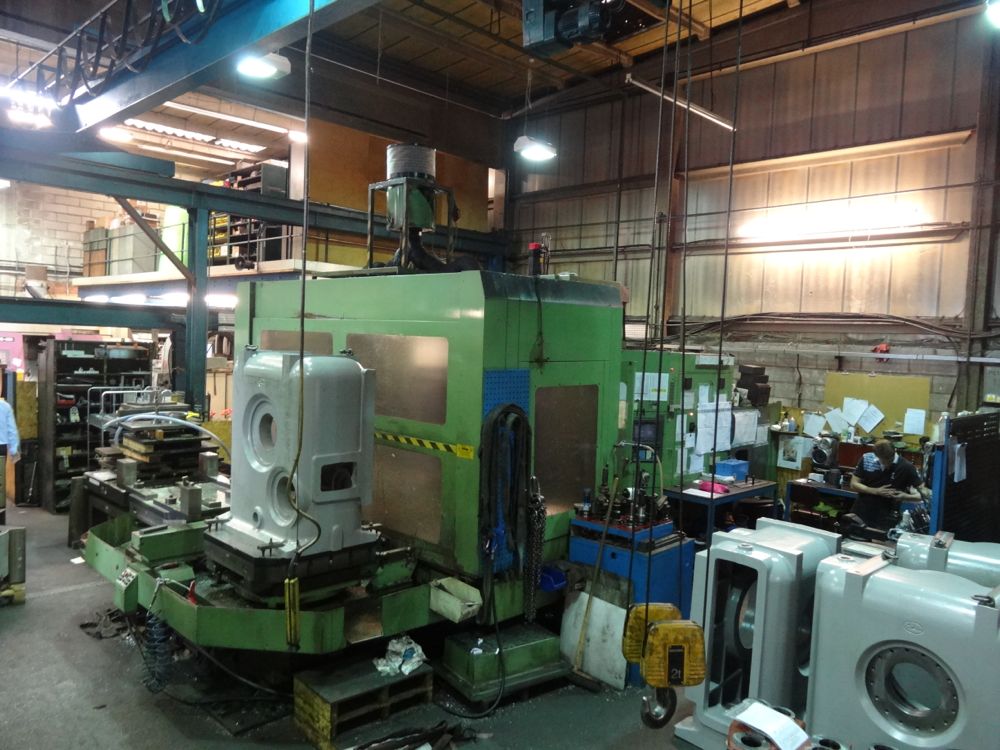

Makino MC1513 Twin Pallet HMC
Year of Manufacturer: 1989
This Machine available due to the purchase of a Brand New machine which will be installed during October.
Included in the final bid will be decommissioning, Loaded to flat truck and transported to a location in the UK

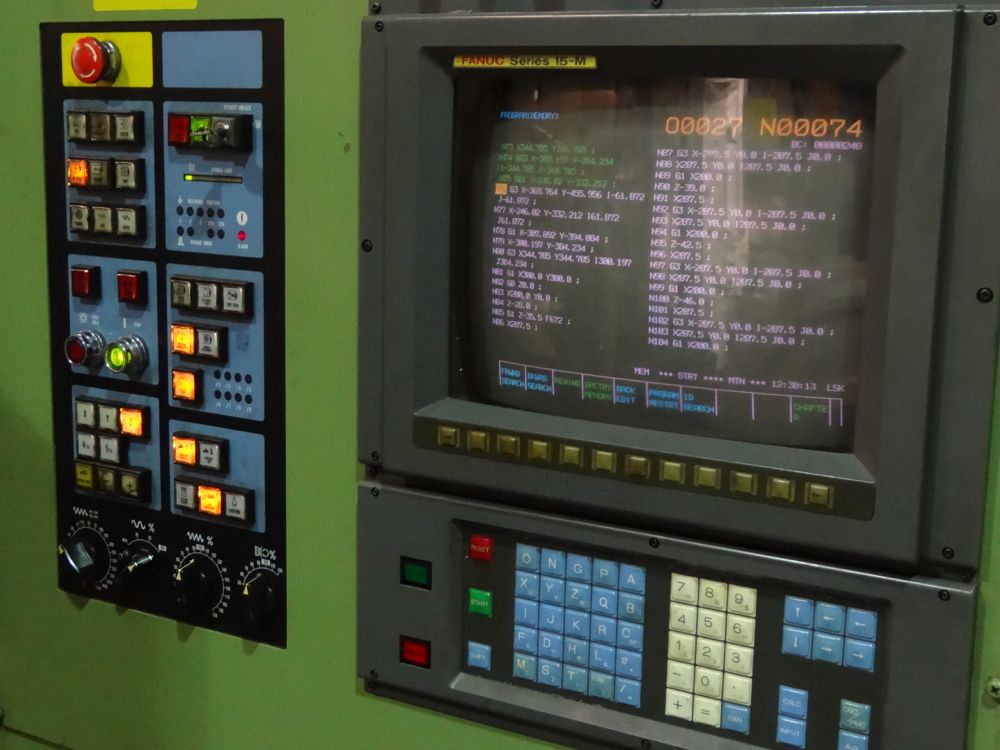

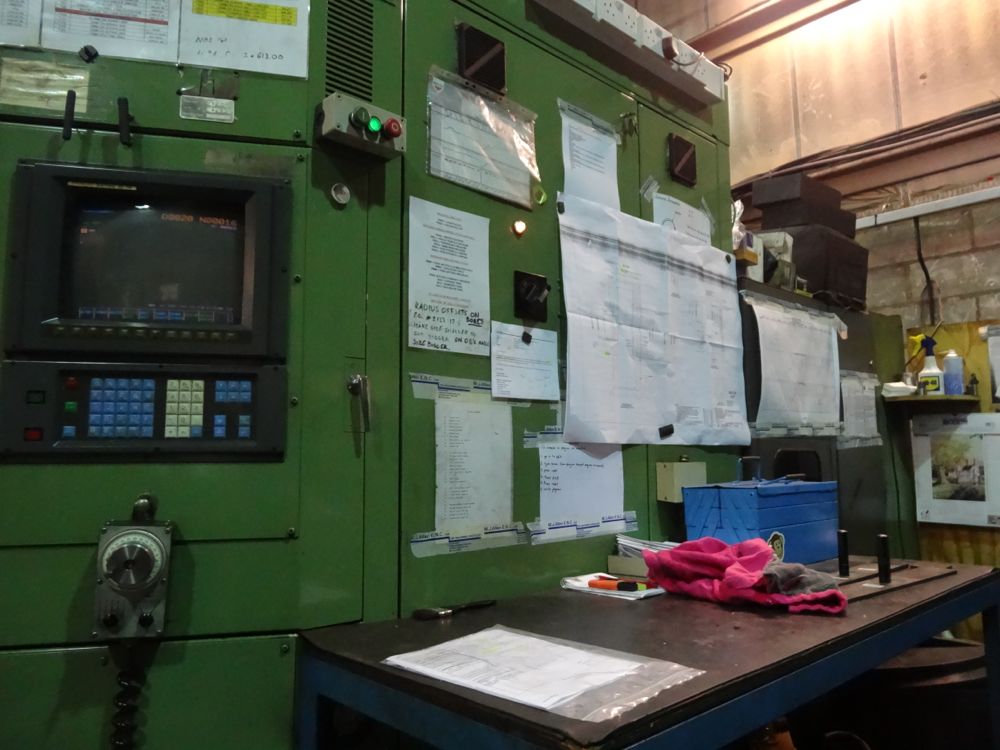

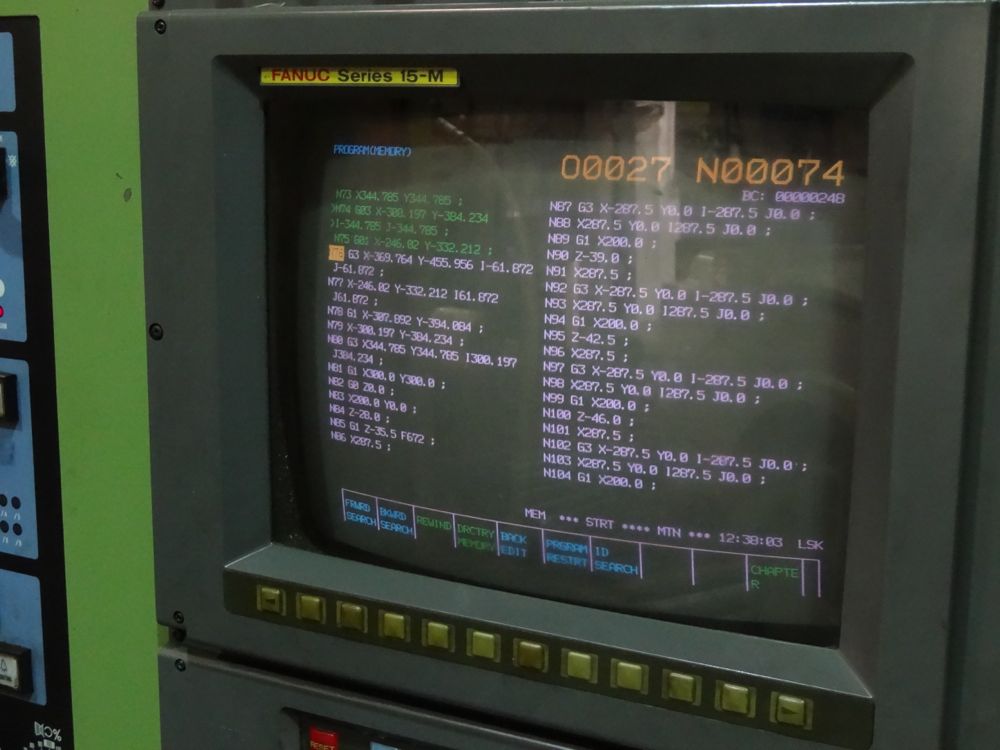

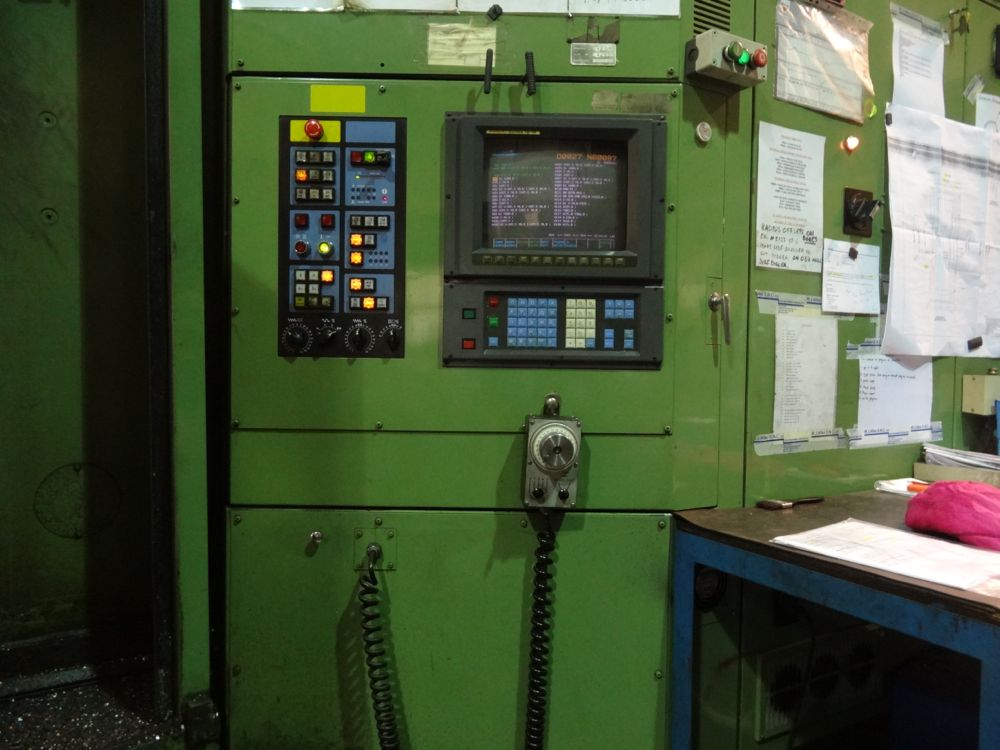

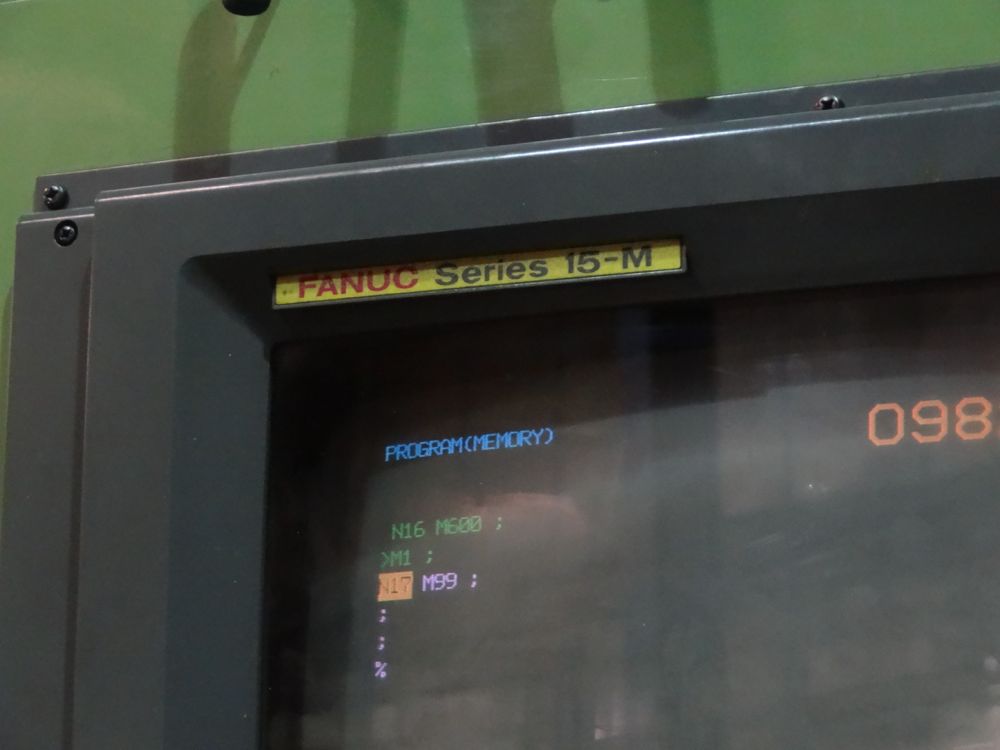

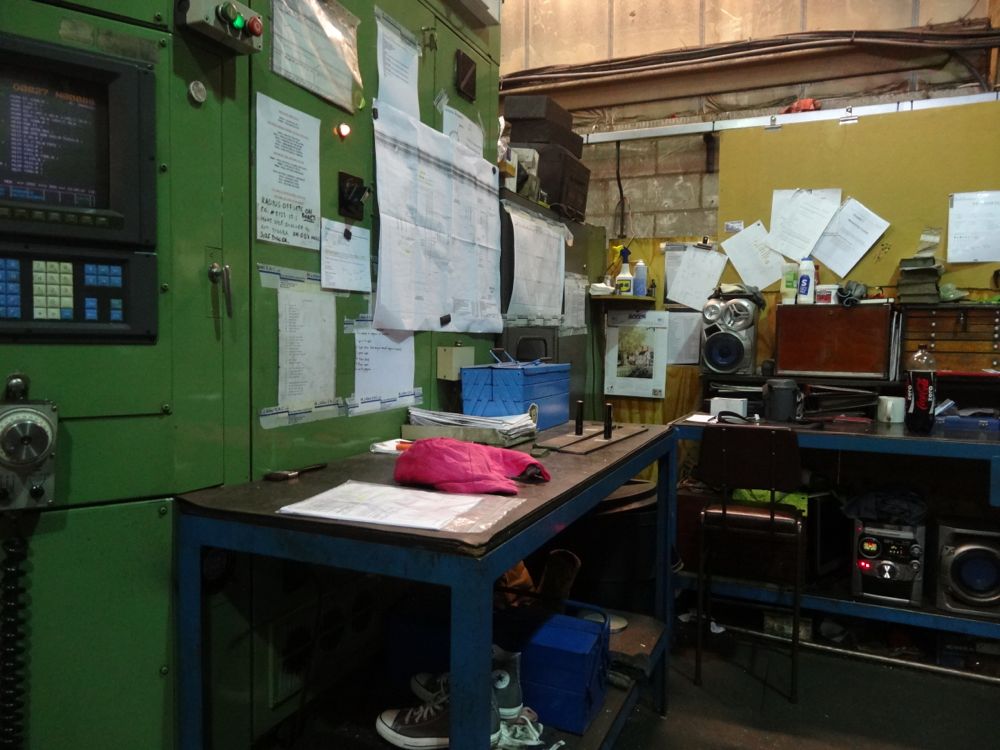

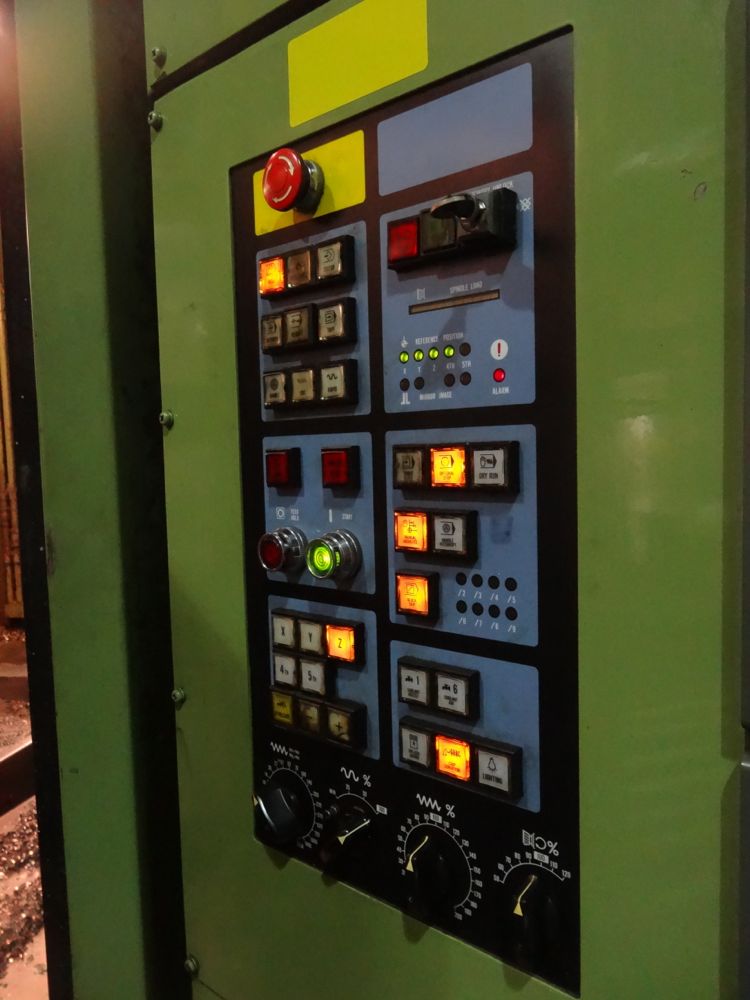

Fanuc 15M CNC Control

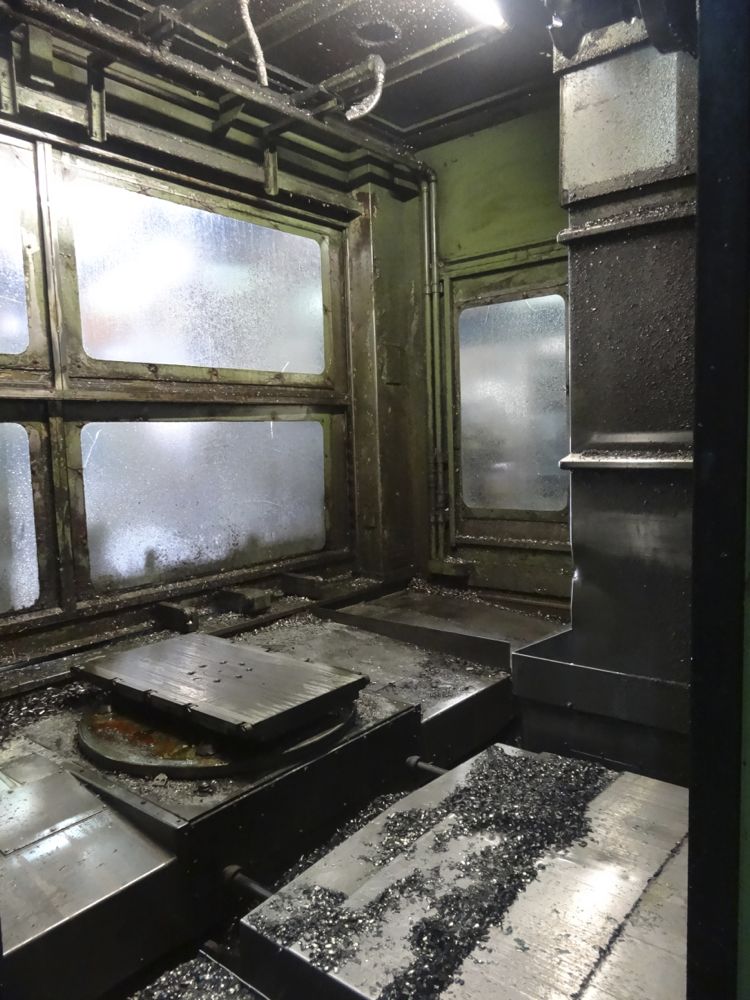

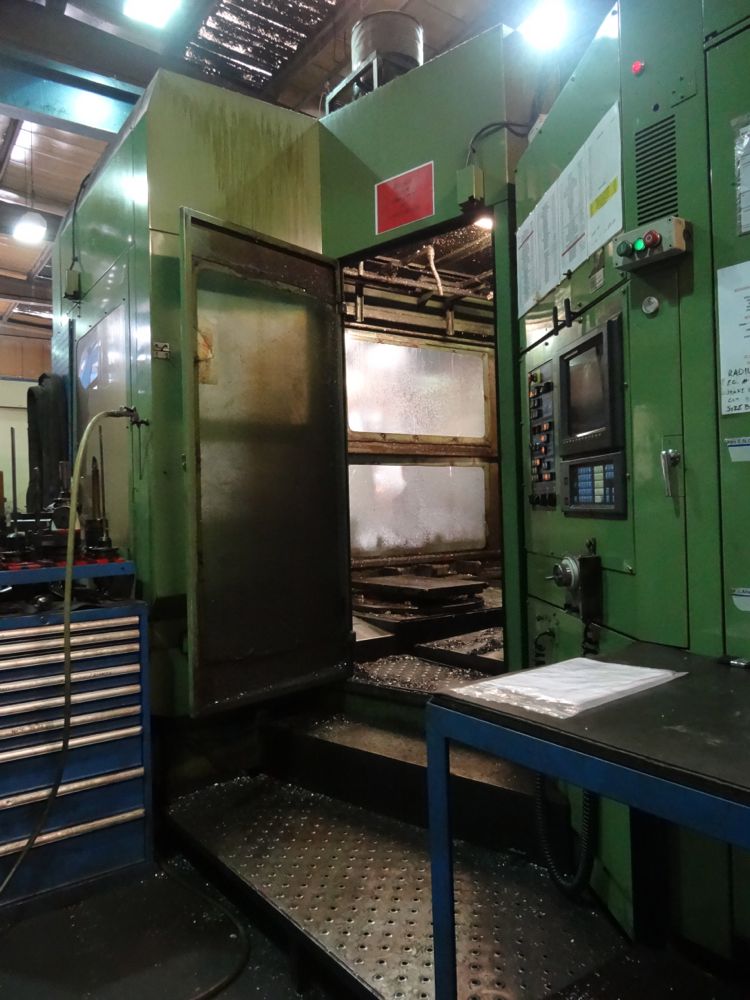

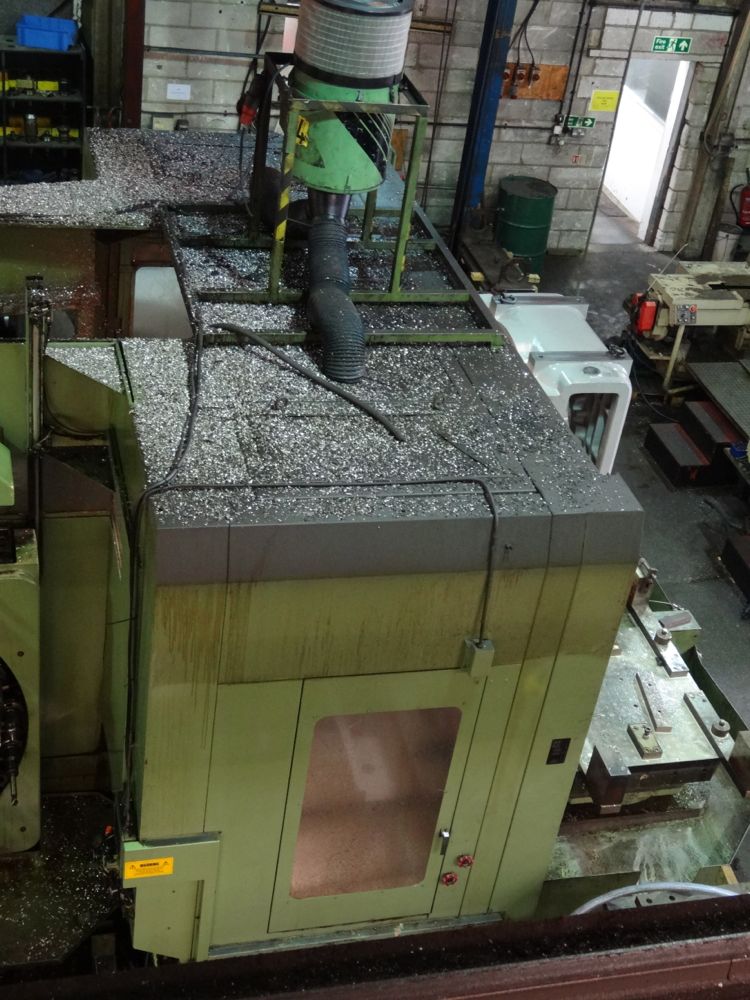

Full Coolant Enclosure with Automatic Pallet Doors,

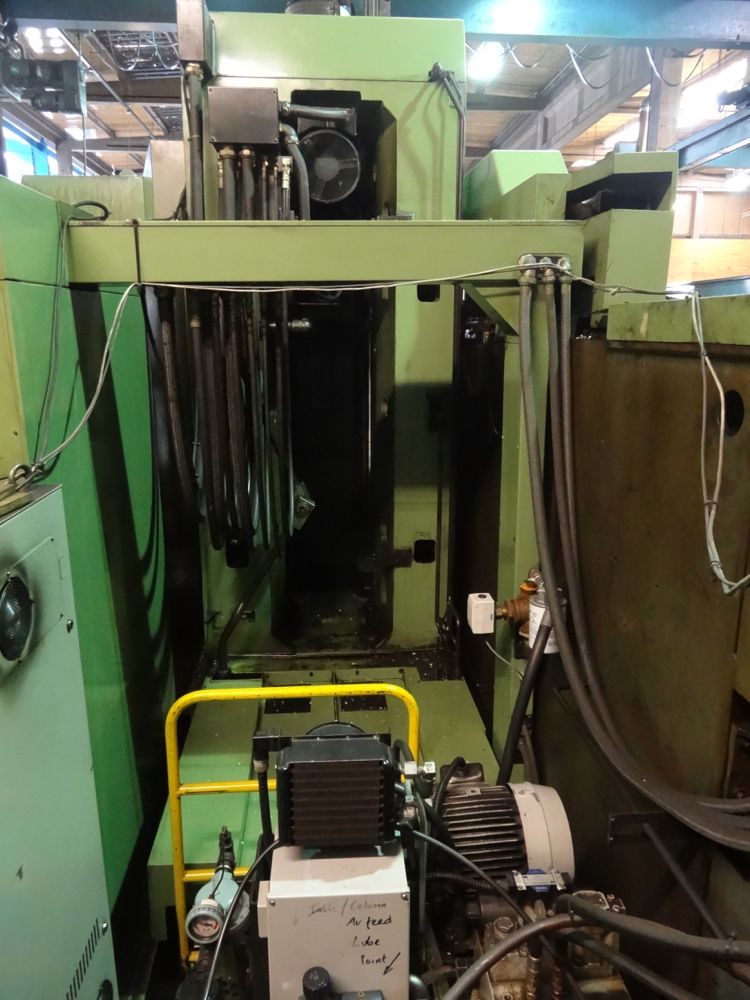

Coolant System.

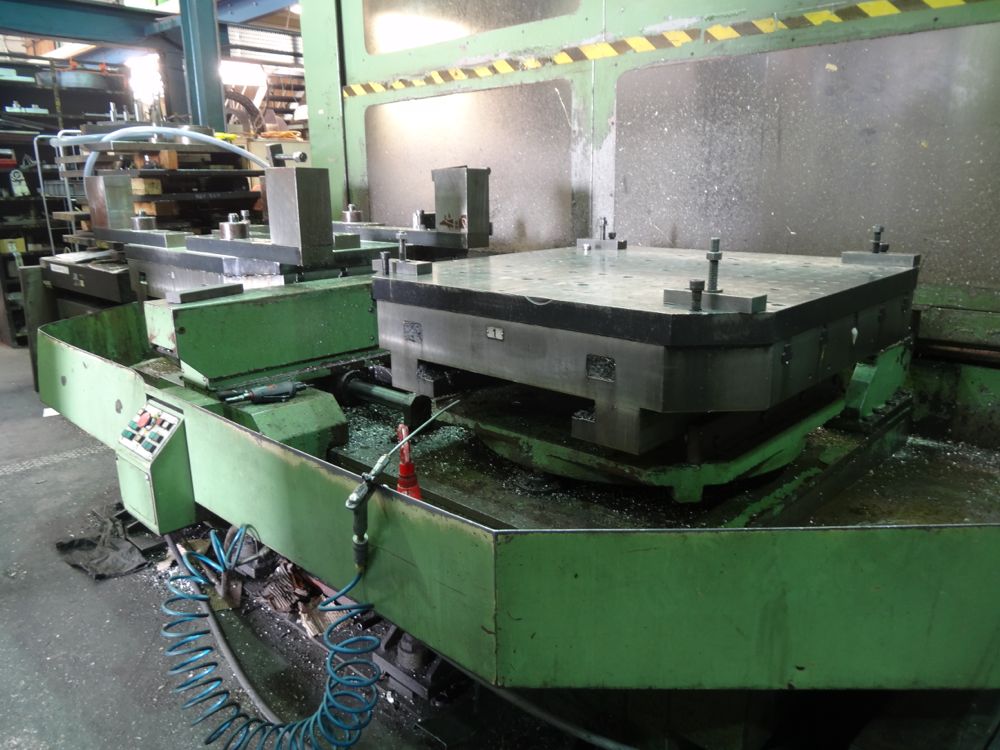

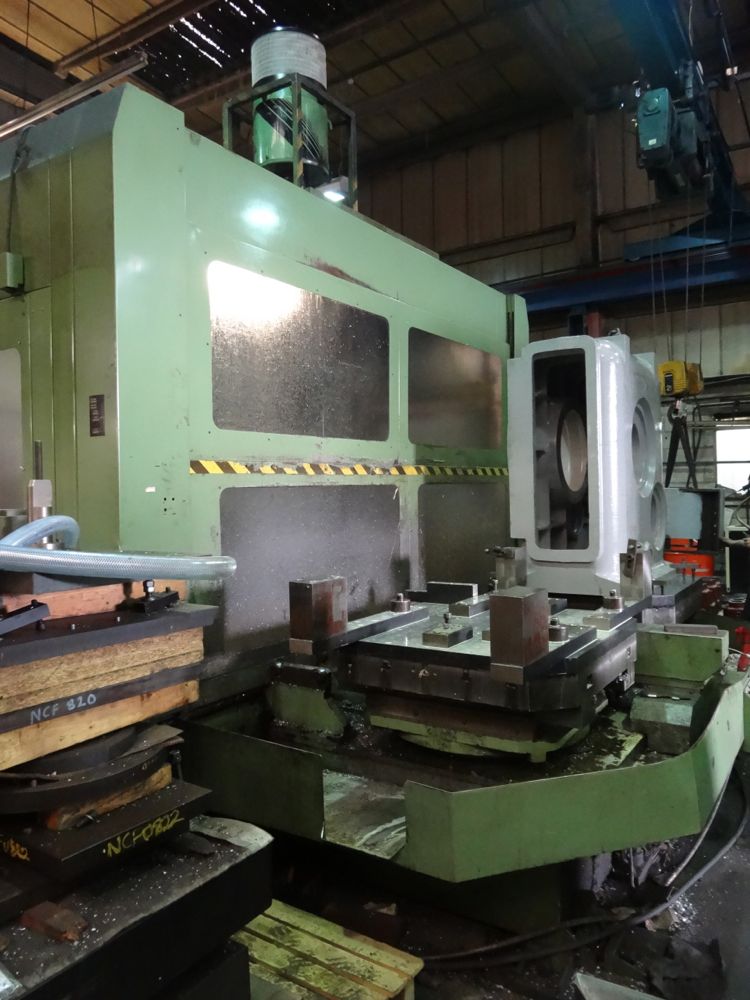

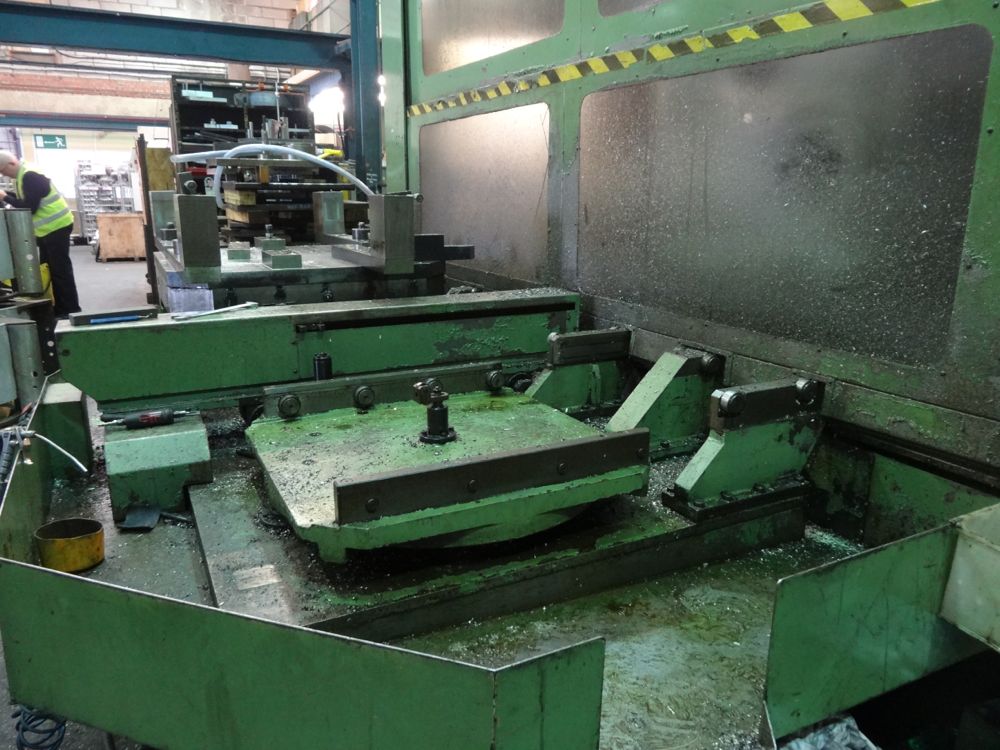

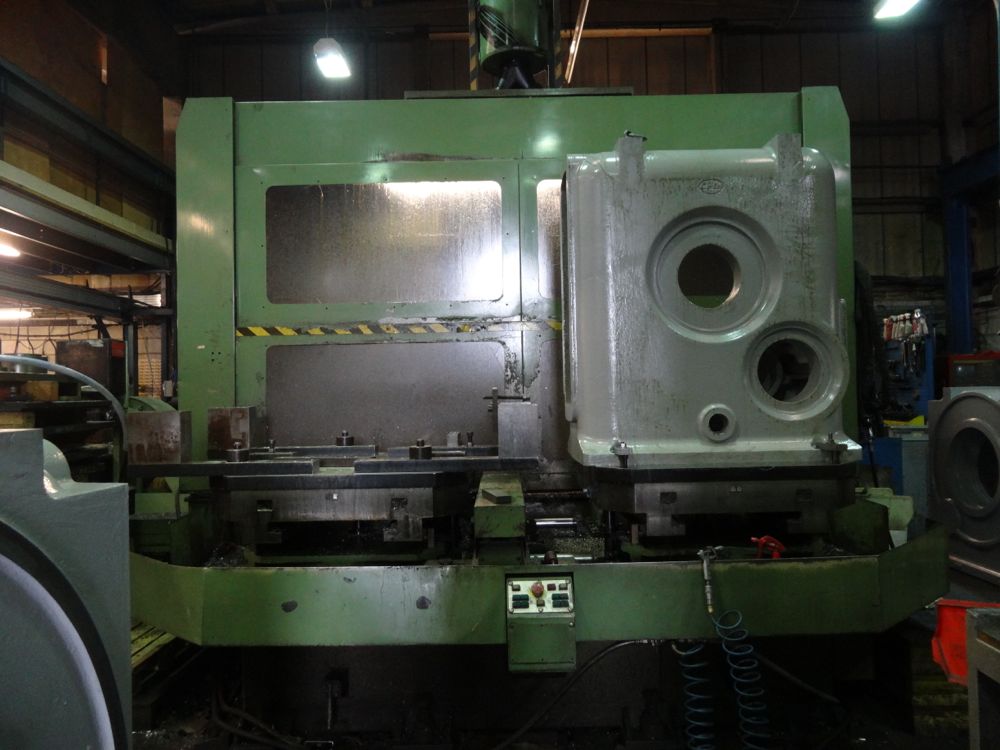

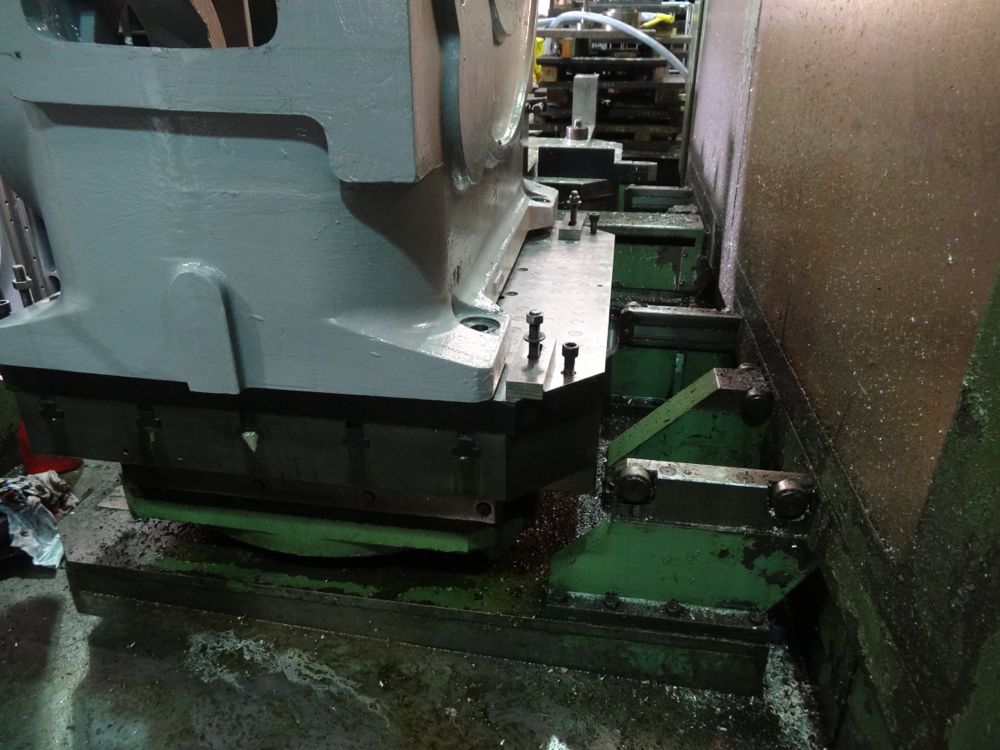

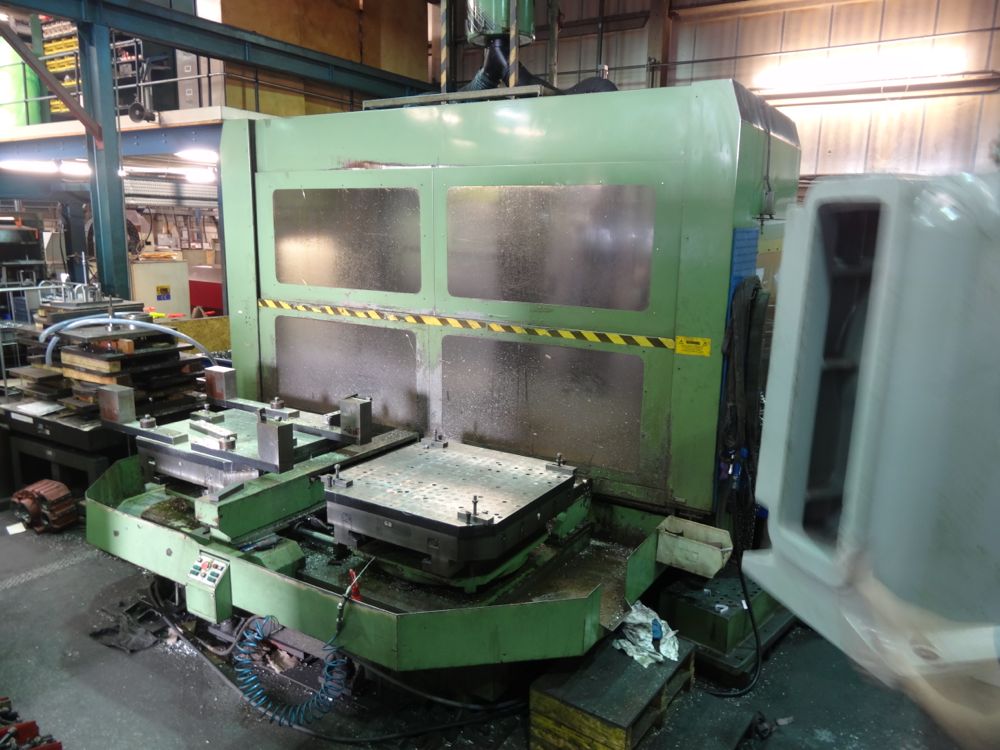

Number of pallets: 2
Indexing 1 Degree
Feed rate 4000mm per min
Length 5359.4 mm (211 in)
Width 7416.8 mm (292 in)
Height 3835.4 mm (151 in)
Weight 26315.8 kg (58000 lb)
Advanced information
Longitudinal travel X 1501.1 mm (59.1 in)
Transversal travel Y 1300.5 mm (51.2 in)
Vertical travel Z 1000.8 mm (39.4 in)
CNC

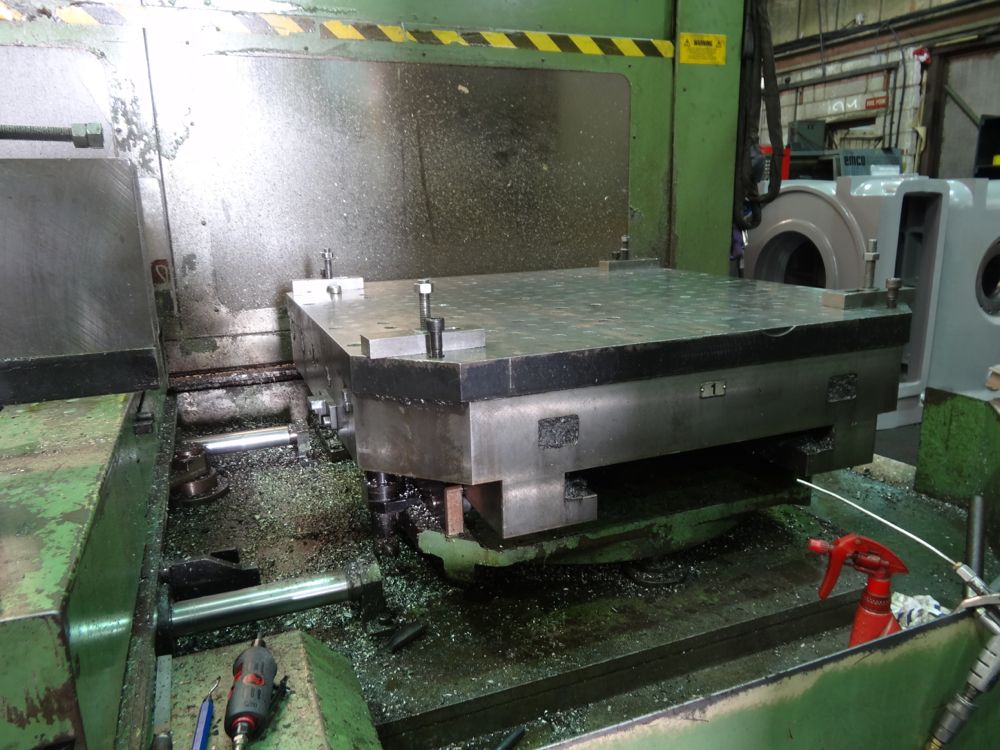

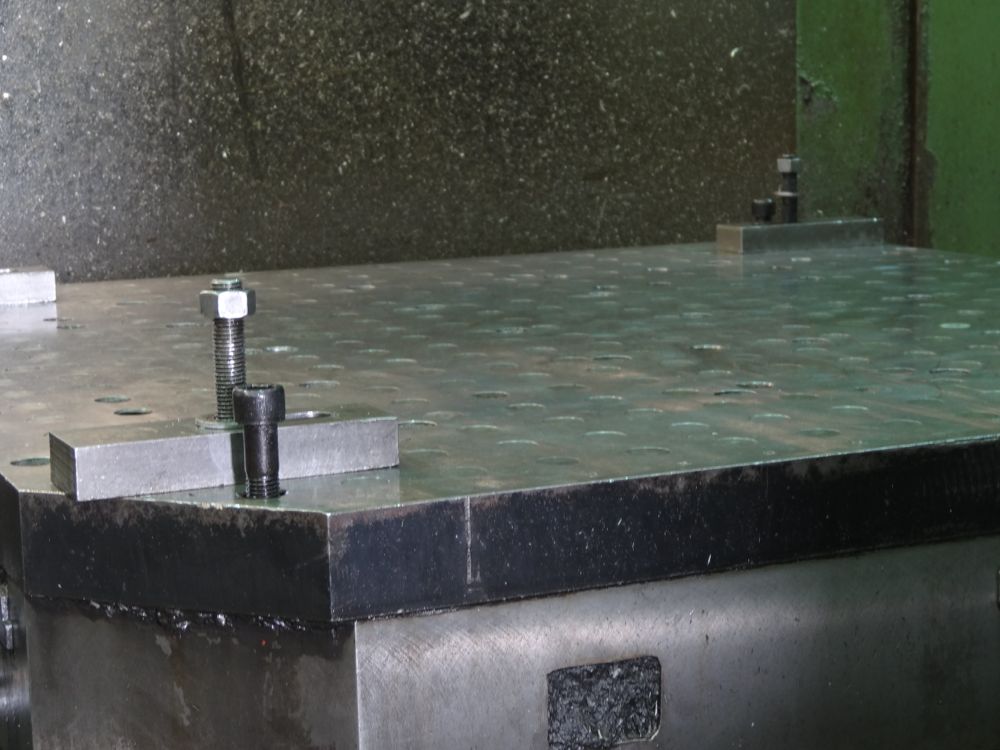

Table length 825.5 mm (32.5 in)
Table width 825.5 mm (32.5 in)
Max. part weight 2994.6 kg (6600 lb)

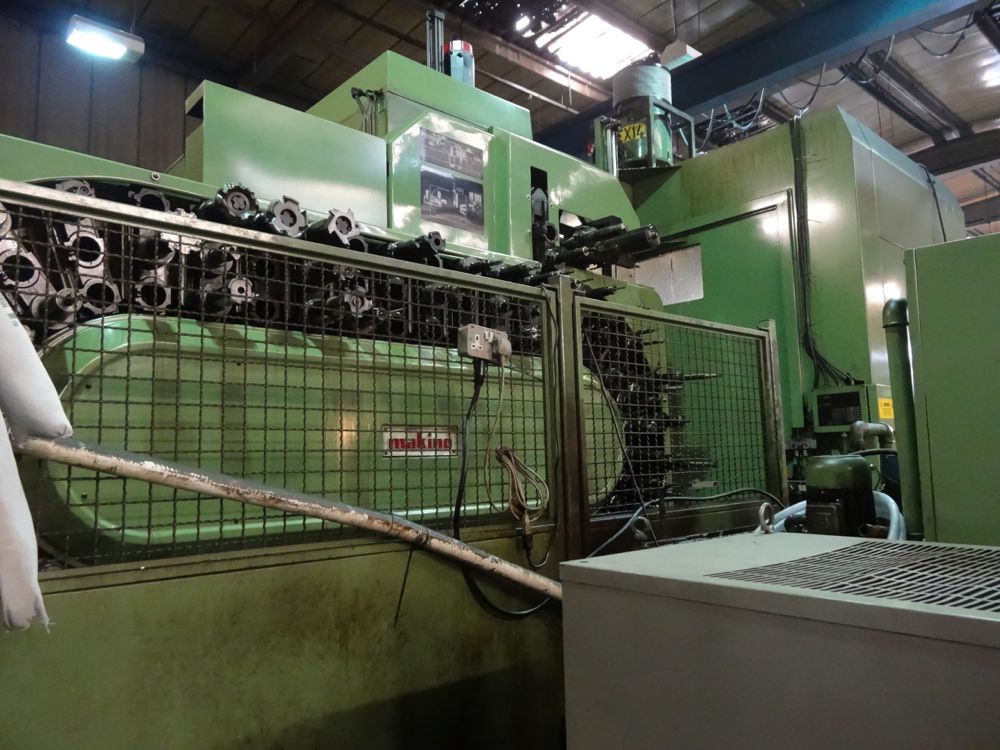

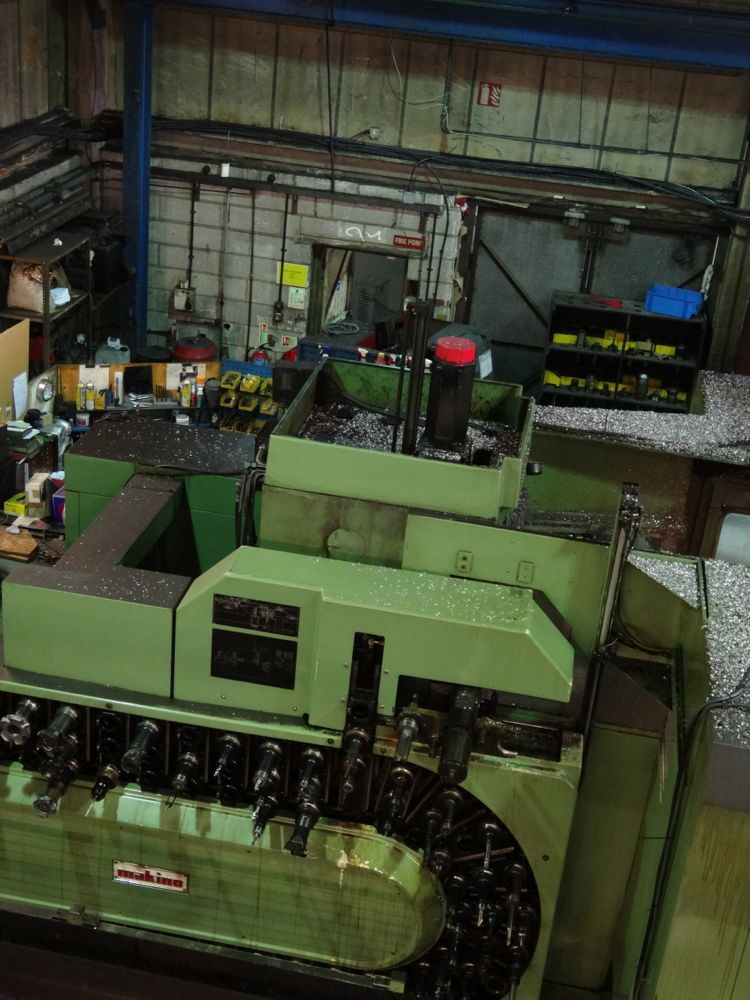

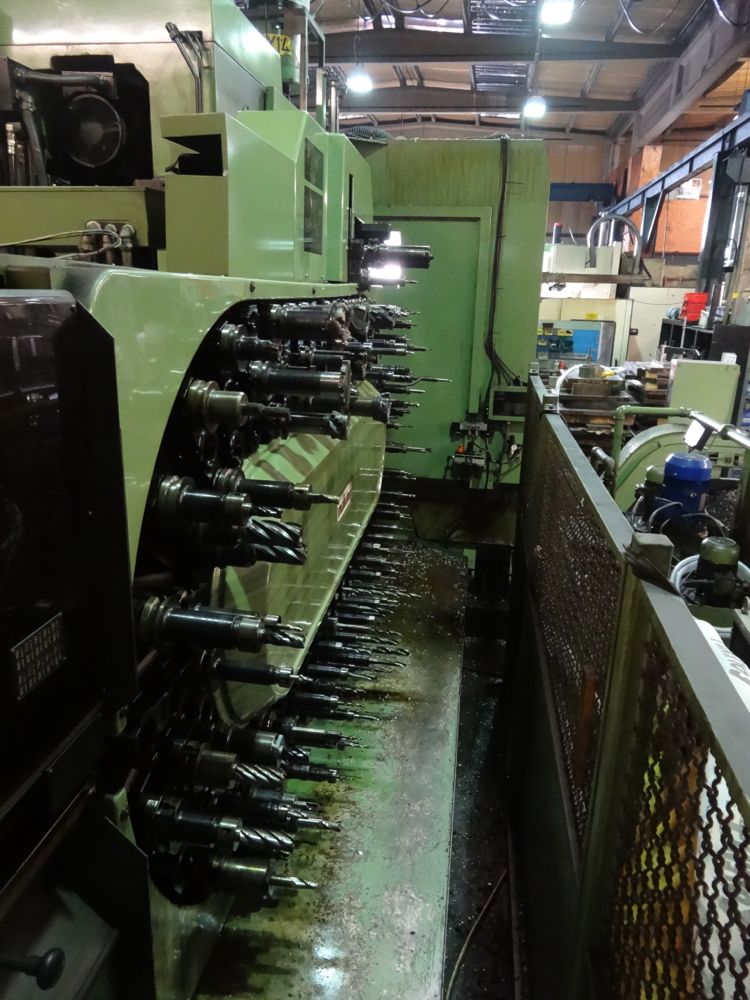

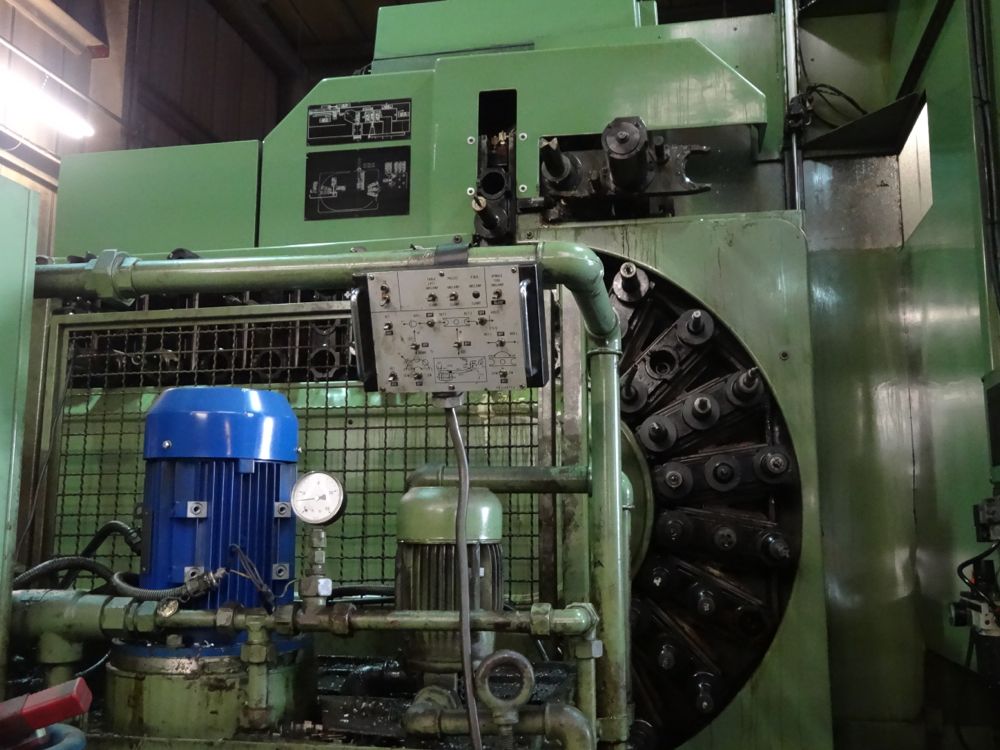

Automatic Tool Changer 120

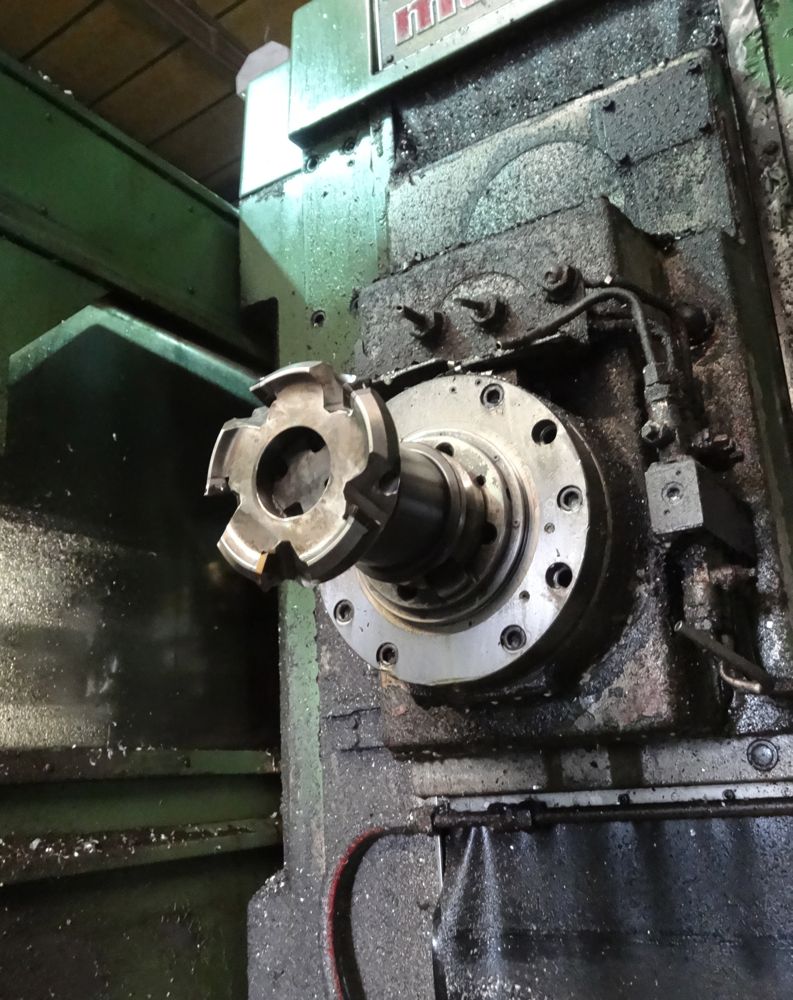

Spindle taper CAT 50
Max. spindle speed 4000 rpm
Spindle motor power 22.4 kW (30hp)

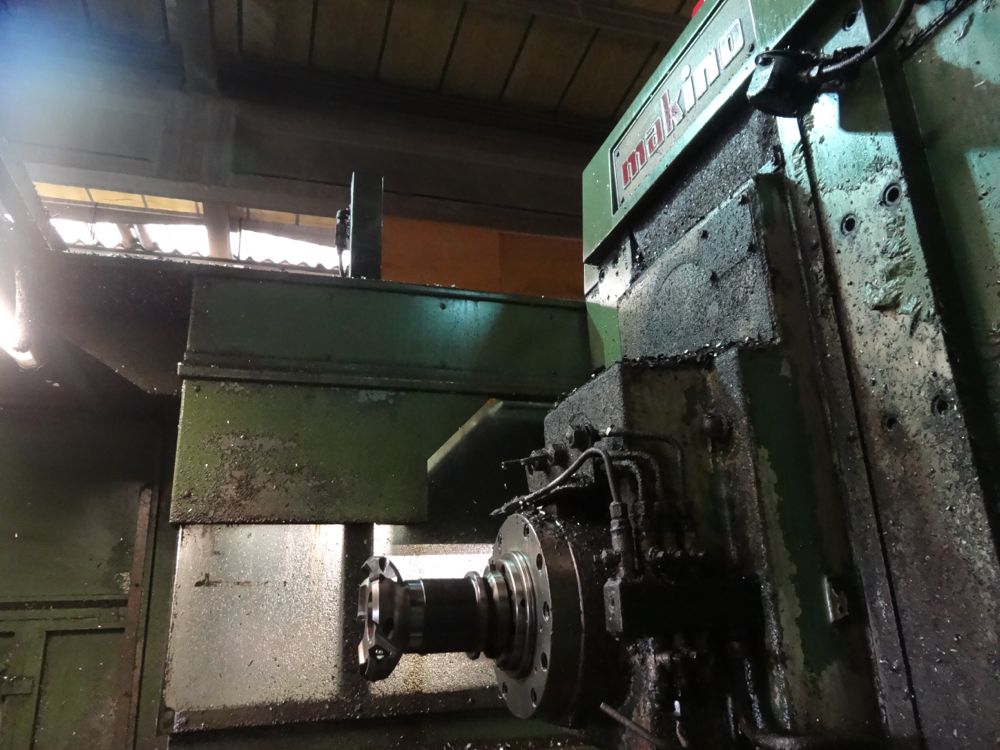

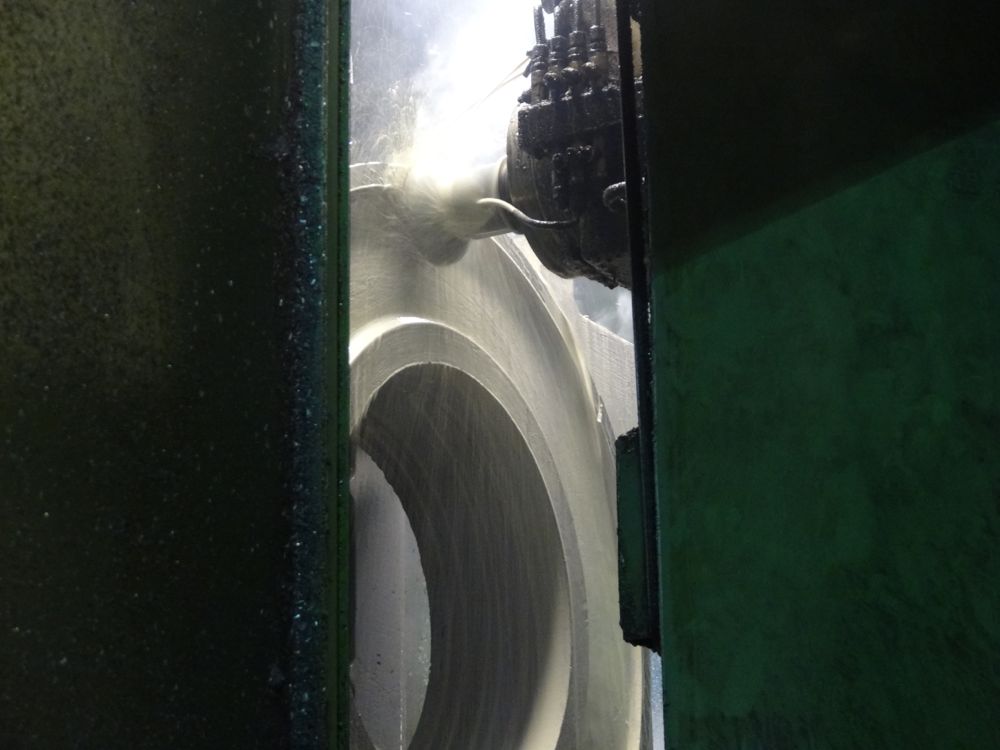

The Makino MC1513 Horizontal Machining Center is of heavy duty design. The high-speed spindle is powered by a heavy-duty 18.5 kW (25 HP) continuous use in full rotation range and 22 kW (30 HP) with 30 minutes rating brushless AC motor. The machine has rigid and sturdy construction. Patented half-floating slideways for X-axis table and Z-axis column movements assure movements free from load, cutting force variation and stick-slip, This enables the highest machining accuracy and the longest service life. The large pallet can accommodate workpieces weighing up to 3,000 kg (6,600 lbs). Heavy duty.
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
