Lot 3 - MAKINO Model MC86 - 630 CUBE Horizontal Machining Centre

Description:

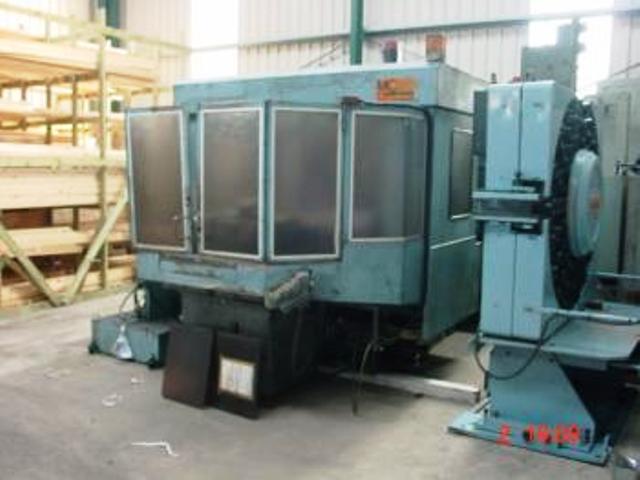

MAKINO Model MC86 - 630 CUBE Horizontal Machining Centre
Fanuc 15M Red cap motors

X-axis traverse: 810mm
Y-axis traverse: 635mm
Z-axis traverse: 635mm
B-axis: 360 position
Pallet Dimensions: 630x630mm
Spindle Taper: BT 50
Spindle Drive Motor: 15 kW AC – 3 speed gearbox
Spindle Speeds: 10 – 5,000 rpm
Rapid Feed Rate: 15,000 mm/min

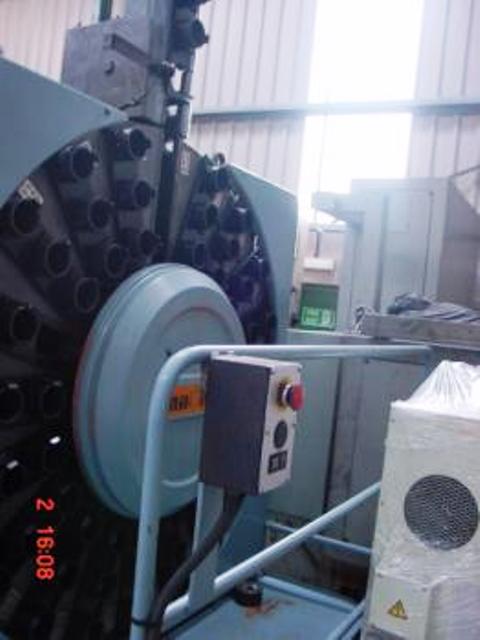

Toolchanger positions: 60
Maximum Tool Weight:23kg
Max. Tool Dimensions:300mm diameter x 450mm long
Manufactured 1990

Location Barwell - Leicestershire

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
