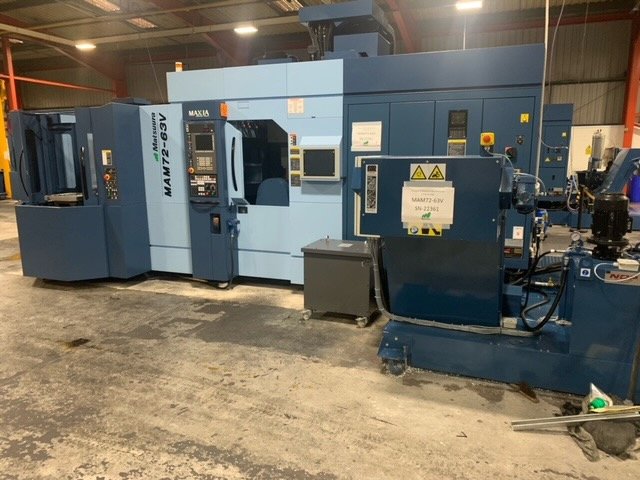

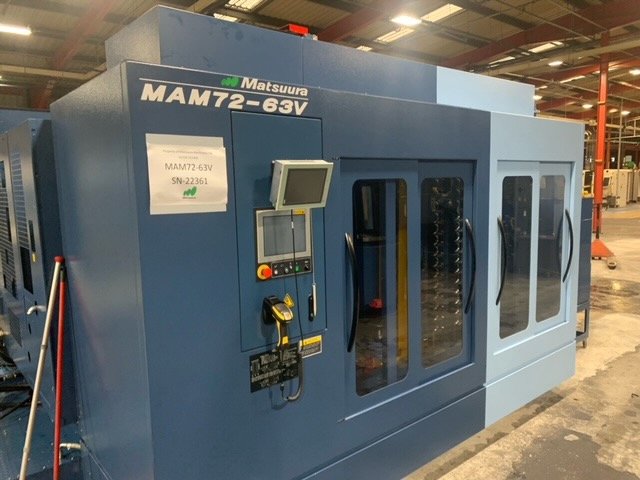

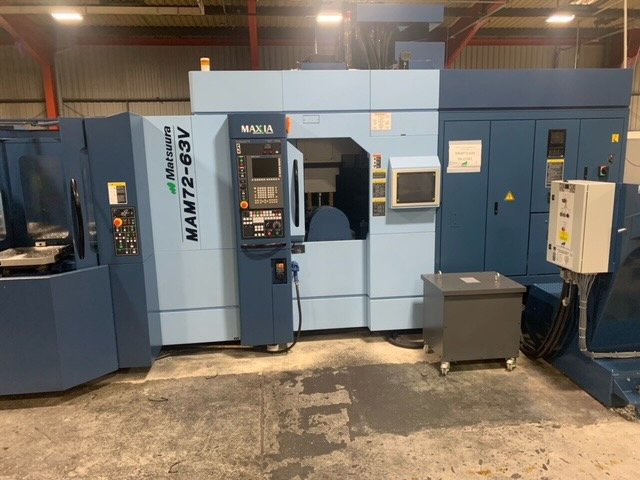

Lot 1 - Matsuura MAM72-63V/PV6 5 Axis CNC Machining Centre

Description:

MAM72-63V/PC6



Matsuura MAM72-63V / G-Tech 30i Control
Machine Movements: X, 760 mm / Y, 845 mm / Z, 660 mm
4th and 5th Axis Movements: A, +30° to -120° / C, 360°
10.4" LCD/Colour Screen / Work Light / Spindle Oil Cooler
Scale Feedback on A/C Axis / Spindle Overload Protection
Twin Internal Spiral Screw Conveyors / Synchronised Tapping Function
Chip Flush System / Ethernet Interface / NC Memory 0.5 Mb
Helical Interpolation / Skip Function, G31 / Macro Program, G65

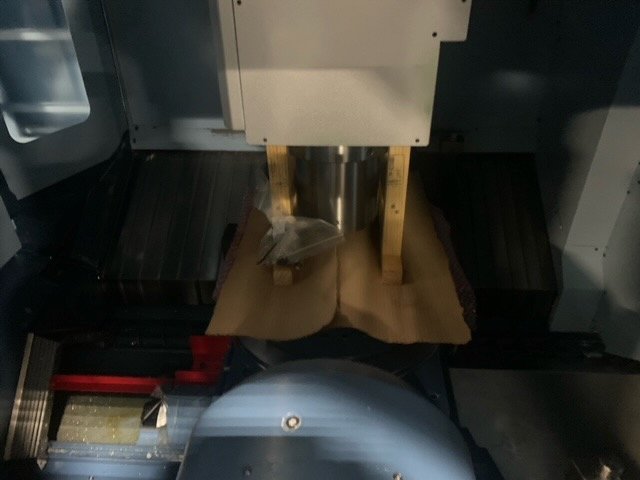

- 20,000 rpm, BT40, Big Plus Spindle (Oil-Air Lubrication) – Direct Drive
- Weekly Timer

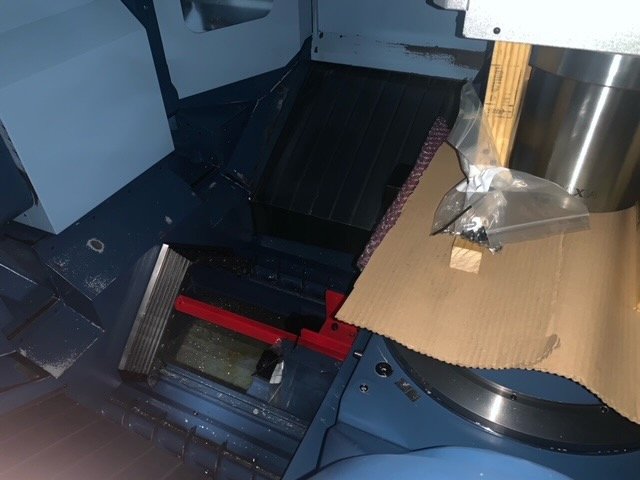

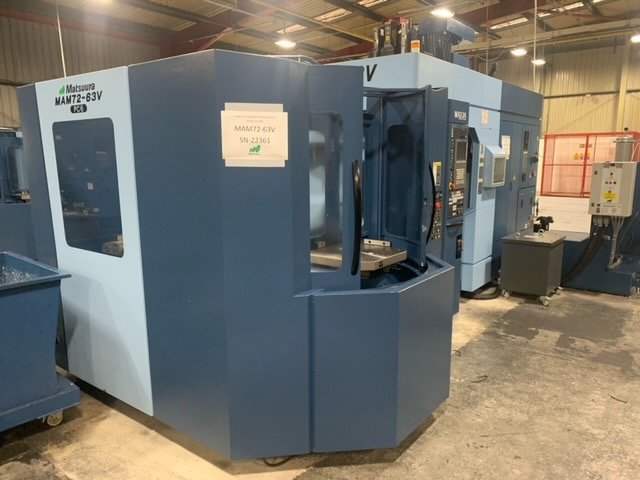

- Six Pallet Changer including 6 off Pallets and Load/Unload Area
- 500 mm x 500 mm Pallets having a 350 kg Load Capacity
- 630 mm Diameter x 450 mm High Workpiece Size
- 120 Tools on an Expandable 240 ATC Magazine Base (Rack Type)
- Linear Scales on X/Y/Z Axis
- Spindle Load Monitoring Function

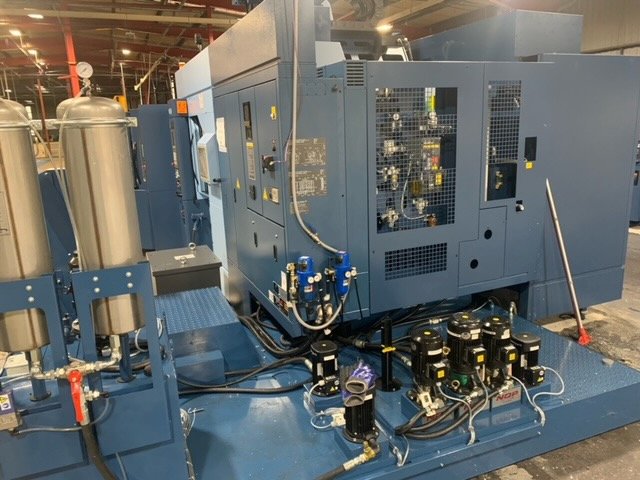

- 70 Bar Through the Spindle Coolant (Duplex Filtration)
- Drum Filtration Swarf Management System incl’ Lift-up Conveyor and Chip Bin
- Wash Gun

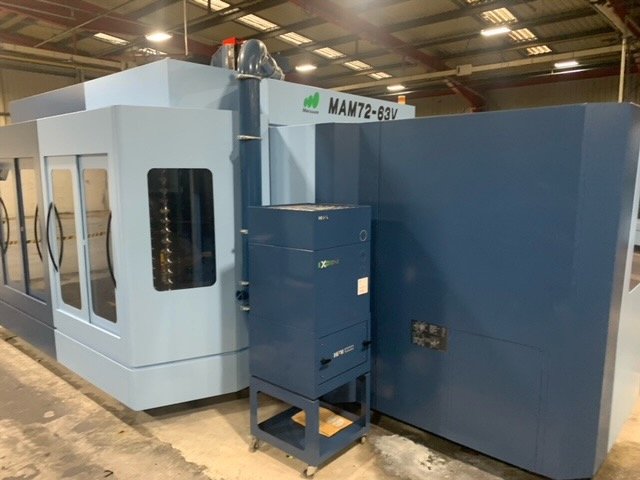

- EXO MIST HPM100 Mist Extraction Unit including Ducting
- Renishaw RMP600 Spindle Probe
- Renishaw NC4 Laser Tool Detection Probe
- High Speed Machining and 5 Axis Software Package:
- IZ-2/150NF including AI Contour Control-II
- Large Memory Function, 1GB Data Server
- NANO Smoothing Software / Optimal Torque Acceleration/Deceleration
- Tilted Work Plane Command / Work Set-up Error Compensation, G54.4
- Inverse Time Feed, G93 / Tool Centre Point for 5 Axis Cutting, G43.4/G49
- 3D Cutter Compensation, G41.2/G41.2/G41.3
- Tool Posture Control by Tool Centre Point Control



*61

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

DAYHRSMIN
771656

04 Jul 2024 15:00:00 BST

Opening bid: £250000

Bids: 0



Your Bid:

£


Minimum increment: £150

Autobid:

£

Final remove by date: 18/Jul/2024

Transport information

  • Other Transport Details: Please note this machine has already been decommissioned and prepared for transport - A charge of £2,000 will automatically be aded to the purchasers invoice which will cover the reloading onto transport
