Lot 1 - Matchmaker VMC 1100 (2007) - Fanuc Control With Nikke 4th Axis

Description:

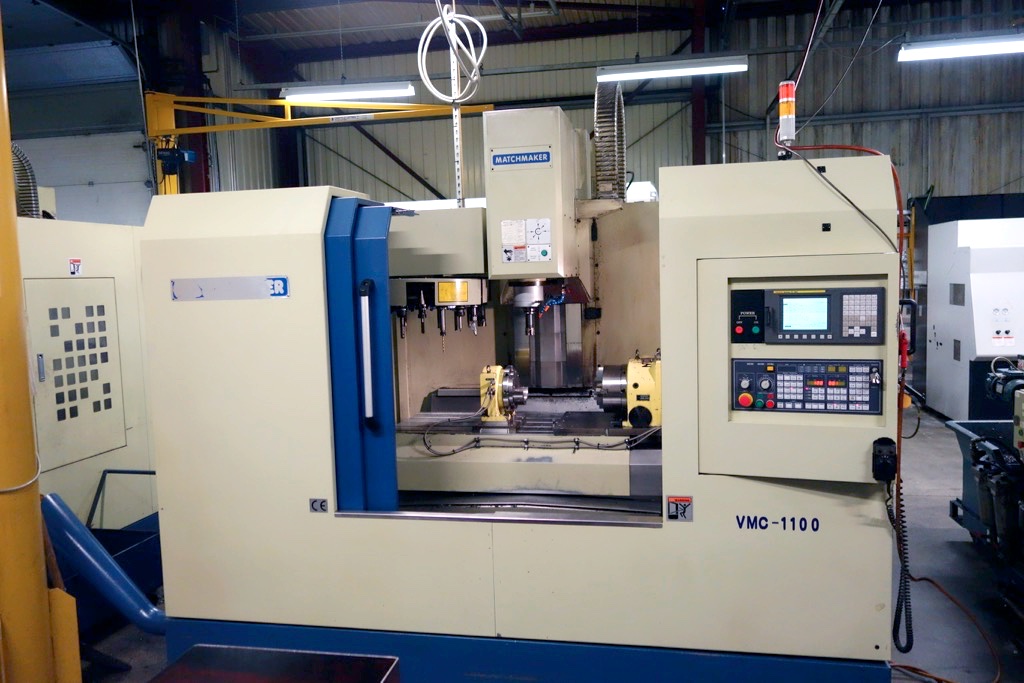

Matchmaker VMC 1100 (2007) - Fanuc Control

X-AXIS 1100
Y-AXIS 550
Z-AXIS 600

SPINDLE NOSE TO TABLE 200-800

TABLE
SIZE-1300X520

T-SLOTS 18mmX5

SPINDLE SPEED 10,000 RPM
SPINDLE TAPER BT40

20 TOOLS
MAX TOOL DIA 100mm
MAX TOOL LENTH 250mm

CONTROL

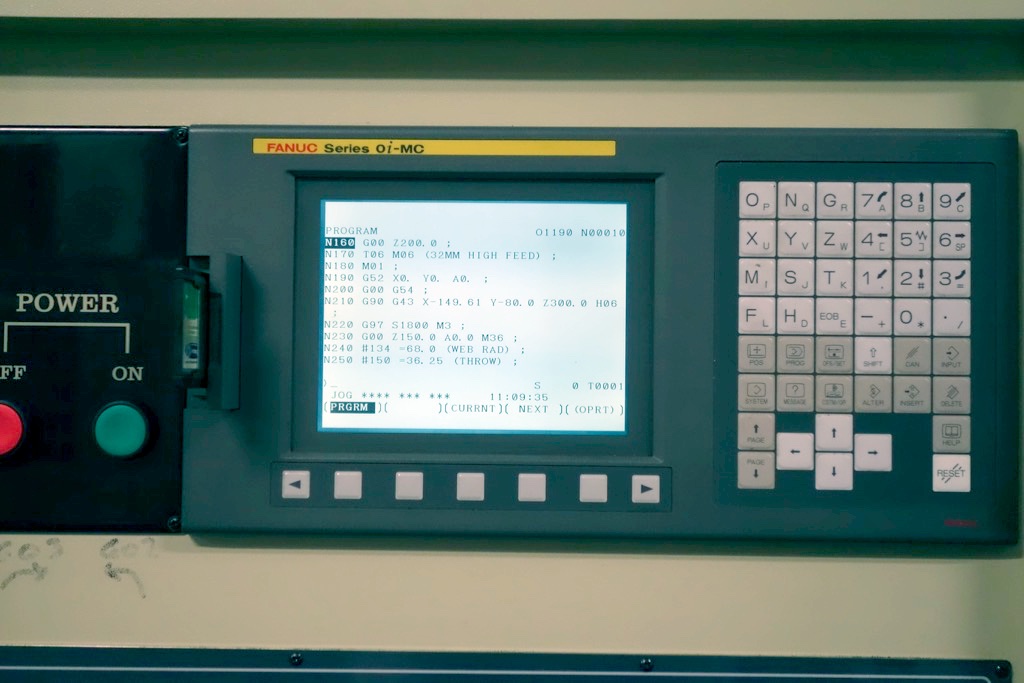

FANUC SERIES Oi-MC

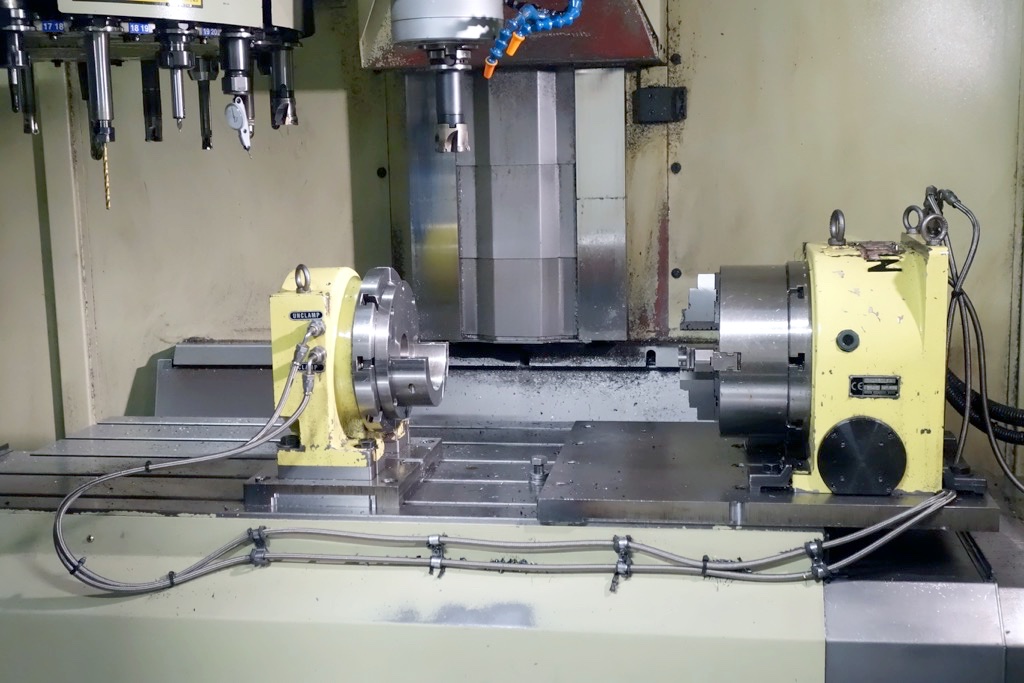

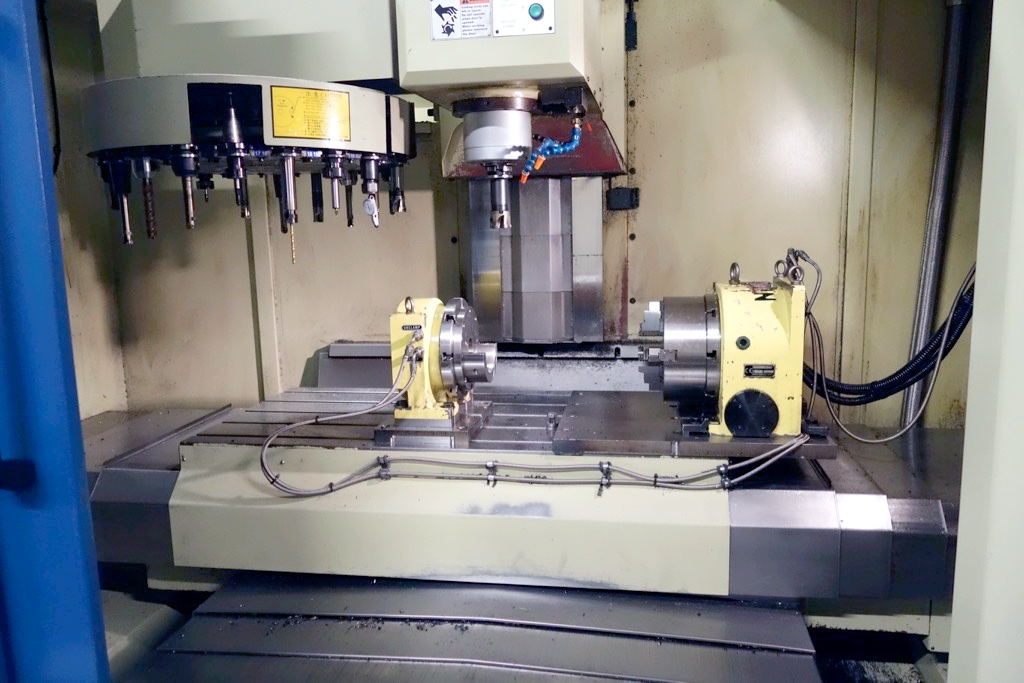

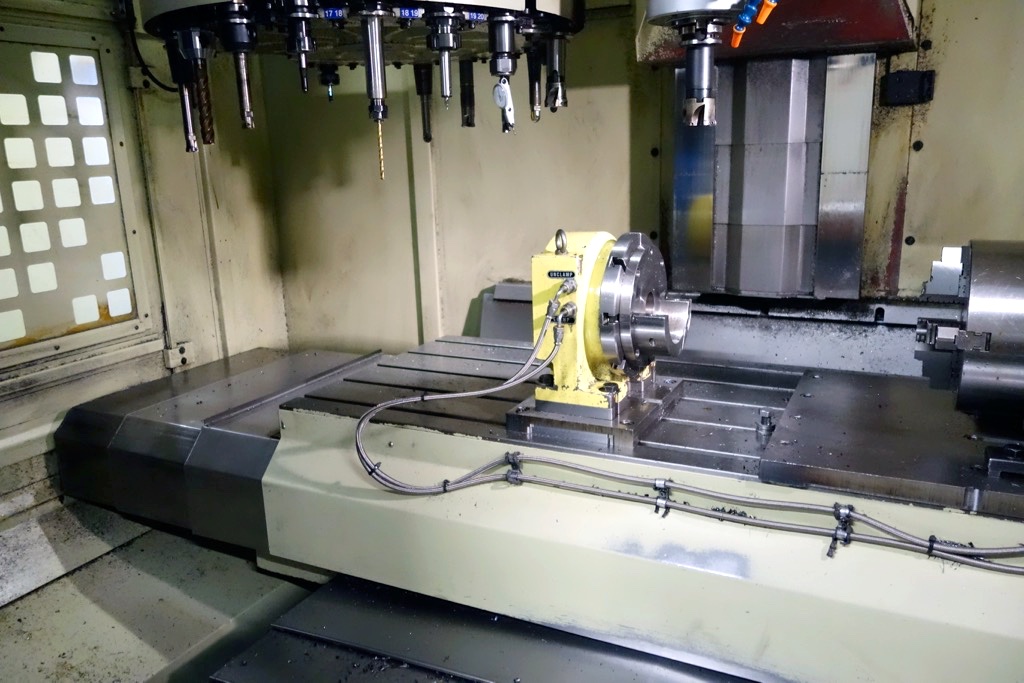

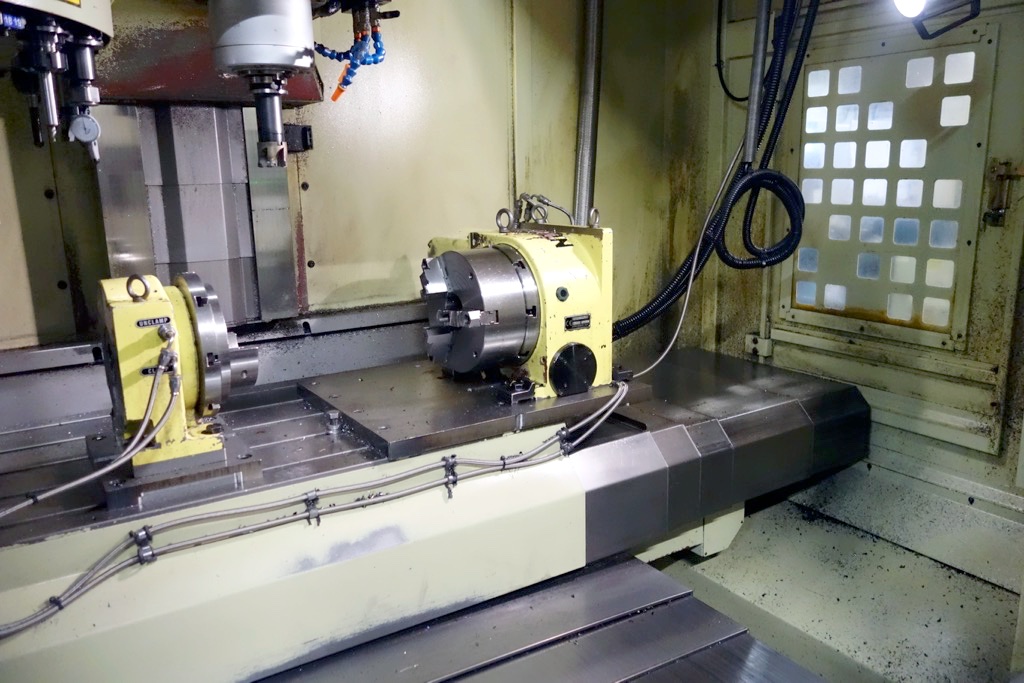

4th AXIS-NIKKEN CNC 260LFA

Matchmaker is approx 3.0M Long x 2.2M Wide x 2.6M High Weights 6000-7000kg
Installed (2007)
Please note: Toolholder may not be included. (No Cutting Tools are included)

Location: Hinckley, Leicestershire

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport
