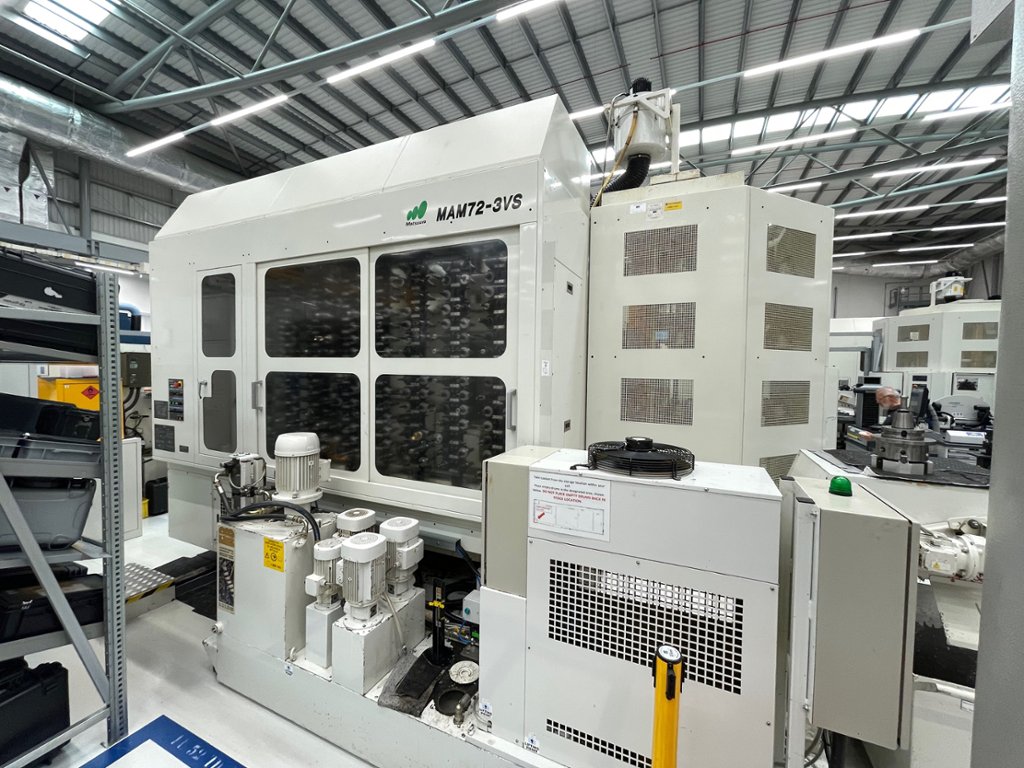

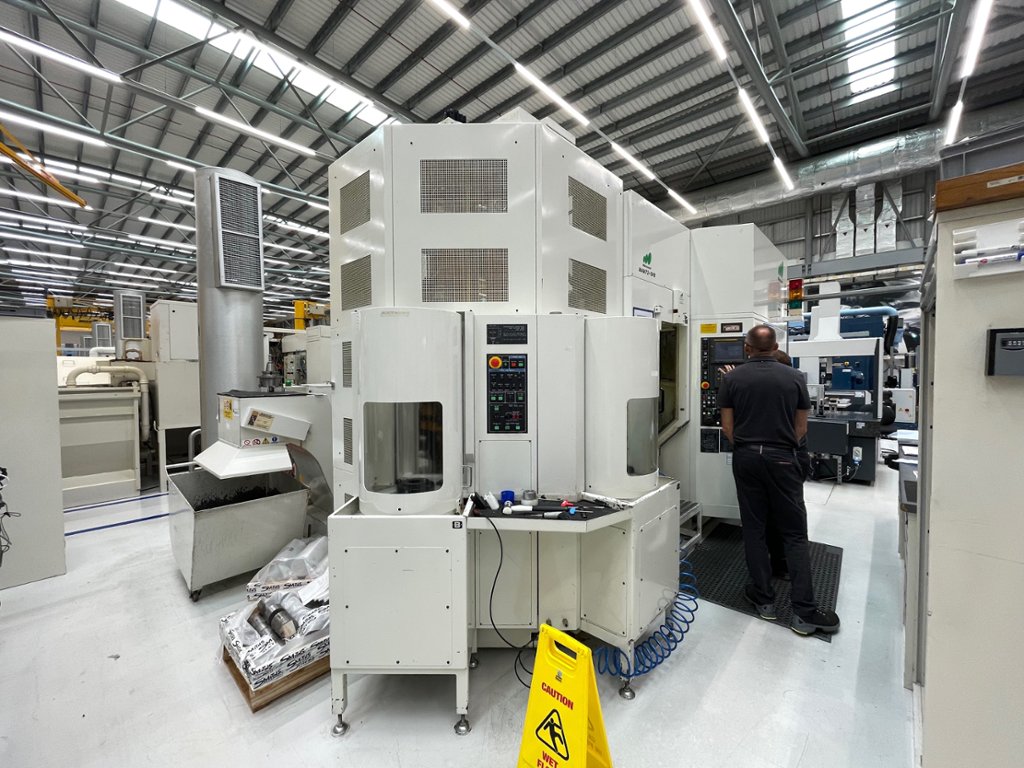

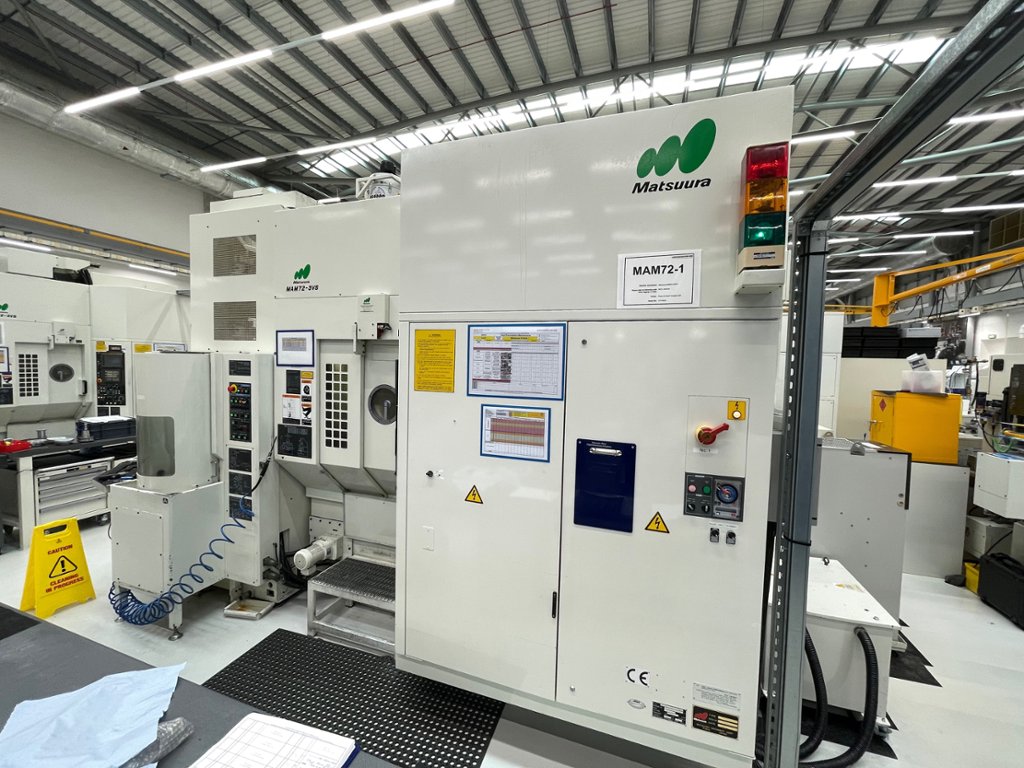

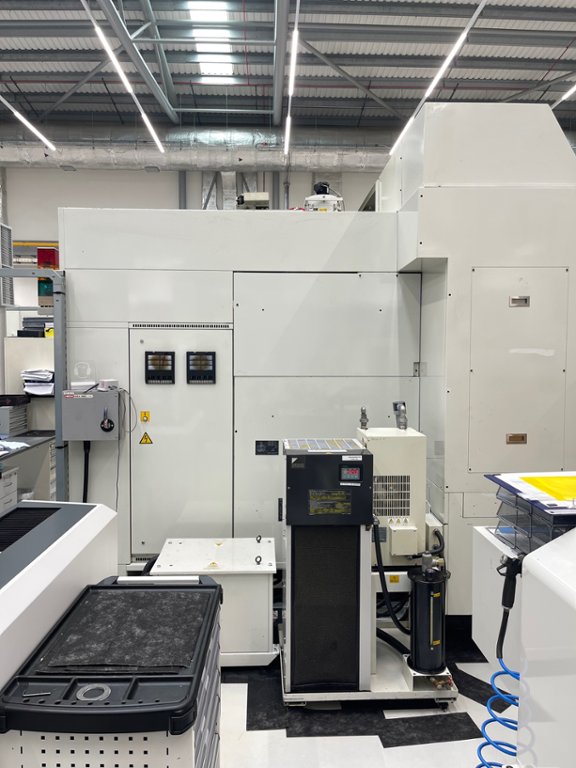

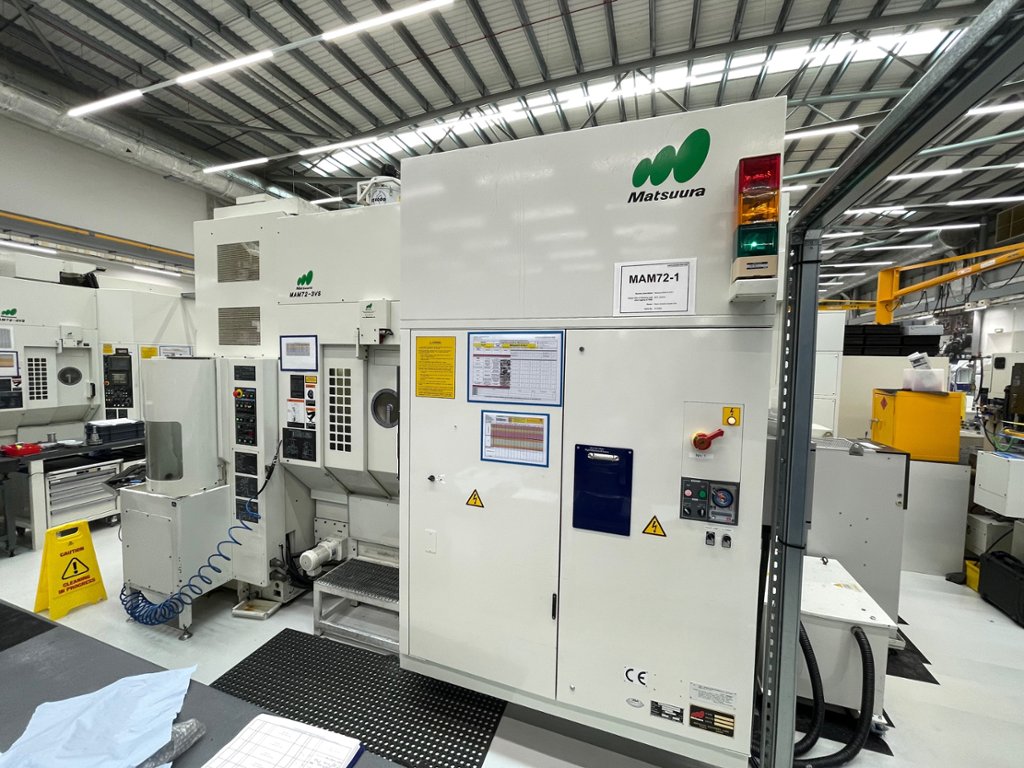

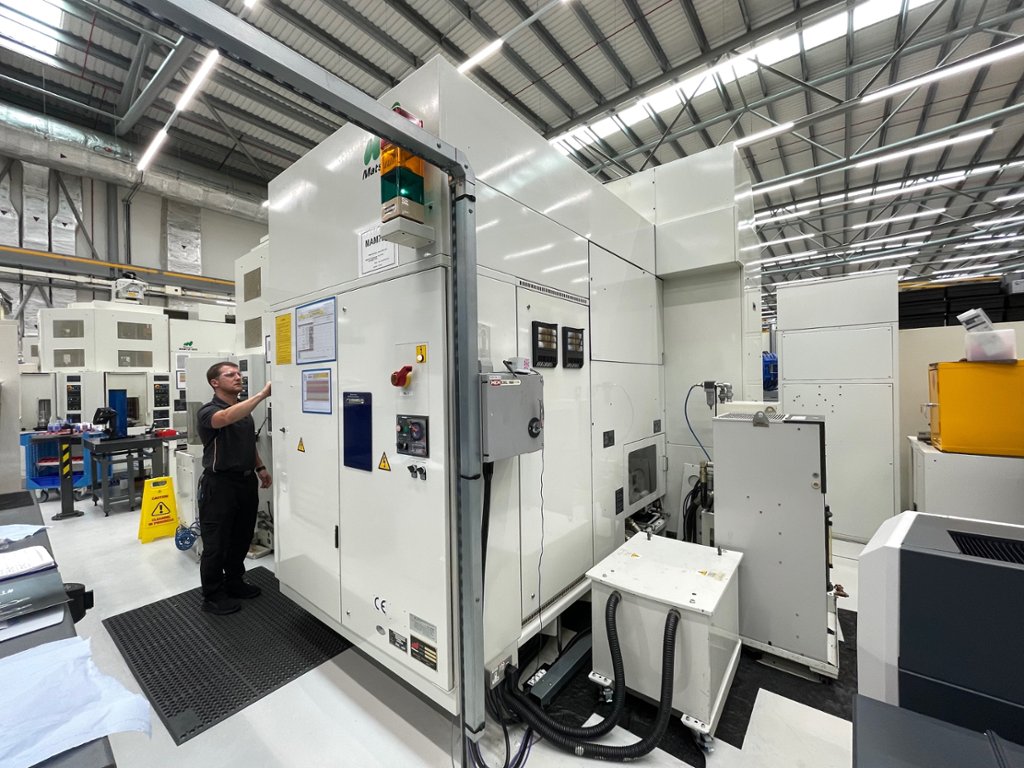

Lot 1 - Matsuura 72-3VS 5 Axis Machining Centre
Description:

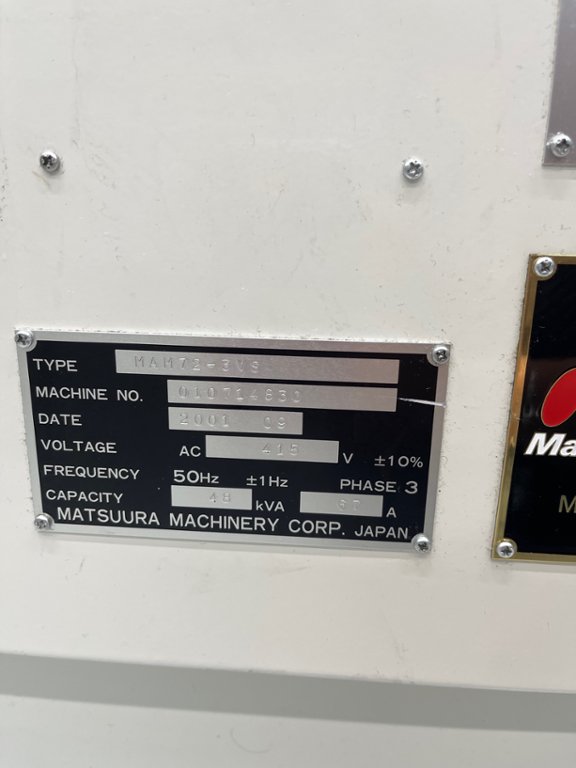

Year of Manufacture 2001

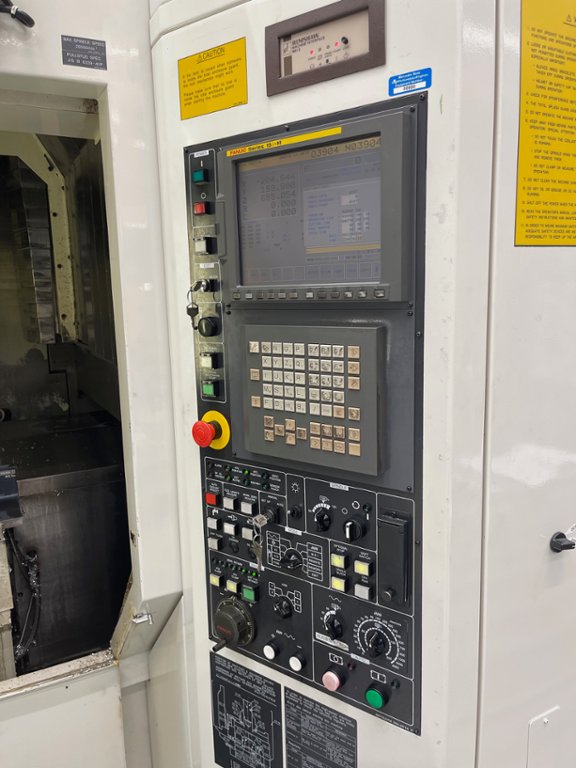

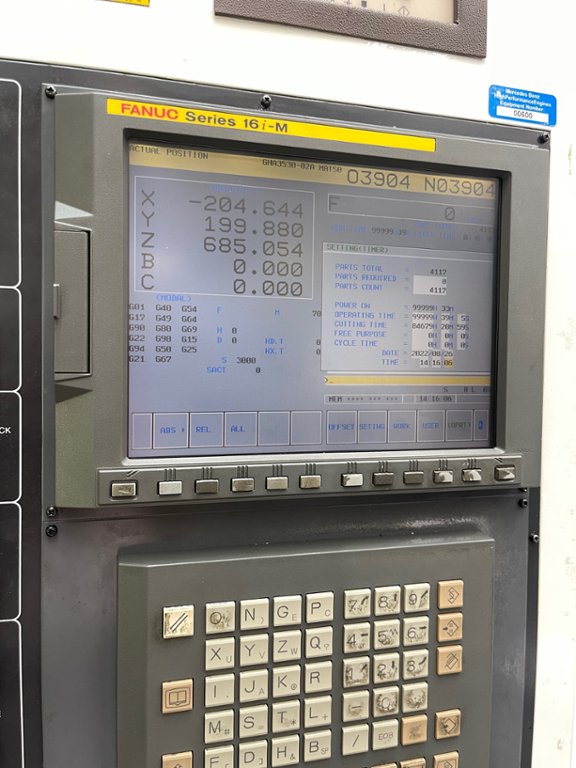

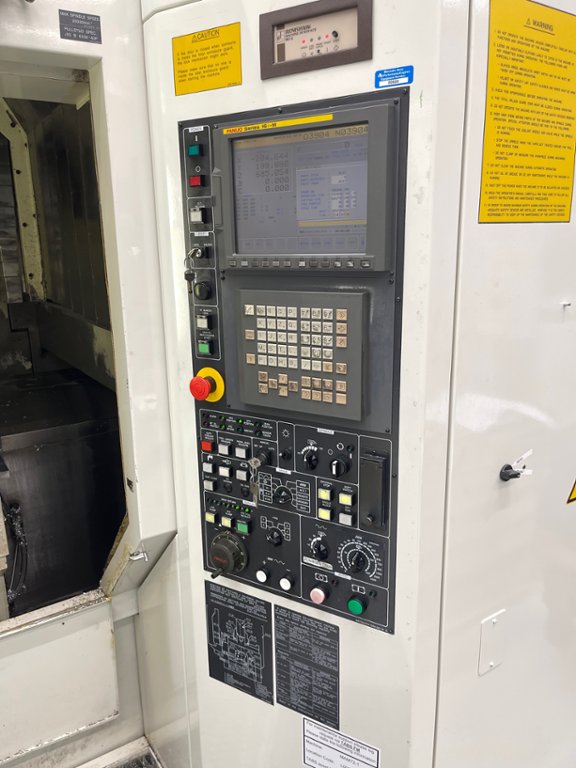

Fanuc 16i-M Control

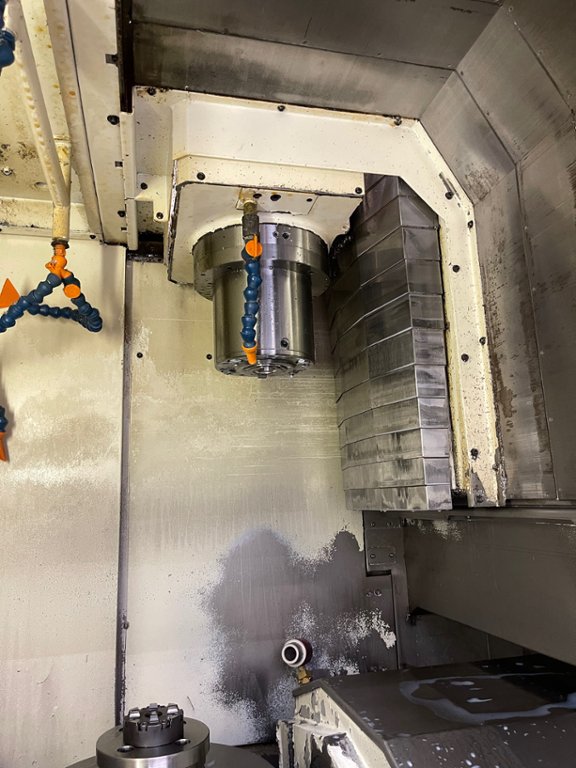

20,000rpm BT40 Spindle
240 Tool ATC

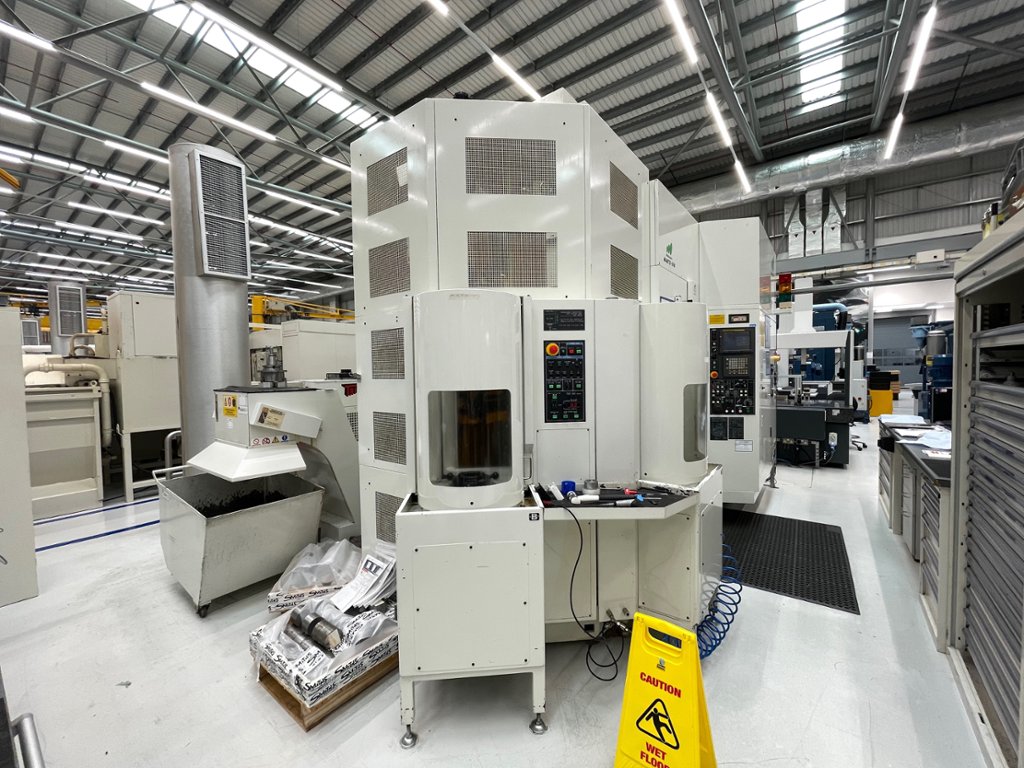

38 Pallet APC

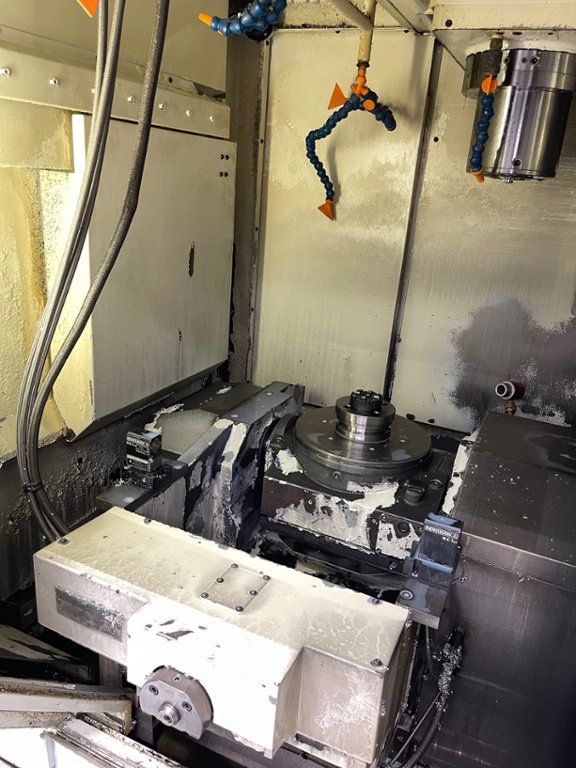

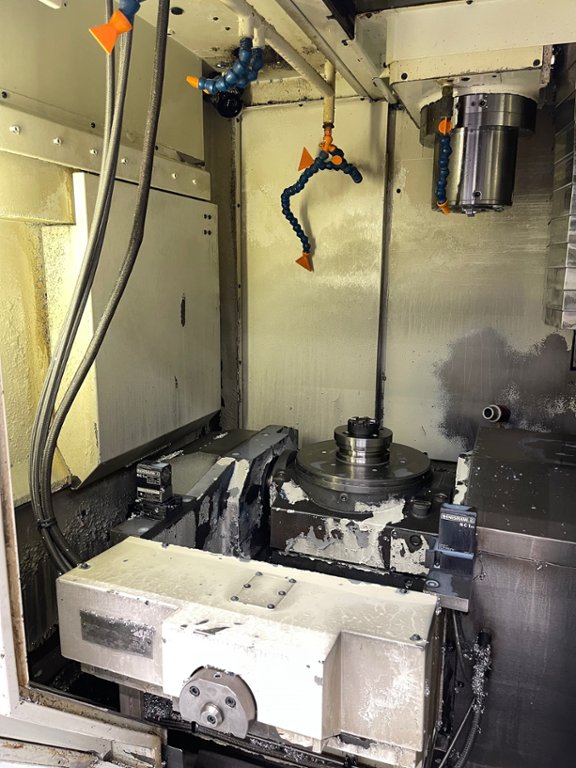

Travels are as follows, X=680mm, Y=400mm, Z=625mm, B=+65 to -110 Deg, C=360 Deg
Max workpiece size 300mm Dia, 250mm Height, 60Kg
Spindle run hours are currently shown as 84800.
Probe is Renishaw OPM60
Tool Break Detect is Renishaw NC1
Machine has through tool coolant
Recently it has had the ATC X-Axis drive end bearings replaced.
TOOLING IN PHOTOS NOT INCLUDED
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
29 Sep 2022 15:30:00 BST
Location: Northamptonshire
Transport information
- Other Transport Details: Loading Charge : £1500 This charge will automatically be added to the purchasers invoice. No other loading companies will be allowed on site
