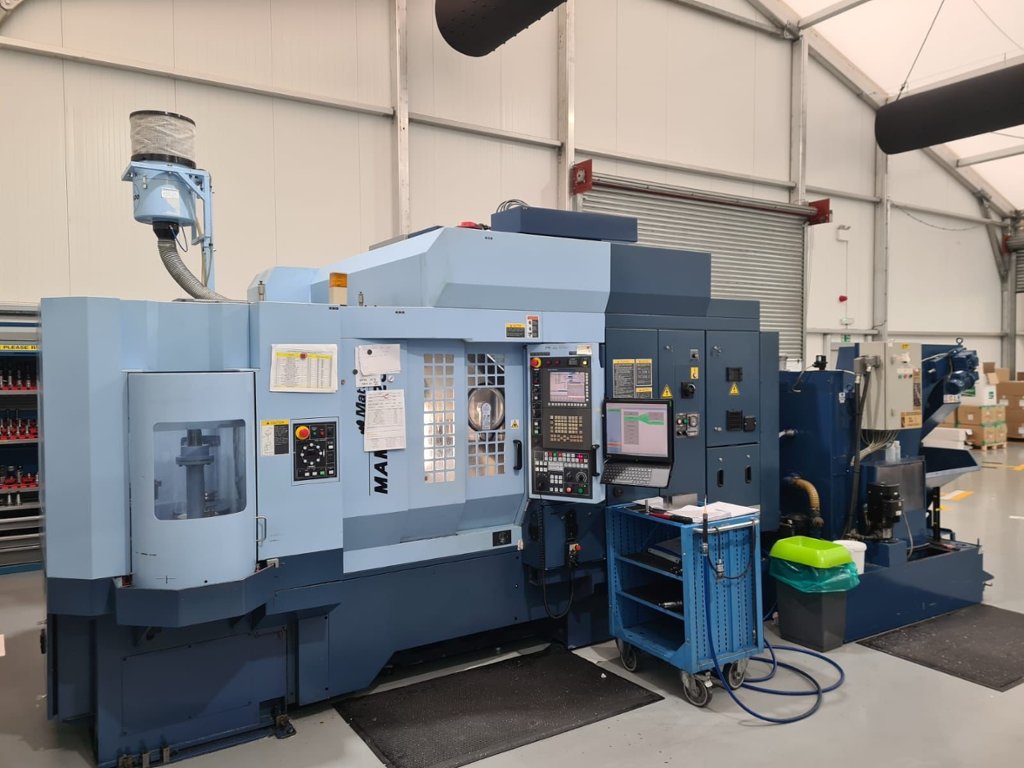

Matsuura MAM72 -25V 5 Axis Machining Centre (2004)

Lot 1 - Matsuura MAM72 -25V 5 Axis Machining Centre (2004)

Description:

MATSUURA MAM-72-25V / G-TECH 30i Control
10.4” (LCD/Colour Screen)
5 Axis Unit including Inductosyn Scale Feedback
to the ‘B’ & ‘C’ Axes
250mm Diameter x 250mm High Workpiece Size
Travels 550mm X Axis, 410mm Y Axis, 450mm Z Axis
Rapid Feedrate 50m/min X, Y, Z, & C
Rapid Feedrate 30m/min B
1.2 Seconds, Tool to Tool
Advanced Zee Lag (F) Including AI Control (IZ1/15F)
High Feedrate Control Software
Chip Flush System
Spindle Air Purge, Spindle Oil Cooler, Work Light
Macro Program & Skip Function
Helical Interpolation
ATC Auto Door
Synchronised Tapping
9 Sets of “M” Code Part Counters
- 20,000rpm, BT40 Oil Air Spindle, “Big Plus”
- Weekly Timer

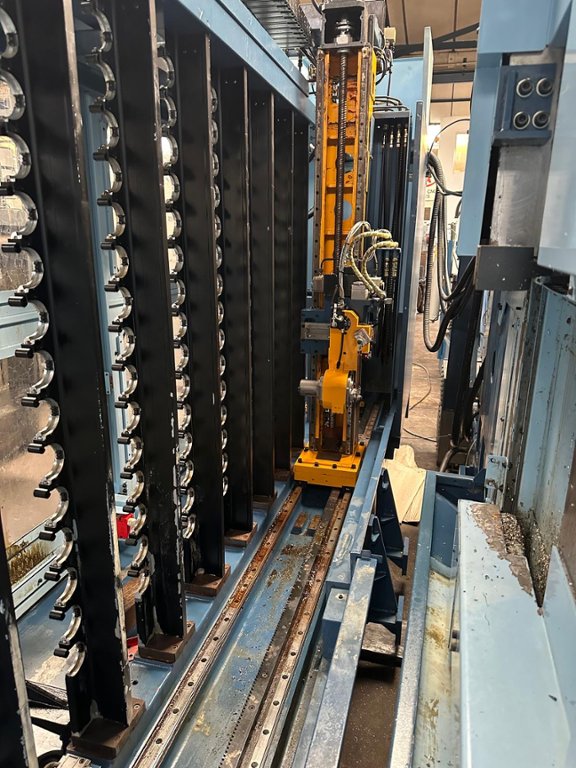

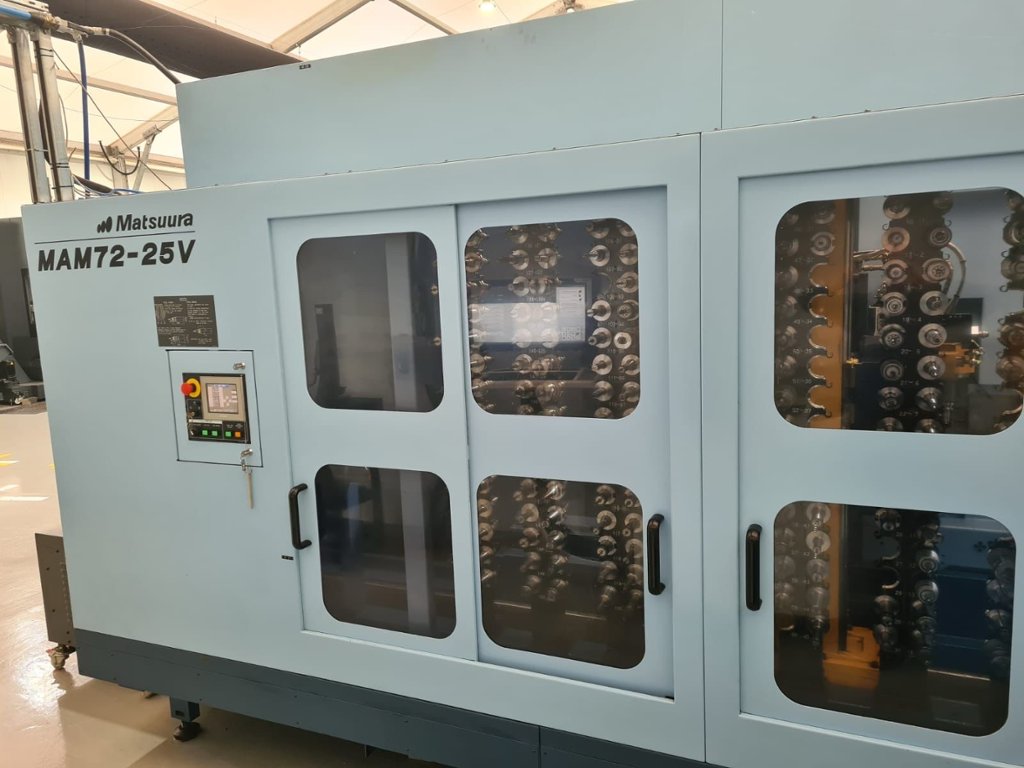

- 240 Tools on expandable 240 ATC Magazine

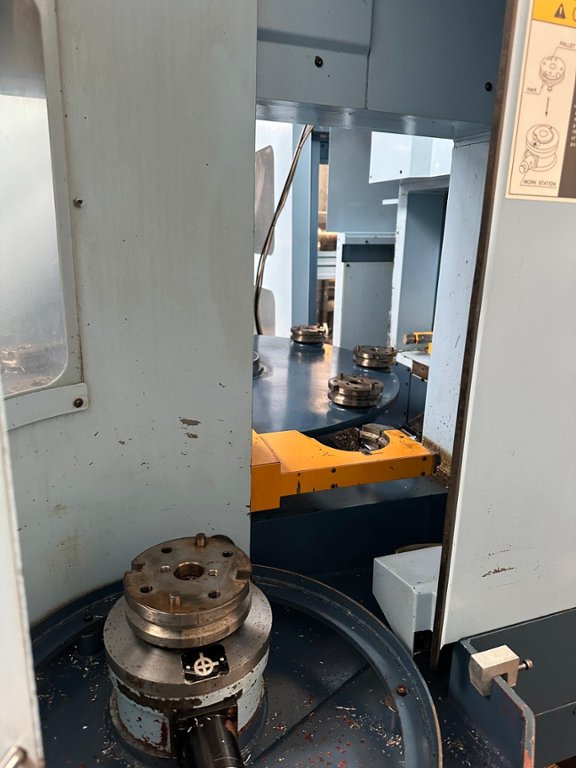

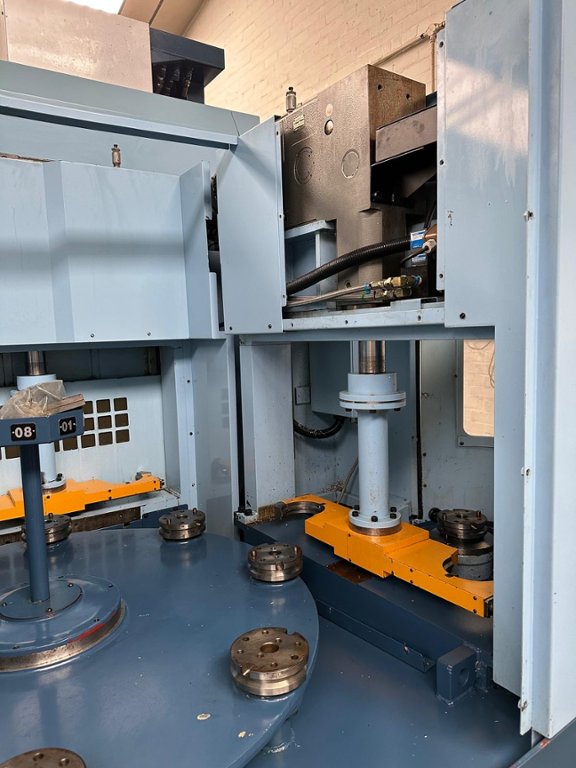

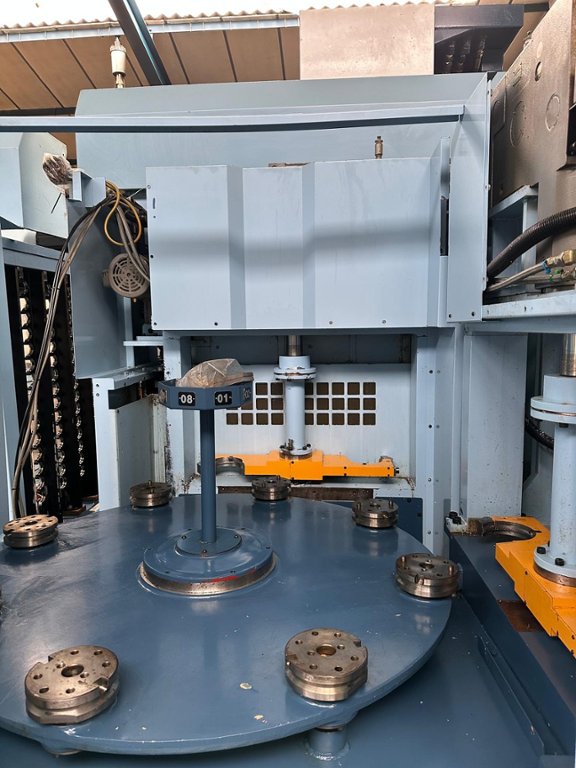

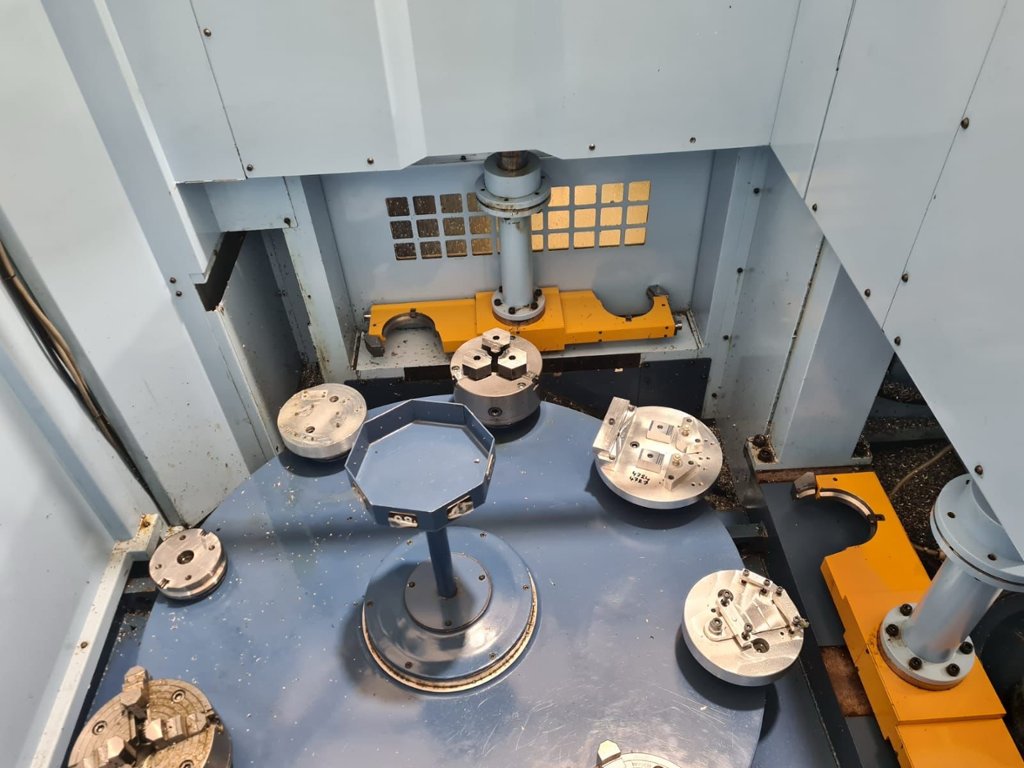

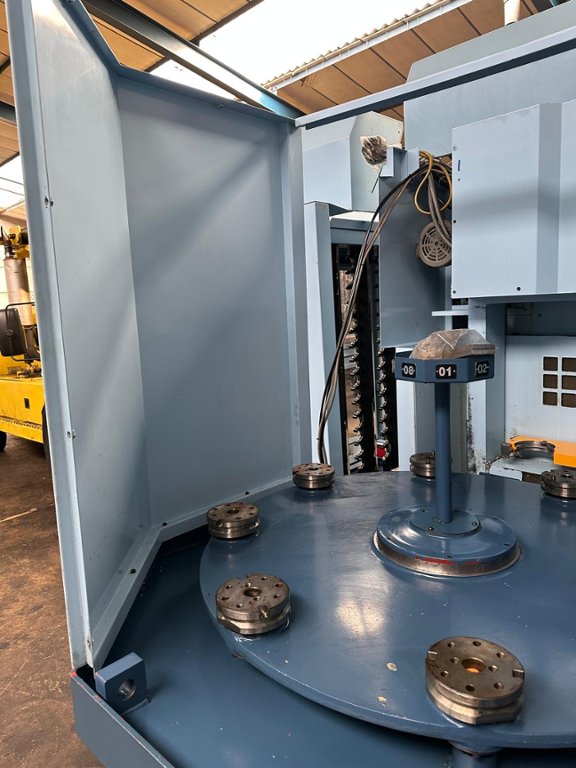

- PC10 Pallet Changer including Pallets
- Inductosyn Scale Feedback to the ‘X’ ‘Y’ & ‘Z’ Axes
- Rotary Wiper (Spin Window Electric Supply)
- 5120 Metres Memory Capacity
- Tool Offset Memory C (H & D Split)
- Auto Grease Supply Unit to the ‘X’ ‘Y’ & ‘Z’ Axes
- Additional Work Offsets “G54.1” (48 sets)
- Additional Tool Offsets 400 Pairs
- Inverse Time Feed G93
- Data Server Function 192 MB Large Memory
- IZ2/150NF including HPCC RISC
- Look Ahead Block expansion 1000pcs
- NANO Smoothing
- Optional Torque Accel / Decel
- Tool Diameter Offset for 5 Axis Cutting “G41.5 / G42.5”
- Inclined Plane Cutting Command “G53.1 / G68.2 / G69”
- Tool Centre Point for 5 Axis Cutting “G43.5 / G49”
- Rotary Table Dynamic Fixture Offset “G54.2”
- Renishaw NC1” Laser Tool Length Measure Probe
- Drum Filtration Swarf Management System and Chip Bin
- 20 Bar High Pressure Coolant through the Spindle
-

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
