Lot 1 - Matsuura MAM72-63V/PC6 5 Axis CNC Machining Centre - (2009)
Description:

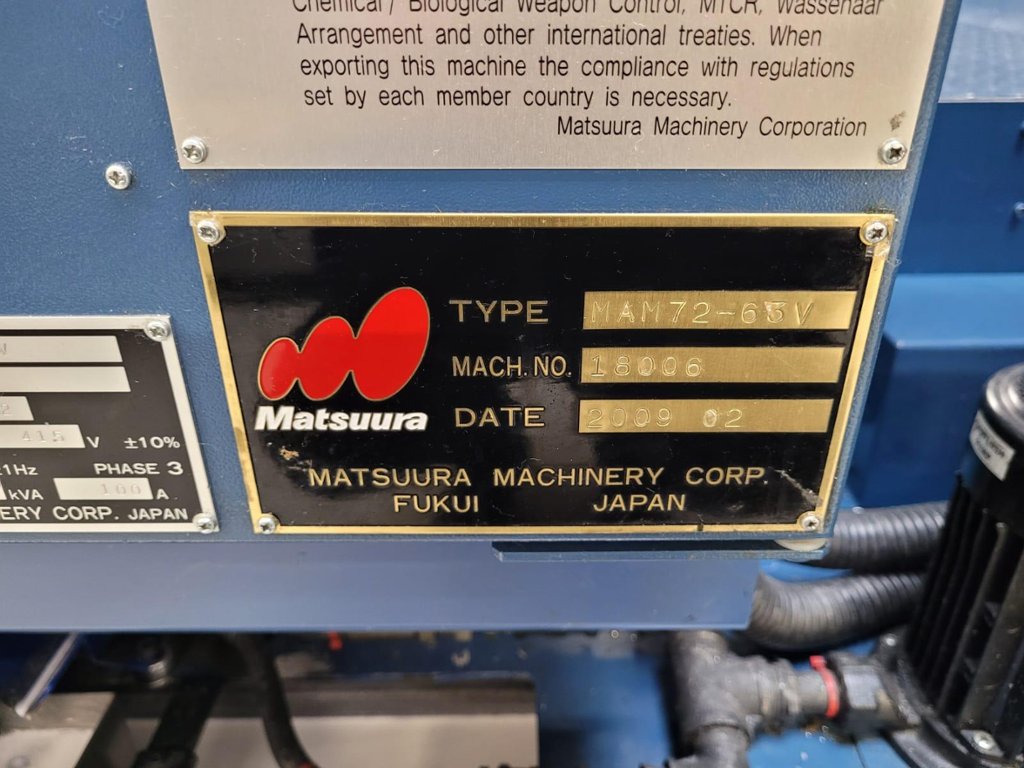

Matsuura MAM72-63V / G-Tech 30i Control
10.4” (LCD/Colour Screen)
Fully Enclosed Machine Cabin with Door Interlocks
Axis Movements – X, 760 mm / Y, 845 mm / Z, 610 mm

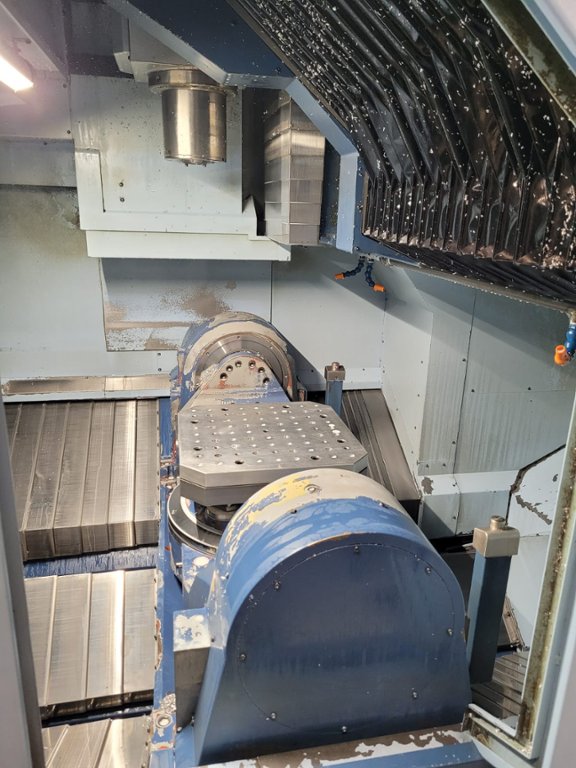

4th and 5th Axis Movements, A Axis + 30º to - 120º, B Axis 360º
Max Workpiece Size 630mm Dia x 450mm High, Max 350Kg
Scale Feedback on A & B Axes, Work Light (Fluorescent)
Spindle Oil Cooler, Auto Grease Supply unit for guideways
Twin Internal Spiral Screw Conveyors, Tool Life Management
Ethernet Interface, Synchronised Tapping, NC Memory 0.5Mb
1000 Registered Program Store, Helical Interpolation
Macro Program Function G65 & Skip Function G31
- 20,000 rpm BIG PLUS “Taper & Face” BT40 Spindle
- Weekly Timer

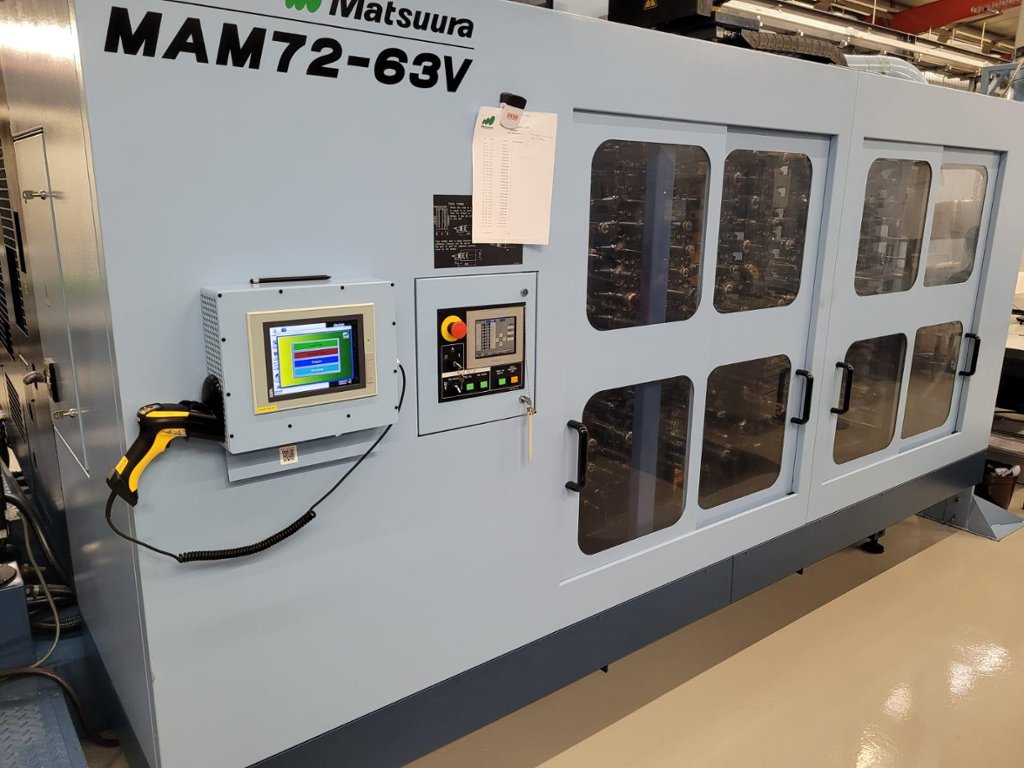

- 240 Tool ATC Magazine “Rack Type” with 400 Tool Offsets

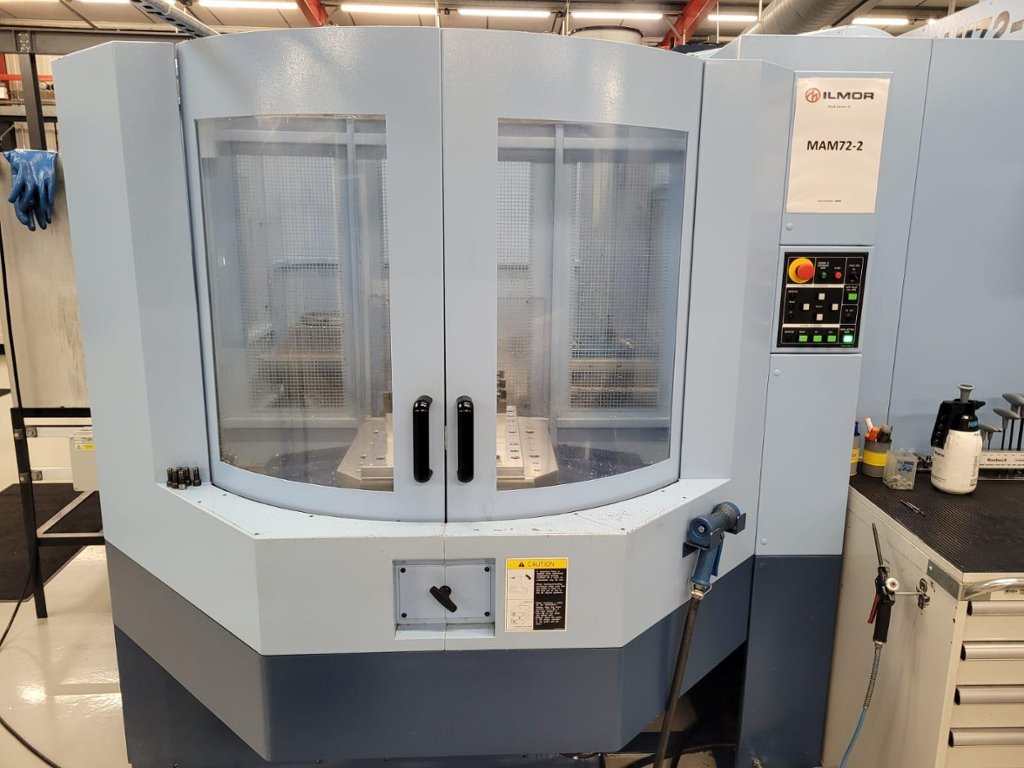

- PC6 Pallet Pool incl’ pallets & Work Load / Unload Station (Retrofit)
- Column Extension resulting in Z Axis stroke of 760mm
- Scale Feedback on X, Y, & Z Axes (Retrofit)
- Spindle Load Monitoring Function
- Renishaw NC4 Laser Tool Breakage / Tool Length
- Renishaw MP700 Spindle Probe
- Filtermist Unit on a stand
- Spin Window “Rotary Wiper”
- Additional Work Offsets – 48 Sets
- Coolant Shower System “inside machining area”
- 70 Bar High Pressure Coolant thro’ the spindle with Filtration
- Coolant Chiller “built into the swarf management system”

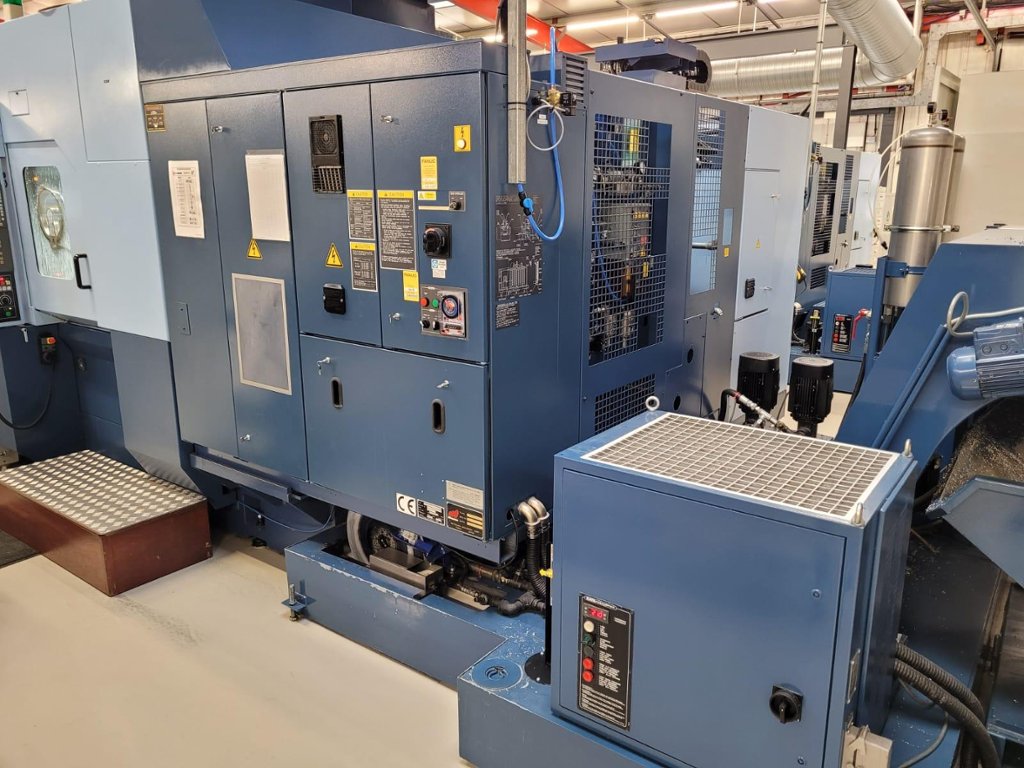

- Swarf Management System with Drum Filtration, including
Lift-Up Conveyor and Chip Bin
- High Speed Machining + 5 Axis Software Package:
IZ2/150NF including HPCC RISC for High Speed Machining
Large Memory Function “1GB Data Server”
Look Ahead Block expansion 1000pcs
NANO Smoothing Software
Inverse Time Feed G93, Tilted Work Plane Command
Optimal Torque Acceleration / Deceleration
Tool Centre Point for 5 Axis Cutting “G43.5 / G49”
Tool Radius Compensation for 5 Axis Cutting “G41.5 / G42.5”
Rotary Table Dynamic Fixture Offset “G54.2” Software
- Additional Tool Offsets – 999 sets
- Additional Block Skip 9 off
- 3 Colour Patrol Light
- Wash Gun
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
18 Sep 2024 15:00:00 BST
Opening bid: £20000
Bids: 0
Transport information
- Other Transport Details: The loading charge of £9,000 would include the decommissioning, the stripping down and draining of the machine. Due to the sensitive nature of the site, the charge would also include the machine being removed from site and taken back to a storage facility in Leicester, it would then be reloaded on to the purchasers transport.
