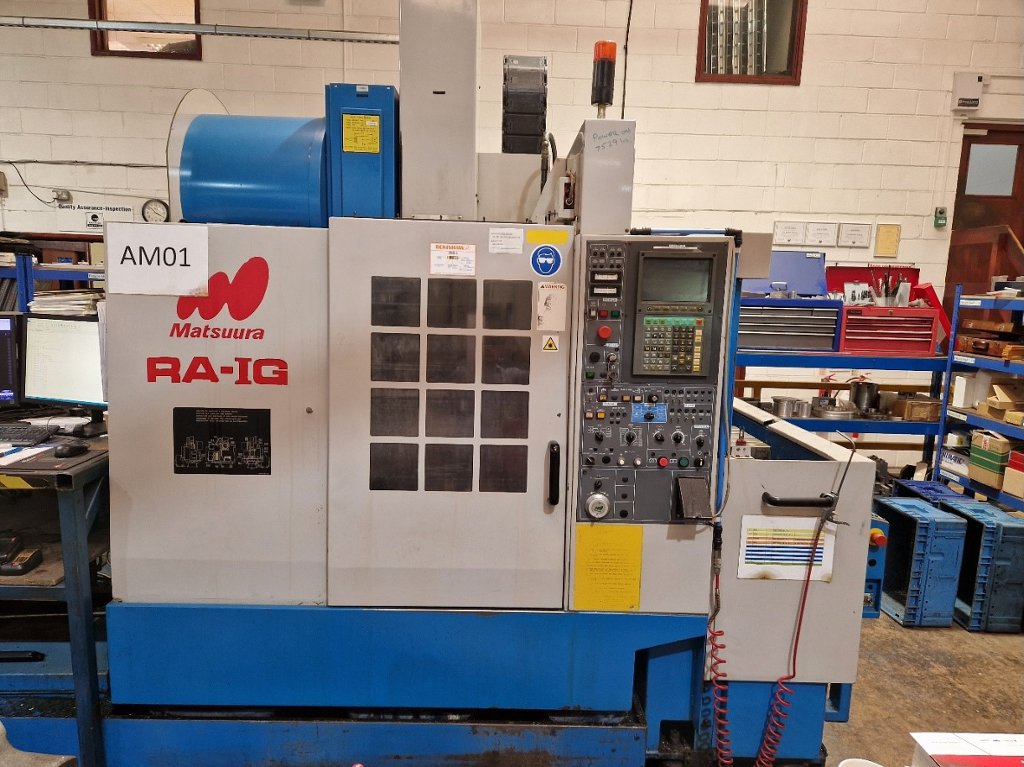

Matsuura RA-1G CNC Vertical Machining Centre (1997)

Lot 13 - Matsuura RA-1G CNC Vertical Machining Centre (1997)

Description:

Matsuura RA-1G
 Serial #: 10180
 Manufacture date 11/1997
 Travel: X 510mm, Y 400mm, Z 460mm
 Table size: 600 x 380mm
 T slotted pallet tables
 Max workpiece height: 450mm
 BT40 8000RPM spindle
 20 tool changer capacity
 23kVA electrical supply requirement
 c/w Renishaw NC4 laser tool setter
 c/w Renishaw OMP40 touch probe
 Renishaw Easyset and Inspectionplus programs
 c/w Wash down gun
 Through spindle coolant
 Air blast and through spindle air
 2 pallet changer
 Oil skimmer
 Separate transformer.
 9800 power on hours.
 New spindle at 7500 power on hours.
 External 230v sockets
 Auto Power on/off timer.
 c/w wiring diagram/ladder
 Hydroflow drag type conveyor

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
