Lot 2 - Matsuura RA-IIF I80 VMC

Description:

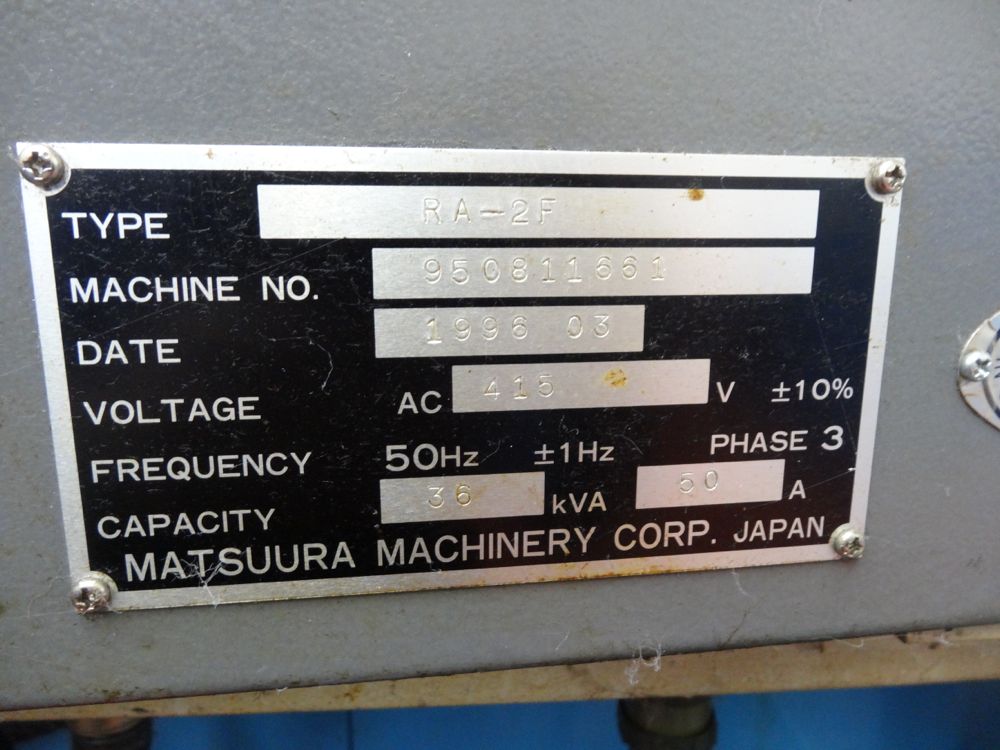

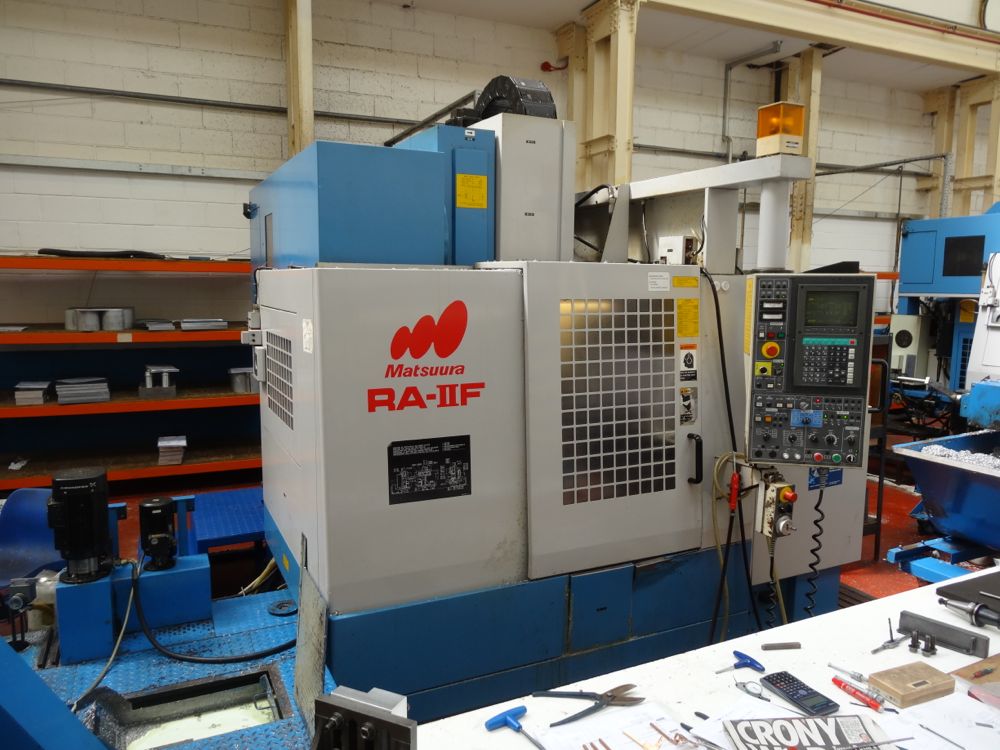

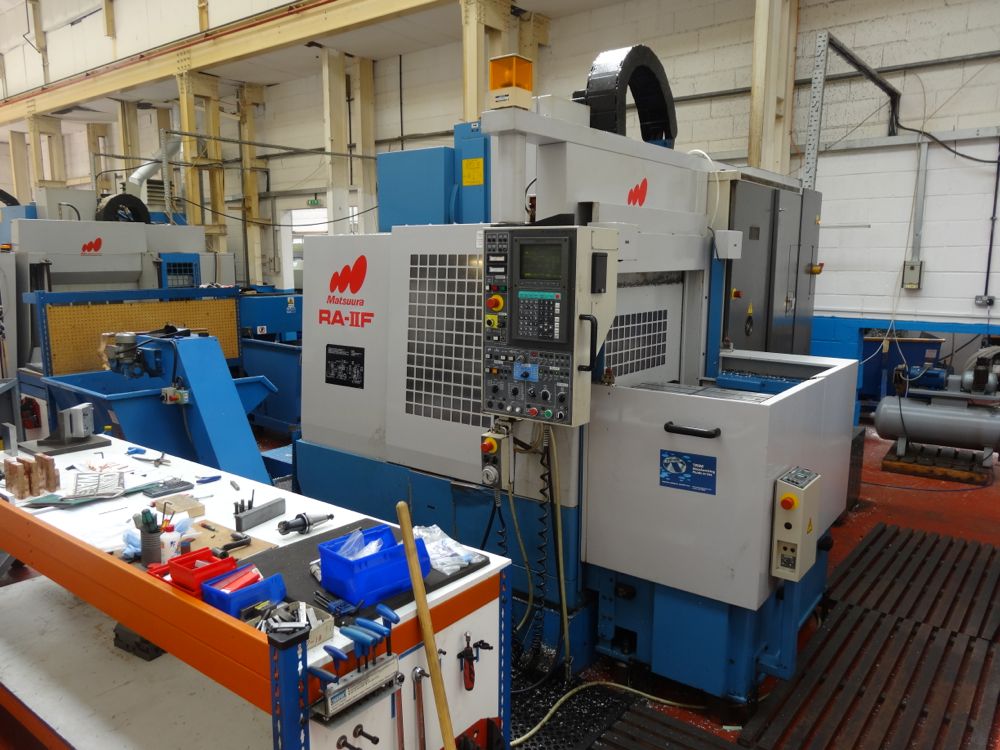

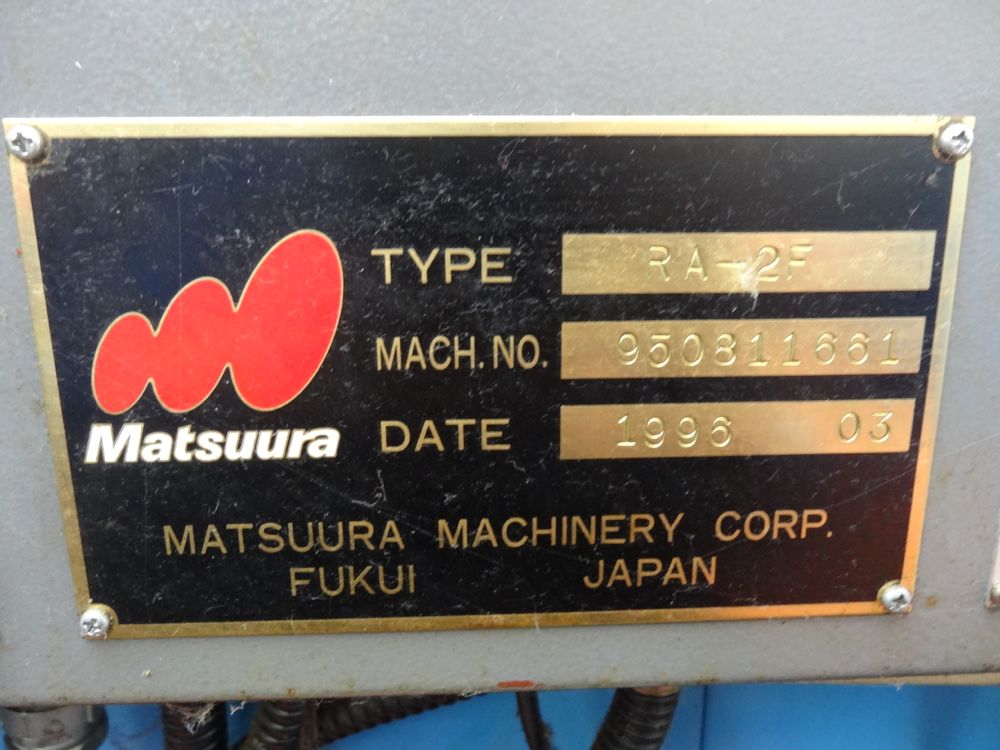

Matsuura RA-IIF I80 VMC

S/N 950811661
Date: 03/ 1996

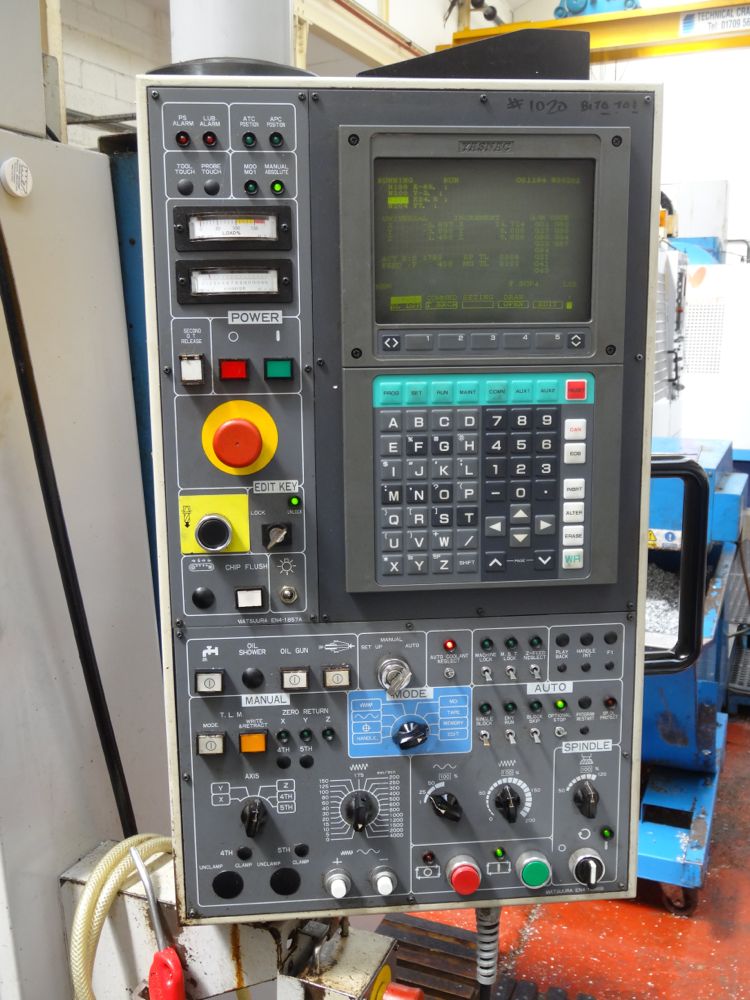

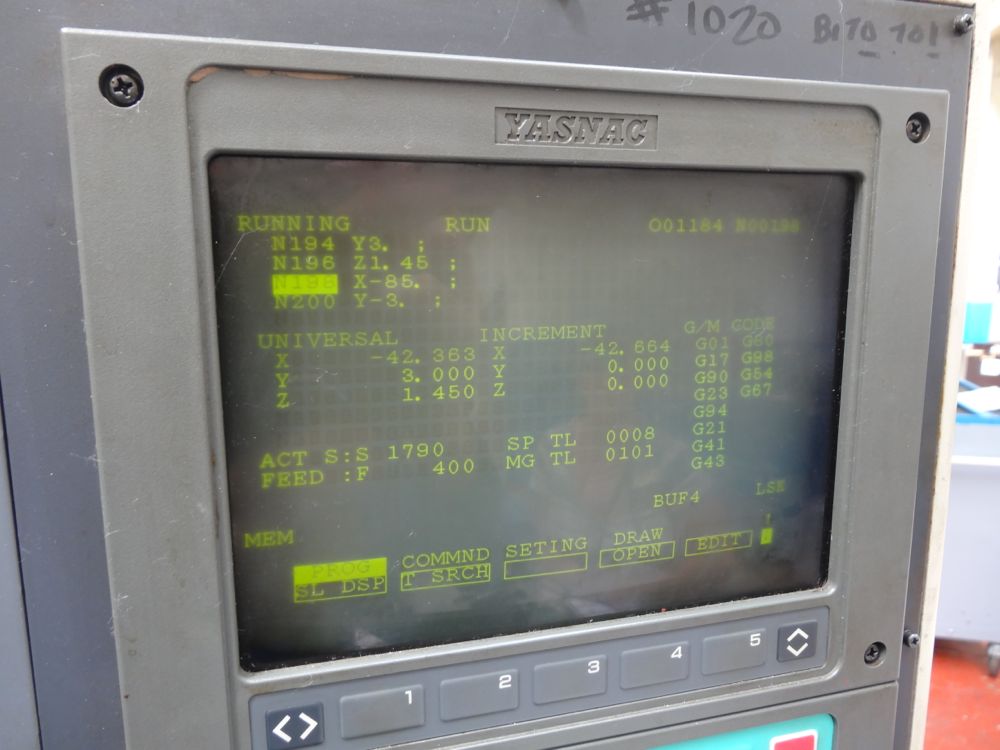

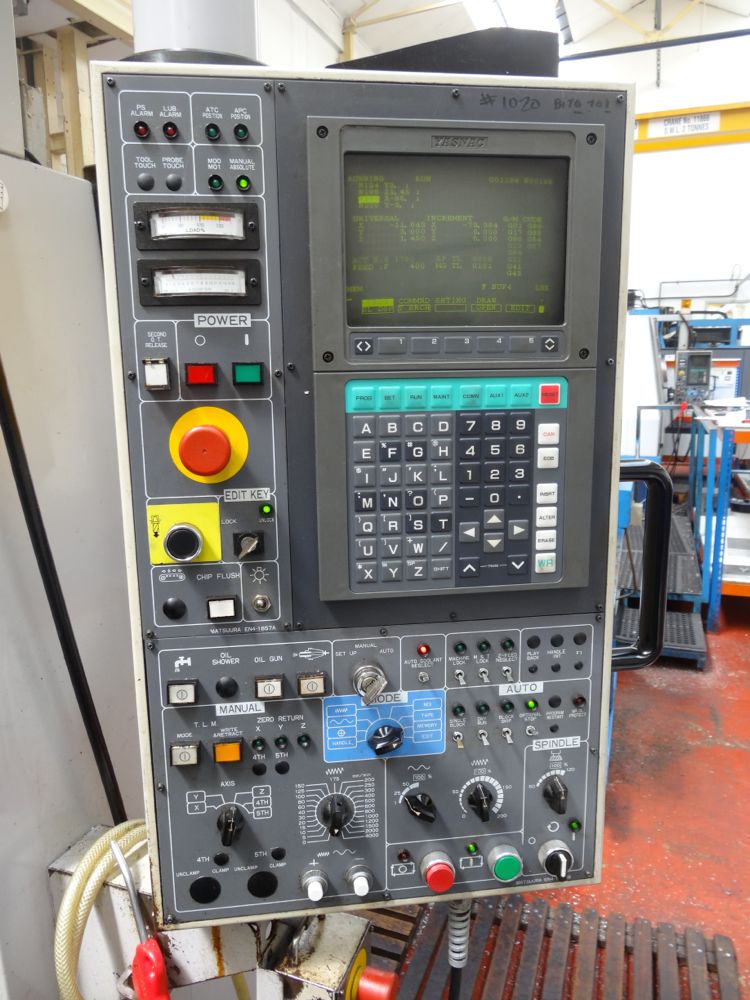

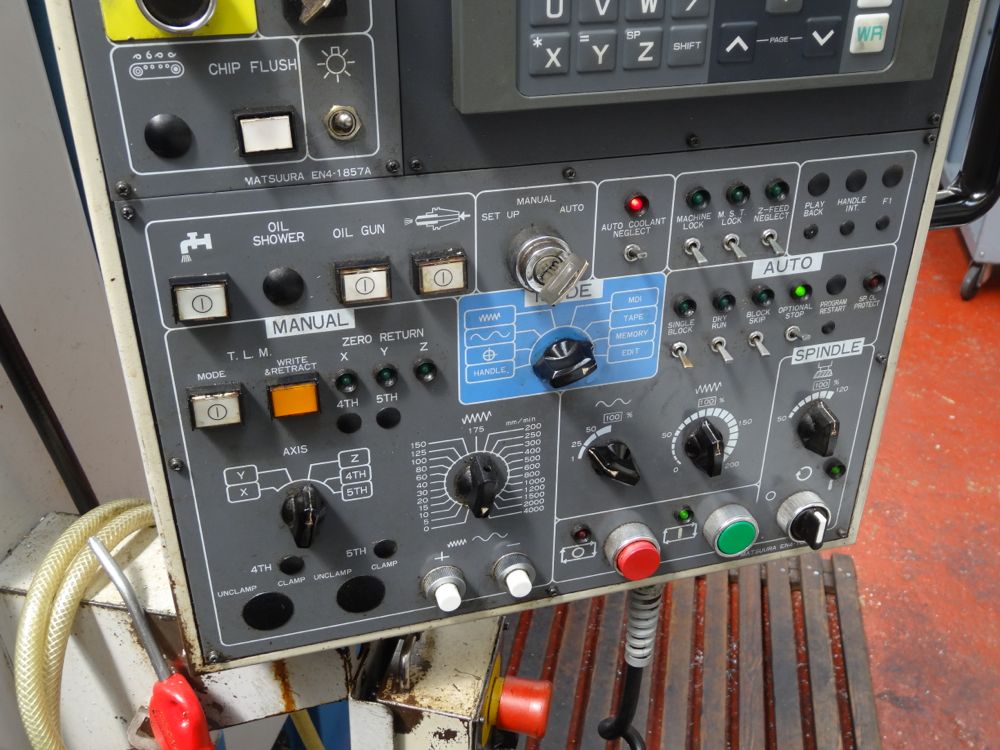

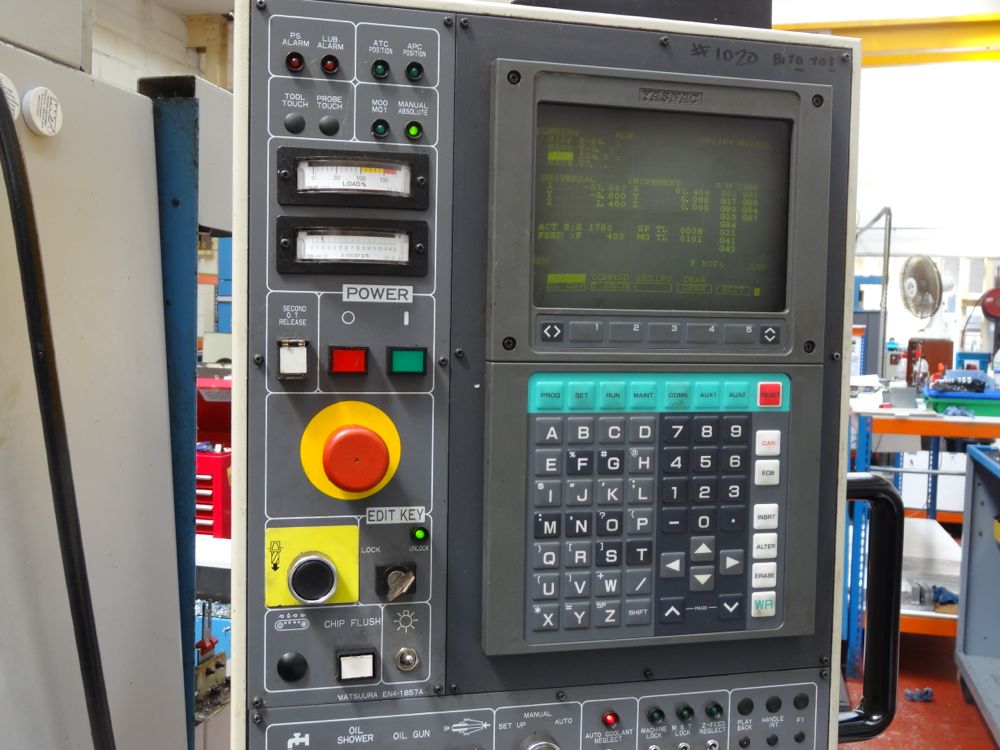

Matsuura i80 CNC Control

ATC No. of tools: 30
X Axis Travel: 600mm
Y Axis Travel: 410mm
Z Axis Travel: 470mm
Distance from table to spindle end:150-200mm
From table centre to column guideway: 235-645mm
From spindle centre to column guideway: 440

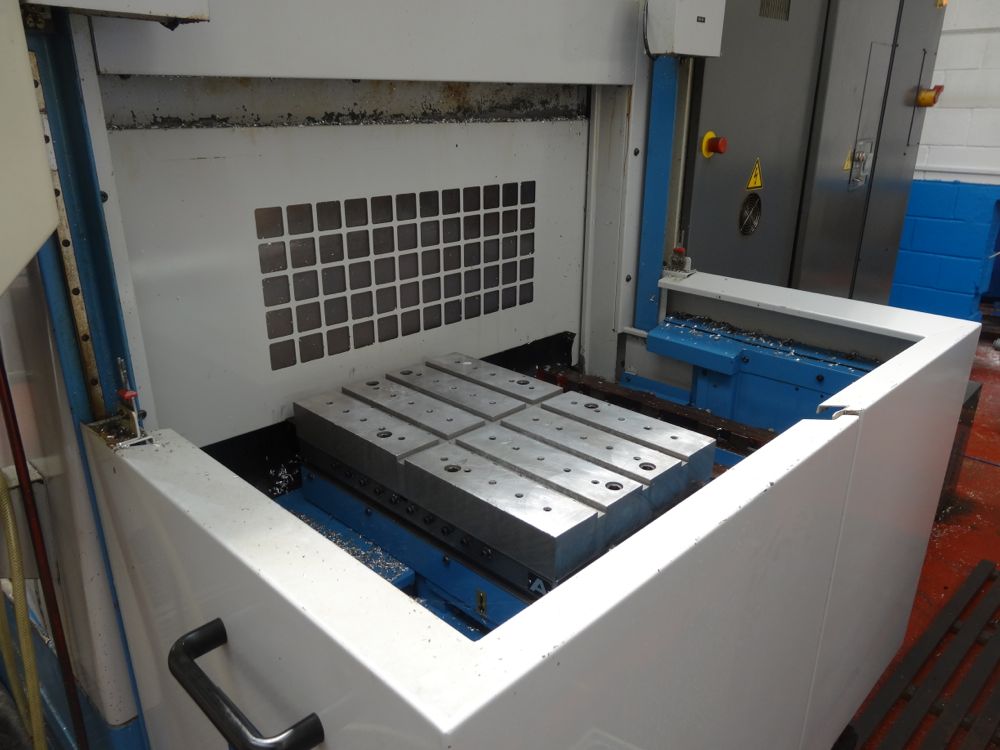

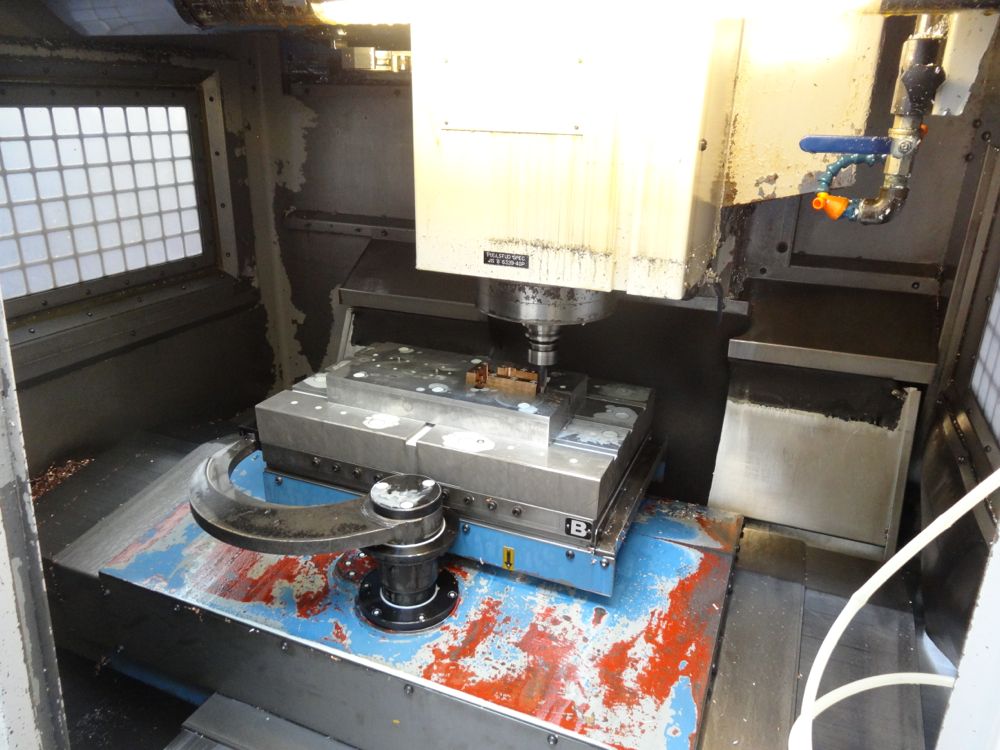

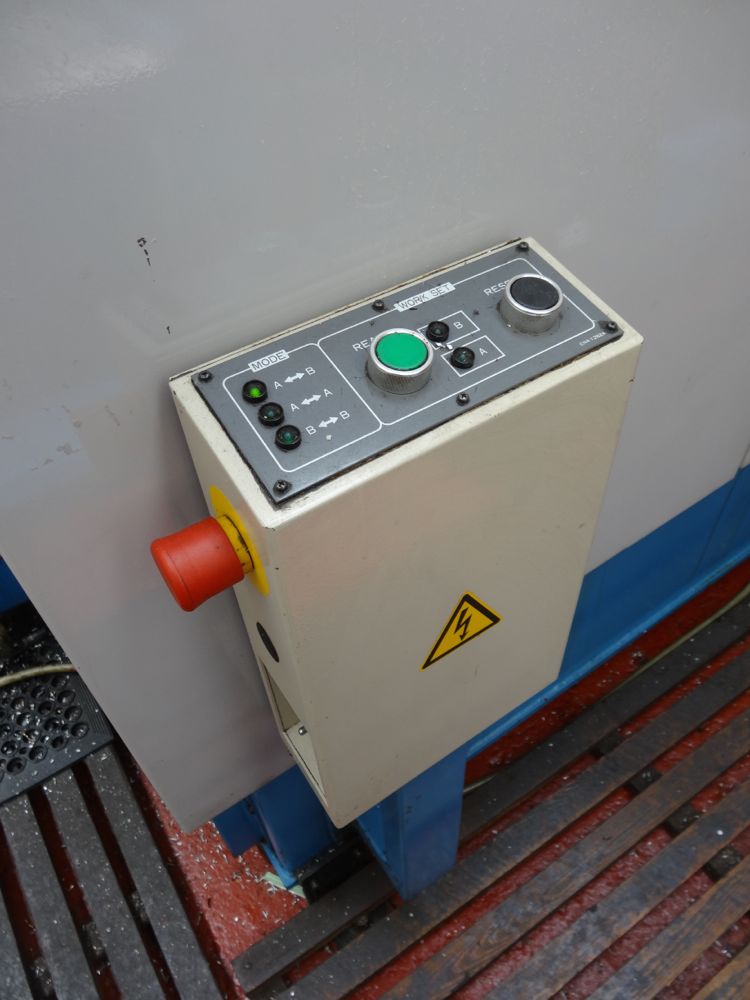

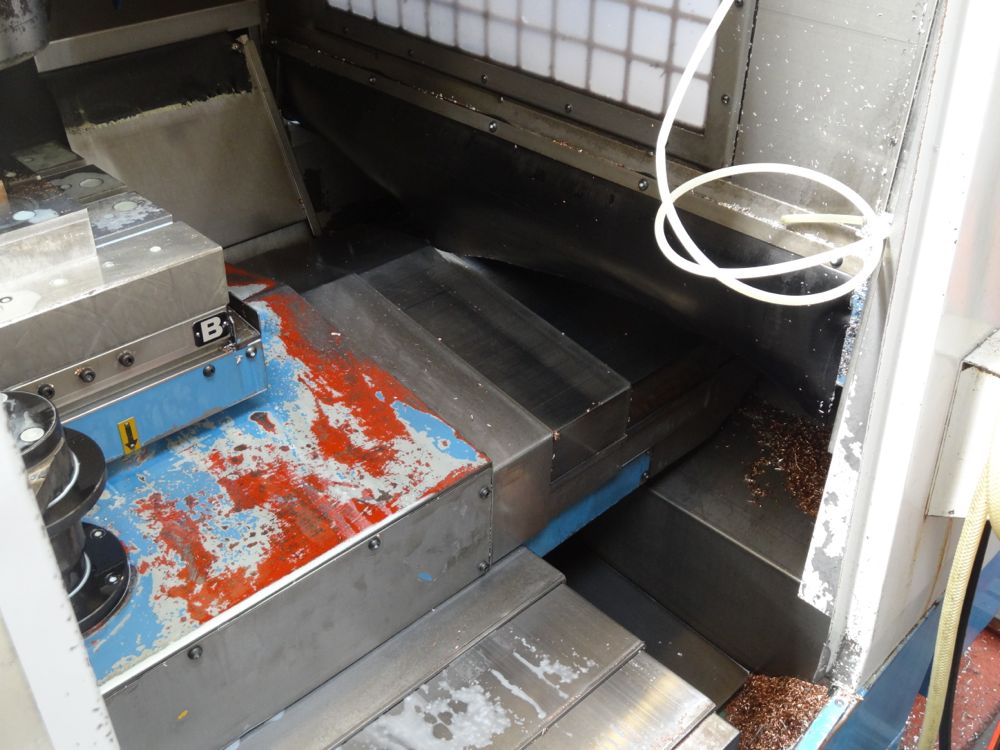

Twin pallet system

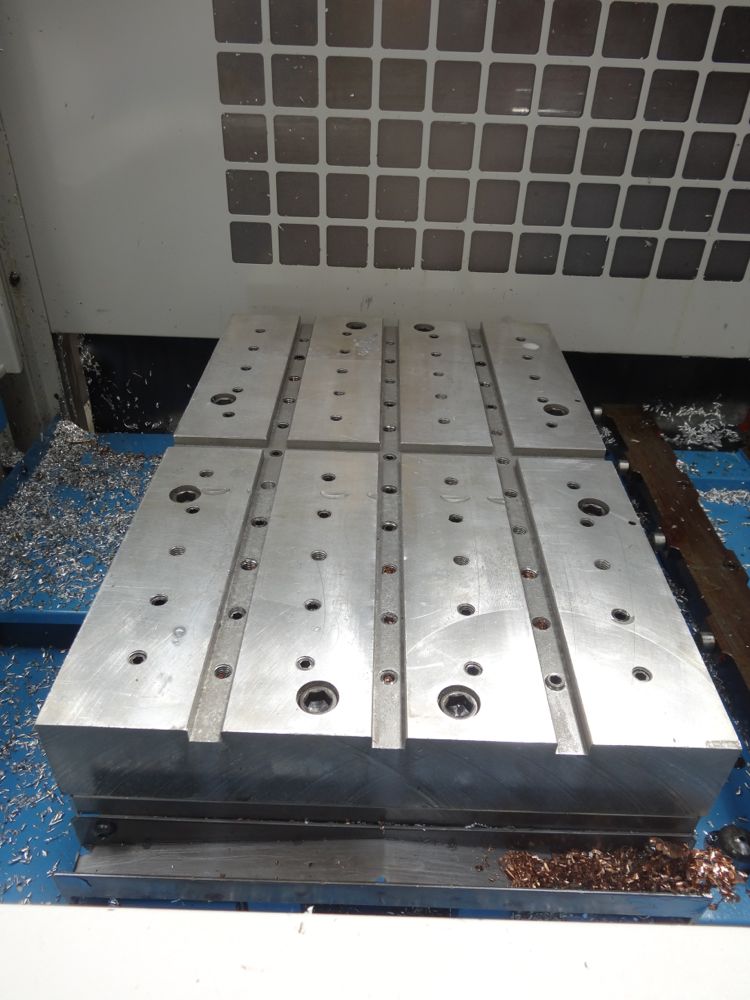

Pallet working surface: 600 x 300mm
Pallet loading capacity: 250kg

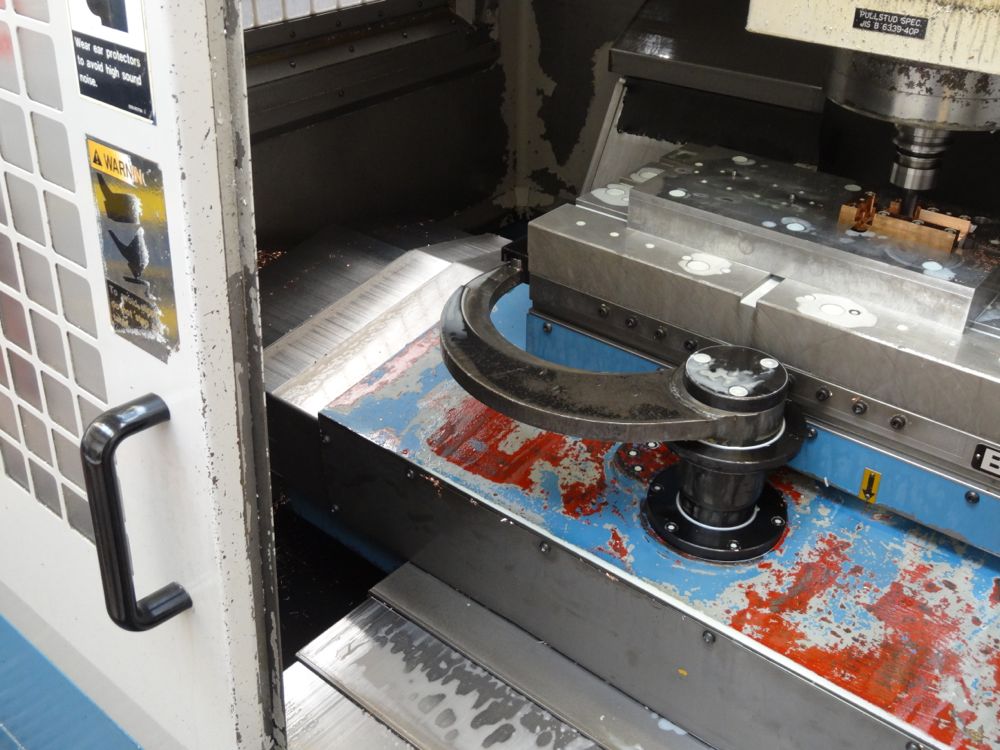

Method of pallet changer: Shuttle type
Pallet change time: 9 sec
Pallet clamping force: 19.6kN
Pallet base: 400kg

Spindle speed per min: 15000min-1/Direct Drive.
Spindle speed range: 30-8000 min -1
Spindle speed change command S4 digits direct command.
Type of spindle taper hole: 7/24 Taper BT40
Spindle bearing inner diameter: 80mm
Spindle air blow: standard accessory
Spindle orientation: standard accessory

Feedrates:
Rapid traverse rate (X/Y/Z): 24000/24000/18000 mm/min
Feedrate (X/Y/Z) 1-10000 mm/min
Jog feedrate: 0-4000 mm/min

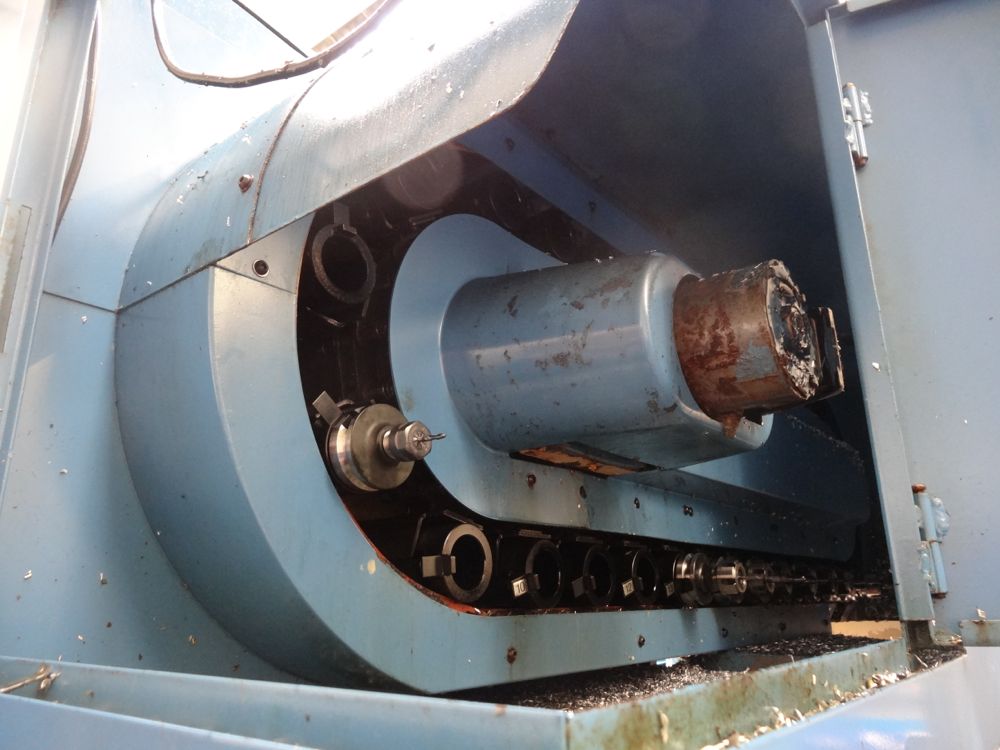

Tool Storage capacity: 30 tool
Max tool diameter:96mm
Max. tool lengh 350mm
Max. tool mass 10kg
Tool pocket pitch: 101.6mm
ATC time (tool to tool): 2 sec

Machine Size: 3465mm W x 3845 D x 2842 H
Mass of Machine (w/o pallet & base): 4500kg
Distance from floor to table surface: 1015mm
Volts: 415
KVA: 36
3 Phase

Standard accessories:
Total enclosed guard
Synchr tap funct.
Spindle oil cooler
Spindle overload protection
Coolant unit
Lubrication unit
Spindle load meter & RPM meter

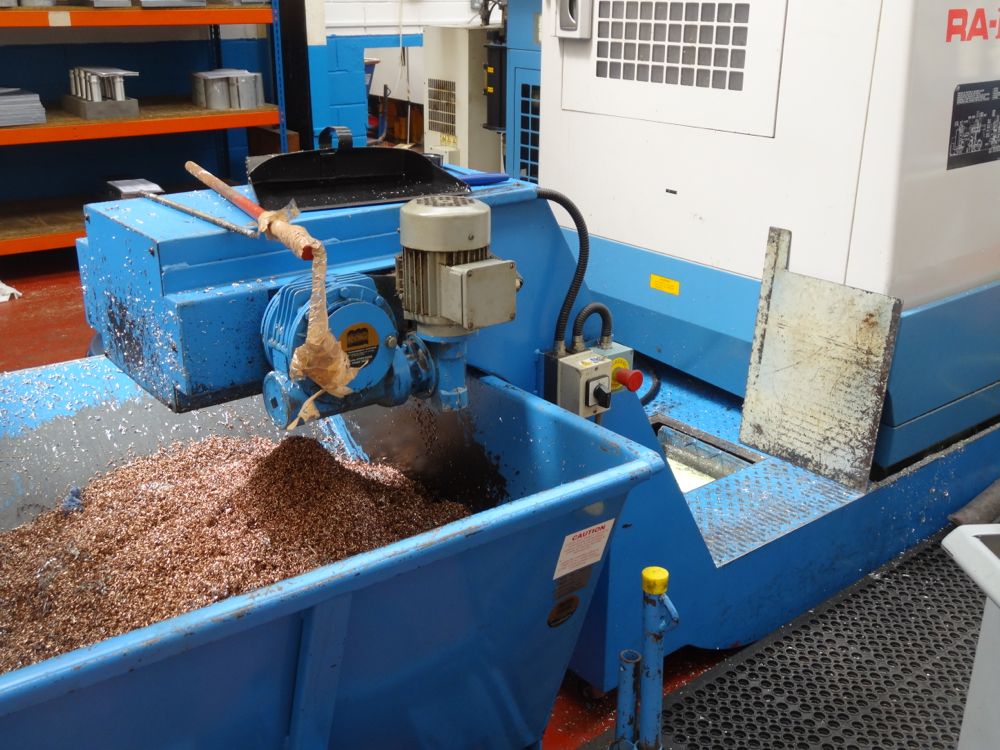

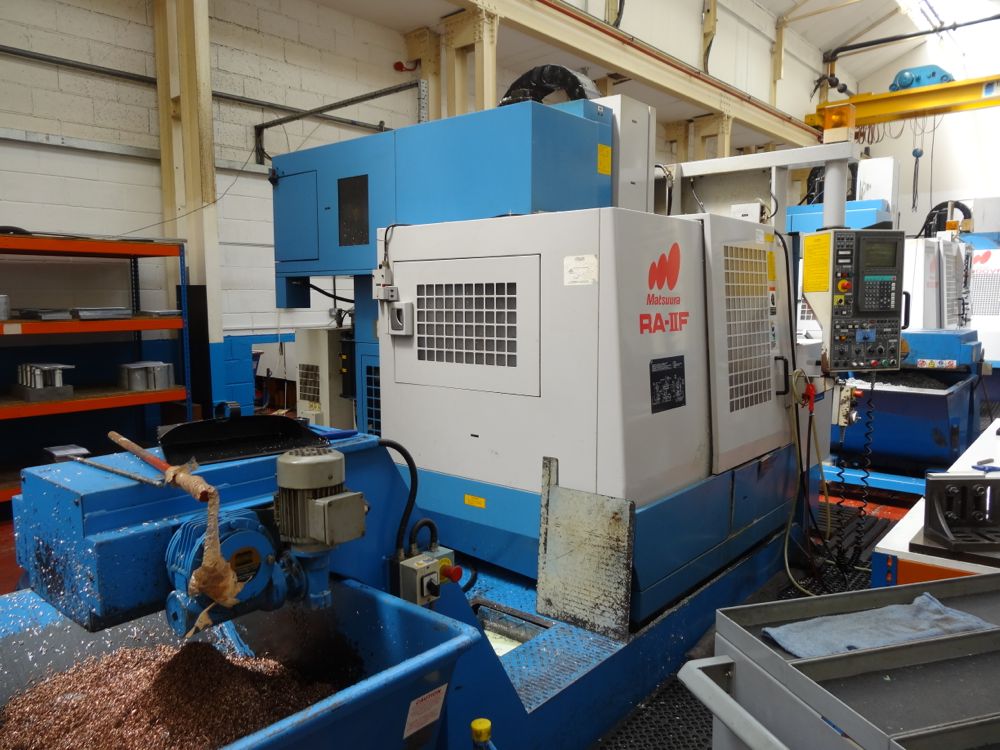

Swarf Management System (No Swarf Bin Included)
System Capacity 580LT
Flow rate: 140 LPM

Includes:20 Tool Holders

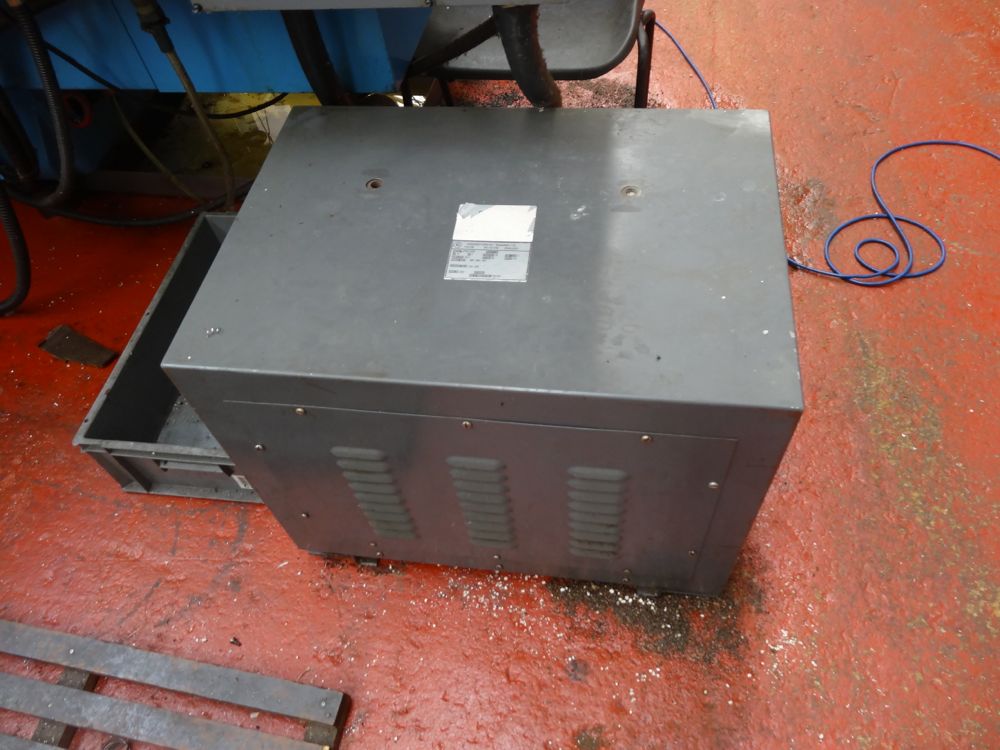

Romash Ltd Cooling Tank
3PT40/0/33E
40KVA
3Phase
Volts: 380-400-420
Temperature Class F
Weight 210Kg
S/n 96003
Date: 18/07/96

Dalkin Invertor
Ak5100Z

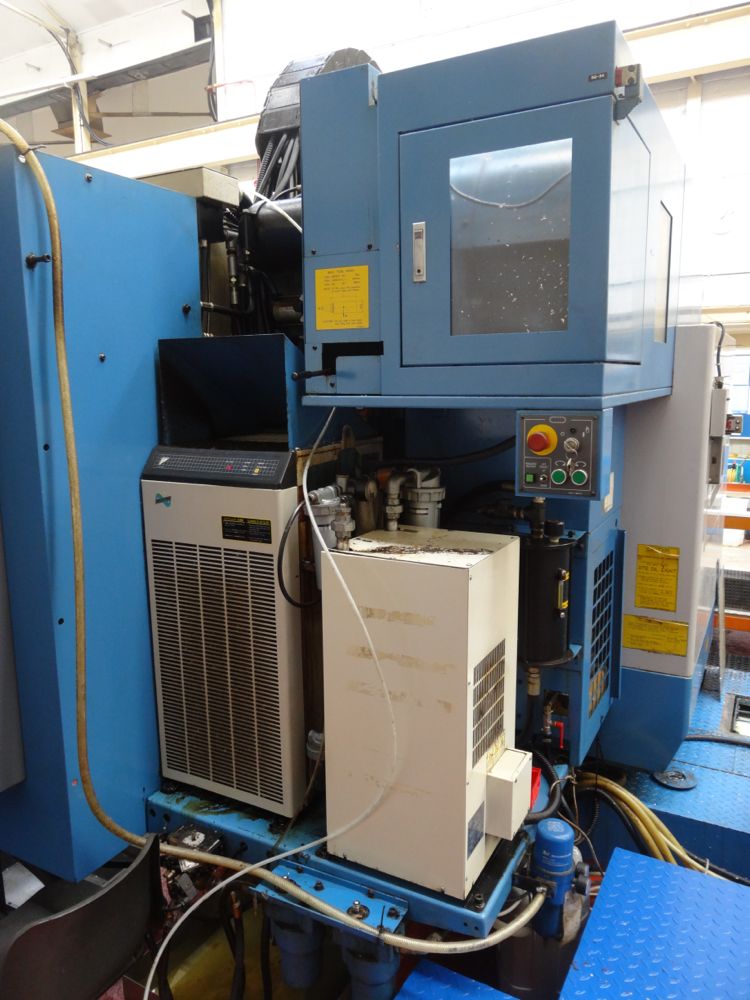

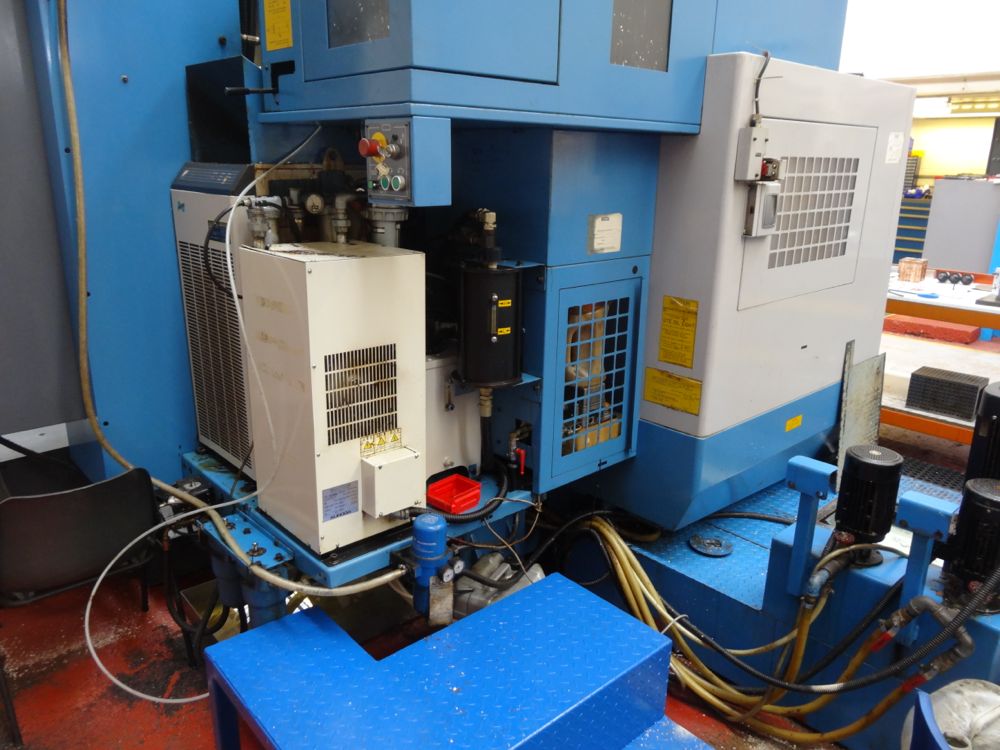

Kuroda Refrigerated Air Dryer
Model: 10EBM
S/n 05/1158

Location: Stroud
Final bid would include decomissioning by Matsuura

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
