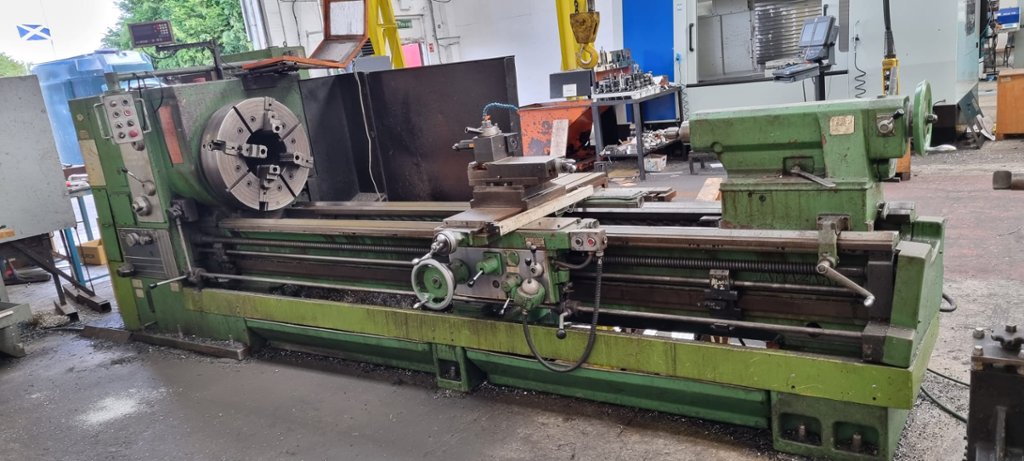

Mazak 30 Oil Country Lathe

Lot 24 - Mazak 30 Oil Country Lathe

Description:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

320mm Spindle Bore

30" Swing

Manufacturer Mazak
Model 30 x 3000
Spindle Bore 12.6” (320mm)
Swing over bed 30” (770mm)
Swing over carriage 17.9375” (440mm)
Distance between centres 118” (3000mm)
Max turning length with Taper Turning 23.62” (600mm)
Spindle Speeds 3 – 300 rpm
Feeds Longitudinal 0.0035” – 105” / rev
Feeds Cross 0.0016” - .46” / rev
Rapid Travel (Longitudinal) 208” / min (5300mm)
Threading (Metric) 1 to 28mm
Threading (threads per inch) 28 to 1 threads per inch
Main Motor 20HP (15kW)
Weight 8,300kgs (8.3 Tonnes)

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
