MAZAK Dual Turn 20 Lathe (1999)

Lot 3 - MAZAK Dual Turn 20 Lathe (1999)

Description:

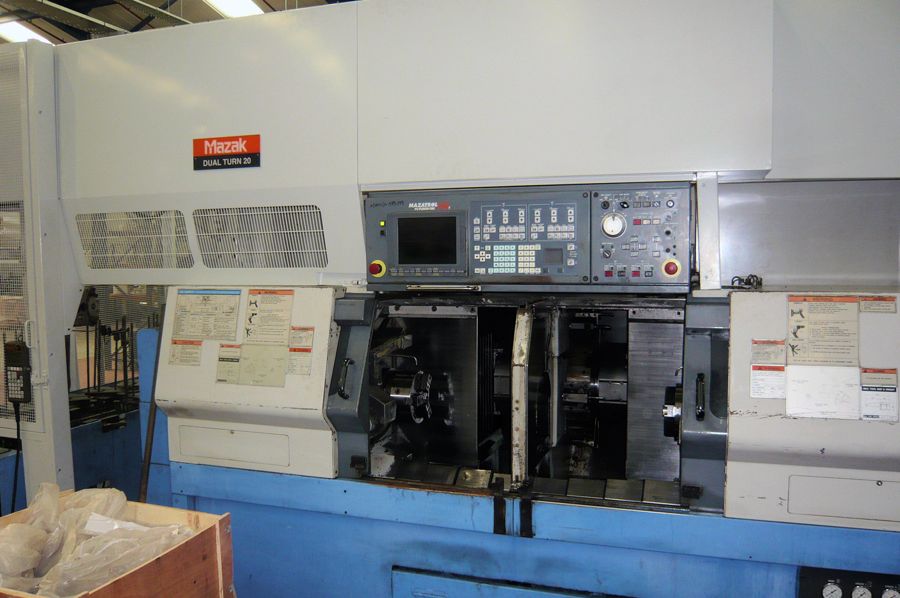

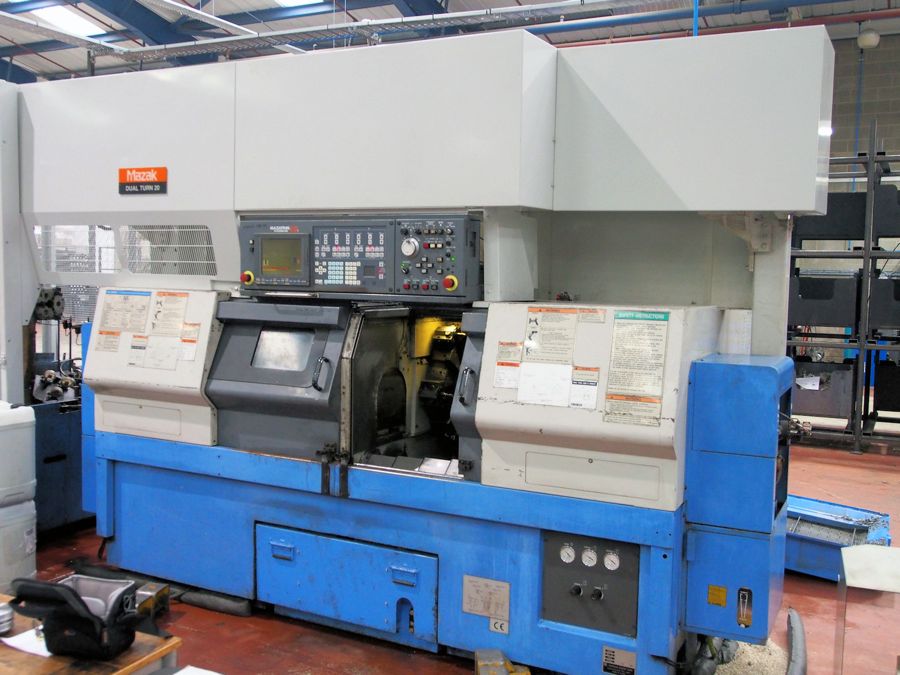

MAZAK Dual Turn 20 (1999)

Chuck Size: 8" Hyd. Chucks
Maximum Swing: 320mm
Standard Cutting Diameter: 254mm
Maximum Cutting Length: 150mm
Distance Between Spindle Faces: 1249mm
X Axis Travel - Both Turrets: 230mm / 230mm
Z Axis Travel - Both Turret: 500mm / 500mm
Spindle Motor 30 min / Continuous: 20 HP / 15 HP
Spindle Torque: 246 ft./lbs.
Spindle Speed: 35 - 5,000 RPM
Spindle Nose/Spindle Bore/Bar Capacity: A2-6" / 2.4" / 2.0"

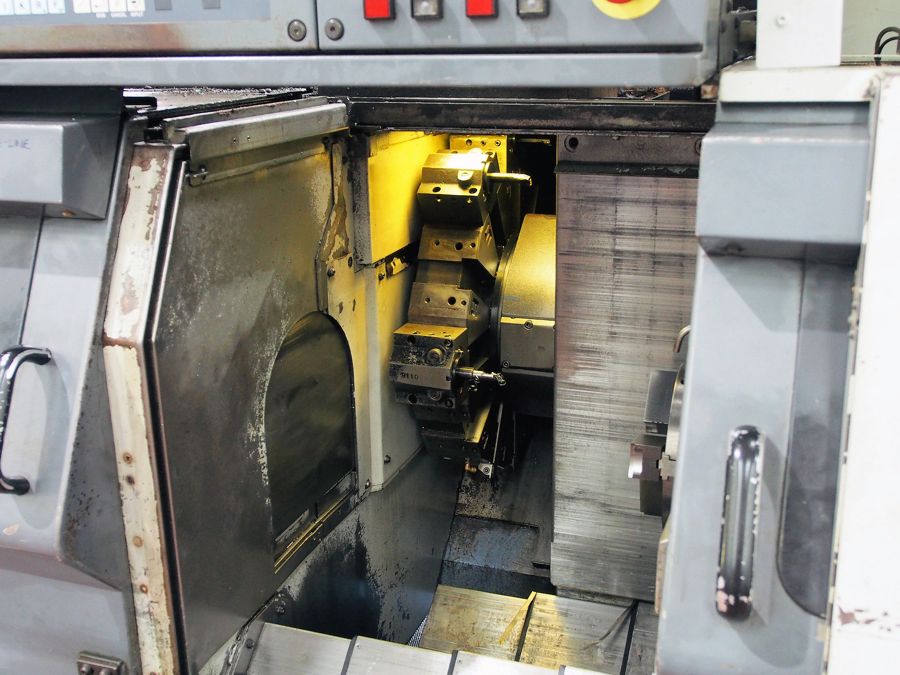

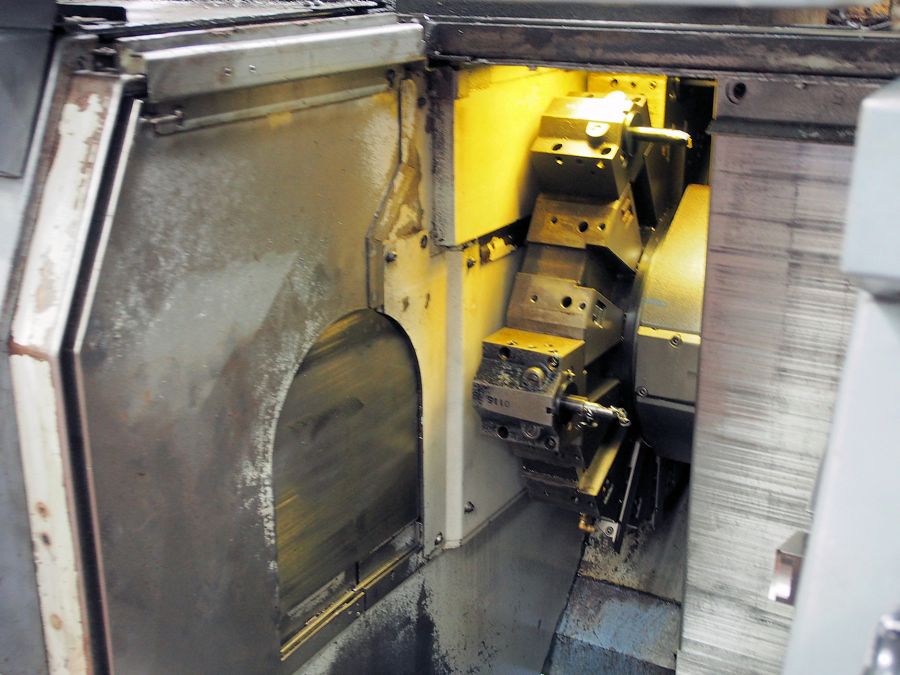

Type of Turrets: (2) 12 Posit. Drums
Rapid Traverse X Axis / Z Axis: 30 m/minute
Max Cutting Feedrate X / Z Axis: 5m/minute
Machine Dimensions (machine only): 3606 x 1854 x 2057mm
Machine Weight (machine only): 6600kg

Equipped with

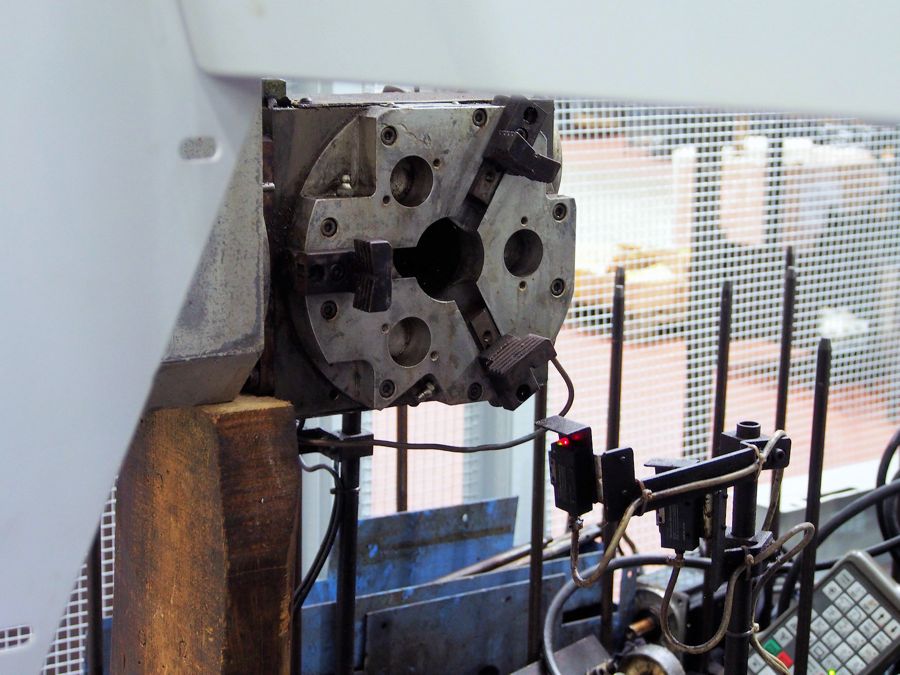

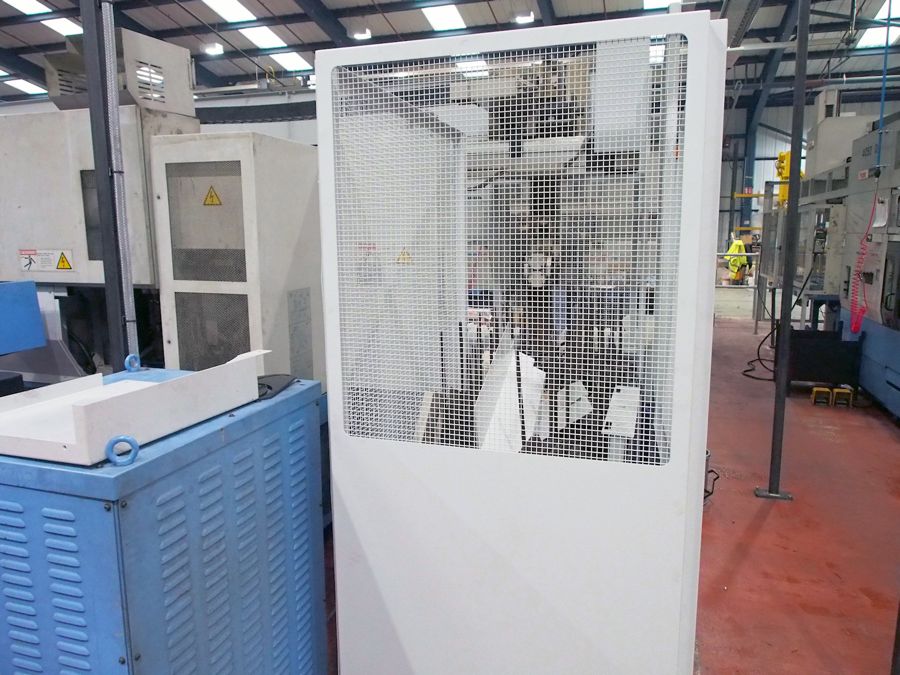

GL100C Gantry Robot Loader

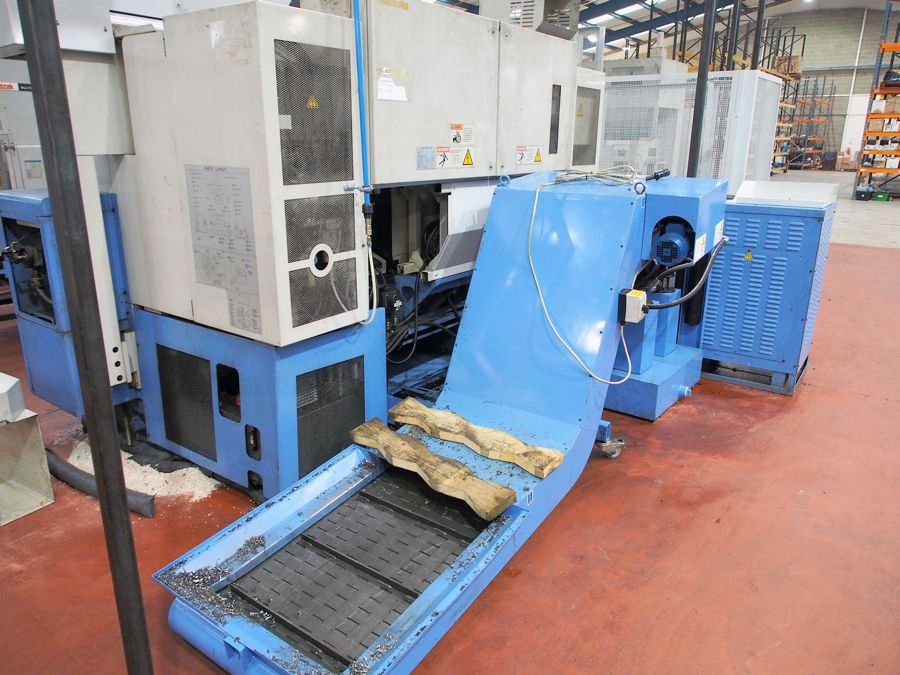

Rear Exit Chip Conveyor
Turret Air Blast (both)
Additional Cool. Nozzle (both)

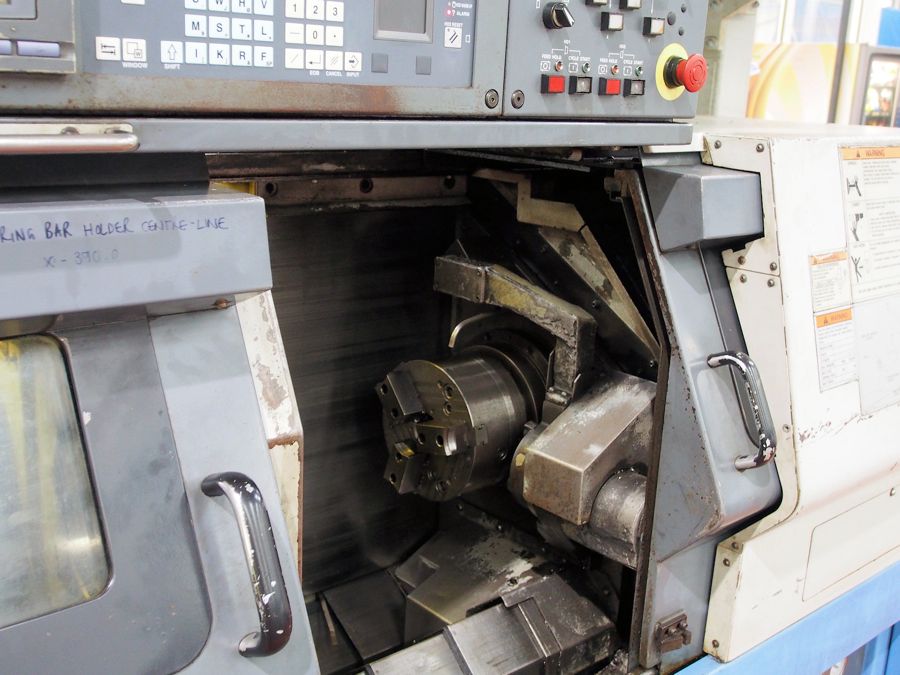

8" 2 x Hydraulic Chucks

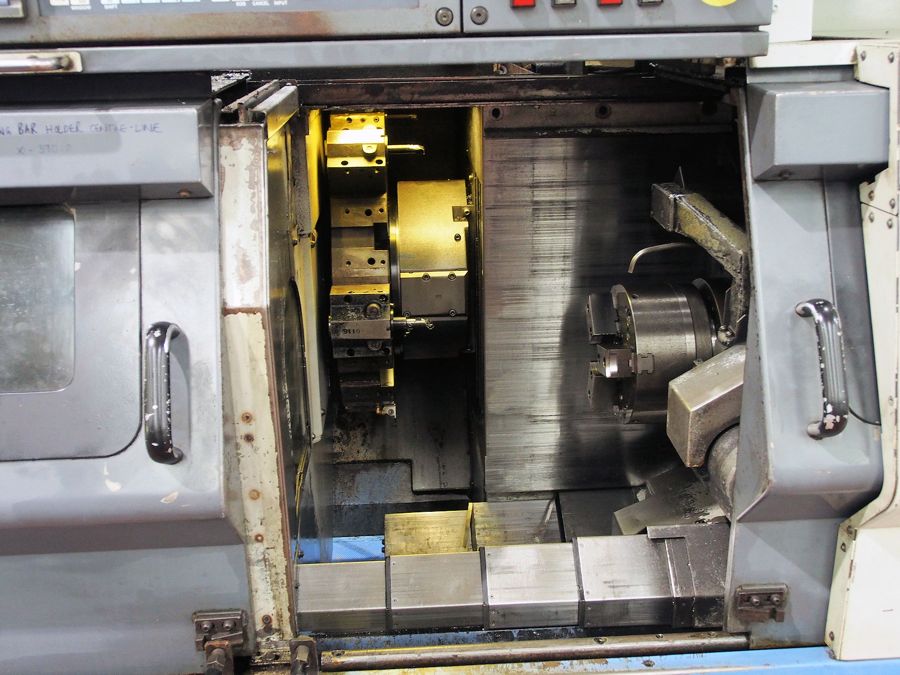

Twin Spindle Design
Twin Turret Design
Auto Power Off
Automatic Tool Eye (both)
Color Graphics Control
Chuck Air Blast (both)
Chuck Jaws Open/Close (both)

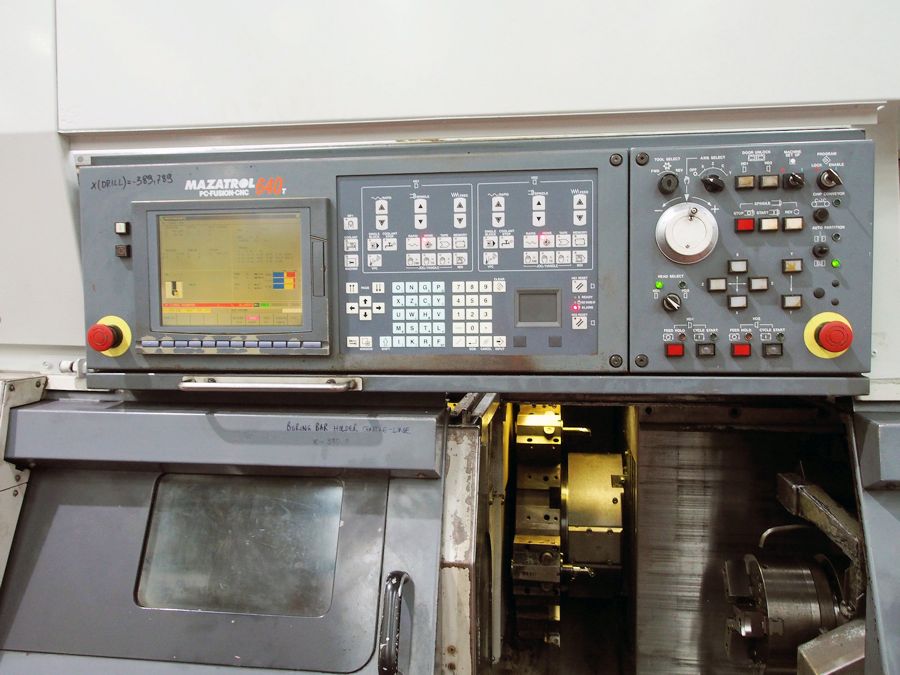

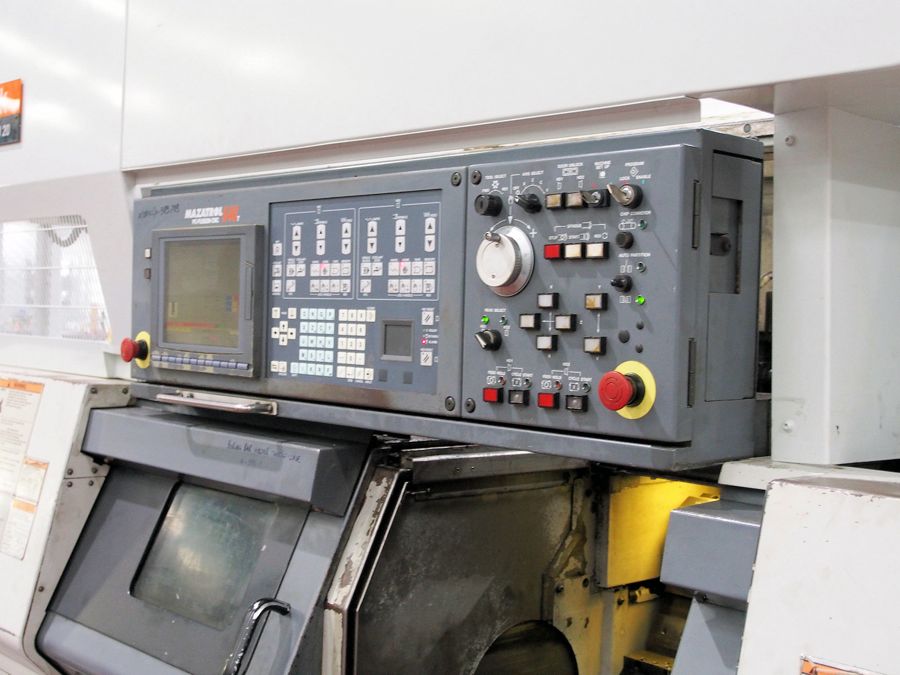

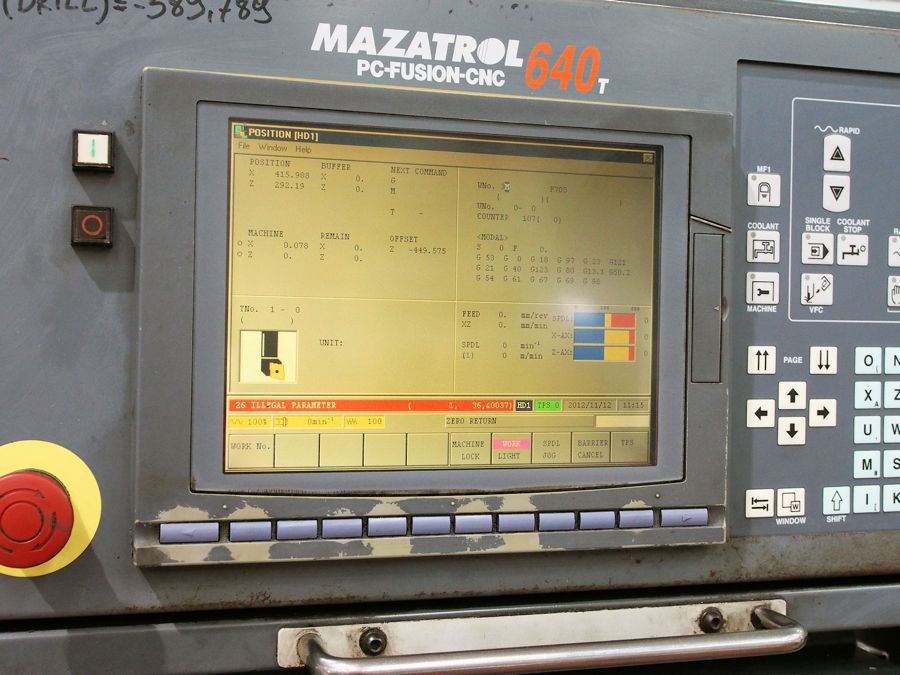

Fusion 640 control
Gantry Loader
Swarf conveyor

Has just had a full Mazak Service but now requires a new spindle encoder.

Location: Keighley, West Yorkshire

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
