Lot 4 - Mazak Intergrex 300-II SY CNC Turning Centre (2002)
Description:

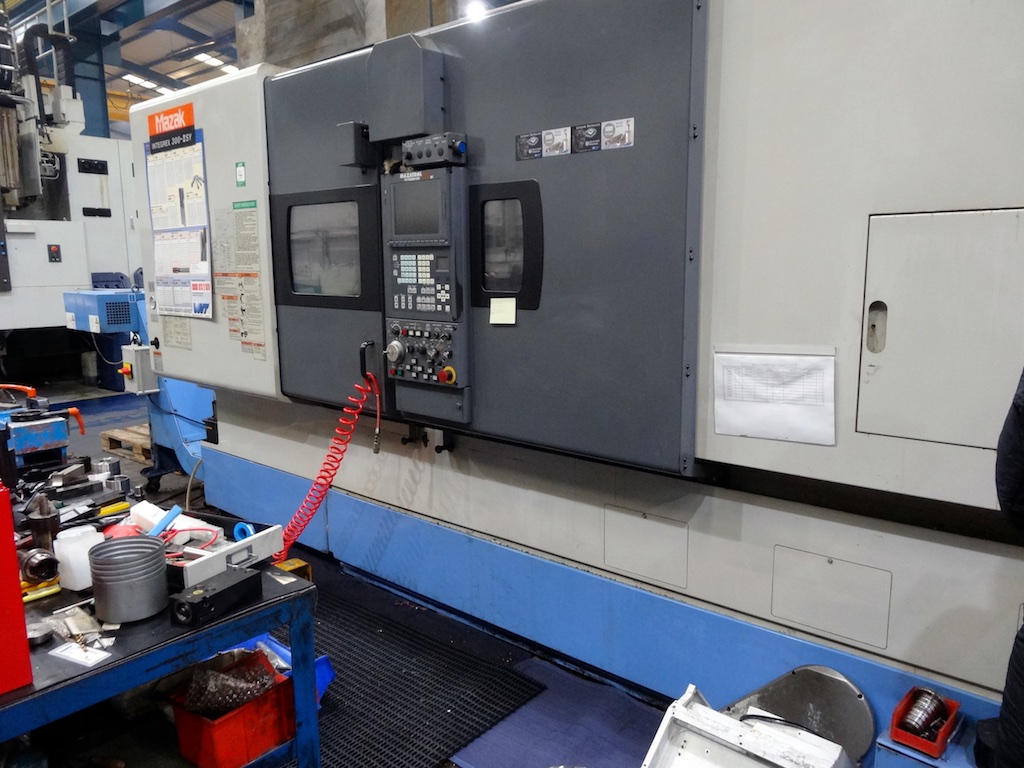

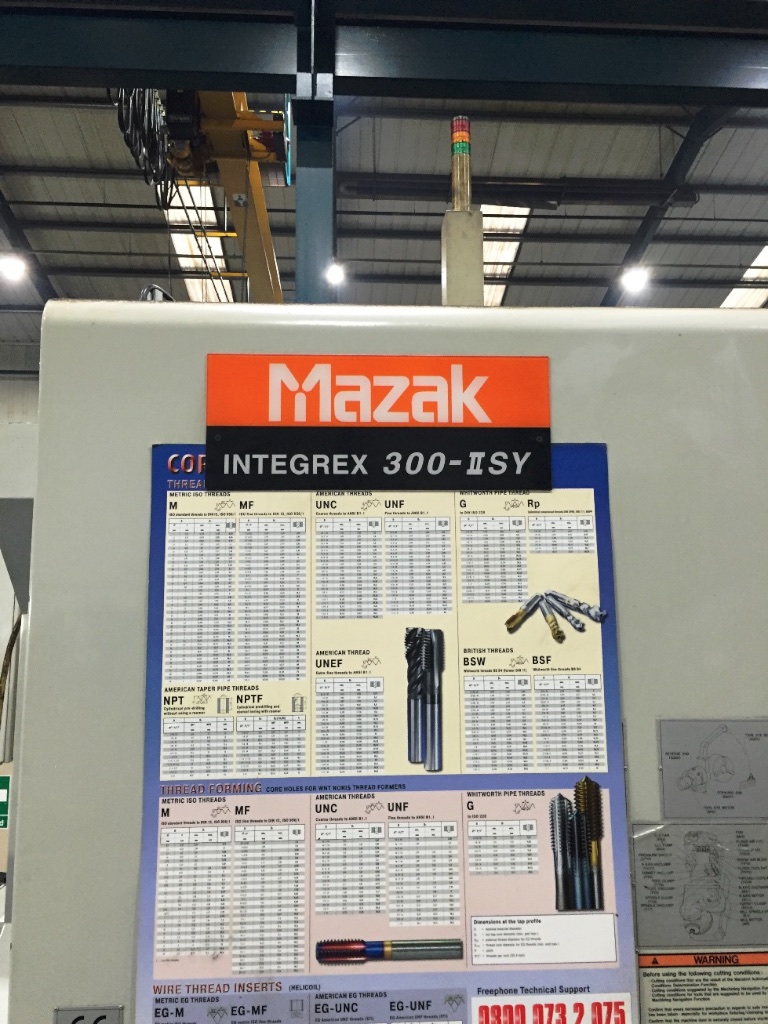

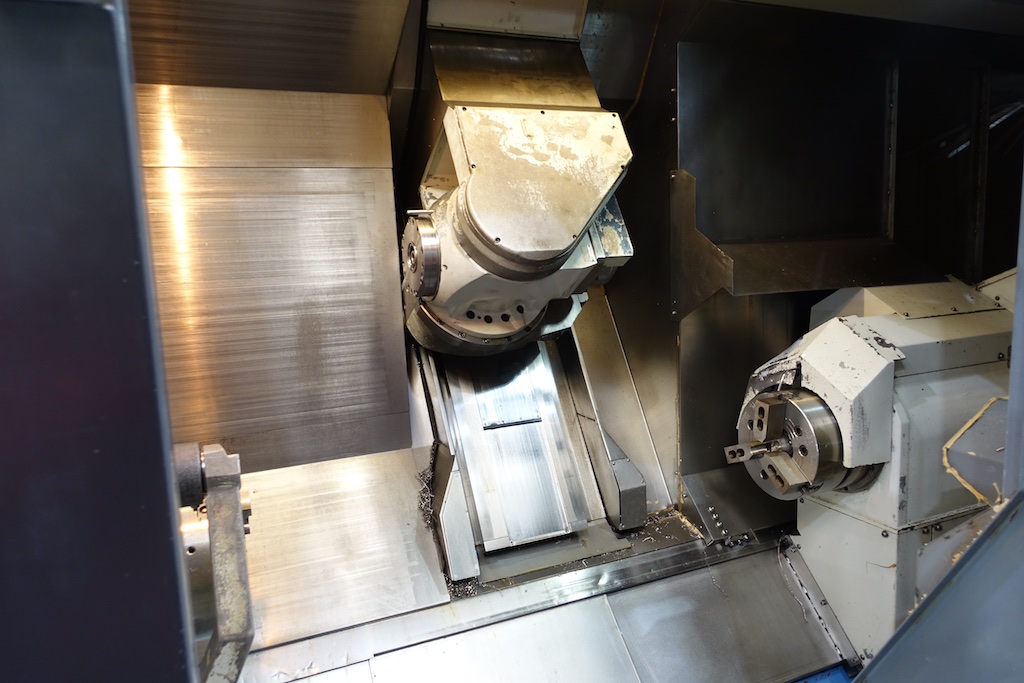

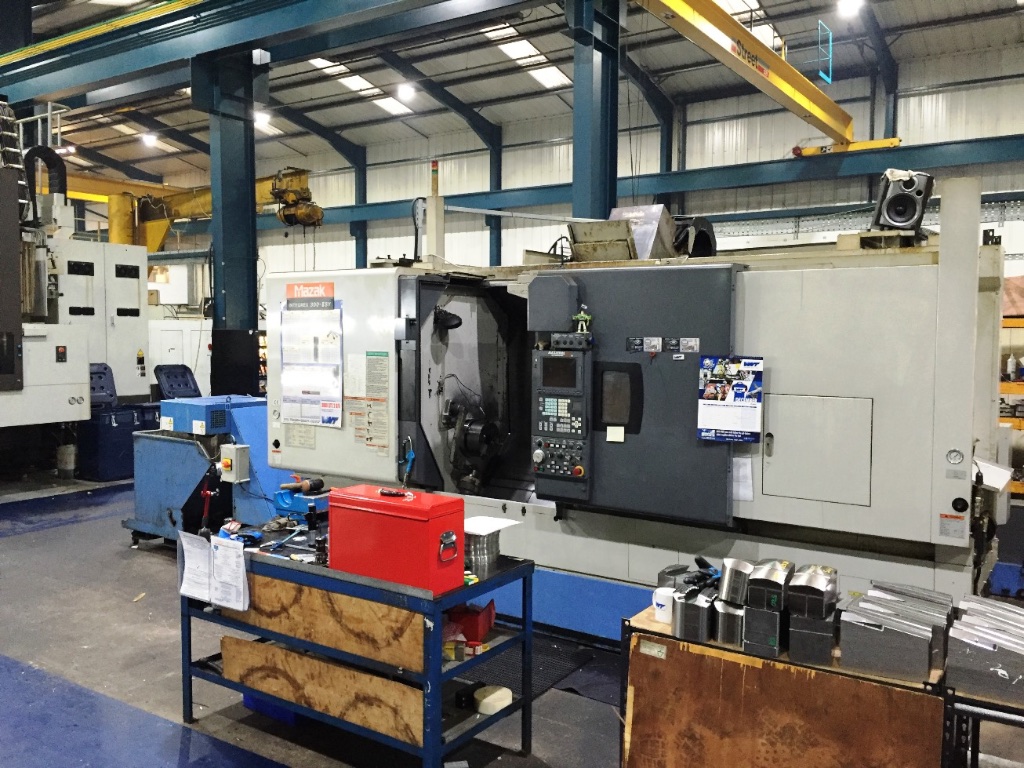

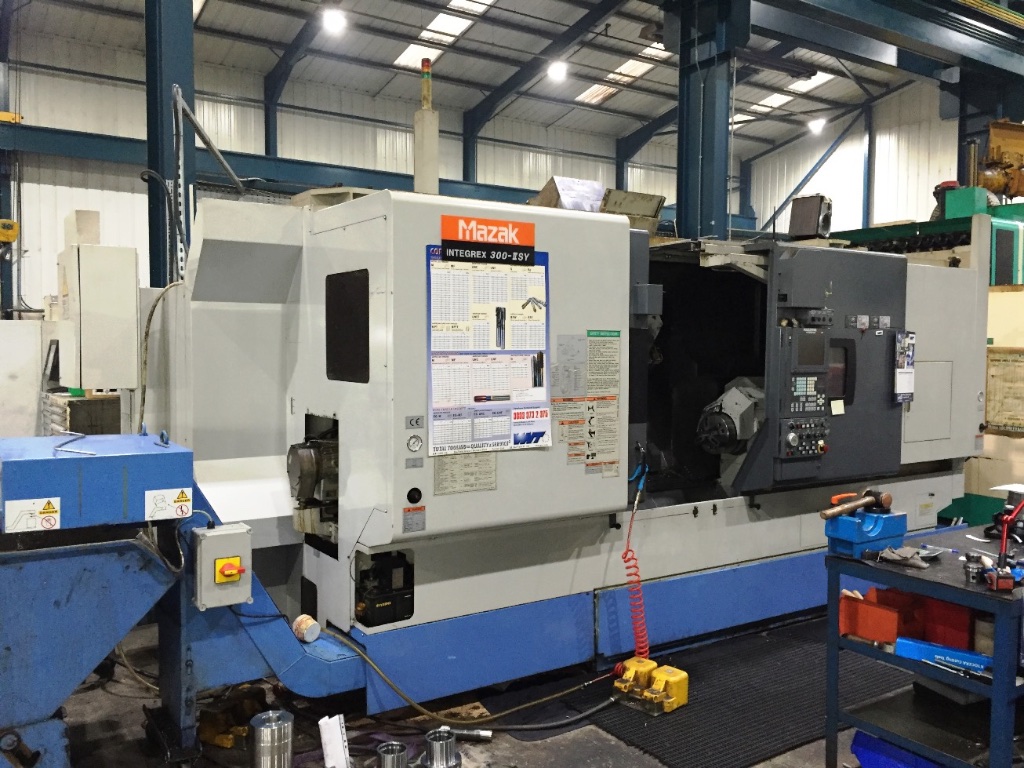

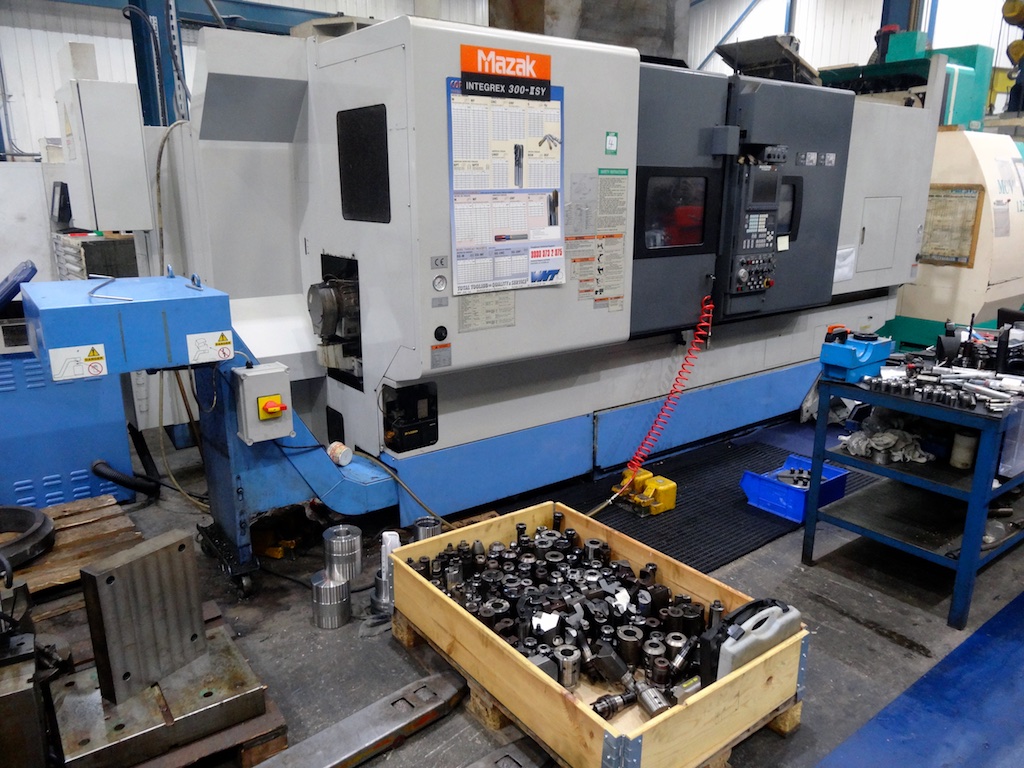

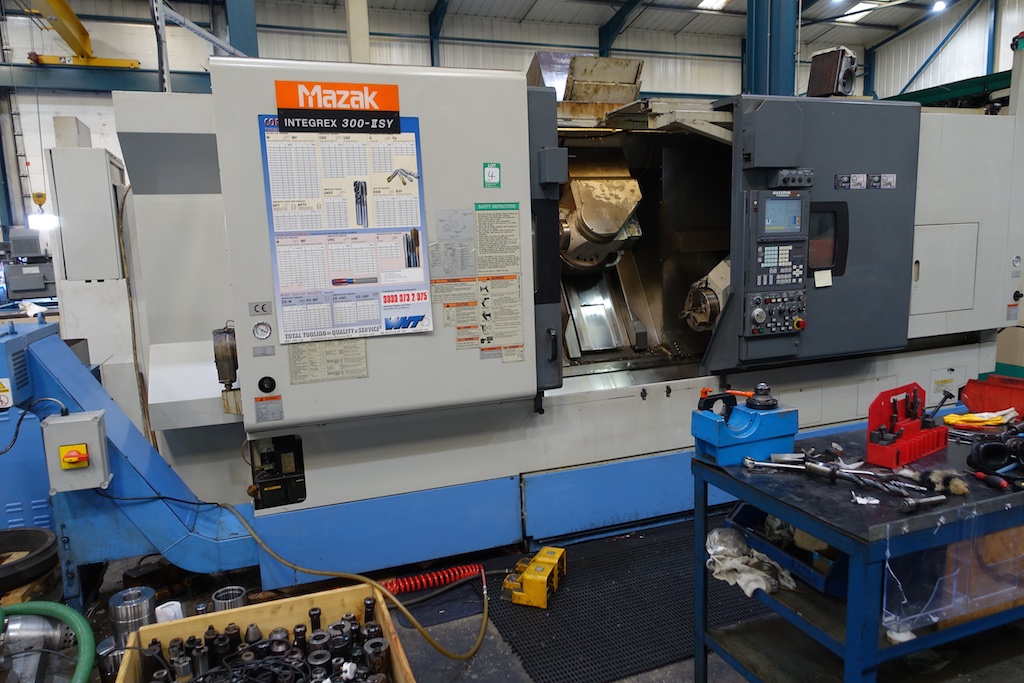

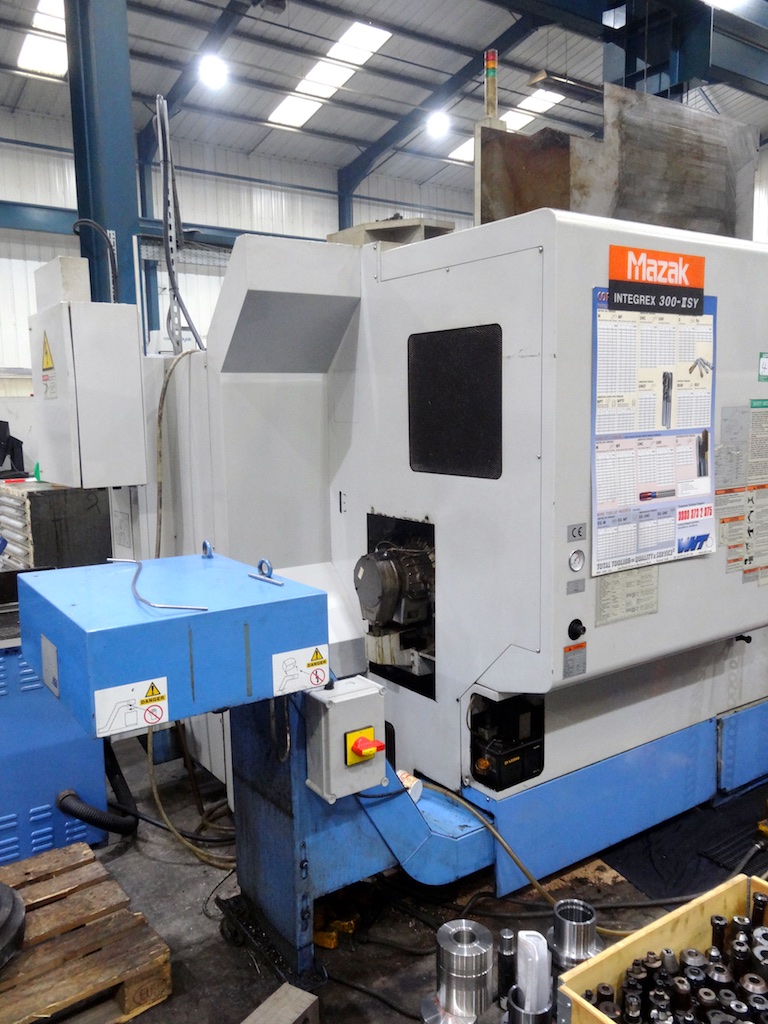

Mazak Integrex 300-II SY CNC turning Centre (2002)

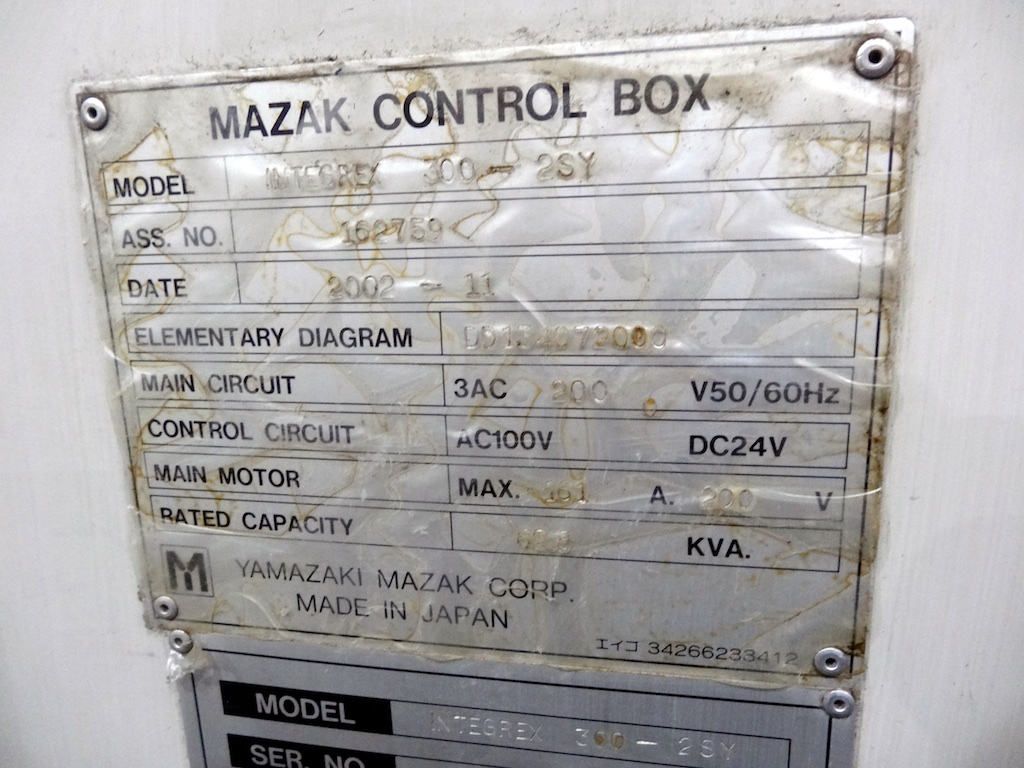

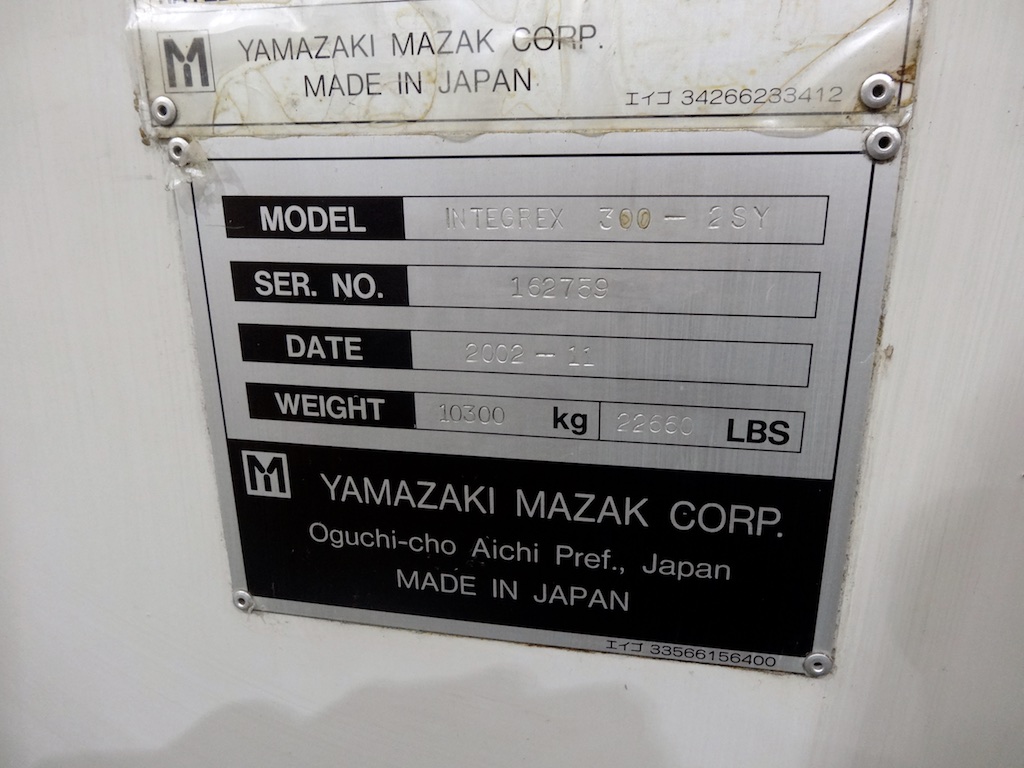

S/n: 162759
Year: 11/2002

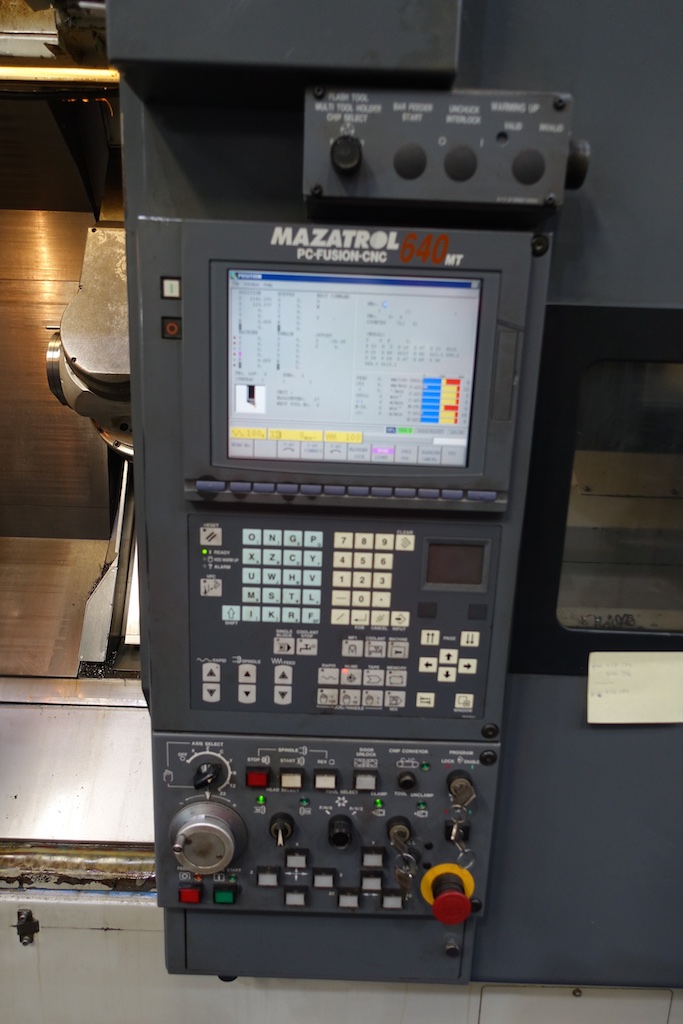

Mazatrol Fusion 640 MT Control
Turning ø 610 mm
Max. swing over bed 610 mm
Spindle speeds 35 - 3500 rpm
Max.turning length 1080 mm

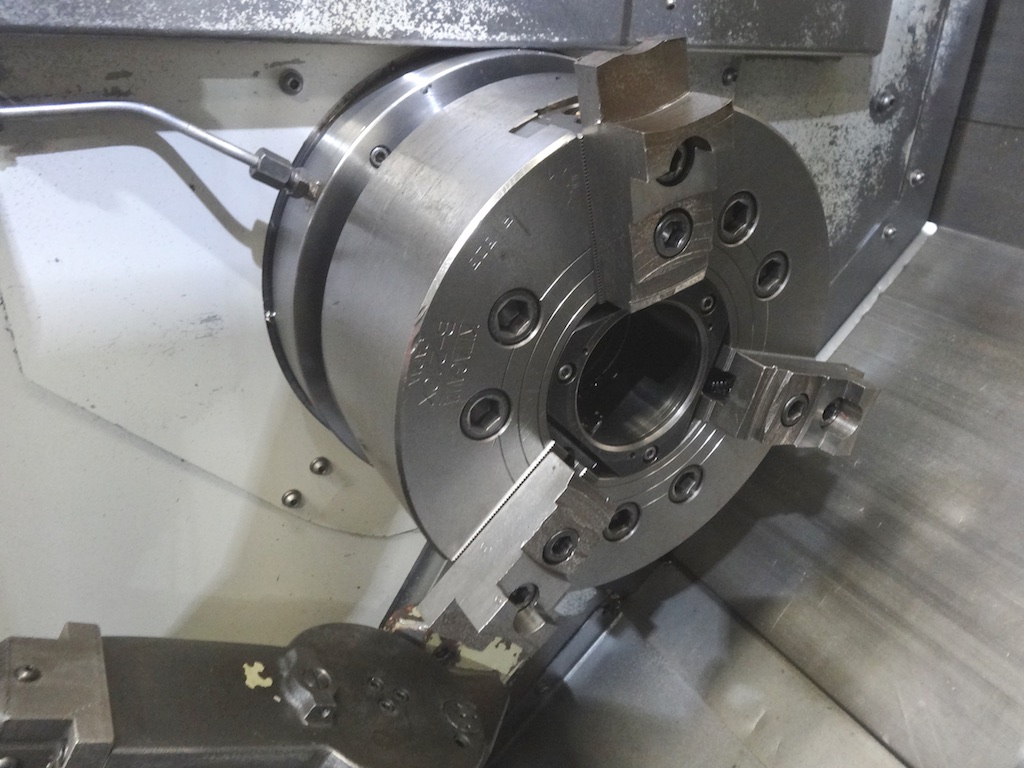

Spindle nose A 2-8
Main Spindle C-Axis 0.001°
Spindle bore 88 mm
Bar capacity 76 mm
Main Spindle Motor 26/22 kW (30 min / 100%)

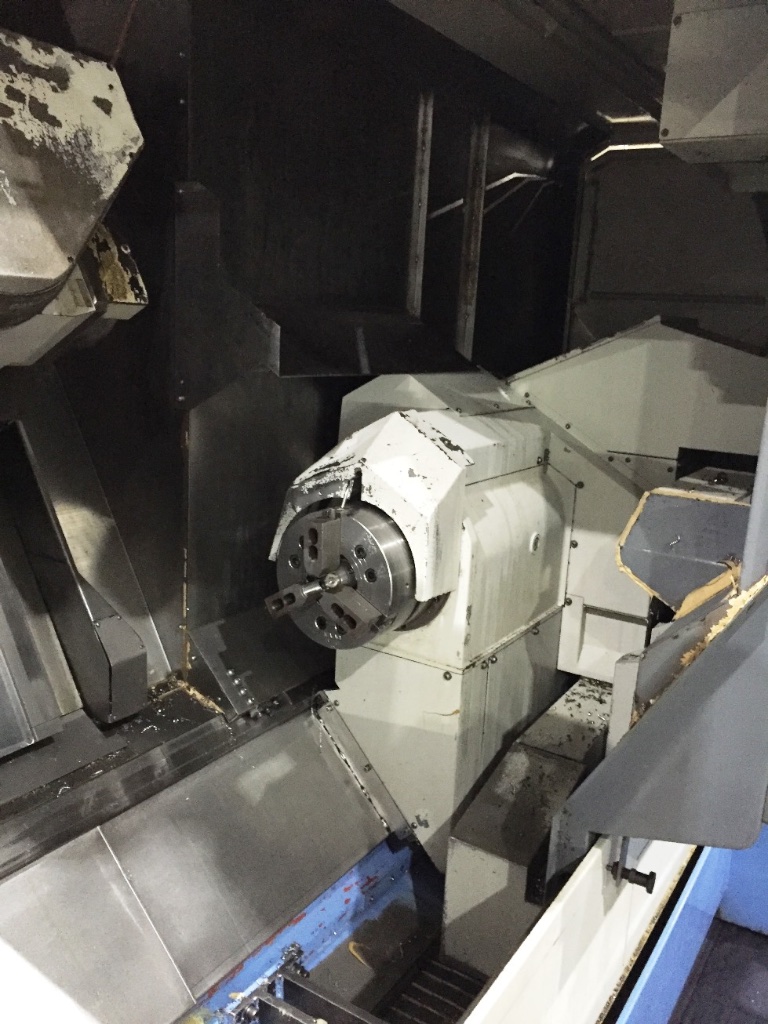

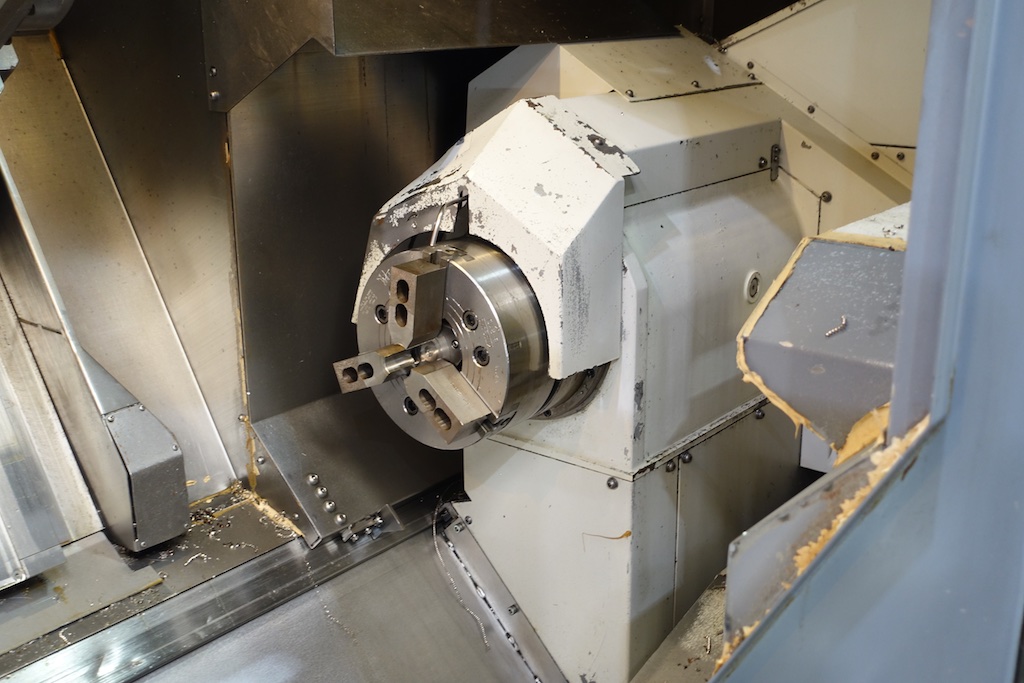

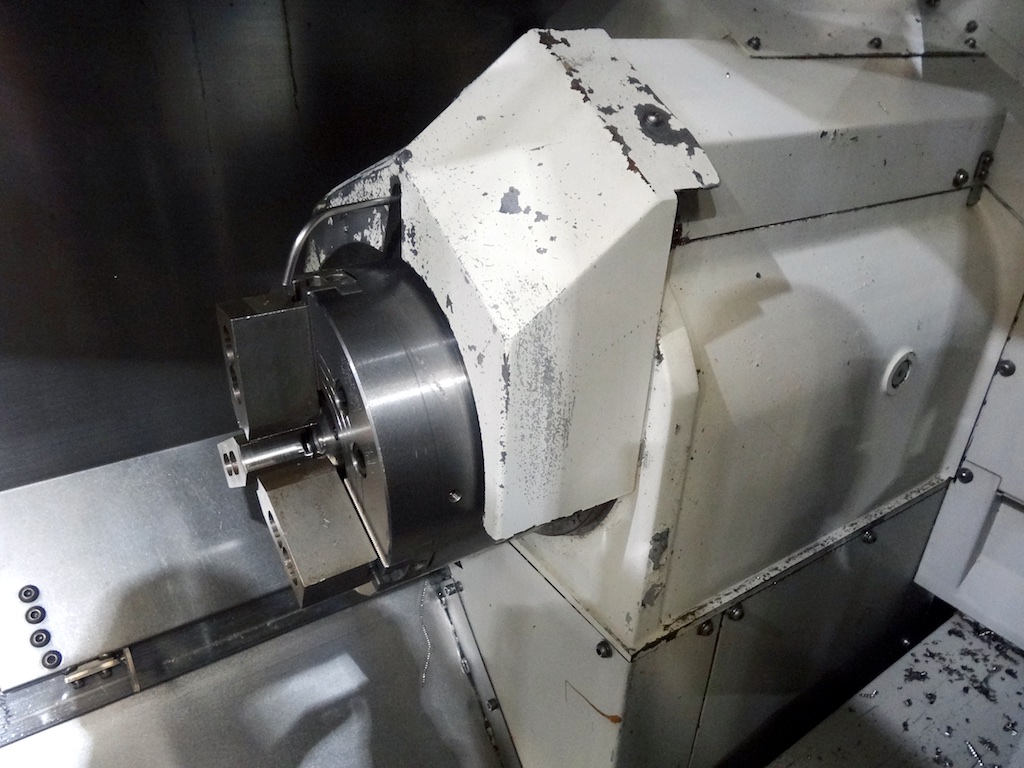

Subspindle Spindle speed 35 - 3500 rpm
Sub Spindle C-Axis 0.001°
Input power 22/15 kW (30 min / 100%)
Milling Spindle Speeds 15 - 10,000 rpm

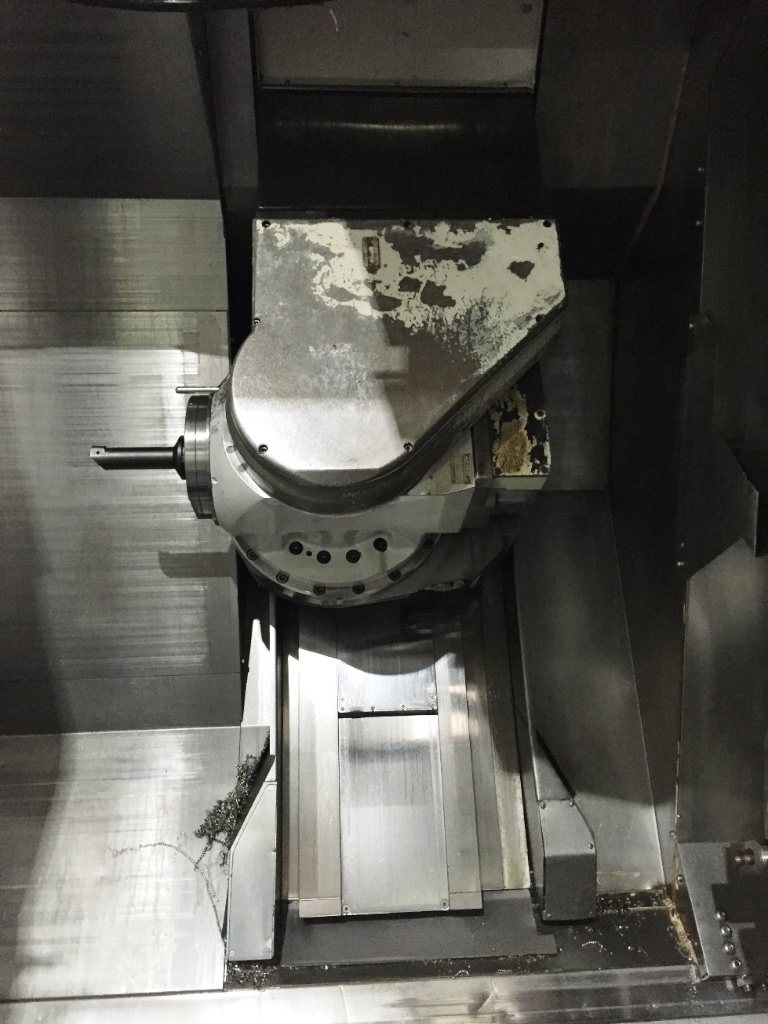

B-Axis -30°/+195° (index. 0.001°)
Rapids X/Z 30/15 m/min

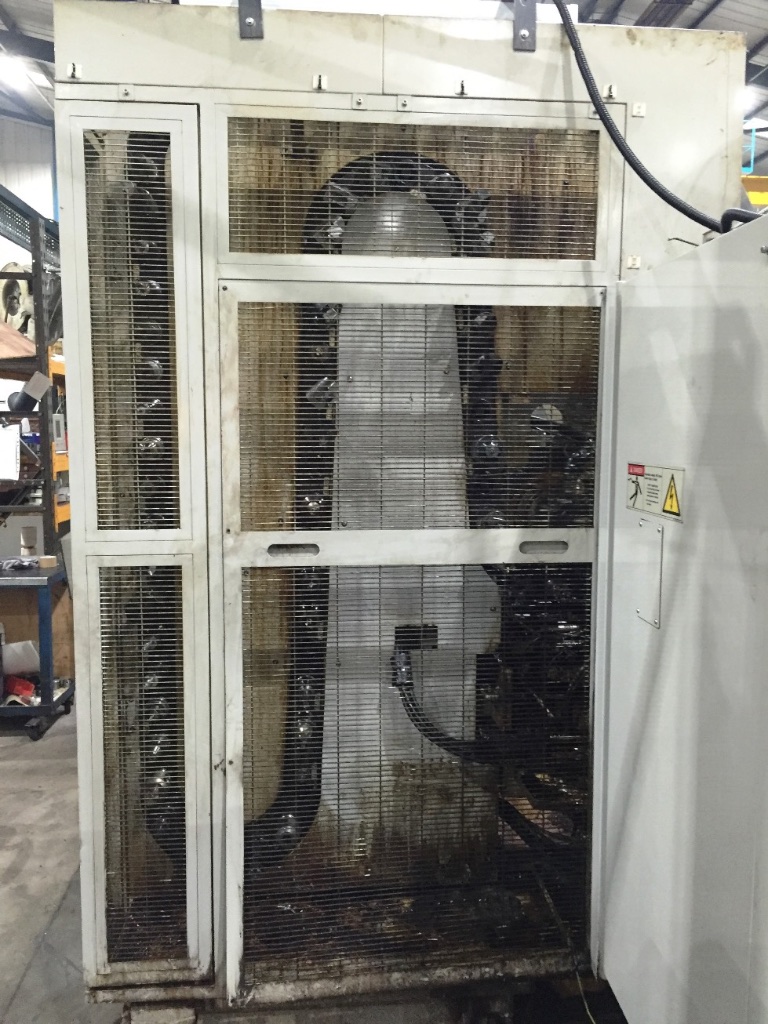

24 Station Tool changer
Y axis Travel +/- 125mm

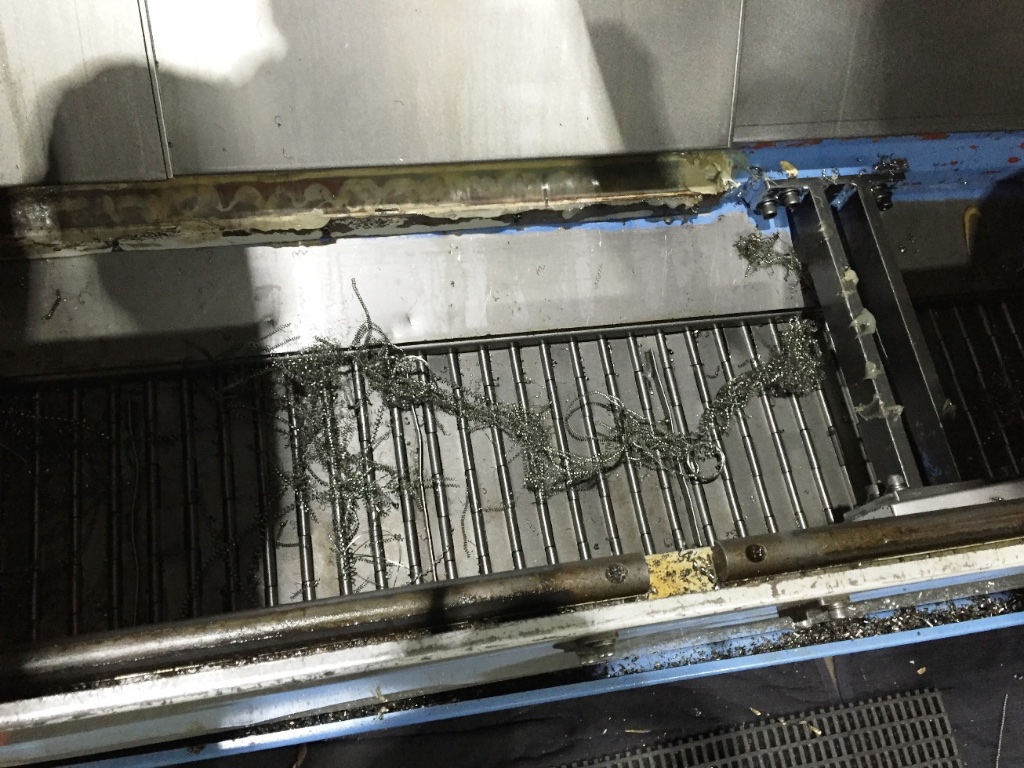

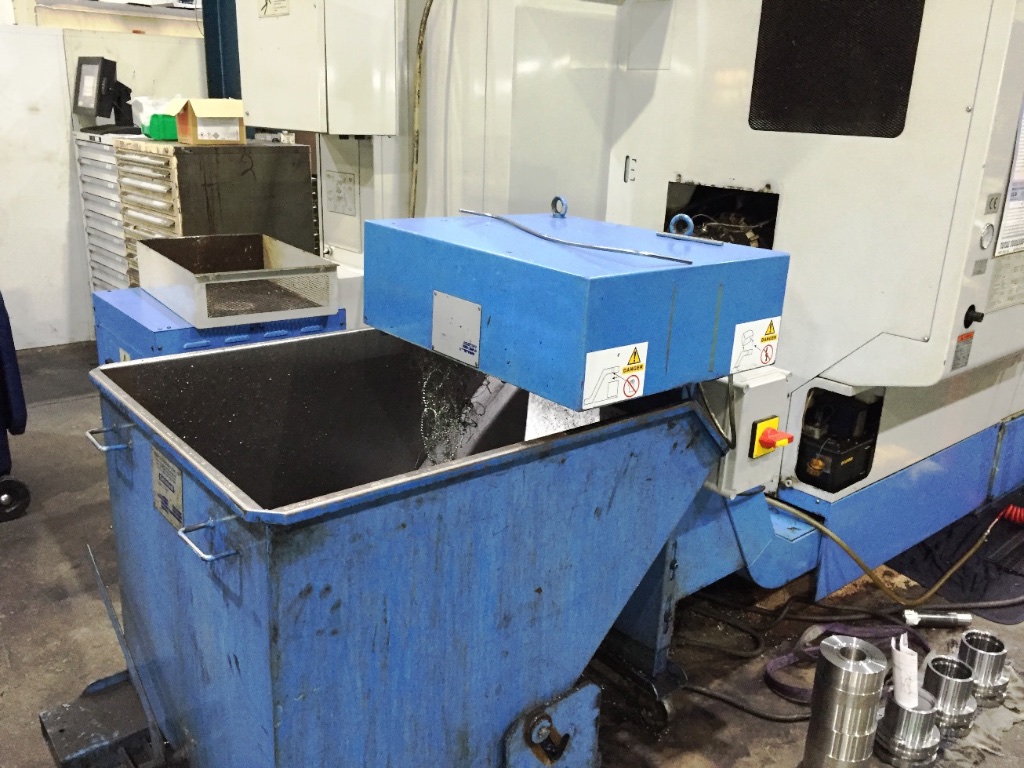

Swarf conveyor

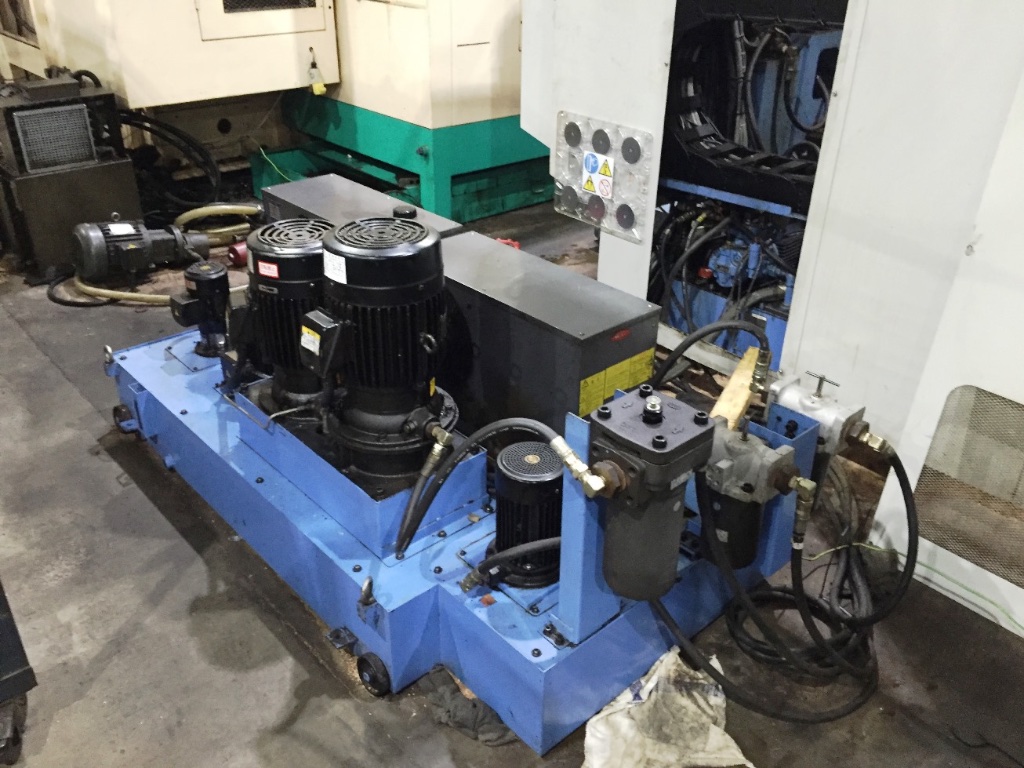

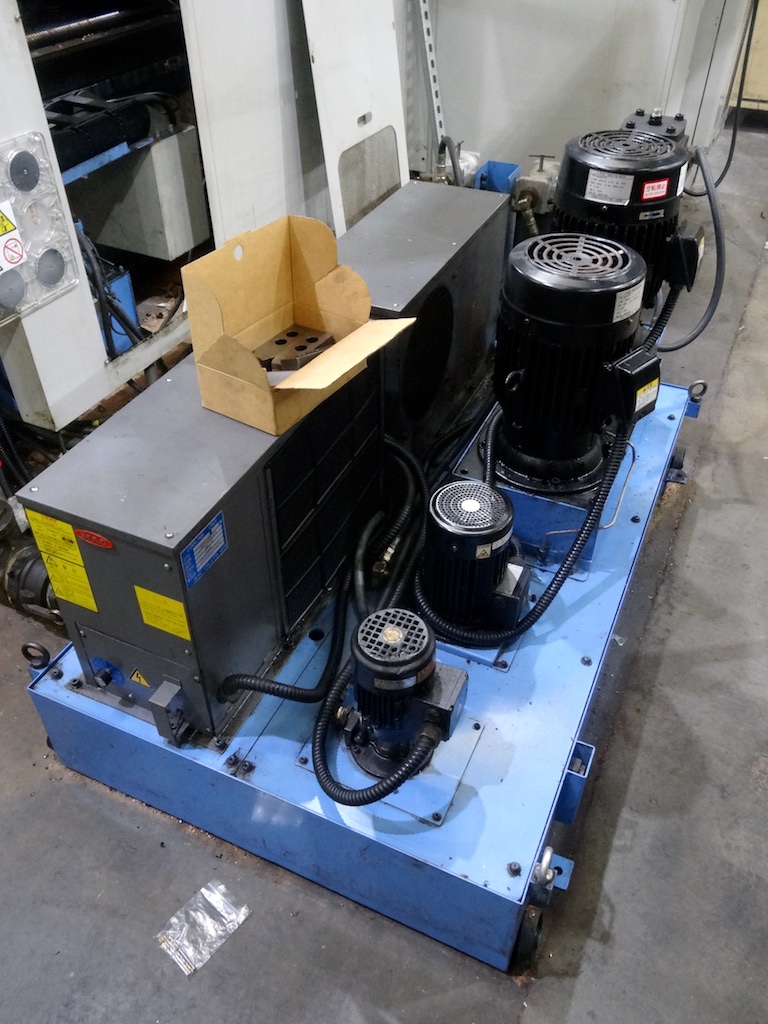

Coolant
L x W x H: 3600 x 5900 x 3000mm
Weight: 10300kg
Location: Sheffield
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
