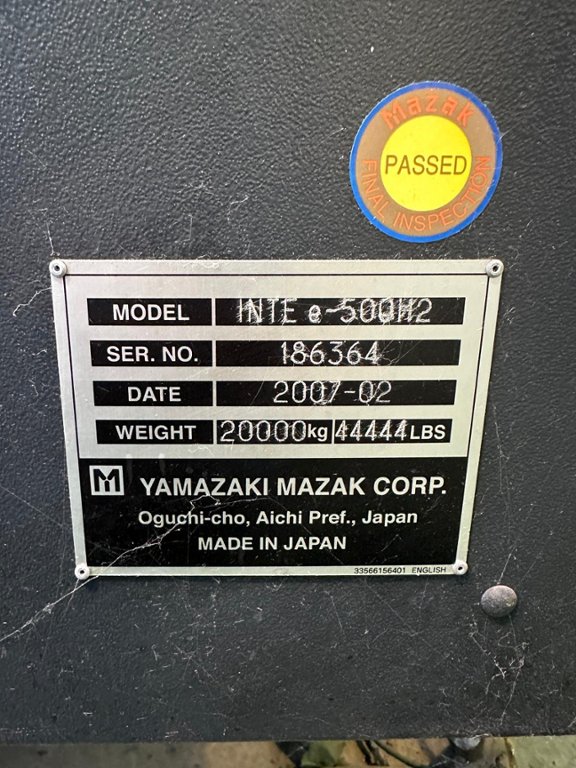

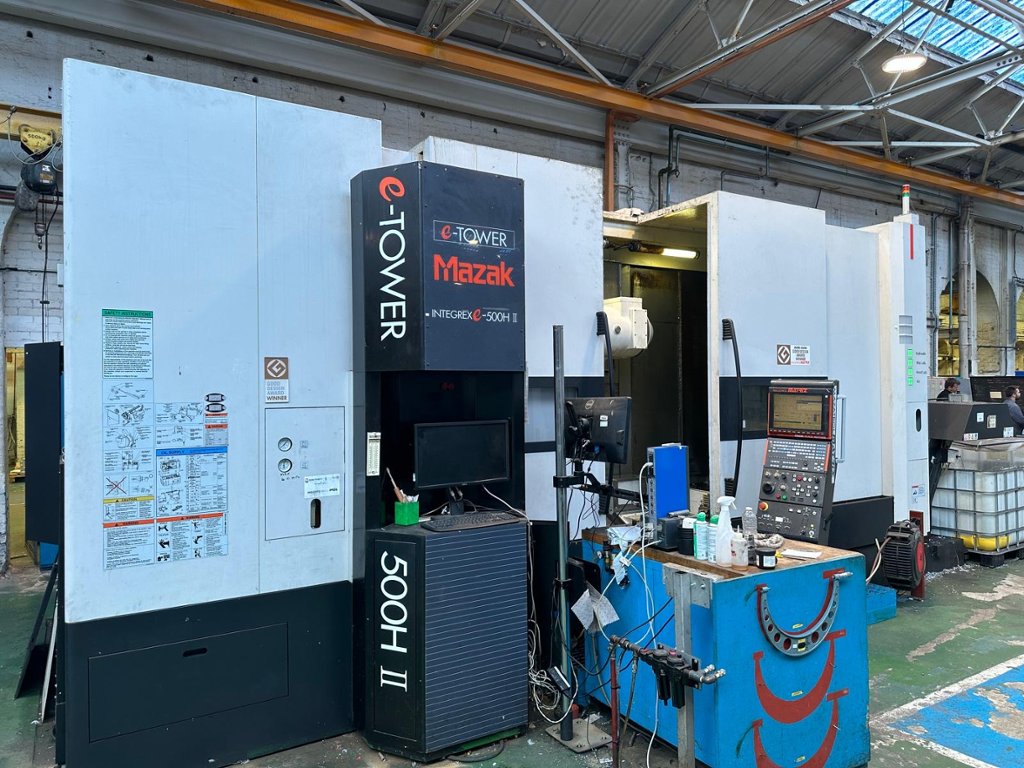

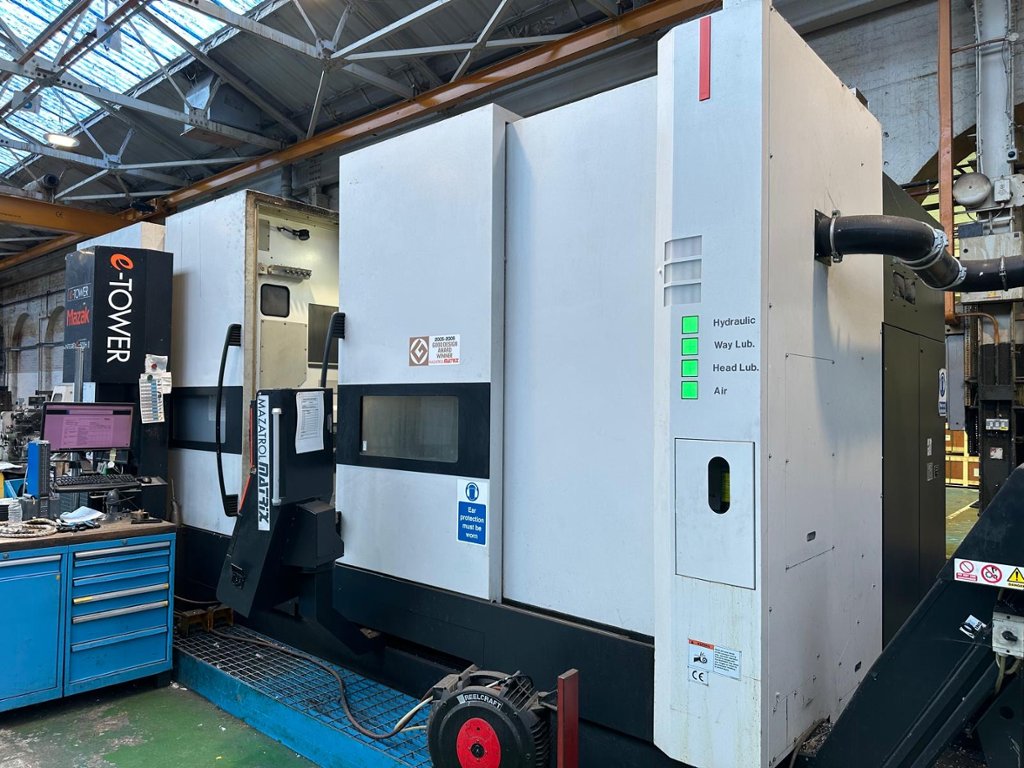

Lot 1 - Mazak Integrex E500H2 CNC Turning Centre

Description:

Capacity

Maximum Swing - 820mm, Swing over cross slide - 820mm, Maximum Machining diameter - 820mm, Spindle through hole diameter - 104mm, Maximum support weight (including chuck) - Chuck work - 710kgf & Shaft work - 1500kgf

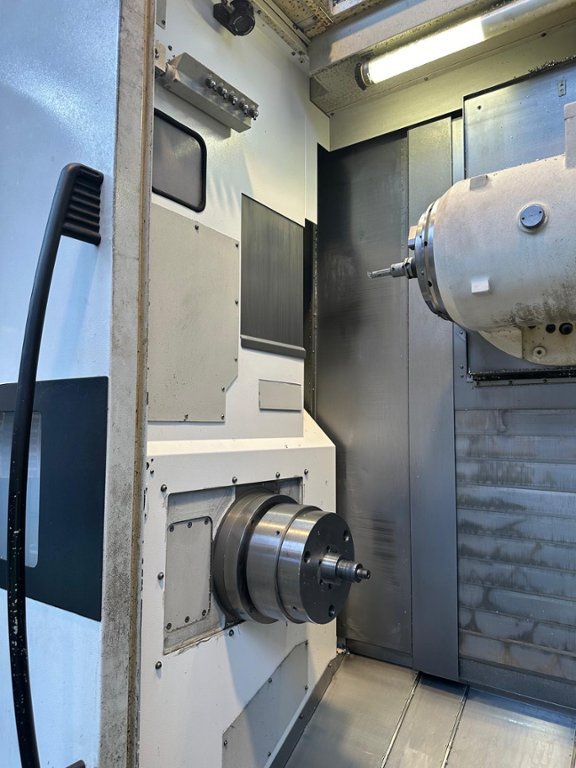

Turning Spindle

Rotating speed - 35-3000RPM, Turning spindle through hole diameter - 104mm, Turning spindle nose - A2-11", Turning spindle bearing inner diameter - 150mm, Turning spindle motor - 30 min rating - 30kW - Cont rating - 22kW, Maximum torque - 316 kgf/m

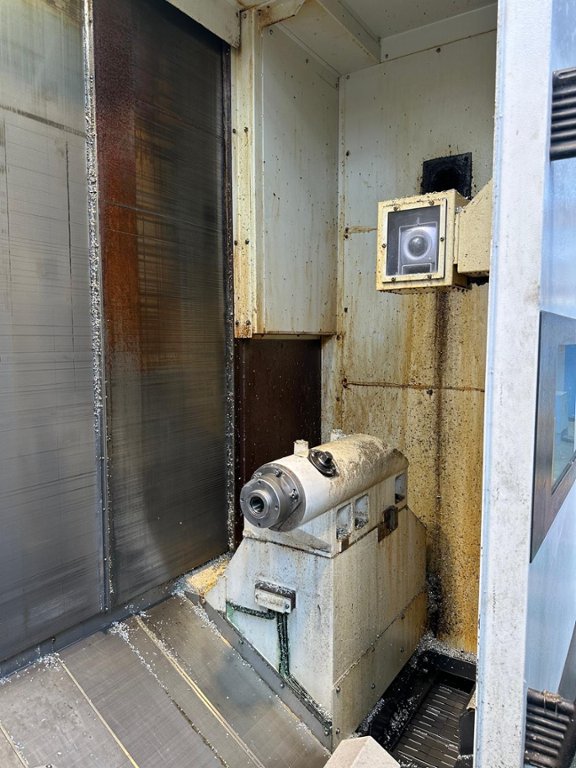

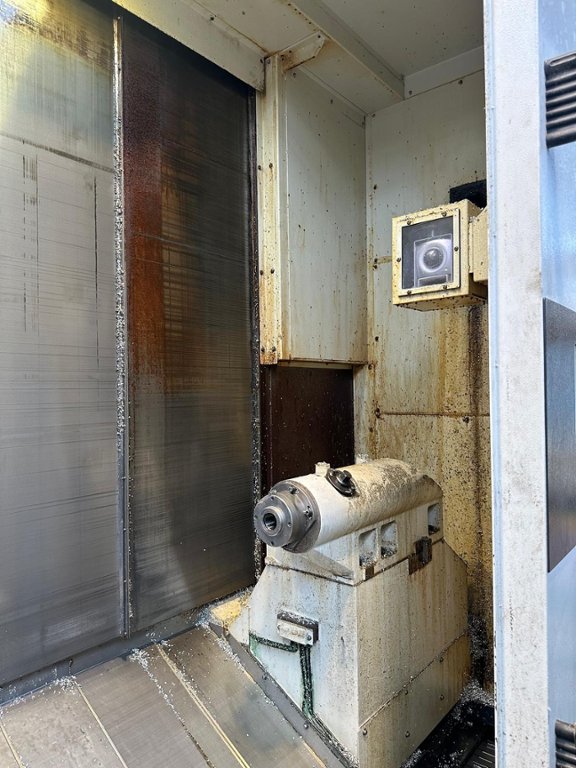

Tailstock

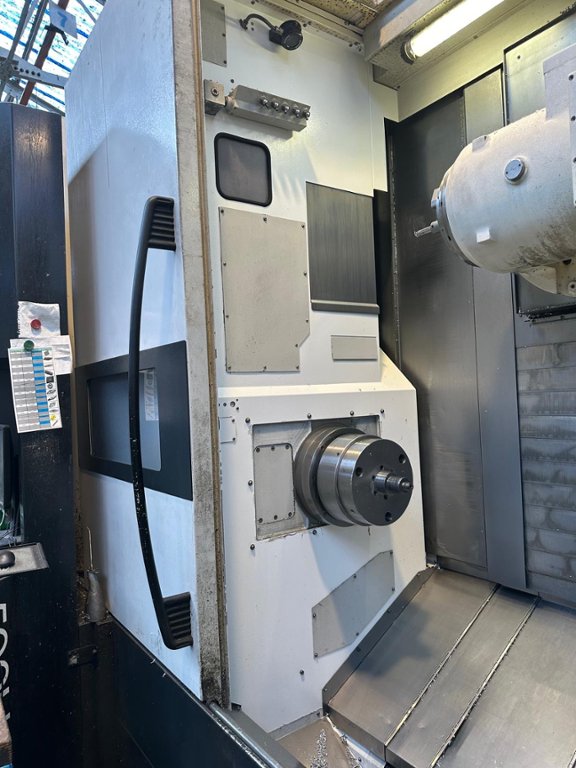

Sleeve hole type - MT No5, Maximum thrust power - 1500kgf, Movement stroke - 1466mm

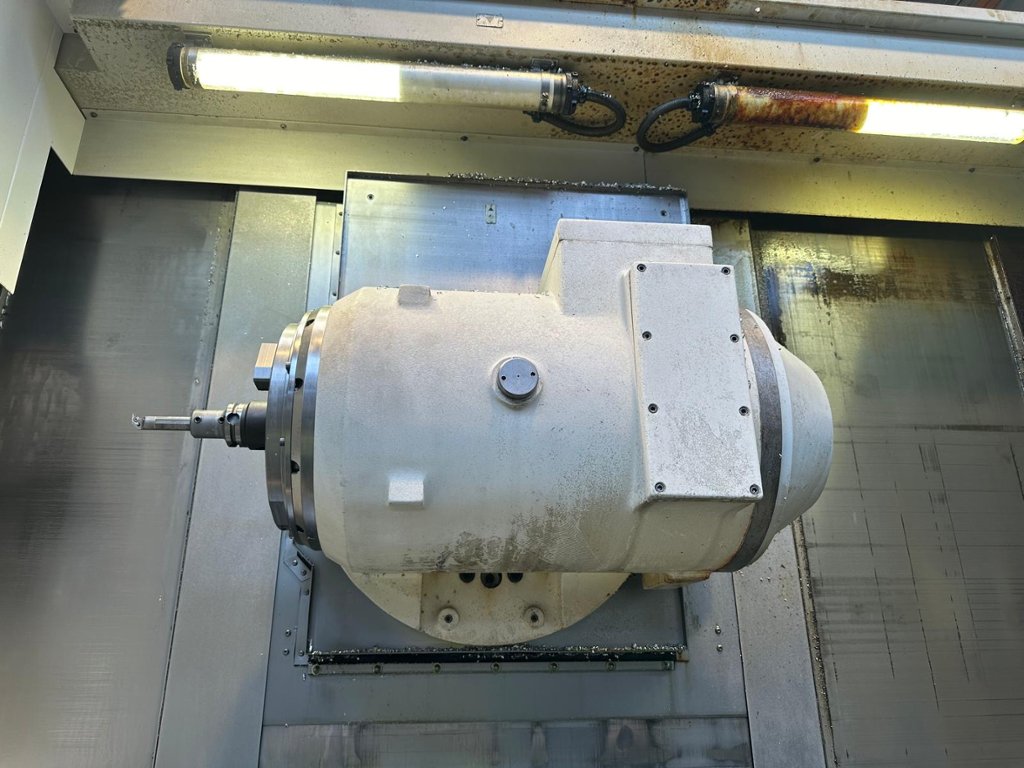

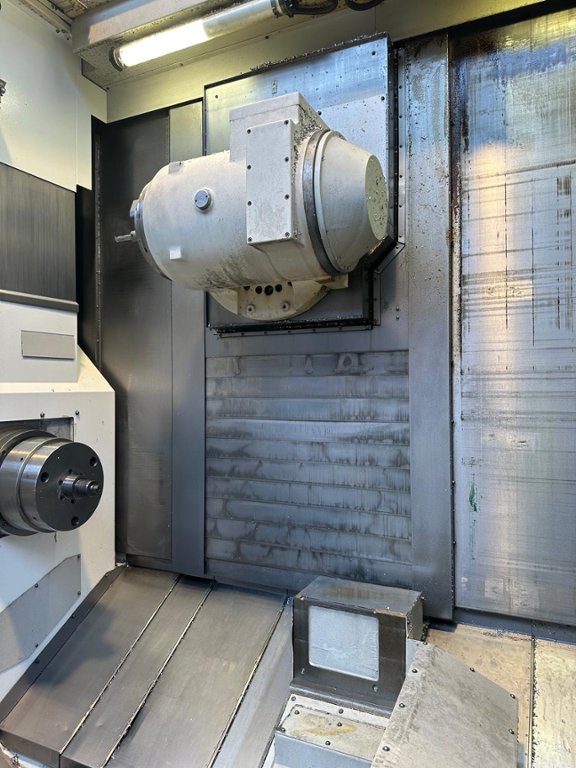

Milling Spindle

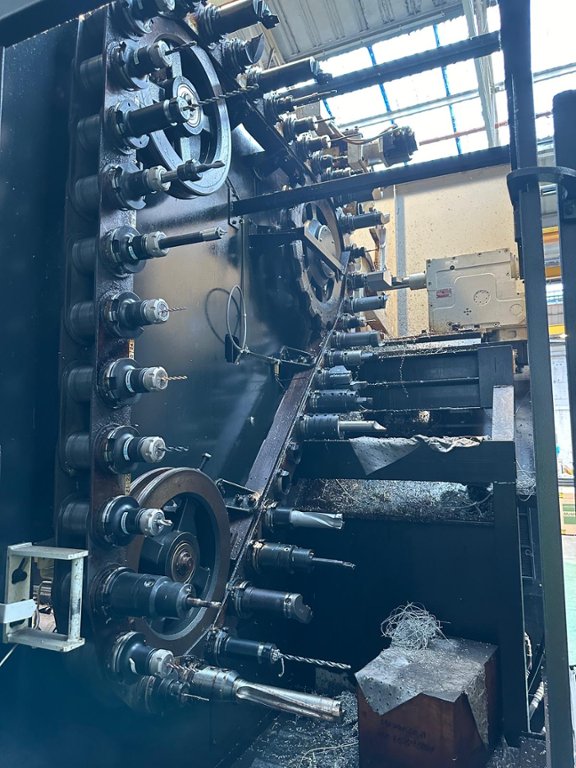

Milling head type - Single spindle with ATC unit, Toolshank type - CAT 50, Tool size - OD Turning - 25mm - ID Turning - 50mm - Maximum 260mm x 500mm long, 90deg indexing time - 0.7secs, Milling spindle motor output - 30 min rating - 37kW, Maximum rotary tool torque - 1 min rating - 31.8kgf/m, Milling spindle speed - 35-10000RPM

Feed Axis

Rapid Feedrate - X Axis - 40 m/min - Y Axis - 40 m/min - Z Axis - 40 m/min - W Axis (tailstock) - 4.5 m/min, Movement stroke - X Axis - 870mm - Y Axis - 500mm - Z Axis - 1598mm - W Axis (tailstock) - 2990mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

19 Sep 2024 15:50:00 BST


Final remove by date: 03/Oct/2024

Transport information

  • Width: 6450mm
  • Depth: 3450mm
  • Height: 3160mm
  • Weight: 20000kg
