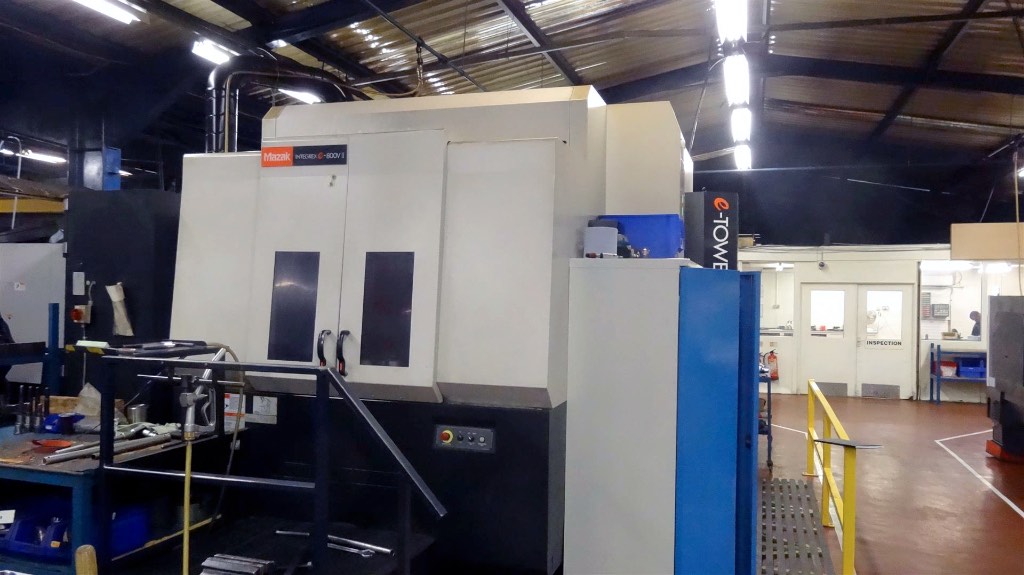

Lot 1 - Mazak Integrex E800 5 Axis Machining Centre
Description:
Mazak Integrex E800 5 Axis Machining Centre (2007)
Maximum workpiece diameter : 730 mm
Maximum workpiece height : 1000 mm
X-Axis stroke : 1100 mm
Y-Axis stroke : 800 mm
Z-Axis stroke : 900 mm
B-Axis center to pallet center (X-axis home) : 1020 mm
B-Axis center to pallet center (X-axis minus end stroke) : -80 mm
Spindel nose to pallet center (B=90°, X-axis is home) : 771 mm
Minimum/Maximum B-Axis center to pallet top : 100/1000 mm
Minimum/Maximum spindle nose to pallet top (B=0°) : -149/751 mm
Maximum pallet load : 800 kg

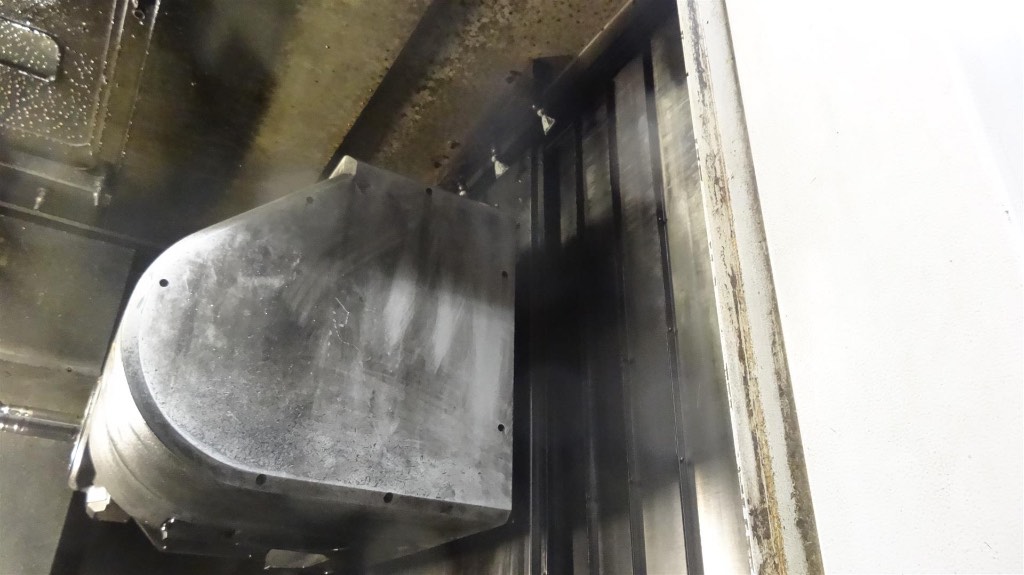

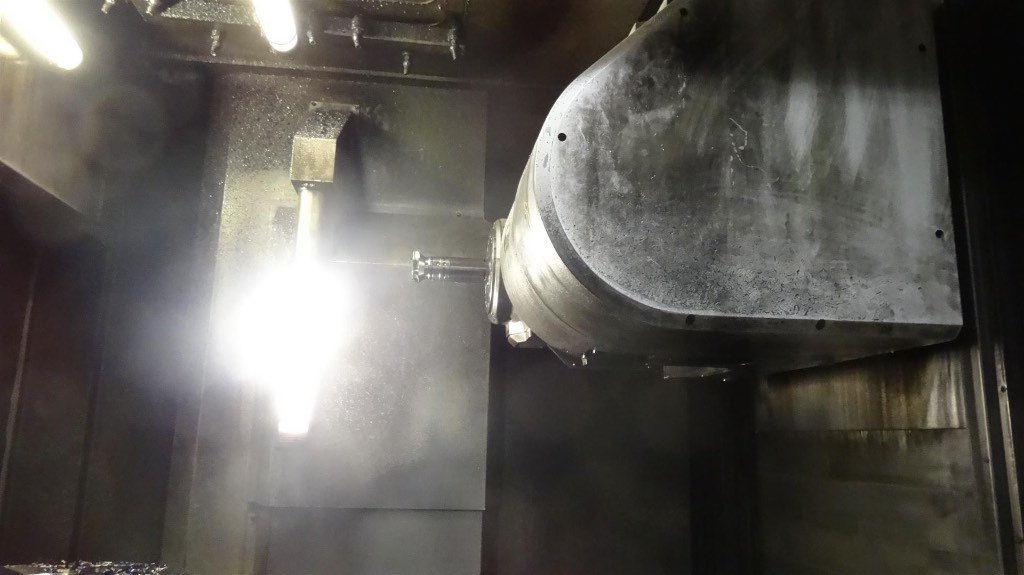

Milling spindle:
Spindle nose : capto C6
Minimum/Maximum Rotational speed : 35-12000 rpm
Number of speed shifts : 2
Mill spindle motor : 15 min/continue – 22/18.5 kw
Maximum torque on milling spindle : 283 Nm
B-axis indexing (with clamping) : 5°
B-axis indexing (no camping) : 360000 x 0.0001 °

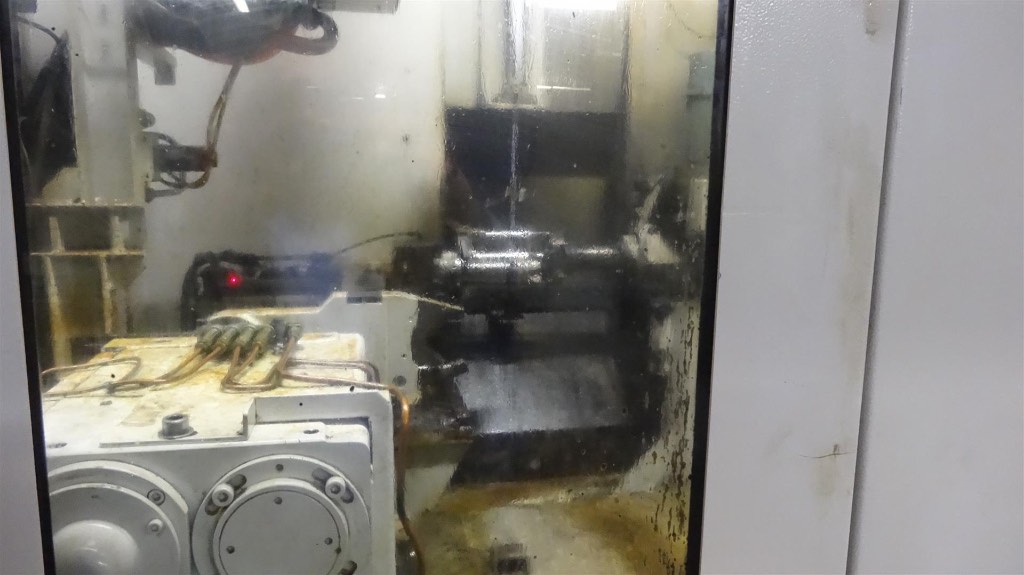

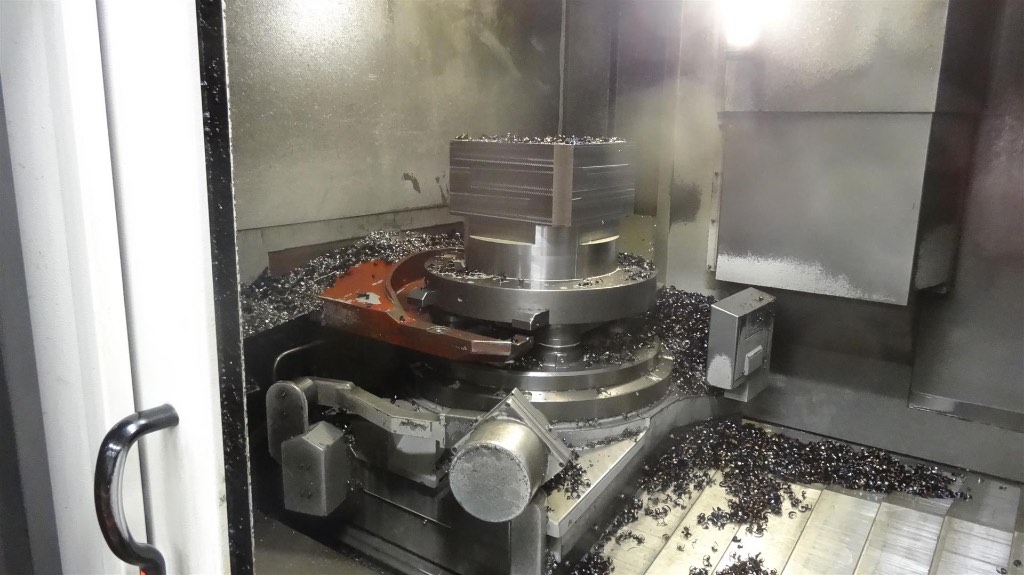

Table (Turning spindle)
Minimum/Maximum Rotational speed : 35-1000 rpm
Number of speed shifts : 2
Turning Spindle motor : 30 min/continue – 30/22 kw
Maximum torque on turning spindle : 1000 Nm
Pallet change time : 10 sec
Table indexing : 3600000 x 0.0001 °
Table indexing time : 0.9 sec
Feed rates:
Cutting feed rate (X/Y/Z) : 50 m/min
Rapid traverse (X/Y/Z) : 50 m/min
Rapid traverse C : 10 rpm
Rapid traverse B : 50 rpm

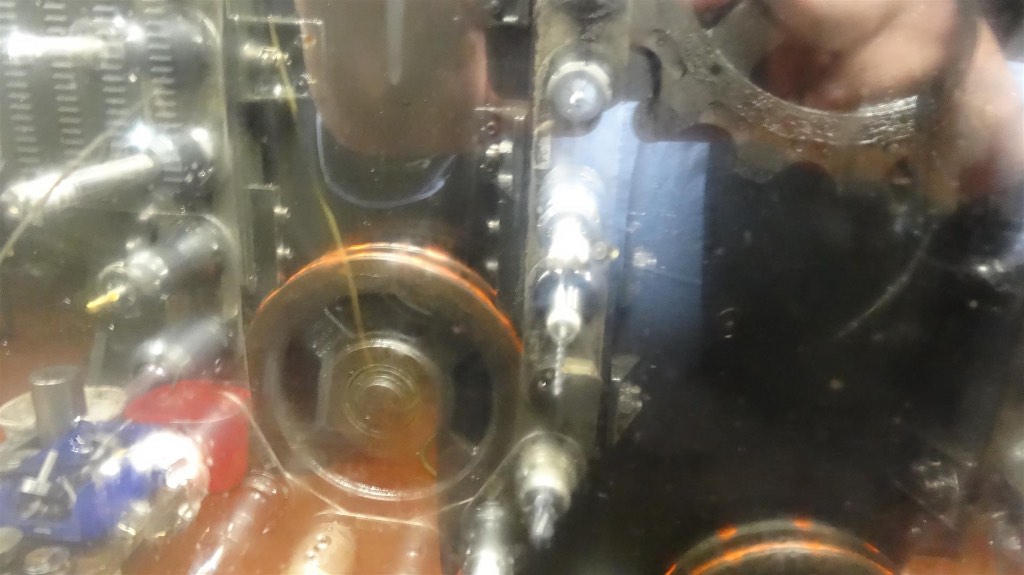

ATC & Tool magazin:
Total magazins storage Tools : 120
Tool chrank type : CAPTO C6
Maximum tool diameter with adjacent Tools : 95 mm
Maximum tool diameter with no adjacent Tools : 150 mm
Maximum tool length : 400 mm
Maximum tool weight : 12 kg
Tool change time : 5.2 sec
Dimensions and weight
Required floorspace Machine width x depth 3680 x 7700 mm
Height 3435 mm
Weight 23500 kg
Standard equipment:

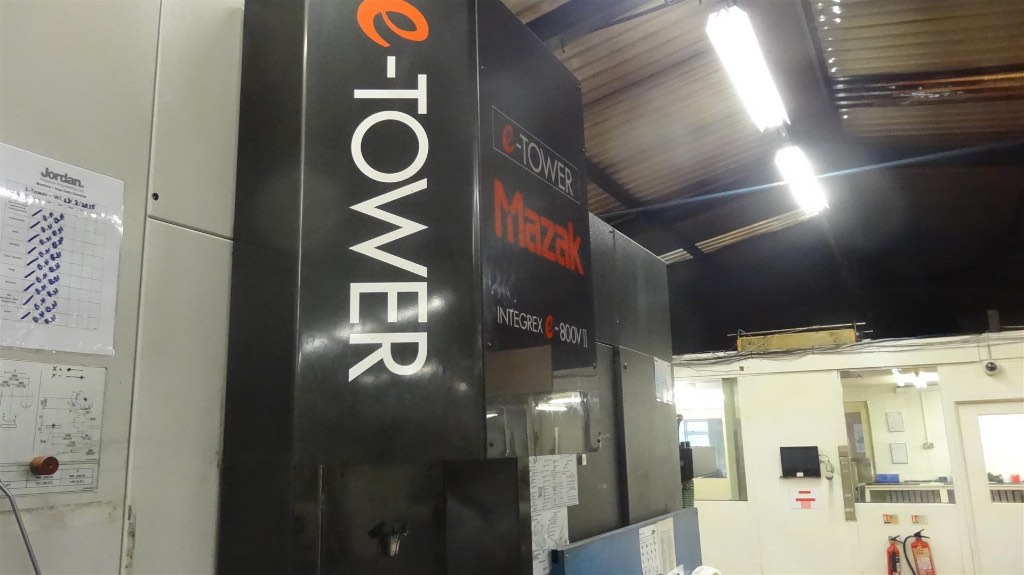

E-Tower
Air trough mill spindle
B Axis contouring

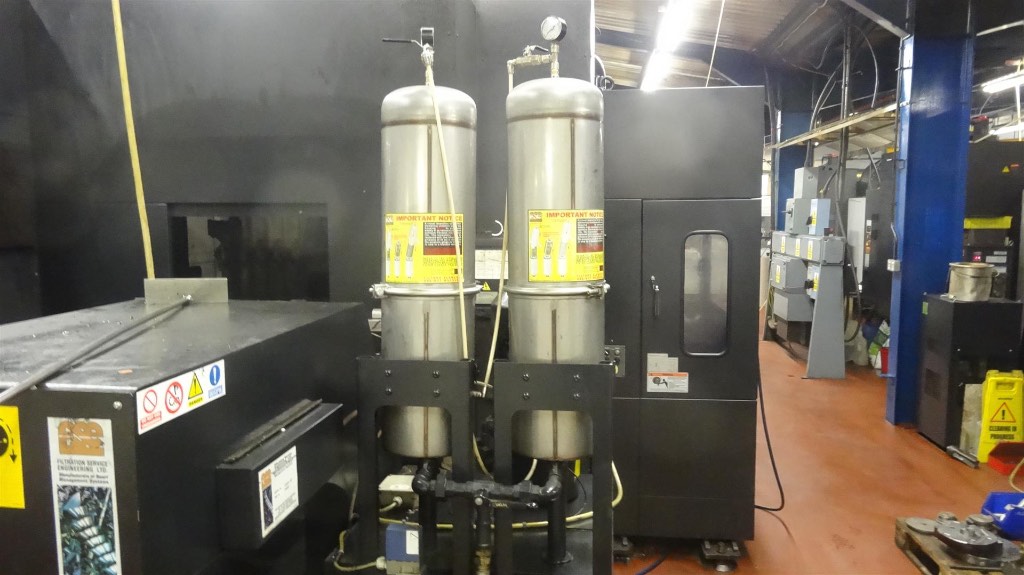

Coolant thru mill spindel 0,8 Mpa
Niagara coolant
Flood coolant
Automatic power by breaker trip
Cooler for Ball scres
G 37 Auto tool length measurement in EIA/ISO

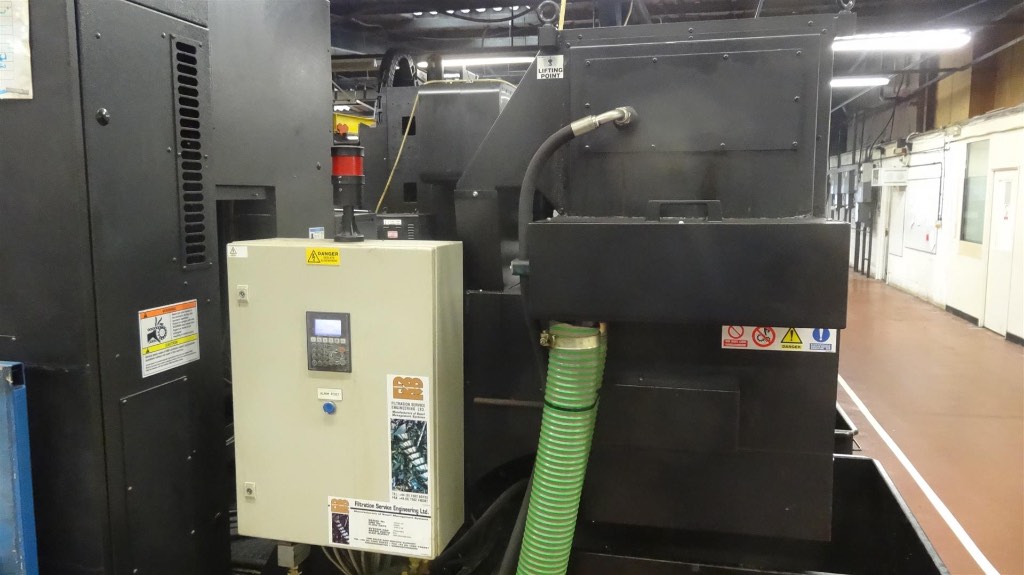

Preparation Chip conveyor Consep 2000 Rear
User Macro 600
Mazak Tapping/boring tornade
EIA/ISO code input
Additional EIA/ISO codes
G02.1-G03.1 Spiral interpolation
G40-G42 3D- Cutter compensation
G68, G69 Pattern rotation
G50,G51 Scaling
Geometric
External Data input Output
G93 Inverse time feed
Sequence number comperison stop
Tilted working plane
Mazacc 2D software
300 pairs add. Workpiece coordination sys.
G 33 treading function
G122 Polar coordinates input
EIA Patern cycl (Grid,ARC)
Cardbus I/F 2 slots
Lan port
USB I/F
IC Memory card I/F
All offers submitted before 30th July will be considered
Offers in the region of £200,000
Location: Newcastle
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
