Lot 20 - Mazak QT 10N CNC - Spares or repair
Description:

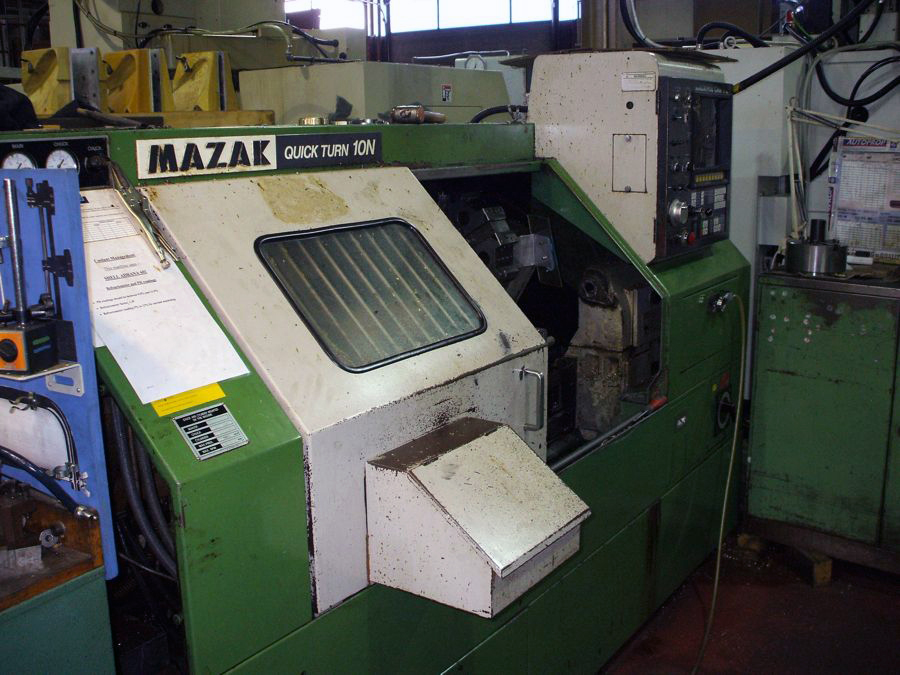

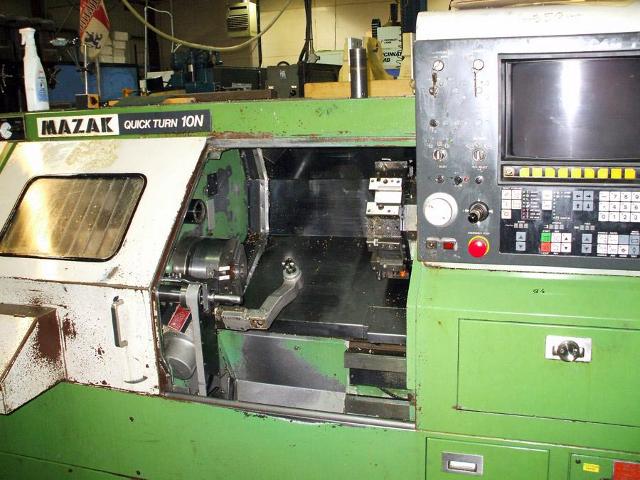

Mazak QT 10N CNC
No Reserve
Sold as Spare or repair.
New power supply pack installed in June cost £1712.00
Control Board has failed FR-SE-2-22K
Also Screen Dim
(Year 1985)
8" Chuck
Swing over bed: 440 mm
Swing over cross-slide: 150 mm
Distance centre tot centre: 500 mm
Max longitudinal travel Z-axis: 540 mm
Max cross travel X-axis: 155 mm
Spindle cone: A2-6
Dia of spindle bore: 56 mm
Power on the spindle: 15 kW
Number of speeds: 14 - 3600 rpm

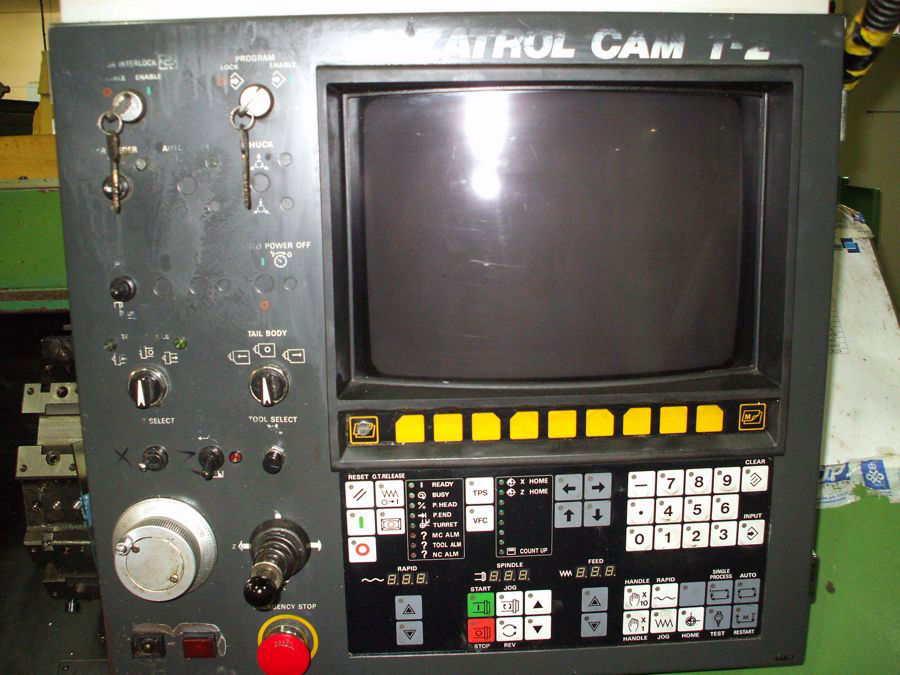

Command: Mazatrol Cam T2
Total power needed: 31 KVA
Length: 3680 mm
Width: 2460 mm
Height: 1740 mm
Weight: 2900 kg

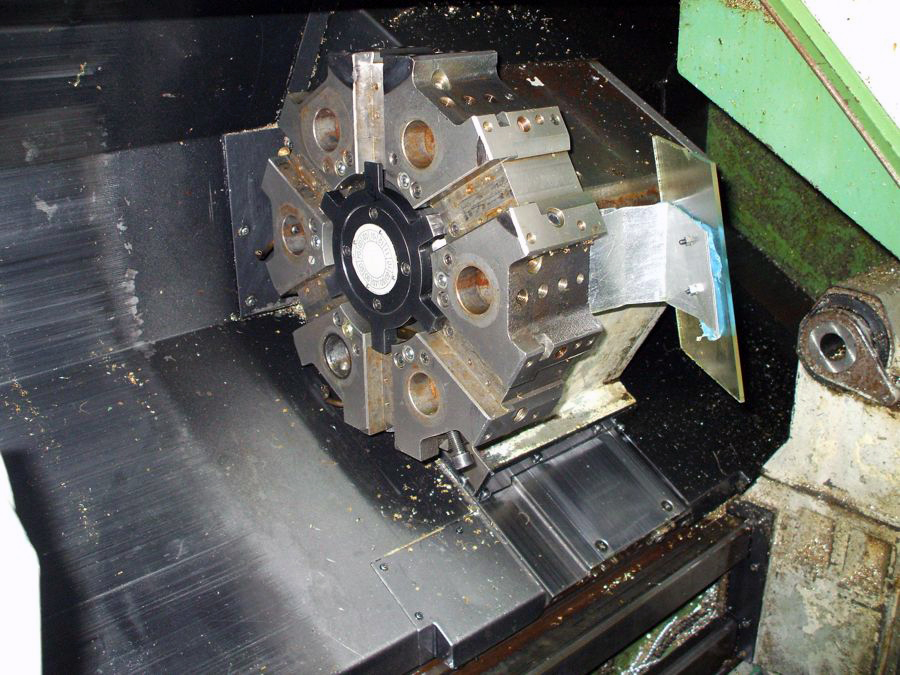

Toolchanger: Yes
Number of tools: 12 Position
tailstock
Location: Clackton-on Sea, Essex
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
