Lot 6 - Mazak QT15 CNC Lathe
Description:

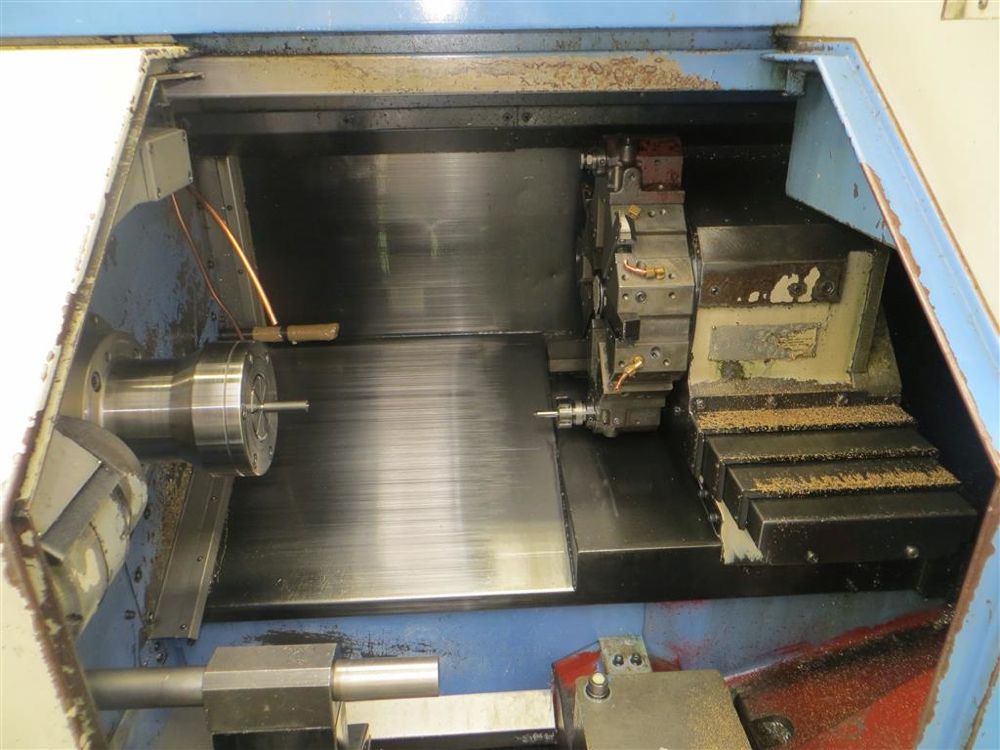

Mazak QT15 CNC Lathe
(Please note machine is not with barfeed)
SWING OVER BED 17.3"
MAXIMUM TURNING DIAMETER 10.6"
MAXIMUM TURNING LENGTH (SHAFT WORK) 20"
X AXIS TRAVEL 6.1"
Z AXIS TRAVEL 20.1"
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 944 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.44"
SPINDLE SPEEDS (FOR 10" CHUCK) 36-3000 RPM
SPINDLE MOTOR 20 HP AC

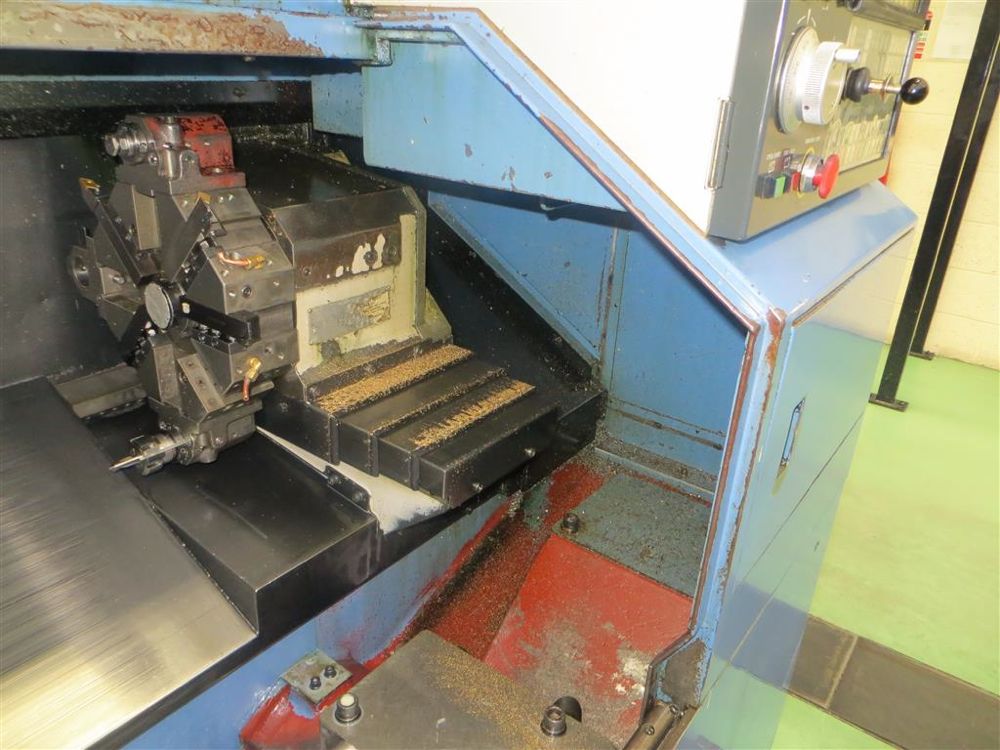

TURRET CAPACITY 8-STATION TURRET
TAILSTOCK BODY TRAVEL 18.9"
TAILSTOCK QUILL TRAVEL / DIAMETER 5.12" / 3.15"
WEIGHT APPROXIMATELY 9020 LBS
Equipped With:

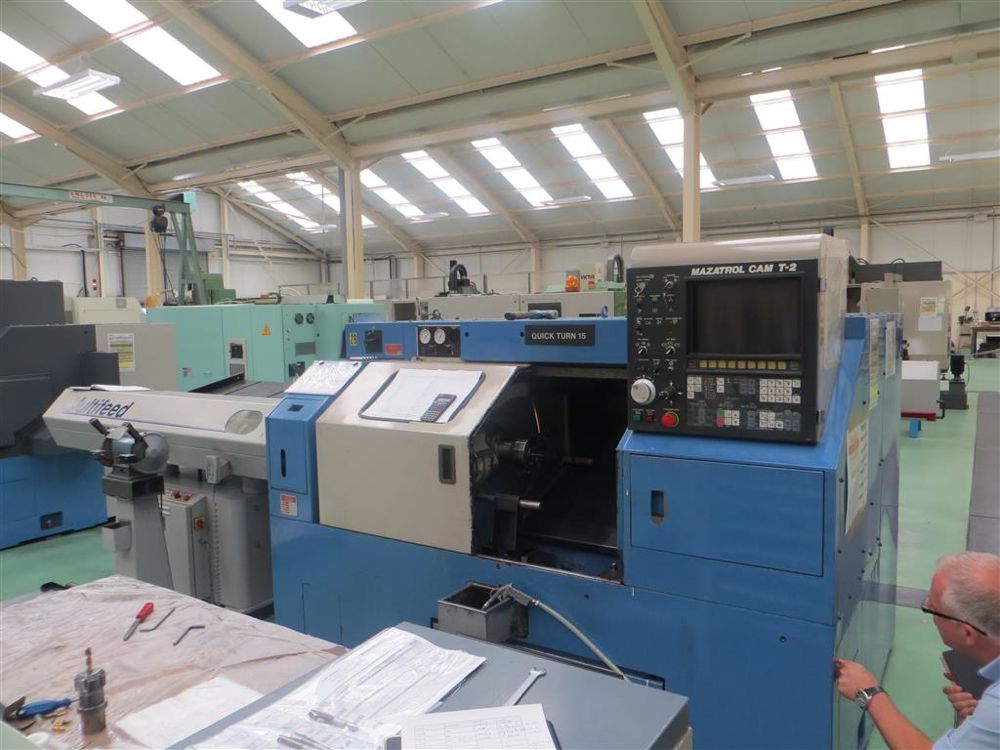

MAZATROL Cam T-2 CONVERSATIONAL CNC CONTROL W/12" COLOR CRT.
COLLET CHUCK,
TURRET TOOLHOLDERS,
AUTO PARTS CATCHER.
STANDARD COOLANT SYSTEM WITH TANK & PUMP.
(Barfeed not included)
Location: Leicester, can be loaded to flatbed truck for free.
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
