Description:

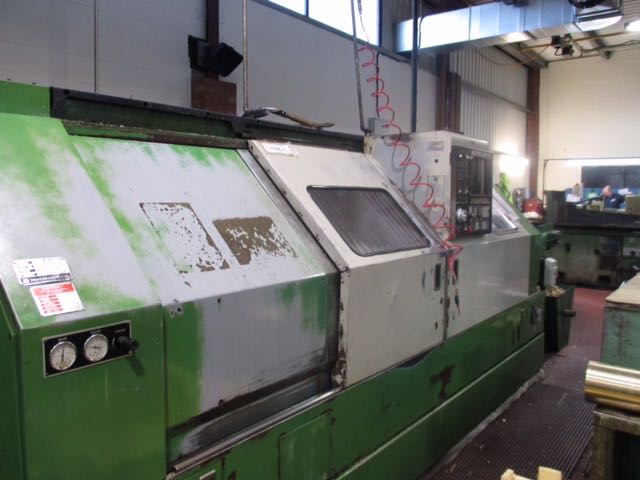

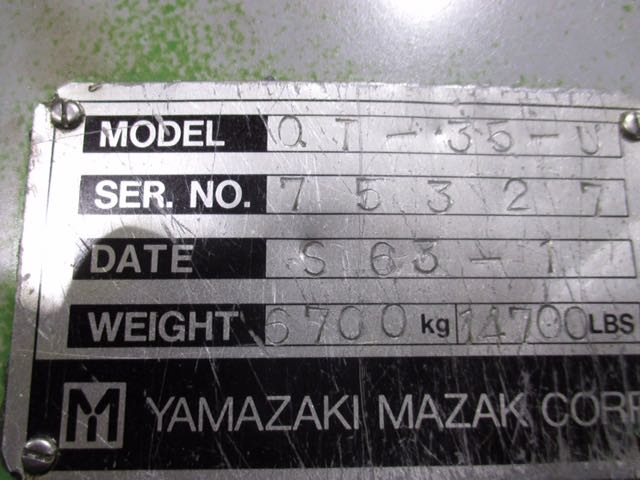

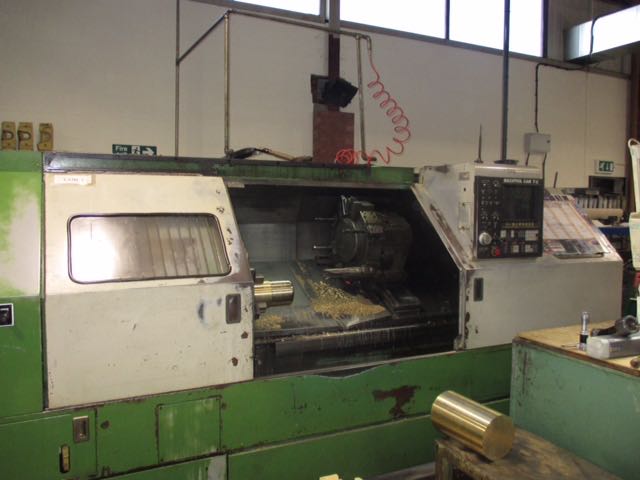

Mazak QT35 CNC Lathe

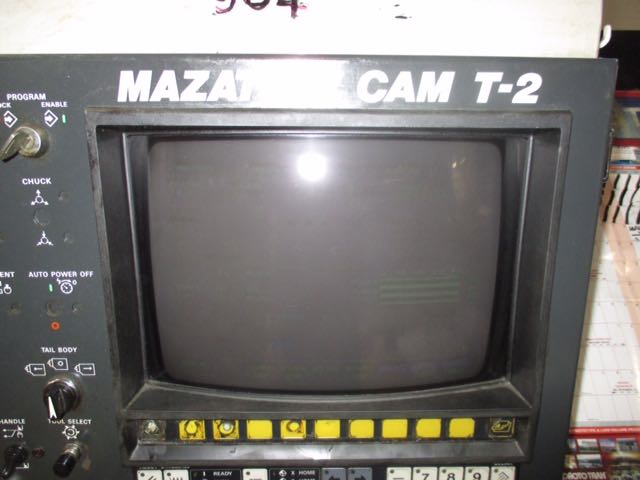

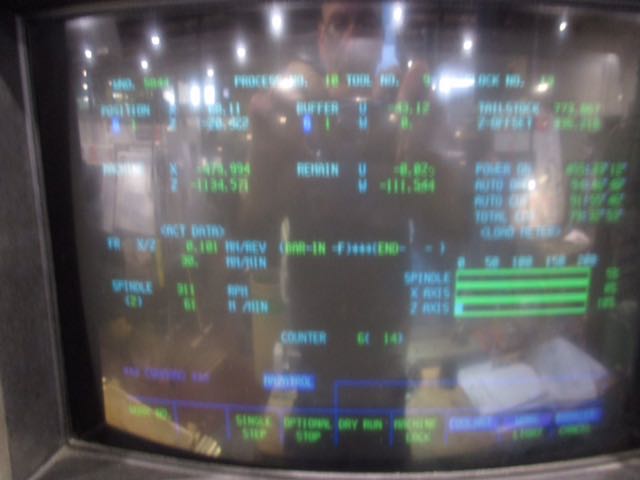

Mazatrol Cam T2 control
Specifications:
Control……………………………………………….Mazak Mazatrol Cam T-2
Max. Swing ……………………………………………………………………… 20.08”
Max. Swing over carriage ………………………………………………… 15.75”

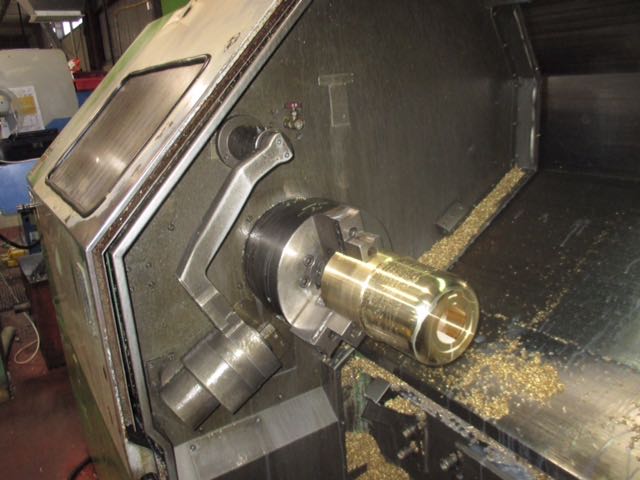

Standard Chuck Diameter …………………………………………………… 12”
Cross Travel (X-axis)…………………………………………………………. 11.02”
Longitudinal travel (Z-Axis) ………………………………………………… 41.3”
Maximum Part Length Between Centers ………………………………. 40”
Feed Range (Infinitely Variable) ……………………………… 1 to 709 IPM
Rapid Traverse Rate………………………………………………………. 472 IPM
Number of Turrets…………………………………………………………………… 1

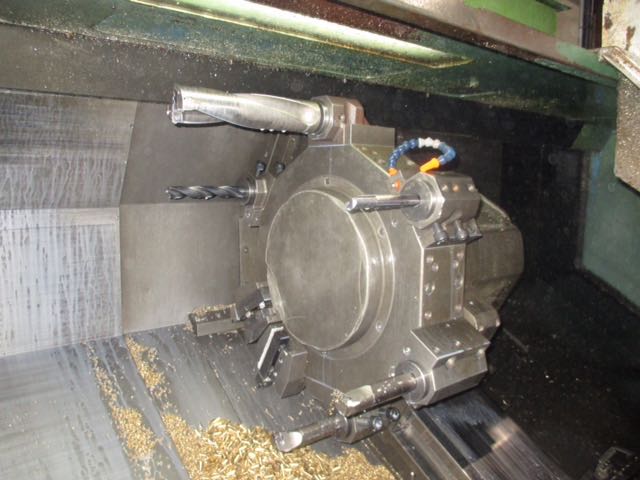

Tool Positions………………………………………………………………………… 12
Spindle Bore………………………………………………………………………… 3.15”
Spindle Nose ………………………………………………………………………..A2-8
Spindle Speed Range……………………………………………..23 – 3000 RPM
Spindle Drive Motor ………………………………………………………….. 30 HP
Electrics……………………………………………………………………. 460/3/60 AC
Dimensions……………………………………………………………….140”x85”x82”
Weight ………………………………………………………………………….13,000 lbs
Equipped With:

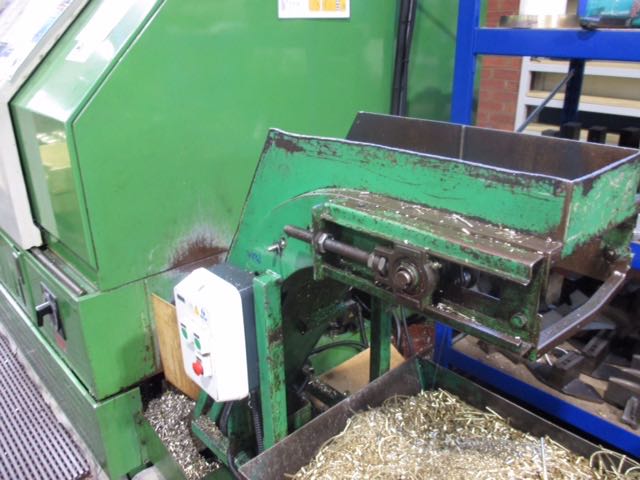

Chip Conveyor
Tail Stock
Location: Dudley - West Midlands . Loading available on site at cost
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
