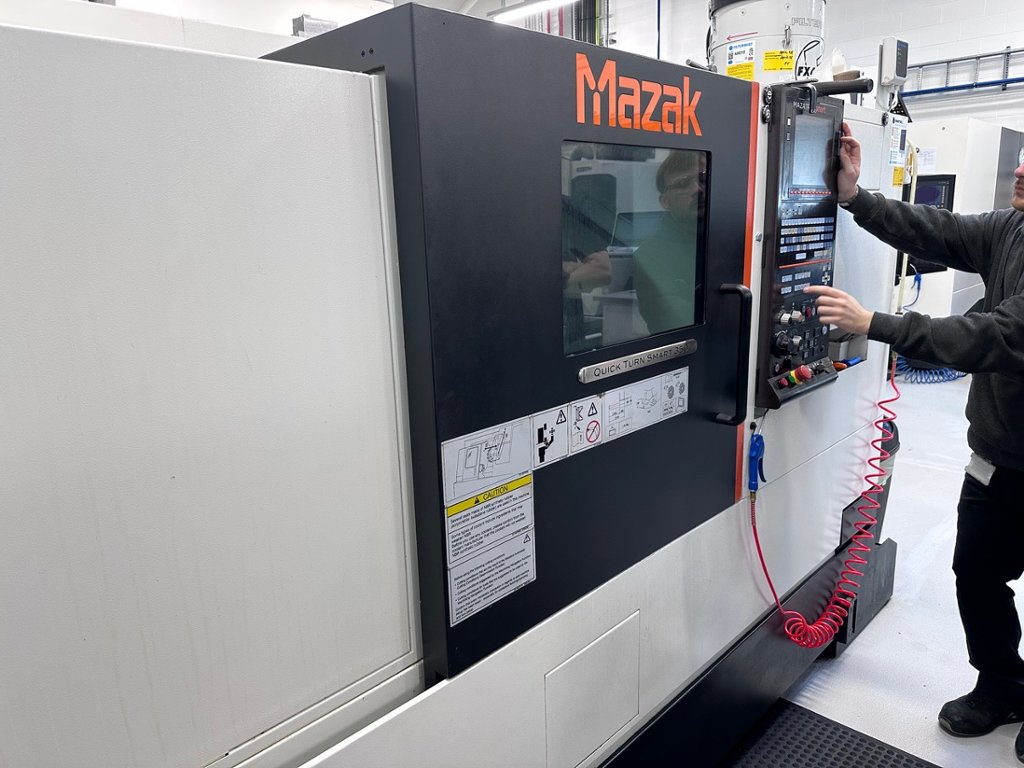

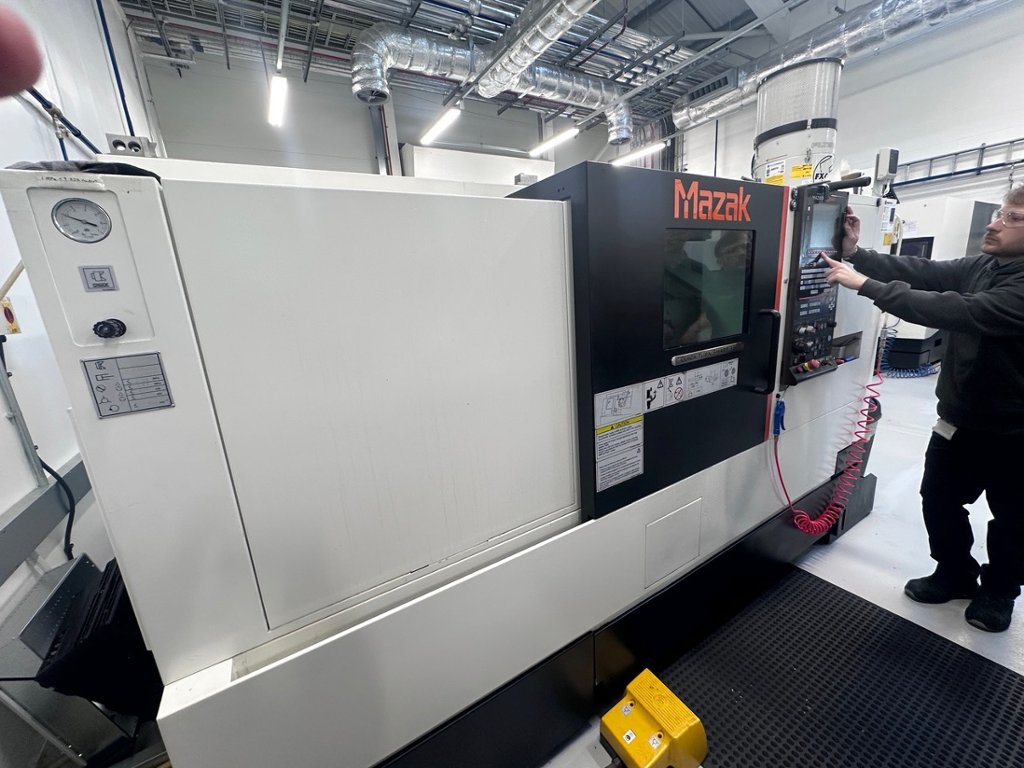

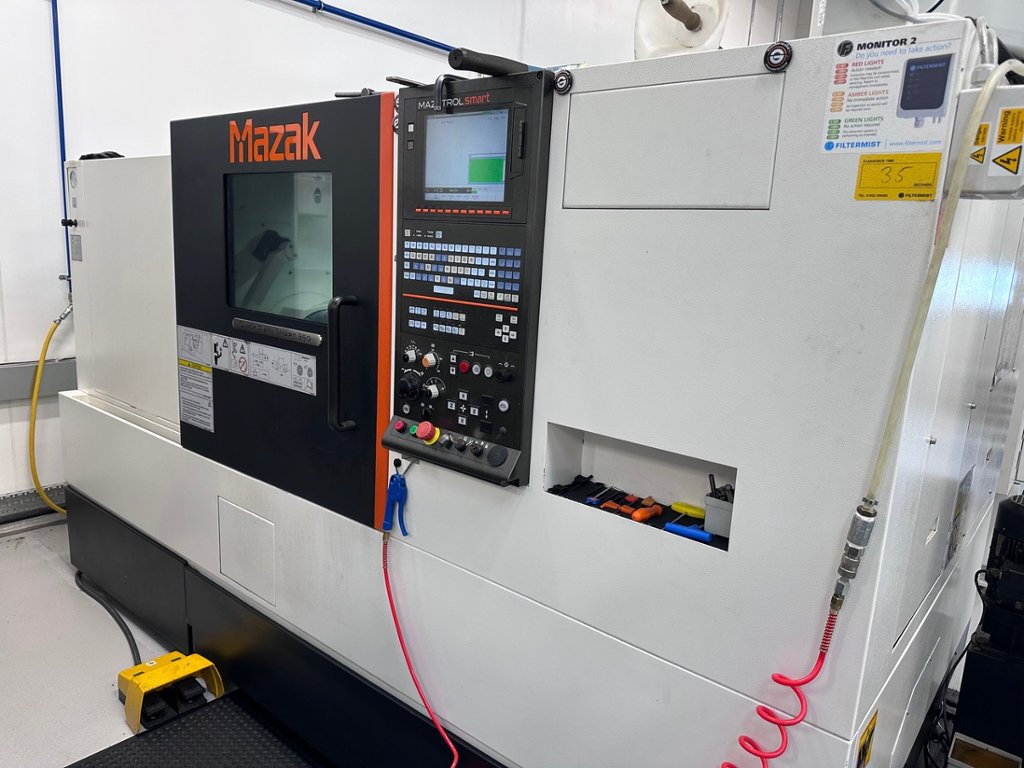

Mazak Quick Turn 350 CNC Turning Centre (2015)

Lot 1 - Mazak Quick Turn 350 CNC Turning Centre (2015)

Description:

Capacity Max. machining diameter Φ420 mm
Max. machining length 614 mm

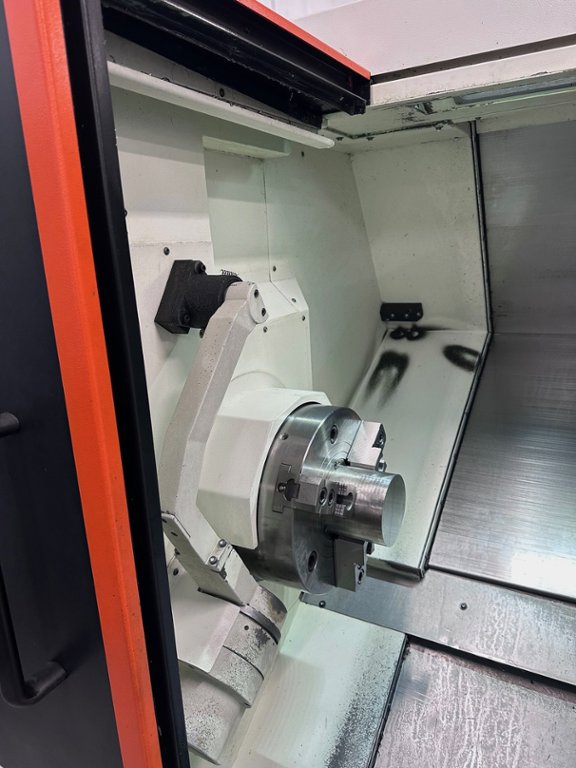

Spindle Chuck size 12 "

105mm bore
Max. spindle speed 3300 min-1
Max. torque (40%ED) 724 N･m
Spindle motor (40%ED) 30 kW (40 HP)
Spindle motor (cont. rating) 22 kW (30 HP)

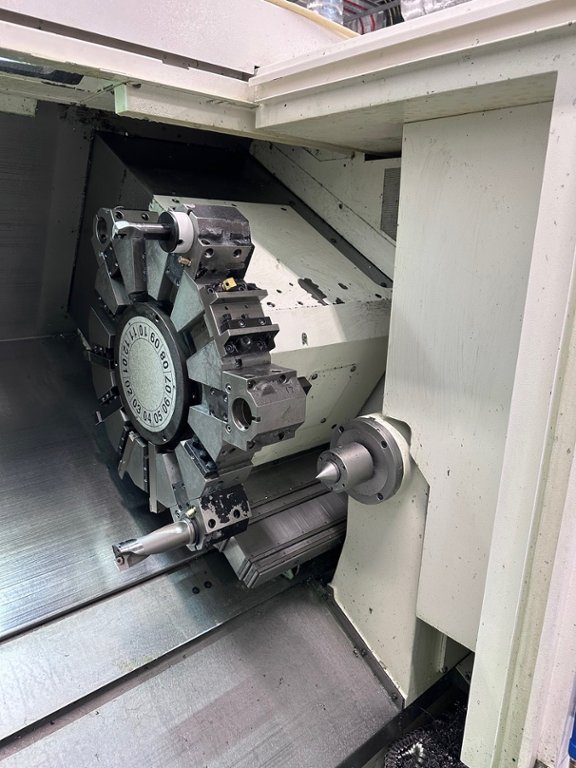

Turret Tool storage capacity 12
Tool shank height 25 mm
Boring bar shank diameter Φ50 mm
Travel X-axis 240 mm
Z- axis 710 mm
Rapid traverse rate X-axis 30000 mm/min
Z- axis 33000 mm/min
Tailstock Tailstock center MT No.5

Machine weight 6100 kg

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
