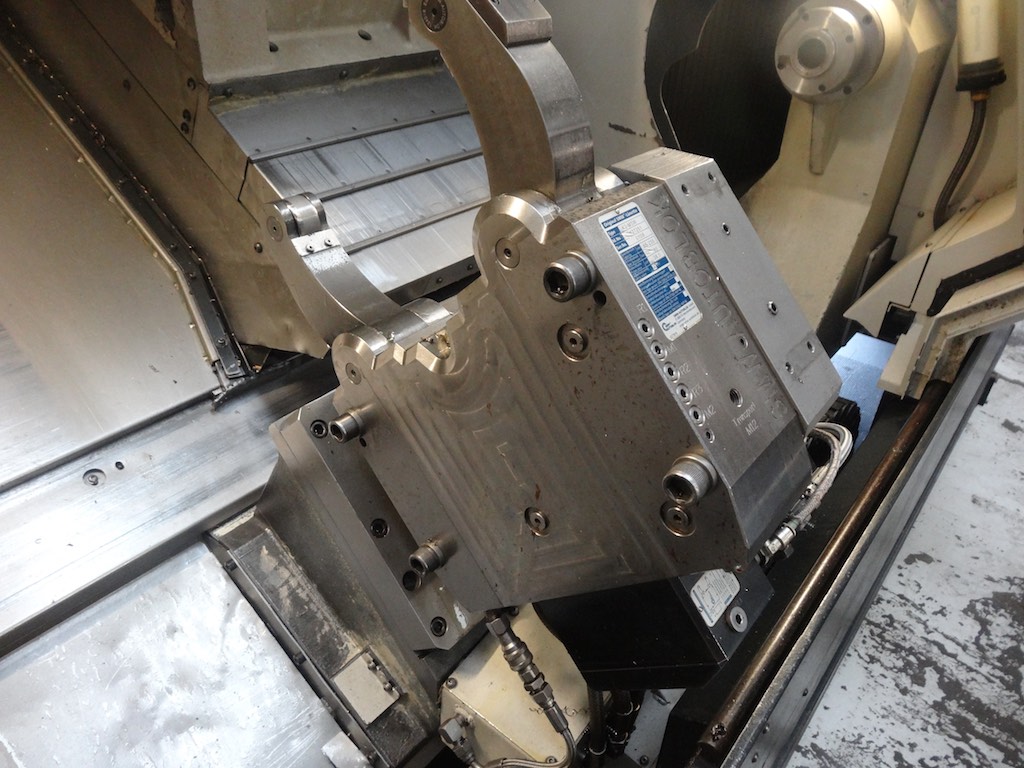

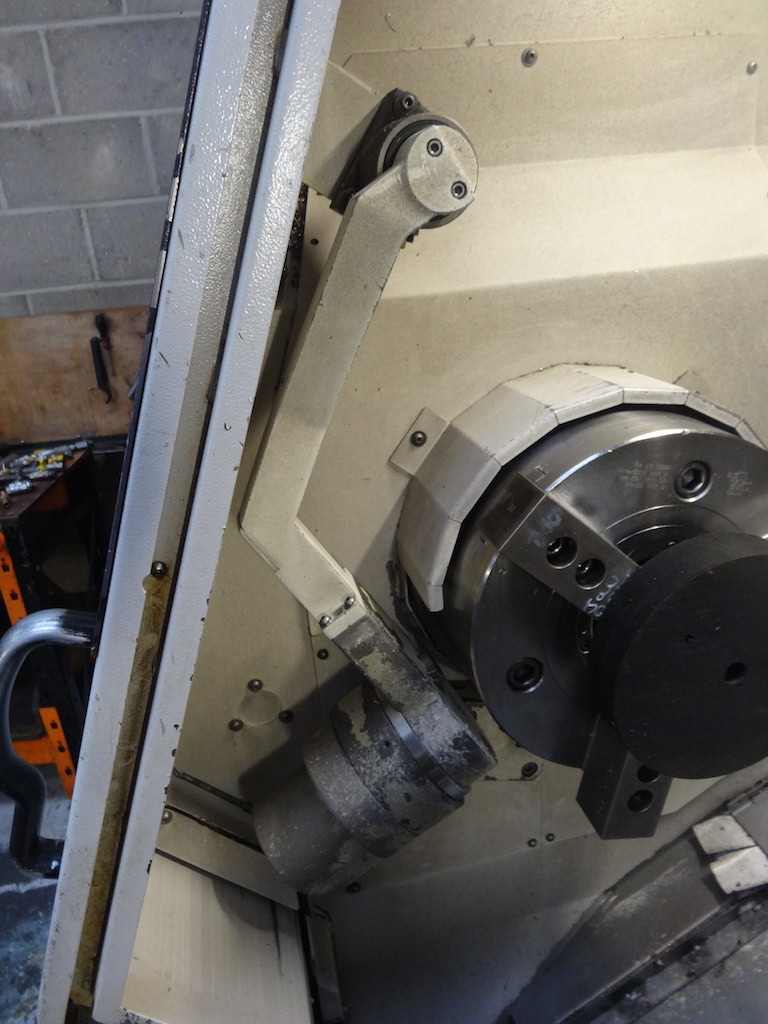

Lot 1 - Mazak Quickturn 350-II MY CNC Lathe with Hydraulic steady (May 2008)
Description:
Sold

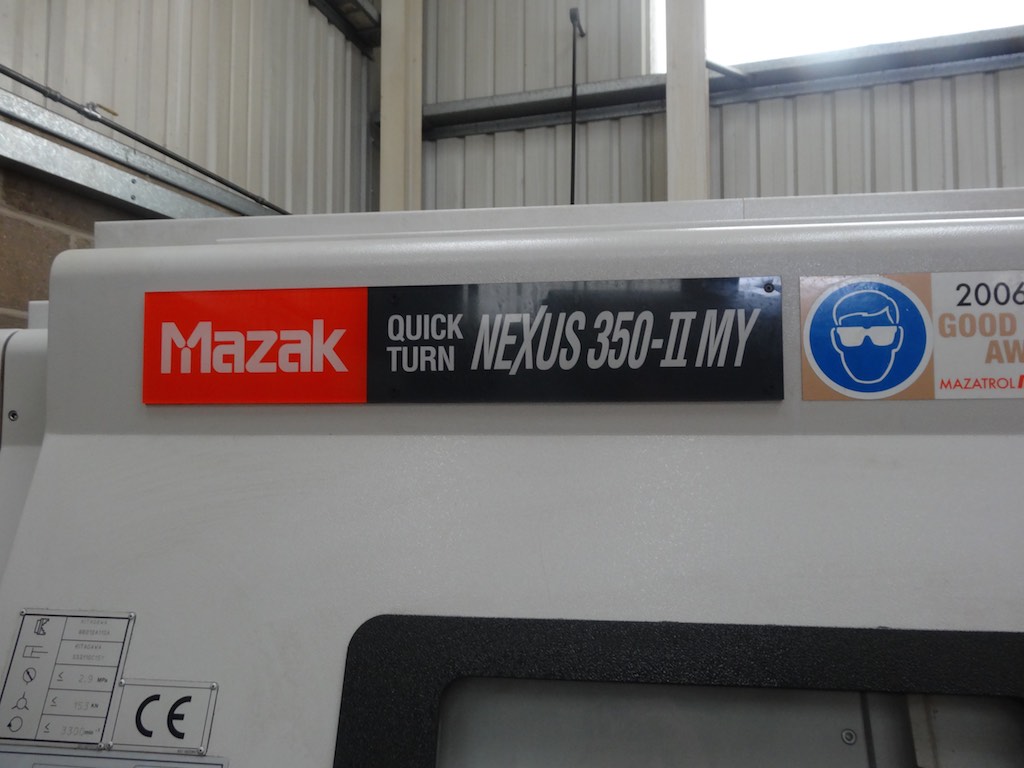

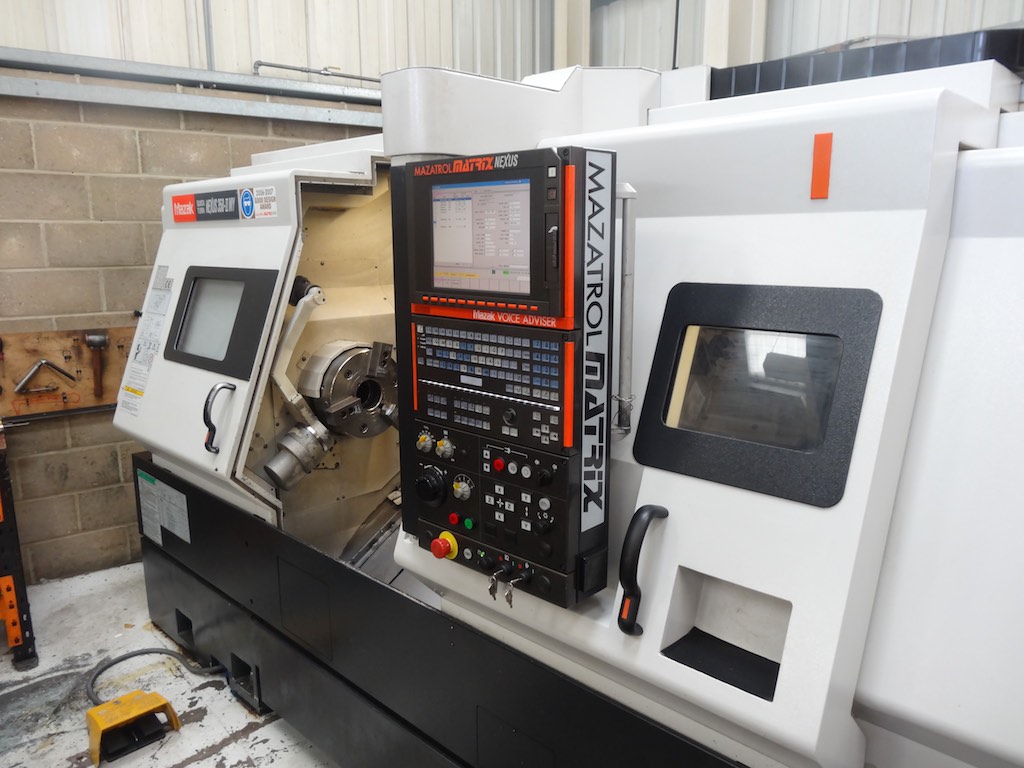

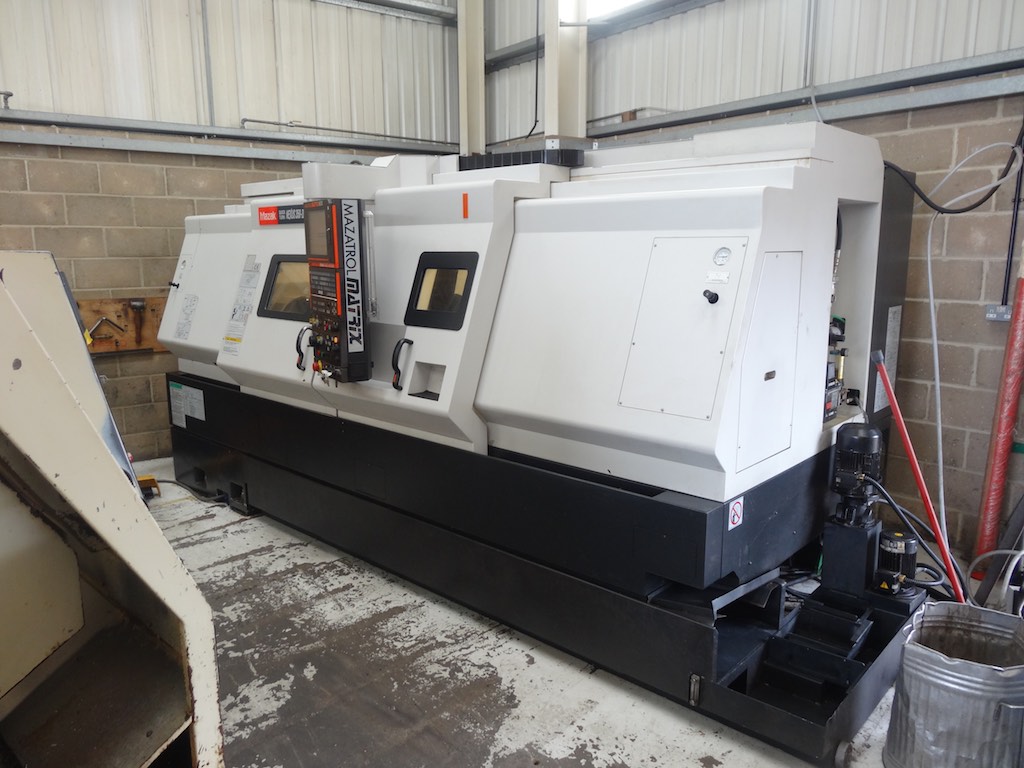

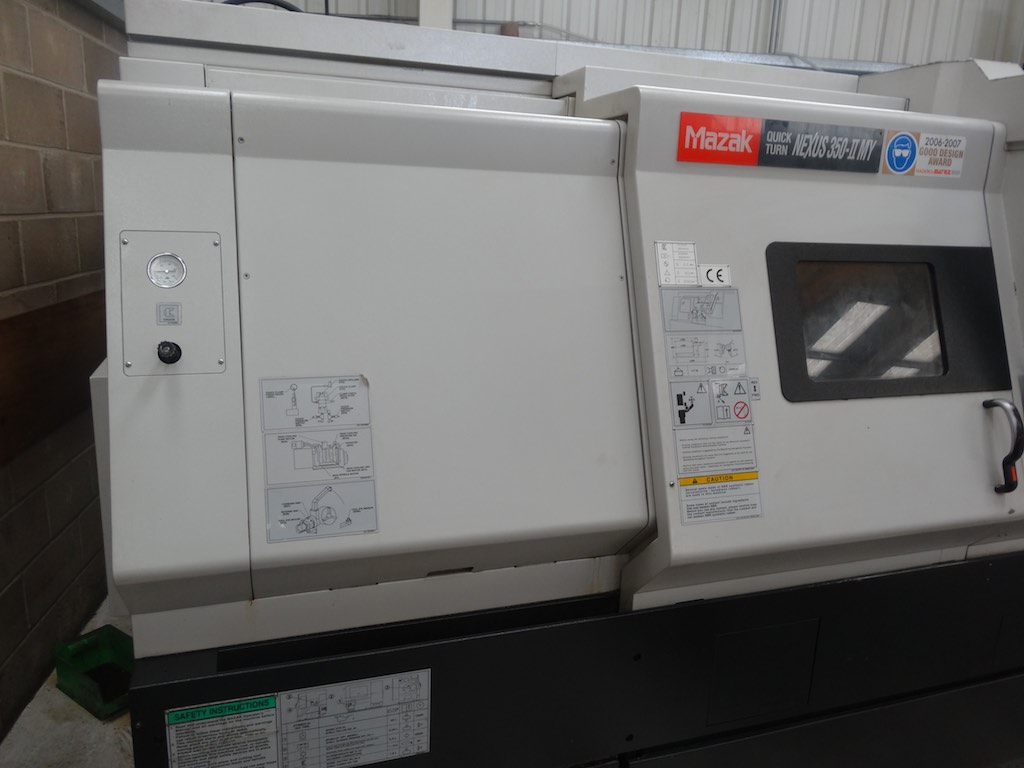

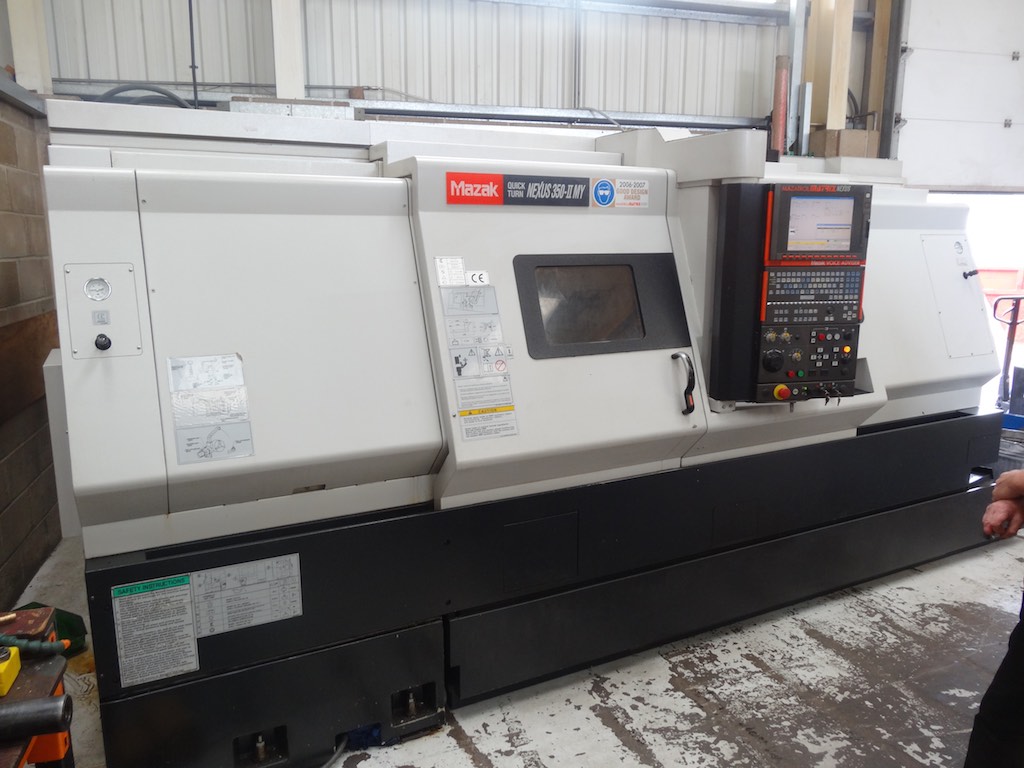

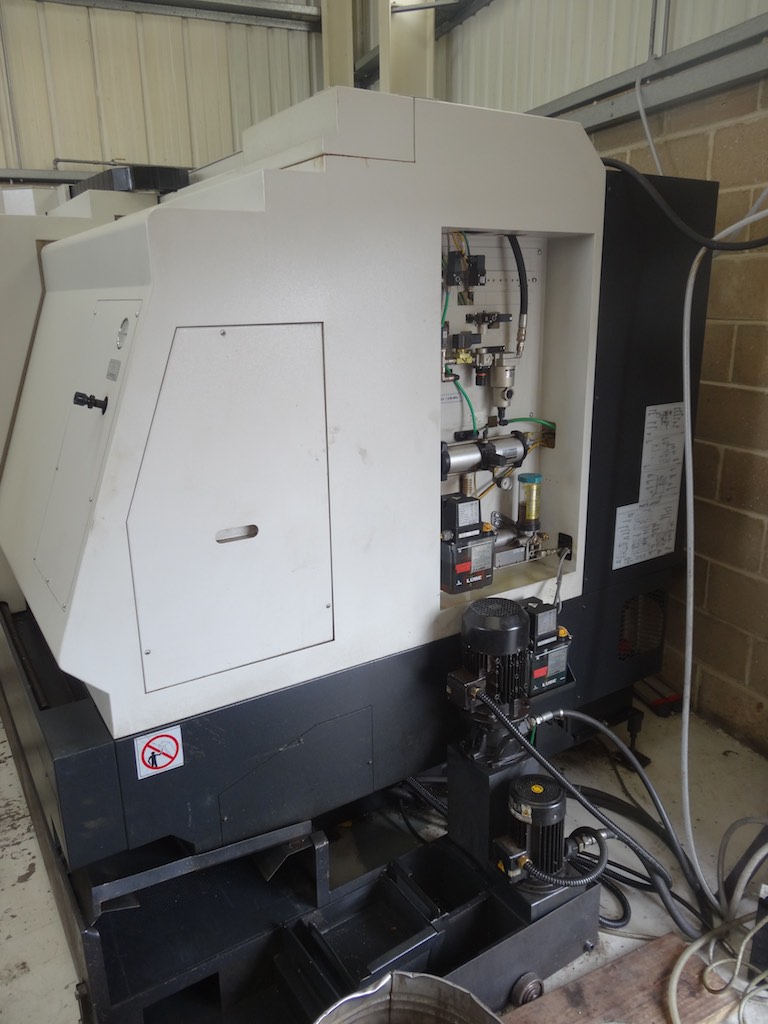

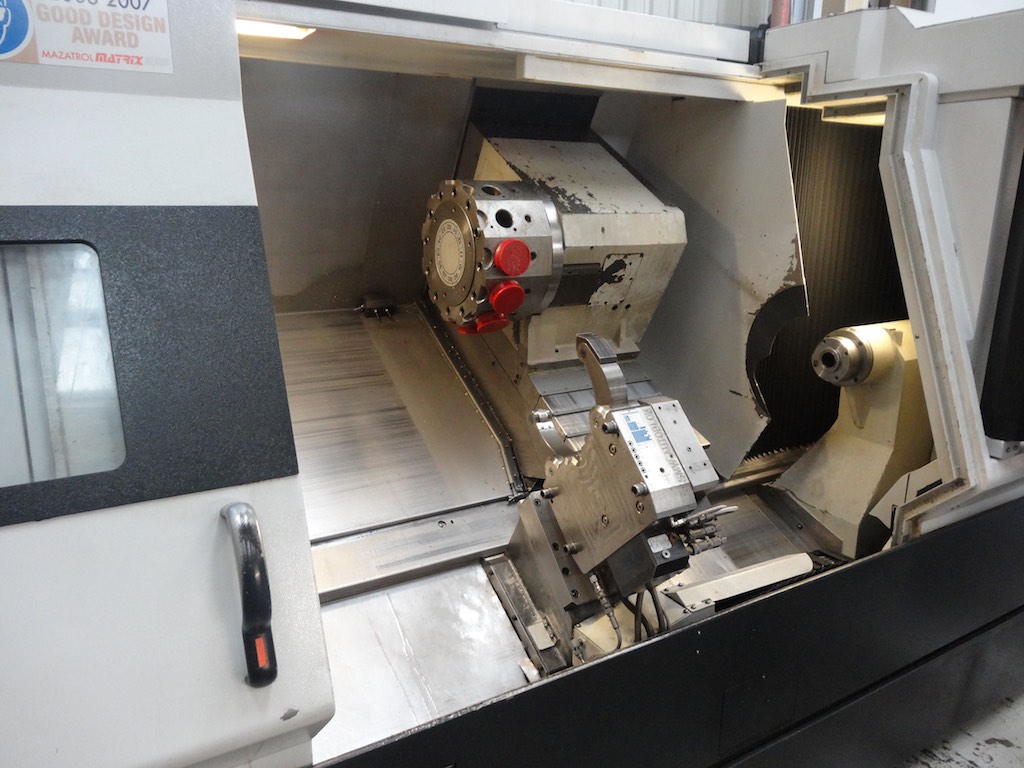

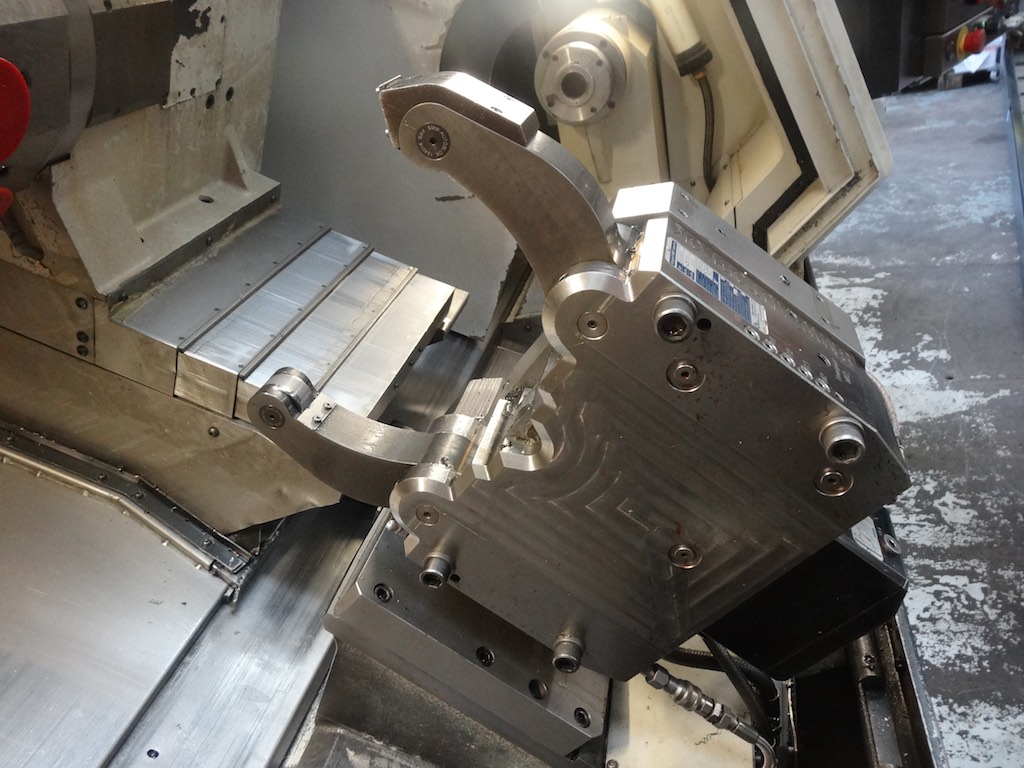

Mazak Quickturn 350-II MY CNC Lathe with Hydraulic steady (May 2008)

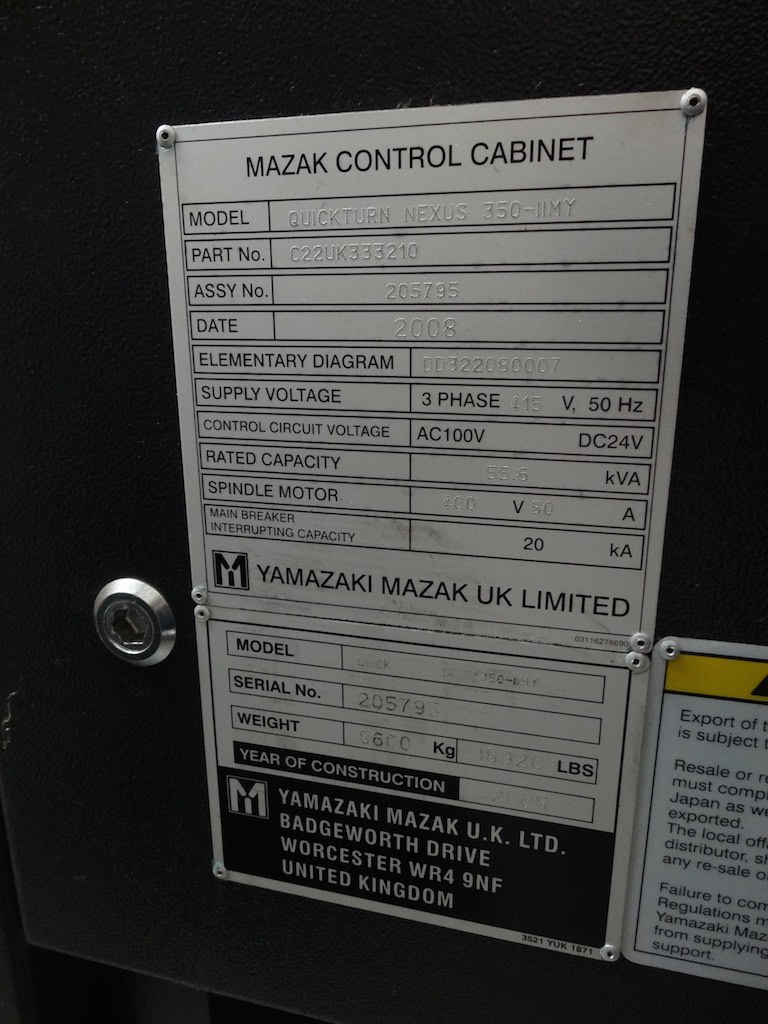

Machine Date: 2008
Machine Number: 205795
L x W x H: 4270 x 2206 x 2000mm
Weight: 8600kgs

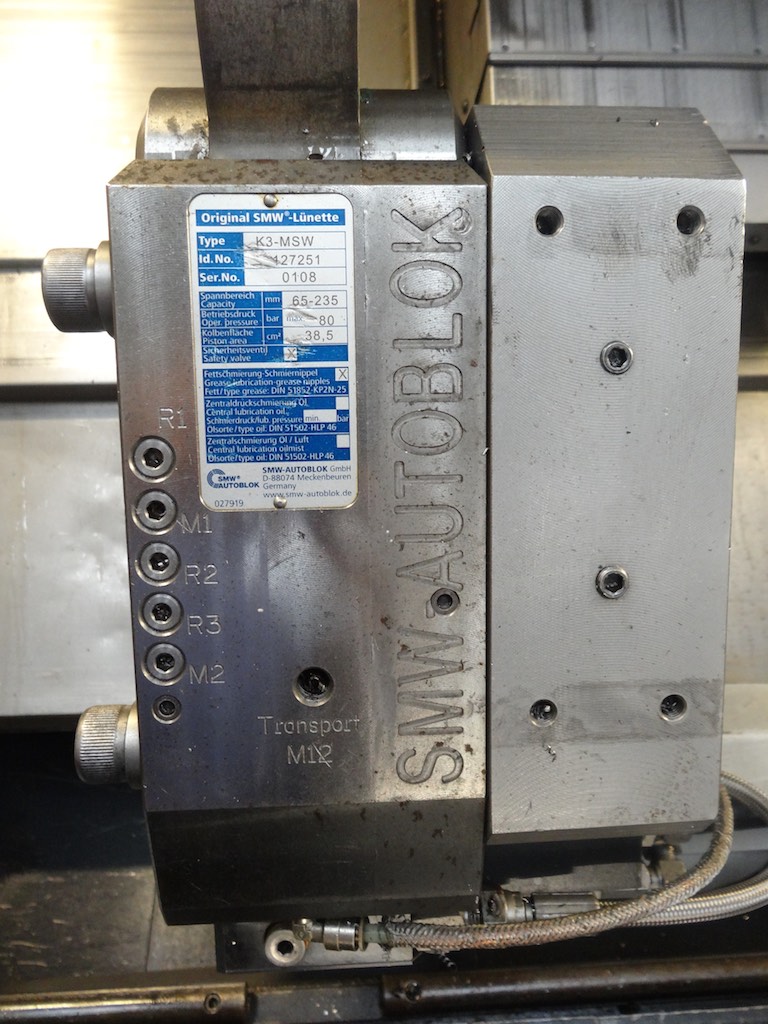

Steady Date: 0108
Steady number: 127251

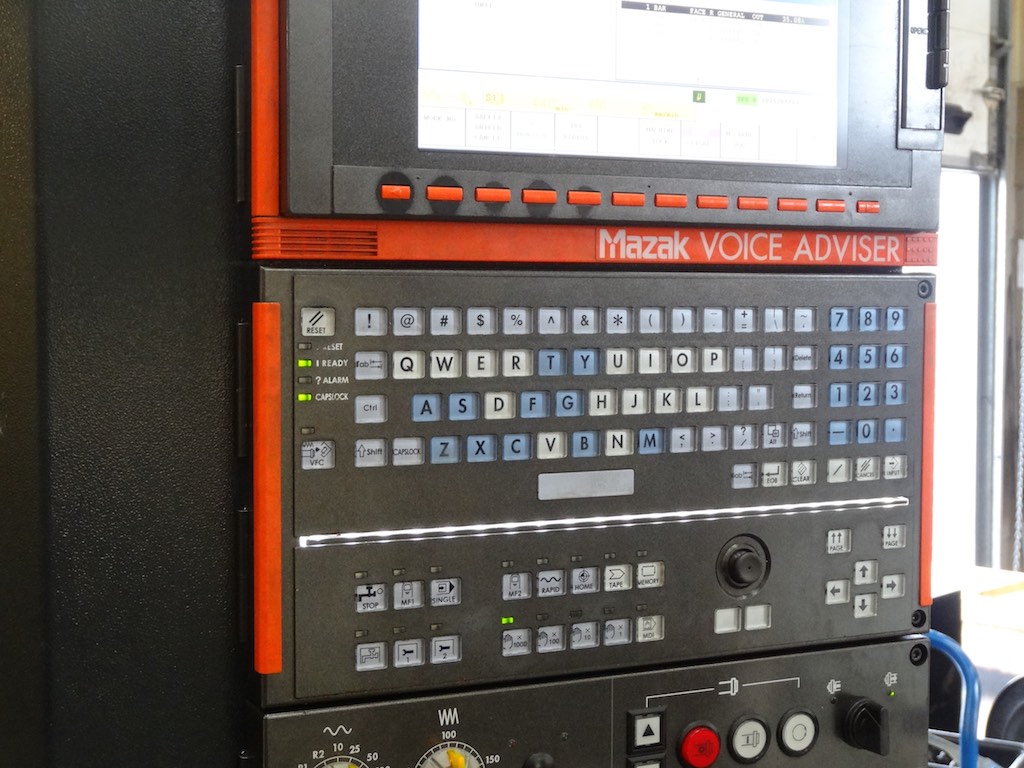

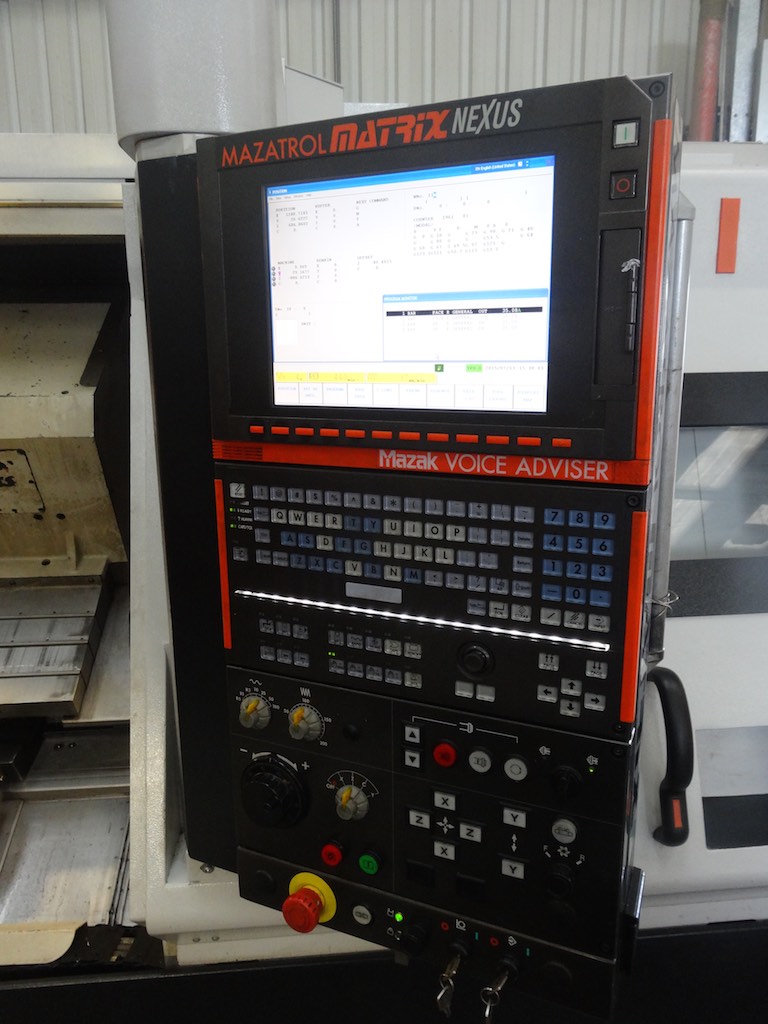

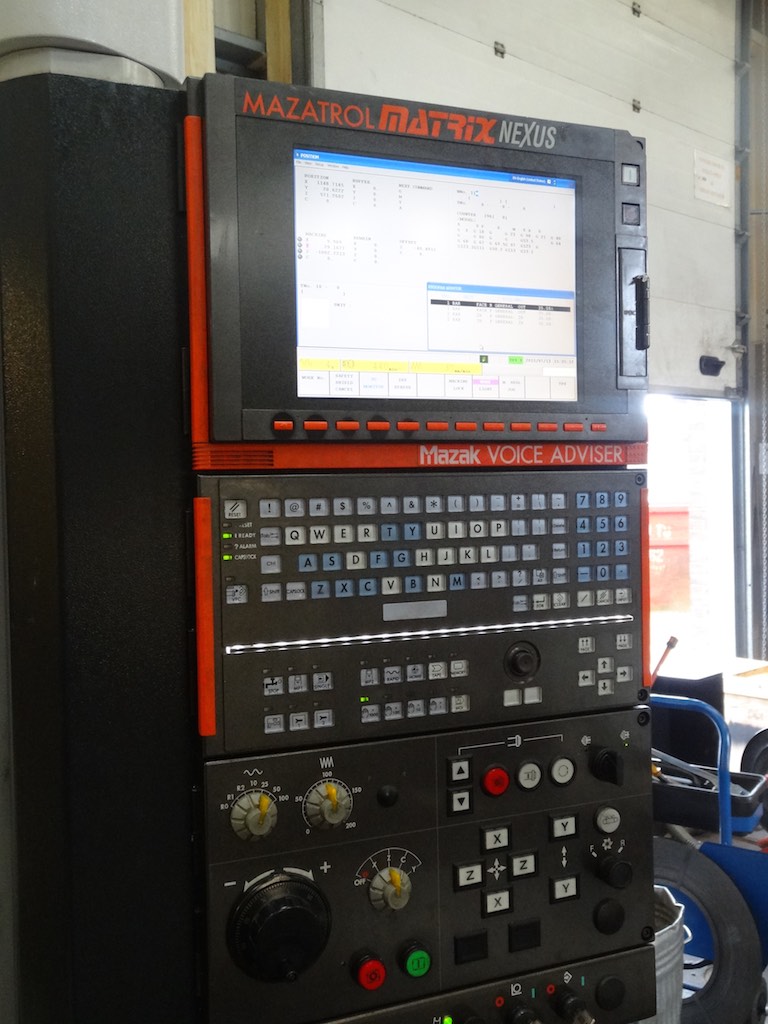

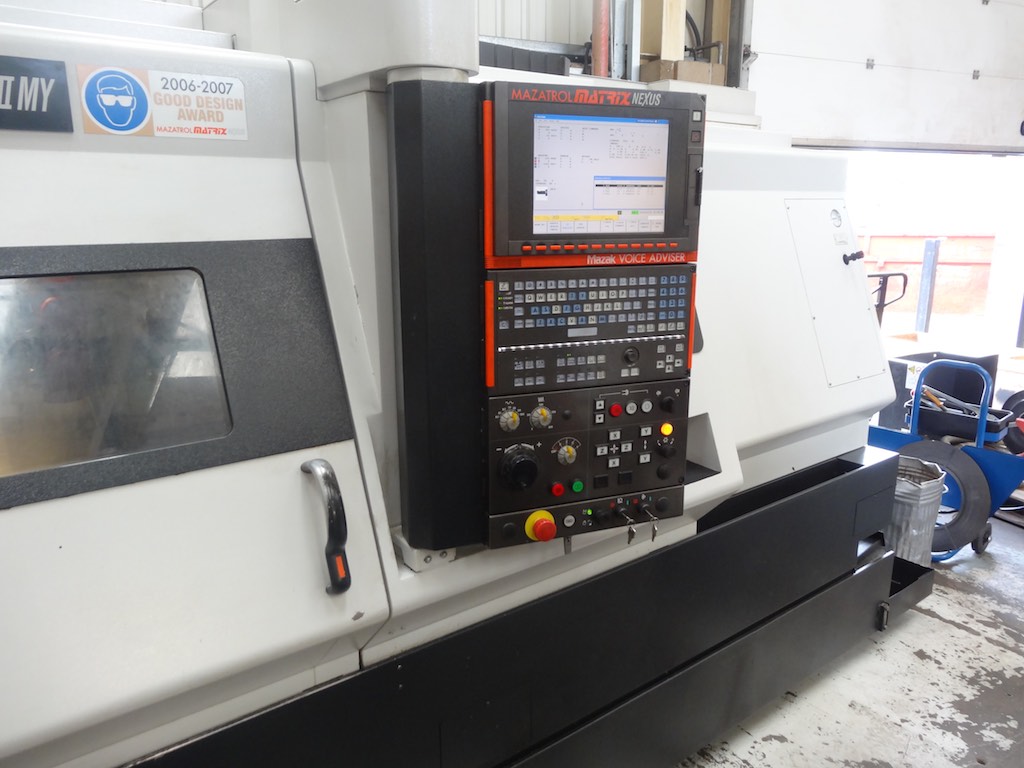

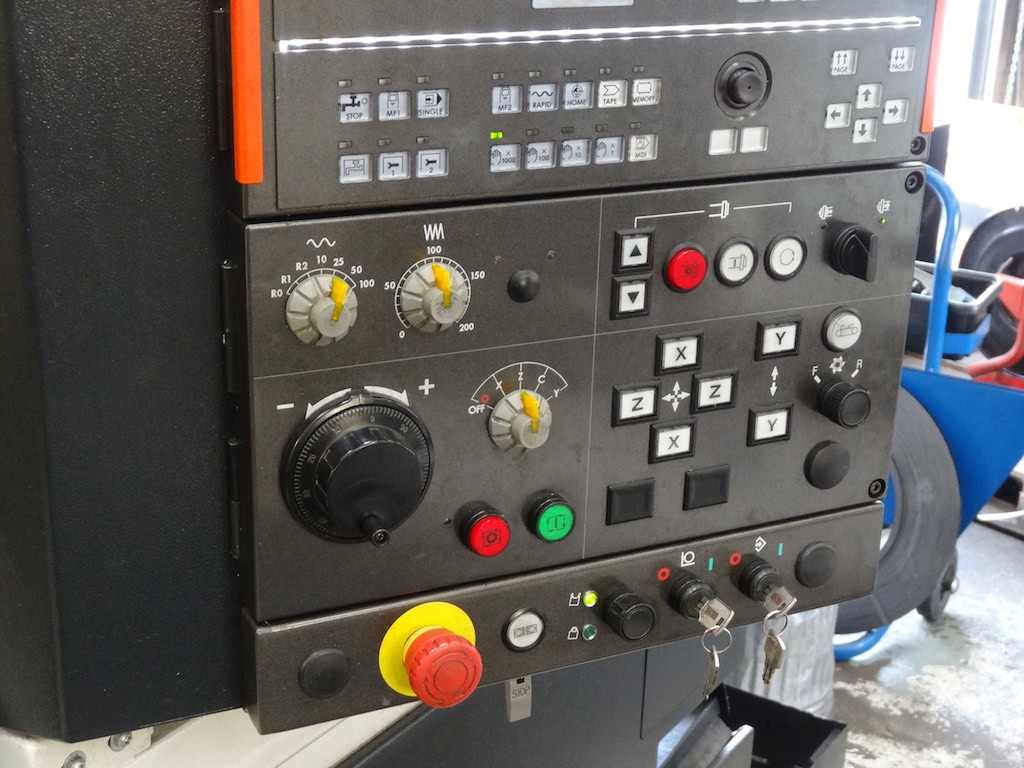

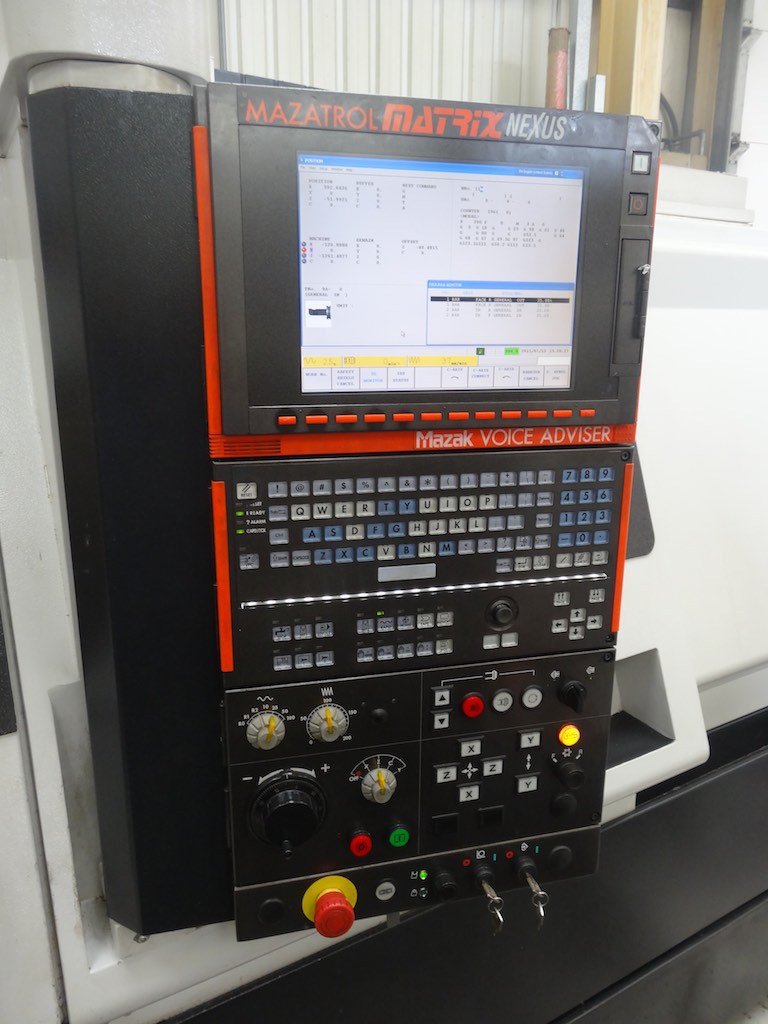

Mazatrol Matrix Nexus Control with voice advisor,
Capacity:
Max swing: 750mm
Swing over Carriage: 530mm
Max machining dia: 420mm
Max machining length: 1538mm
Bar work capacity: 102mm
Travel:
X, Y & Z: 260mm, 150mm & 1605mm
Y axis +/- 75mm 30kW motor power
Main Spindle:

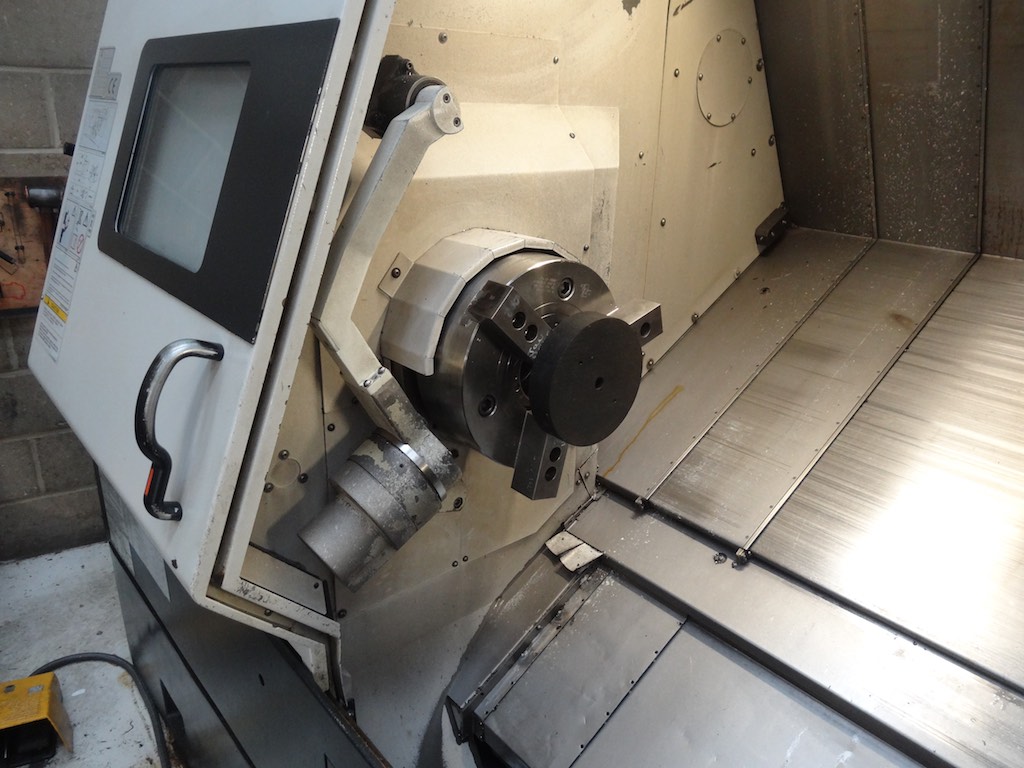

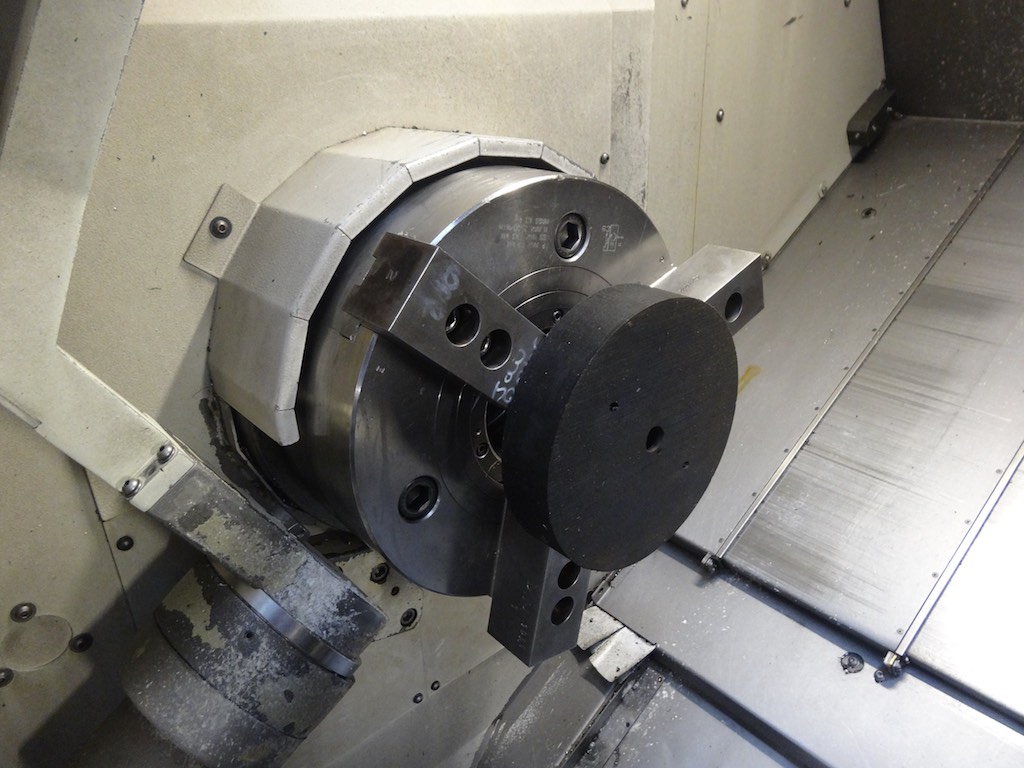

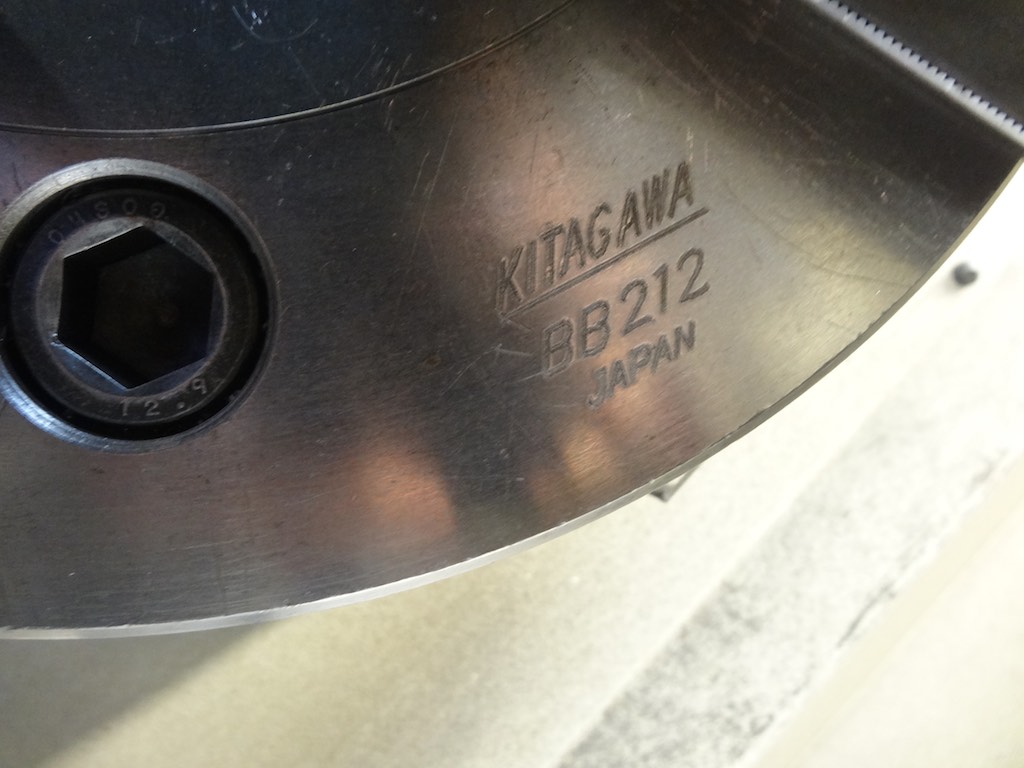

Kitigawa BB212 12" Chuck
Spindle speed: 3300rpm
No of spindle ranges: 1 - Stepless
Spindle nose:L A2-11
Spindle bore: 112mm

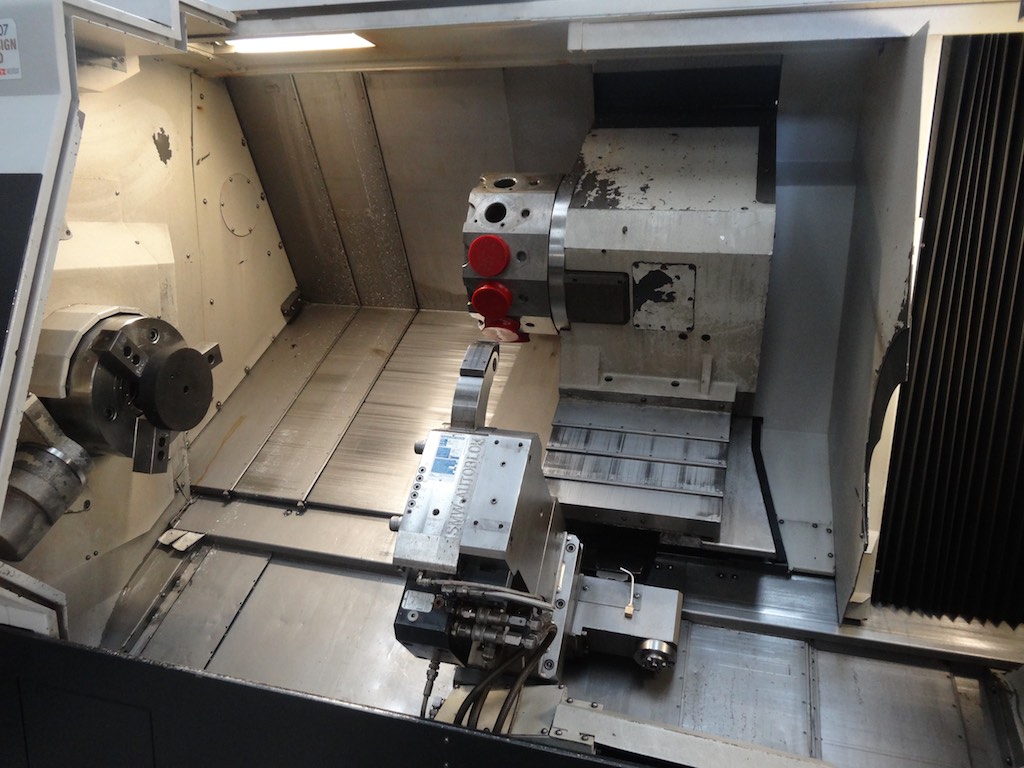

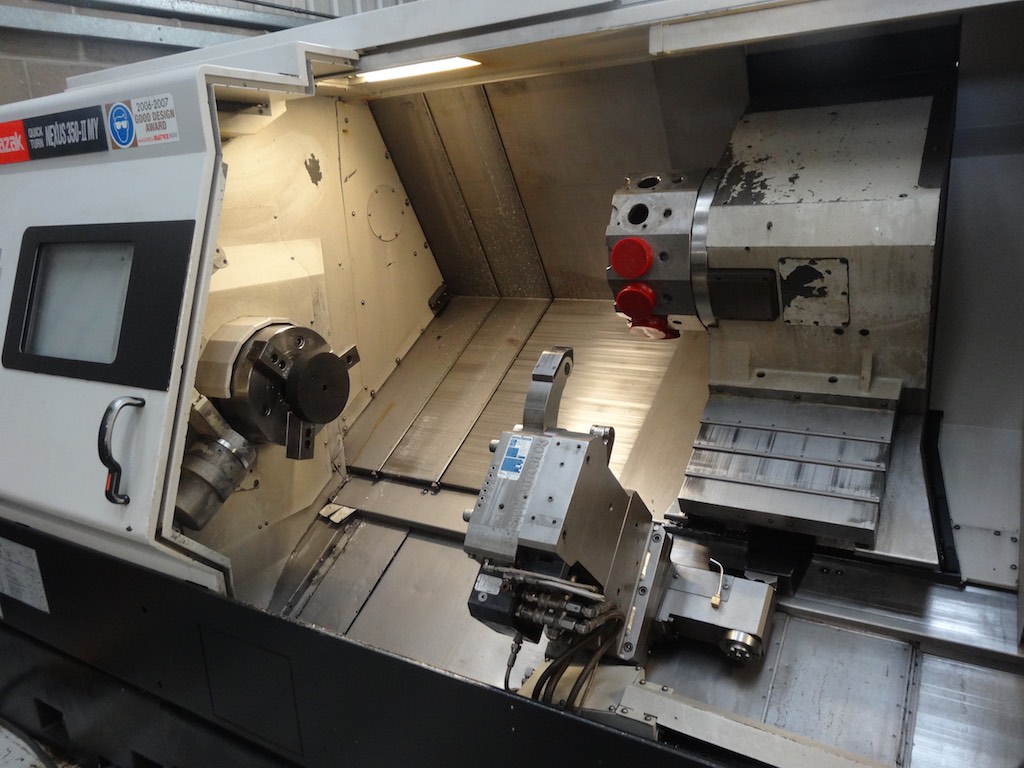

Turret:
Type: 12 position drum turret (VDI)
Tools: 12
Turning tool shank: 25mm
Boring bar shank dia: 50mm
Turret indexing time: 0.25 sec/ 1 step

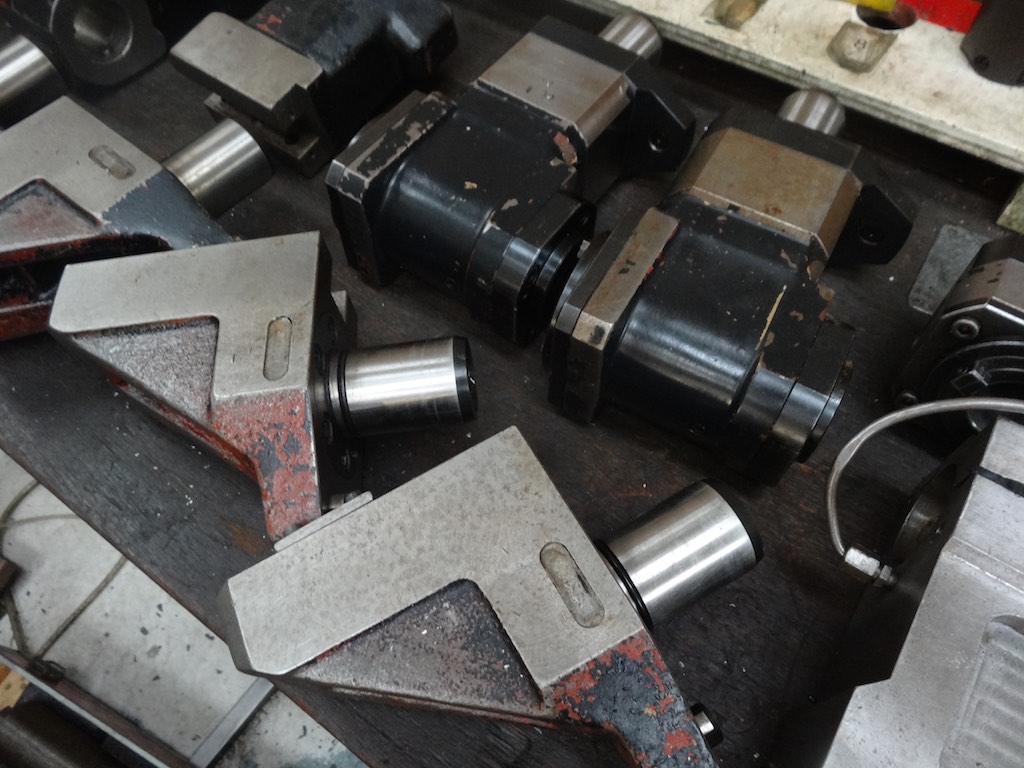

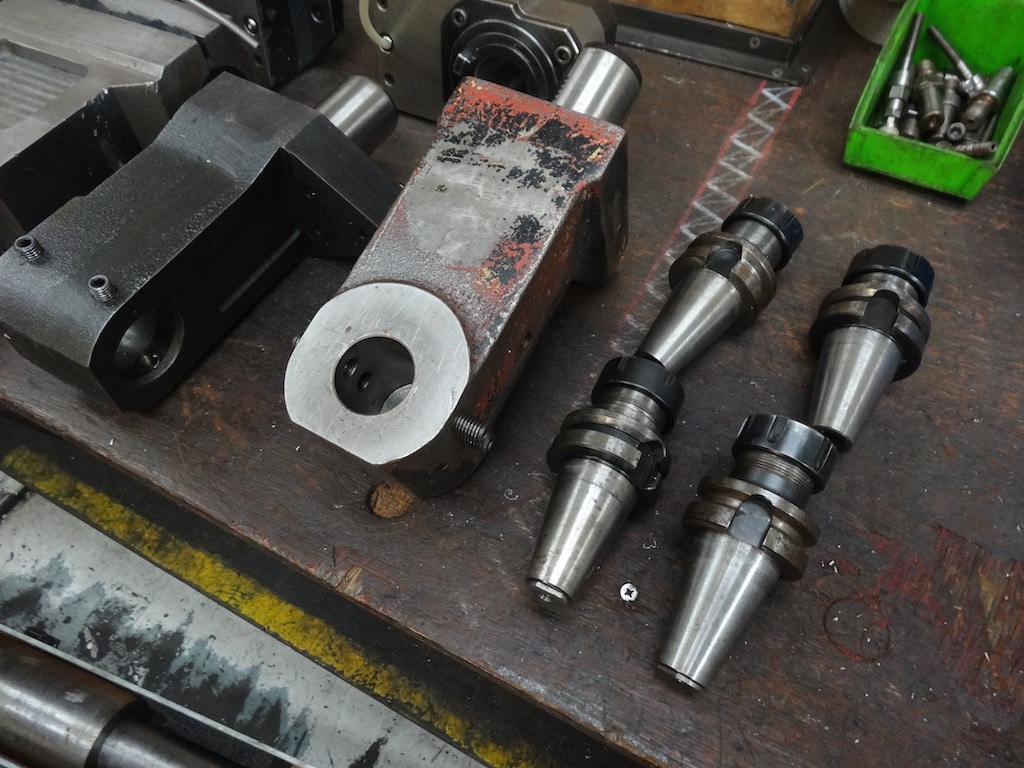

4 off driven tools, 2 off radial, 2 off axial
Rotary tool spindle:
Spindle speed: 4000rpm
Milling Capacity: Drill 23mm, Endmill 25mm, tap M24 x 3
Feetrate:
Rapid Traverse: X Y & Z: 3000, 15000 & 33000mm/min
Rapid Traverse: C :555rpm

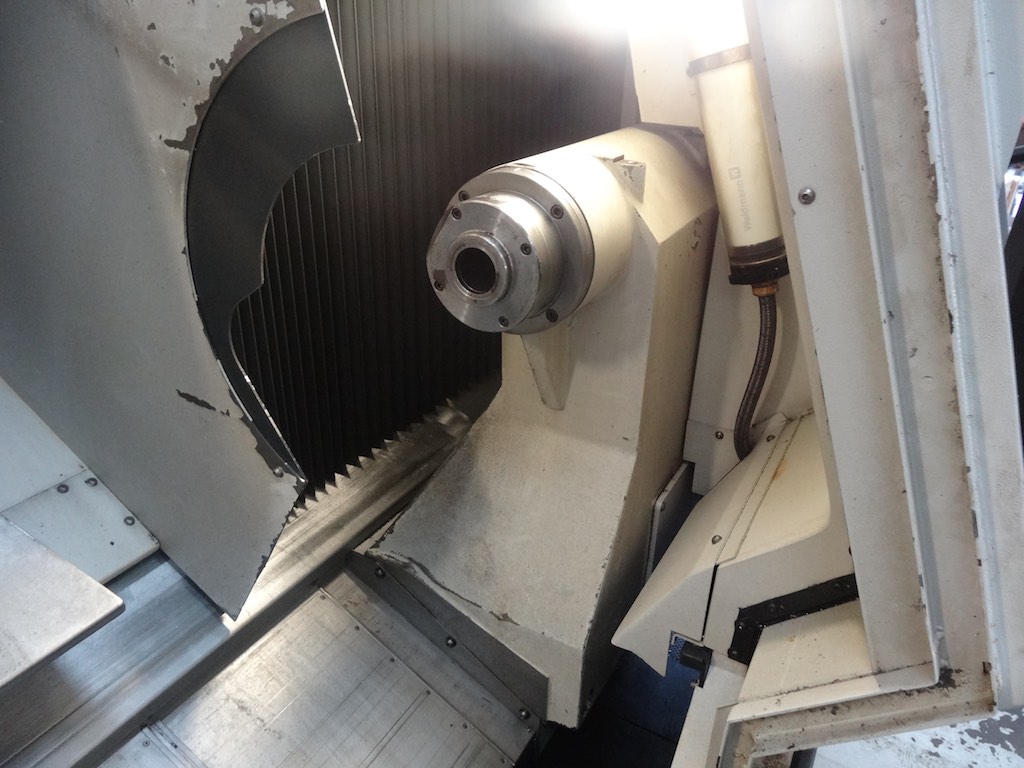

Tailstock:
Stroke: 1580mm
Taper: MT 5 (built in centre)

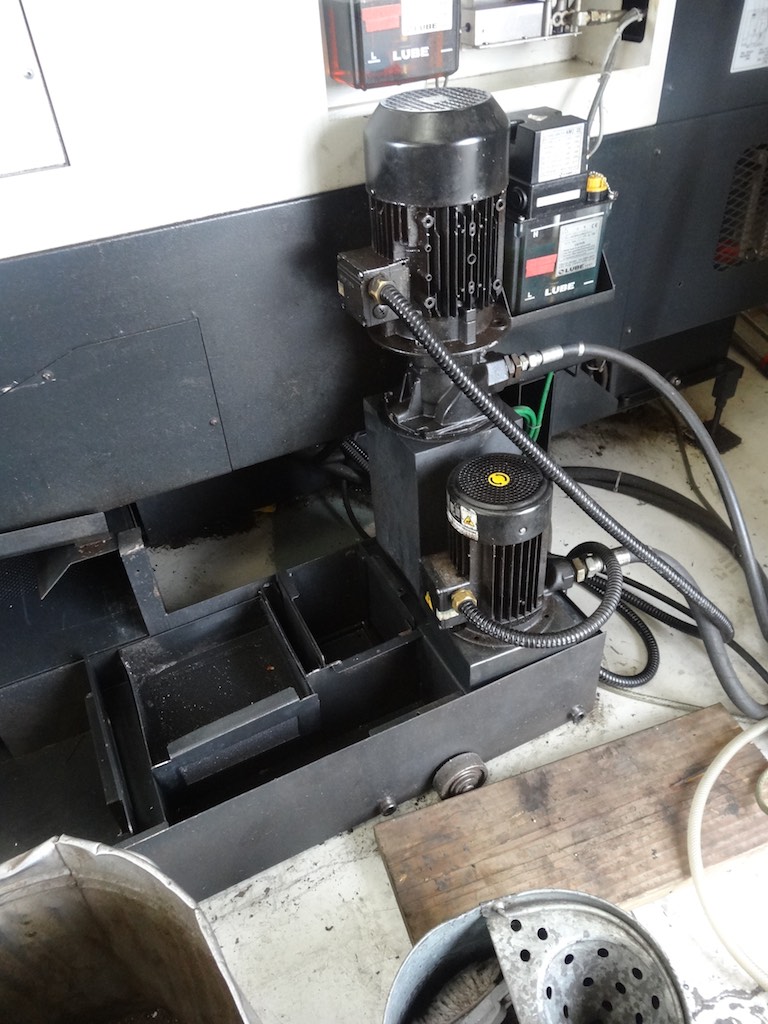

Coolant: 350L
Standard items
Tool setter,

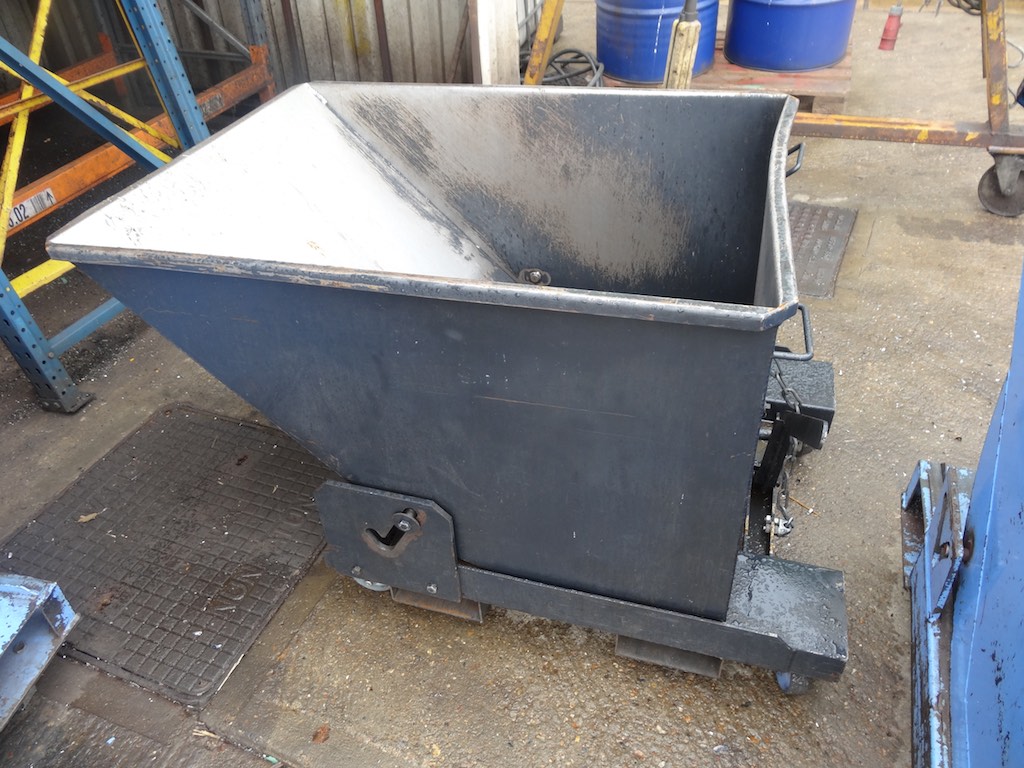

Swarf conveyor, and Swarf Tipping Skip

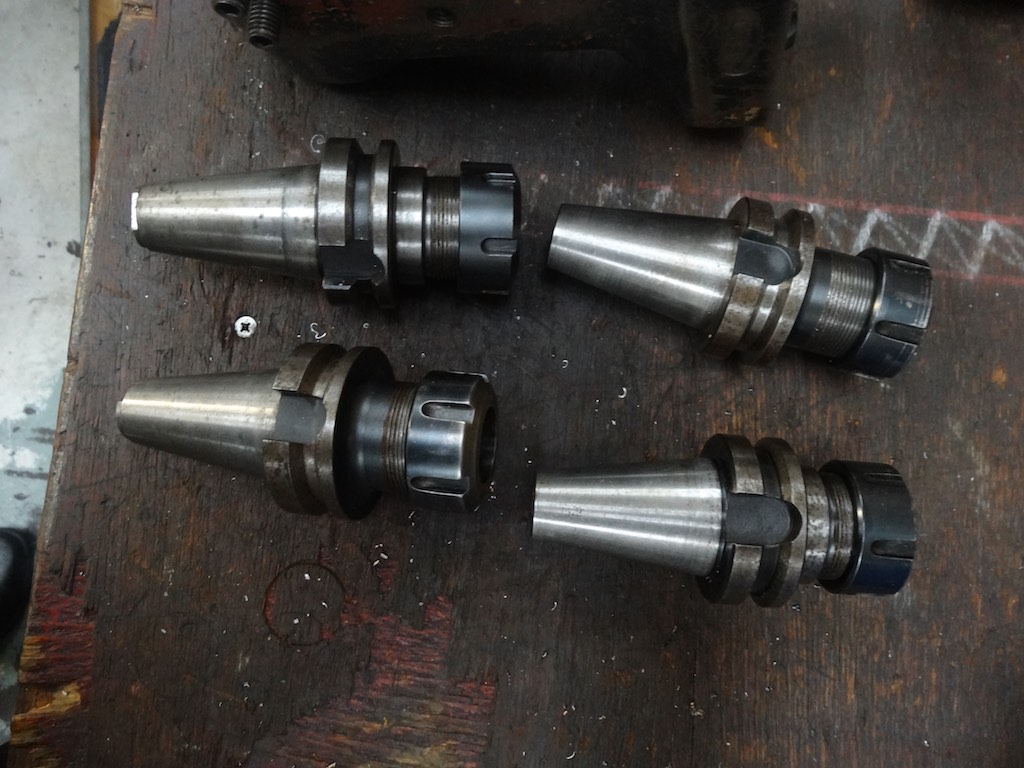

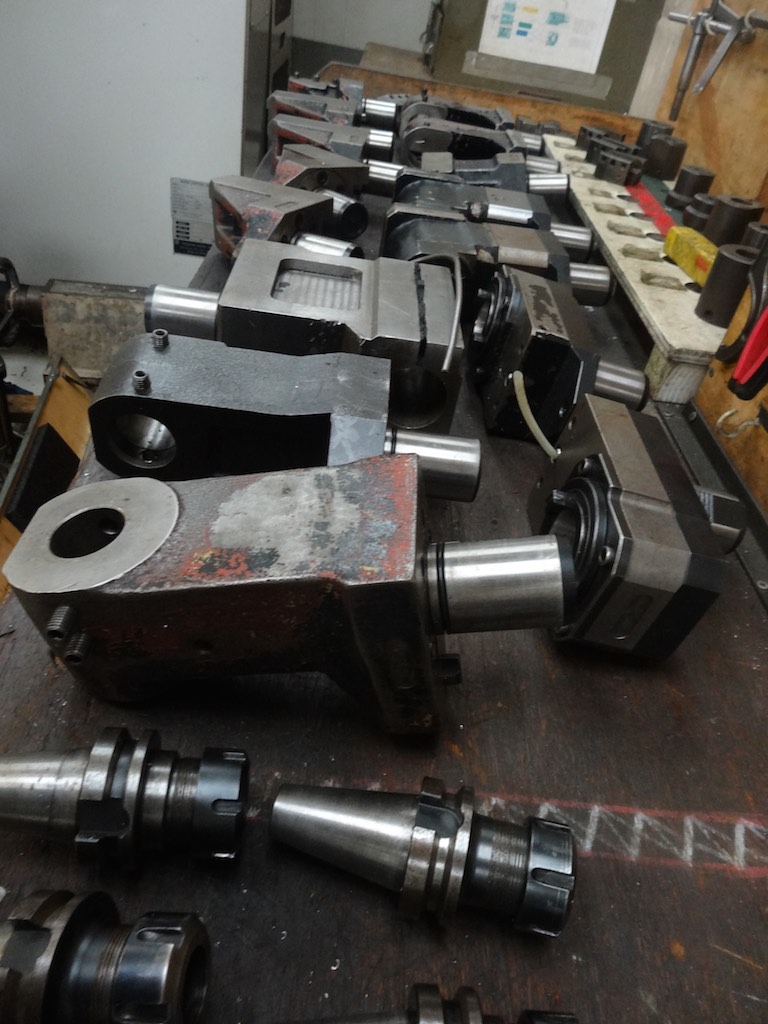

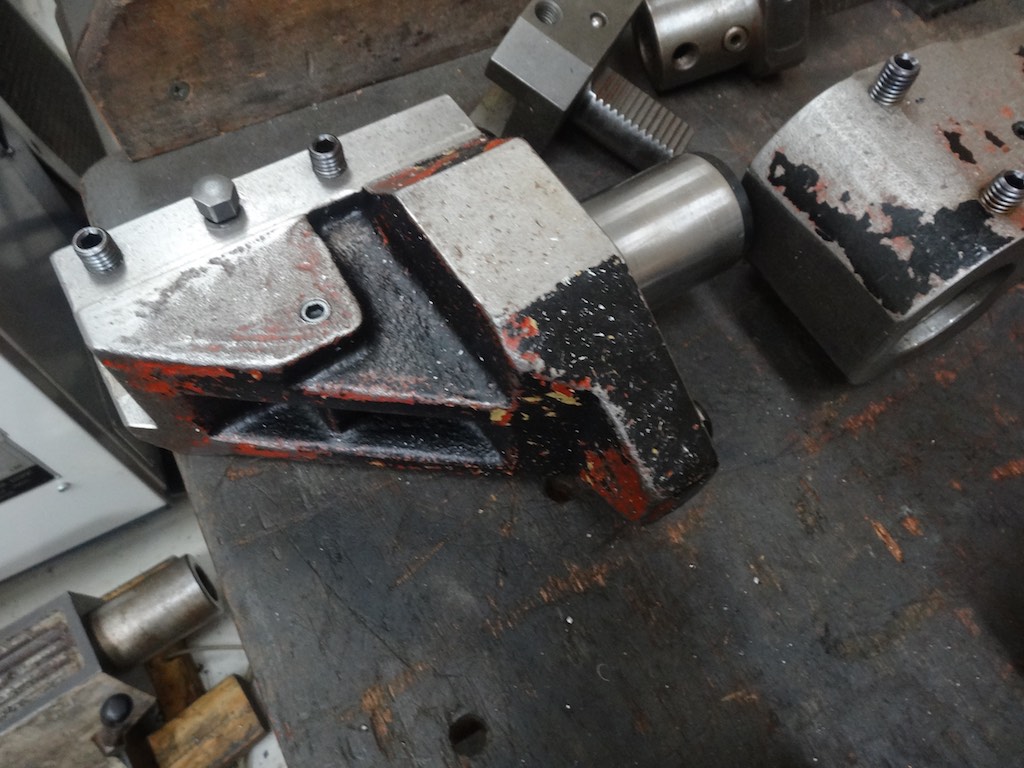

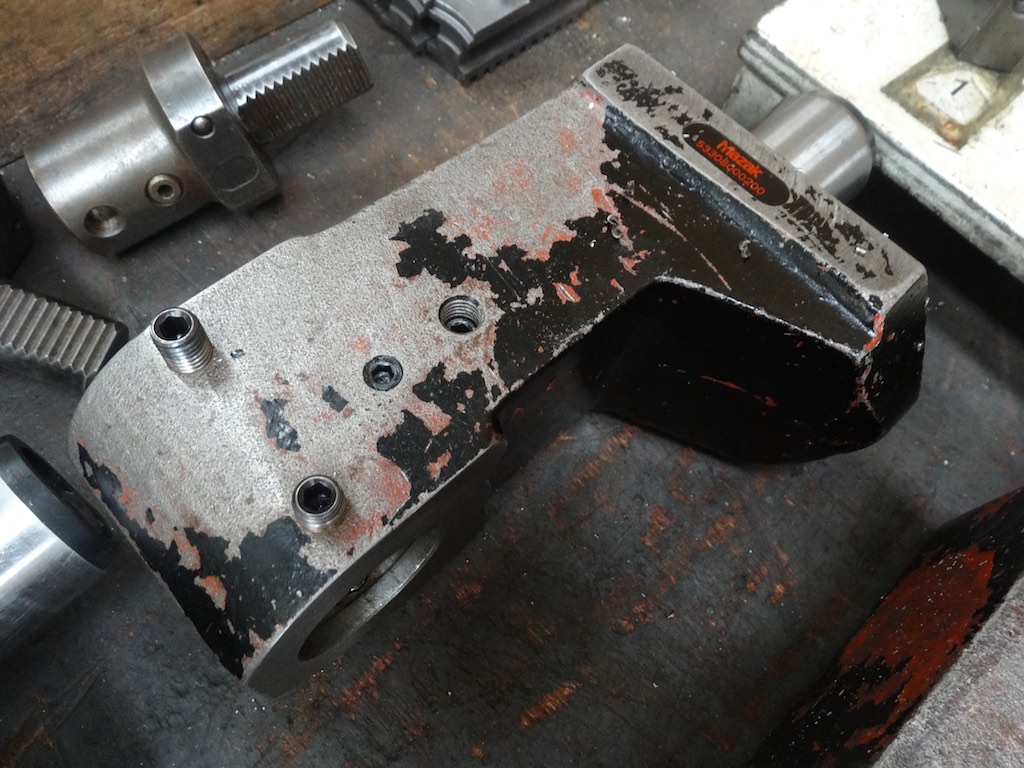

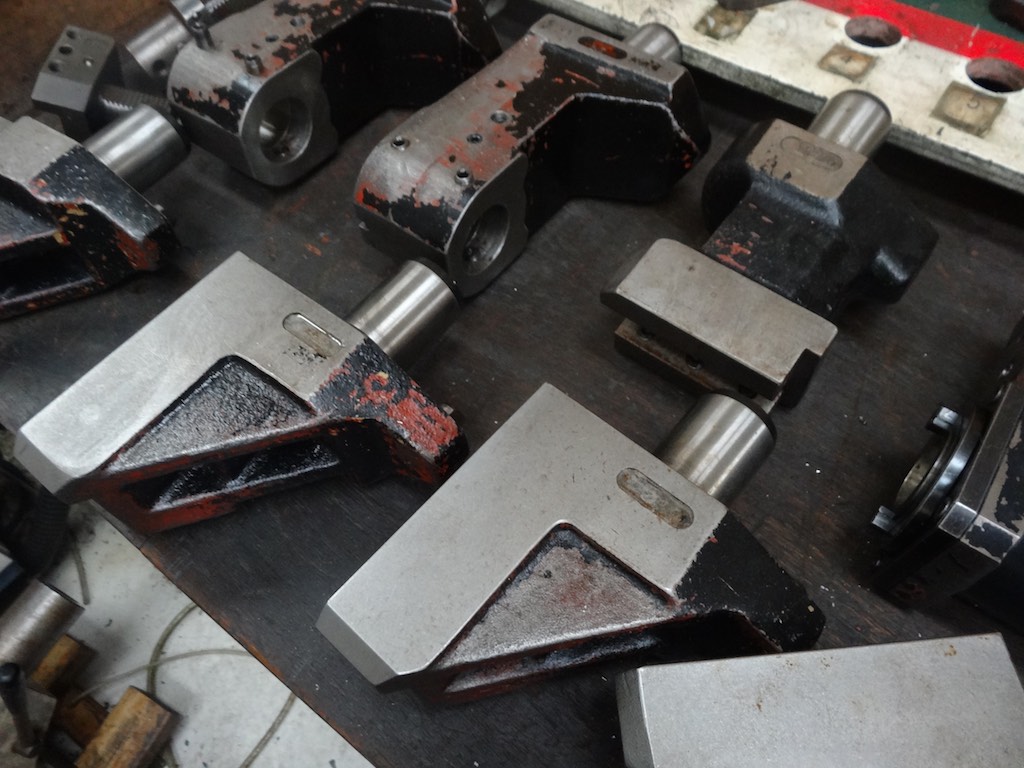

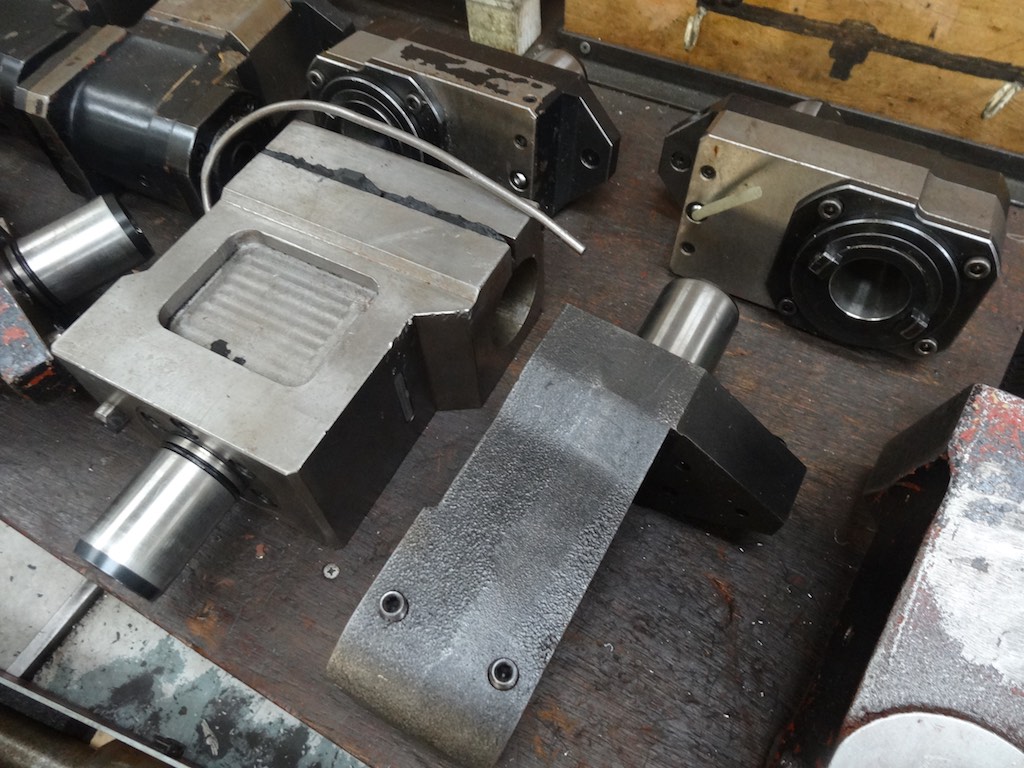

Manual tooling,
Low volt light
Manuals and Tooling
Location: Midlands
