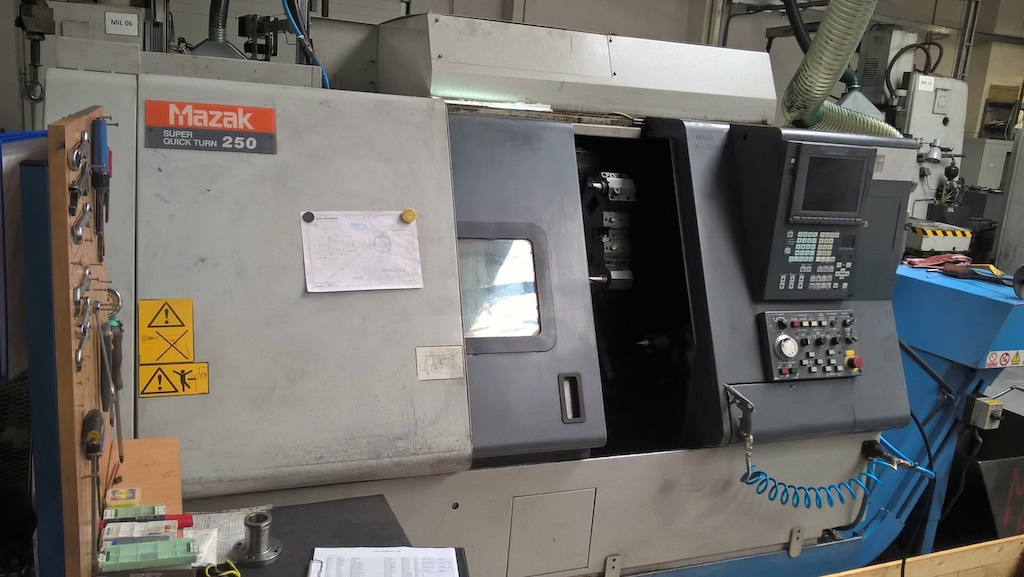

MAZAK SQT 250 CNC Lathe (1999)

Lot 2 - MAZAK SQT 250 CNC Lathe (1999)

Description:

S/n: 142039
Date: 1999
Weight: 4600kg

Max bar size: 64mm
Max cutting Dia: 350mm
Max swing: 525mm
Max swing over carriage: 350mm
Spindle speed Min/max: 35-4000
Spindle bore: 76mm
12 station drum
Tool shank height: 25
Boring bar: 40
Rapid traverse in X and Z: 30mm

B/bar holder 40mm 5 pcs.
B/bar or dril holder 40mm 1 pcs.
Drill holder 40mm 1 pcs
Jaw bases 1 sets
Soft jaws – 1 sets
Clamping block 8 pcs

Worthing, West Sussex

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
