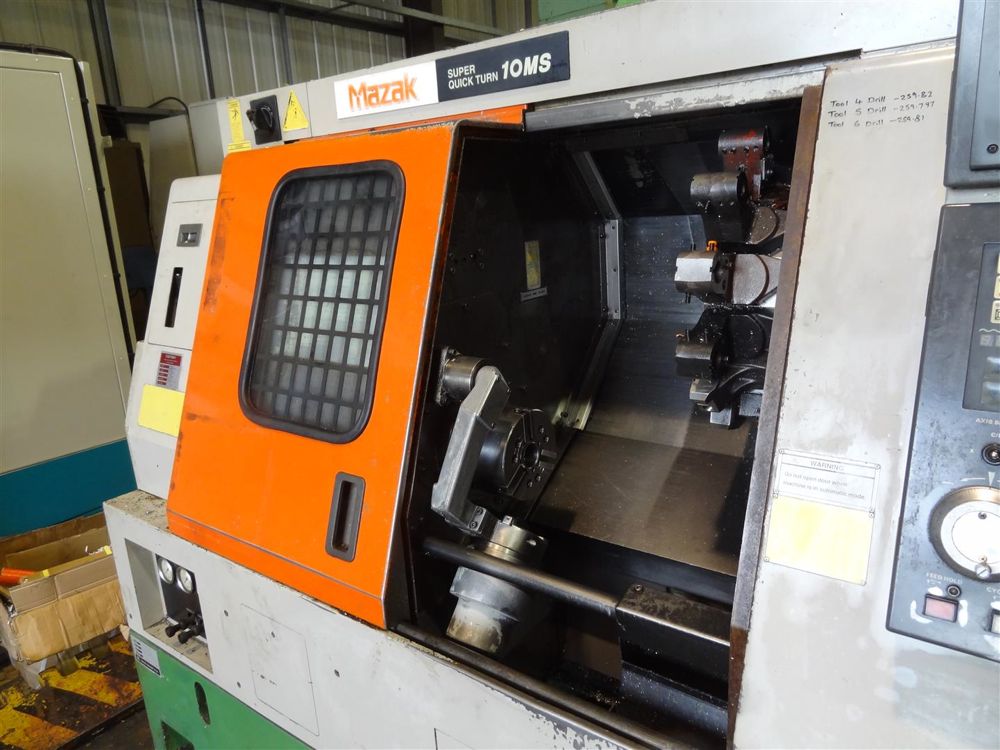

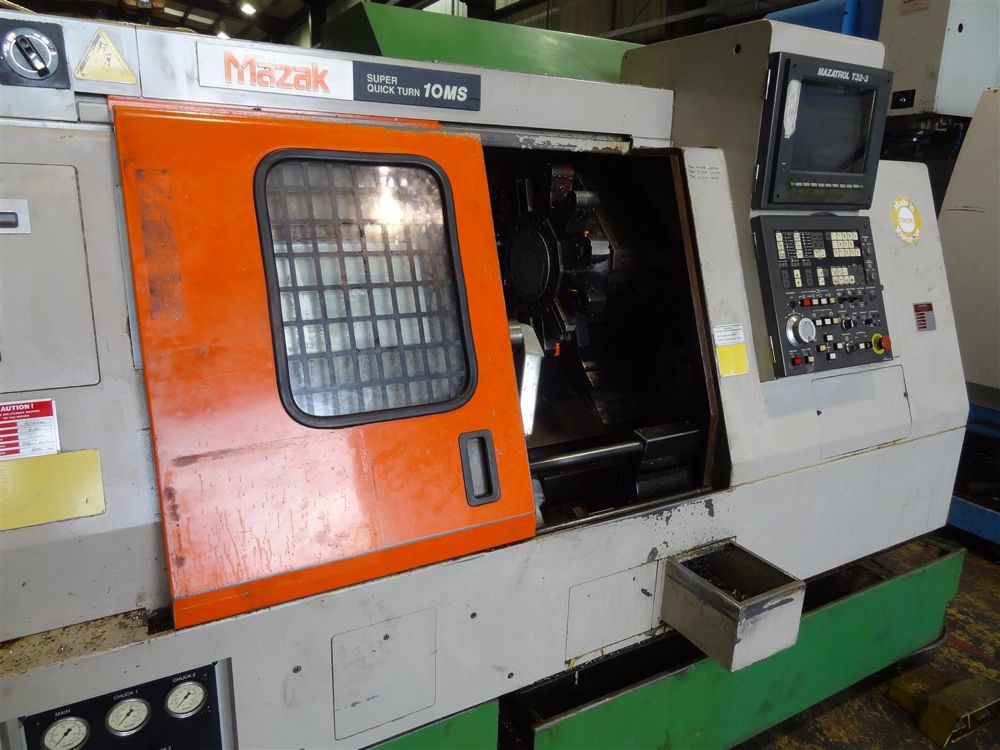

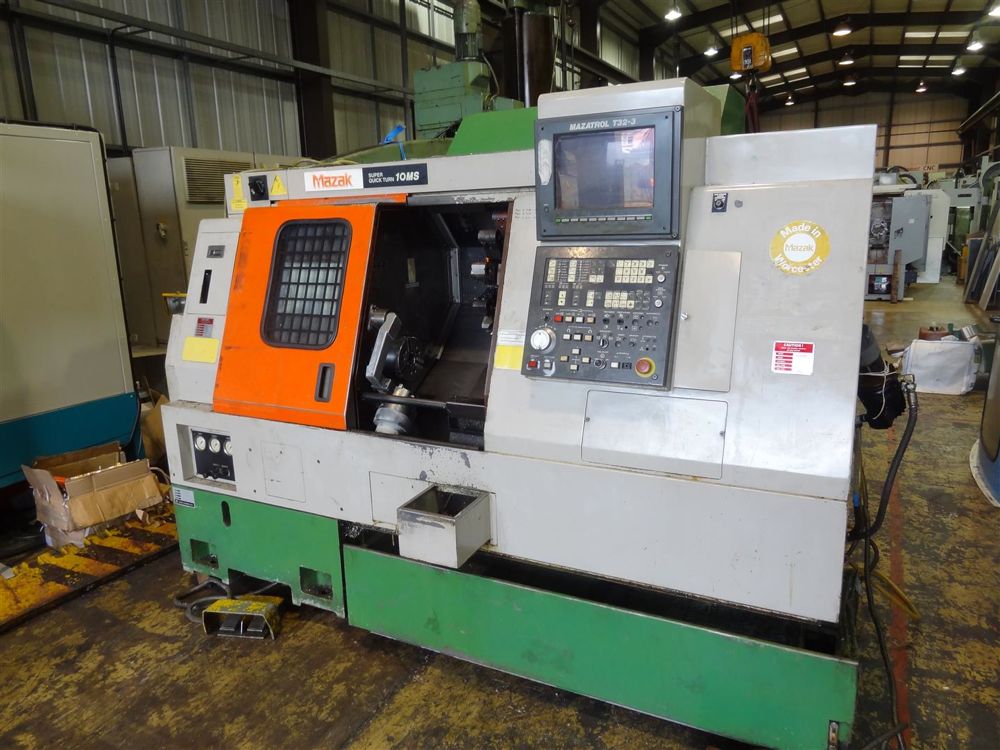

Lot 1 - Mazak Super Quick Turn 10MS CNC Lathe (1992) with driven tooling and sub spindle
Description:

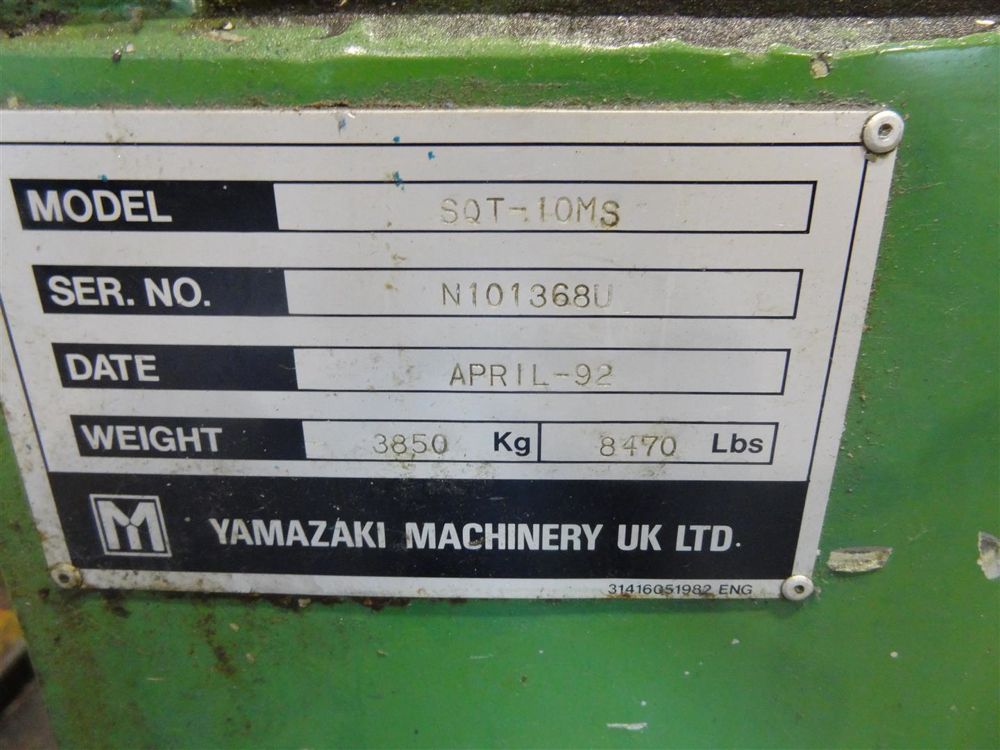

Mazak Super Quick Turn 10MS CNC Lathe (1992) with driven tooling and sub spindle

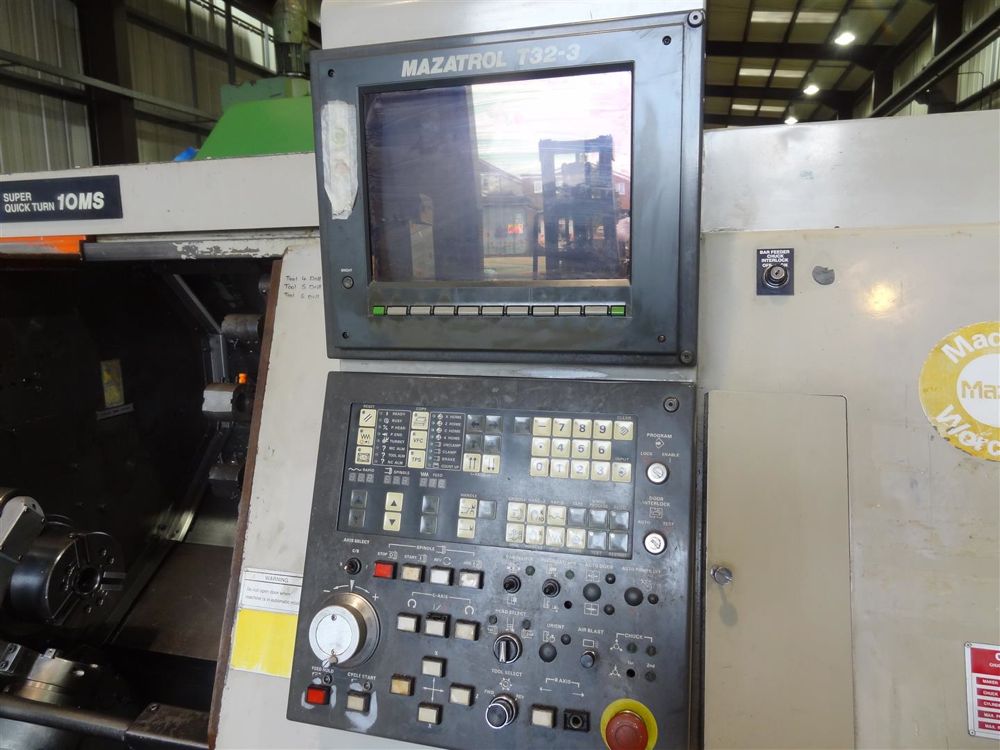

Mazatrol T32-3 control
Machine equipped with:

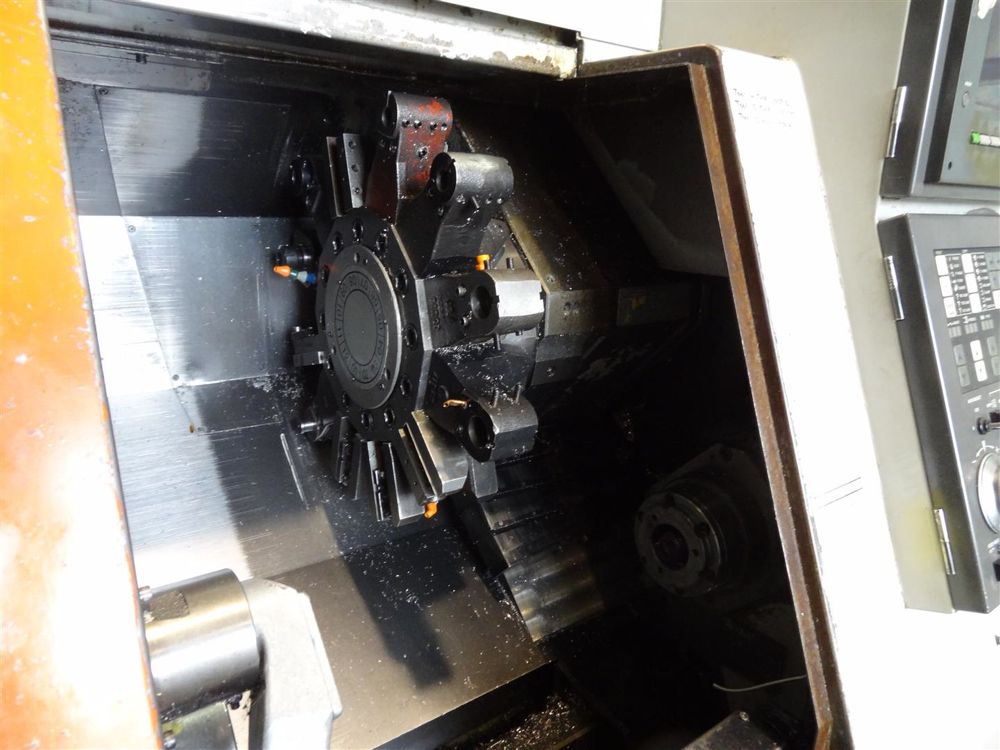

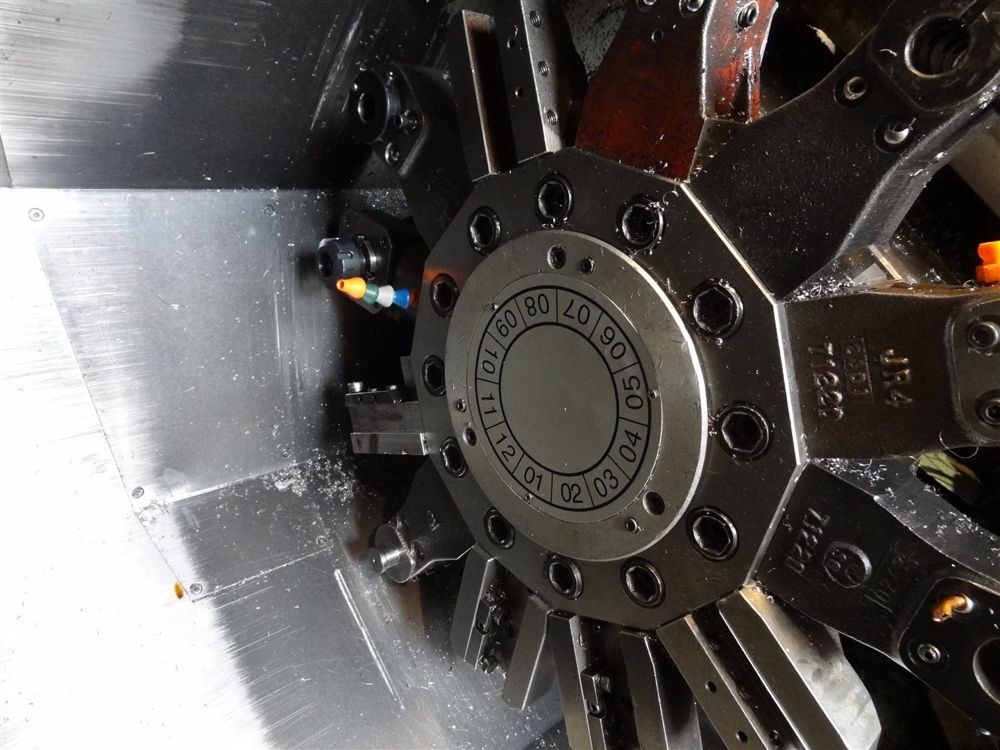

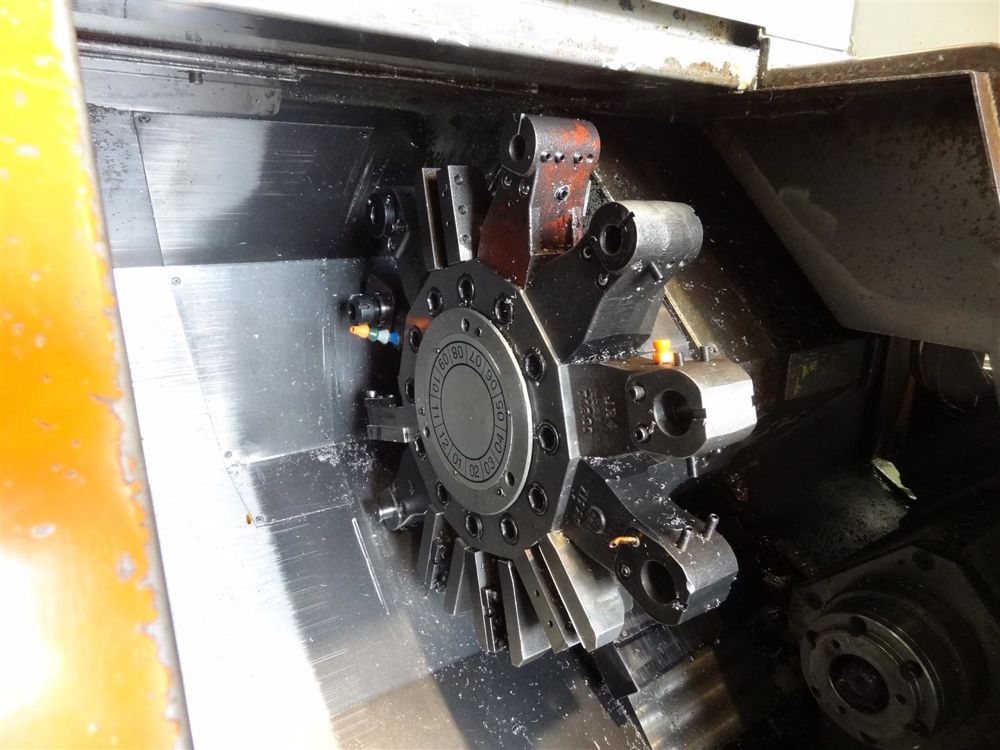

Tool holders as per photo fitted onto turret
Plus: 6 driven tools: 3 off axial/ 3 off radial

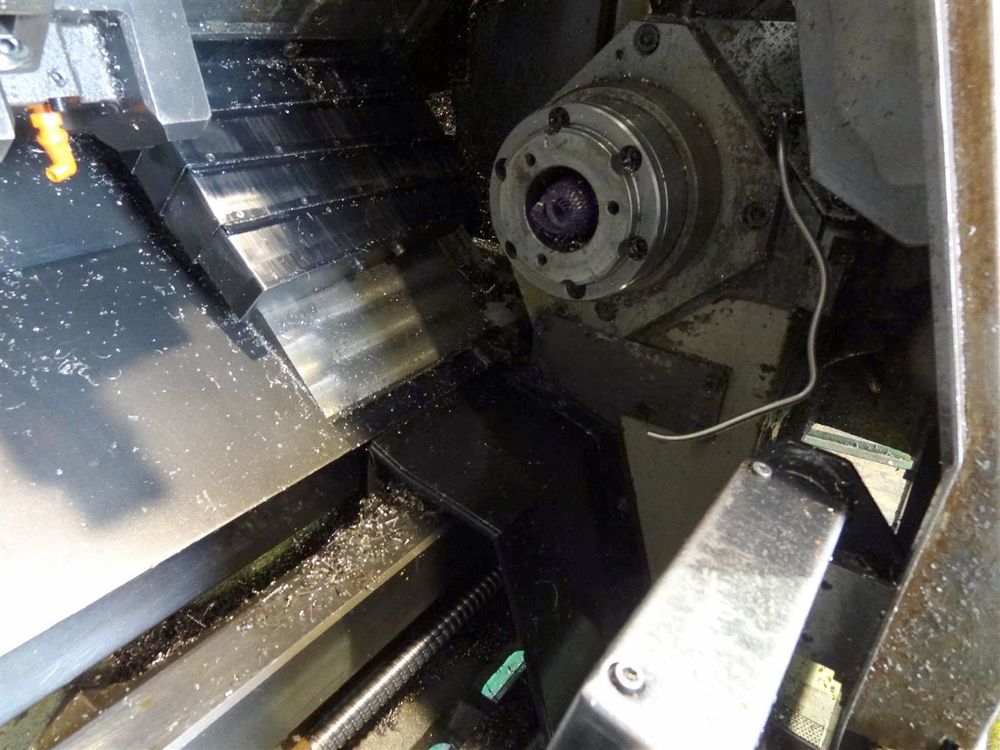

160mm power chuck main spindle fitted to machine

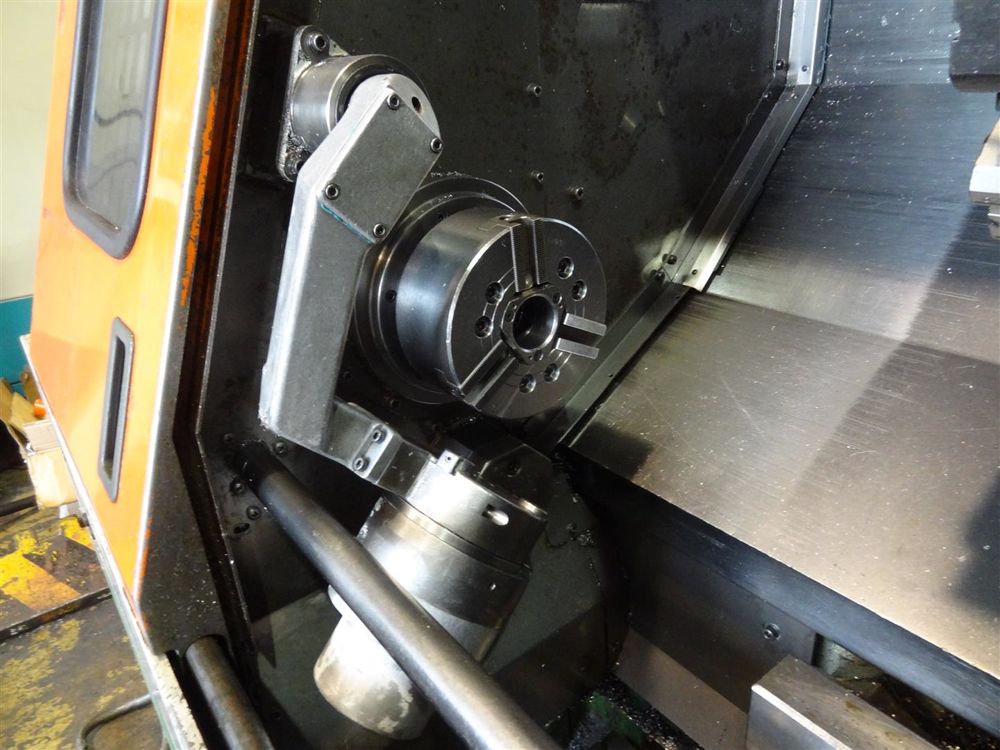

Kitagawa B205 power chuck to suit subspindle

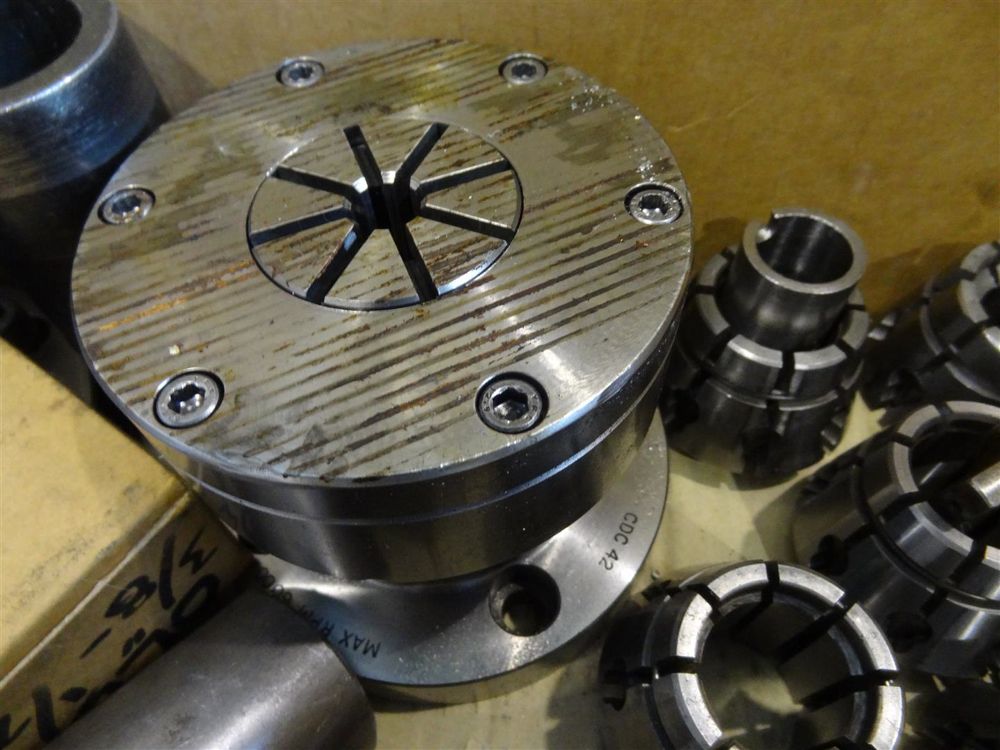

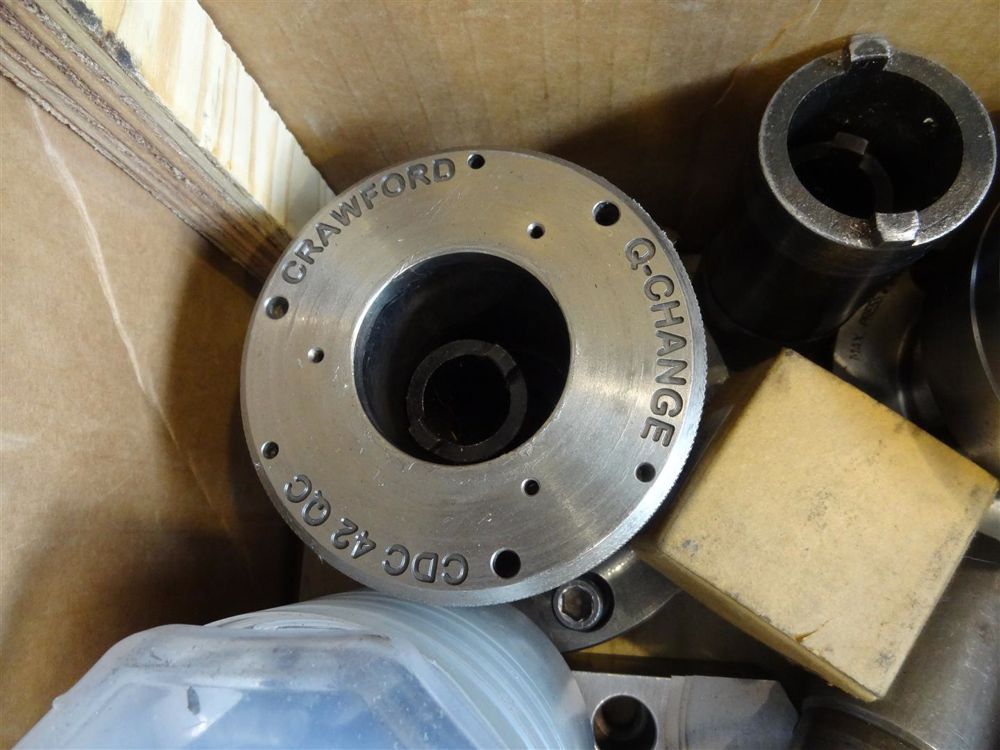

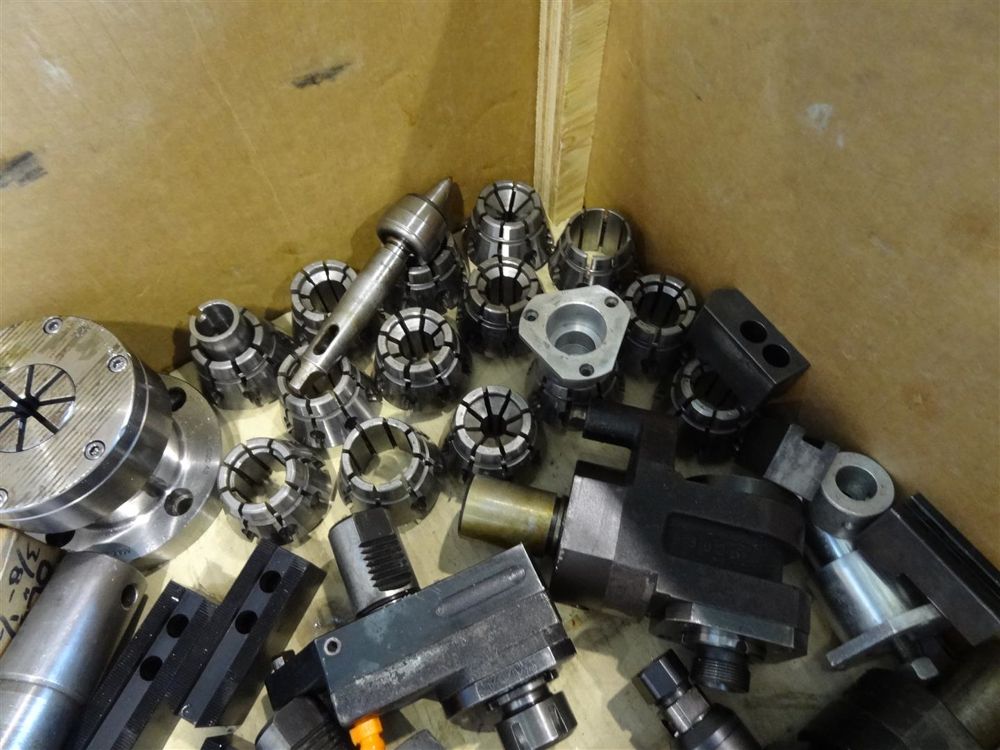

2 off Crawford 42mm cap collect chucks c/w: 14 collets as per photo

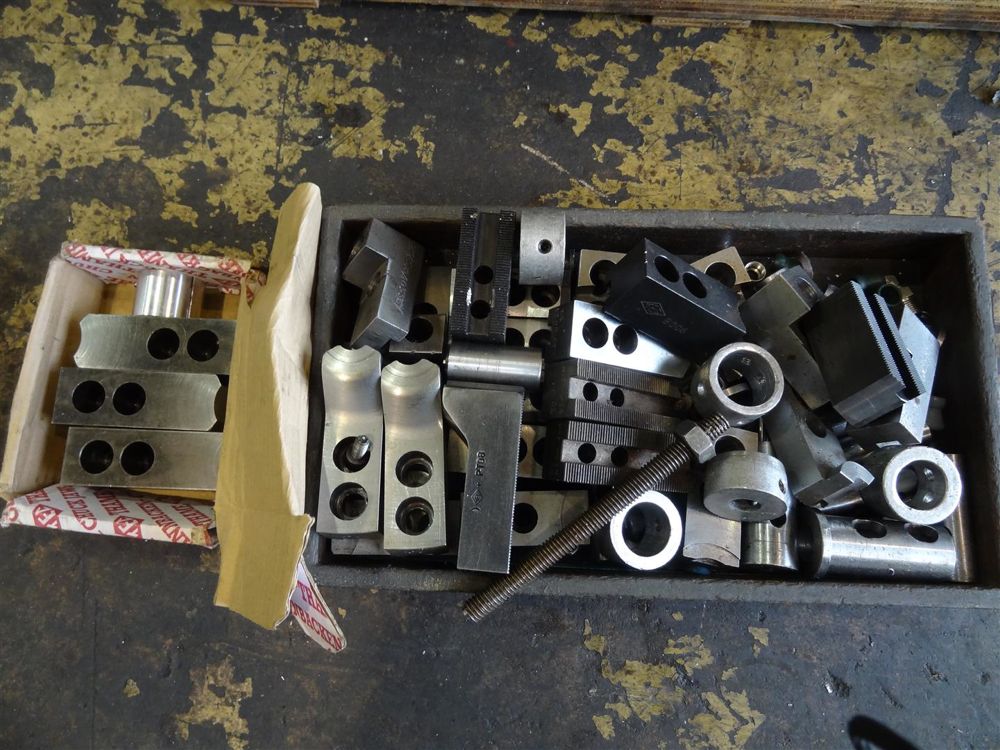

Numerous jaws as per photos

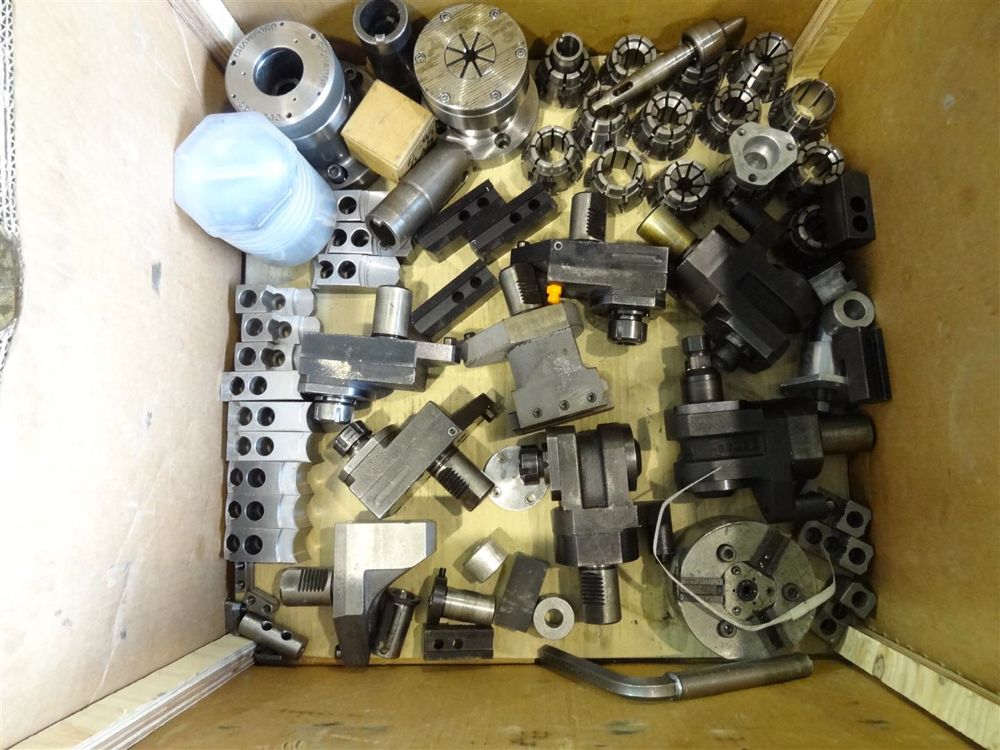

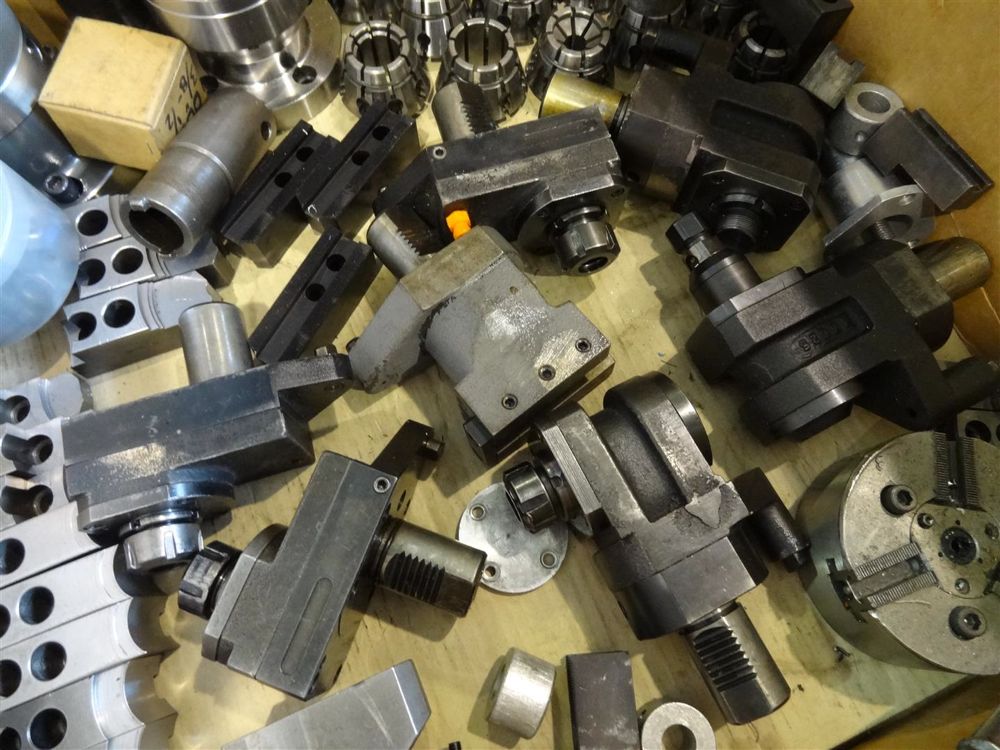

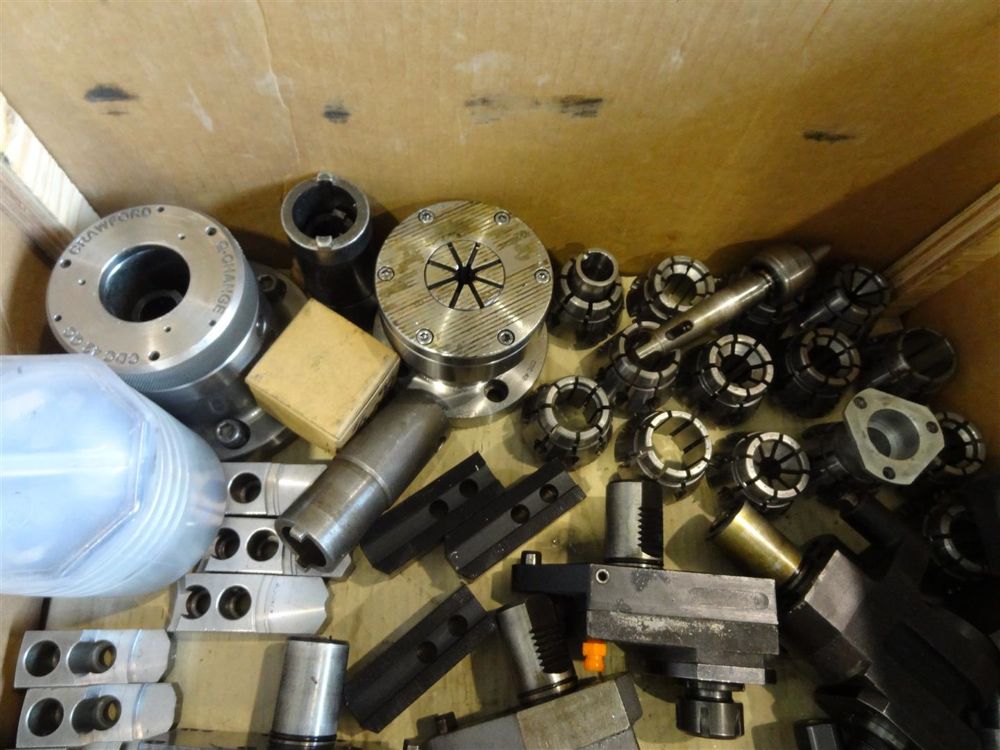

(contents of box with tooling all included)
Drilling and Milling facility
Number of Axes: 4
Distance between main spindles: 80-535mm
Turning Diameter: 230mm
Turning Length: 305mm
Country of Origin: Japan
Spindles Per Head: 1
Spindle Bore Dia: 61mm
Bar Capacity: 42mm
Spindle Speed: 35-6000rpm
Chuck Size: 160 mm
Rotary Axis : C (Standard)
Rotary Increment: 0.001deg
Rotary Min Angle: 0.001deg
Rotary Max Angle: 360deg
Sub Spindle
Sub Spindle Speed: 180-6000rpm
Chuck Size: 127mm
Tool Stations: 12
X Travel: 160mm
Z Travel: 455mm
Machine Diemension (Main Body): L x W x H, 2705mm x 1465mm x 1835mm
Machine Weight: 3850kg
Location: Leicester, Can be loaded free of charge to flat bed truck.
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
