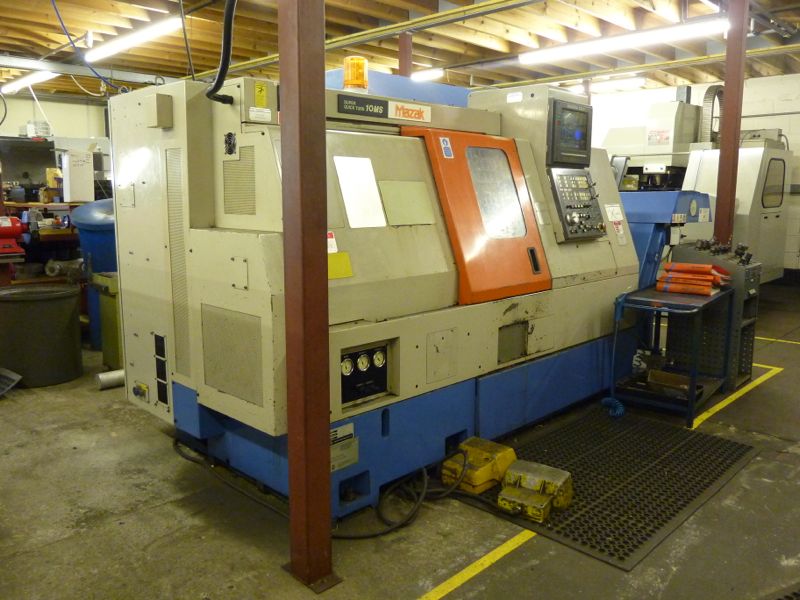

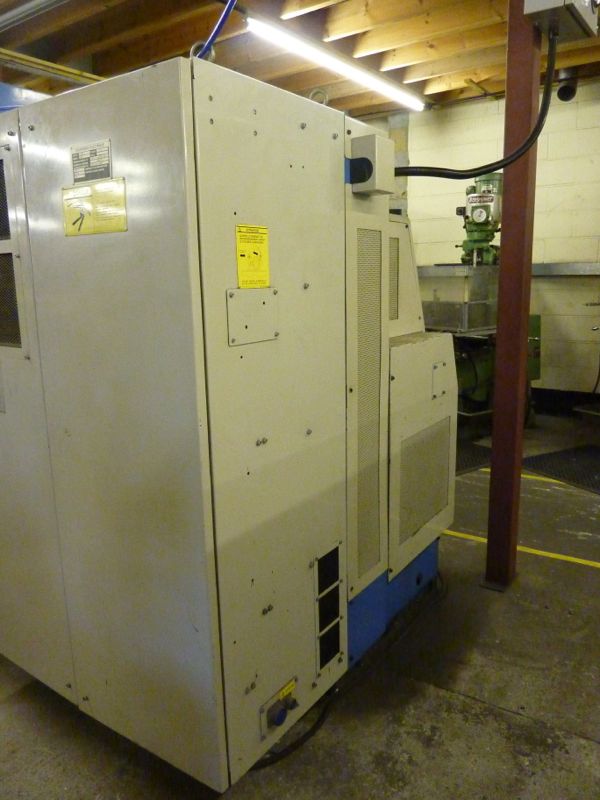

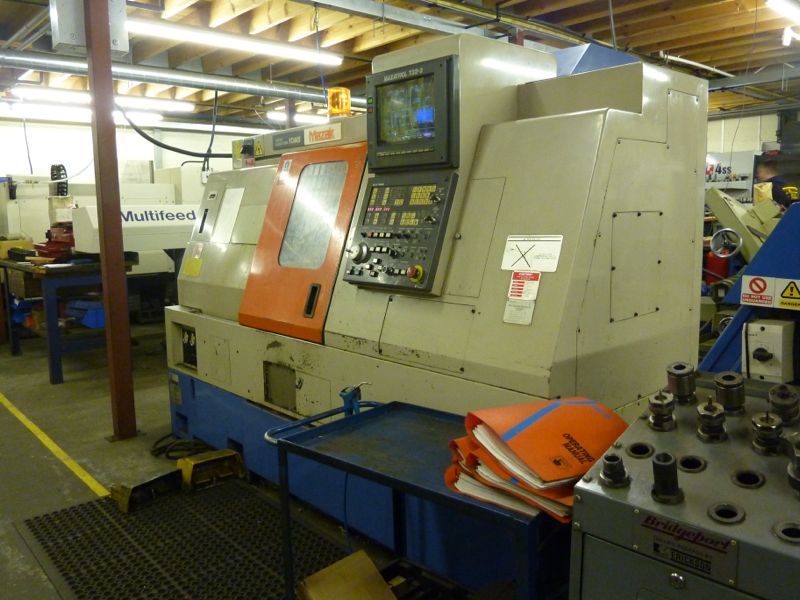

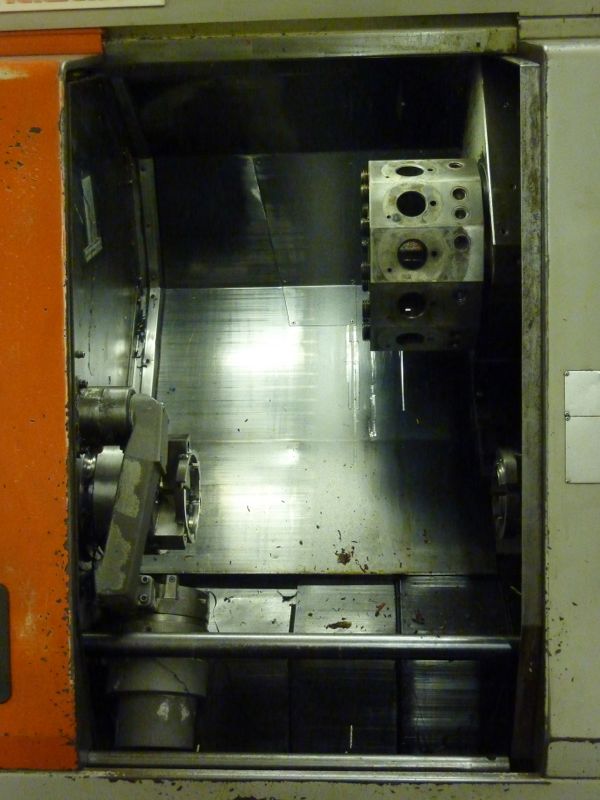

Lot 2 - Mazak Super Quickturn 10MS with Sub Spindle and Driven Tooling
Description:
Mazak Super Quickturn 10MS with Sub Spindle and Driven Tooling
Drilling and Milling facility

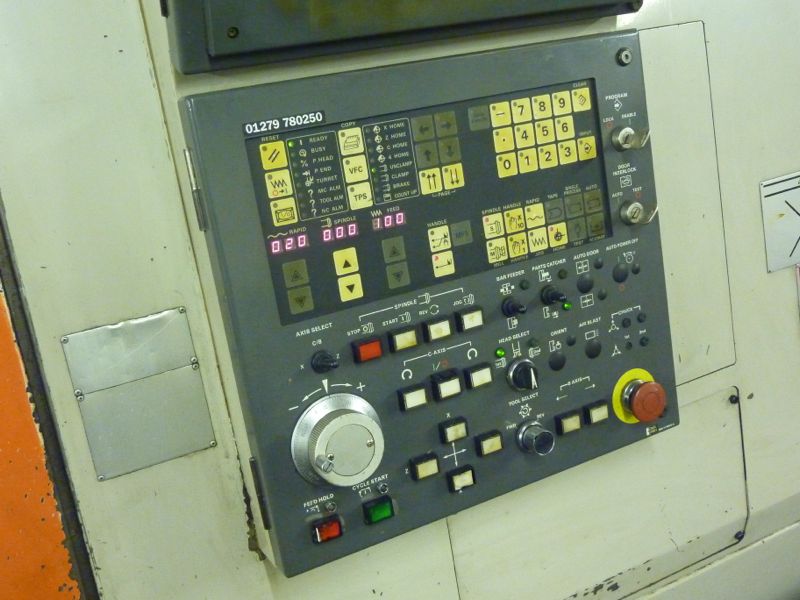

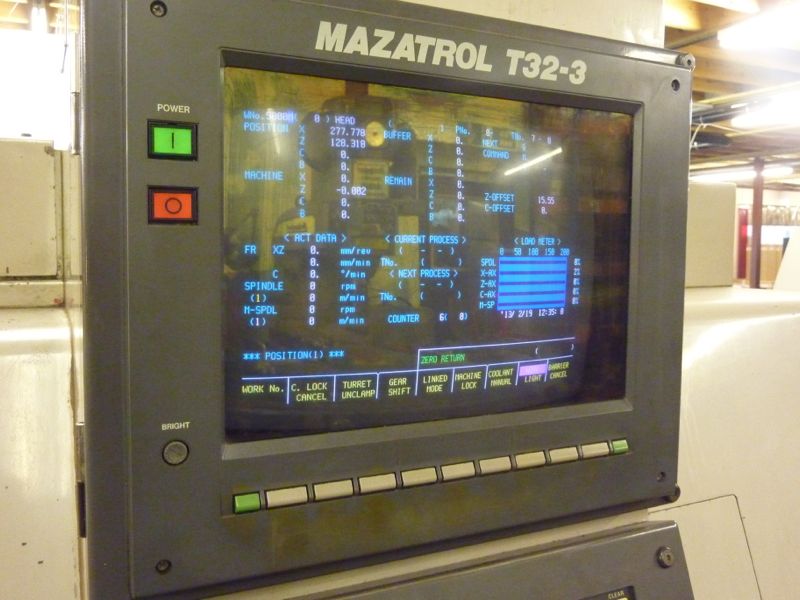

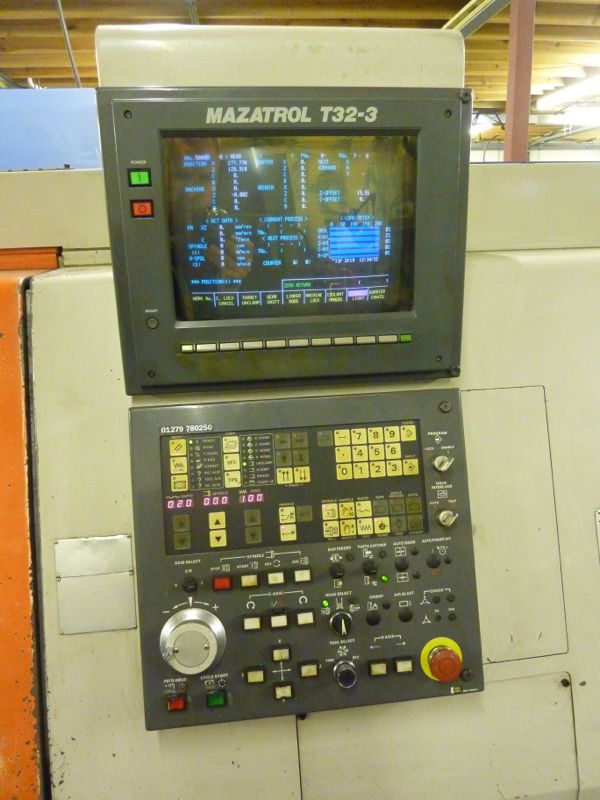

MAZATROL T32-3 CNC Control
Number of Axes: 4
Distance between main spindles: 80-535mm
Turning Diameter: 230mm
Turning Length: 305mm
Country of Origin: Japan
Spindles Per Head: 1
Spindle Bore Dia: 61mm
Bar Capacity: 42mm
Spindle Speed: 35-6000rpm

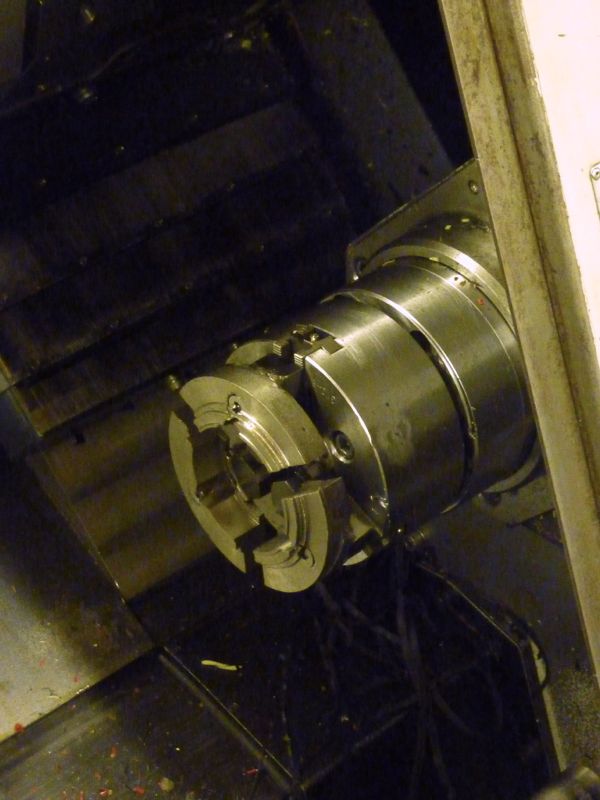

Chuck Size: 152 mm
Rotary Axis : C (Standard)
Rotary Increment: 0.001deg
Rotary Min Angle: 0.001deg
Rotary Max Angle: 360deg

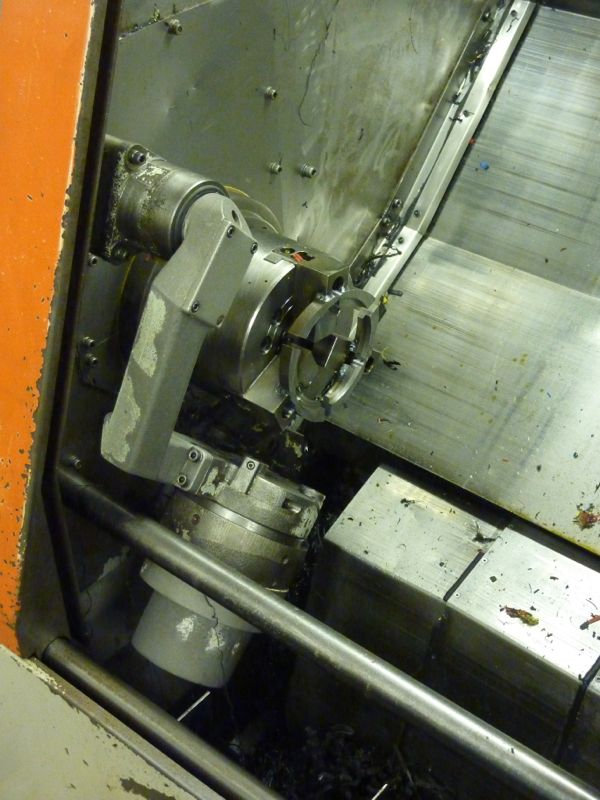

Sub Spindle
Sub Spindle Speed: 180-6000rpm
Chuck Size: 127mm

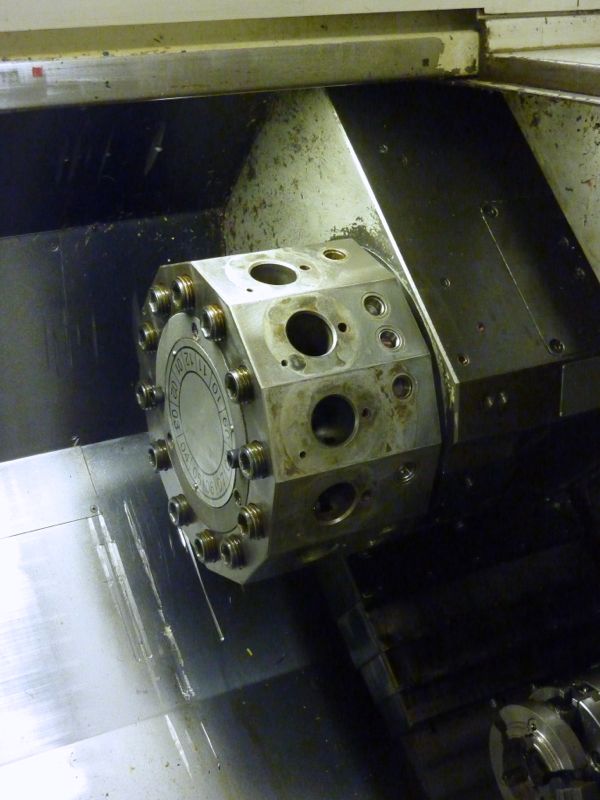

Tool Stations: 12
X Travel: 160mm
Z Travel: 455mm

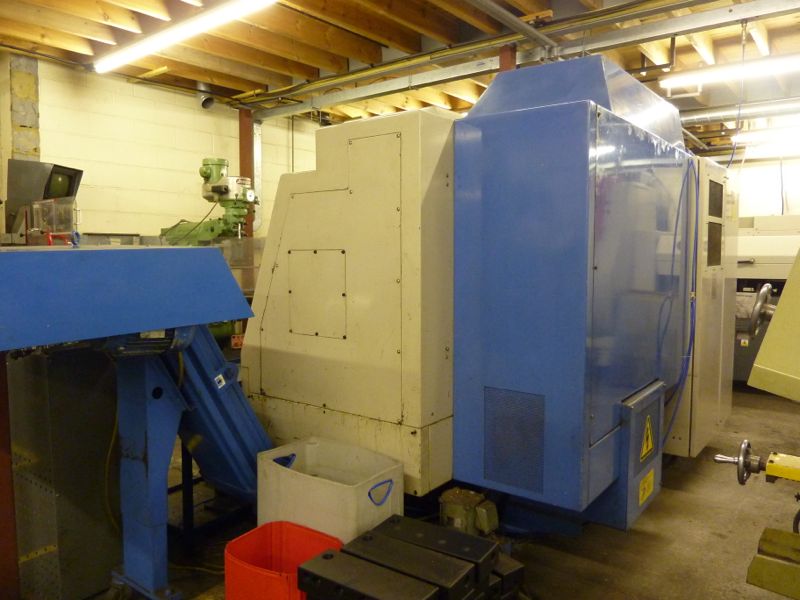

Swarf conveyor

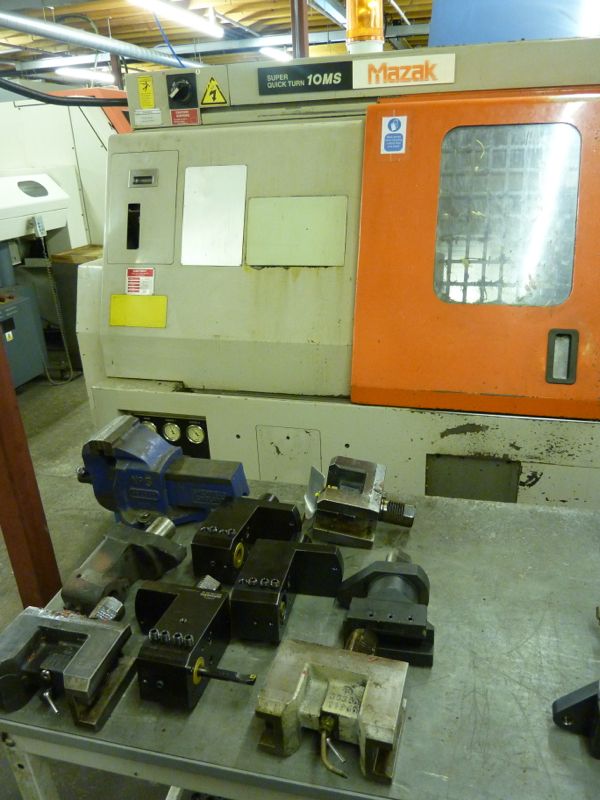

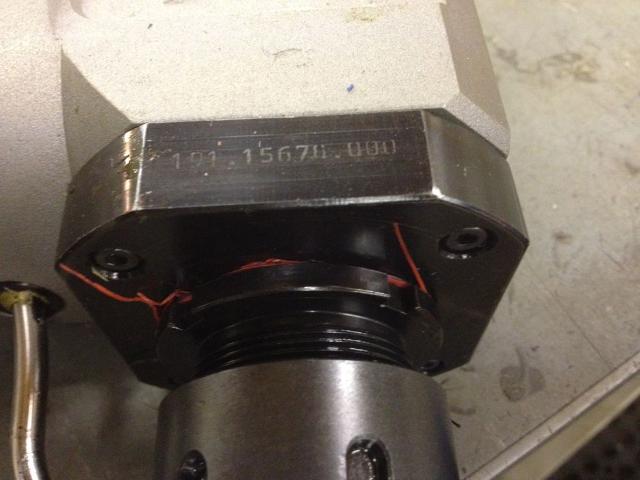

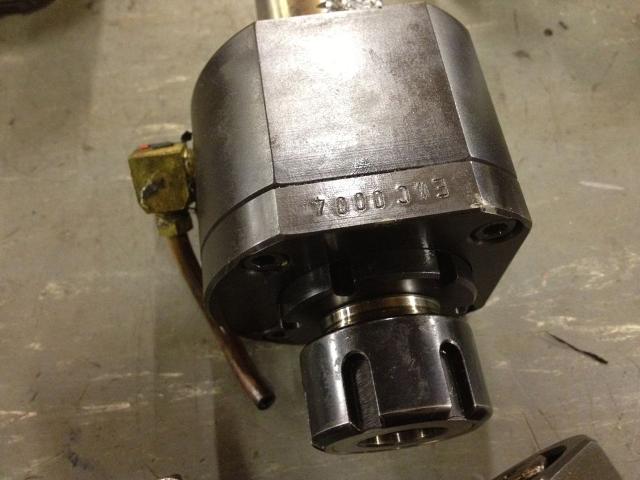

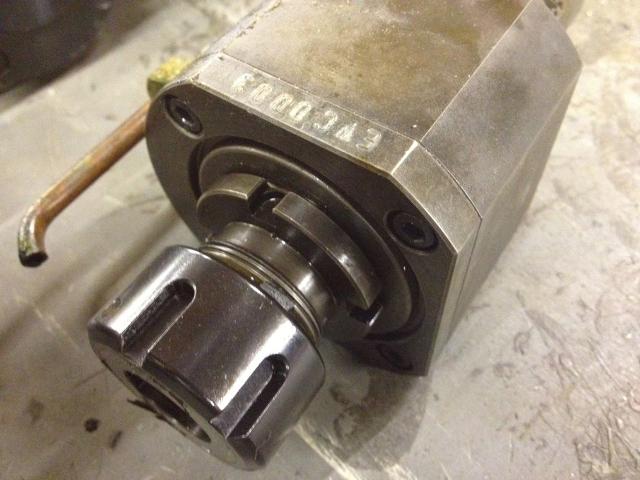

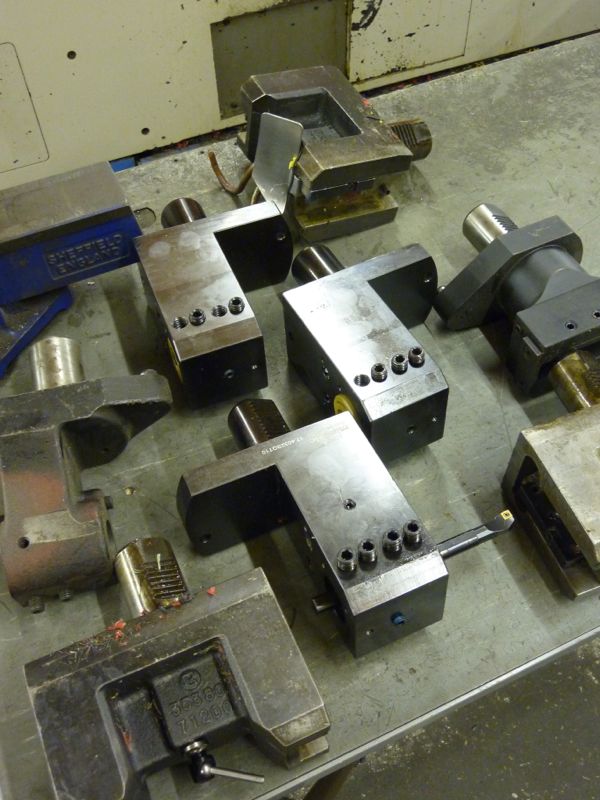

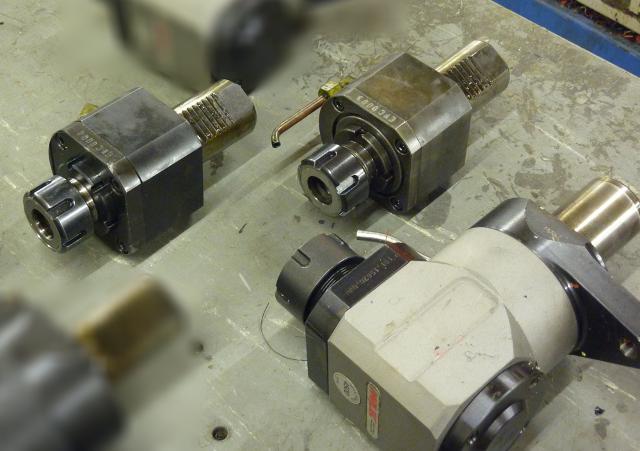

Includes 3 Driven Tool Holder Plus 8 Stand Tool Holders
Manuals
Approx Year: 1994

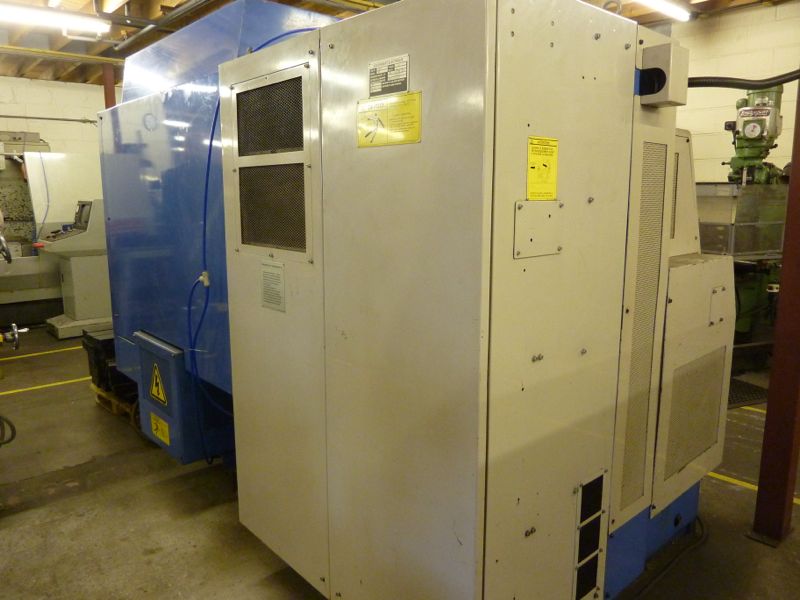

Machine Diemension (Main Body): L x W x H, 2705mm x 1465mm x 1835mm
Machine Weight: 3850kg
Click Here To Download PDF Spec (2.8mb)
Location: Harlow, Essex
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
