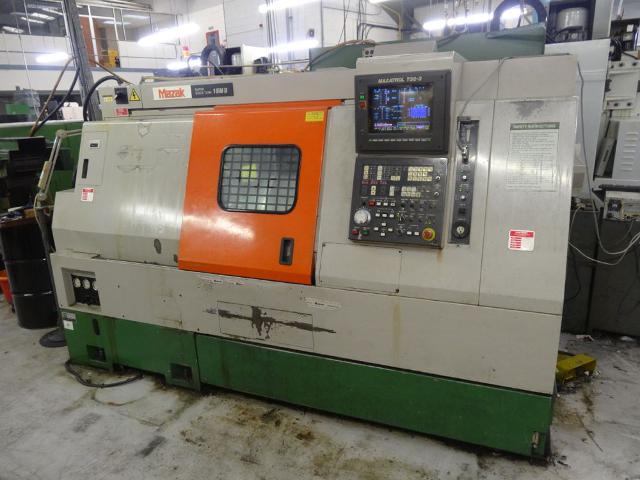

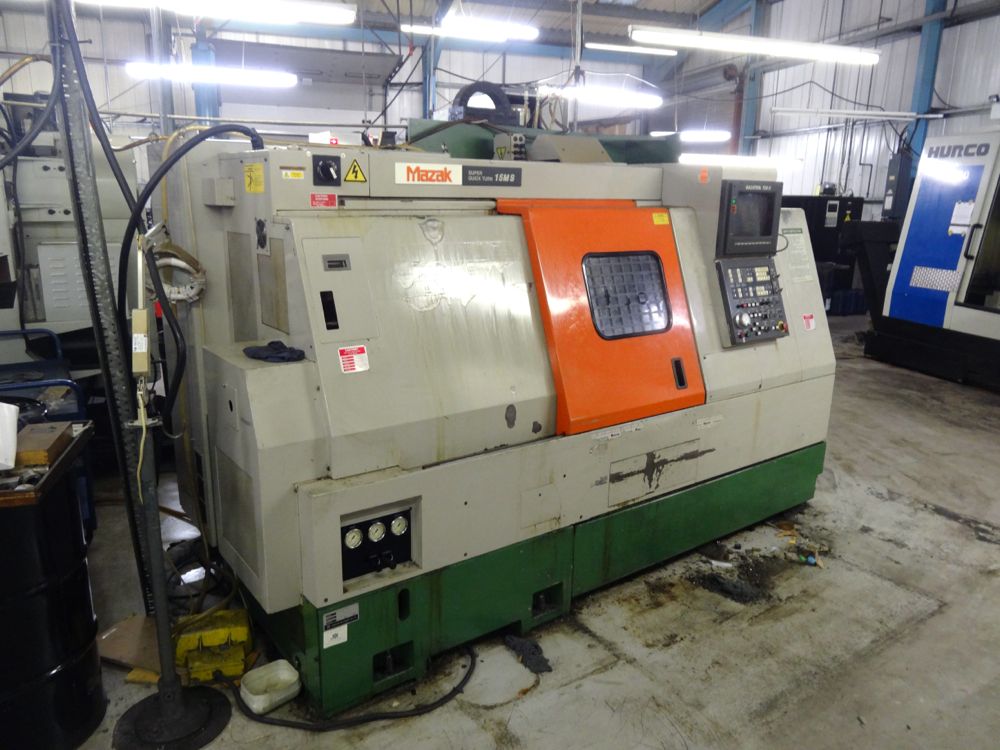

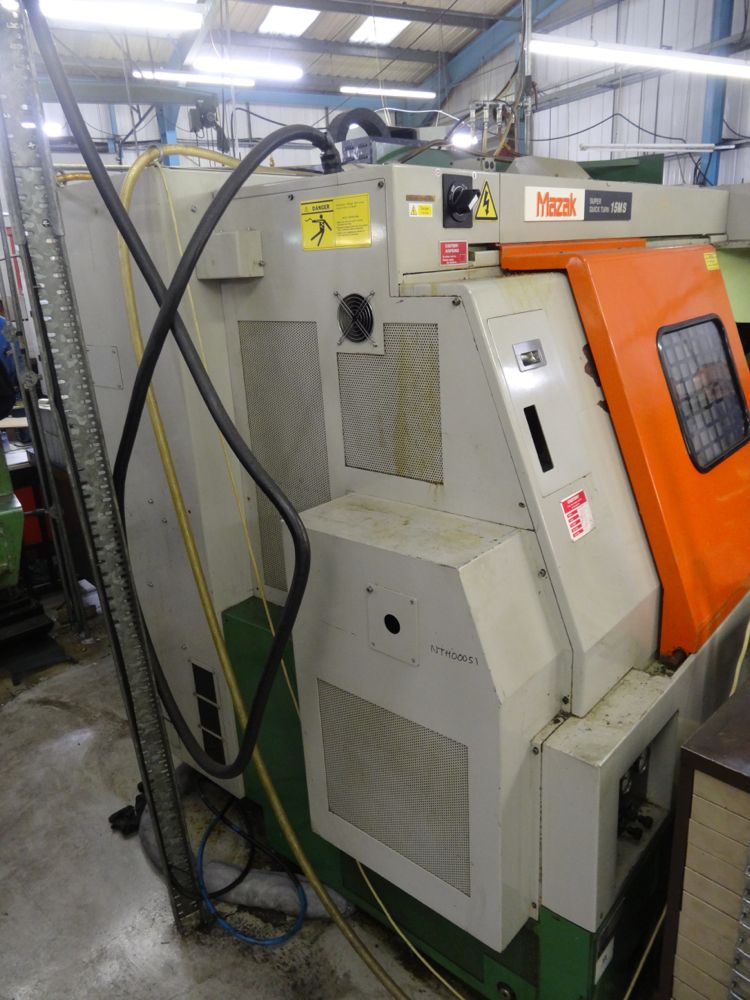

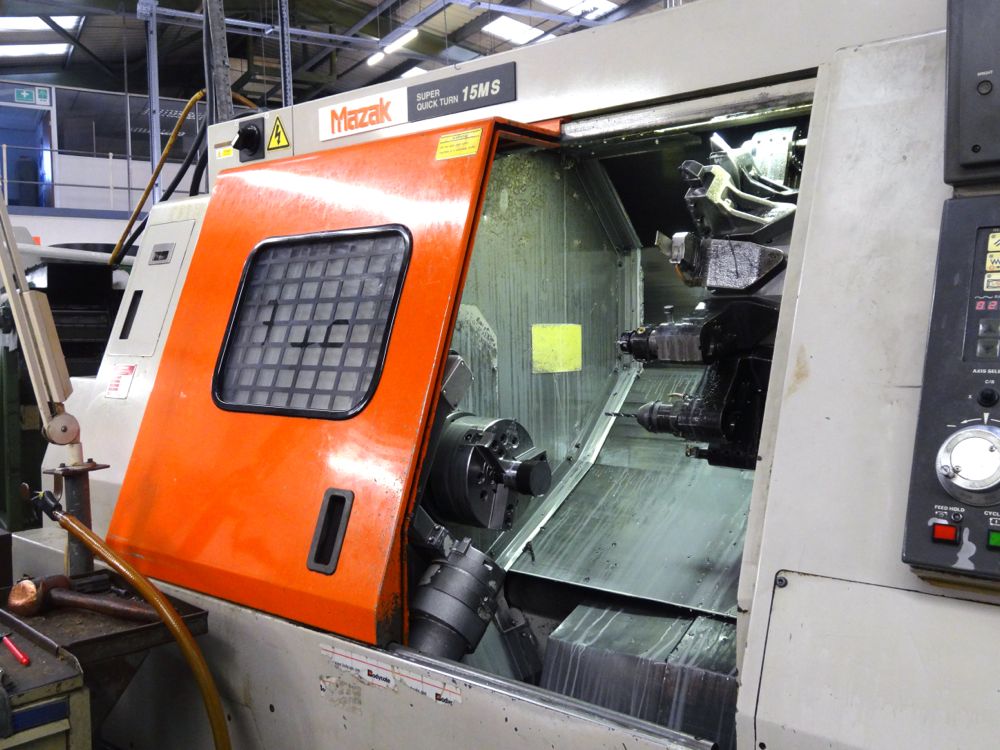

Lot 7 - Mazak Super Turn 15MS CNC Lathe - With Sub Spindle and Driven Tools
Description:

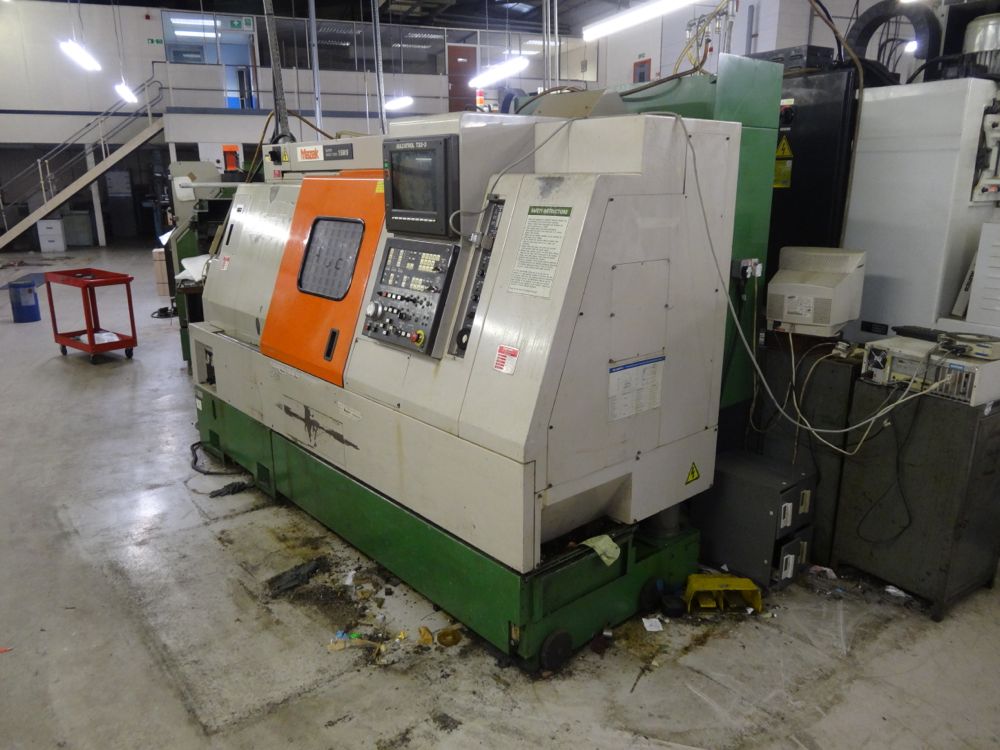

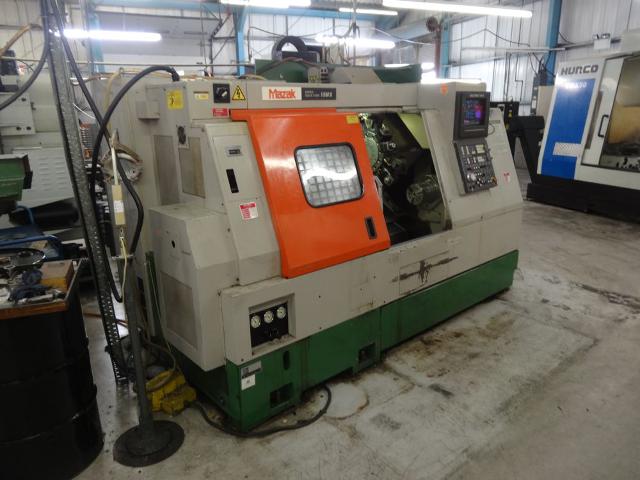

Mazak Super Turn 15MS CNC Lathe - With Sub Spindle and Driven Tools

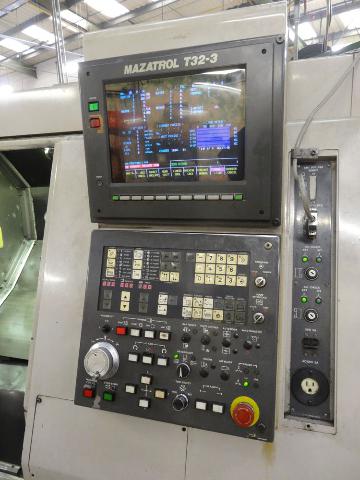

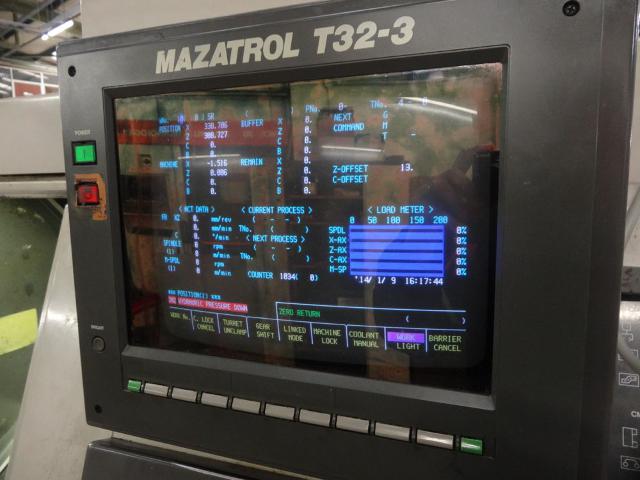

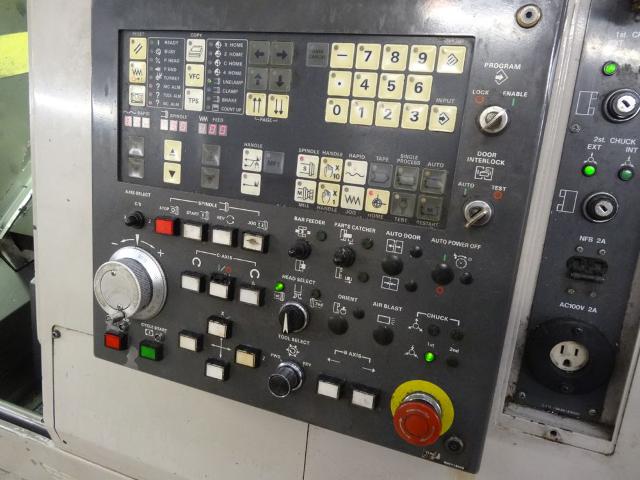

Control: Mazatrol T32-3
X Axis Travel: 180mm
Y Axis Travel: 575mm
Max Swing: 531mm
Distance Between Centres: 597mm
Max Cutting Diameter: 300mm
Standard Machining Diameter: 276mm
Max Cutting Length: 528mm
Max Bar Work Diameter: 51mm
Number iof Spindle Speed Ranges: Stepless
Max Spindle Speed: 35-4000rpm
Spindle Nose: A2-6
Spindle Bore: 76mm
Second Spindle Speed: 180-4000rpm
Second SpindleStroke (B Axis): 590mm
1st Spindle Motor 930mins/Continous): 25hp / 20hp
Second Spindle Motor: 10hp

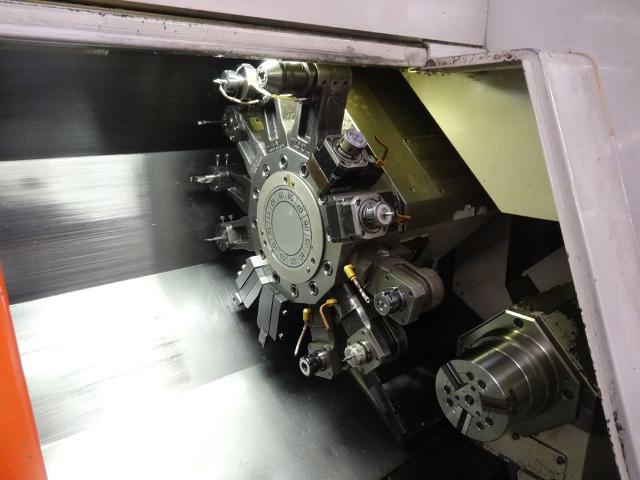

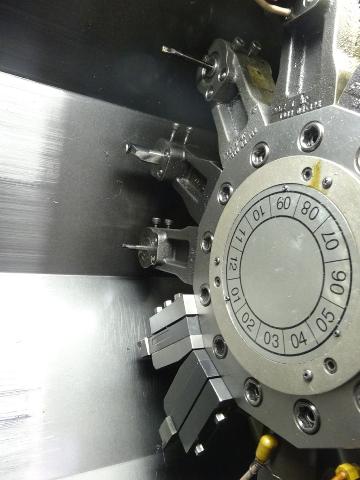

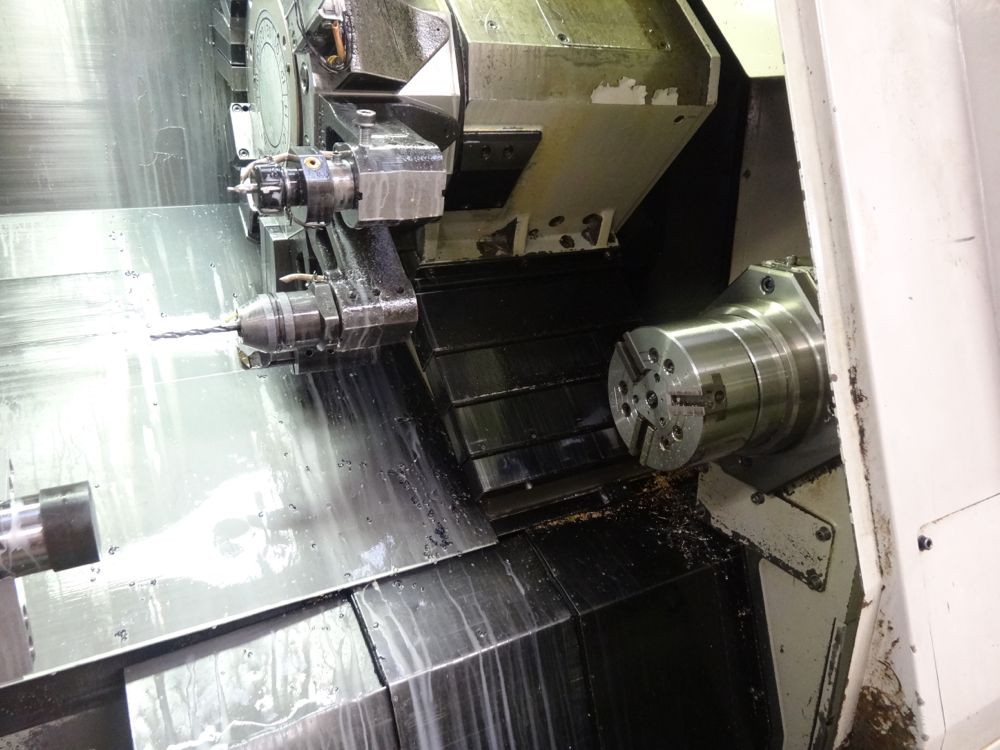

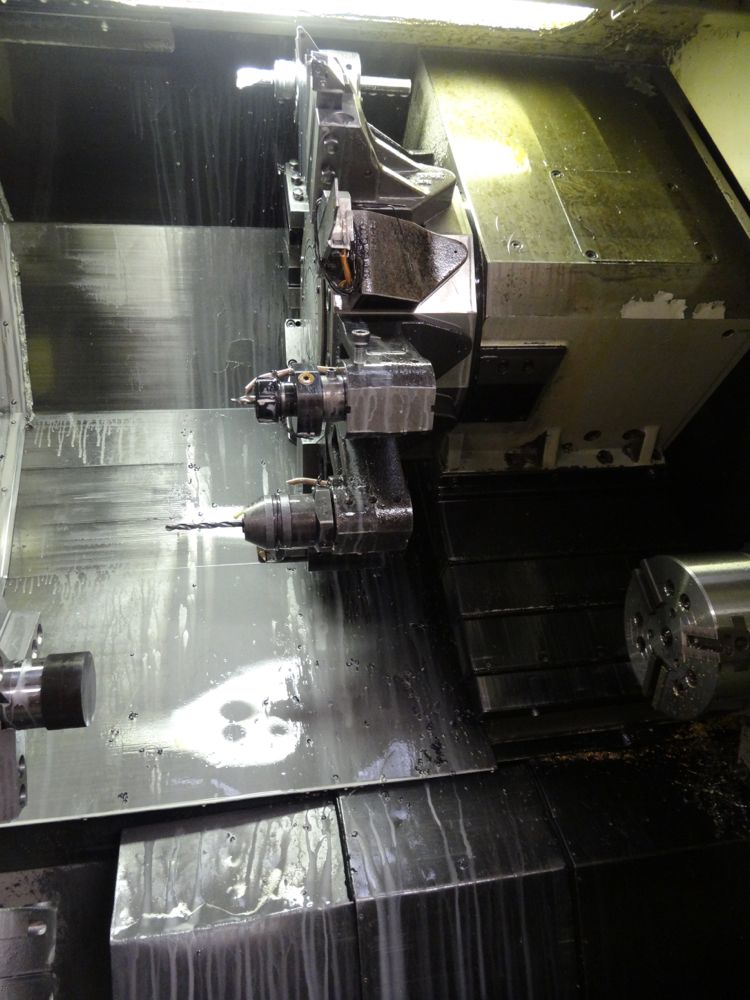

Turret type: Dodecagonal Drum Turret
Turret Tool Capacity: 12 Total (12 for first Process, 12 for second process, 12 for milling tool or 12 for turning tool)
Boring Bar Shank Diameter: 25mm
Turret Index Time (One step/full step): 0.5s/1.4s
Rotary Tool Speed Range: 120-3000 rpm
Power Requirements: 59.7 kVA
Air Supply: 71.17 PSI, 100L/Min
Collant Tank Capacity: 200 L
Floor Space Requirements: 3035mm x 1580mm
Height 190mm
Weight: 4700kg

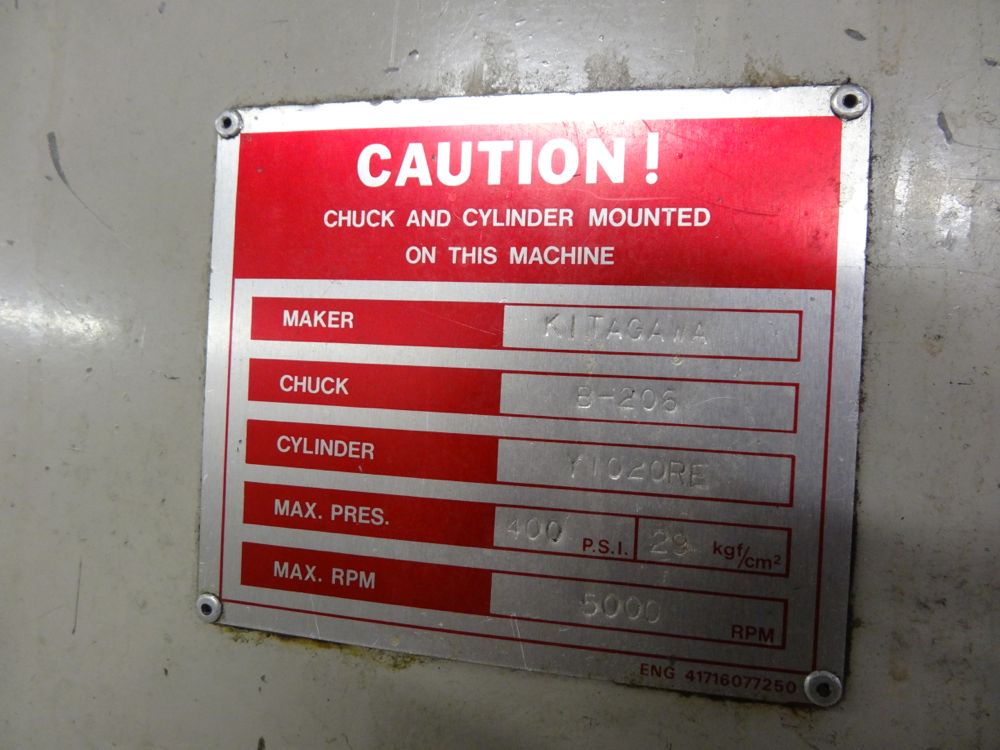

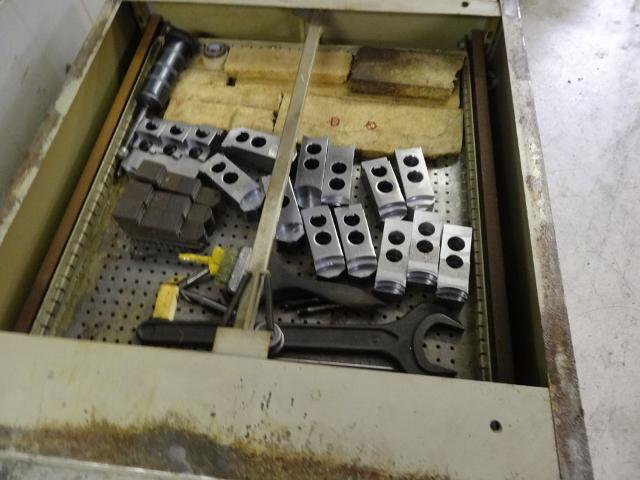

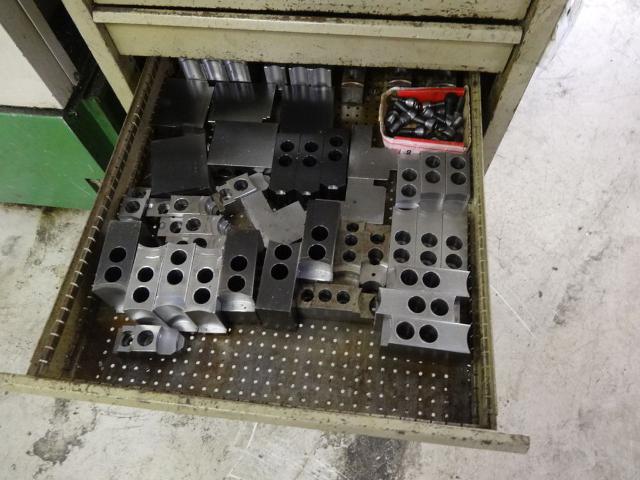

8" Through Hole Hydraulic 3 Jaw Chuck

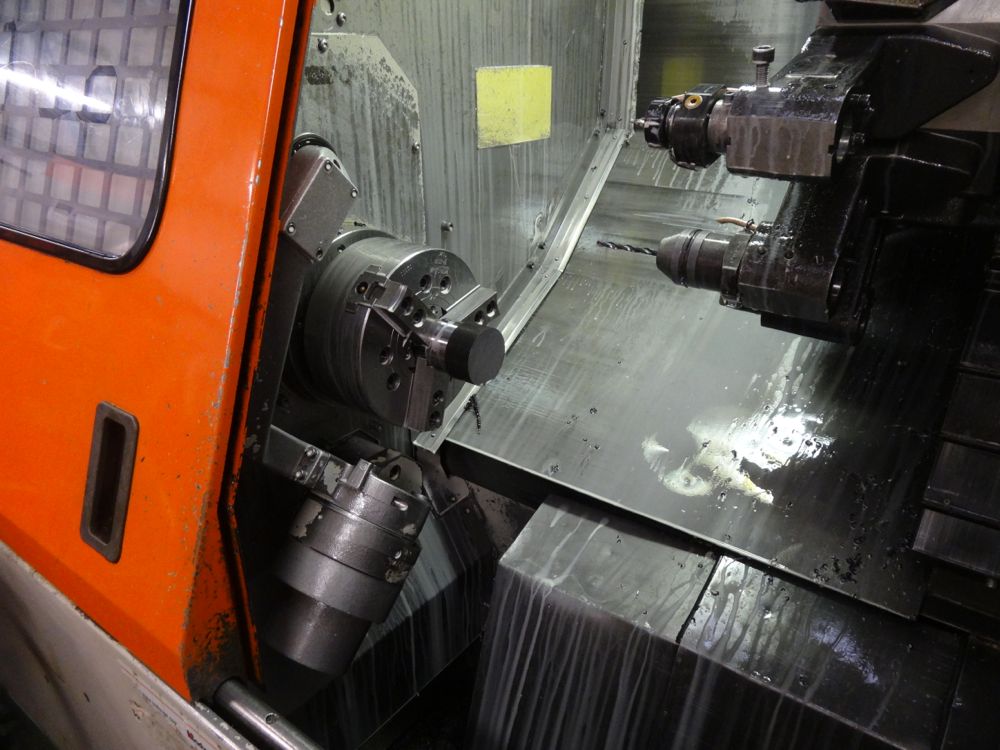

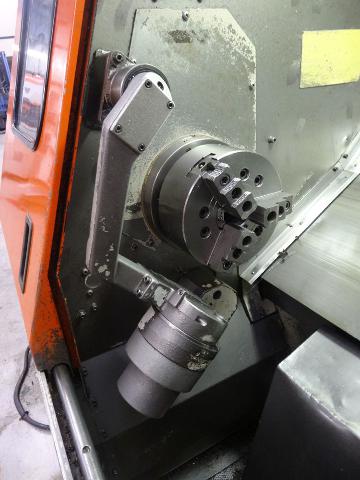

Second Spindle 6" Through Hole Hydraulic 3 Jaw Chuck
Coolant System
Adjusting Tool
Tool Eye
Tool Life Monitoring
Work Light

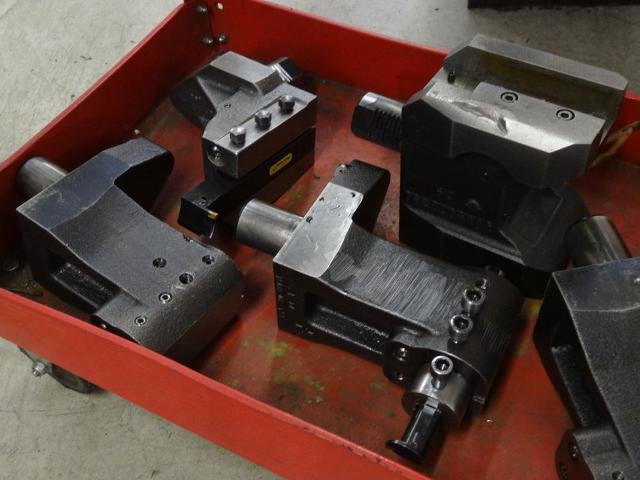

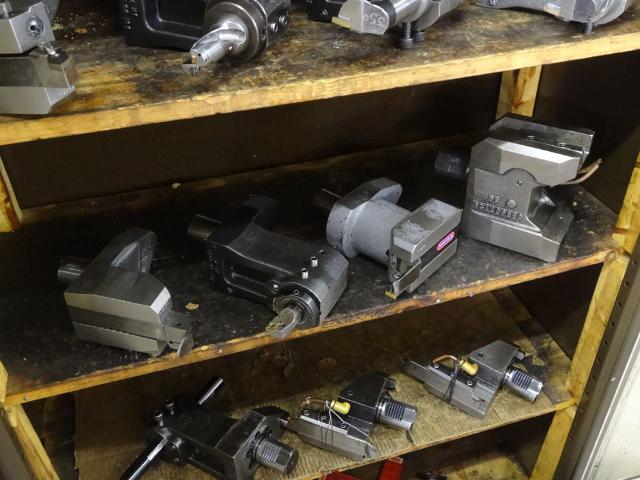

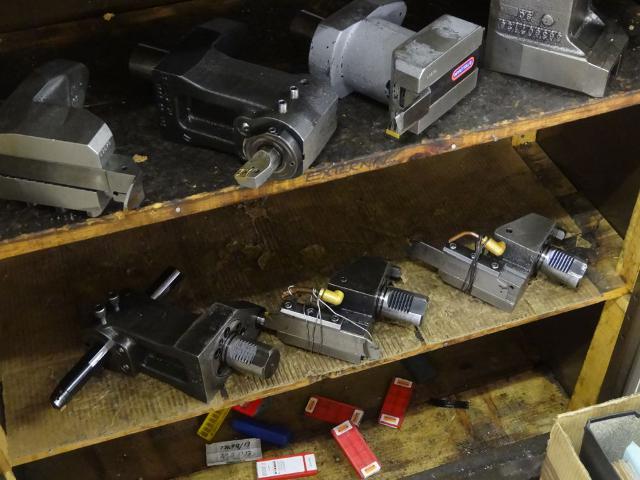

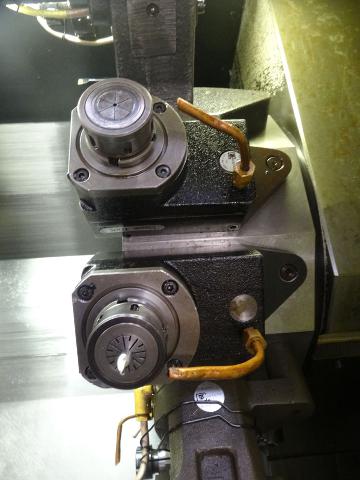

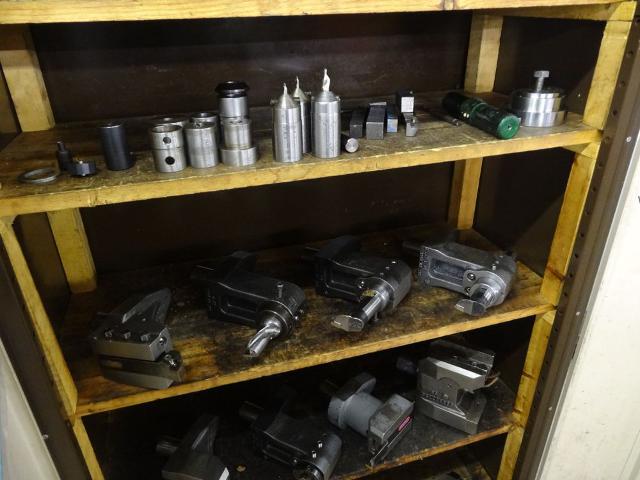

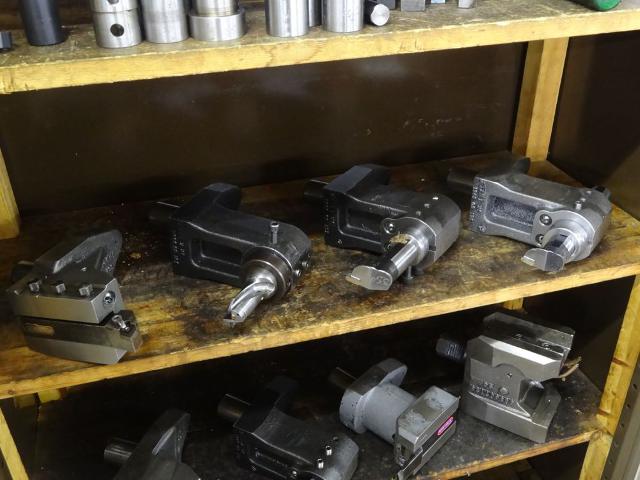

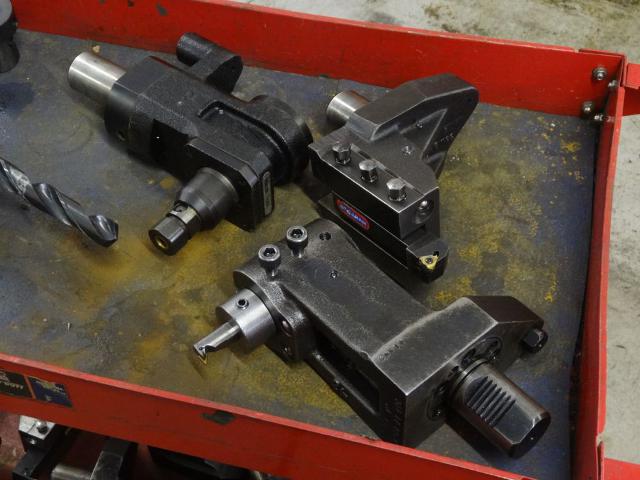

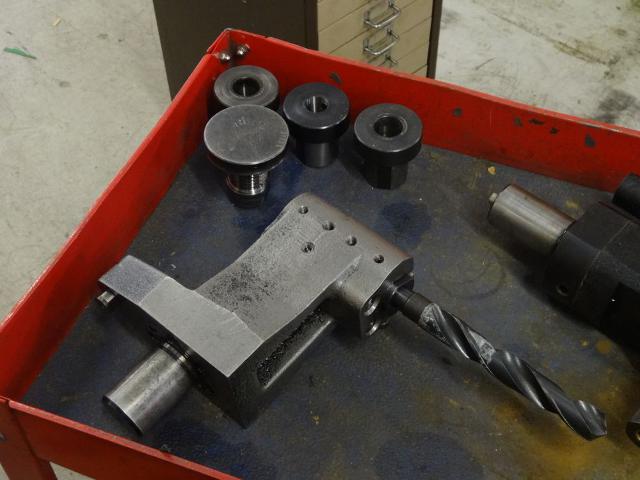

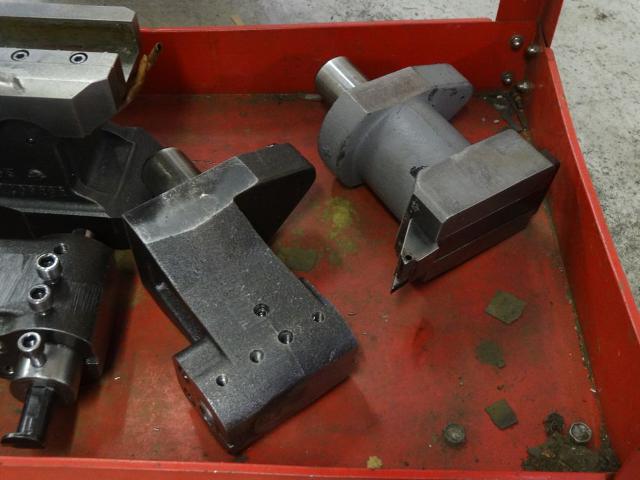

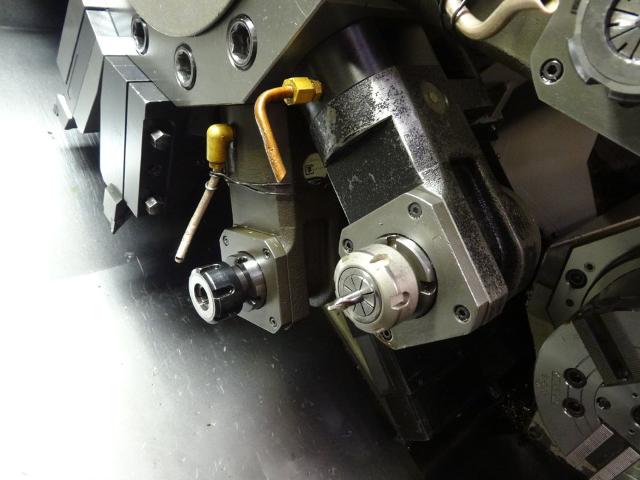

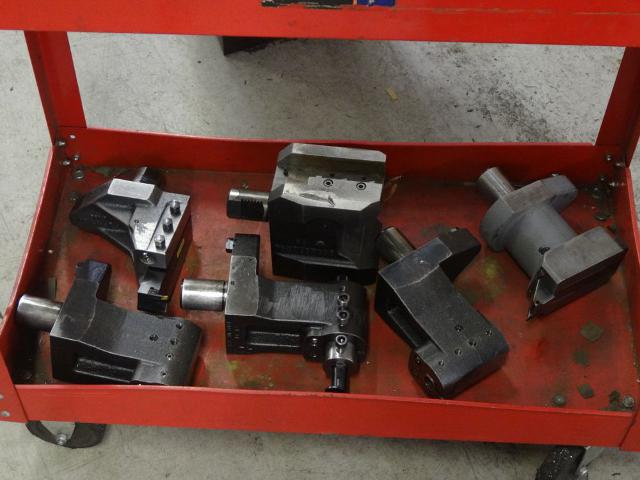

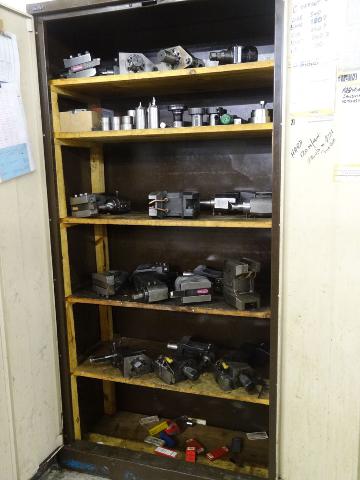

Good Selection Driven and Standard Tool Holders

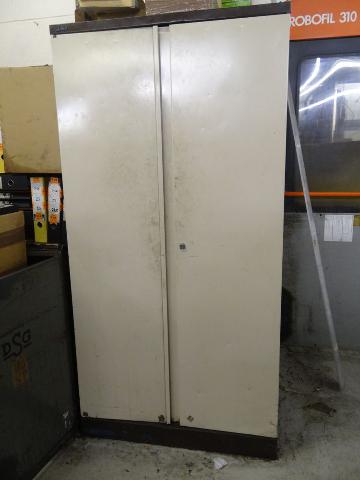

Includes Cabinet
Location: Neath
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
