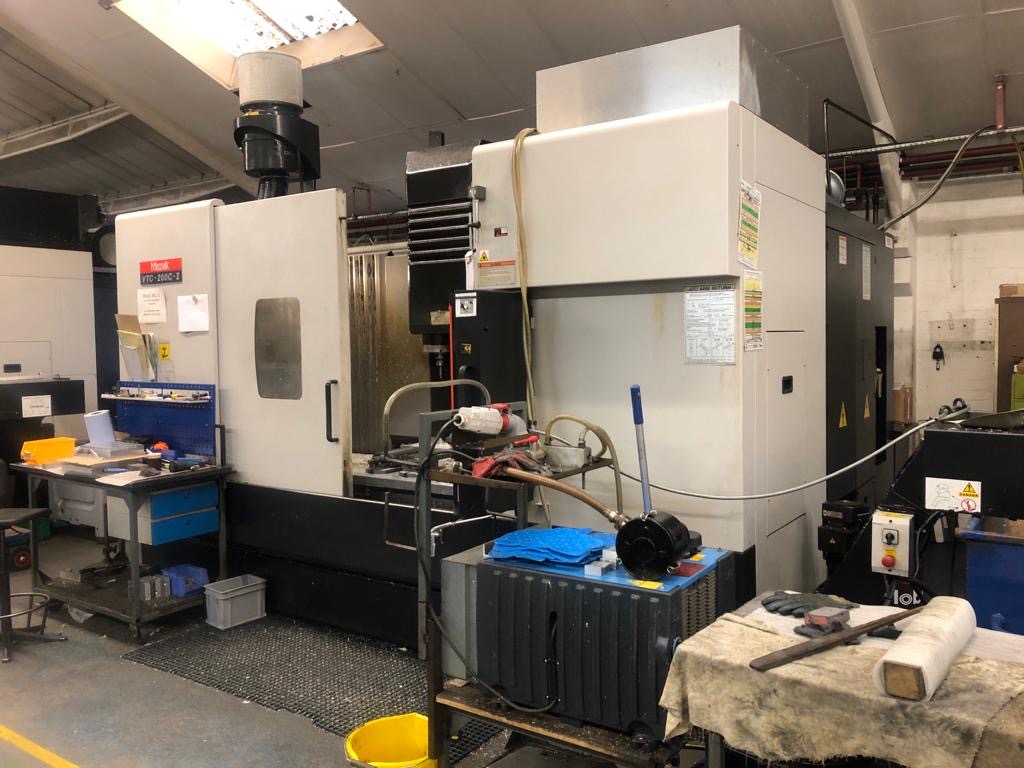

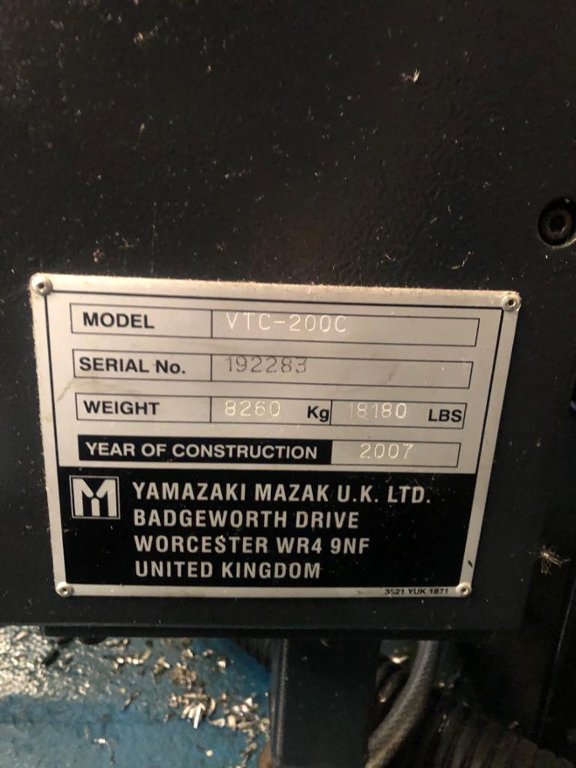

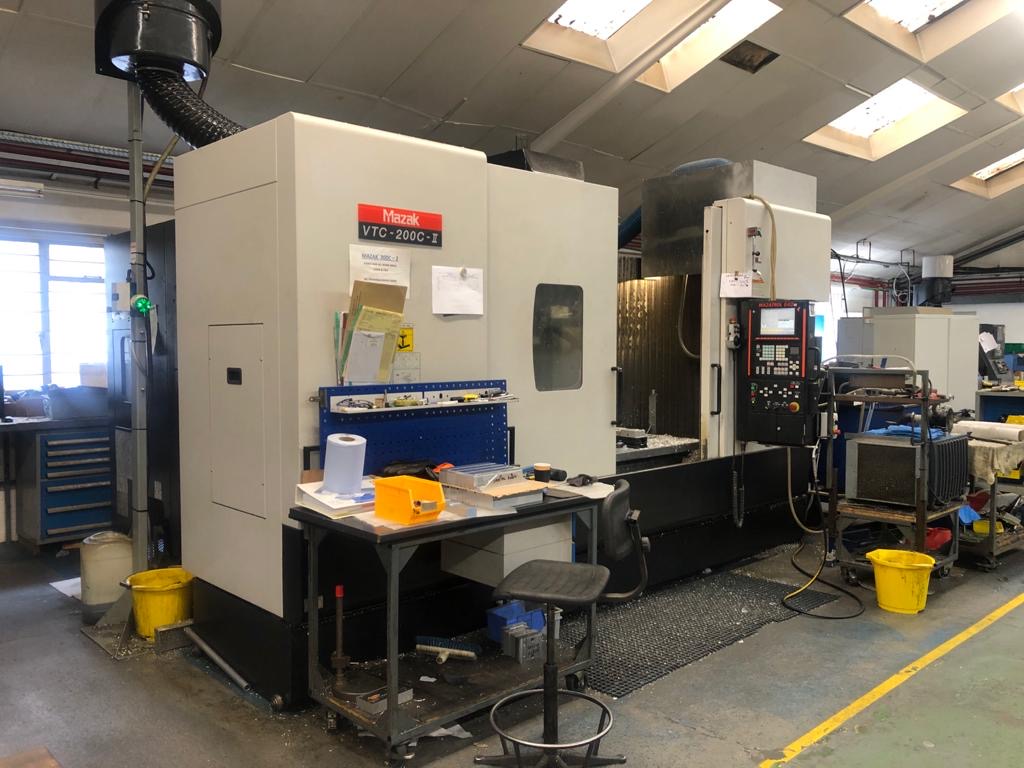

Lot 1 - Mazak VTC200C II Vertical Machining Centre (2007)

Description:

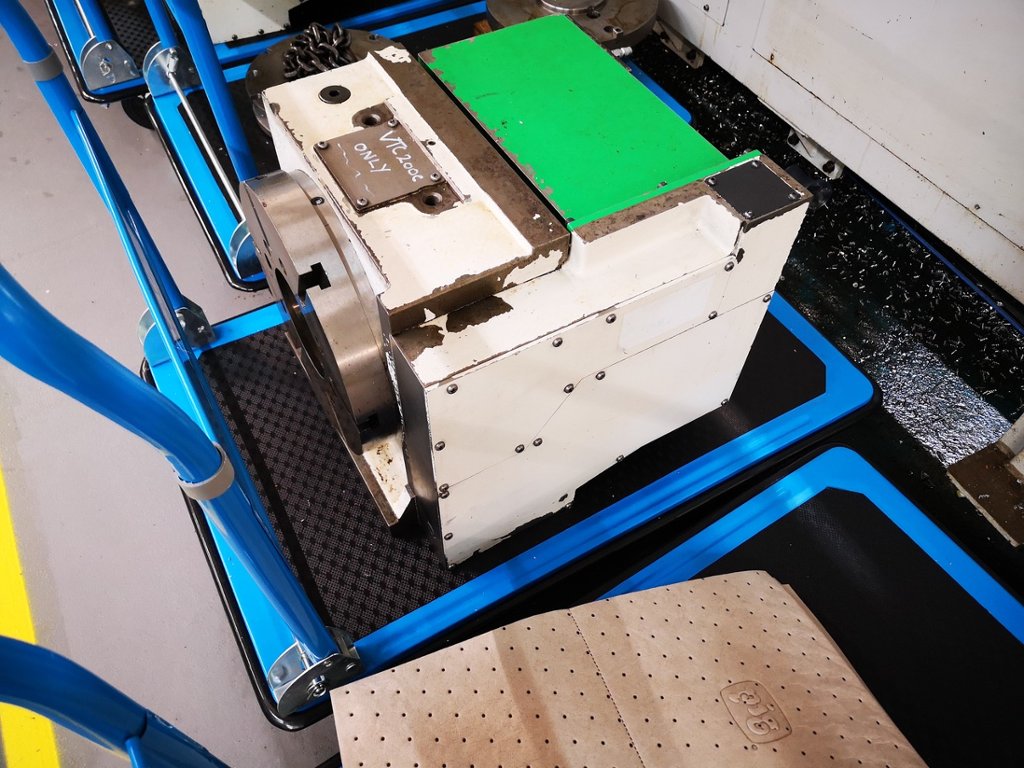

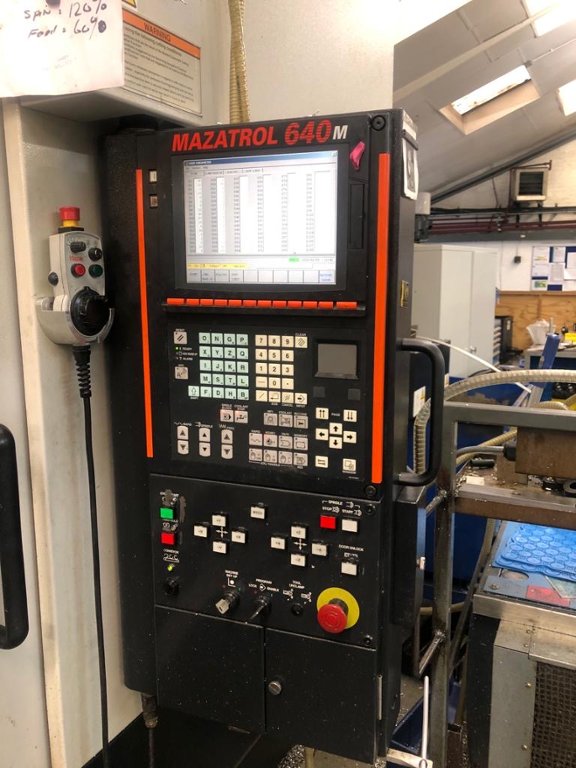

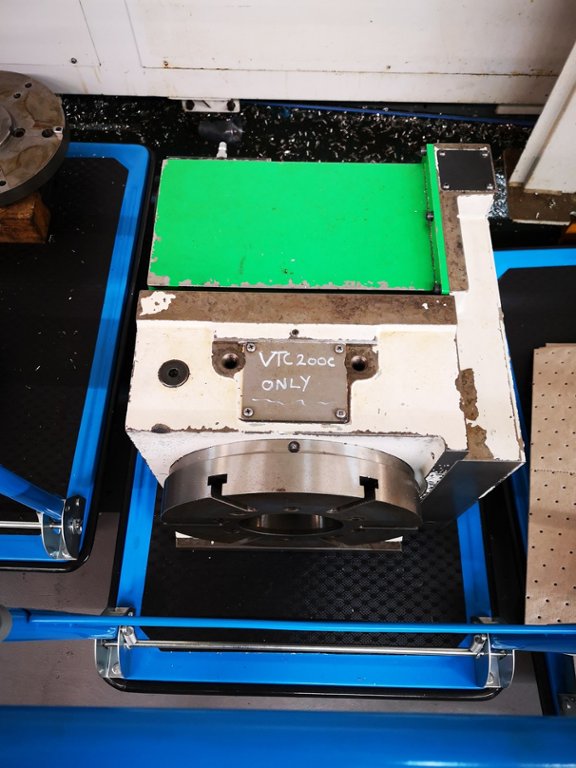

with 4th axis. Mazatrol PC Fusion CNC 640M control

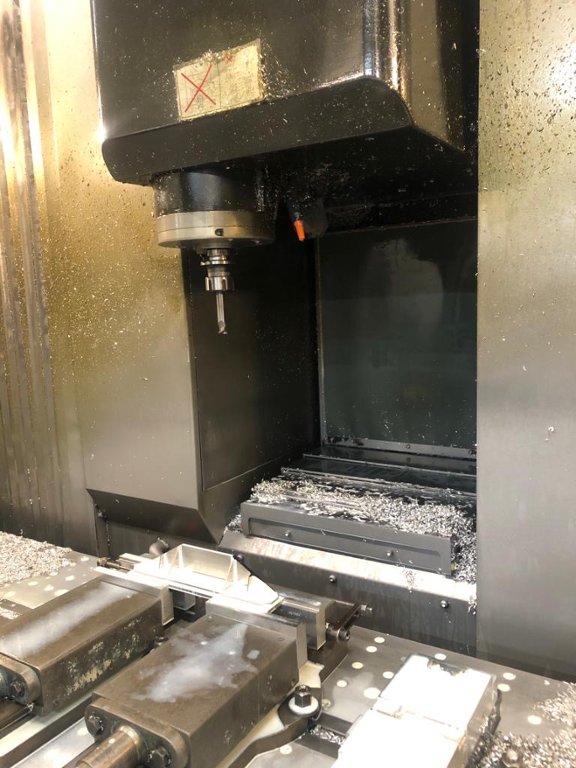

spindle and tool setting probes

Filtermist

TSC

48atc

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

30 tool magazine. Renishaw spindle probing and tool sensor probe. Through spindle coolant. Swarf management system. Spindle speed 40-12,000 rpm. Rapid 36m/min. Capacity (X) 1660mm (Y) 510mm (Z) 510mm

Distance spindle nose. Table: 180 – 690mm
Distance stand front – spindle center: 530mm

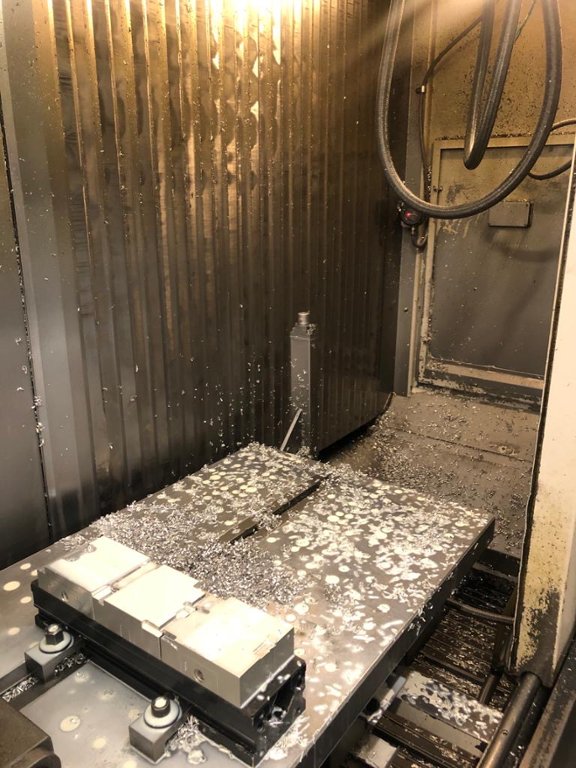

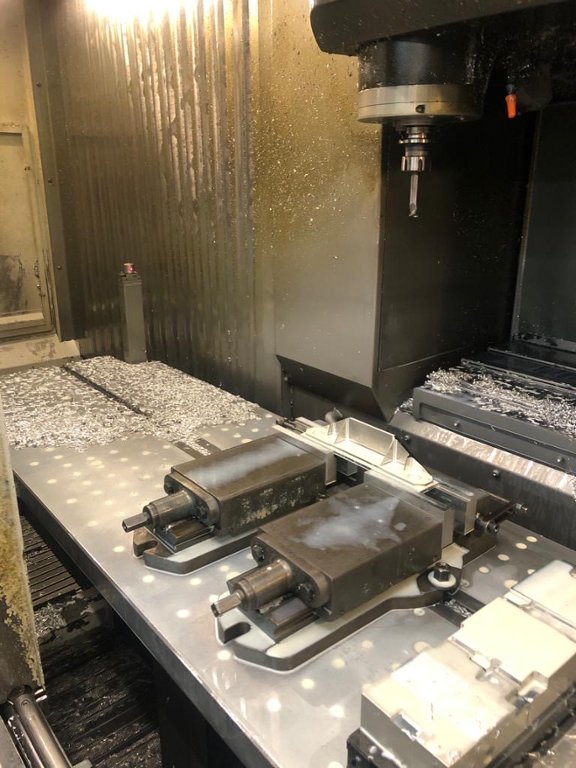

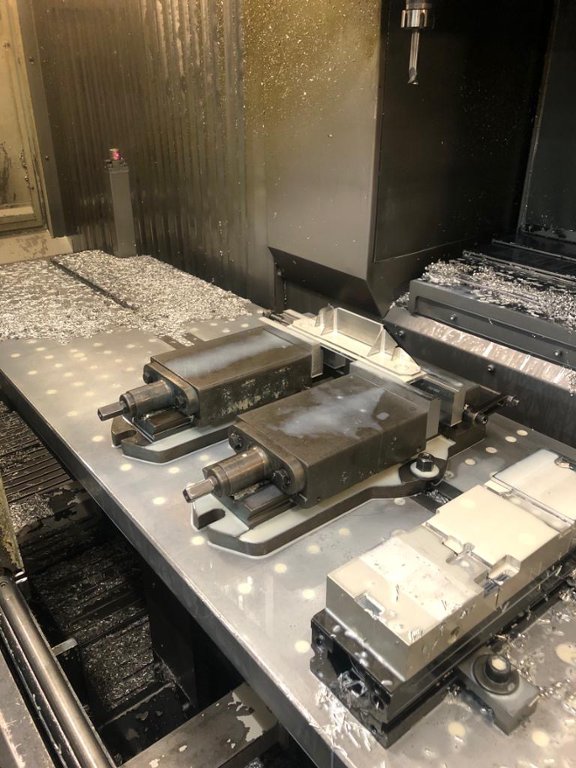

Table surface 2000 x 510 mm
Table load: A maximum of 1,000 kg
Table configuration: 5 x 18mm T-grooves, 100mm distance
Table height from the floor: 800mm
Speed range (continuously lot): 40 – 12,000 u/min
Steep cone shot CAT 40
Main propulsion performance, AC engine: 18.5/11/7.5 kW
Max torque: 98 Nm
2rh0be
Tool magazine (chain version) with 30 tool spaces
Max Tool nous: 80mm
Free side courts: A maximum of 110mm
Tool length (from spindle nose): max. 350mm
Tool weight: Up to 8kg
Tool change time (Span-to-Span): 4.7s
Coolant tank, 300 l
Tool length measurement device
Cooling by spindle system

Bid information

Time remaining

HRSMINSEC
000000

05 Mar 2020 16:20:00 GMT


Final remove by date: 19/Mar/2020

Location: Coventry

Lot location

Transport information

  • Other Transport Details: Loaded to transport £150
