Lot 22 - Mecof DGT2 - 5 axis Bed Milling New Control
Description:

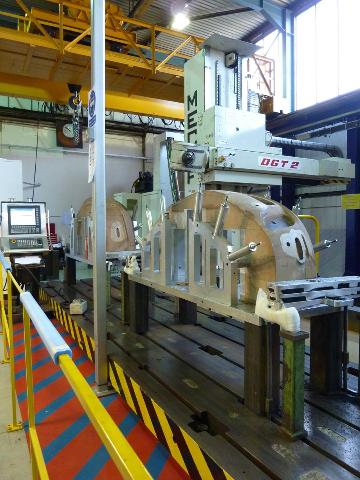

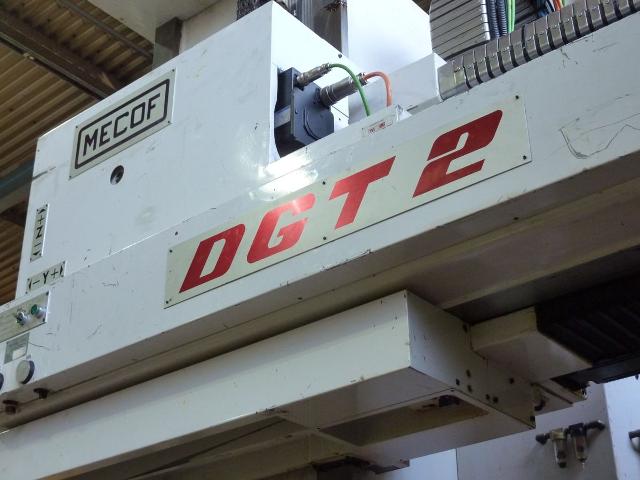

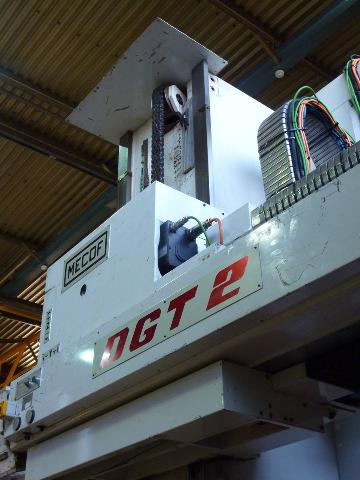

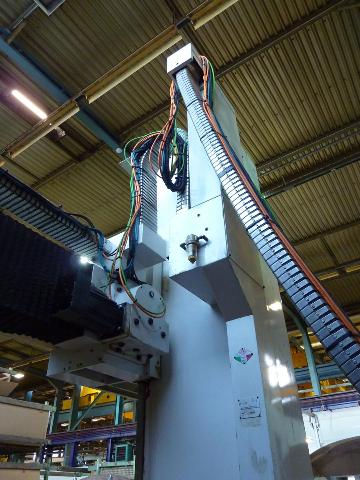

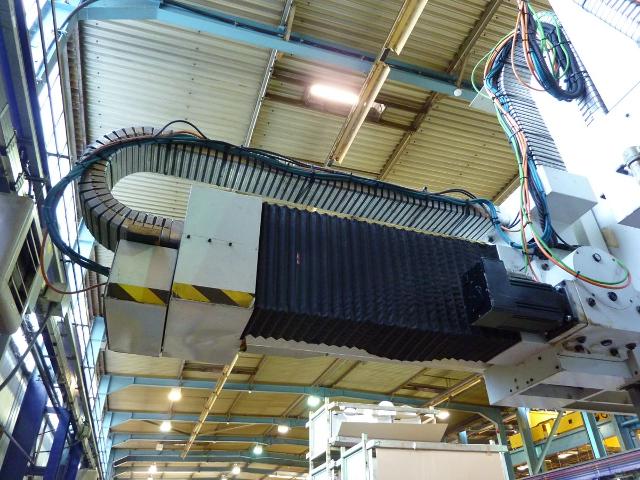

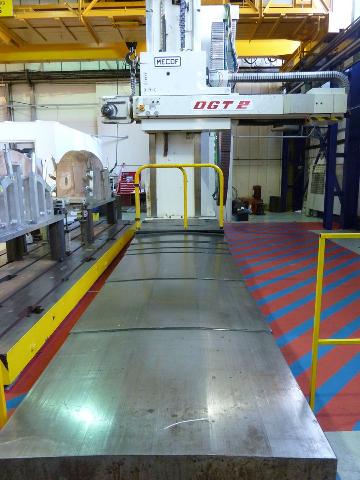

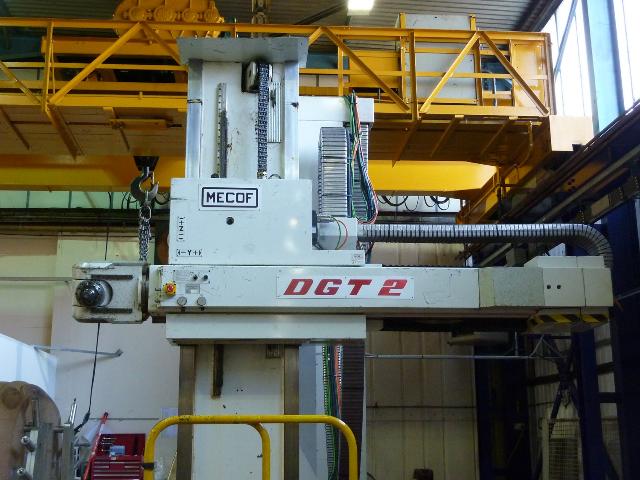

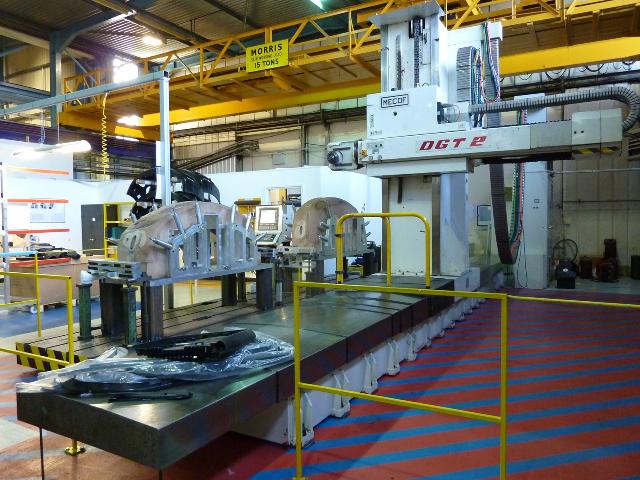

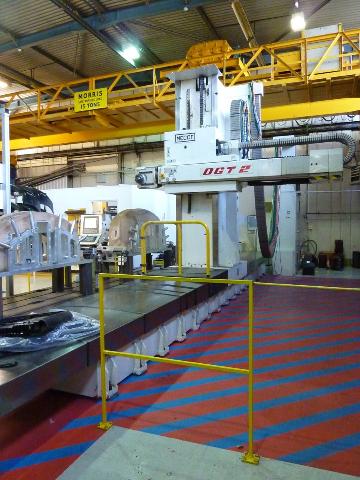

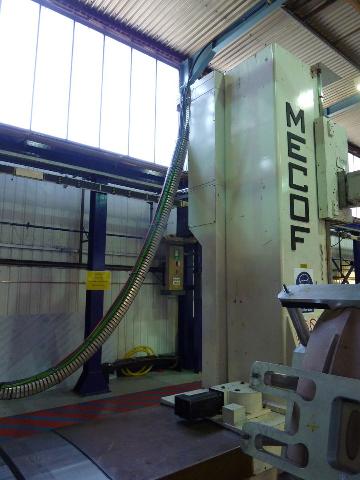

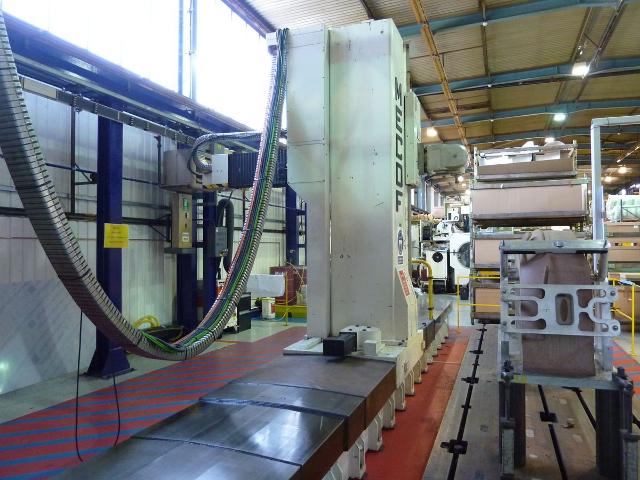

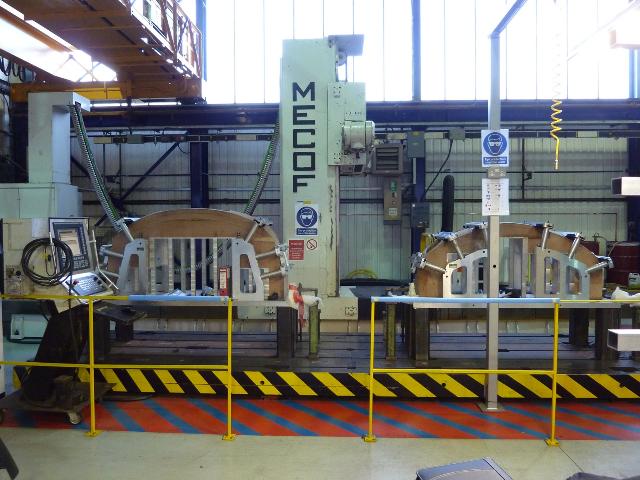

Mecof DGT2 5 axis Bed Milling Machine

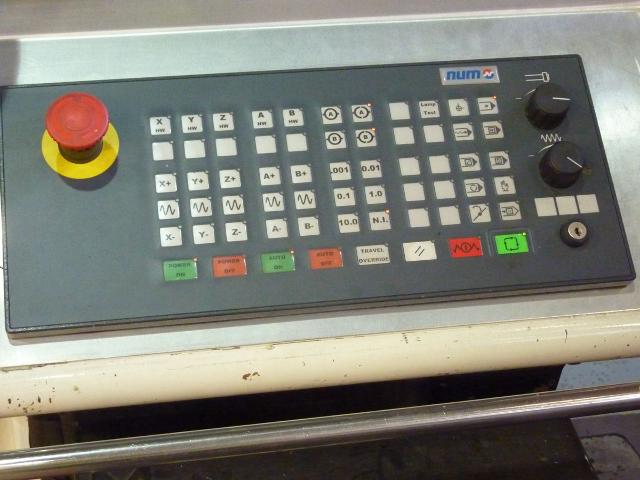

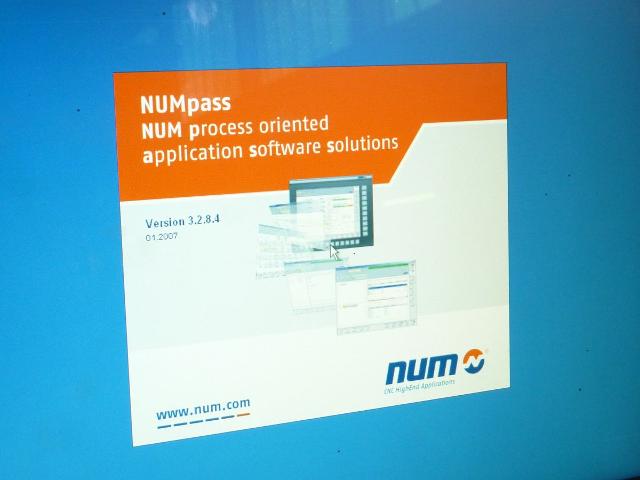

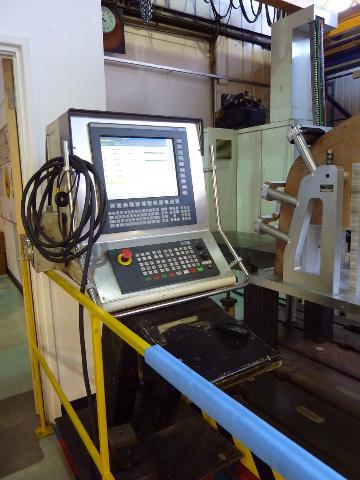

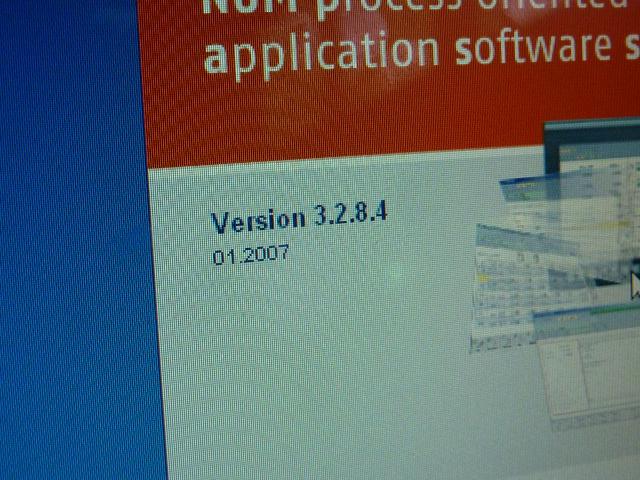

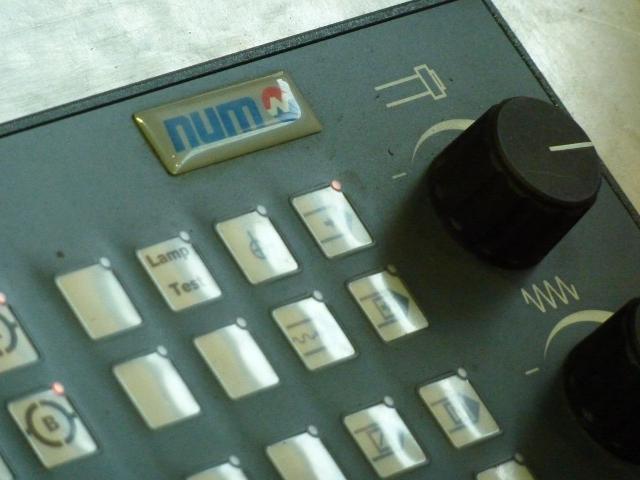

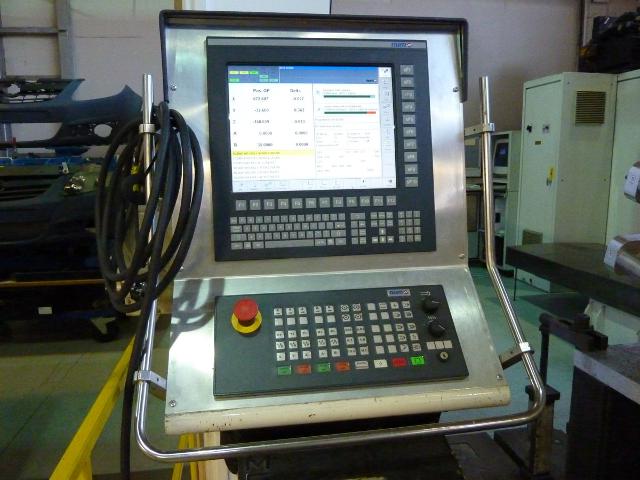

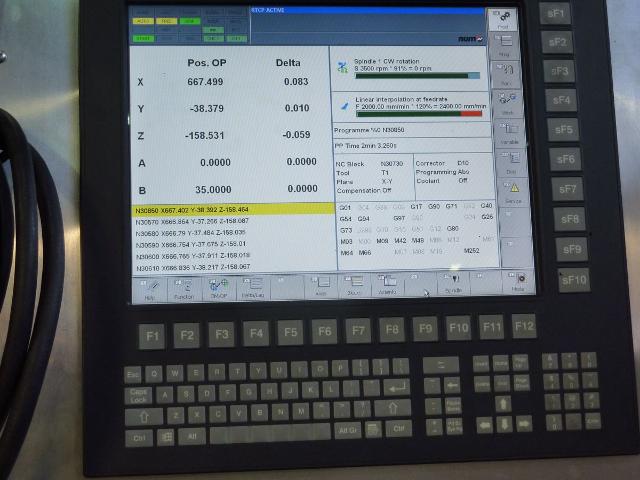

New Num CNC Control fitted in 2009 with new drives, motors and electrics, with Window XP GUI
X Travel 6000mm
Y Travel 1000mm
Z Travel 1680mm
A Axis -5/+185
B Axis -190 / +195

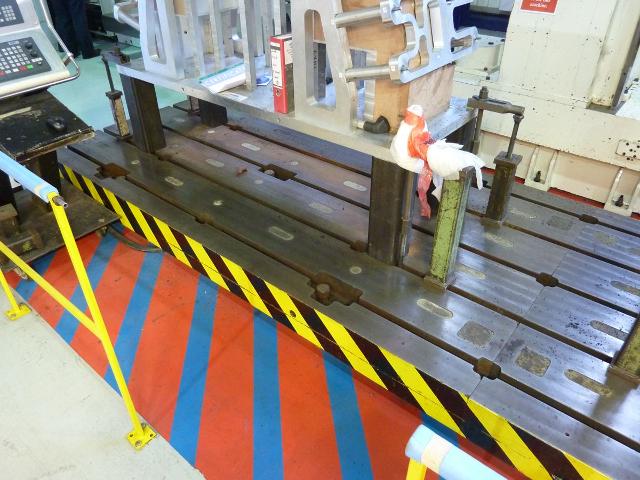

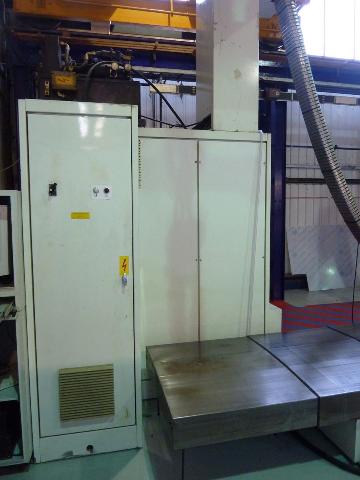

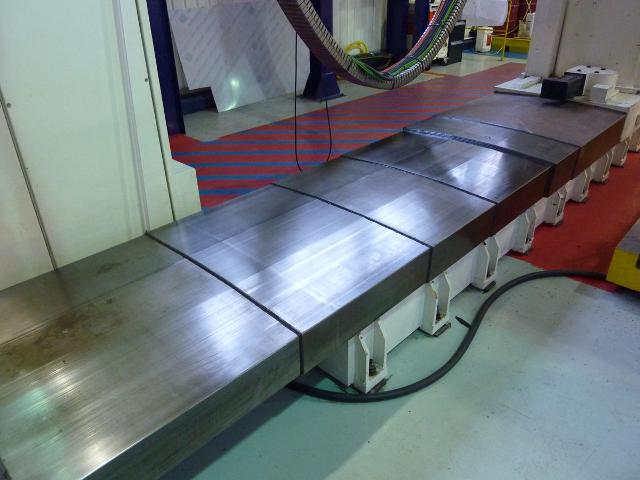

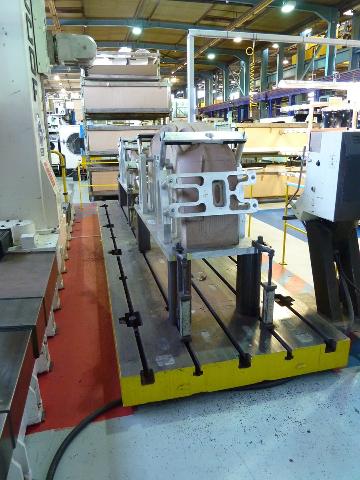

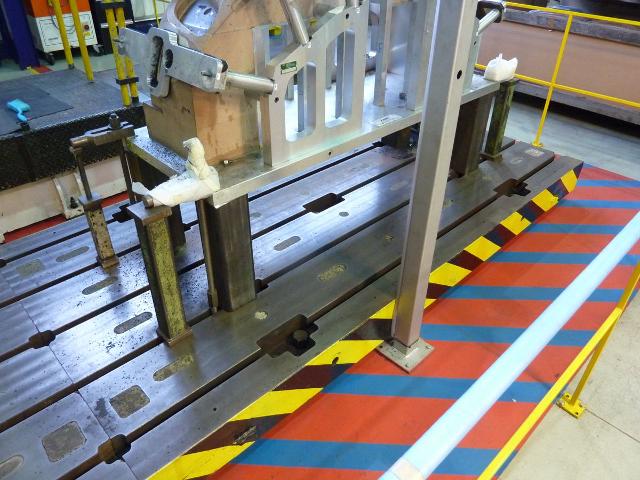

2 x Bedplates 3070mm x 1535mm x 200mm
5 T slots

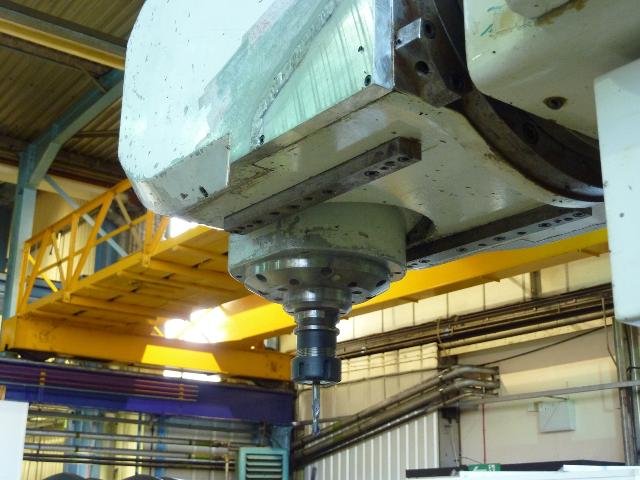

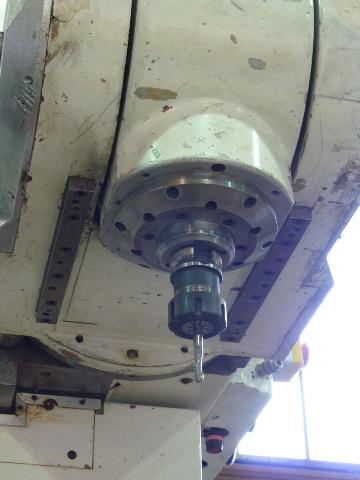

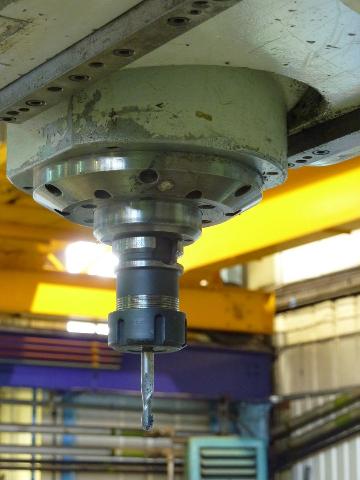

Spindle Taper SK30
Spindle Speeds 15000rpm
Spindle Motor 15hp
Power Draw Bar

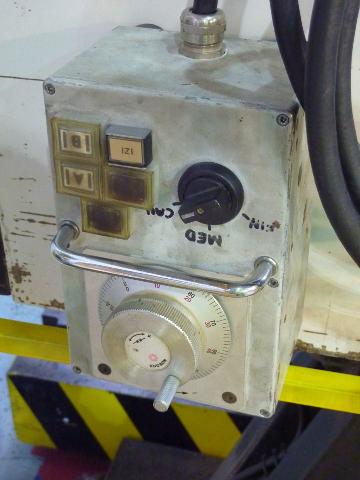

Wander lead

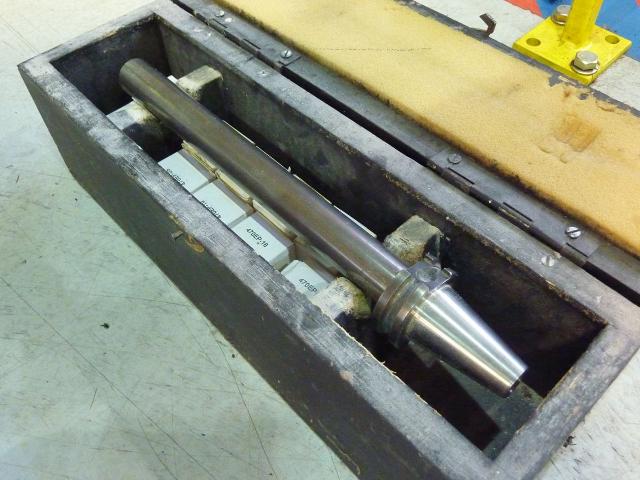

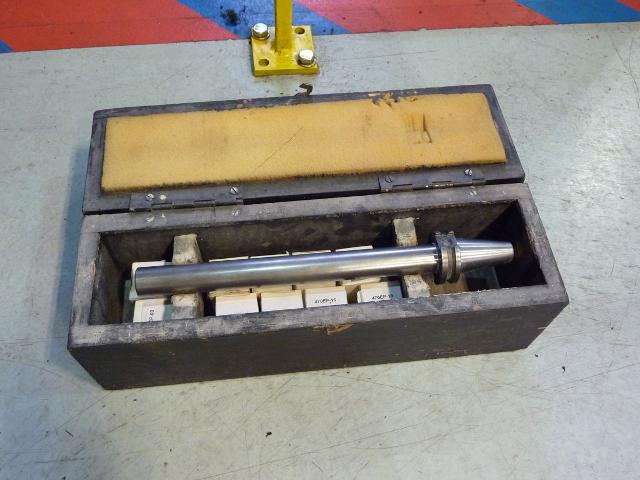

Setting Bar

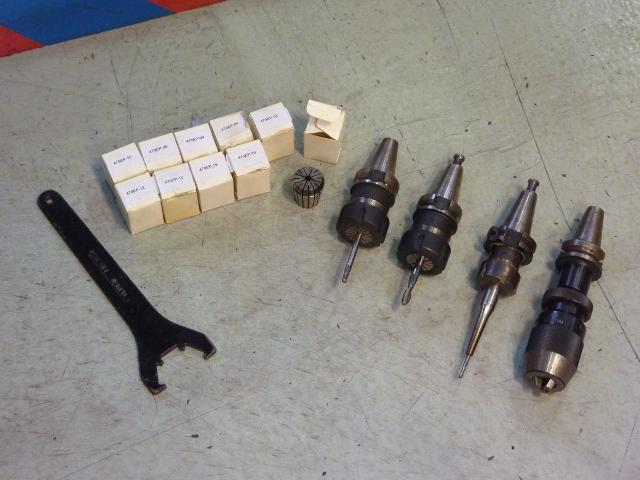

Collets

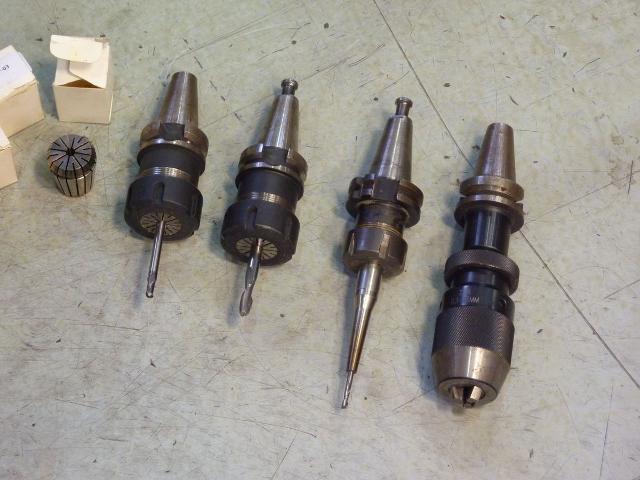

4 Tool Holders

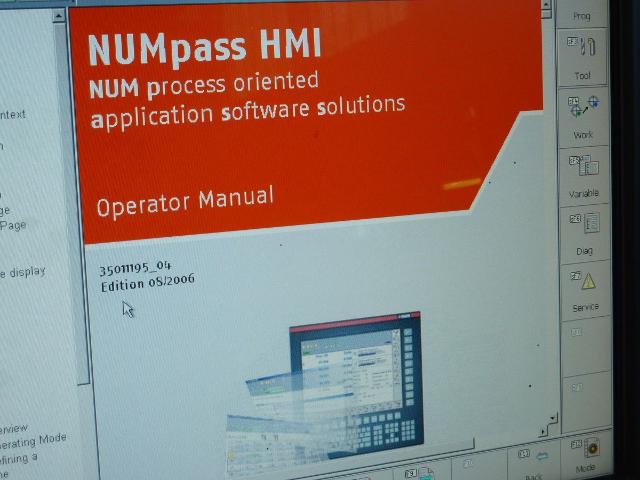

Num Control Manuals and new electrical drawings
NO Machine Manuals
Working Area: L 11000mm x W 7000mm x H 4200mm
Machine Weight: 27200kgs

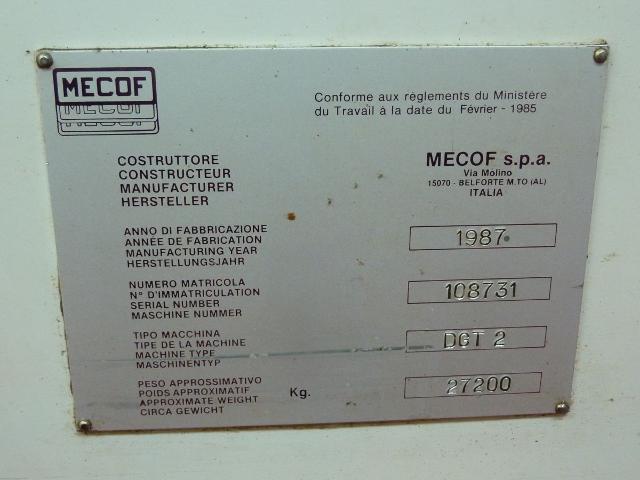

Year of manufacturer 1987
Serial Number: 108731
Machine has now been Professionally Decommissioned and Stored by Wheeler & Son Ltd.
Location: Bridgewater, Somerset
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
