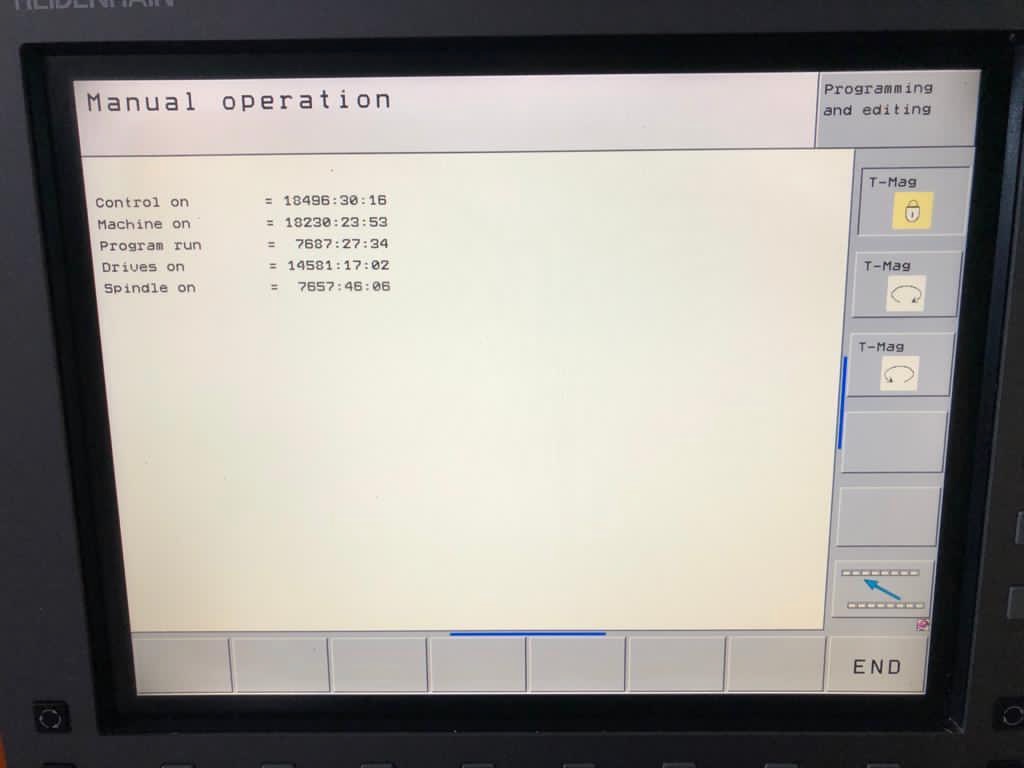

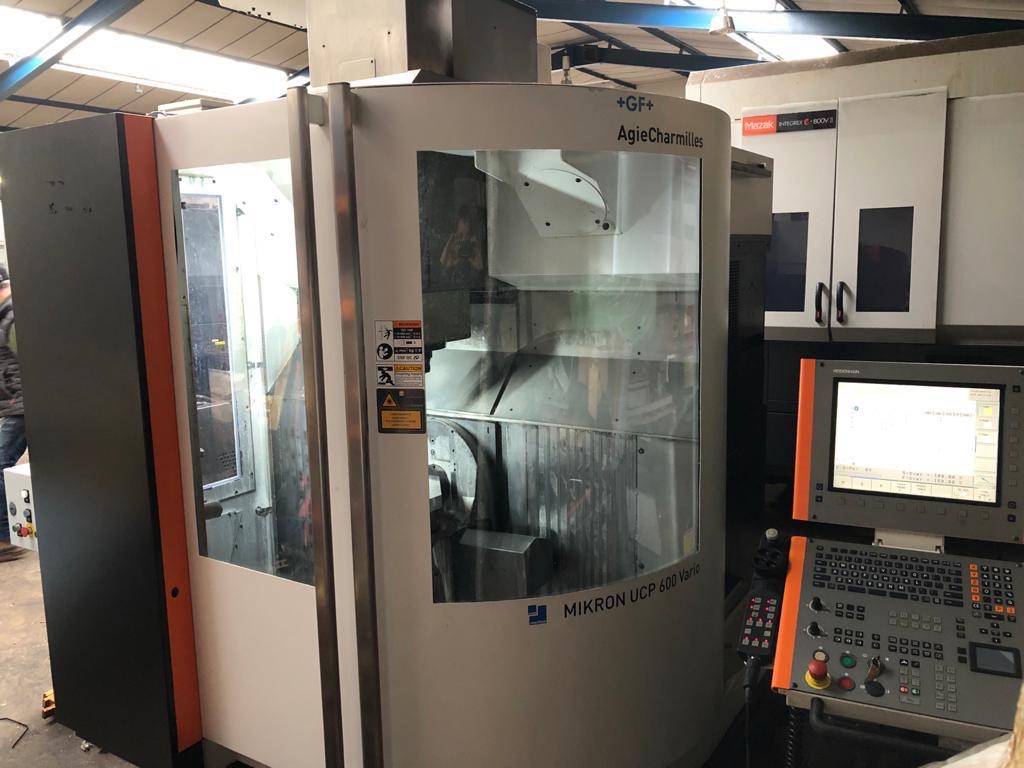

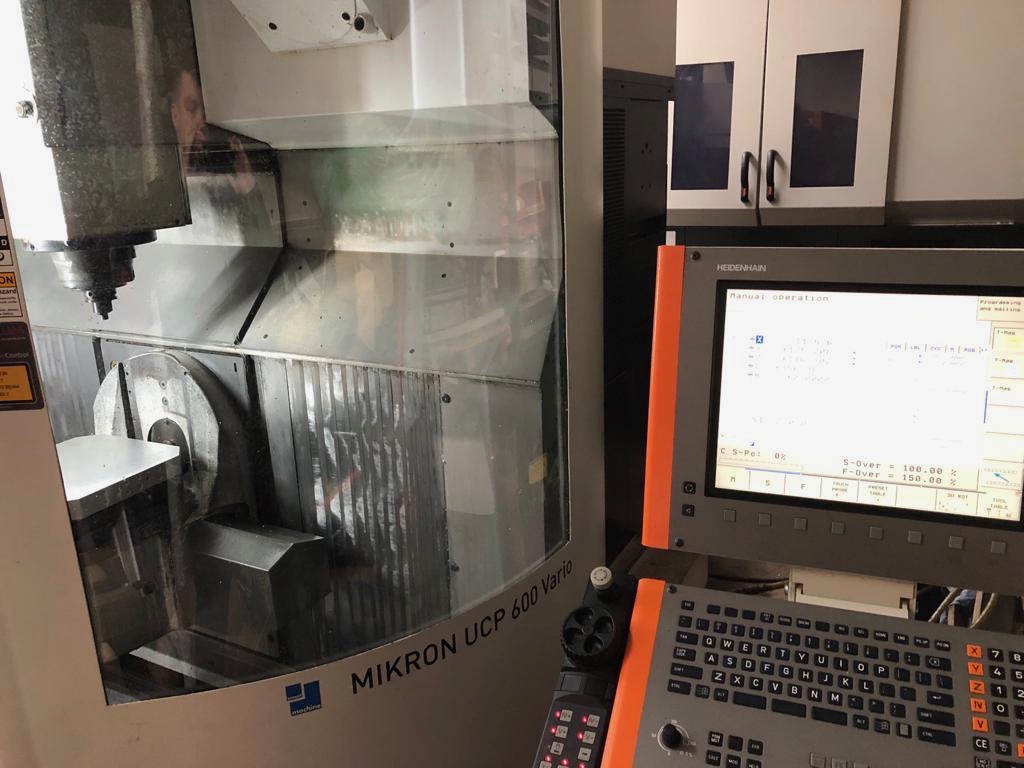

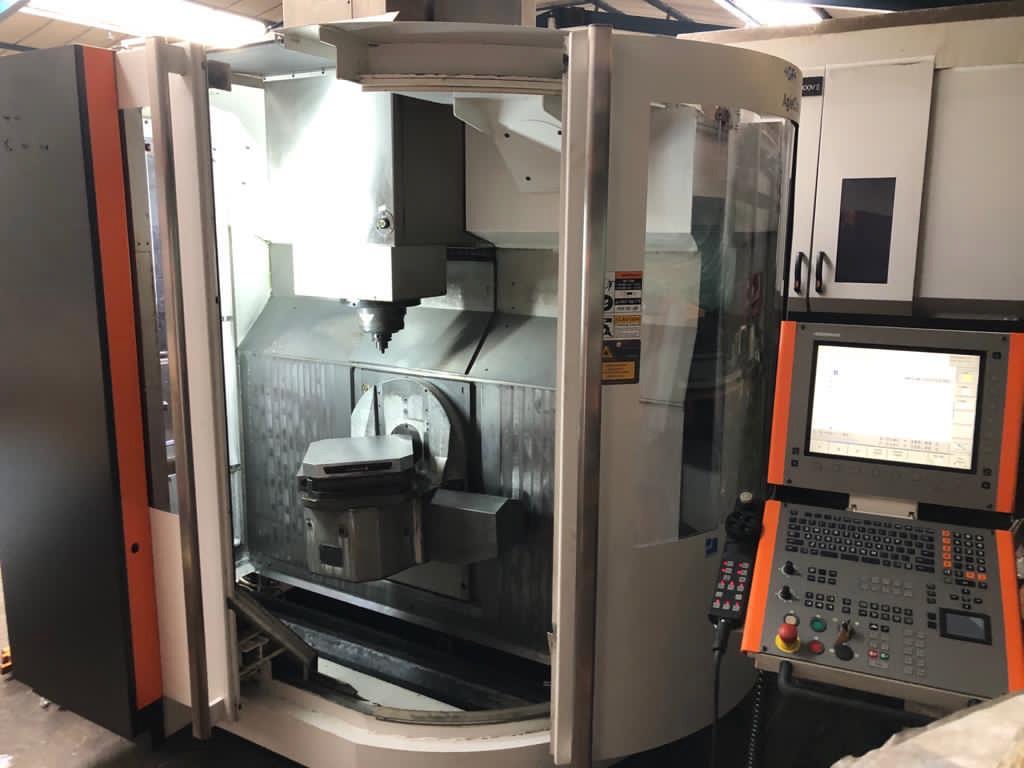

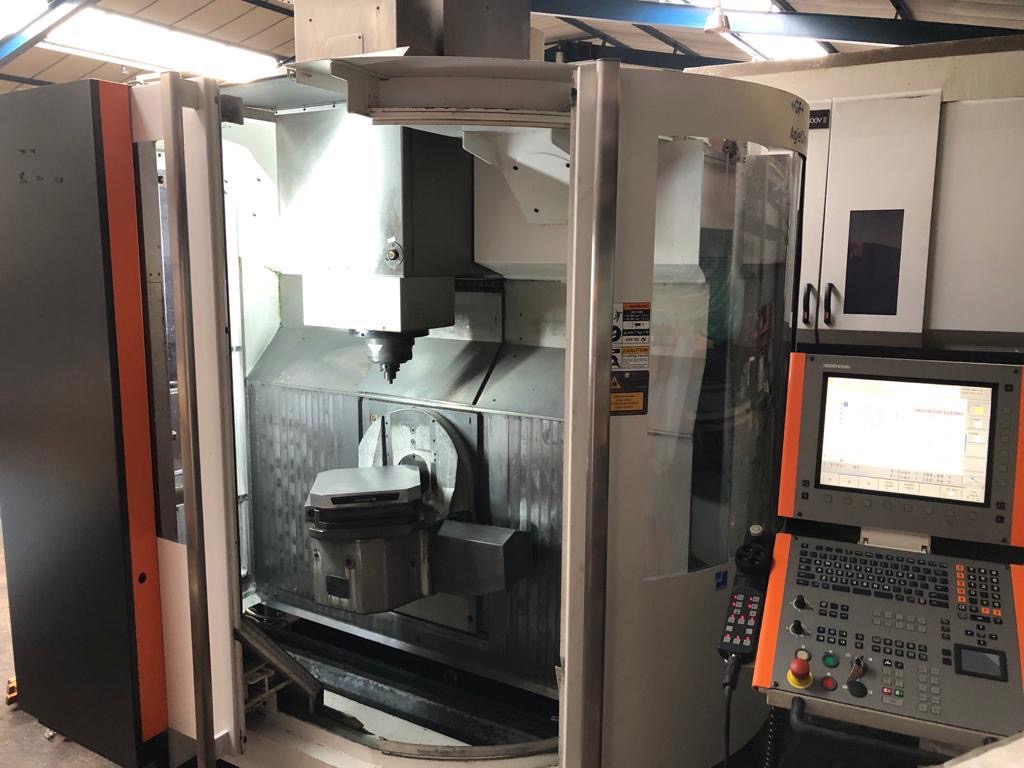

Heidenhain TNC530 Control.
Full 5 axis simaltaneous.

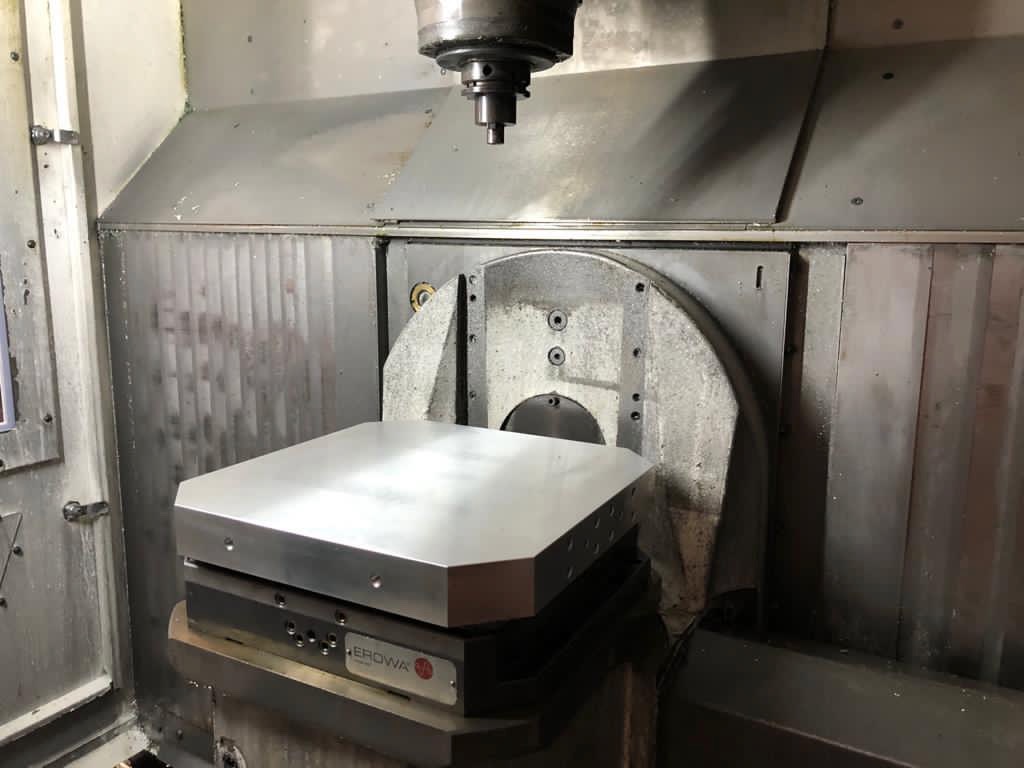

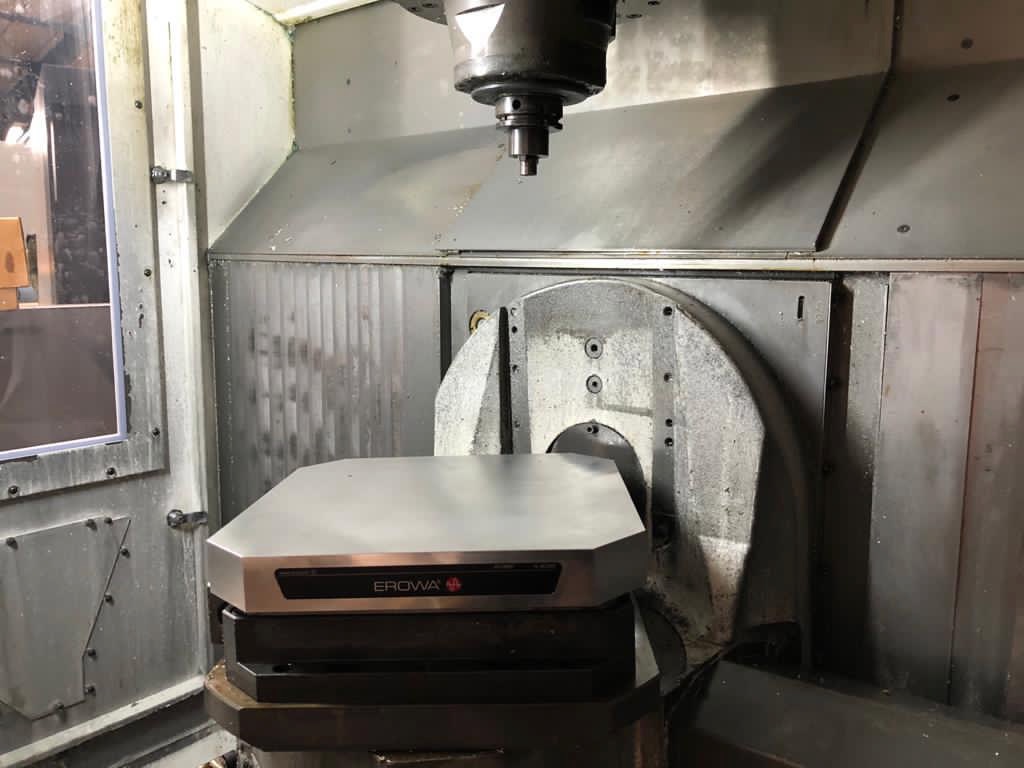

With Erowa single table removable pallet system so the you can change complete setups with minutes at the press of a button.
With chip conveyor.
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
MAXIMUM WORKPIECE WEIGHT 400KG
TABLE SIZE 280 X 280MM
TRAVERSES XYZ 600 X 450 X 450MM
CUTTING FEEDRATE 15M/MINUTE
RAPID FEEDRATES 22M/MINUTE (B AXIS 25RPM, C AXIS 33RPM)
SPINDLE MOTOR POWER 30KW
TOOL CHANGE CAPACITY 30 STATION

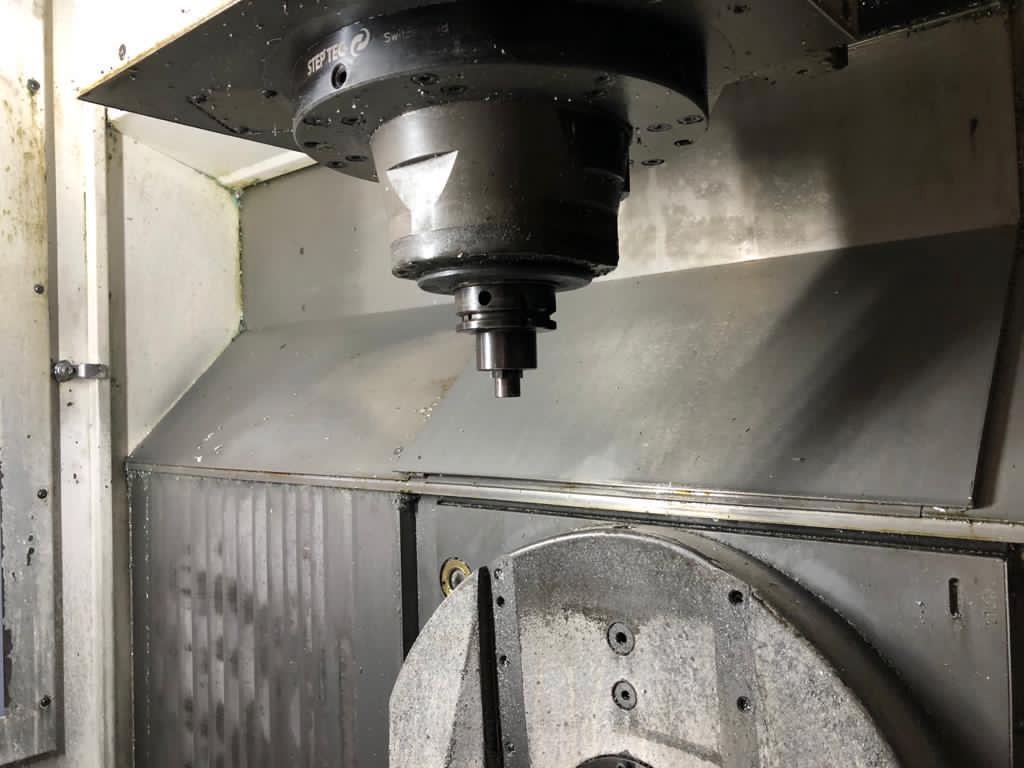

TOOL SIZE HSK A63
B AXIS MOVEMENT -115/+30 DEGREES
C AXIS 0.001 DEGREES (360 DEGREE FULL ROTATION)
NUMBER OF AXIS CONTROLLED 5 SIMULTANEOUS
