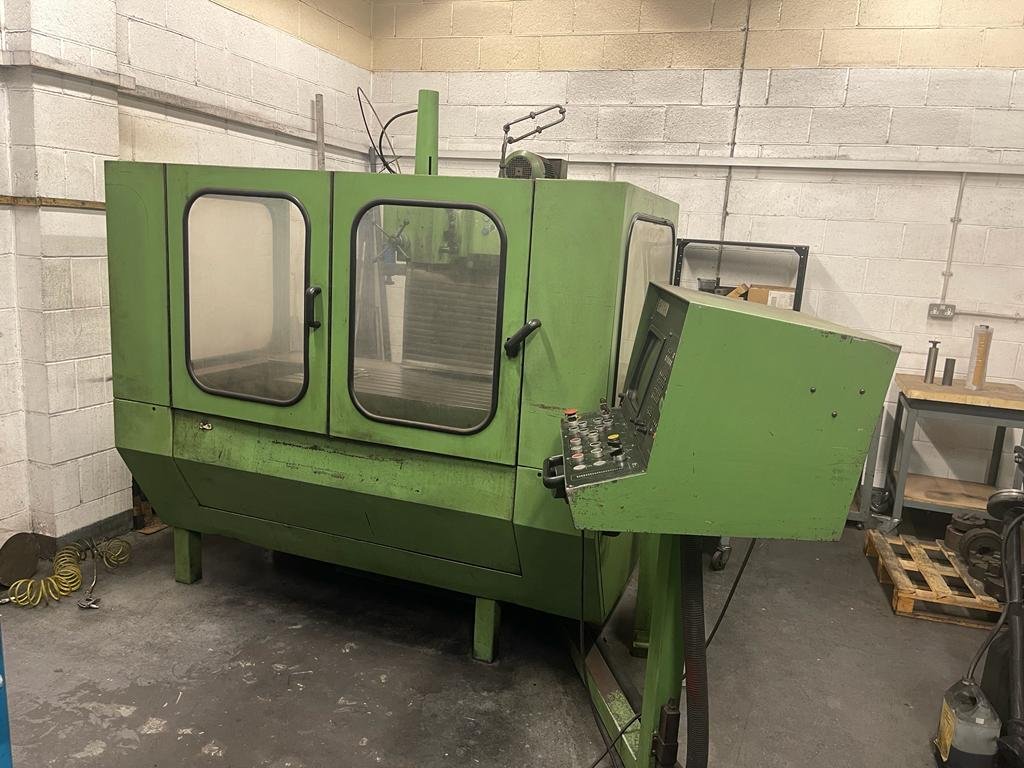

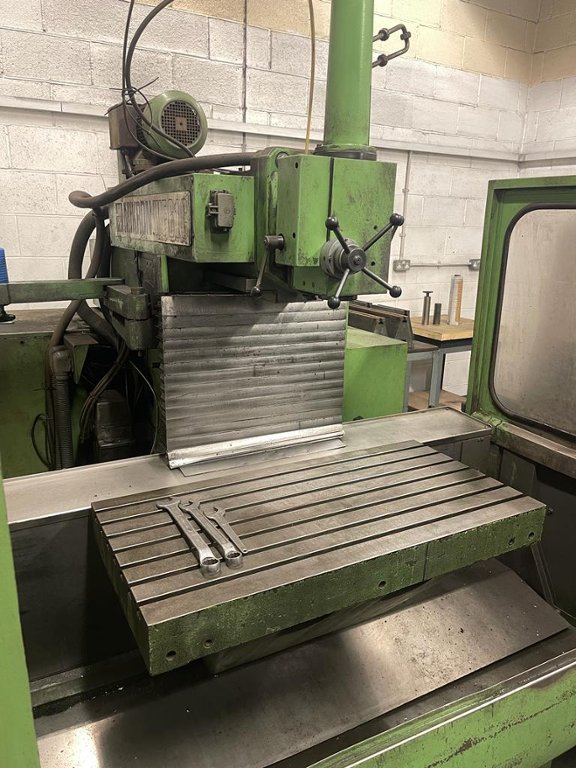

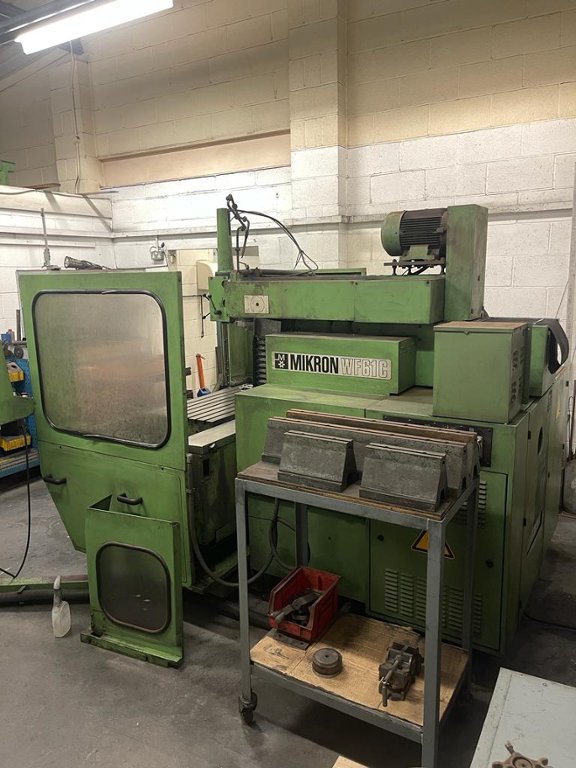

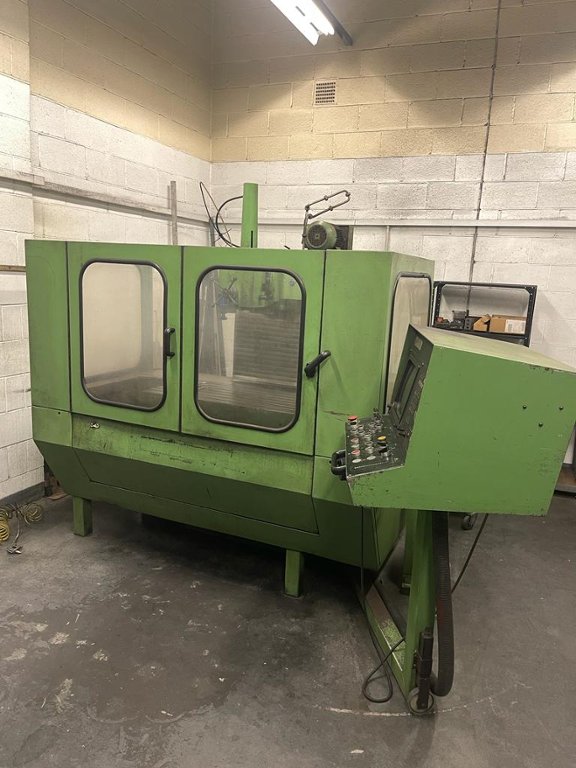

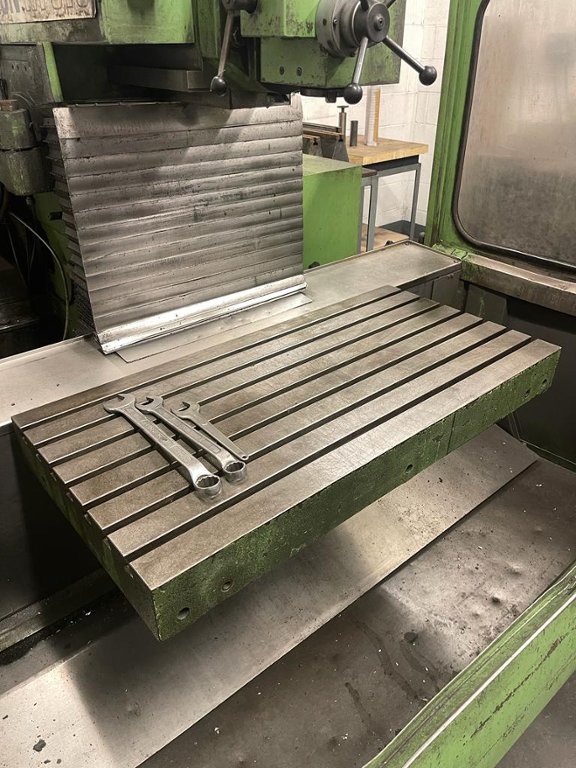

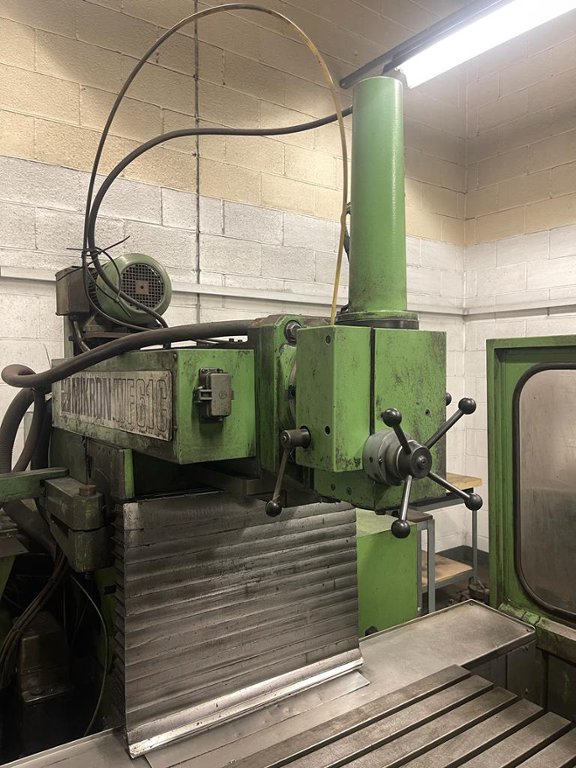

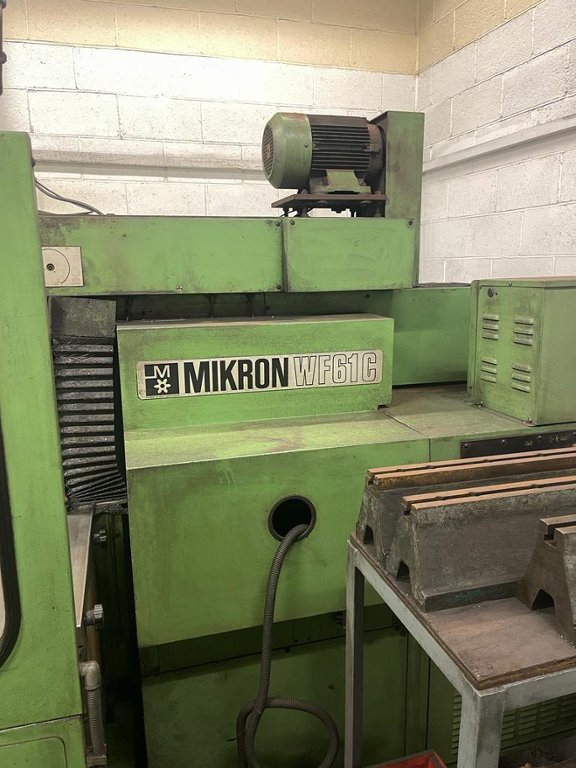

Lot 3 - Mikron WF61C CNC Universal Milling Machine (1991 approximately)

Description:

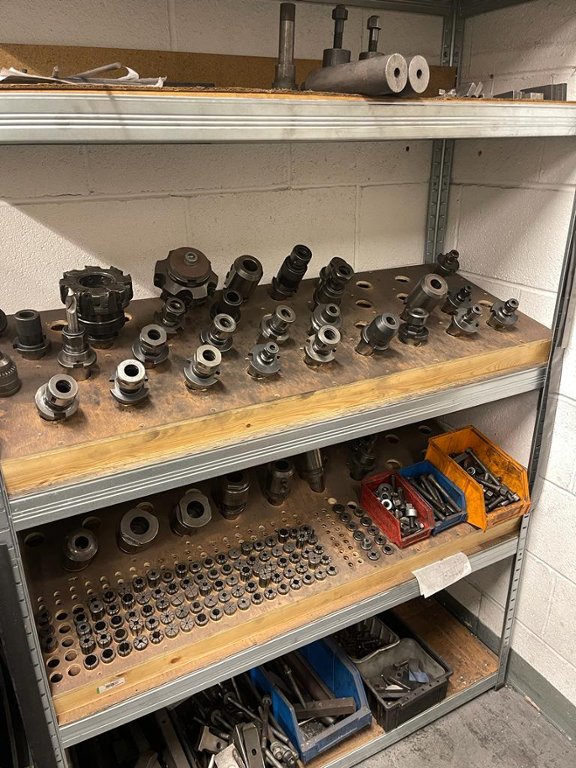

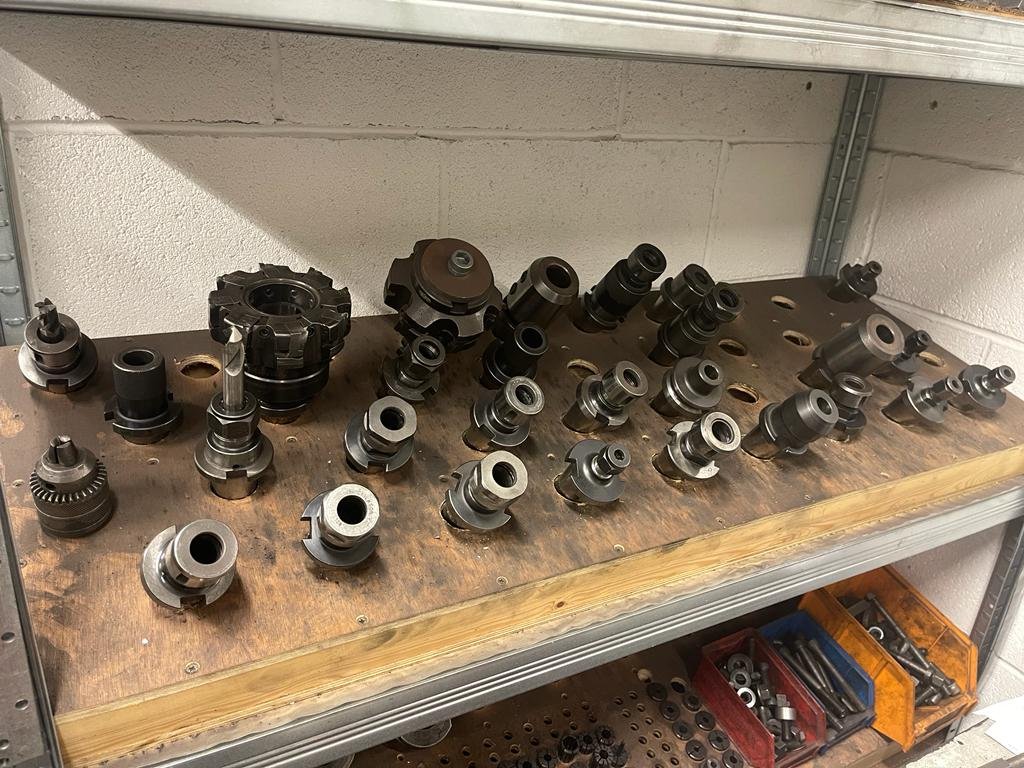

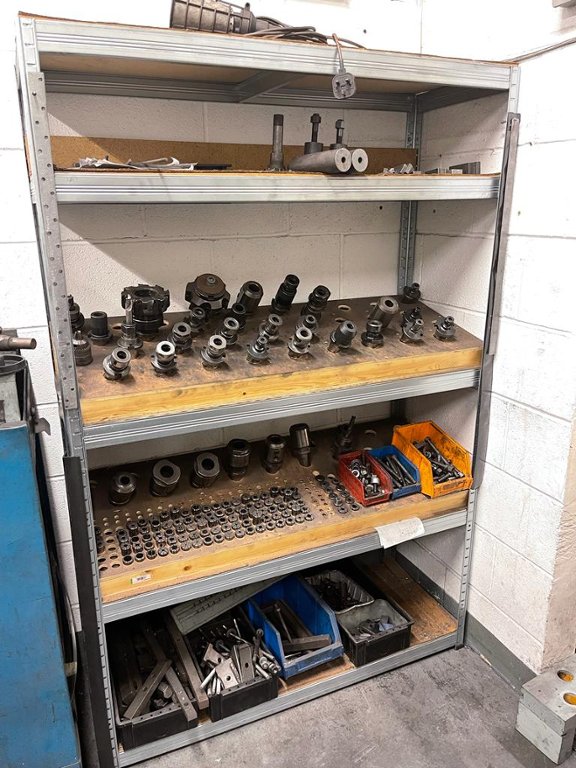

Comes with racking & selection of tooling

DIN2080 Toolholder

Renishaw Probe

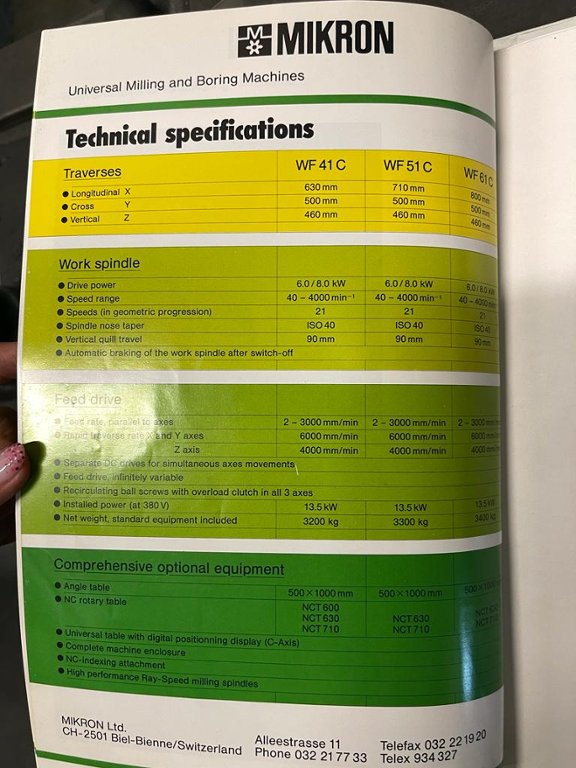

Traverses

Longitudinal X - 800mm, Cross Y - 500mm, Vertical Z - 460mm

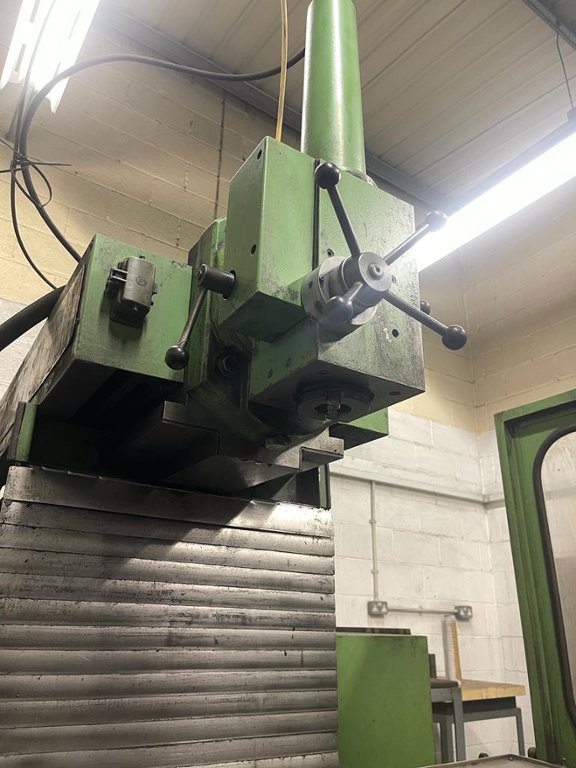

Work Spindle

Drive power - 6.0/8.0kW, Speed range - 40-4000 min -1, Speeds (in geometric progression) - 21, Spindle nose taper - ISO40, Vertical quill travel - 90mm, Automatic braking of the work spindle after switch-off

Feed Drive

Feed rate, Parallel to axes - 2-3000mm/min, Rapid traverse rate X and Y axes - 6000mm/min, Z Axes - 4000mm/min, Seperate DC drives for simultaneous axes movements, Feed drive infinitely variable, Recirculating ball screws with overload clutch in all 3 axes, Installed power (at 380v) - 13.5kW



* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

15 Jun 2022 15:10:00 BST


Final remove by date: 29/Jun/2022

Location: Nuneaton

Lot location

Transport information

  • Width: 77"
  • Depth: 98"
  • Height: 80"
  • Weight: 3400kg
  • Other Transport Details: No loading facilities on site
