Lot 7 - Miyano BNC34 CNC Lathe
Description:

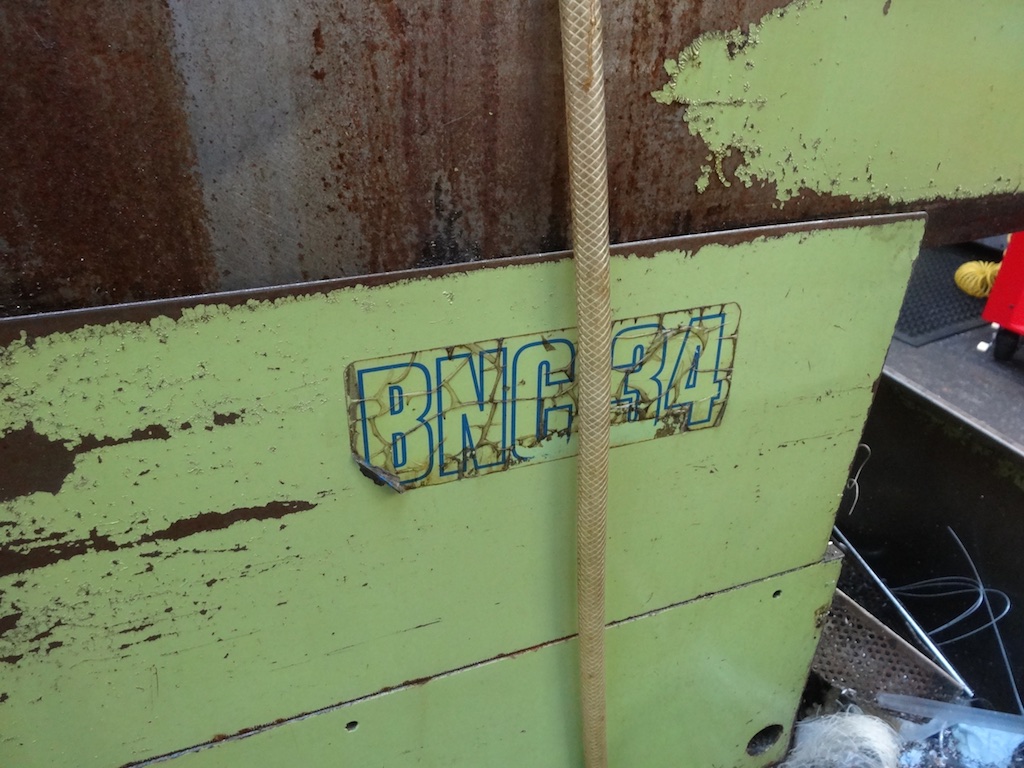

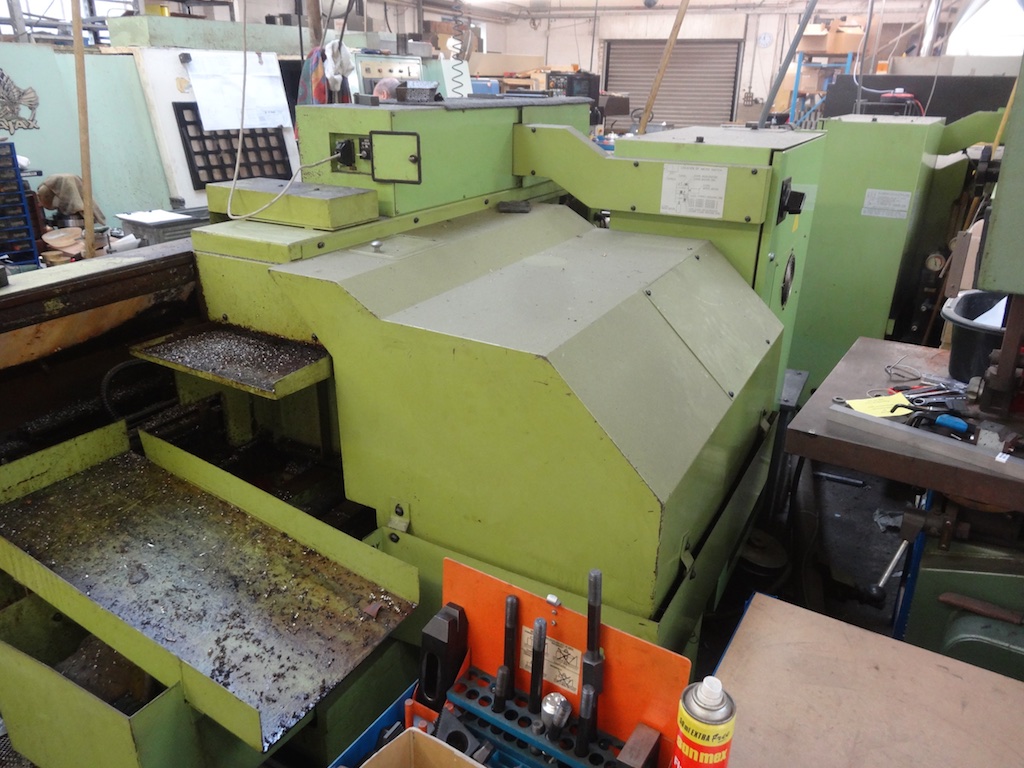

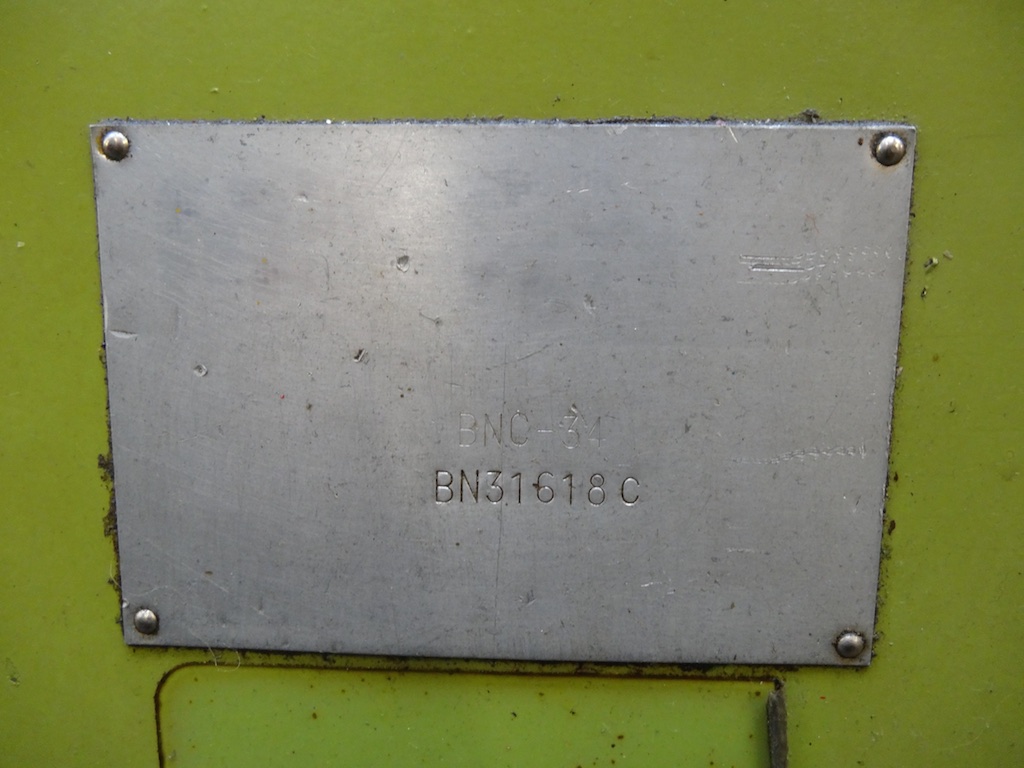

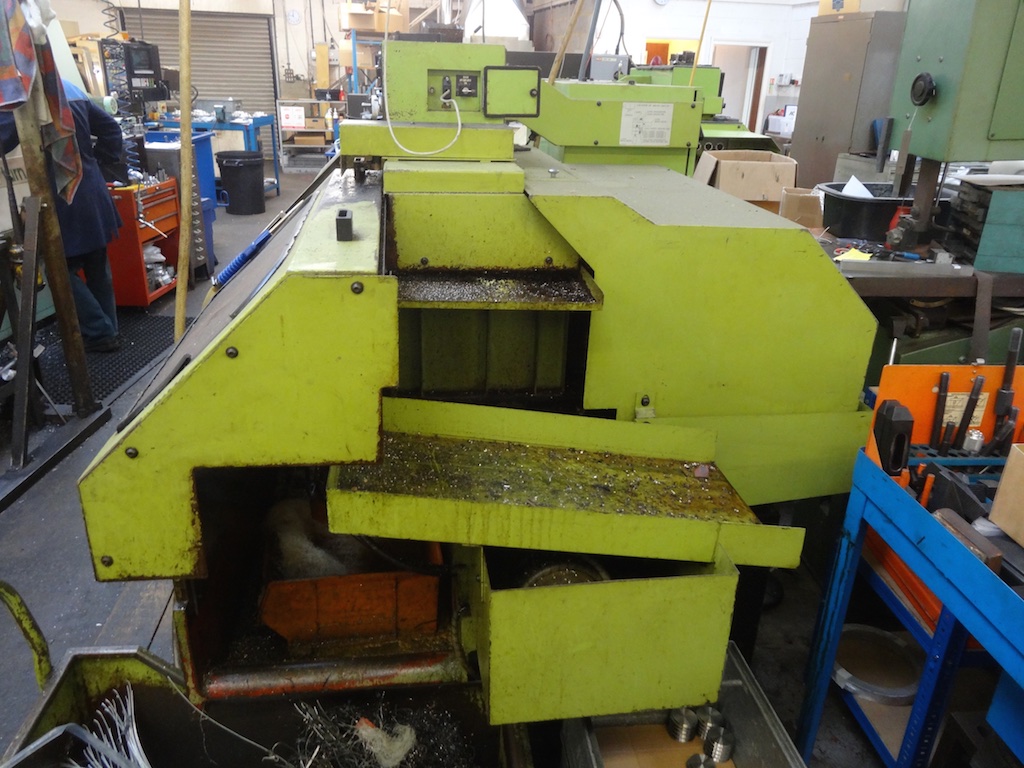

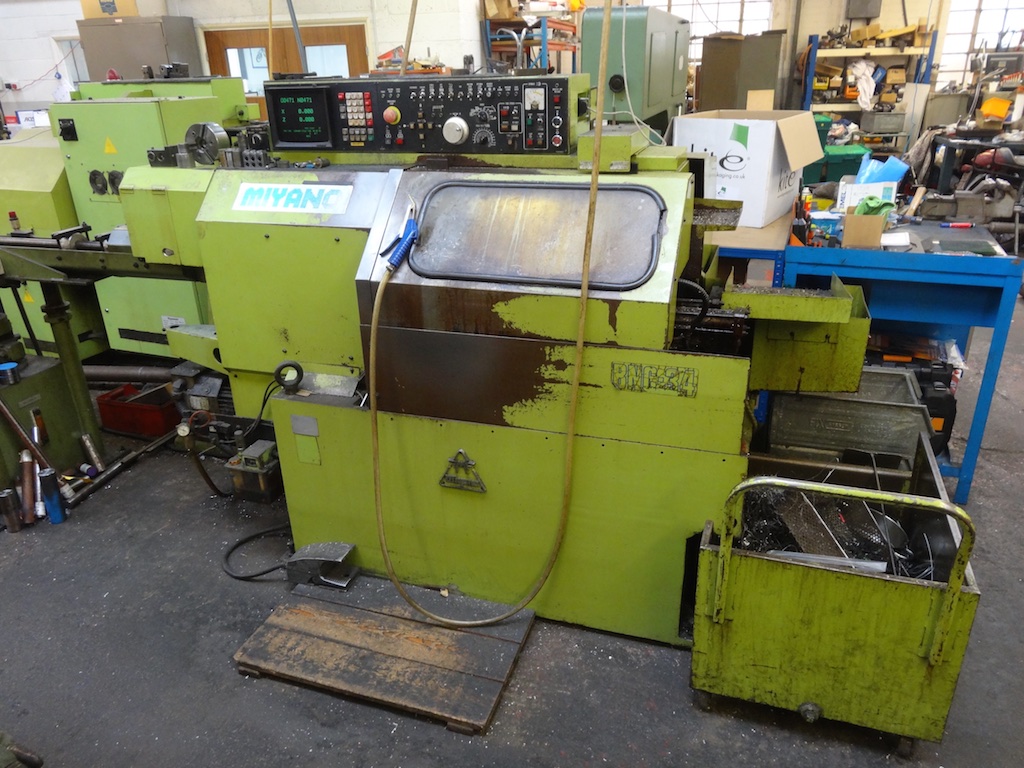

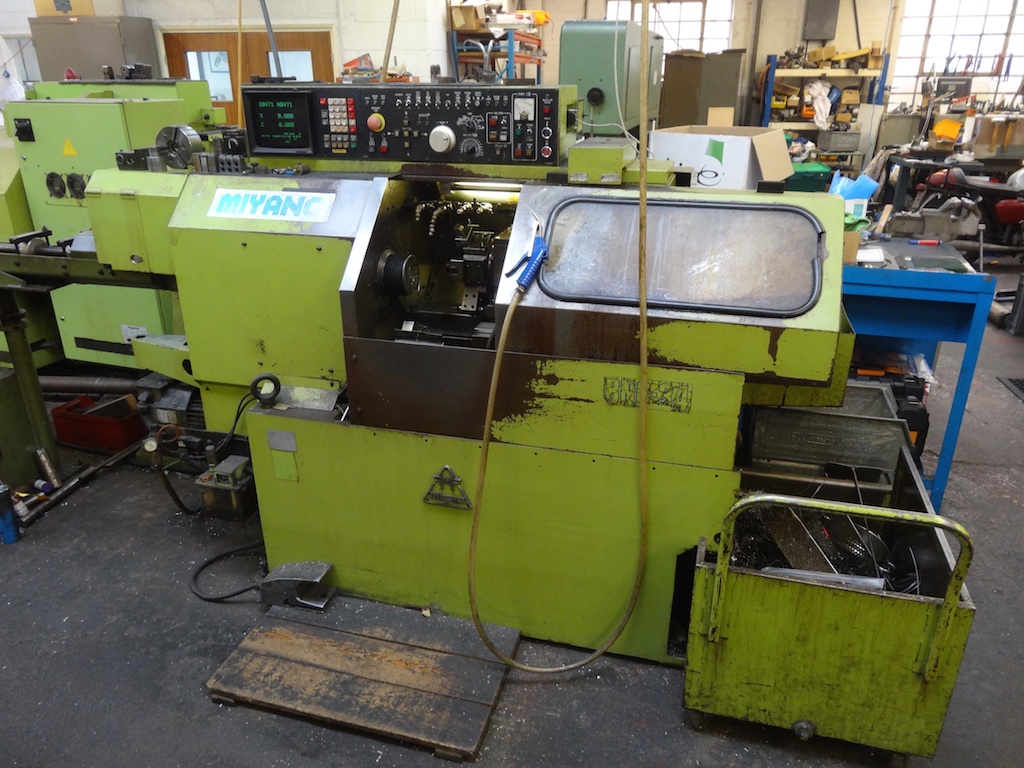

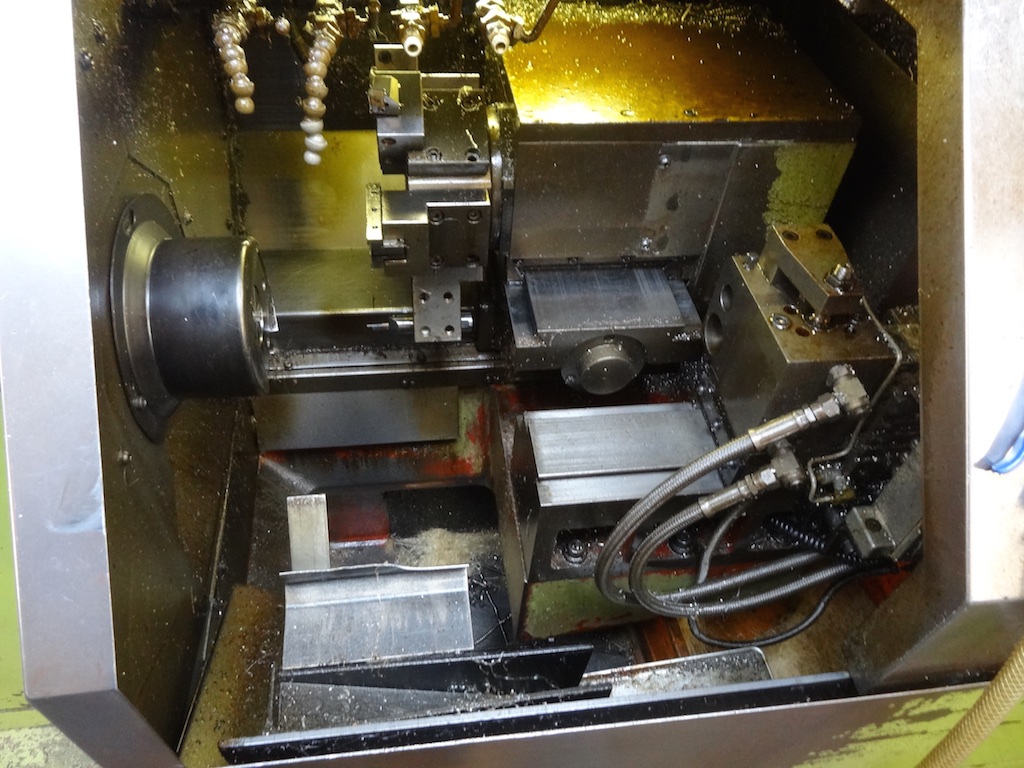

Miyano BNC34 CNC Lathe

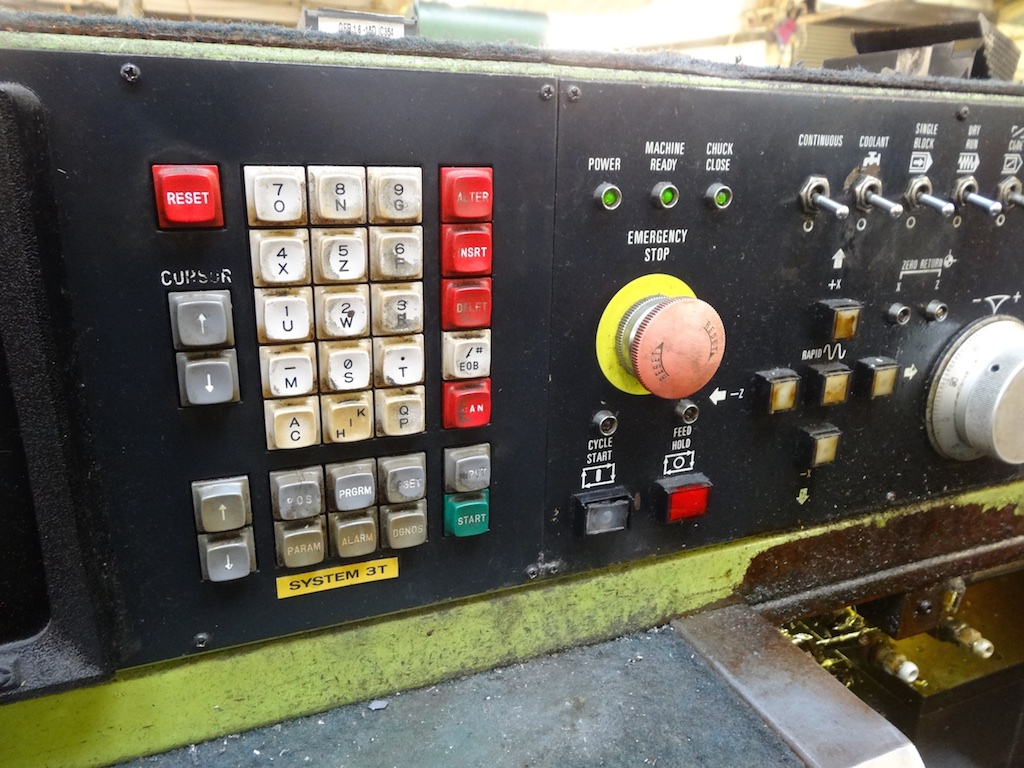

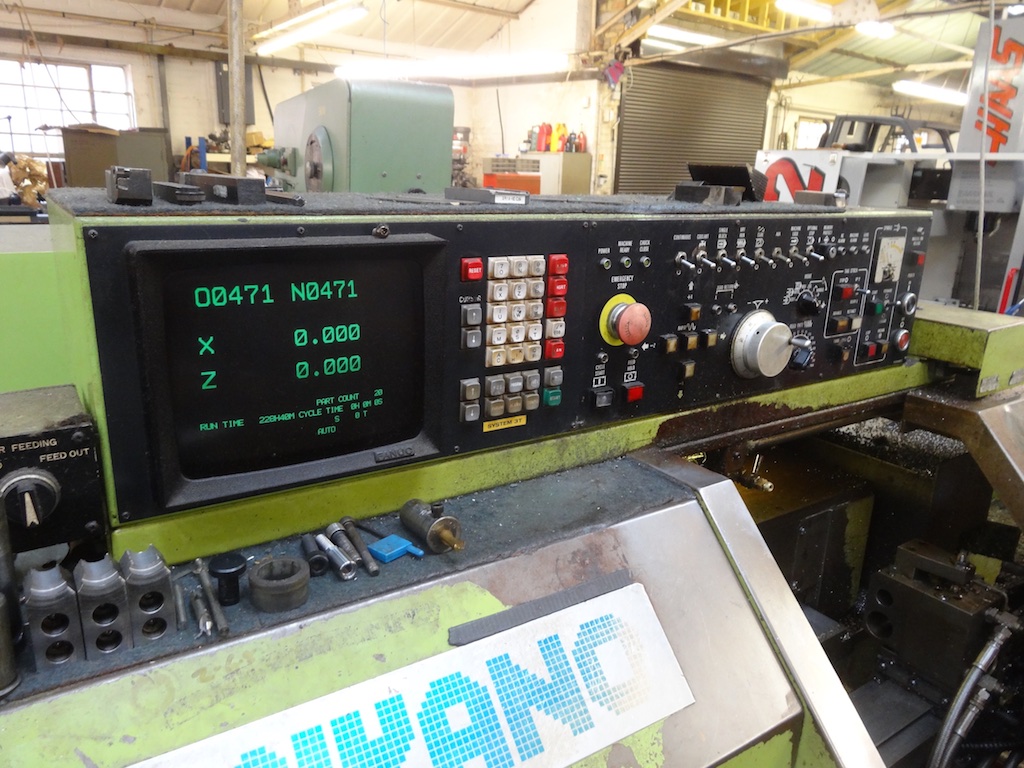

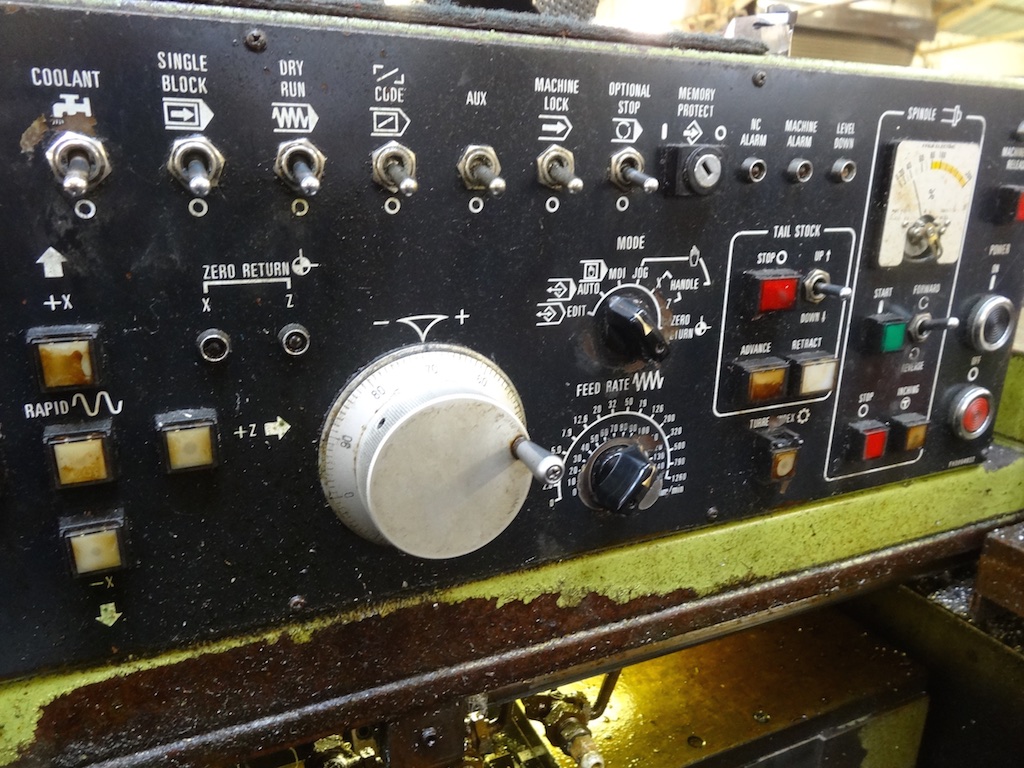

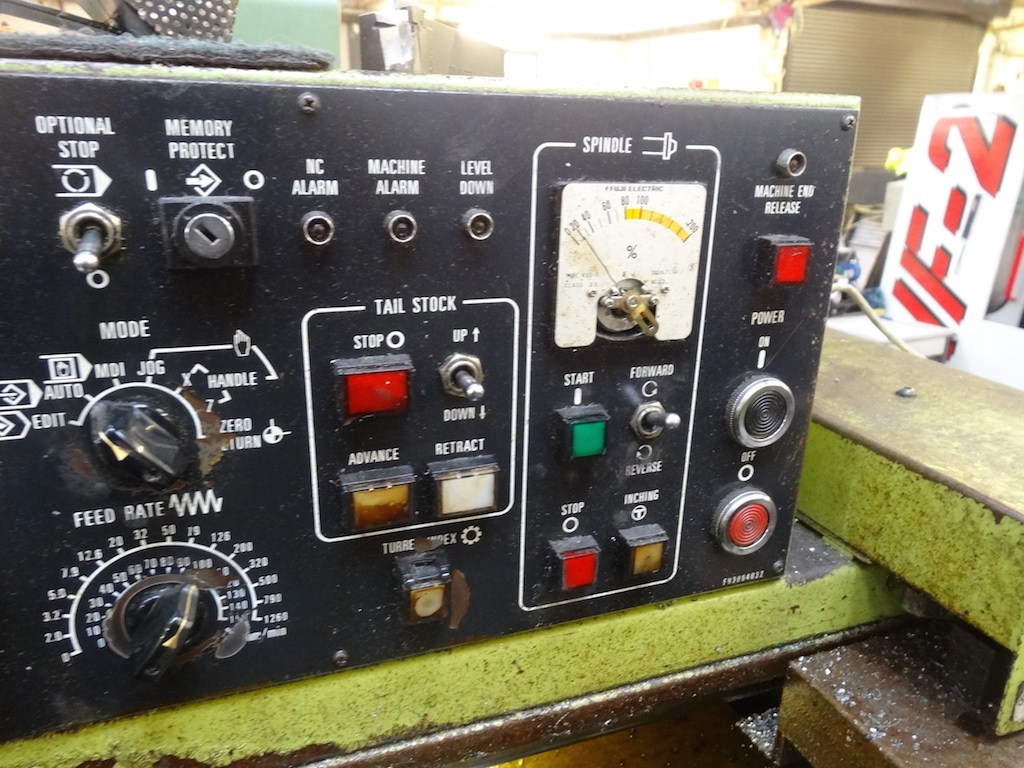

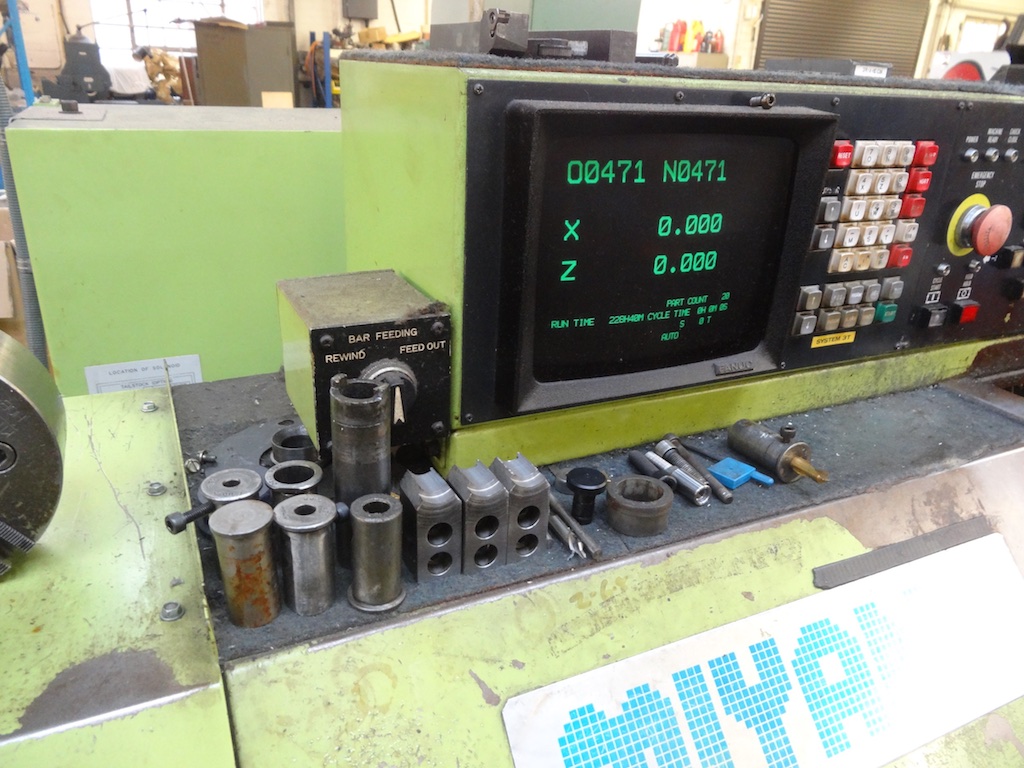

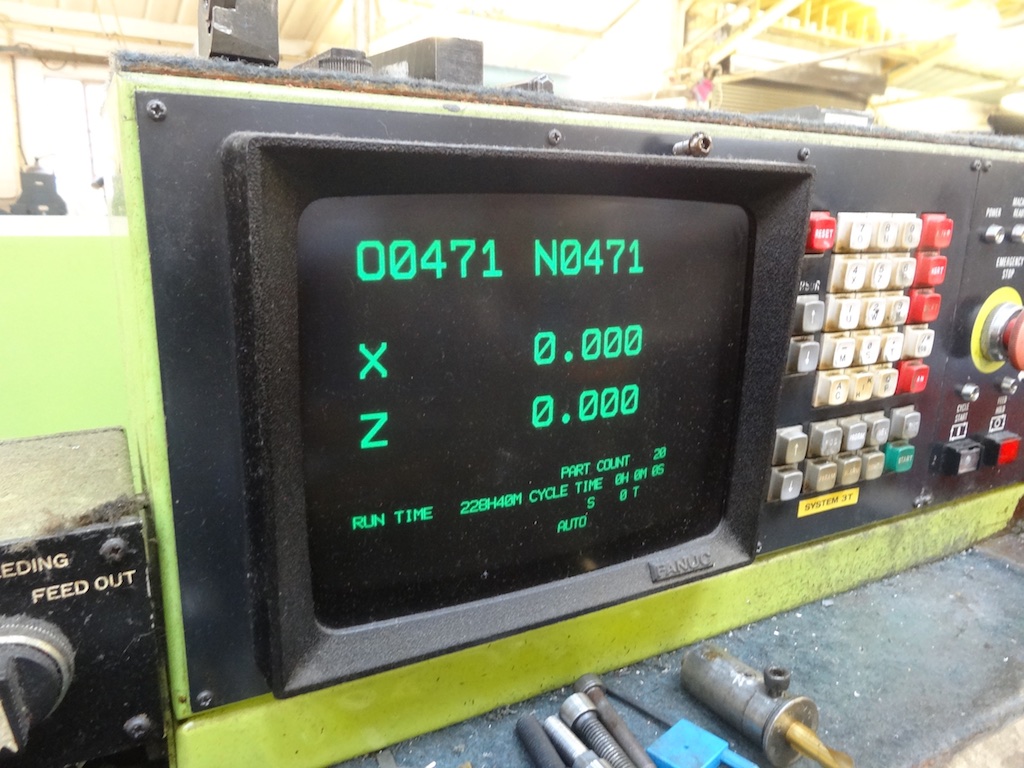

Fanuc 3T
Max Machining Length
for bar work: 7-7/8" (200mm)
for center support work: 9" (230mm)
Swing over turret face: 10.62" (270mm)
Spindle nose: Flat
Dia. of spindle face: 4.331" (110mm)
Inner dia. of draw tube: 1.417" (36mm)
Spindle Motor: 7.5Hp
Spindle speed range: 150 - 4500 rpm

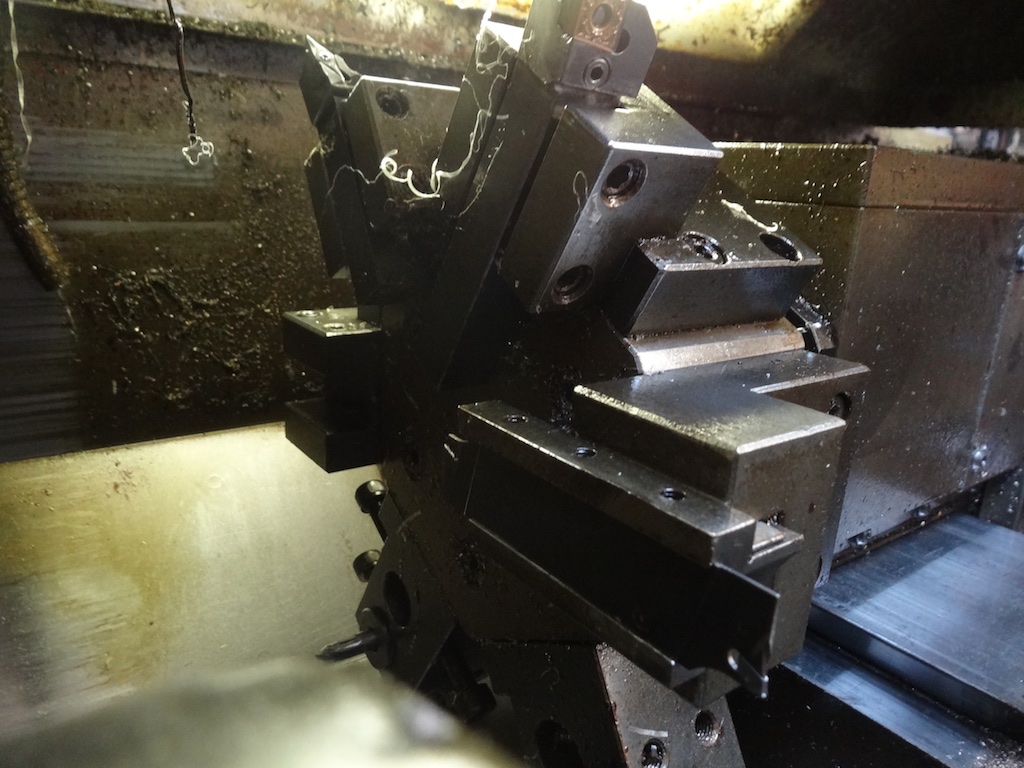

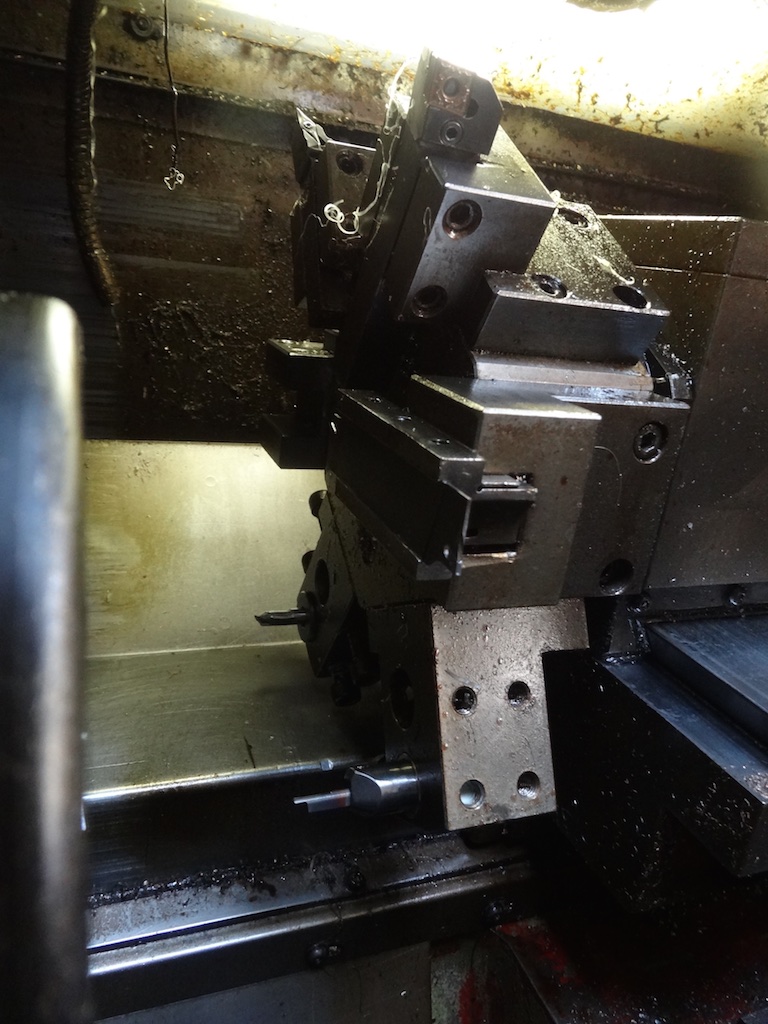

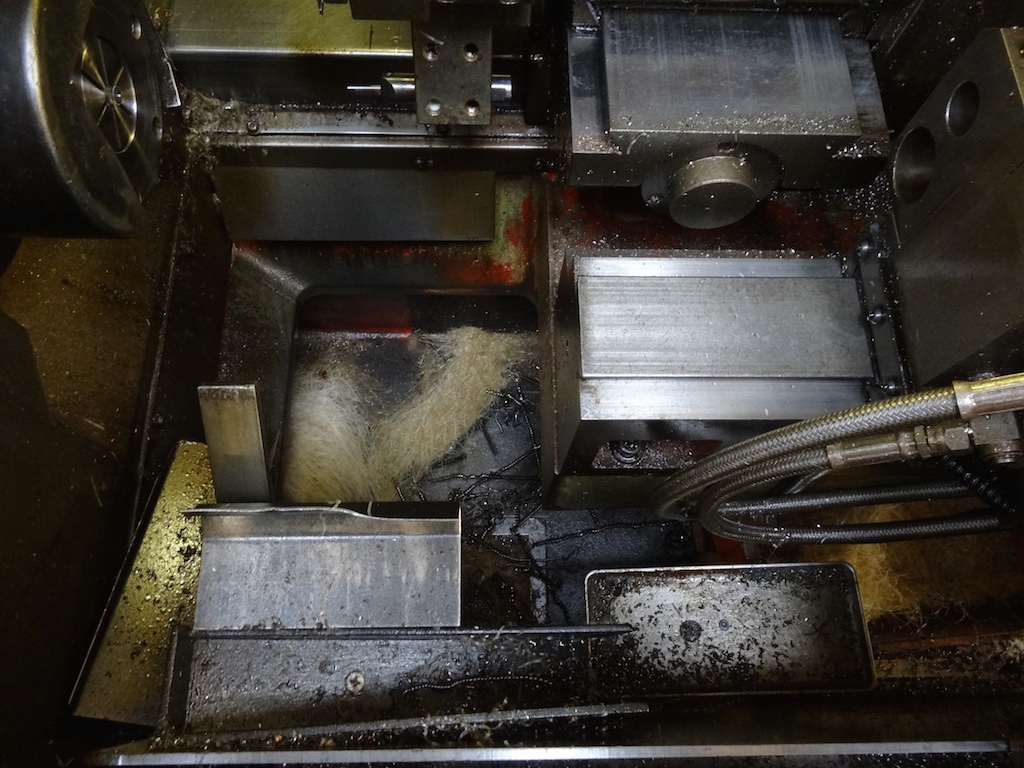

Turret
Axis controlled: 2
Tooling stations: 6
Max. indexing clearance: 13" (330mm)
Distance across flat: 5.906" (150mm)
I.D tool hole size: 1" (25mm)
Tool shank size: 3/4"s.q
Max. slide stroke: x axis: 4" z axis:9-1/4"

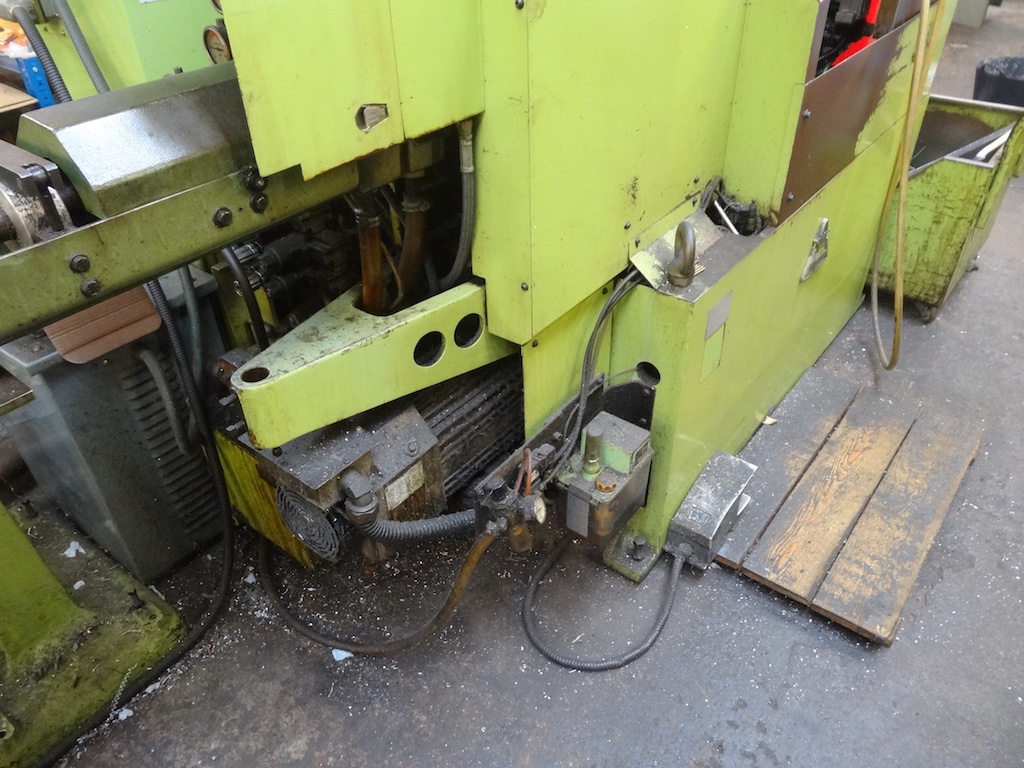

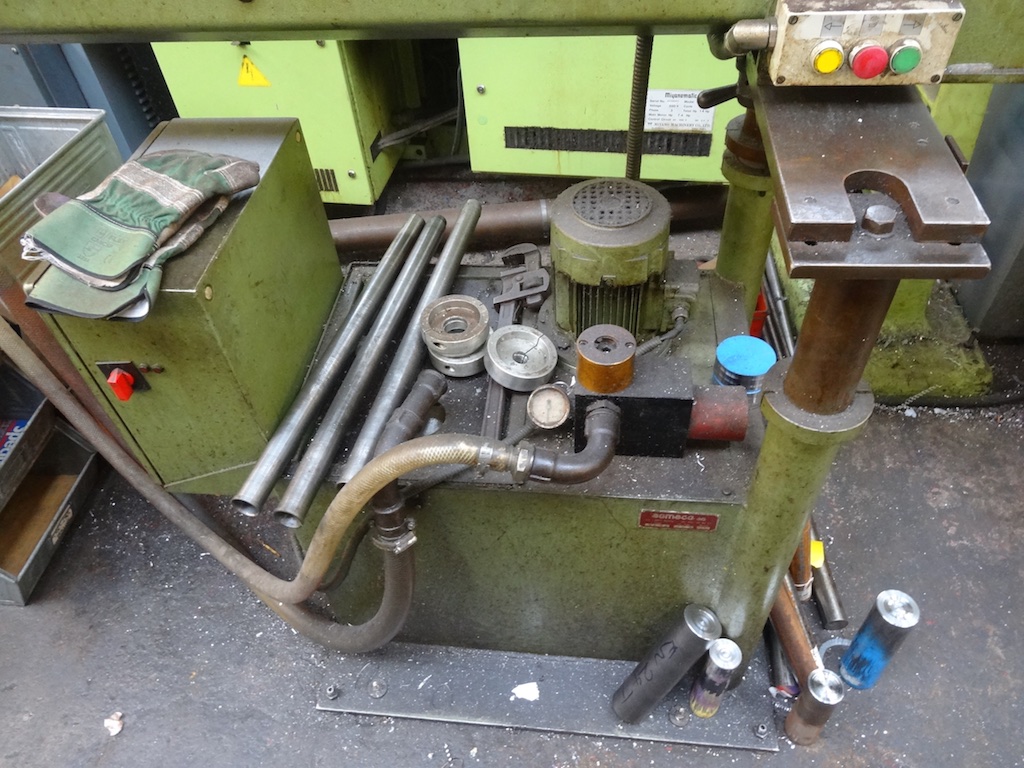

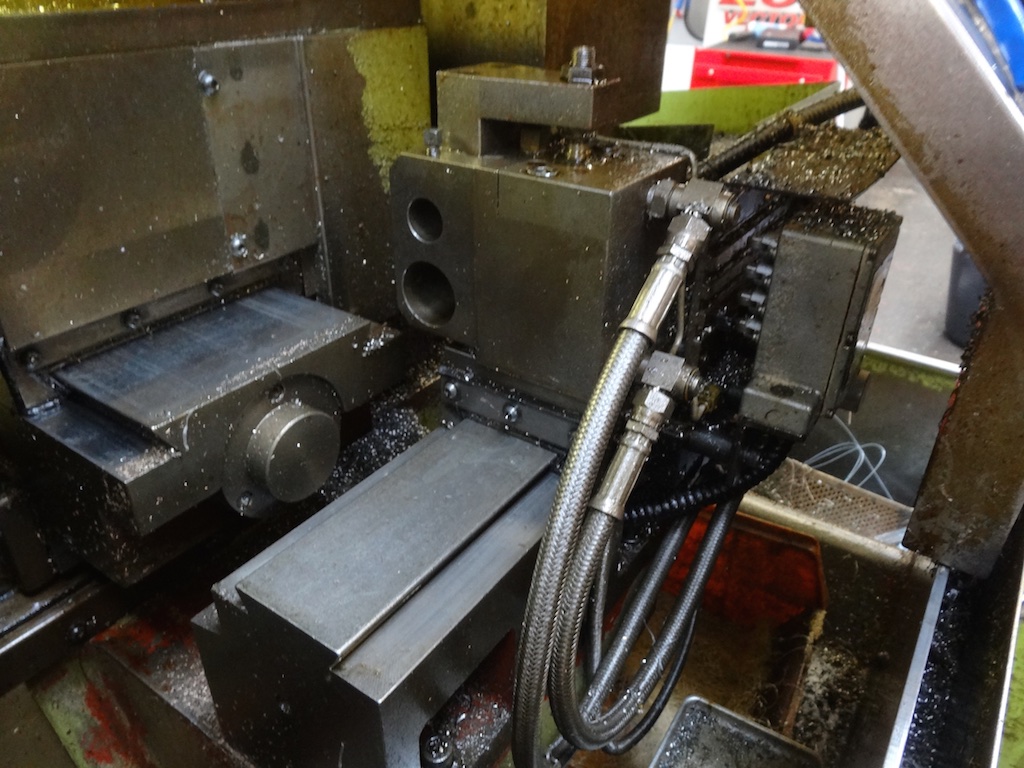

Hydraulic Equipment
Tank capacity: 30L
Pump Motor: 1Hp
Pump capacity: 3.2 Gal/min

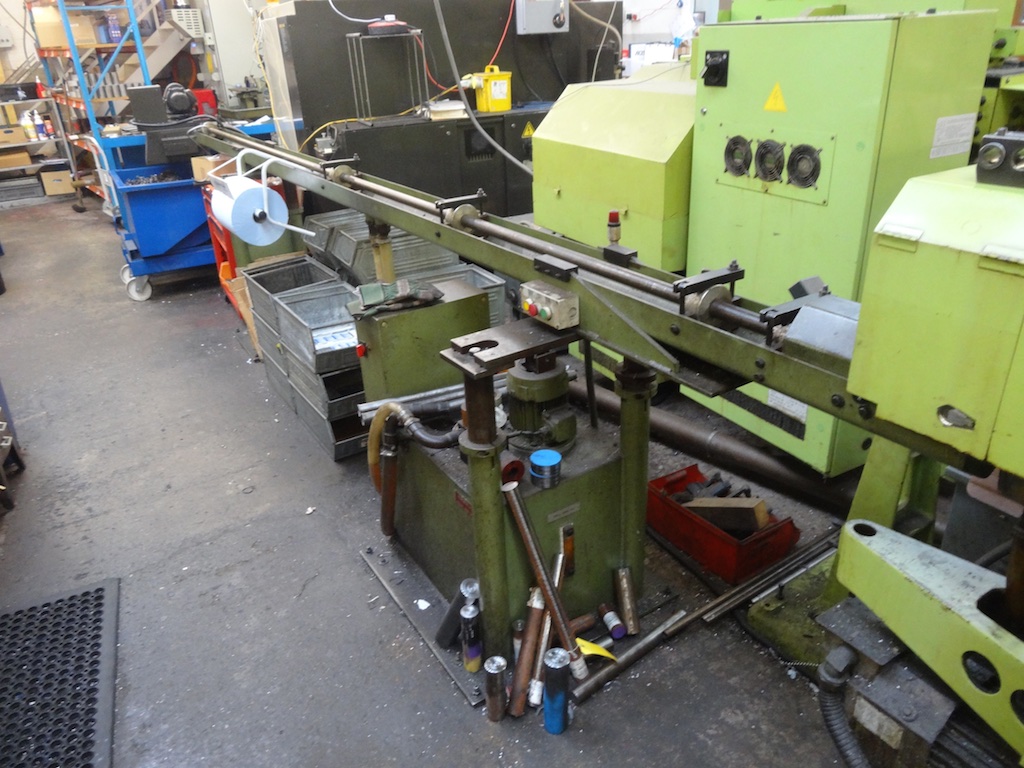

Floor space without bar guide: 1400x2540mm
Weight: 2600kg

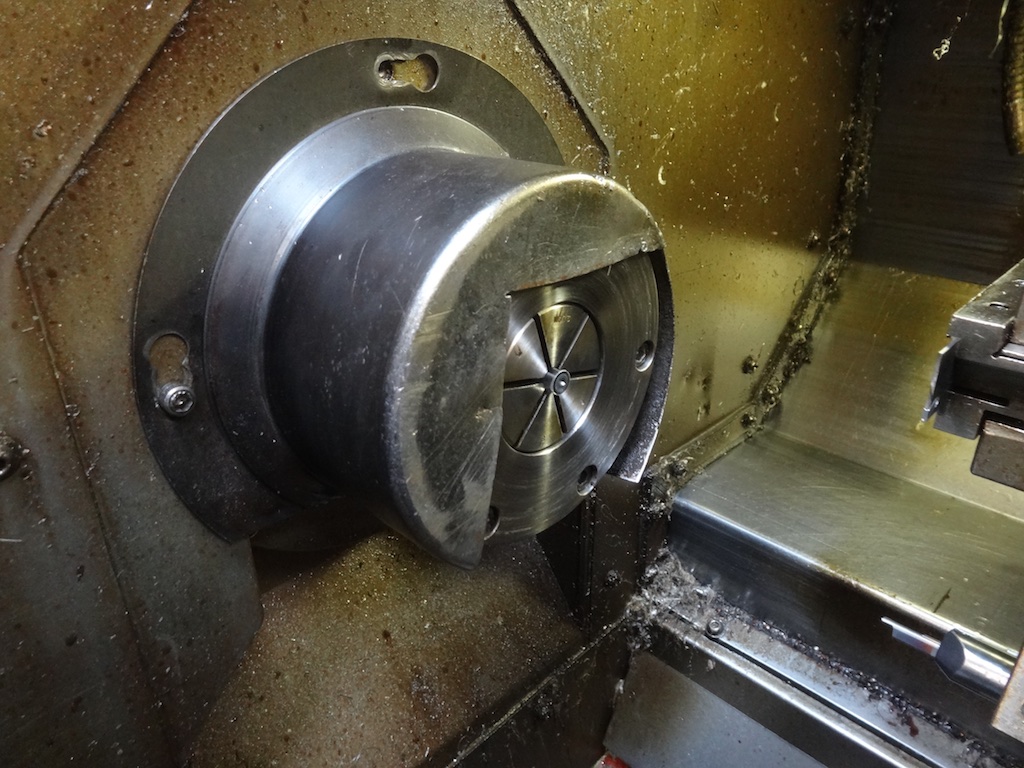

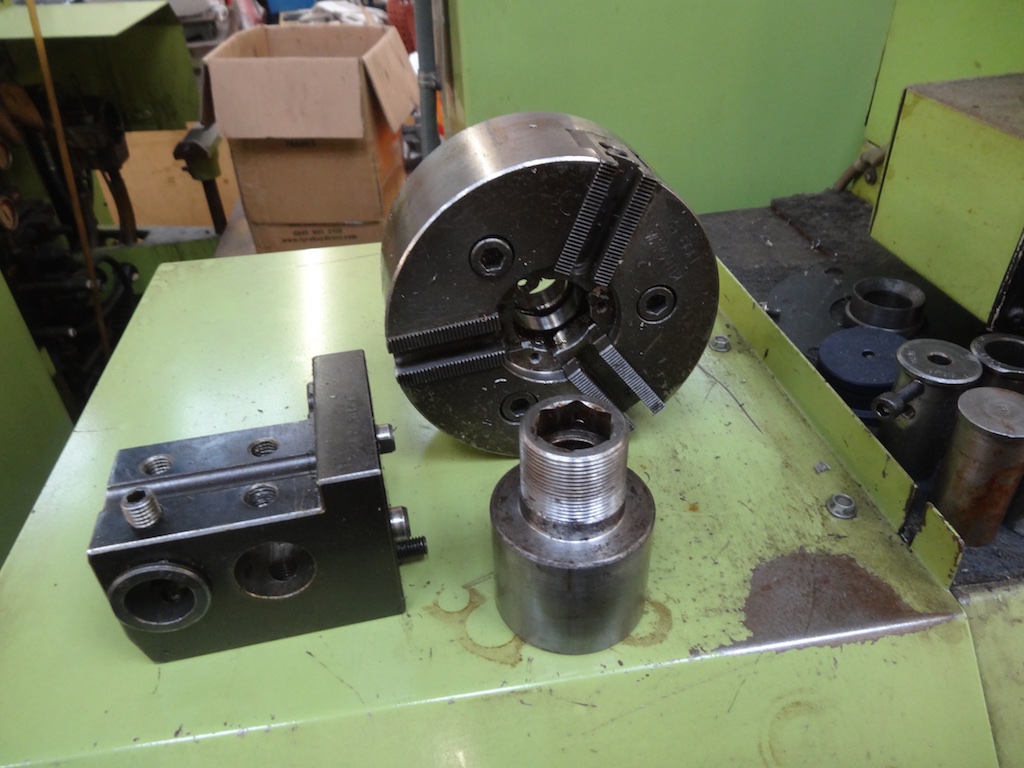

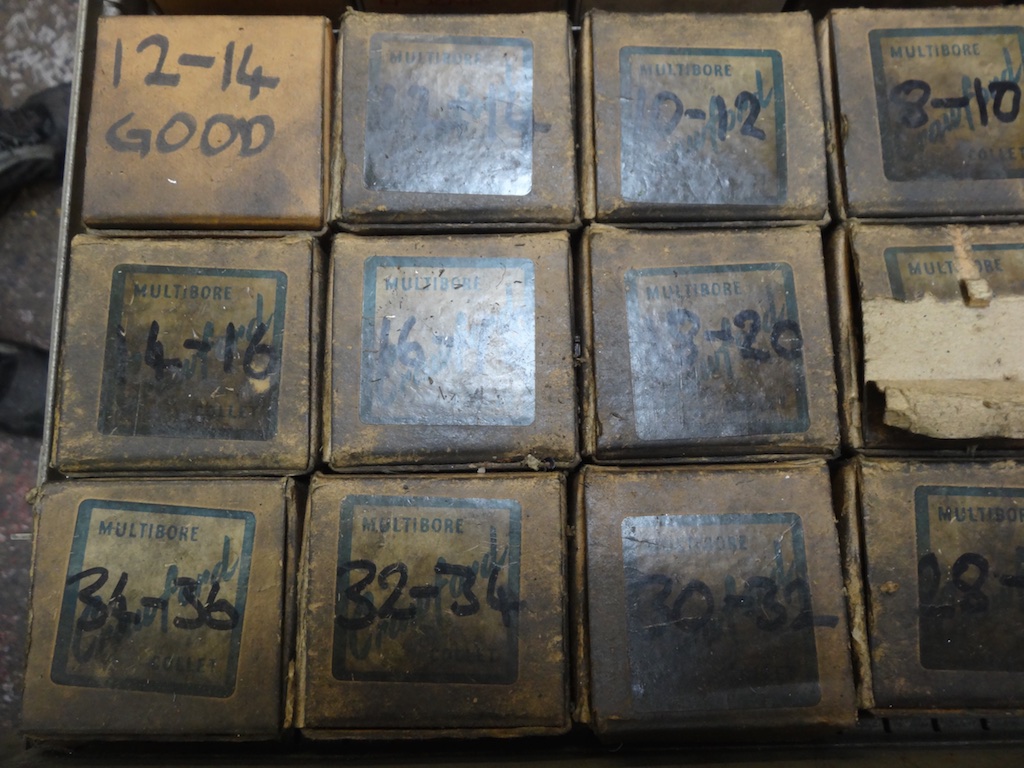

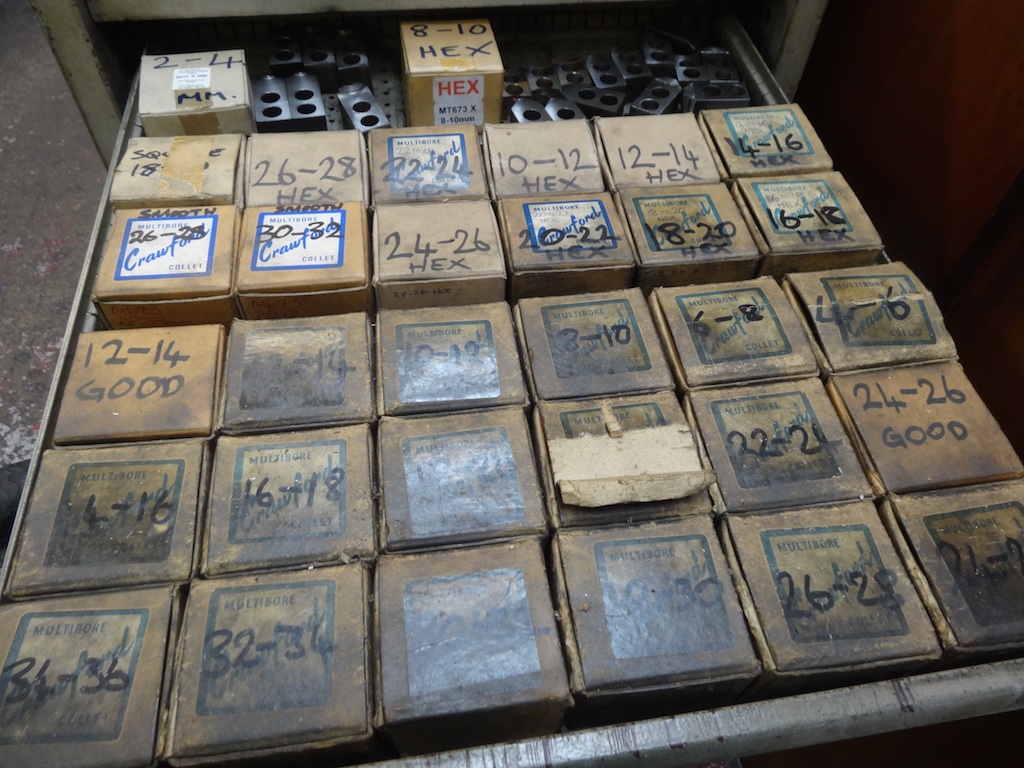

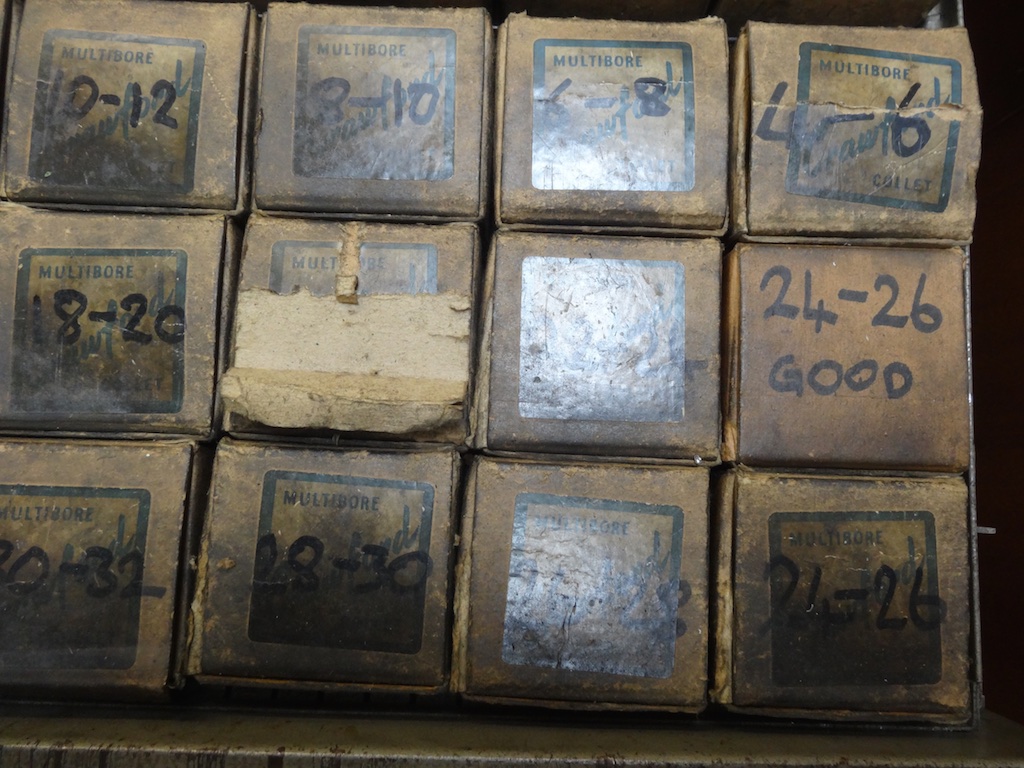

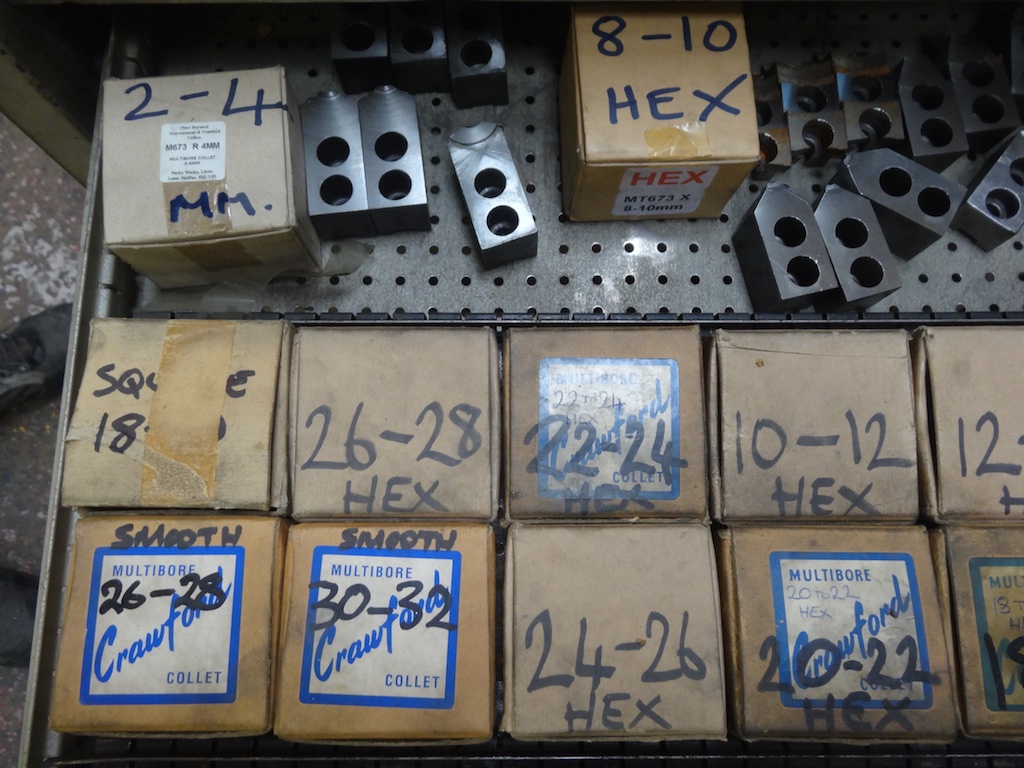

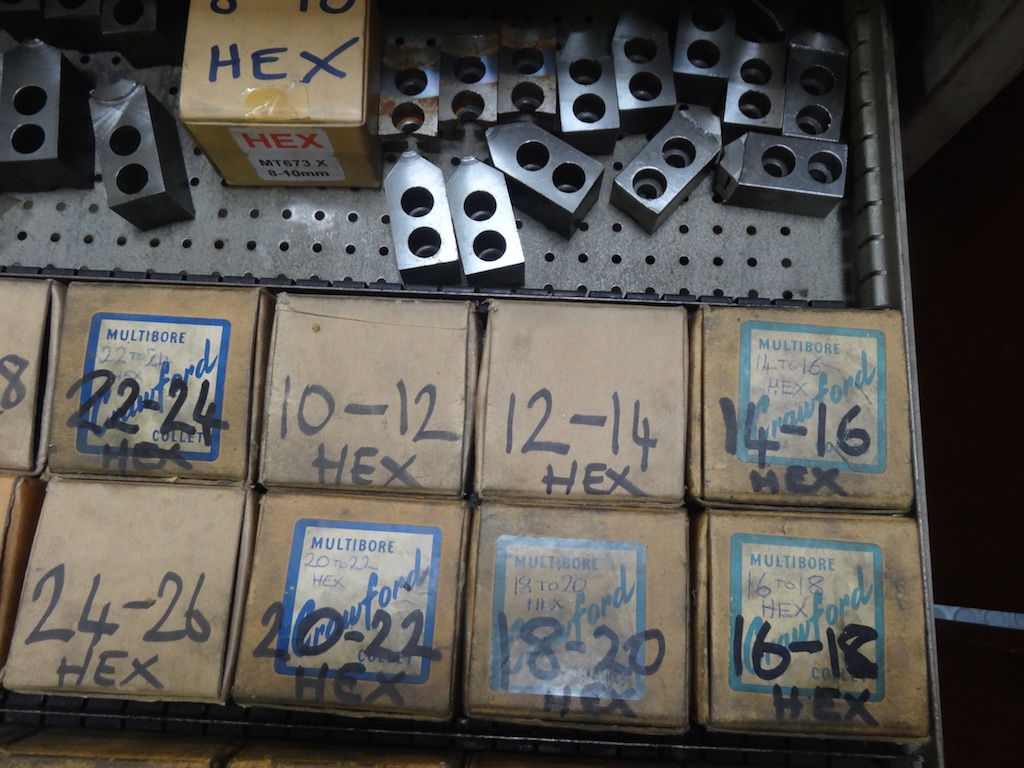

Please Note that the Photos of the Collect/Tooling are for reference only as they will be split equally between each of the 2 Miyano BNC34's that are listed in this auction
High Wycombe

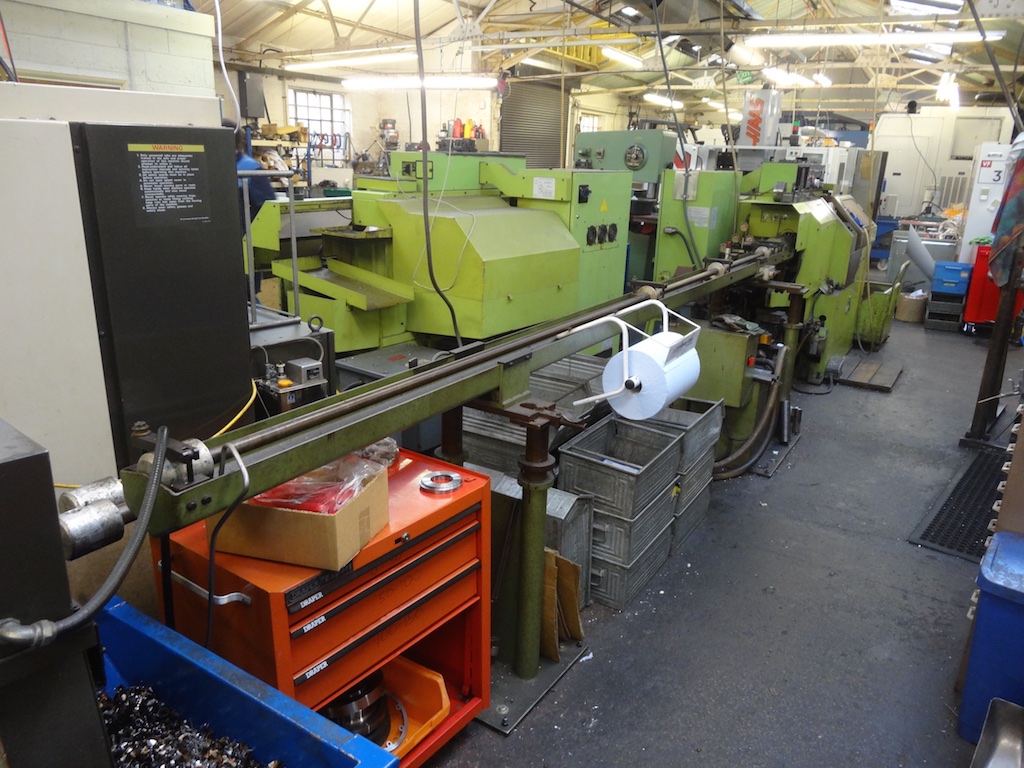

Machine under power and can be viewed
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
