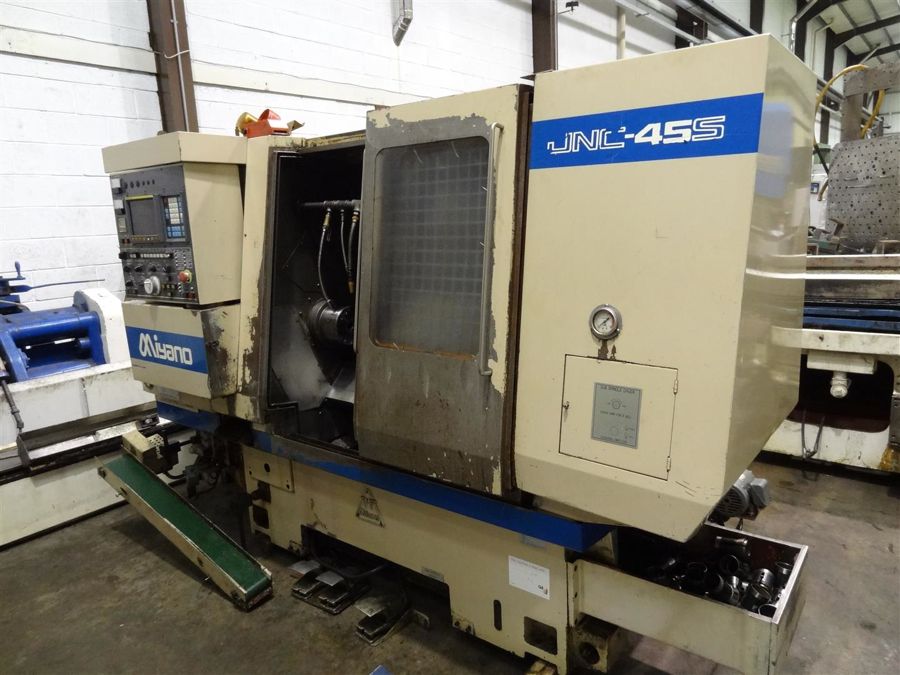

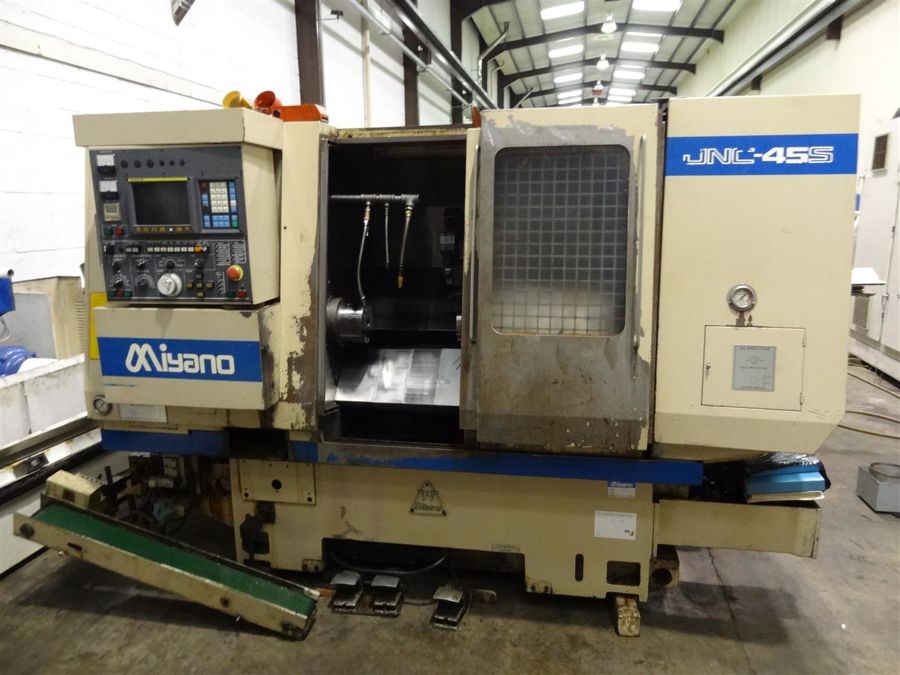

Lot 1 - Miyano JNC-4SS CNC Lathe with Sub Spindle, Driven Tooling
Description:
Miyano JNC-4SS CNC Lathe with Sub Spindle, Driven Tooling,

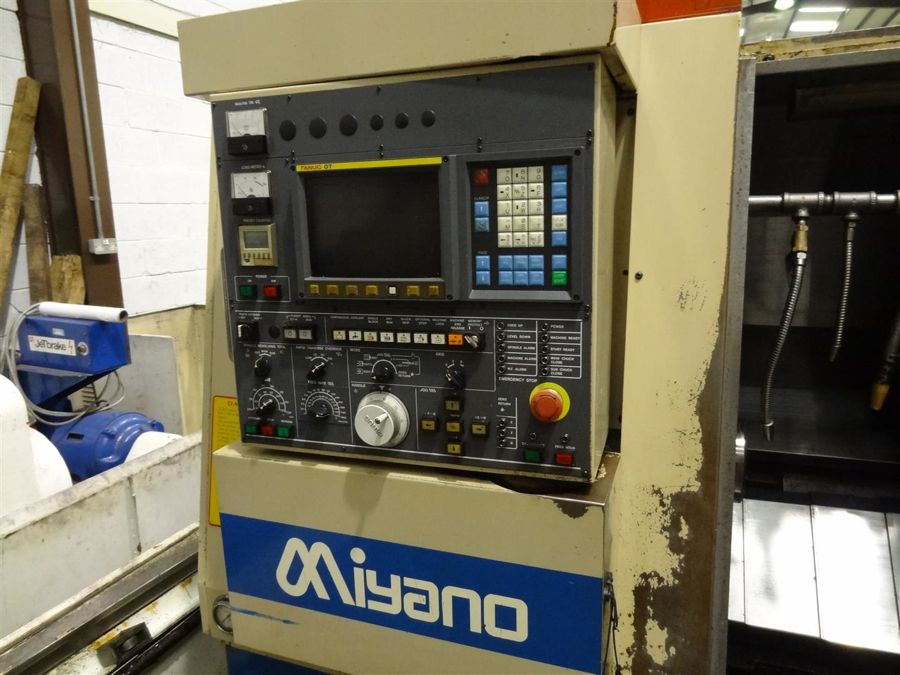

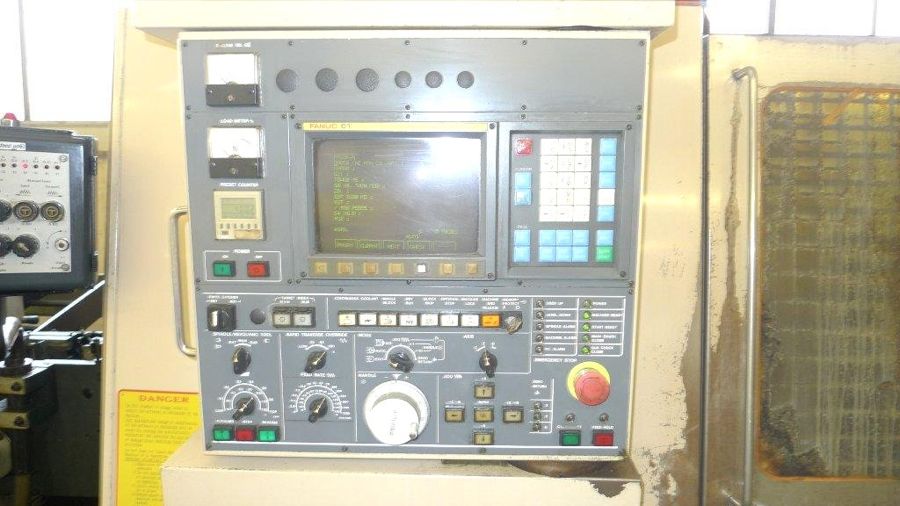

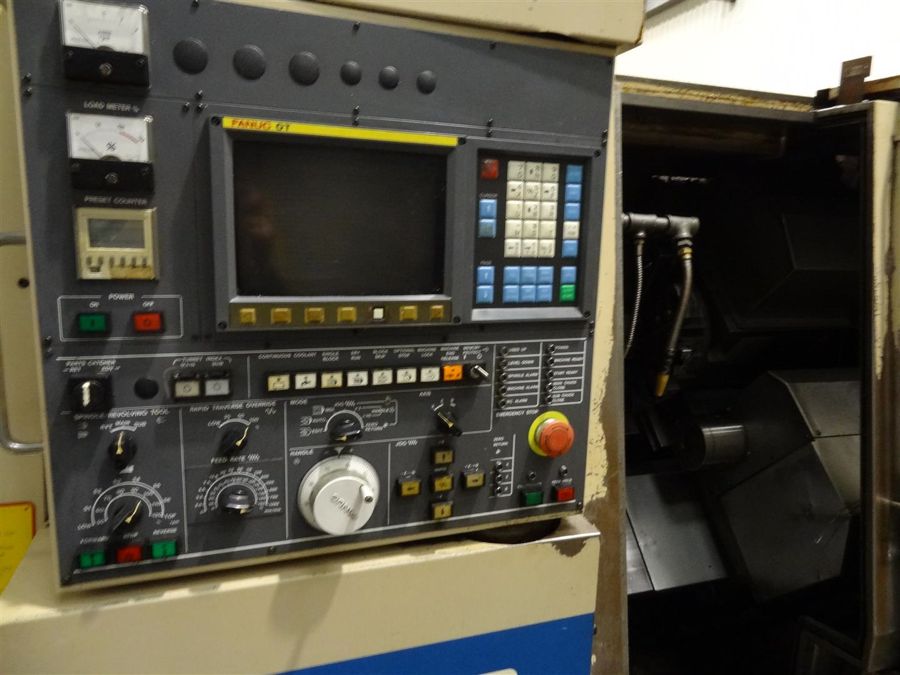

Control: Fanuc OT Control
Serial No.: J450444S
Year of Manufacture: 1994
Specification:
Bar Capacity: 45mm
Spindle Bore: 56mm
Main Spindle 177E Collet Chucking System,
Sub Spindle 171E System

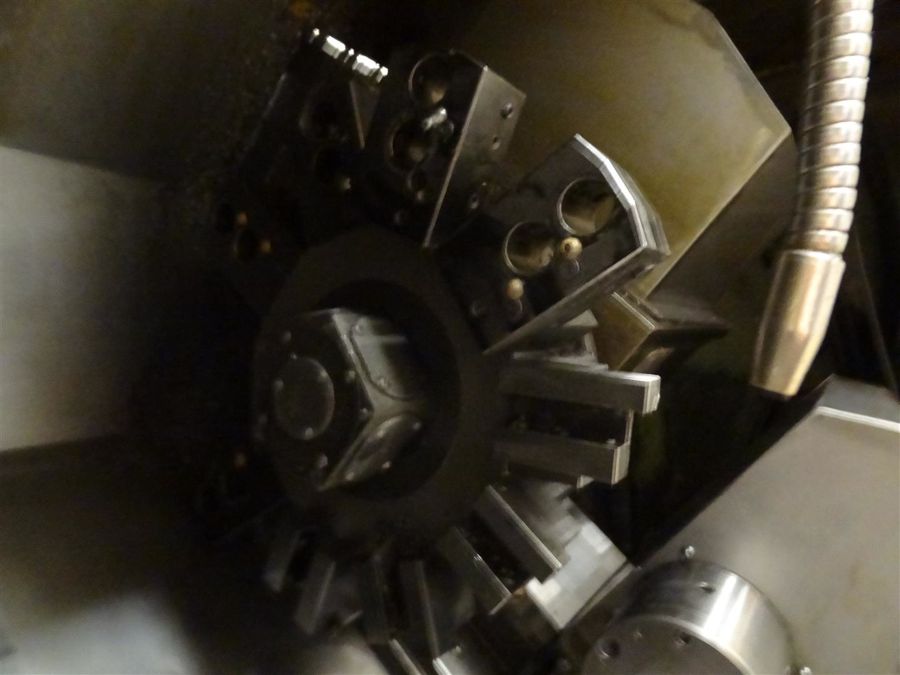

12 Station Turret – 6 Positions Driven
Speeds: 100 – 3000rpm
Machining Capacity End Milling ½” (12mm)
Tapping M10
Spindle Speeds: 4,000rpm
Spindle Power: 11kW, 30 mins. rated 15kW
X Axis Travel: 110mm
Z Axis Travel: 400mm (Max. Turning Length 400mm)
Swing: 550mm
Rapids: X Axis: 8m/min. Z Axis: 12m/min.
Tooling Shank: ¾” – 20mm Square
Complete with:

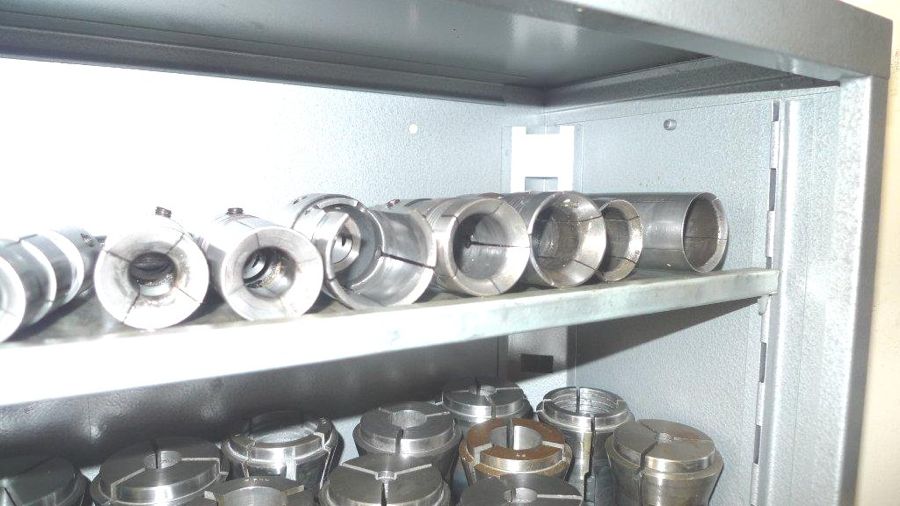

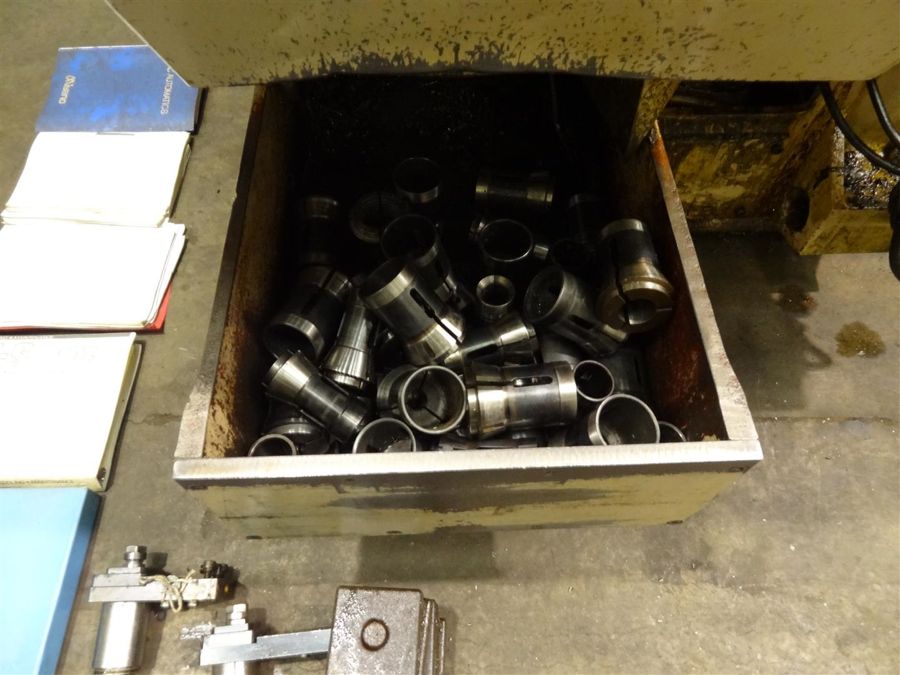

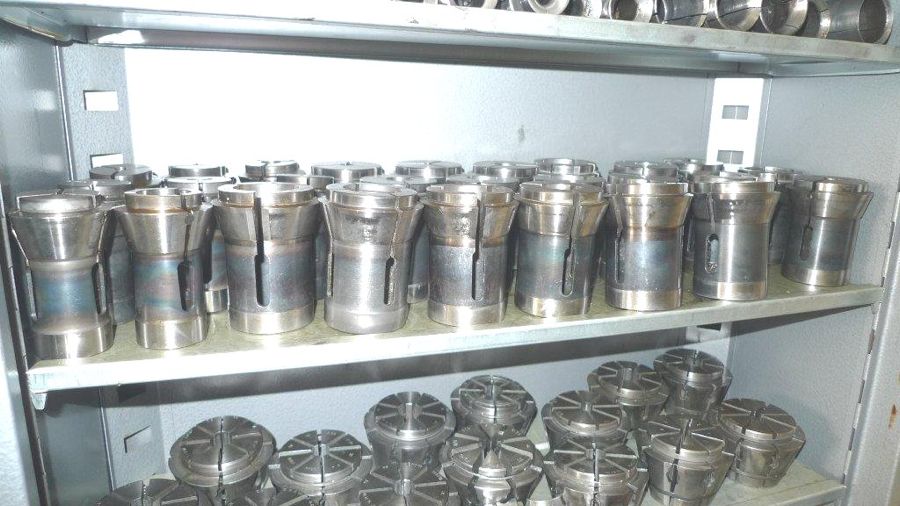

30 Spindle Collets

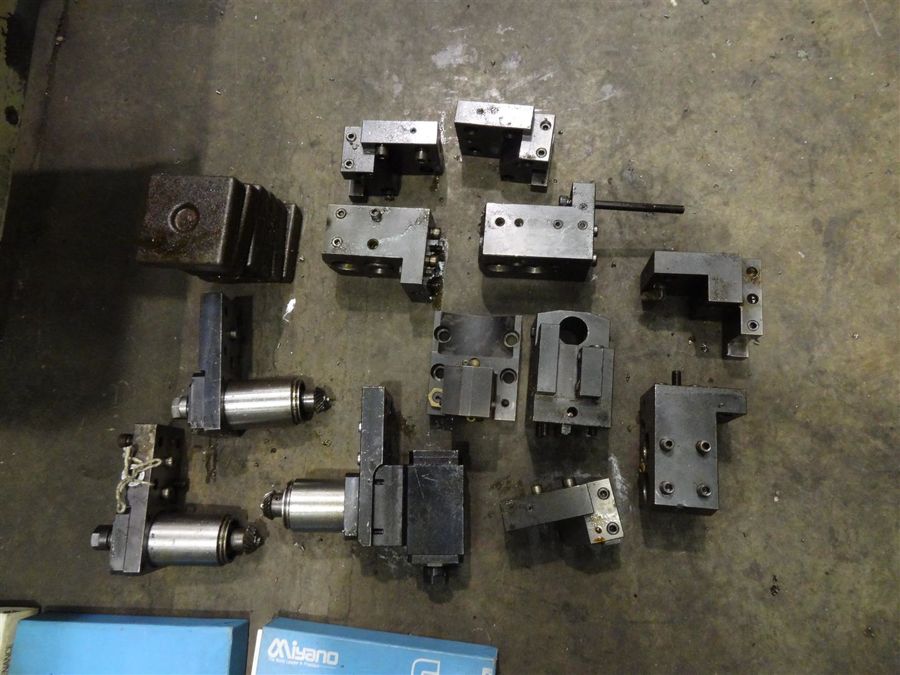

2 off X Axis Driven Tools
1 off Z Driven Tool

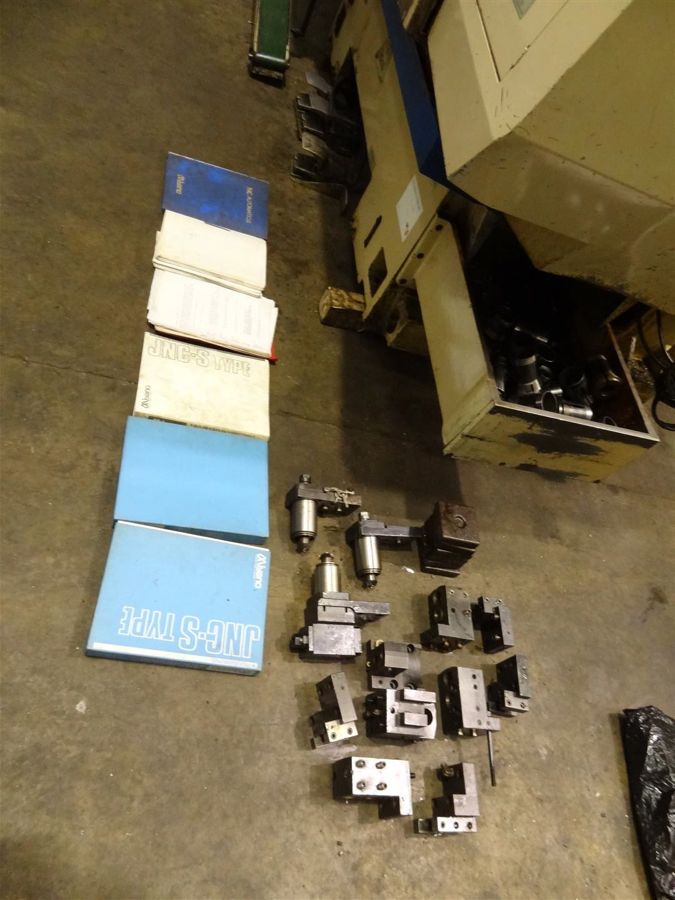

Selection of manual tool holders

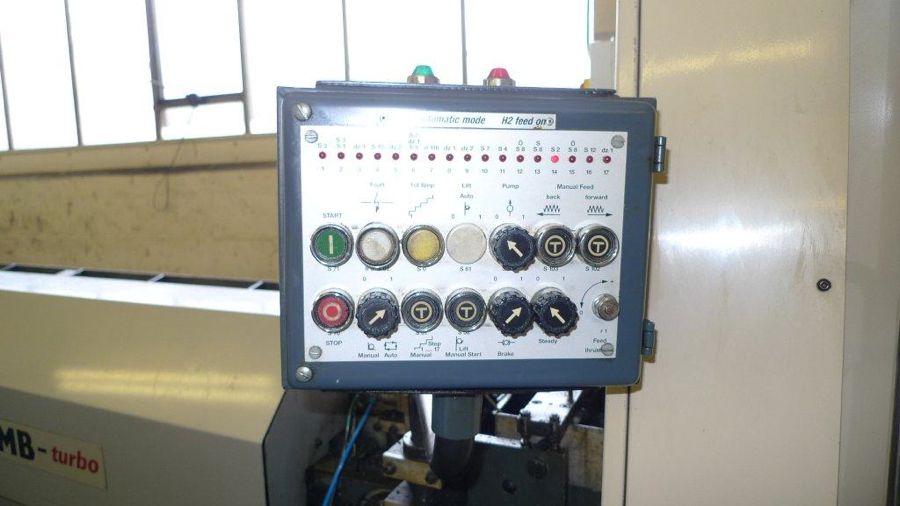

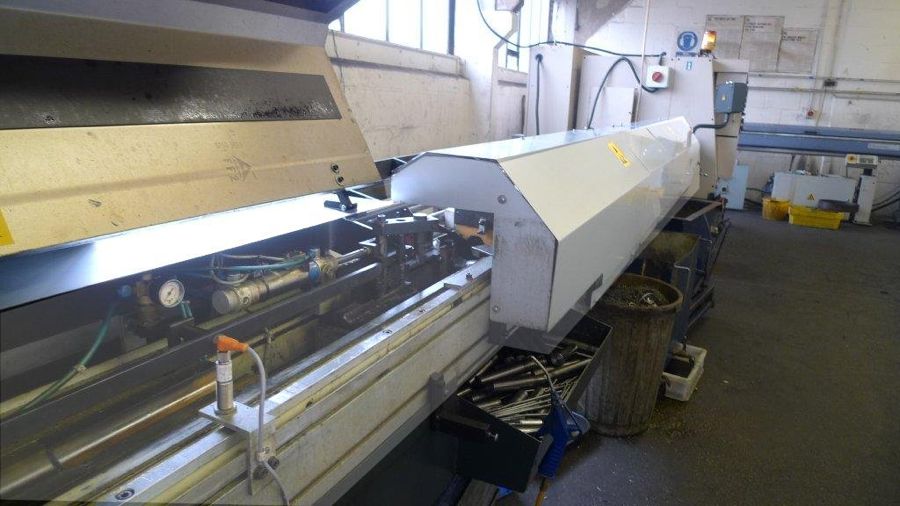

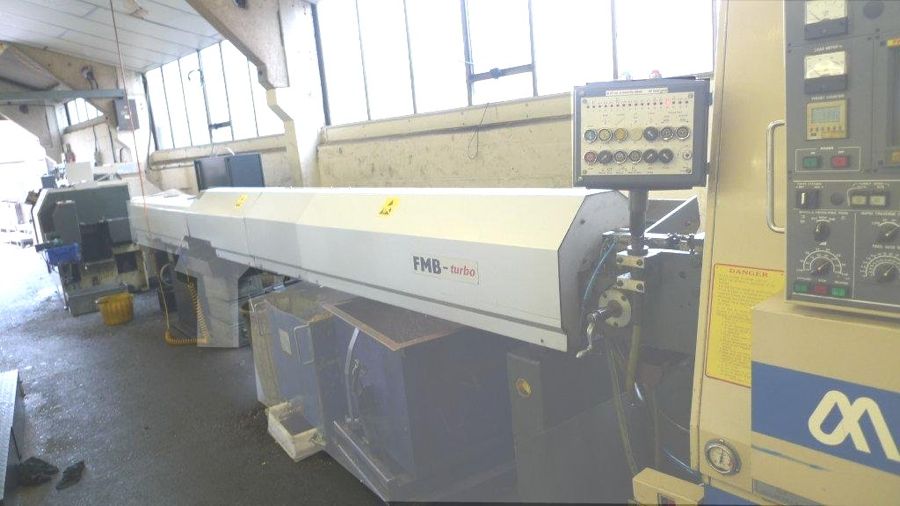

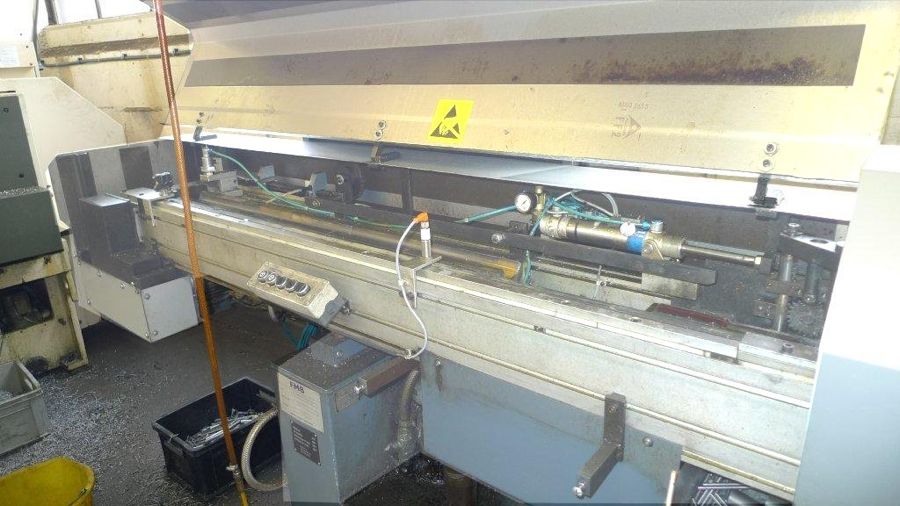

FMB Turbo Magazine Barfeeder – 4 Metre c/w 1 Channel Set and assorted feed fingers
Full Set of Manuals
Location: Leicester, Can be loaded fopr free to flatbed truck.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
