Lot 4 - Mobile XYZ Prototrak 2-OP CNC Milling Machine (2014)
Description:

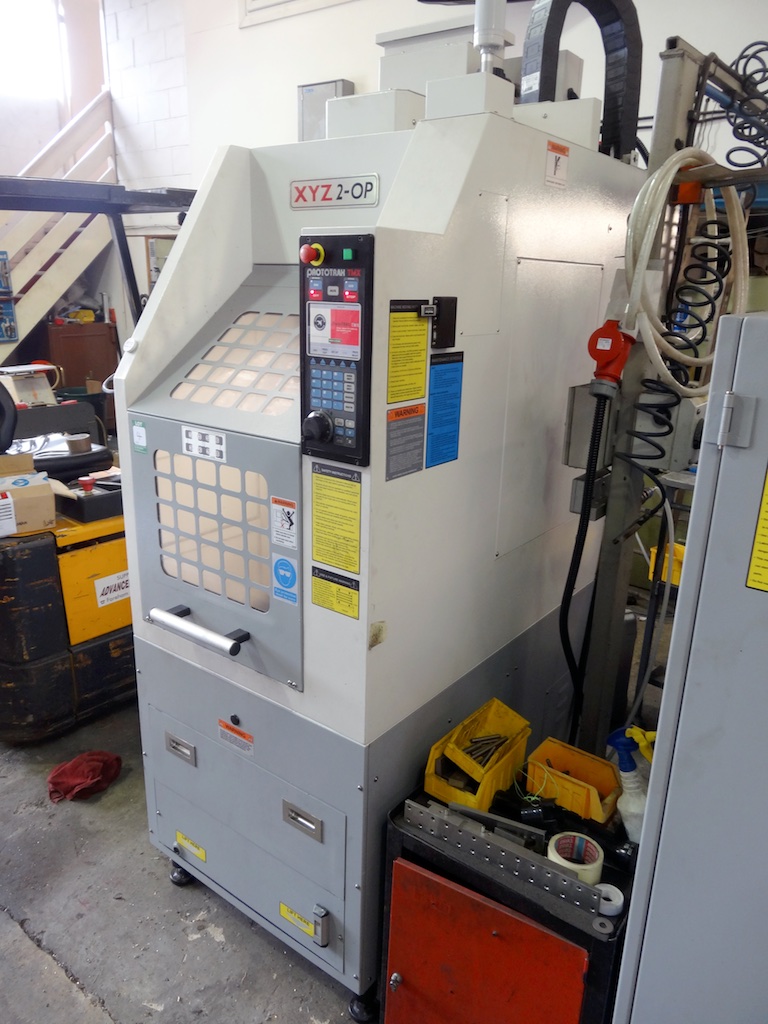

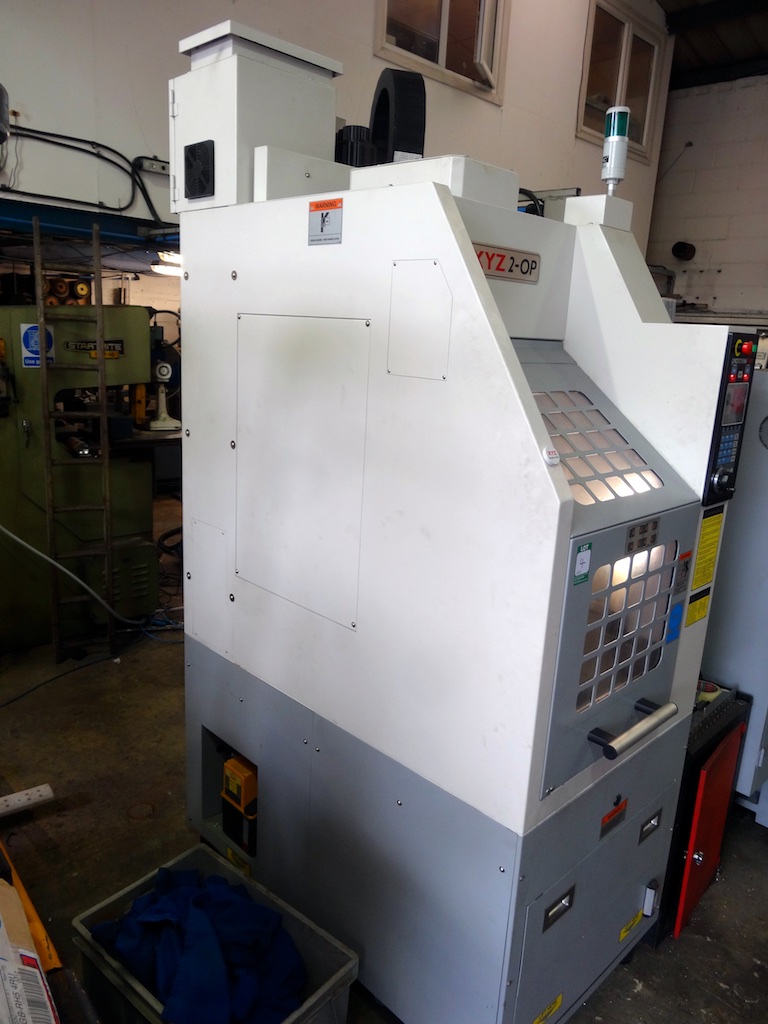

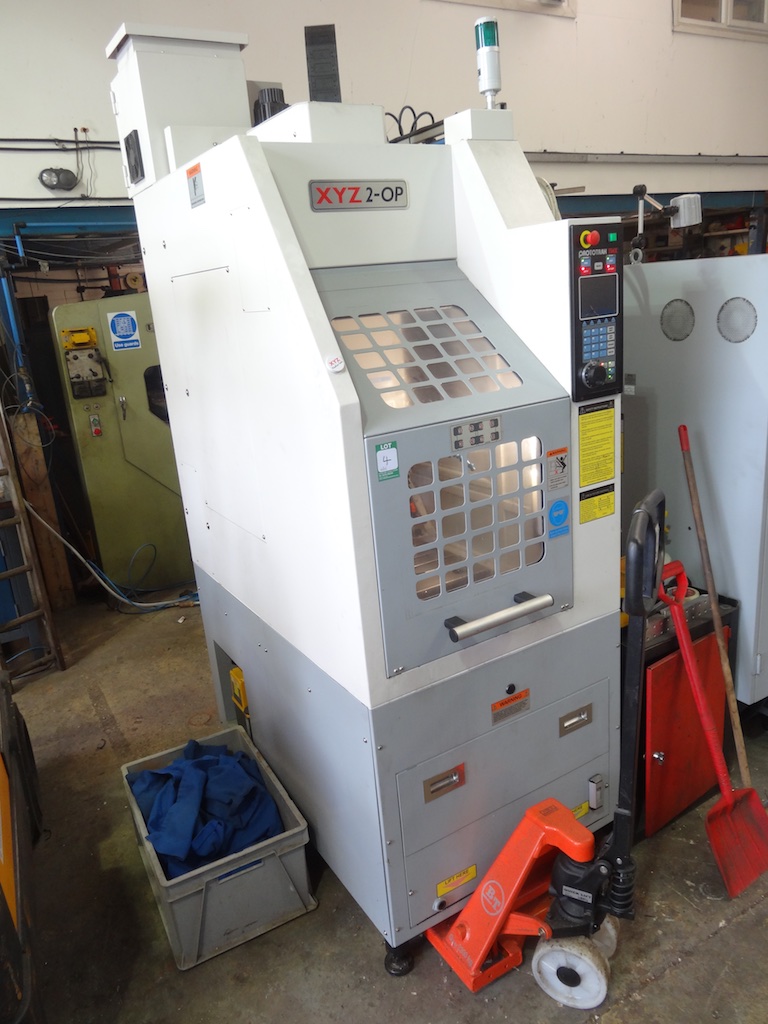

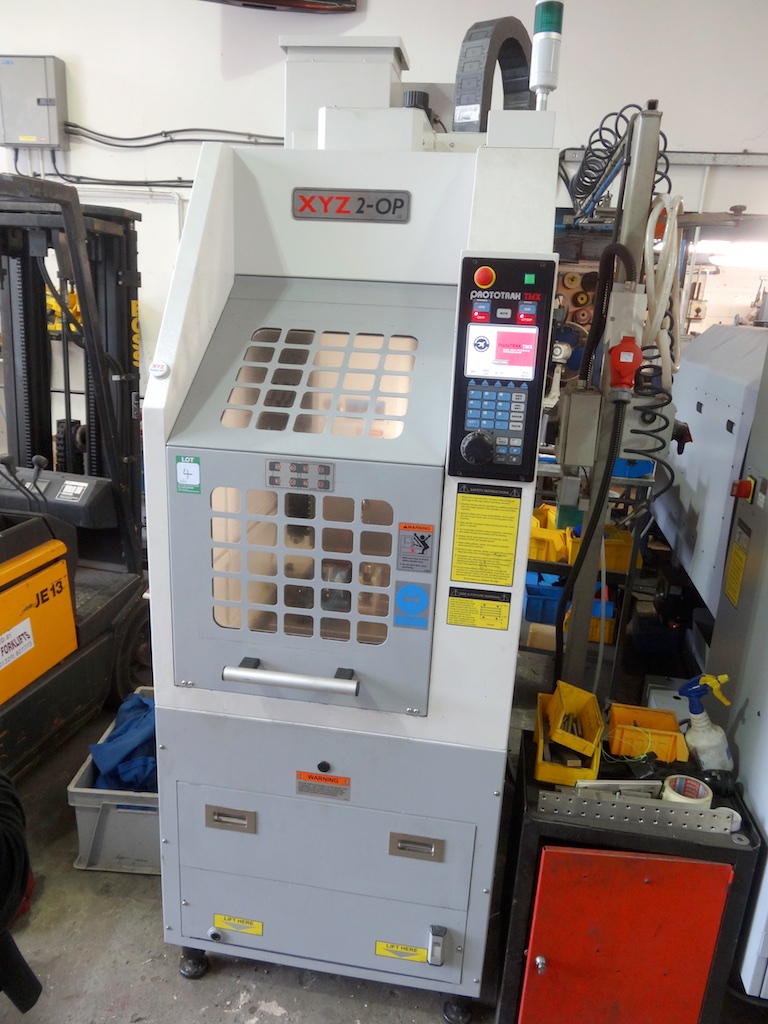

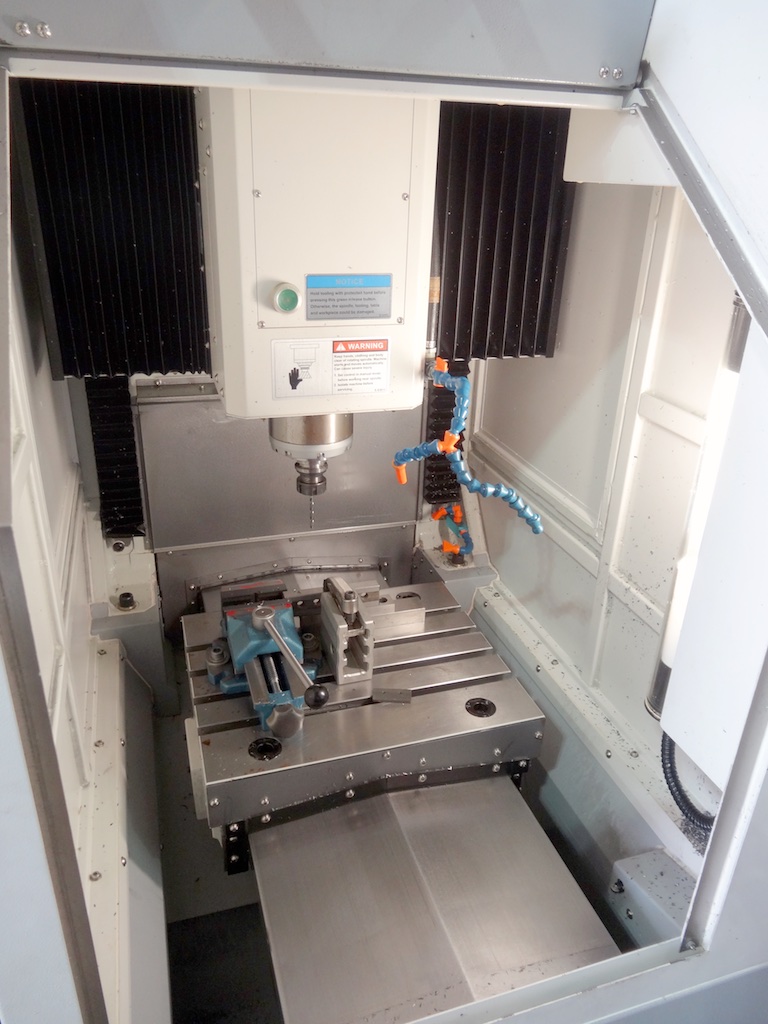

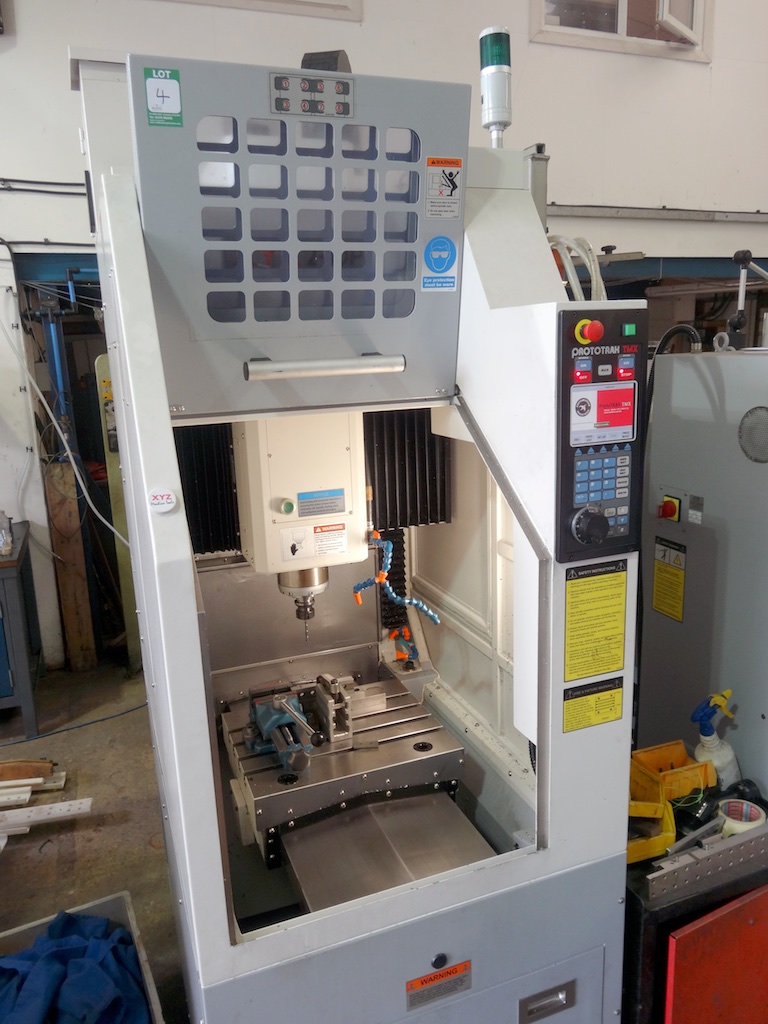

Mobile XYZ Prototrak 2-OP CNC Milling Machine (2014)

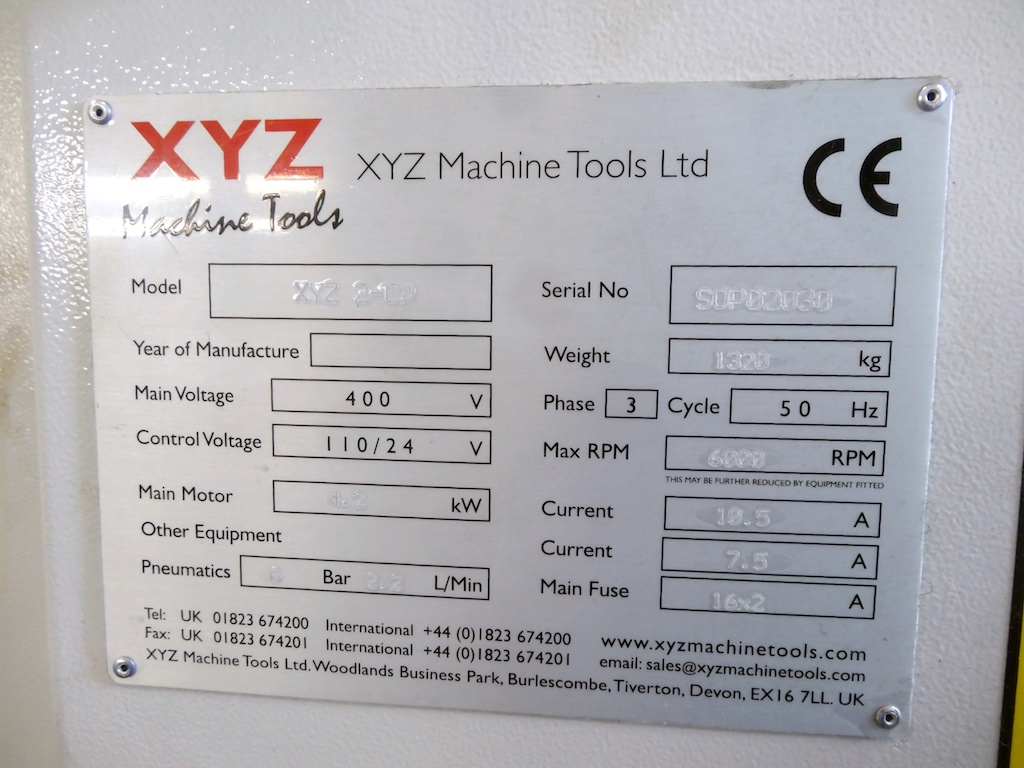

S/n: SOP02030
Date: 2014
X Travel 355 mm
Y Travel 305 mm
Z Travel 455 mm
Table size 457 x 381 mm
Spindle to table 70 – 525 mm
Rapid feed XYZ axis 15 M/min Box Way
Max table load 250 kg
T slot size 16 mm
T slot number & pitch 4 @ 63 mm
Spindle speed 50 – 6,000 rpm max
Spindle motor 3 hp

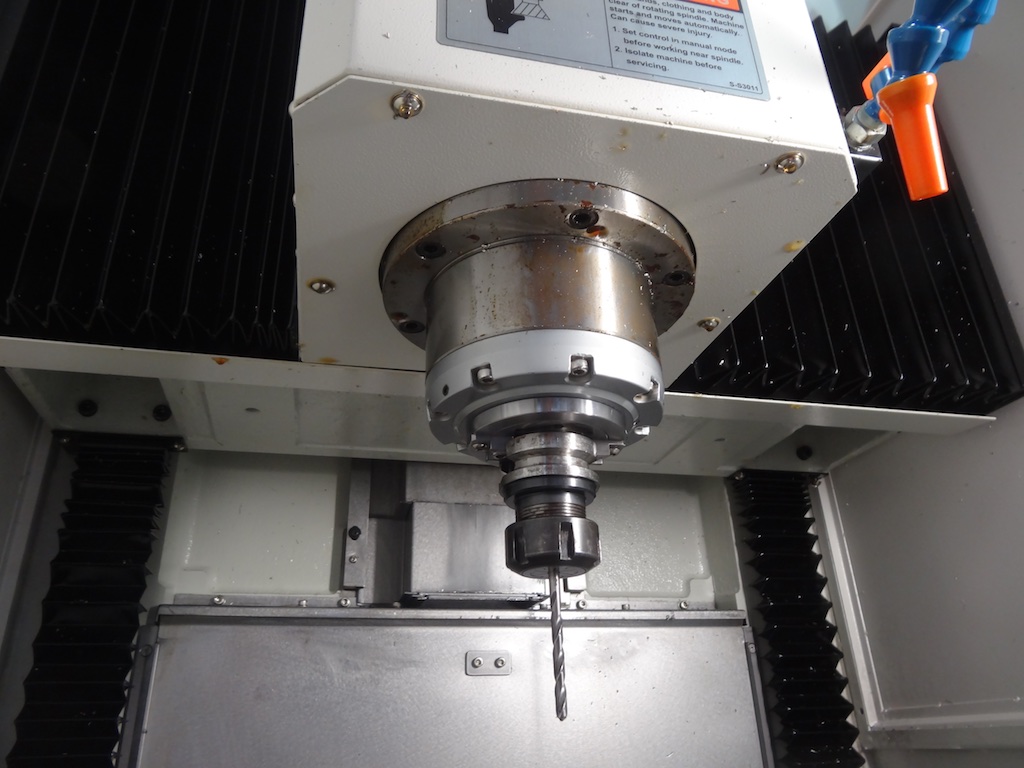

Spindle taper BT 30

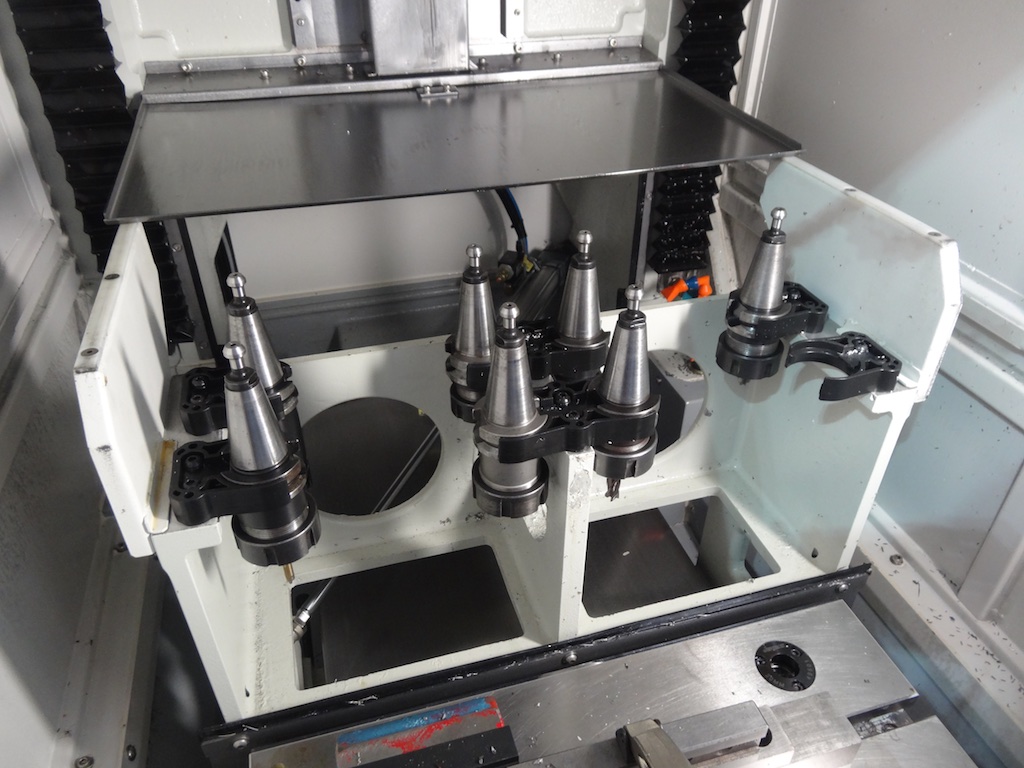

Tool magazine capacity 8 station
Max tool diameter 50 mm
Weight: 1320 kgs
Footprint W x D x H 760 x 1,220 x 2,565 mm
Protrak TMX Control

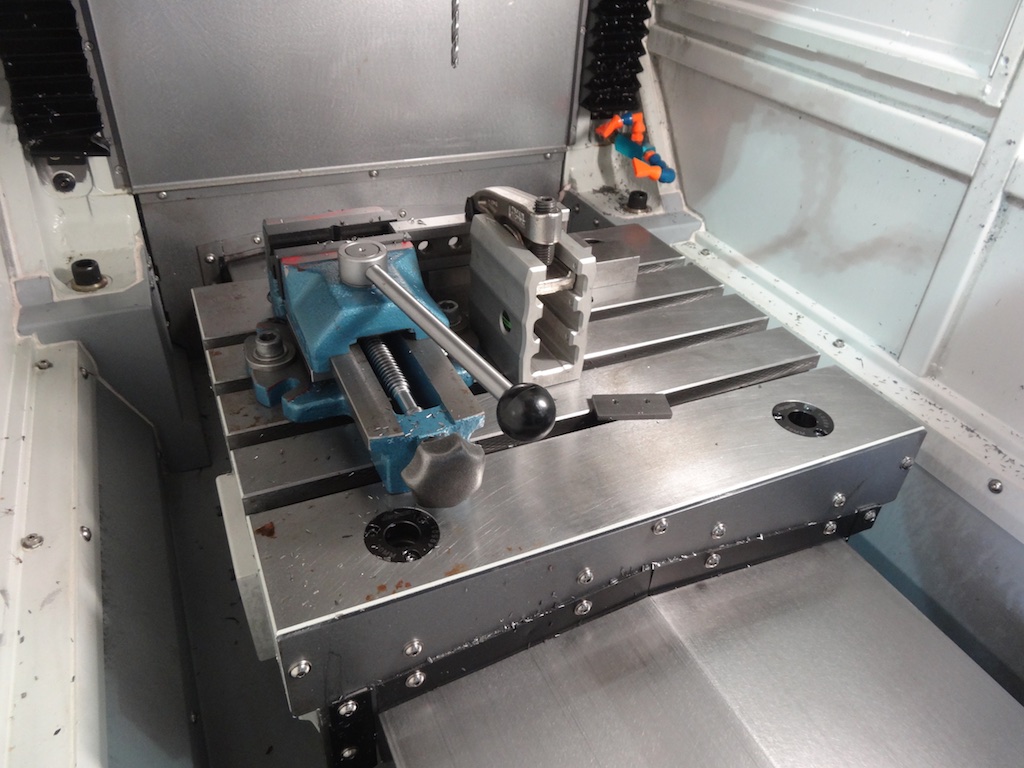

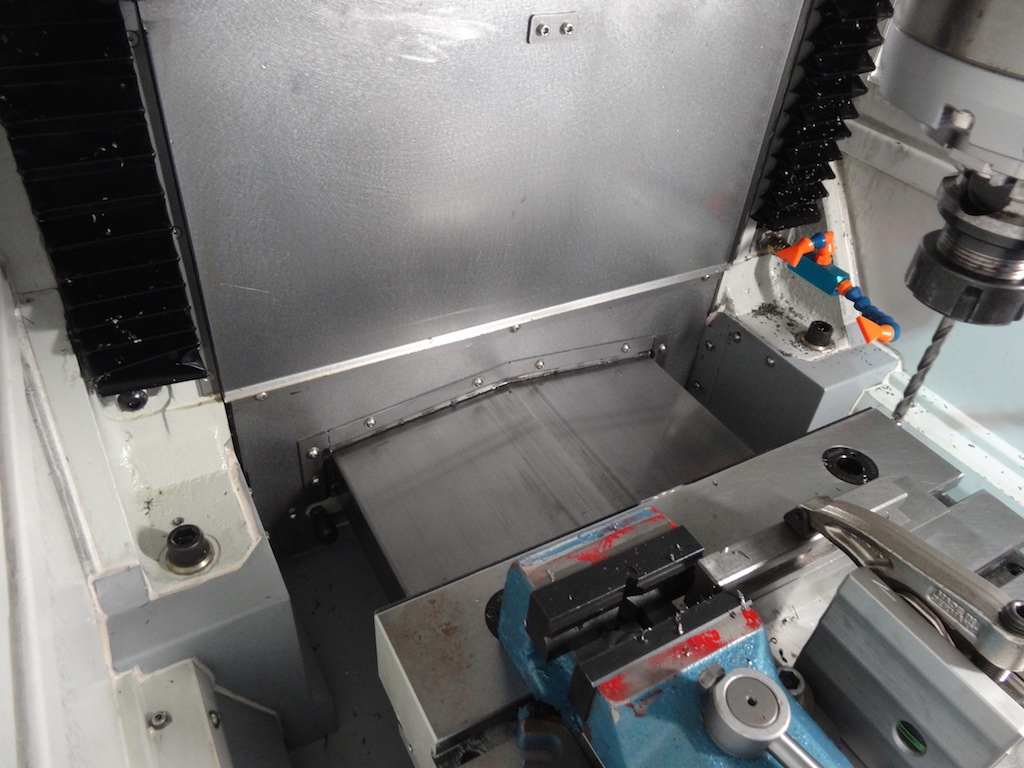

Table: 390 x 460mm with 4 x 30mm T Slots 50mm Apart

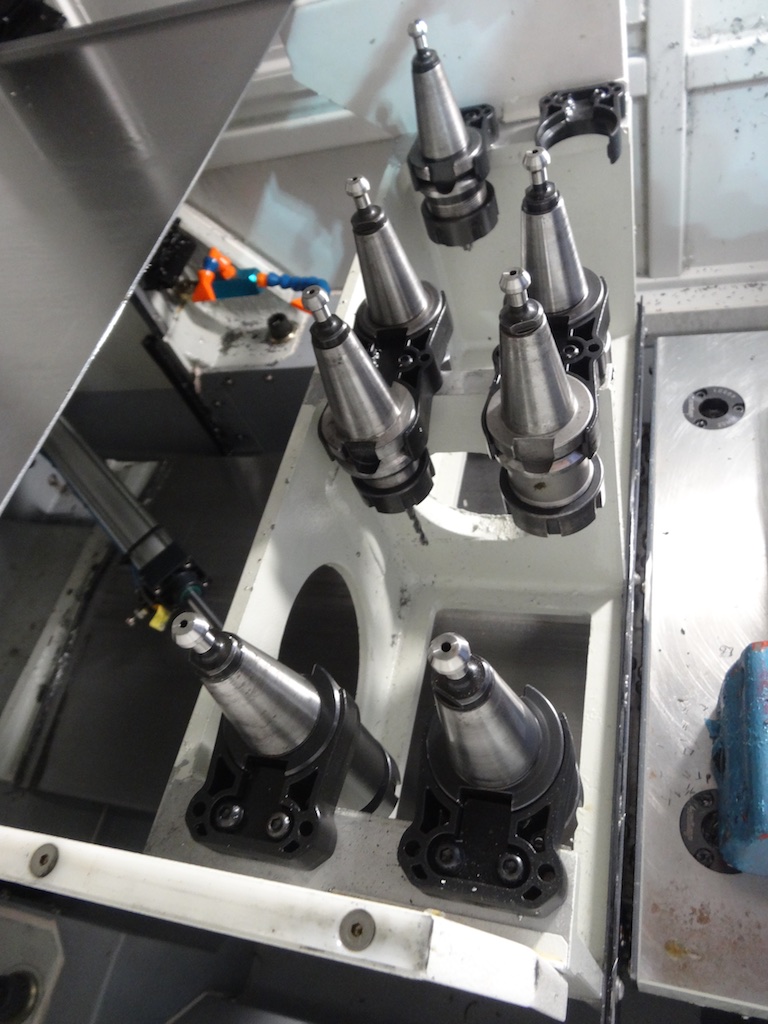

Tool holders – BT30, eight pieces of assorted sizes.
Pull Studs – 30 taper

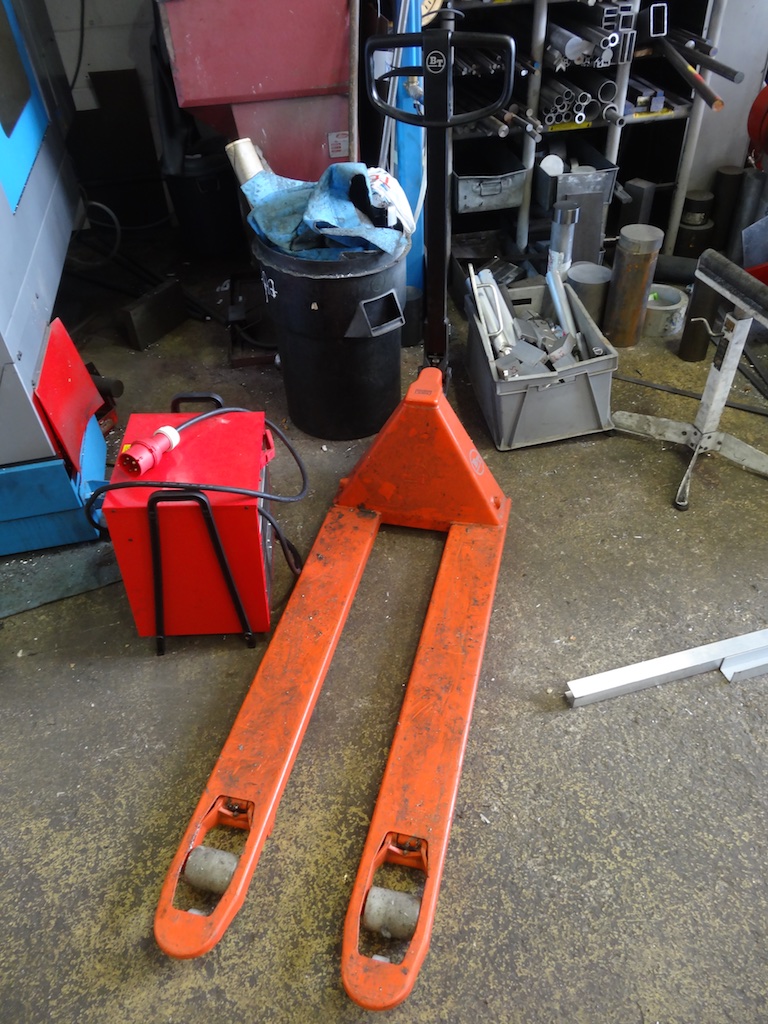

Pallet Truck Included
ProtoTRAK® System Hardware

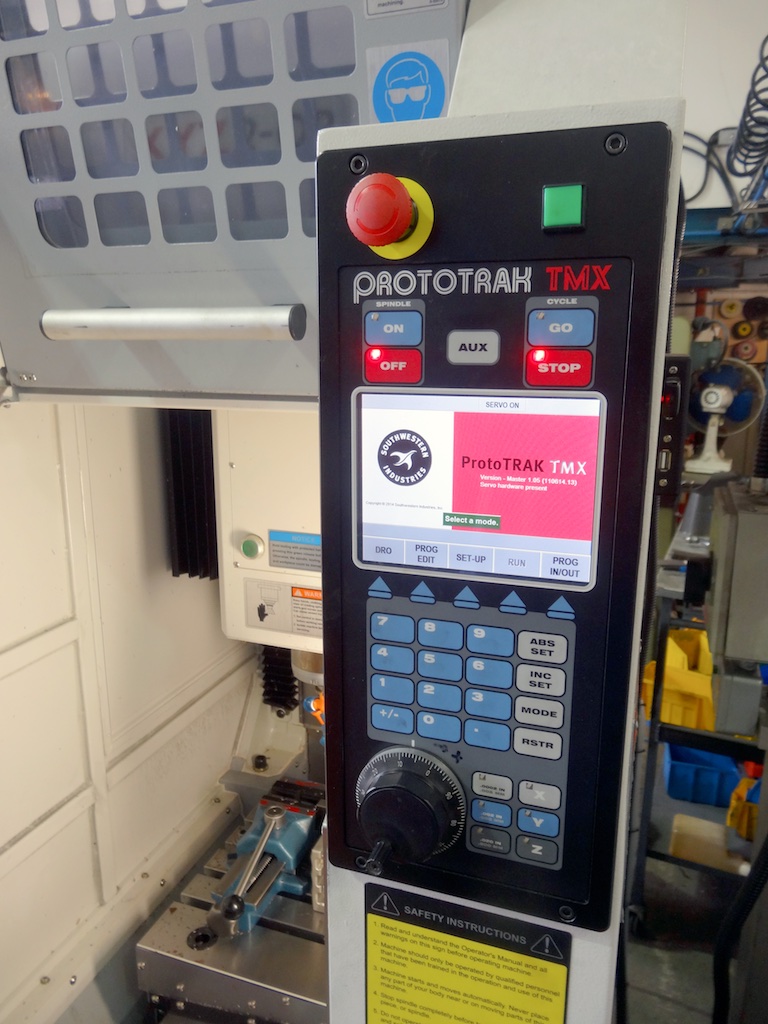

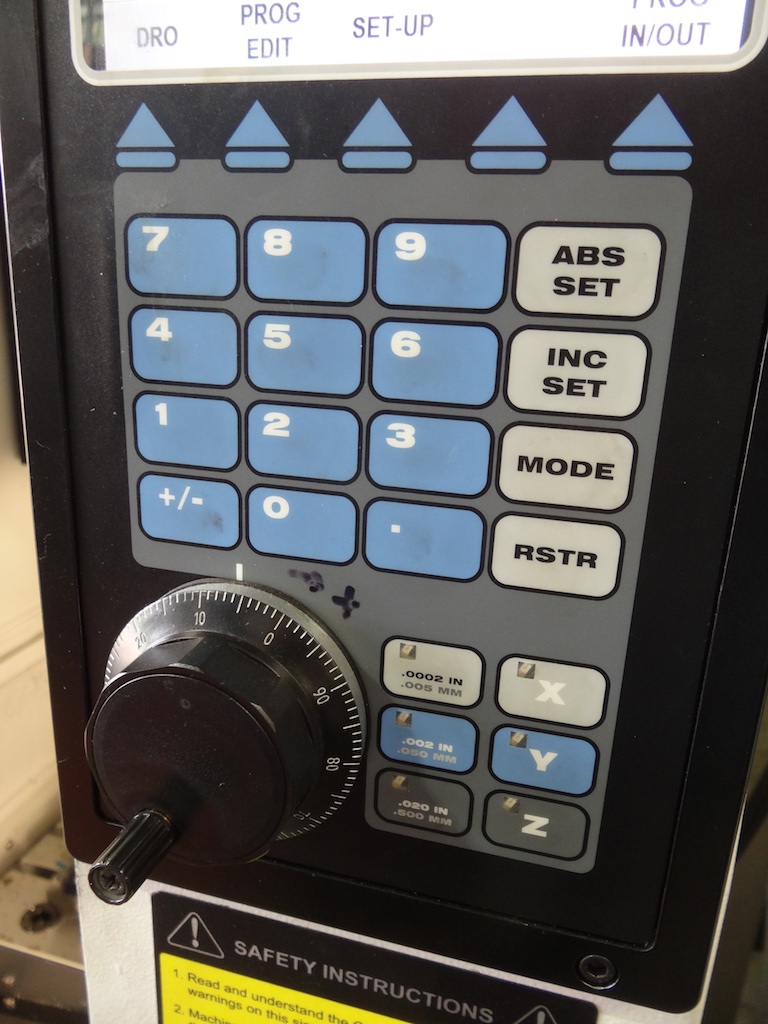

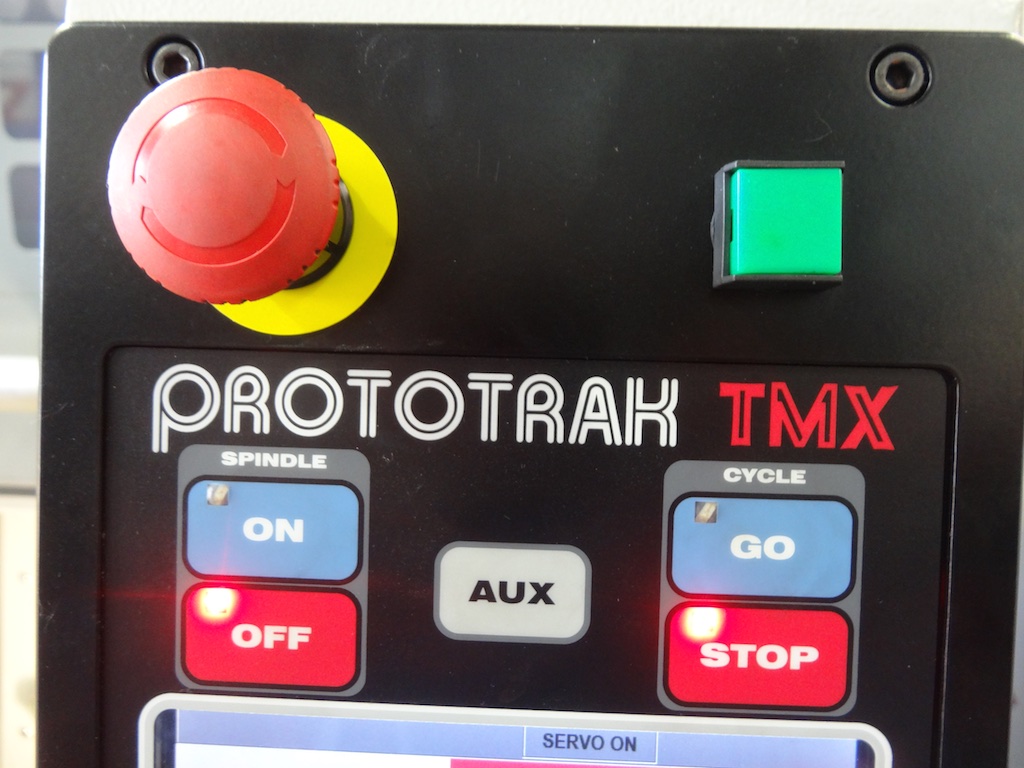

ProtoTRAK® TMX CNC
Three-axis CNC and DRO

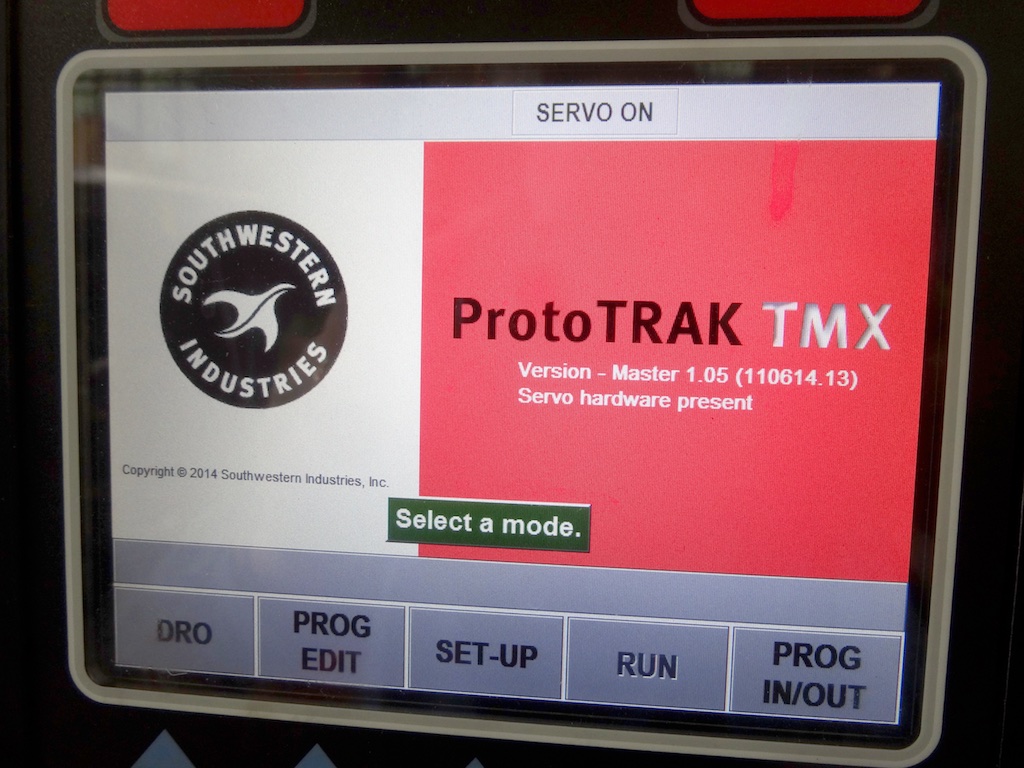

5” active-matrix colour LCD screen
2 USB ports
LED status lights built into display
Uncluttered front panel with few hard keys
Beacon light
Override of program spindle speed
Coolant pump
Software Features
Clear, uncluttered screen display
Prompted data inputs
English language – no codes
Soft keys – change within context
Windows® operating system
Three-axis CNC
Inch/mm selectable
Absolute home location
Canned cycles – pockets, profiles, bolt hole patterns, etc.
Rigid Tapping
Reference to ball lock locations on table
Manuals
Vice and clamps Not included

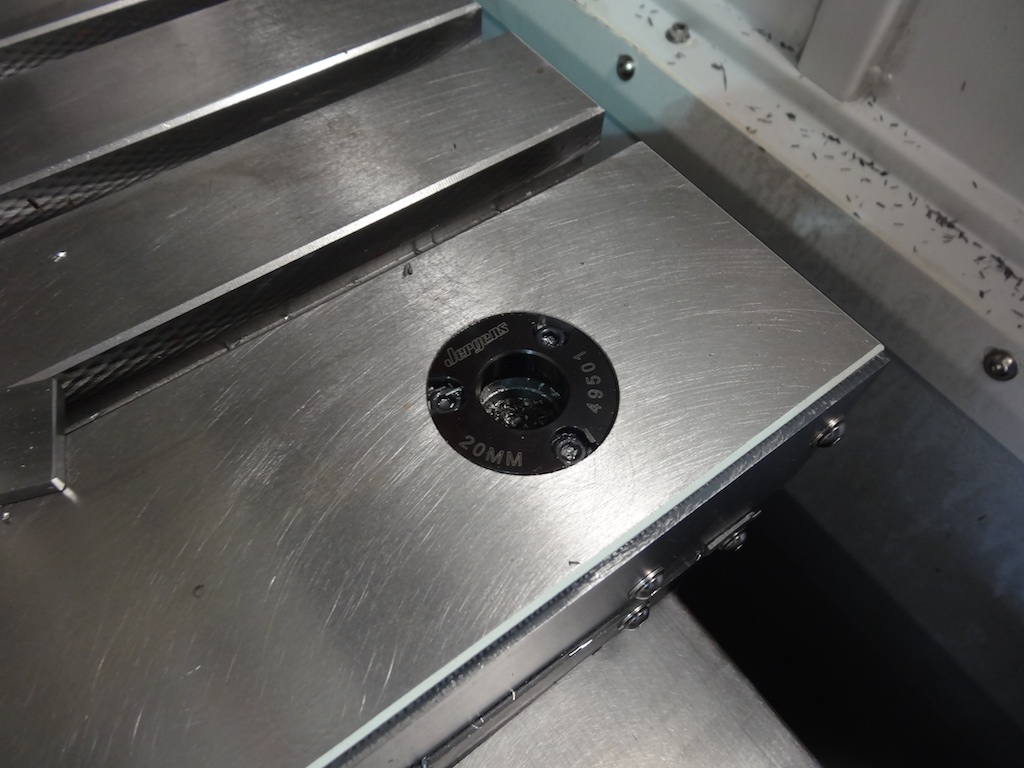

Table has a Ball Lock Mechanism system which Holds down 1020kg when 4Nm of torque applied, 300mm apart. Jergans 20mm 49561
