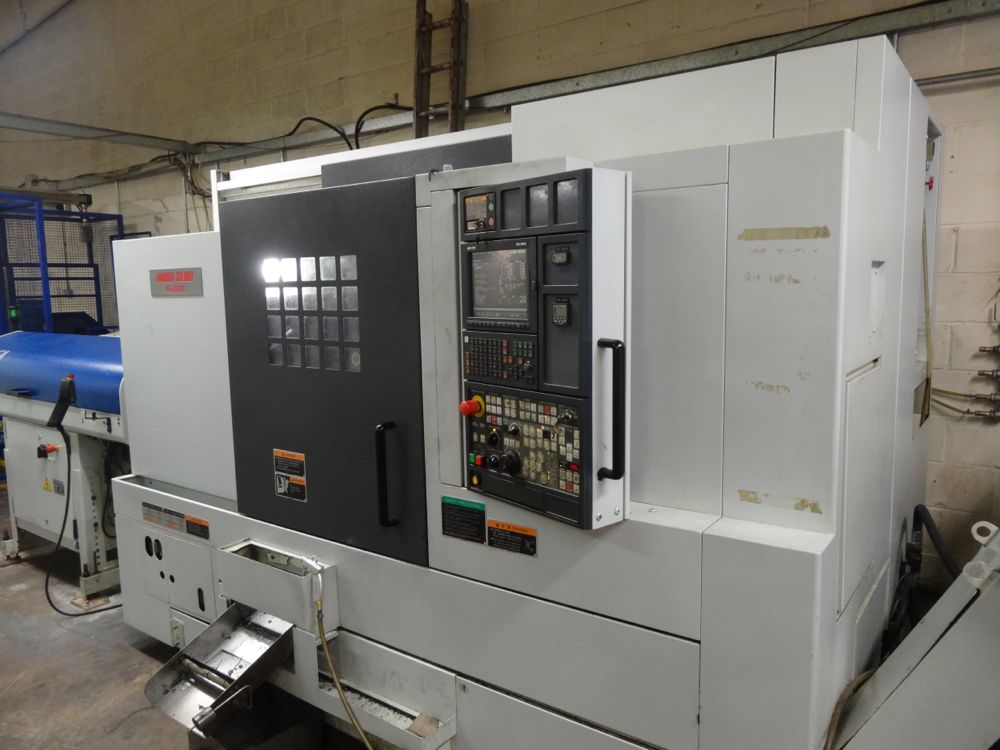

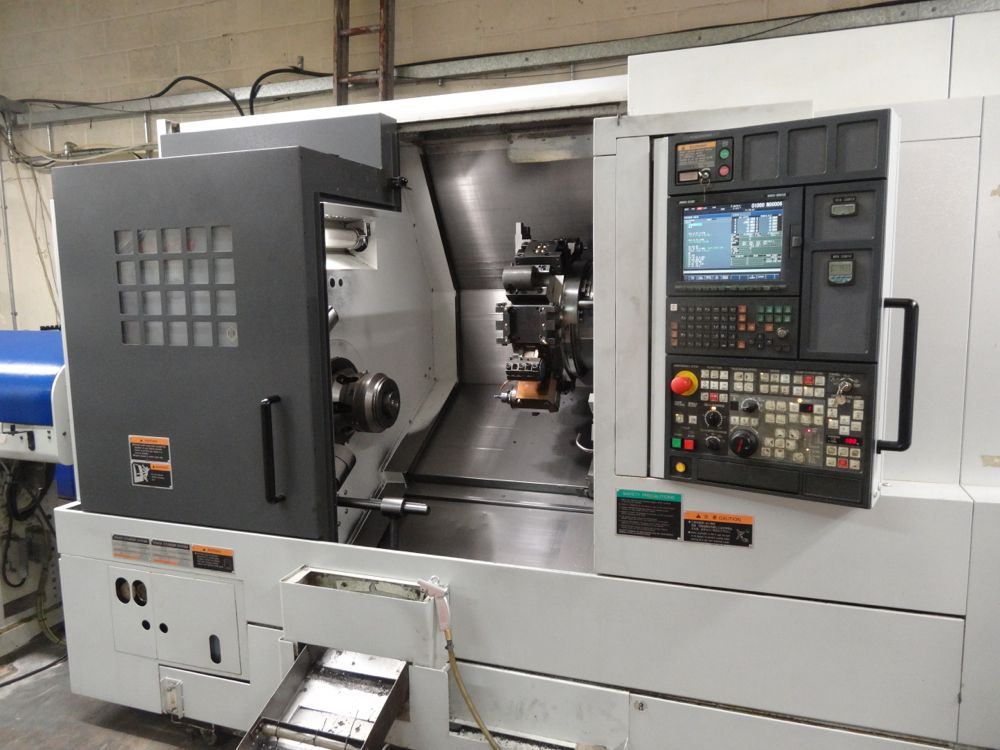

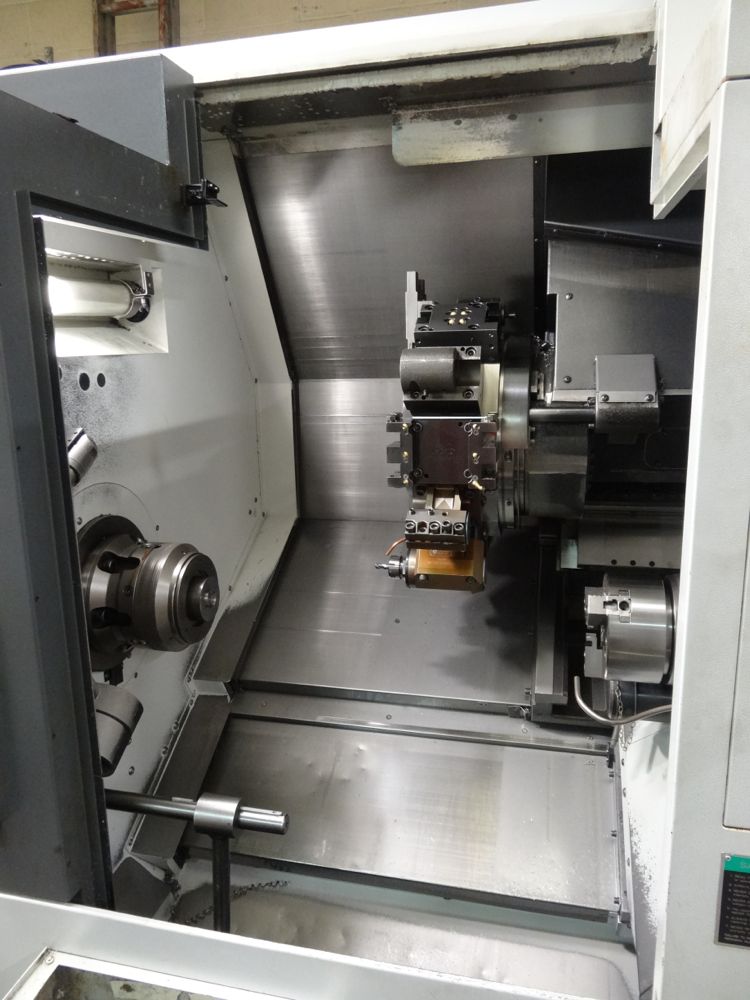

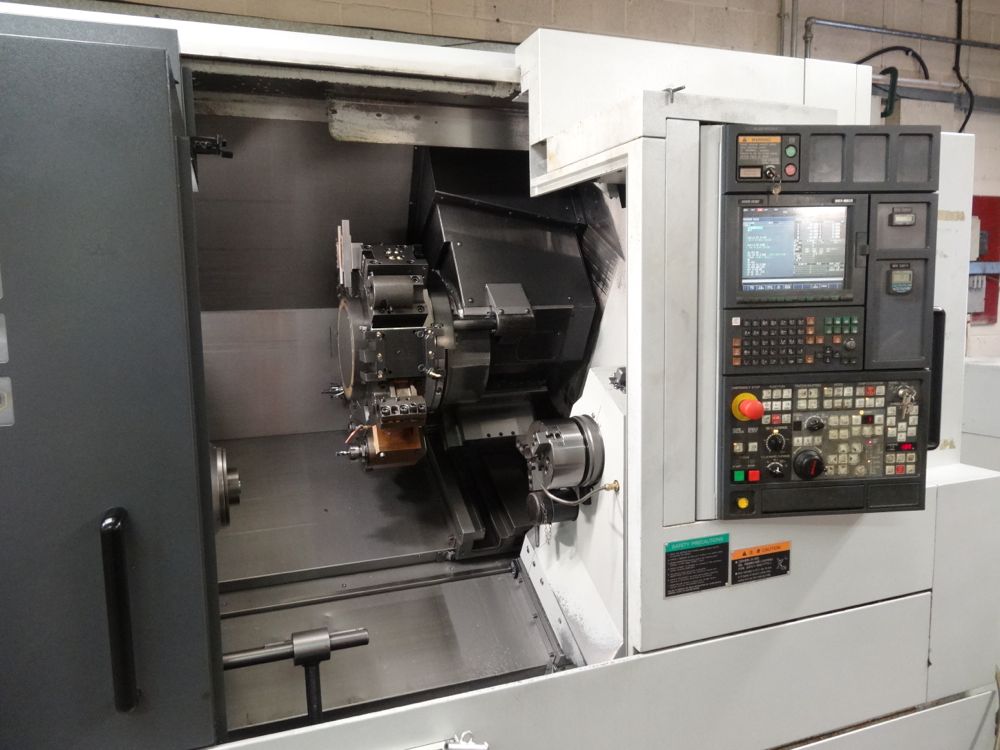

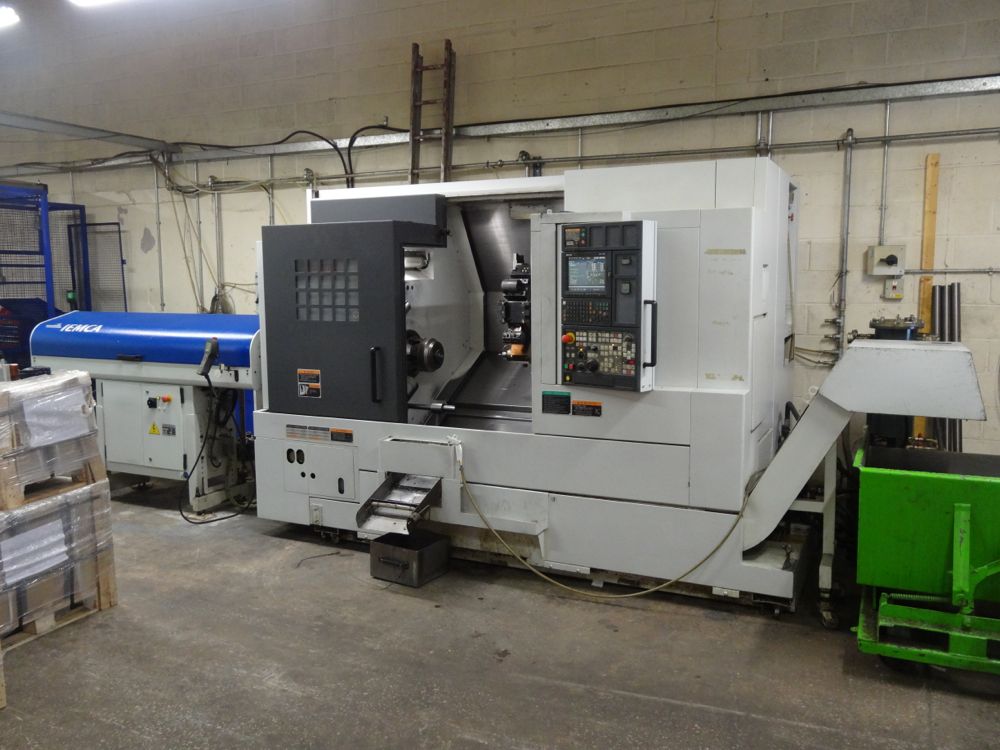

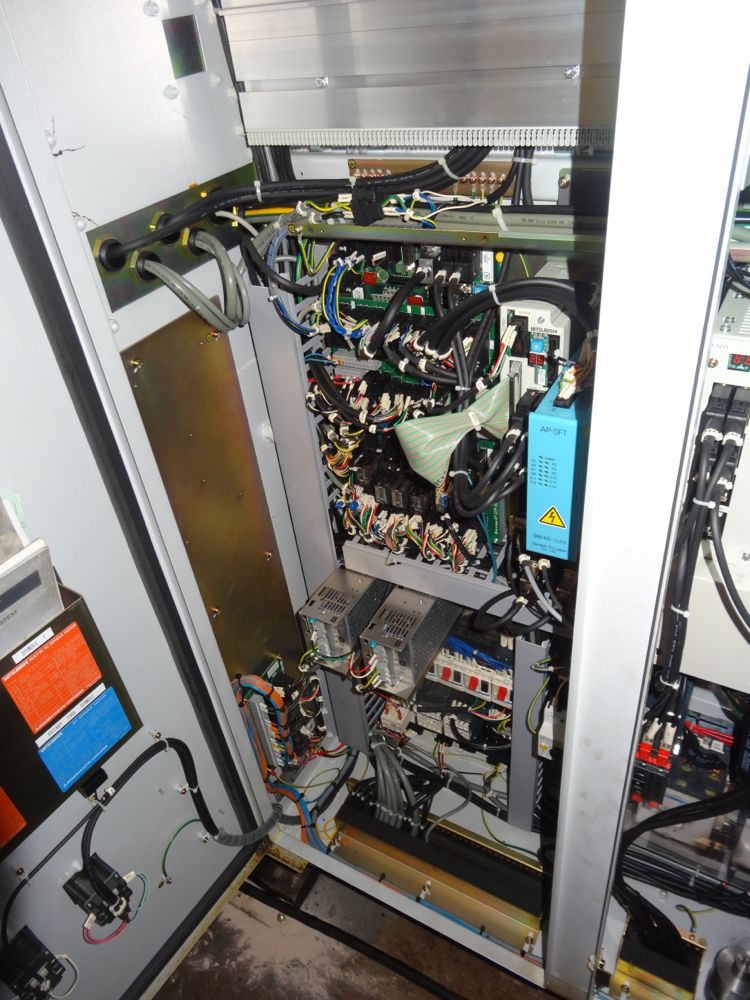

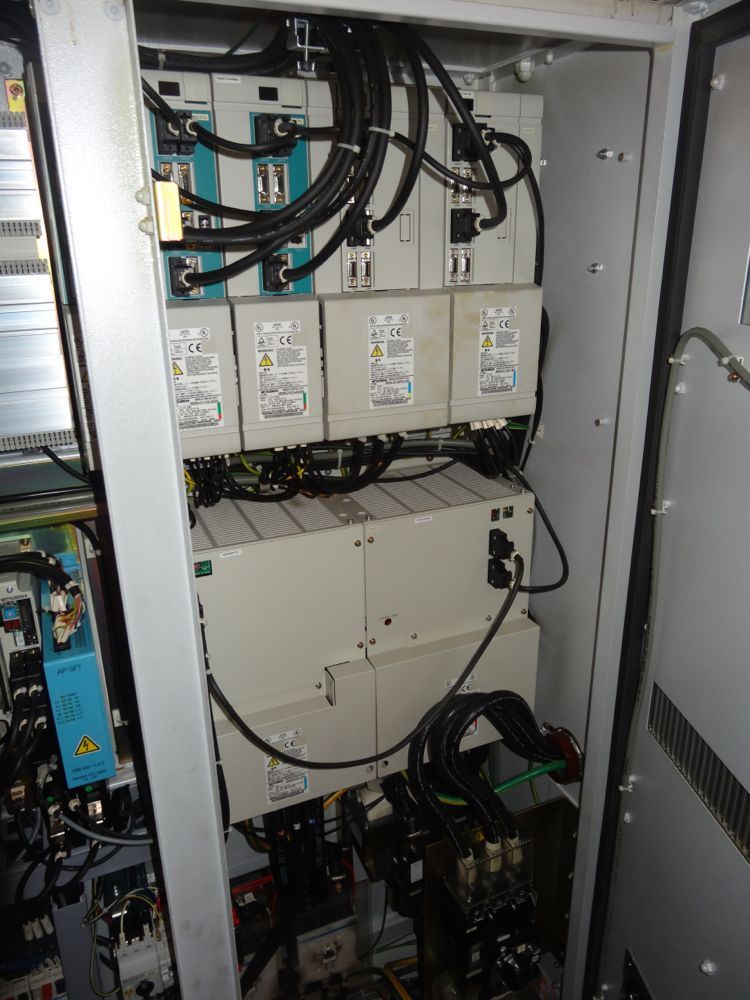

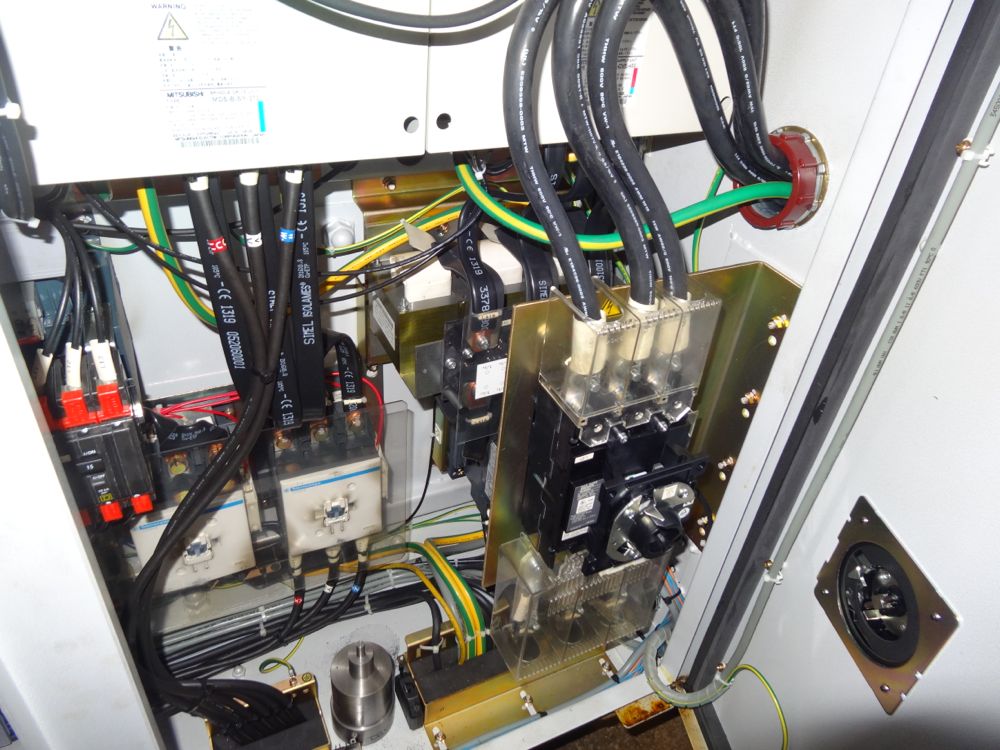

MORI SEIKI NL2500SY/700 5 Axis CNC Lathe (2006)

Lot 1 - MORI SEIKI NL2500SY/700 5 Axis CNC Lathe (2006)

Description:

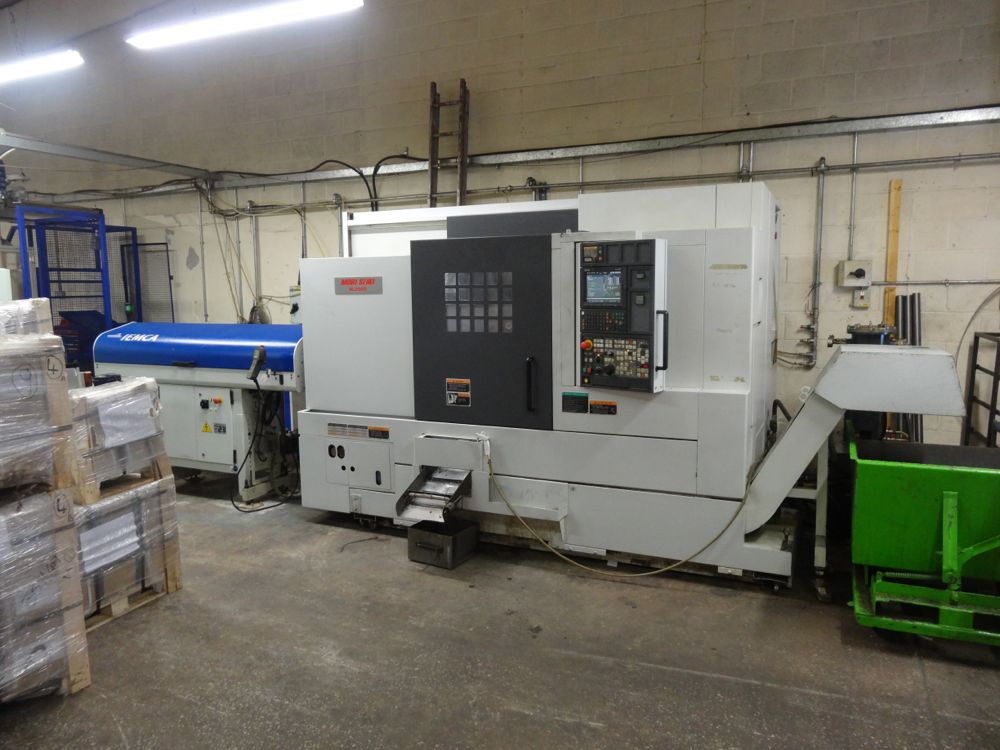

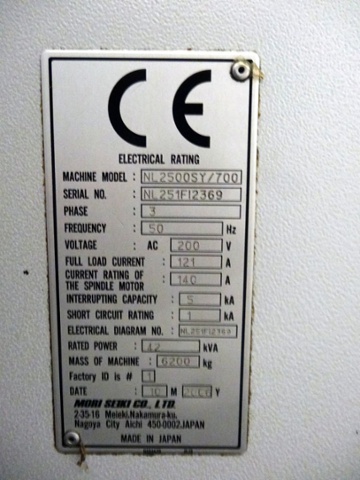

MORI SEIKI CNC LATHE NL2500SY/700 (Year 10/2006)

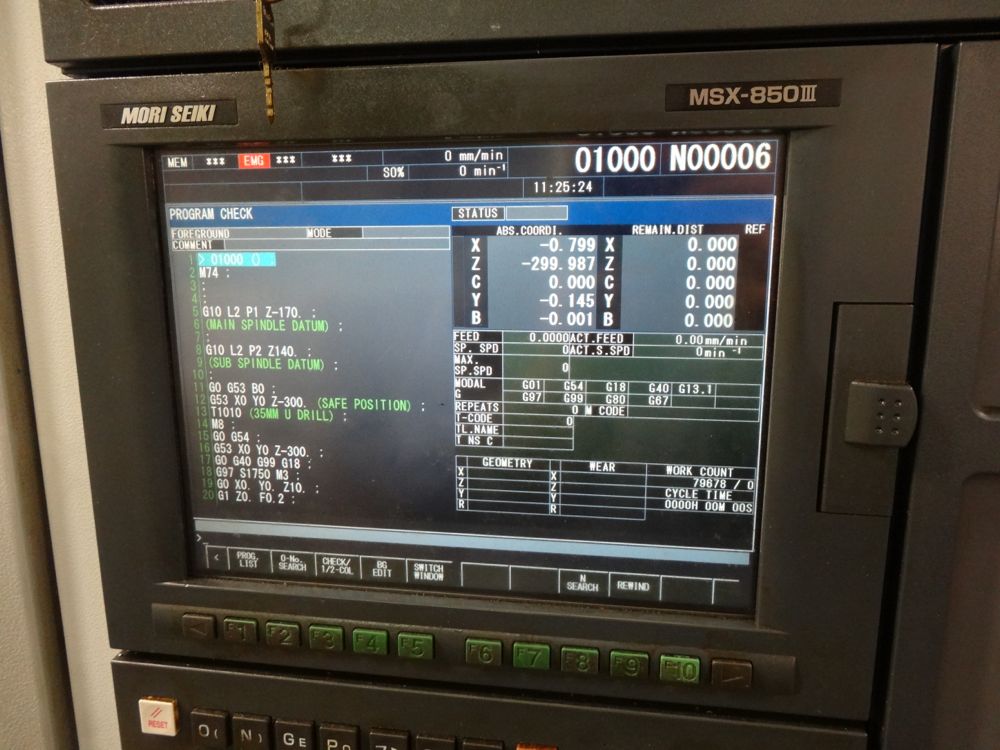

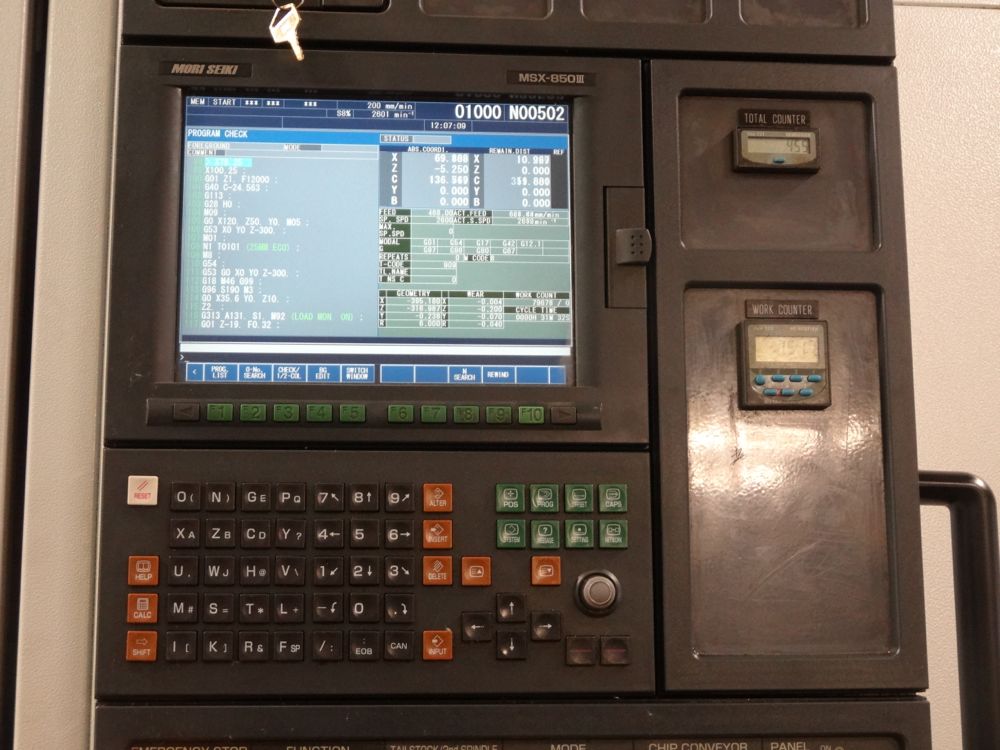

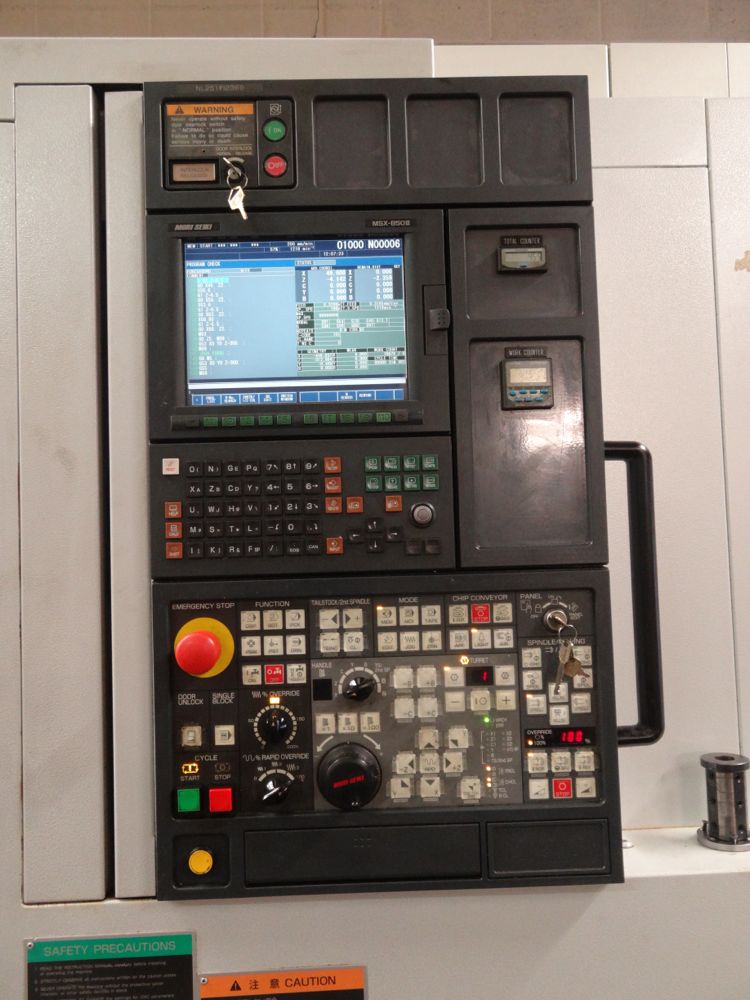

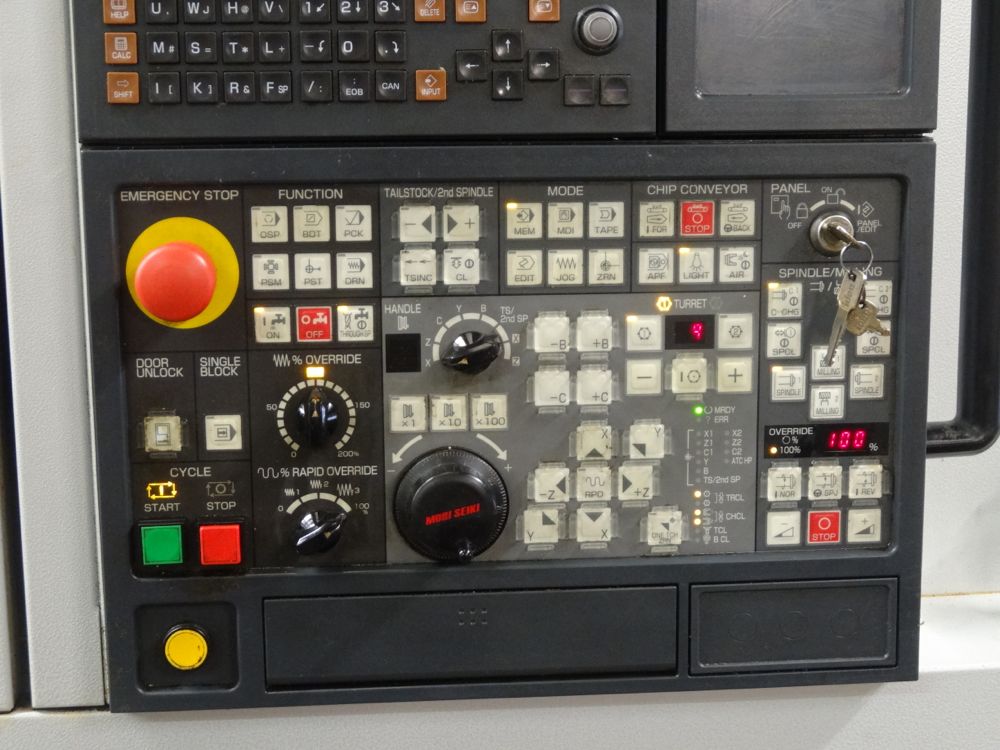

WITH MITSUBISHI MSX-850BM MAPPS III CONTROL SYSTEM

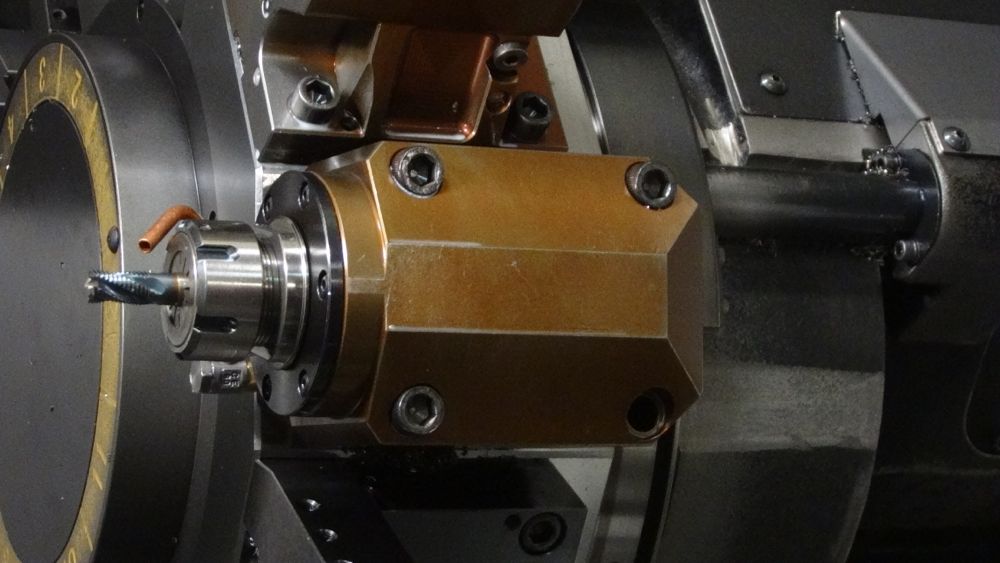

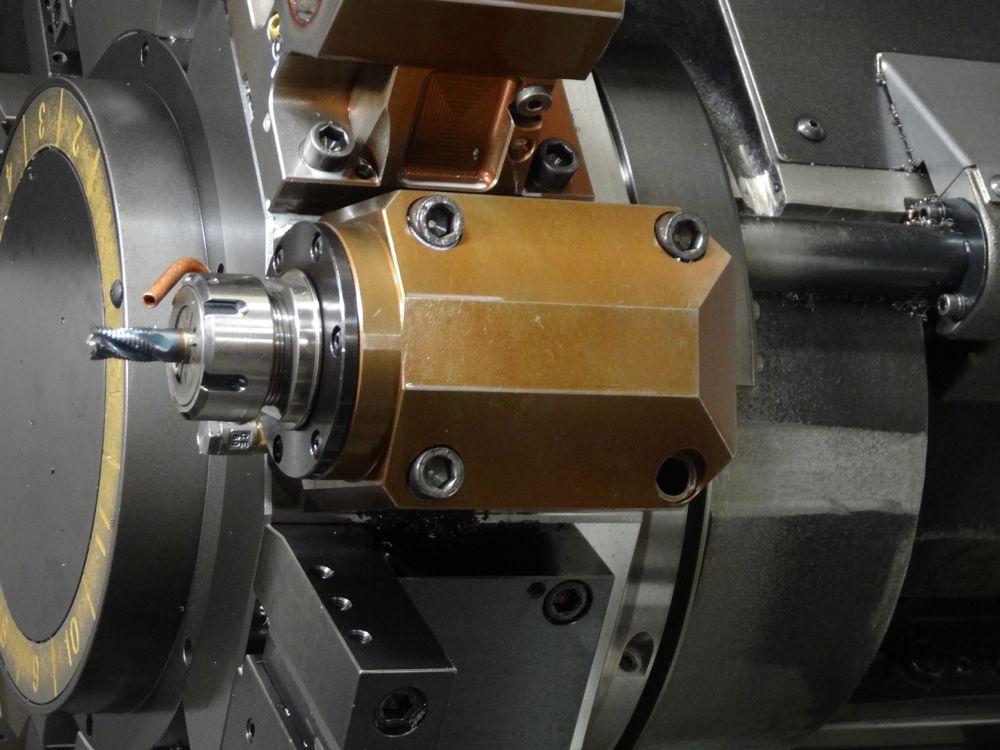

With Driven & Standard Tooling package and Iemca Barfeed

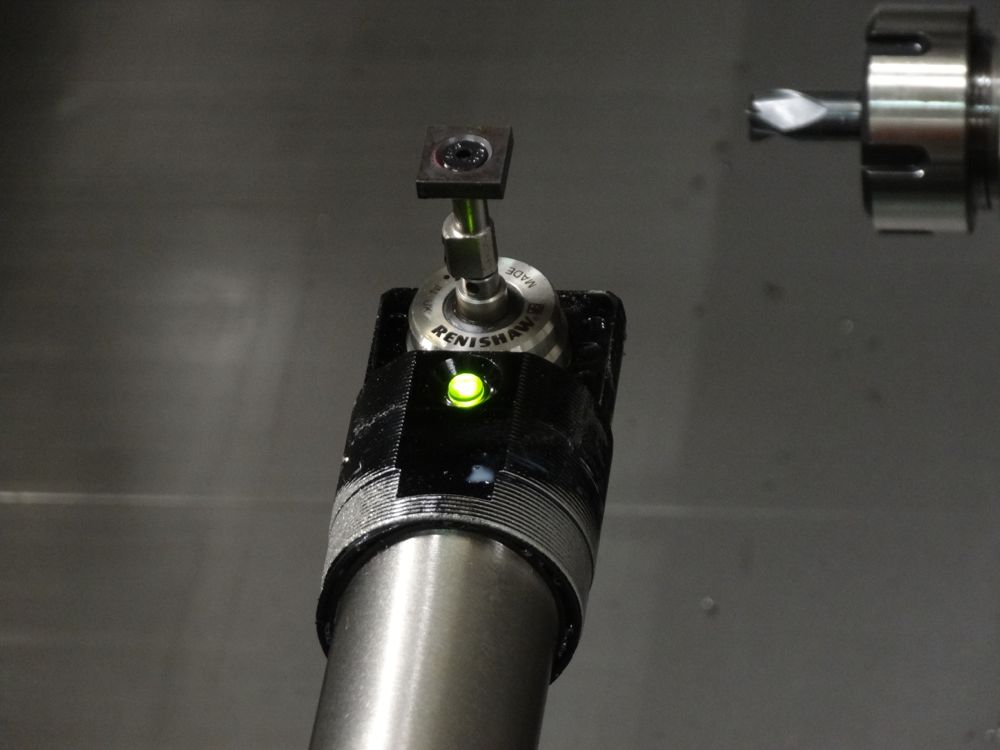

Toolsetter on both Main Spindle and Subspindle

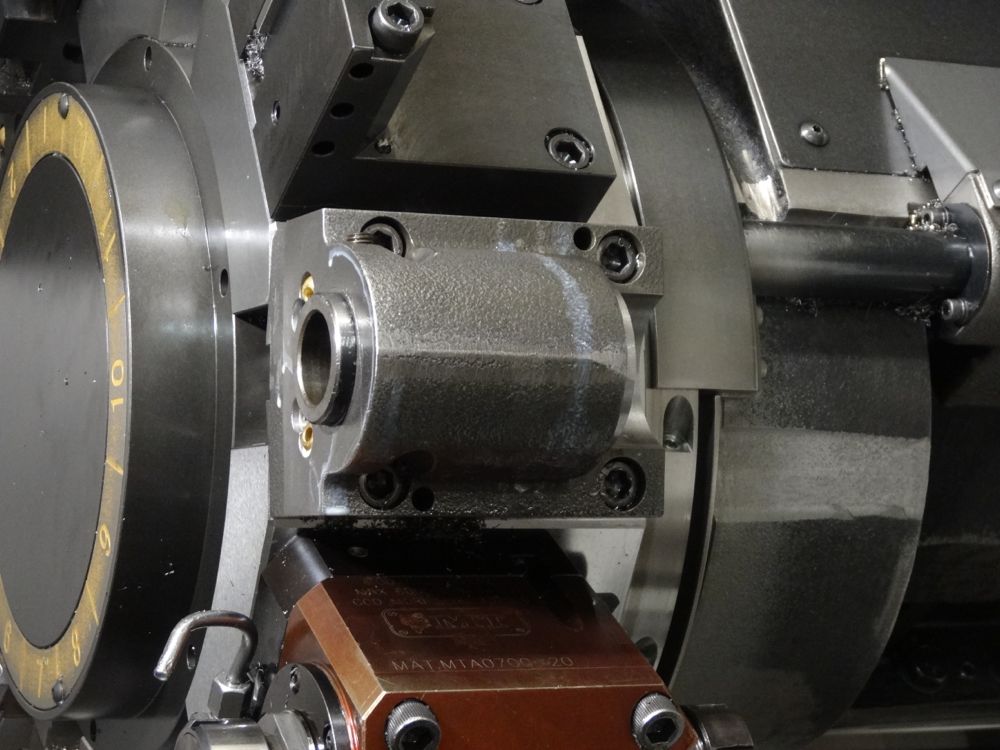

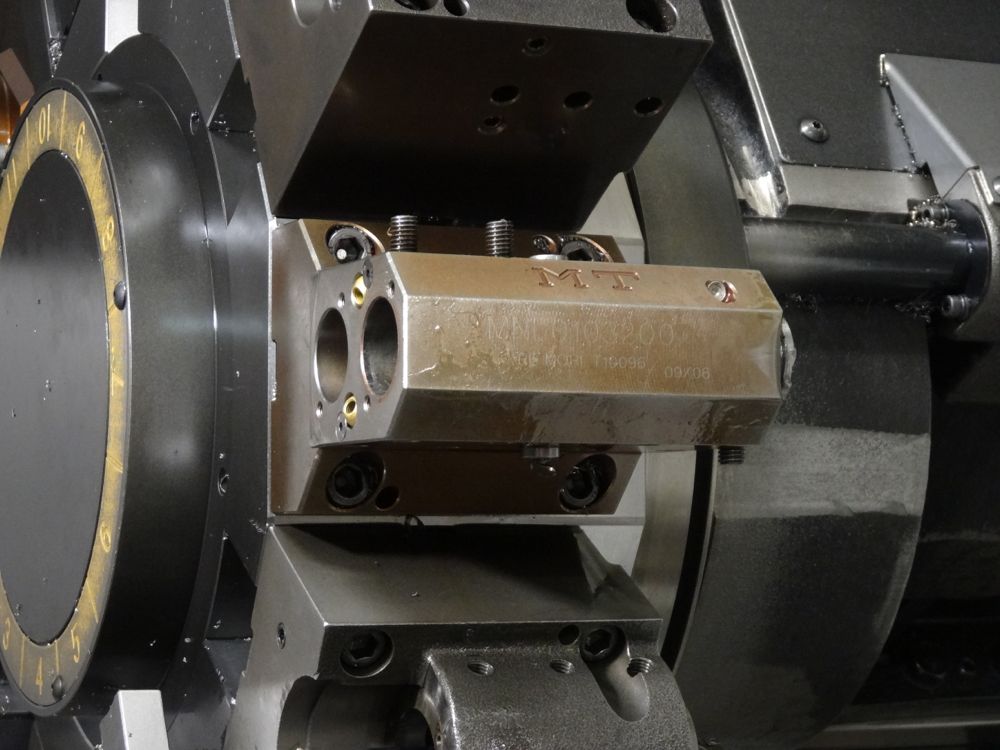

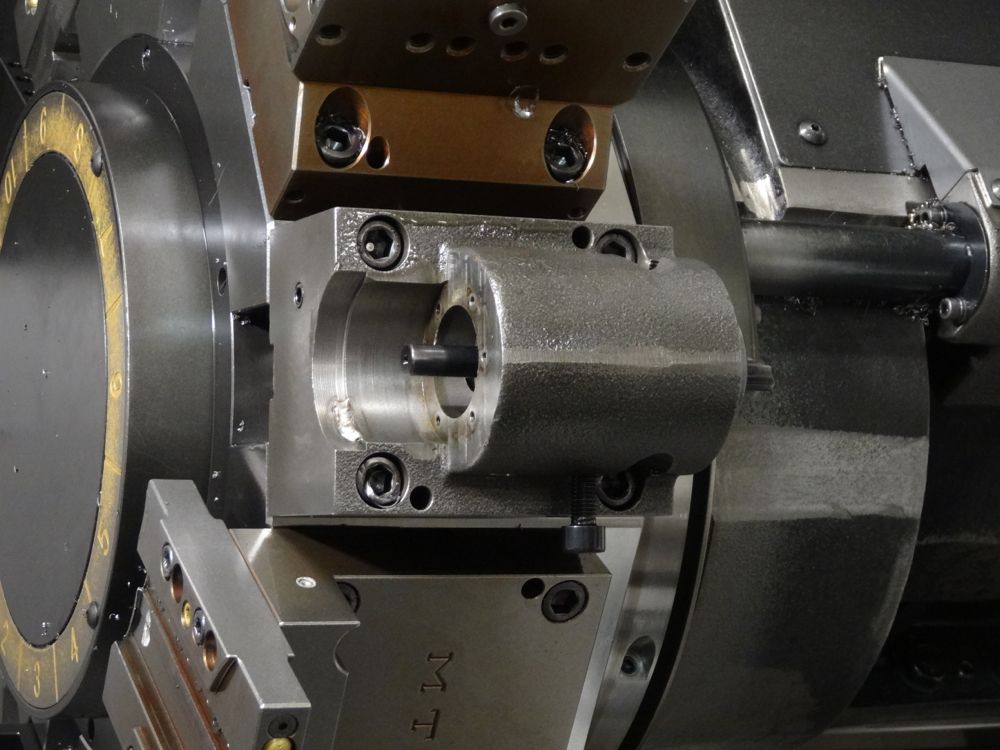

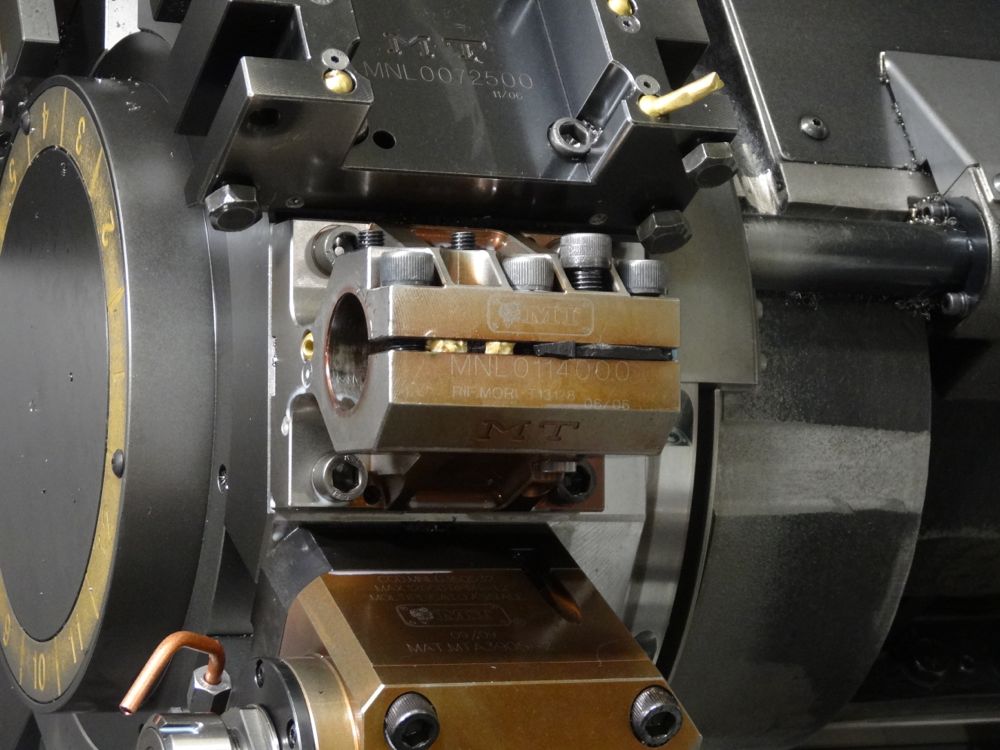

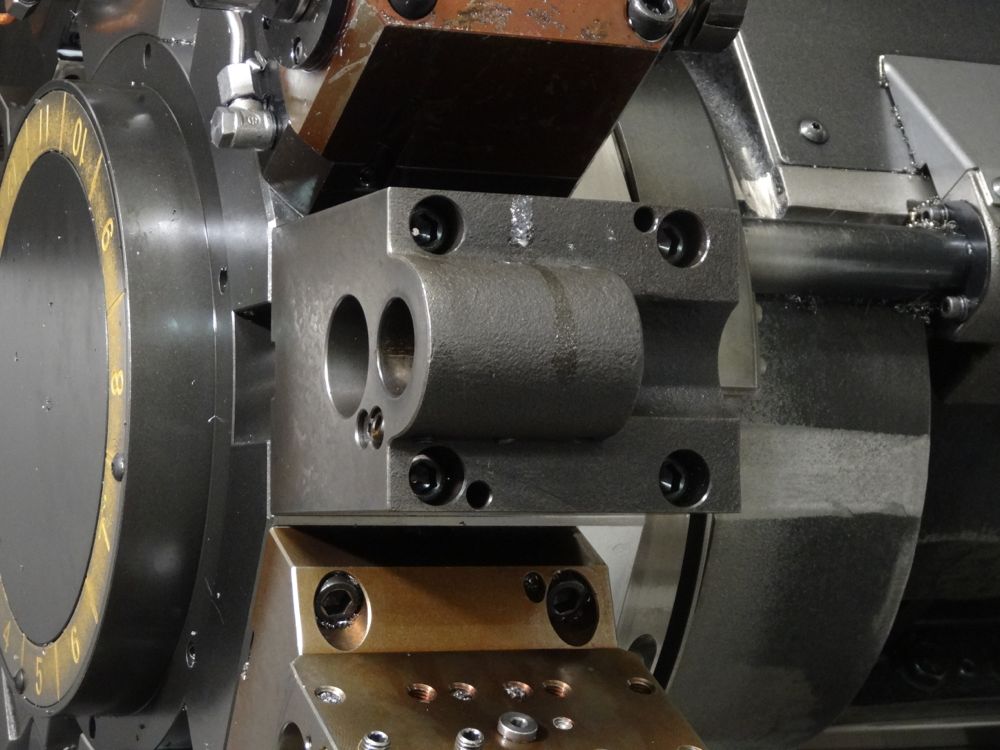

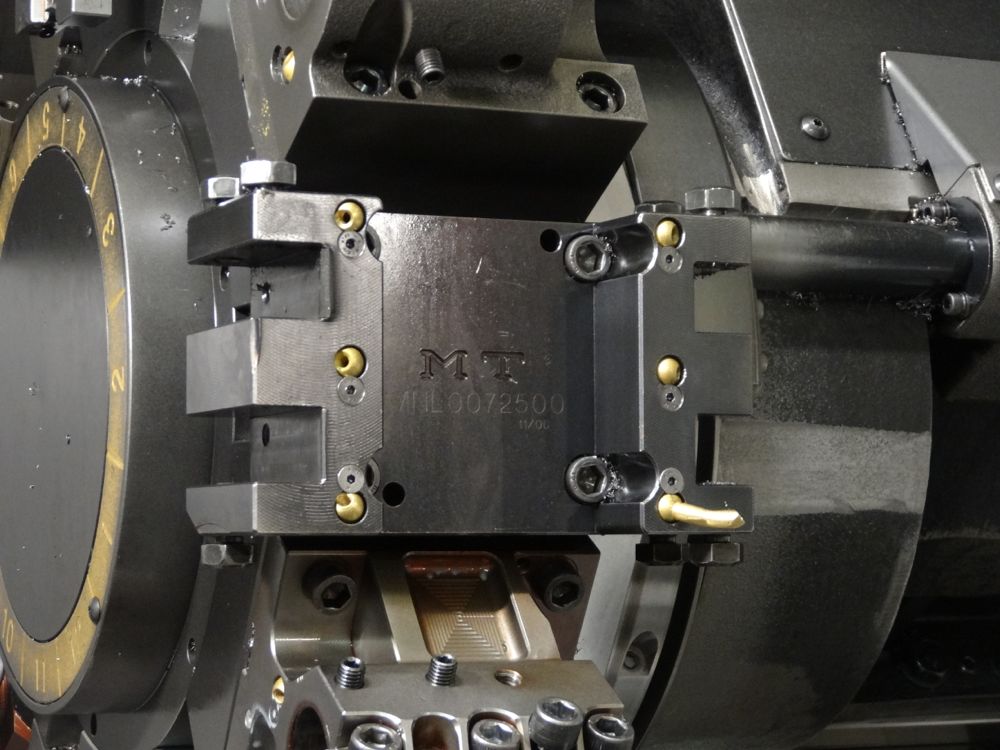

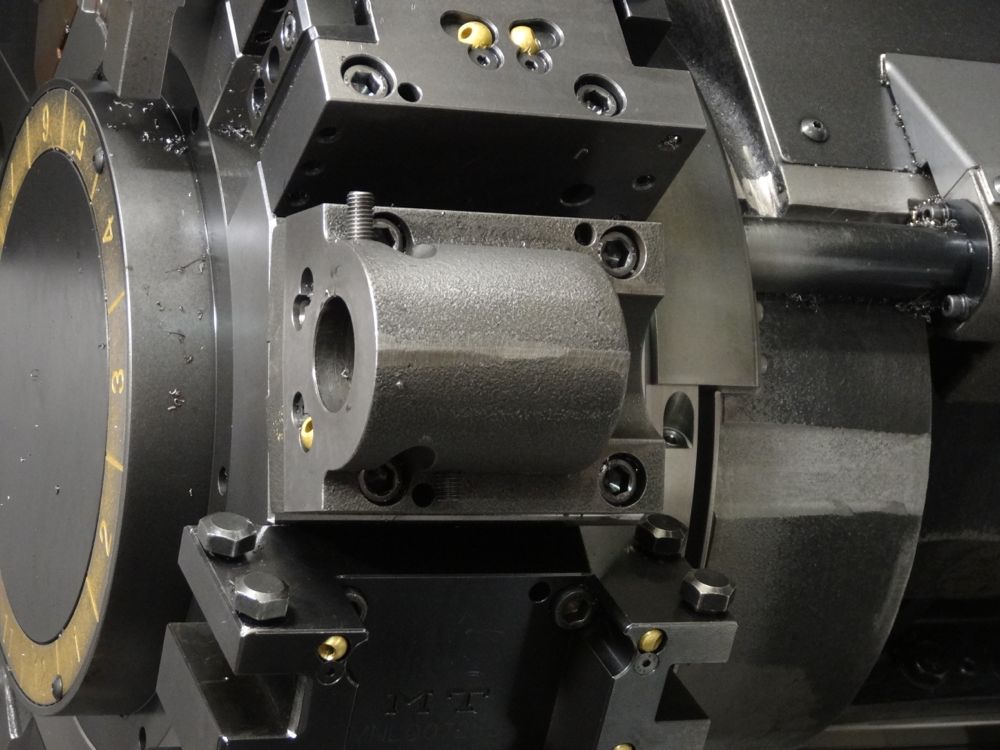

Tool Holder Package are as in photos.

STANDARD FEATURES

Main Spindle motor 18.5/15KW (4000min-1)

Sub Spindle motor 11/7.5KW (6000min-1)

Rotary Tool spindle motor 5.5/3.7KW (6000min-1)

Spindle orientation

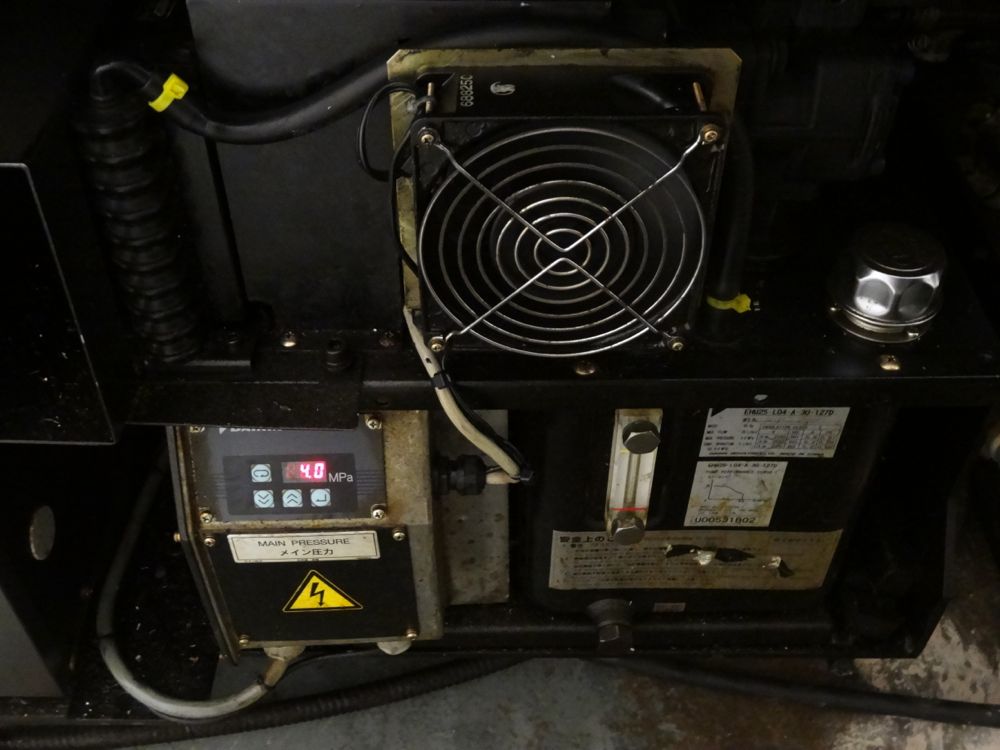

Inverter controlled oil cooler

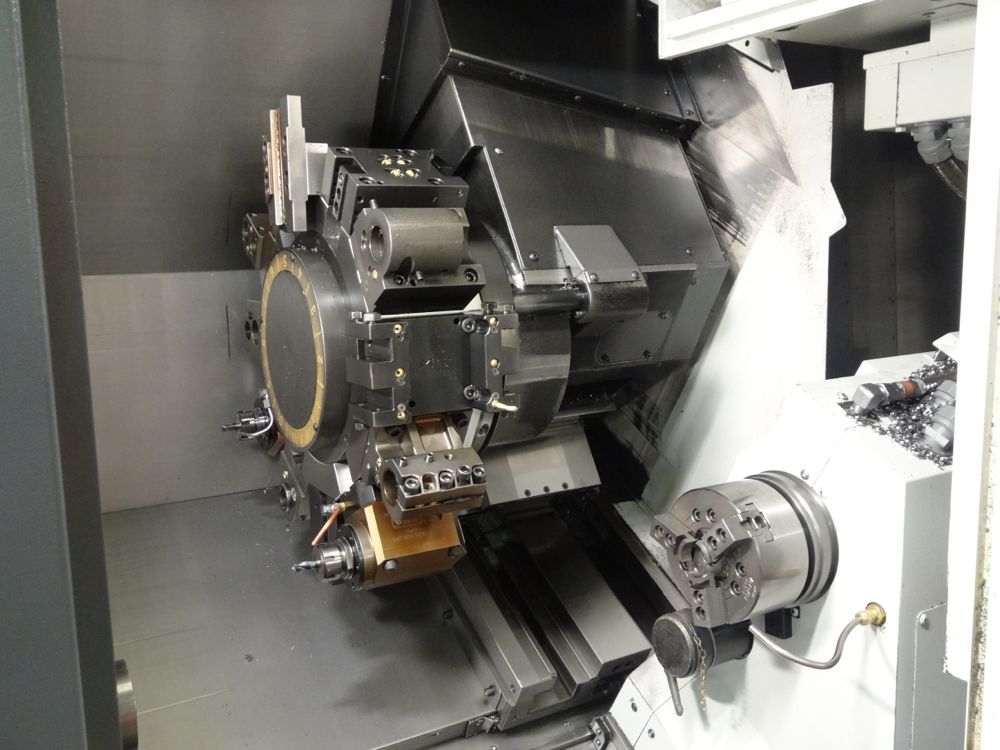

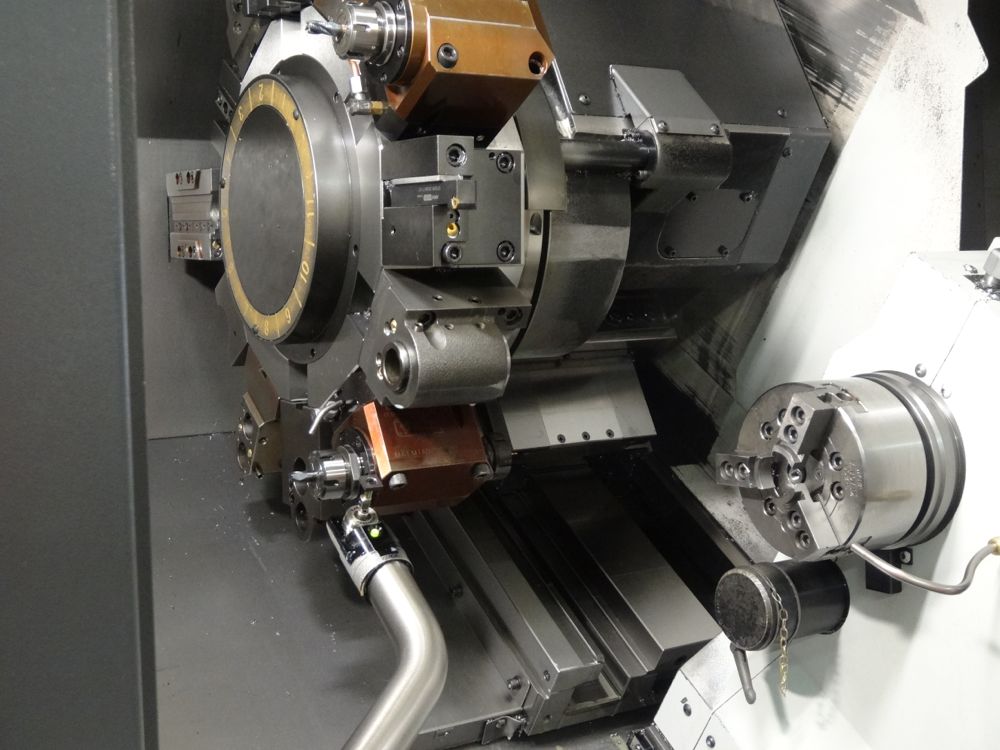

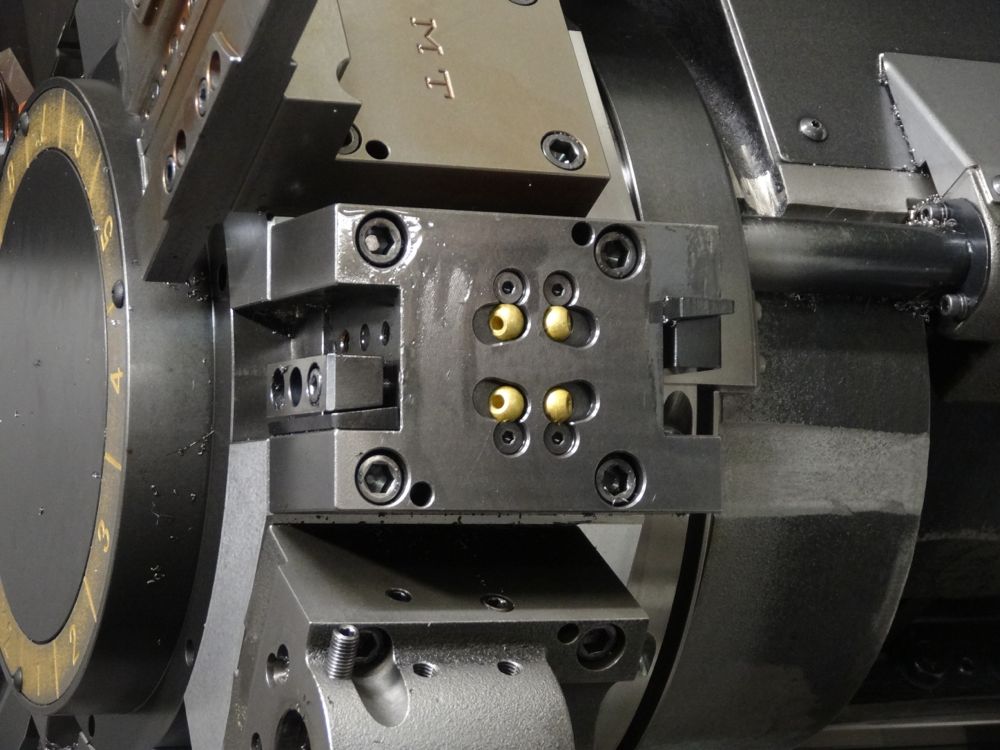

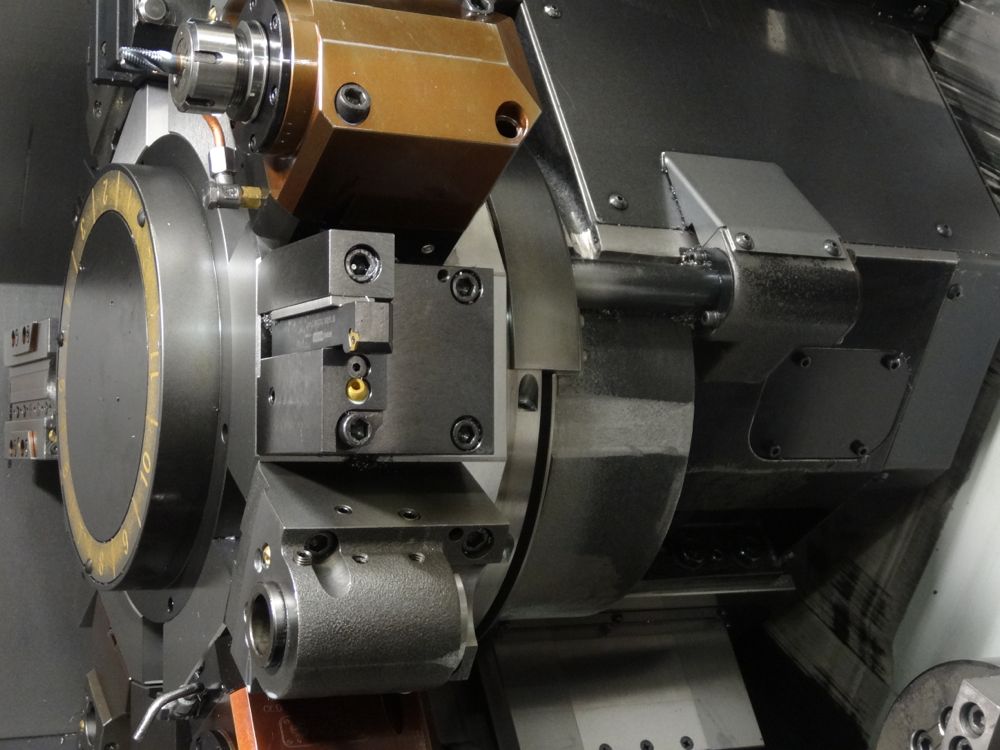

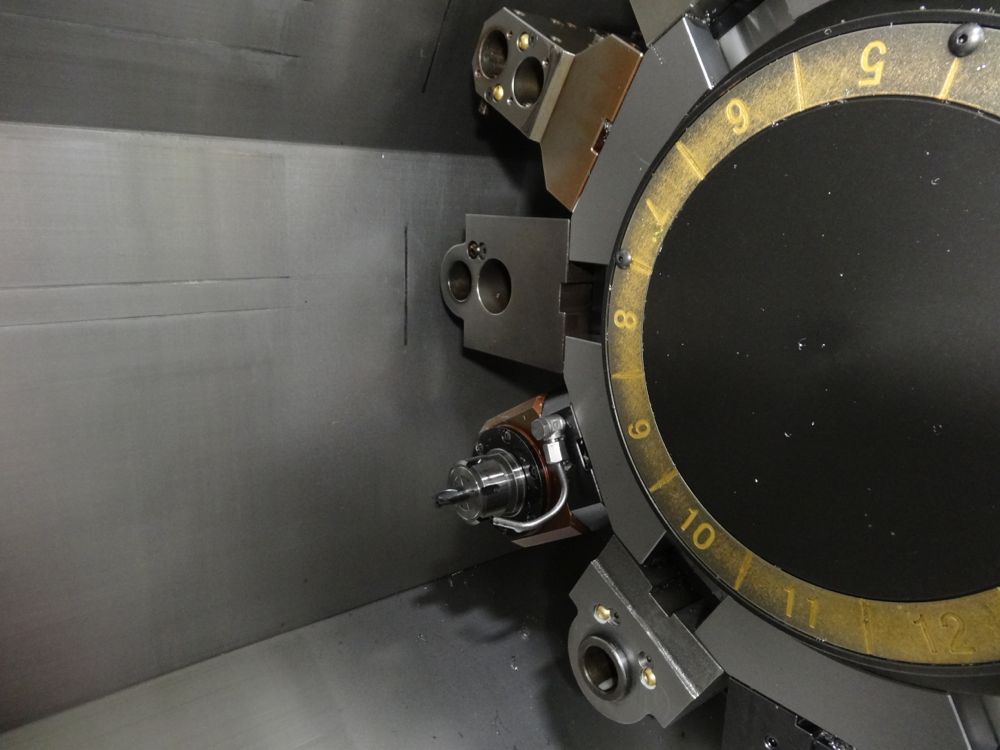

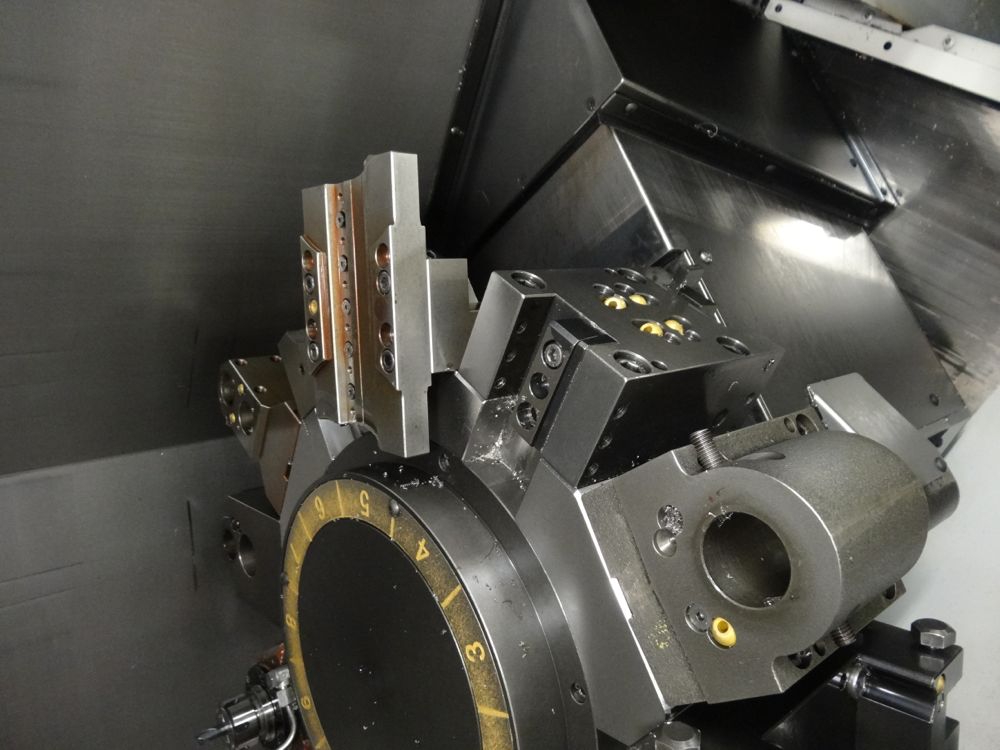

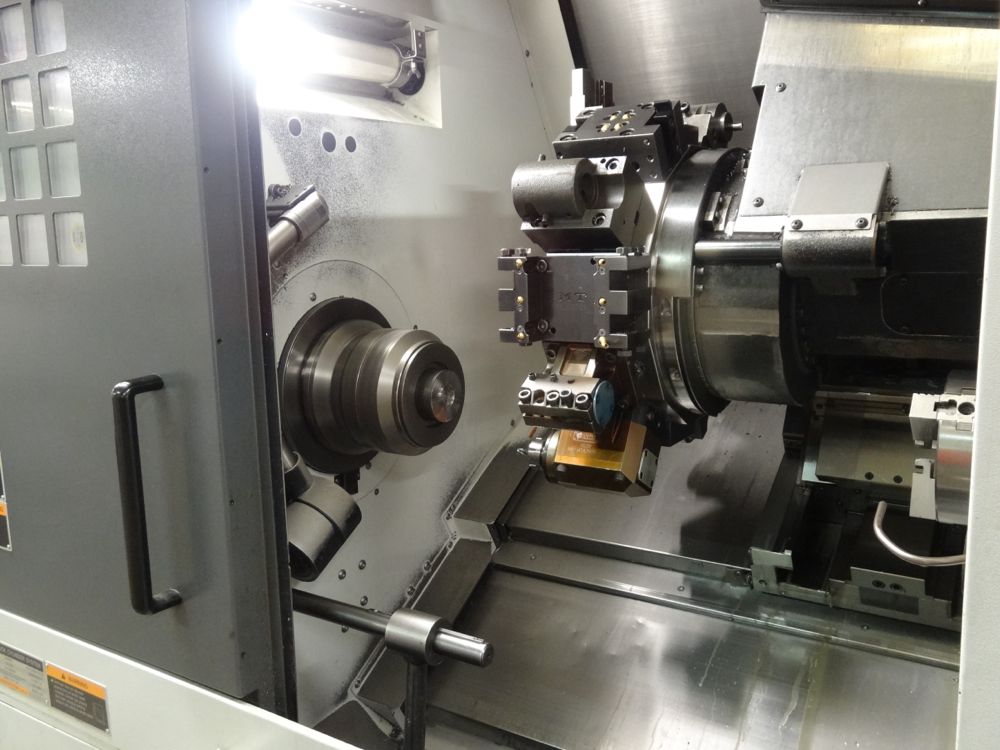

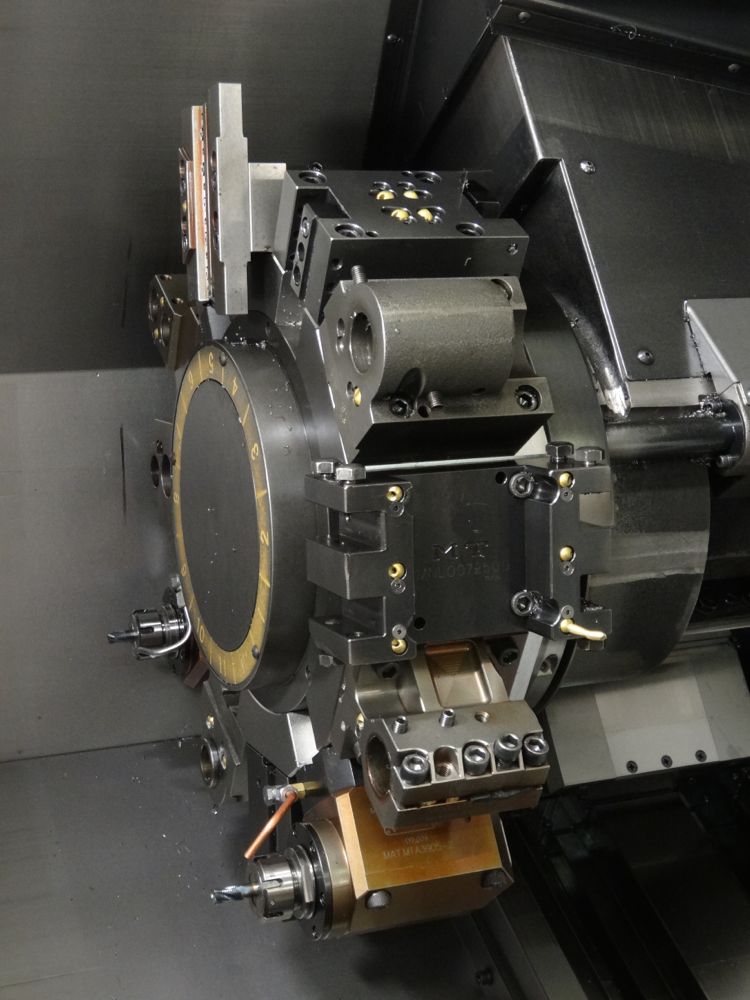

12 Station bolt-on tool type turret

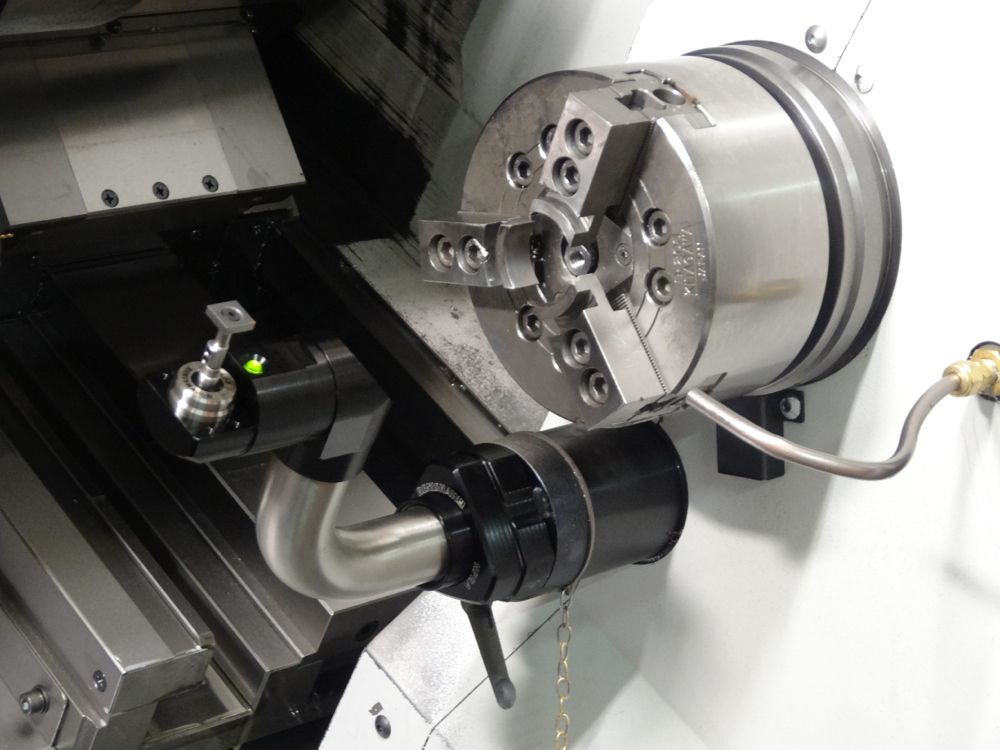

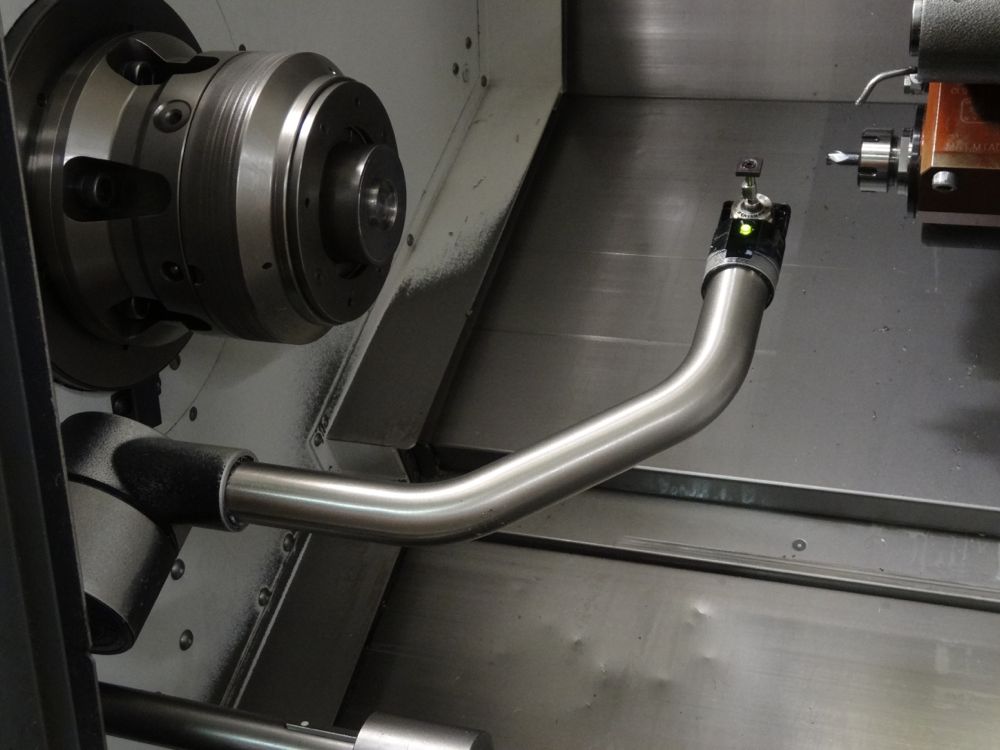

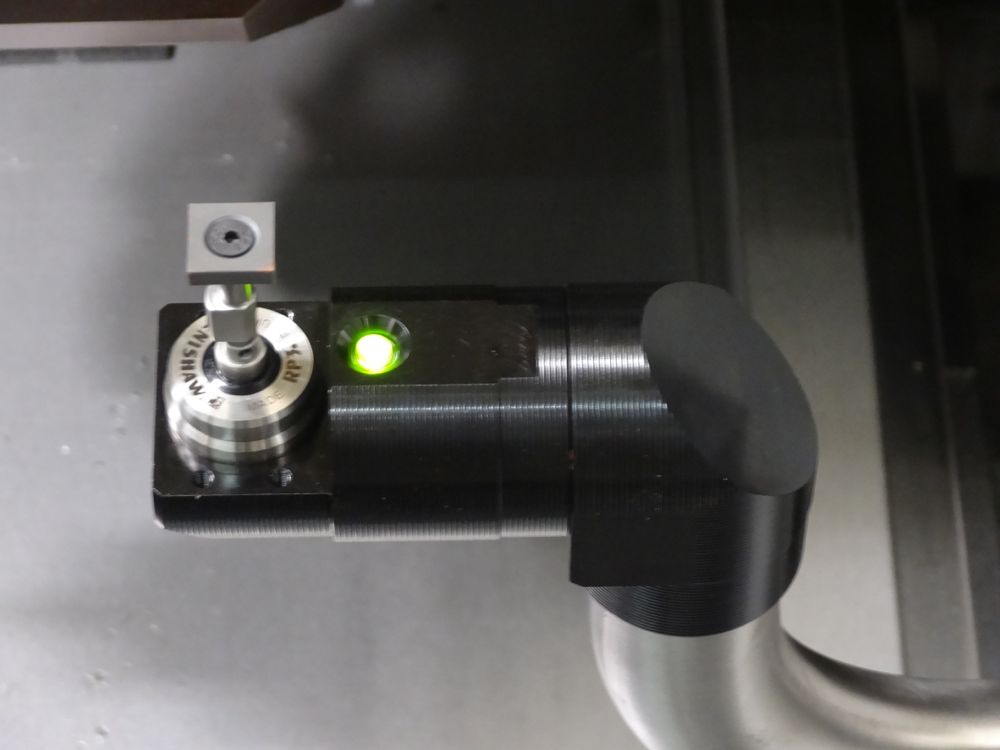

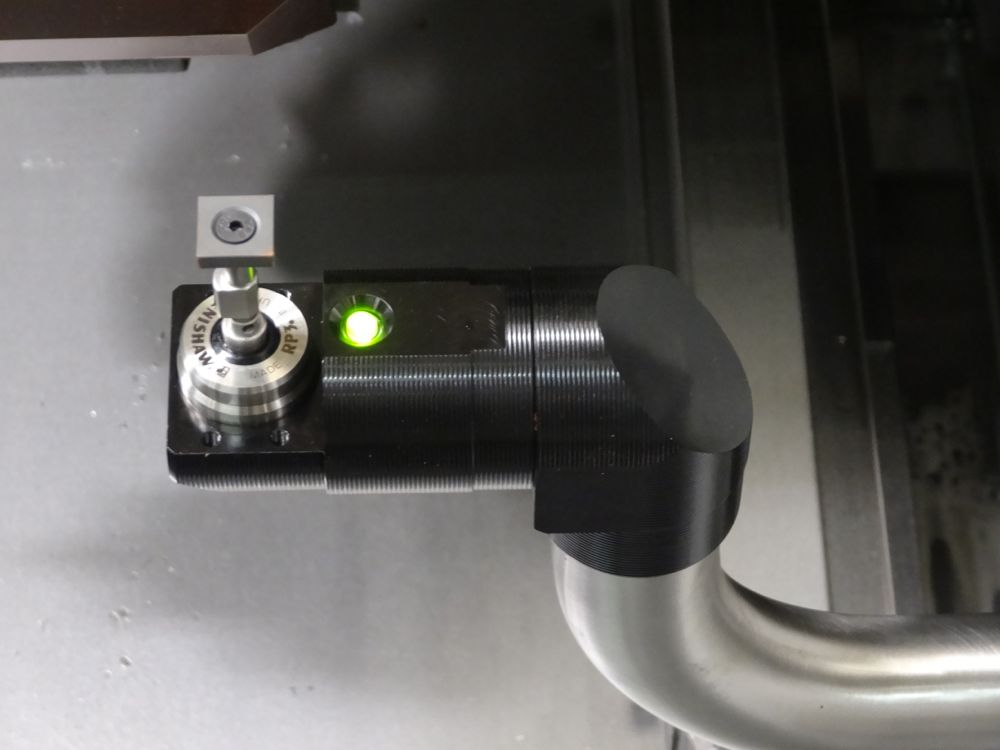

Manual in-machine tool pre-setter (built-in type) – main spindle

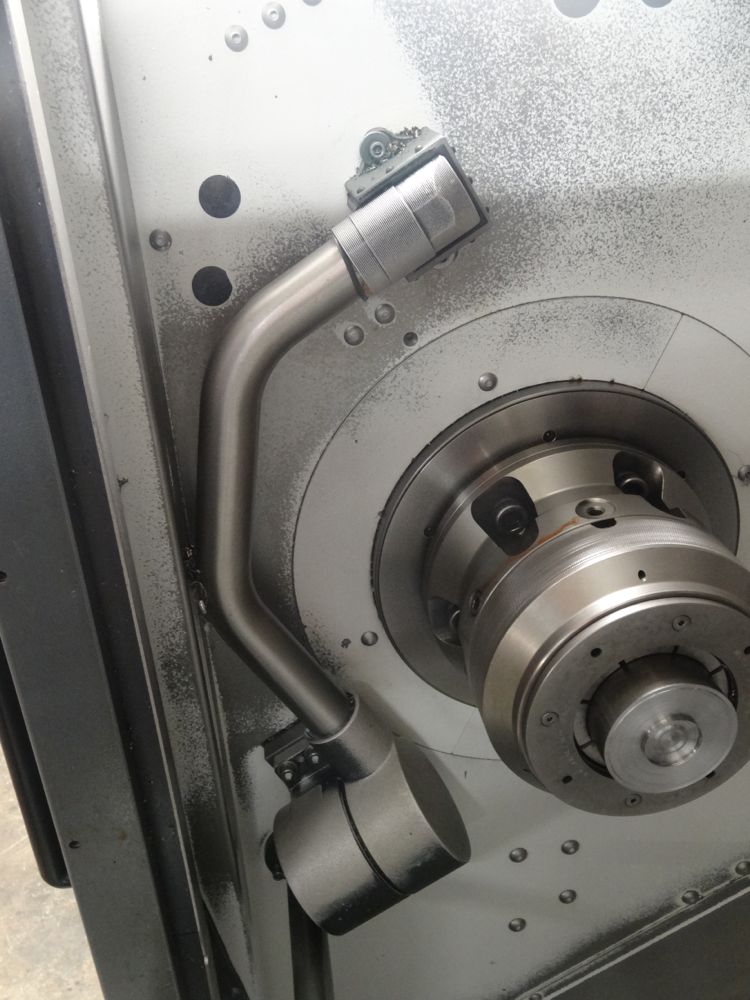

Manual in-machine tool pre-setter (removable type) – sub-spindle

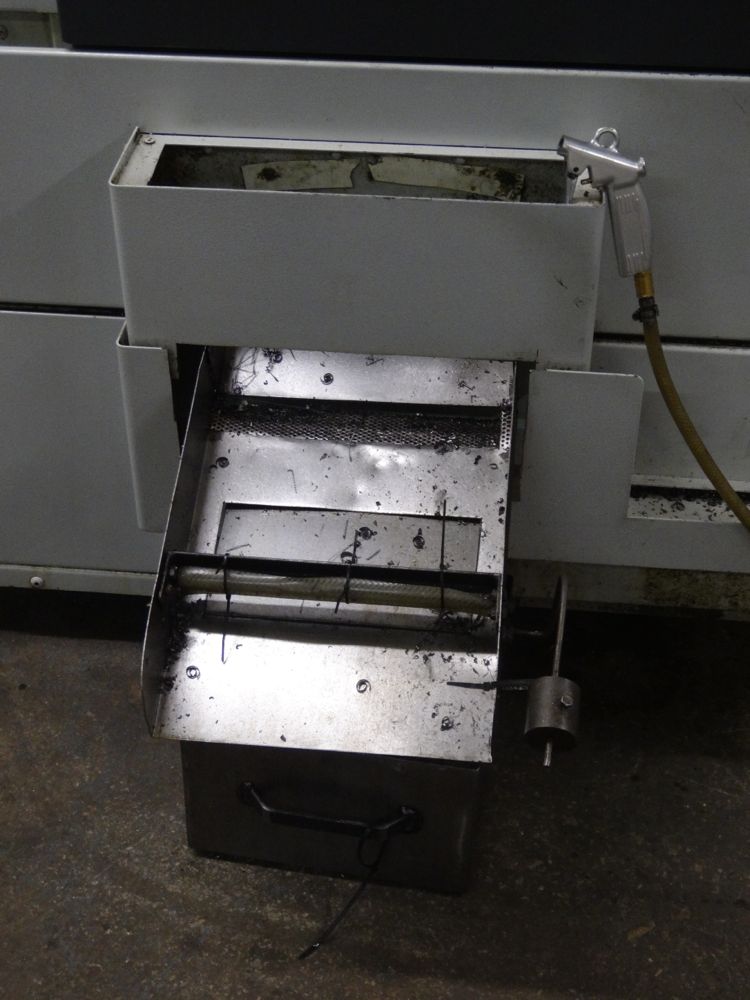

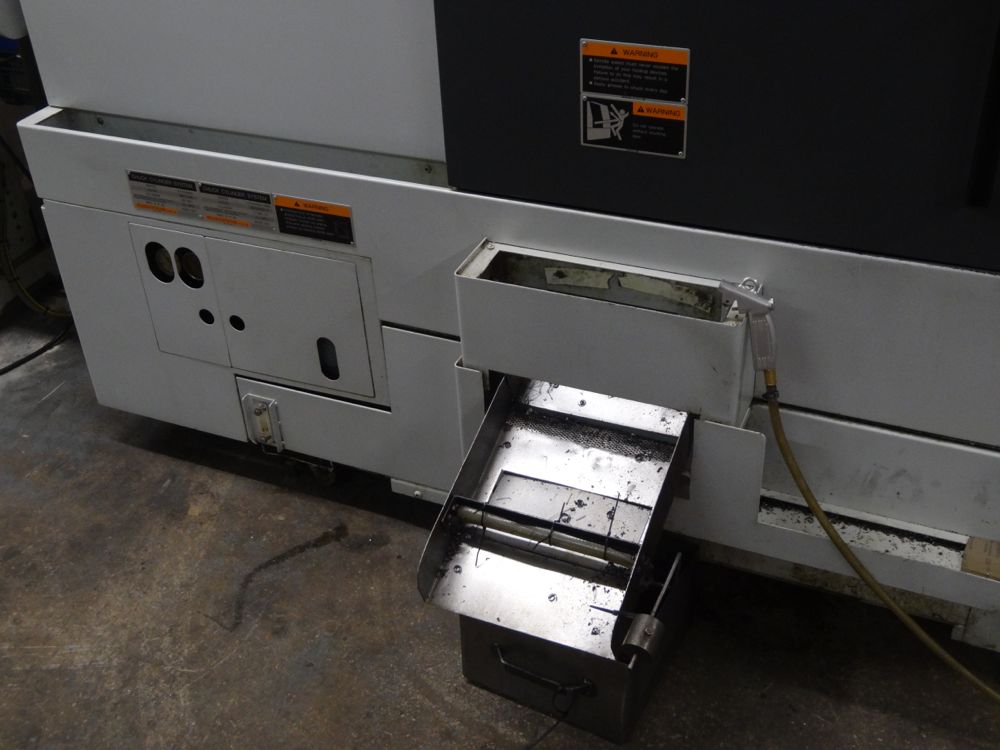

Parts catcher

Coolant system

Automatic power off

Built-in work light

Hand tools

Full cover

Impact resistant viewing window

Door interlock system

Chuck stroke end check

Chuck cylinder check valve

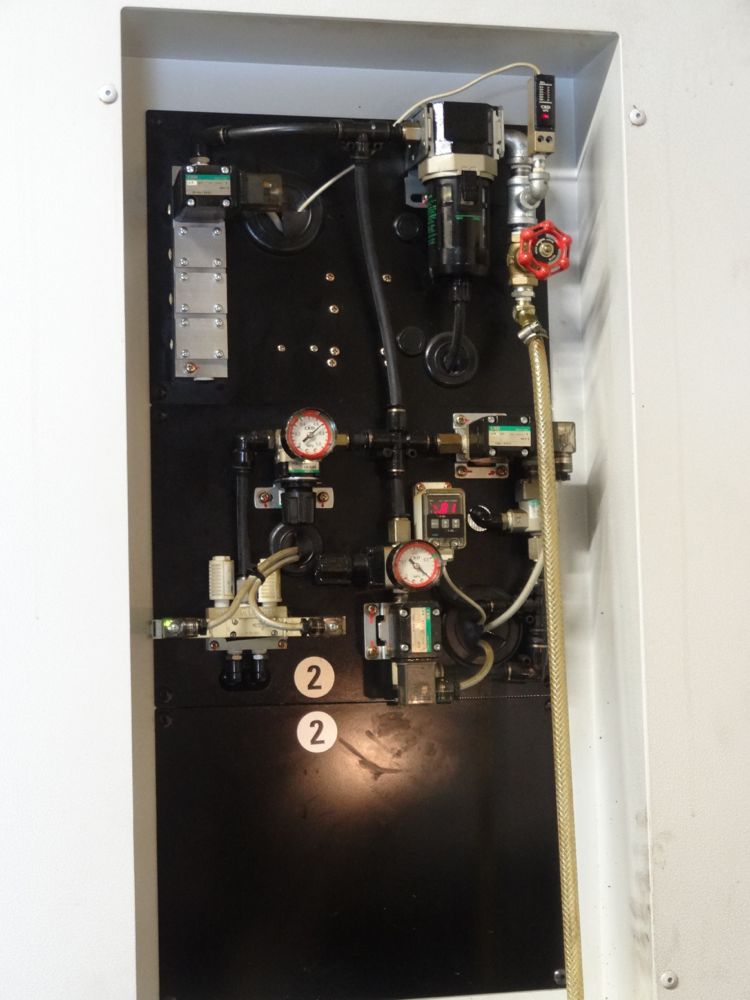

Low air pressure detection switch

Low hydraulic pressure detection switch

Overtravel software

Dual footswitch for chuck operation – both spindles

G10 Programmable data input

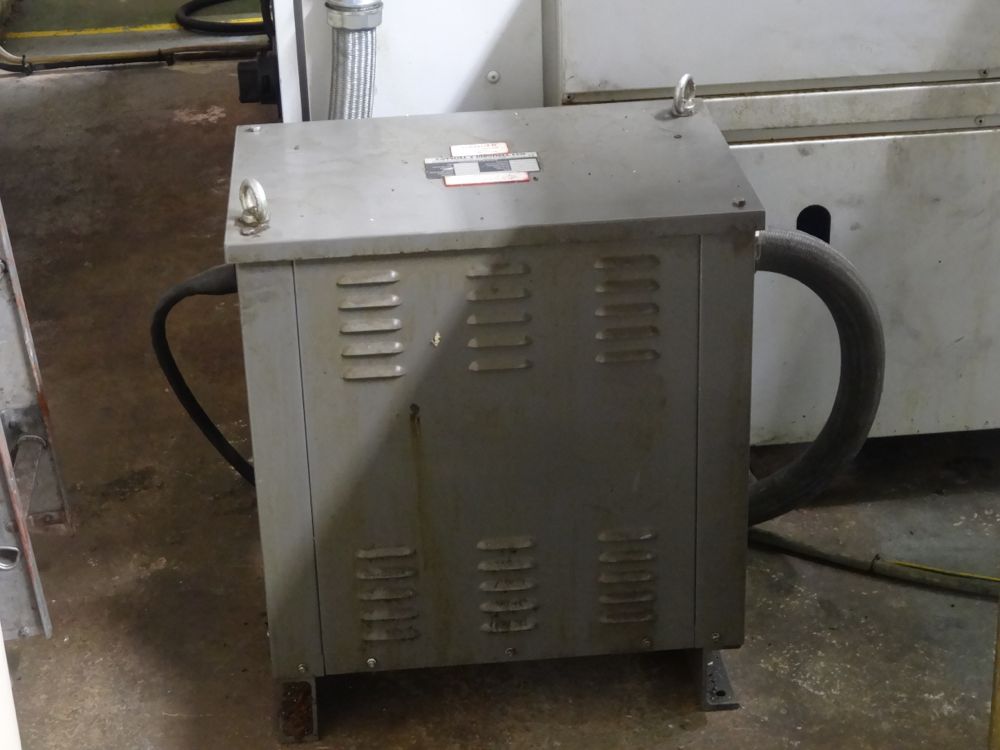

Transformer

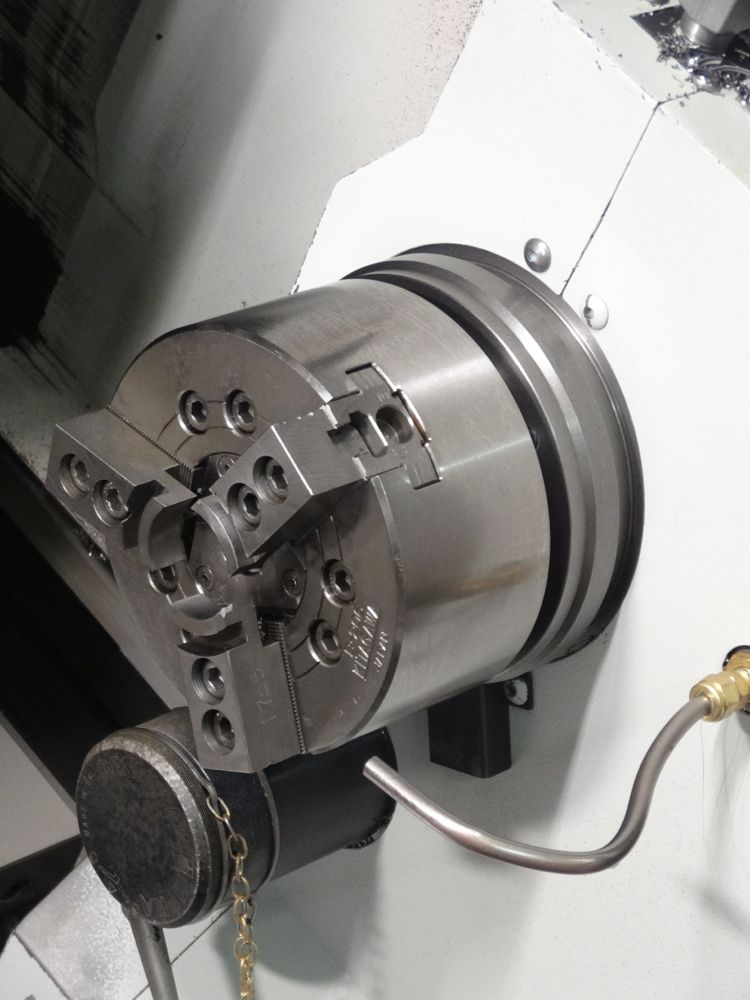

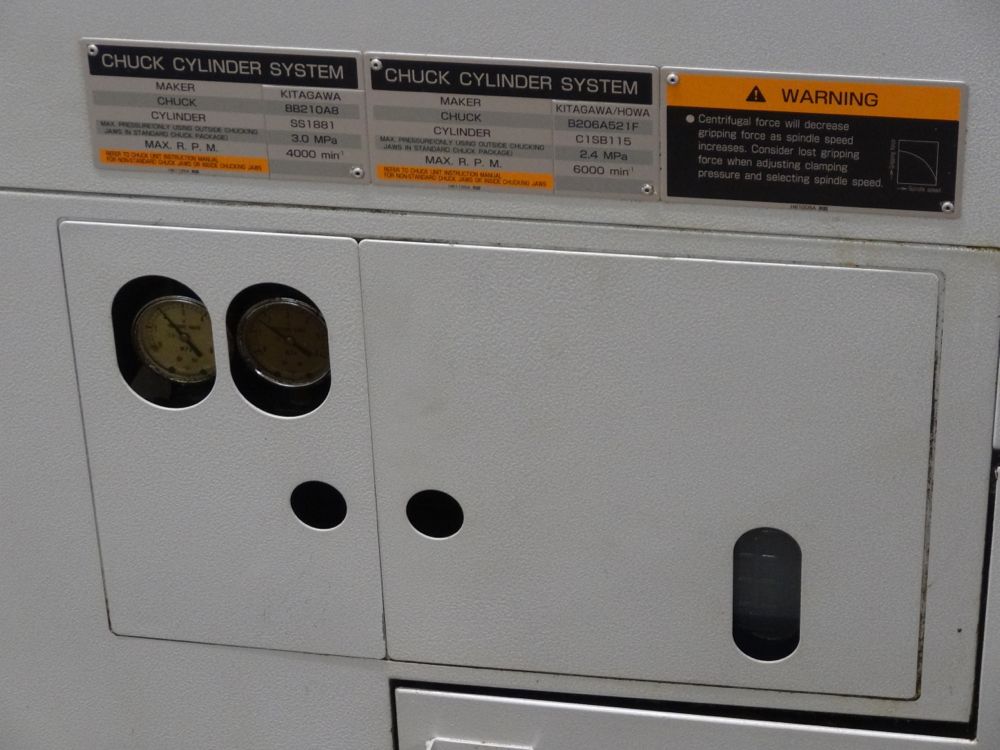

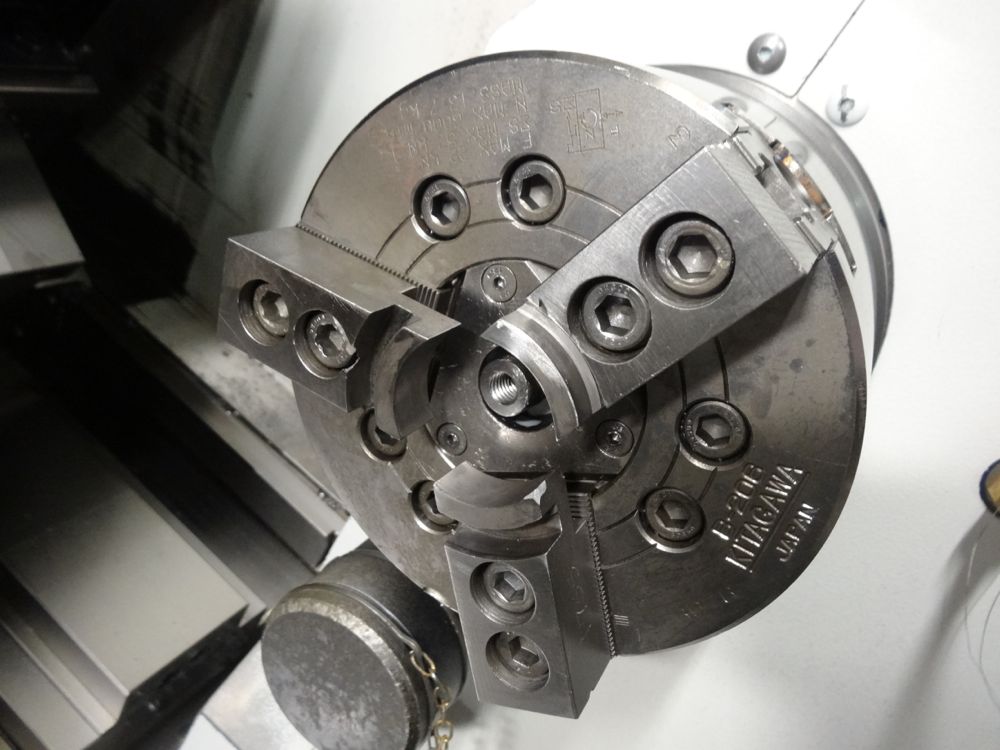

CHUCK UNIT – Main Spindle

Hydraulic hollow chuck package comprising: -

Kitagawa BB210A8 10” Big Bore 3-jaw chuck, with

Kitagawa SS1881 cylinder

Cylinder adaptor

Drawtube

Kitagawa QCRL80 collet chuck

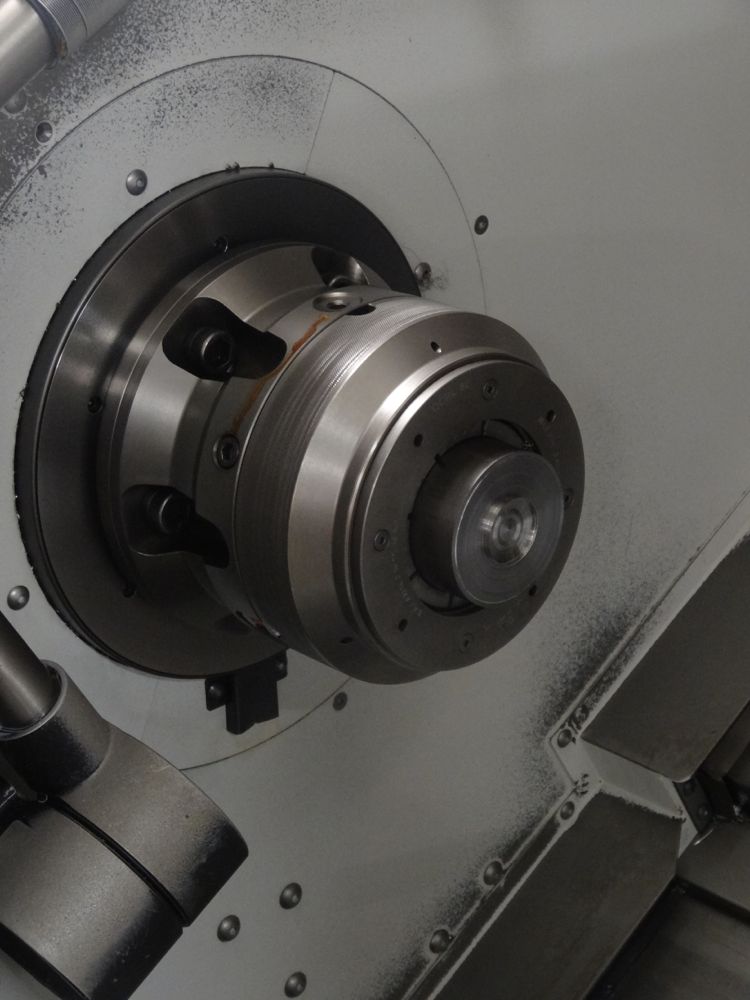

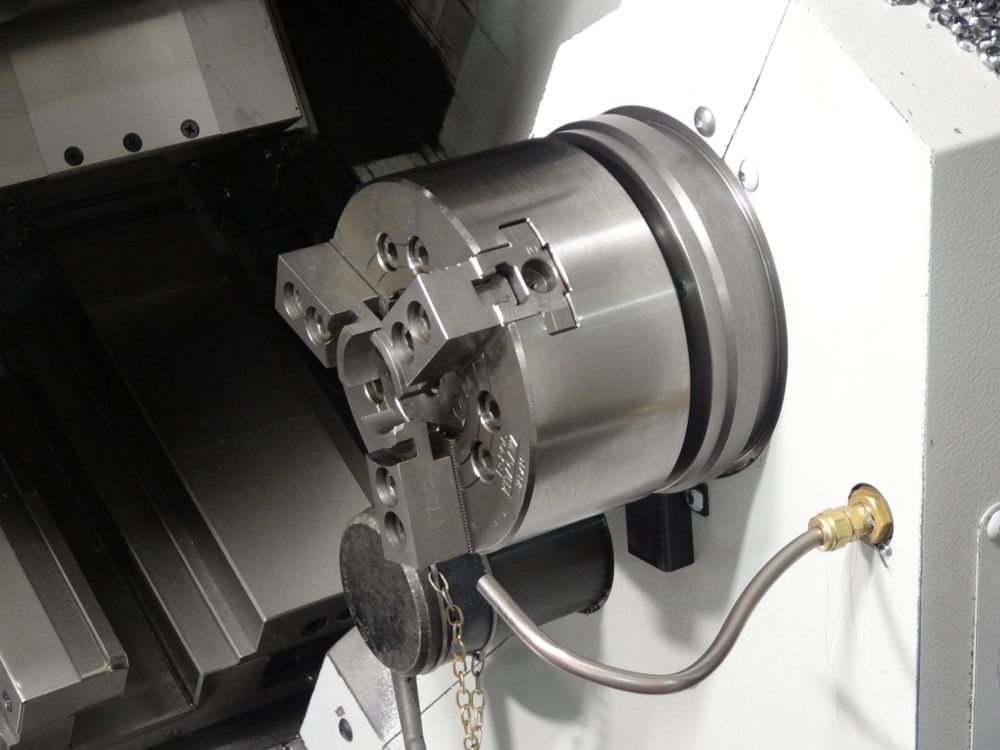

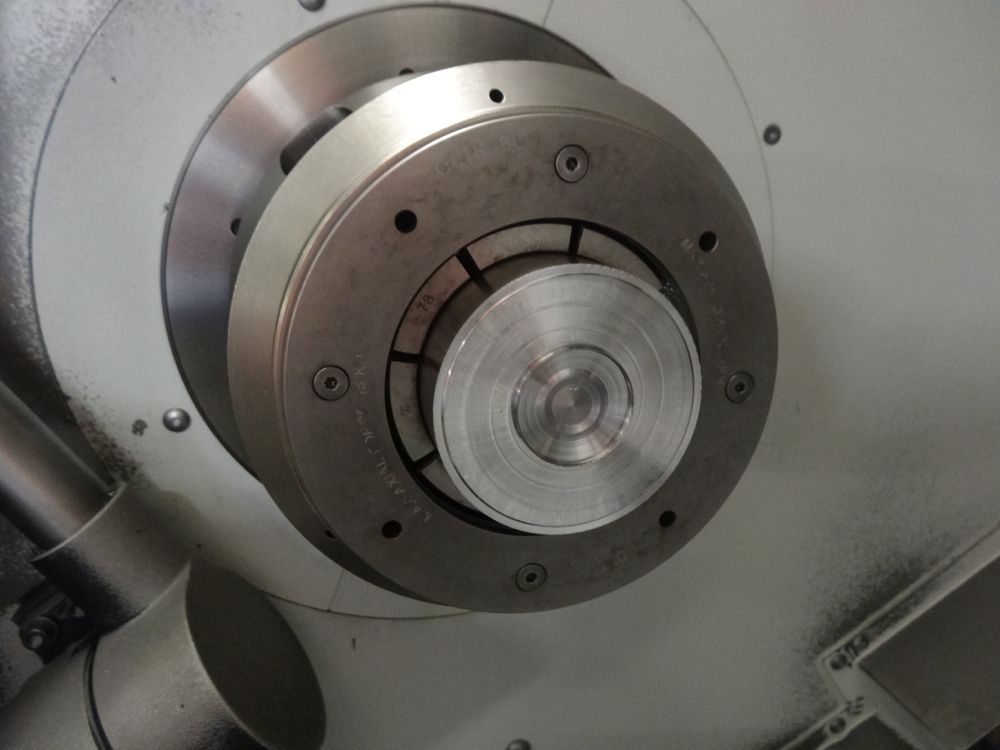

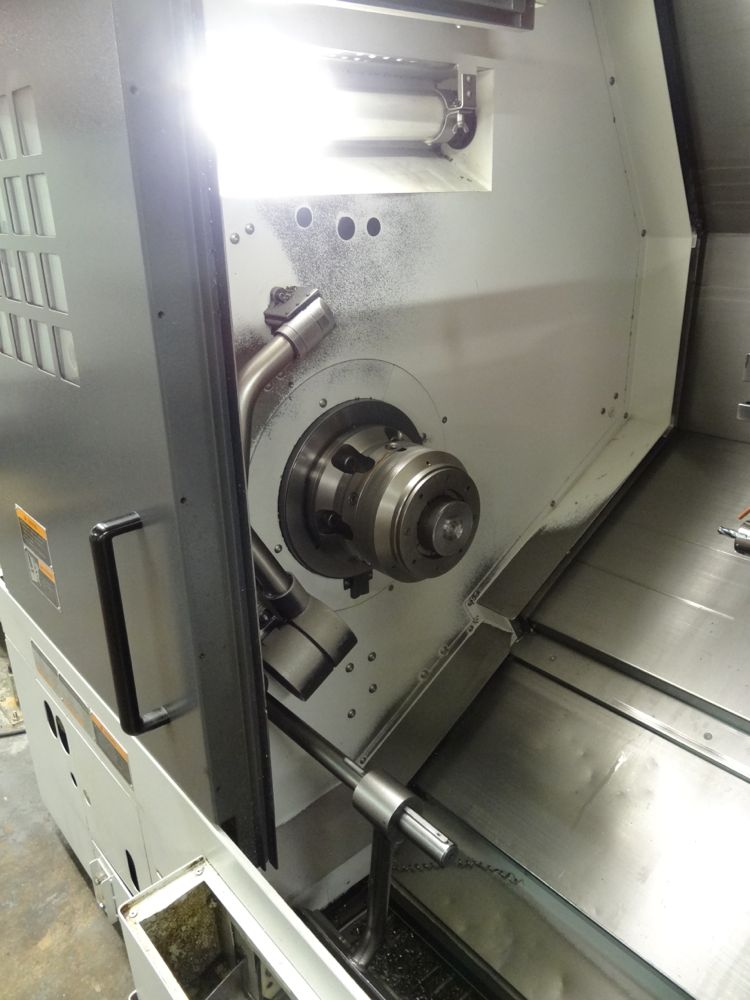

CHUCK UNIT – Sub-spindle

Hydraulic hollow chuck package comprising: -

Kitagawa B206A5 6” 3-jaw chuck, complete with

Solid cylinder, complete with work piece ejector

Cylinder adaptor

Drawtube

ADDITIONAL OPTIONS INCLUDED

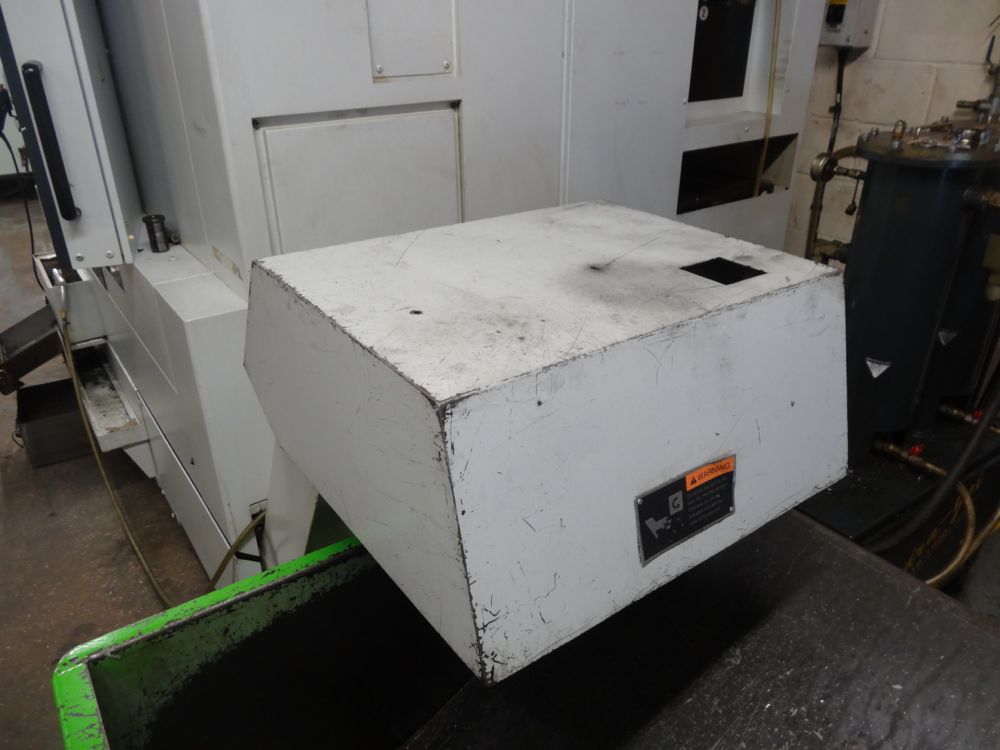

Chip conveyor, hinge type (right side exit)

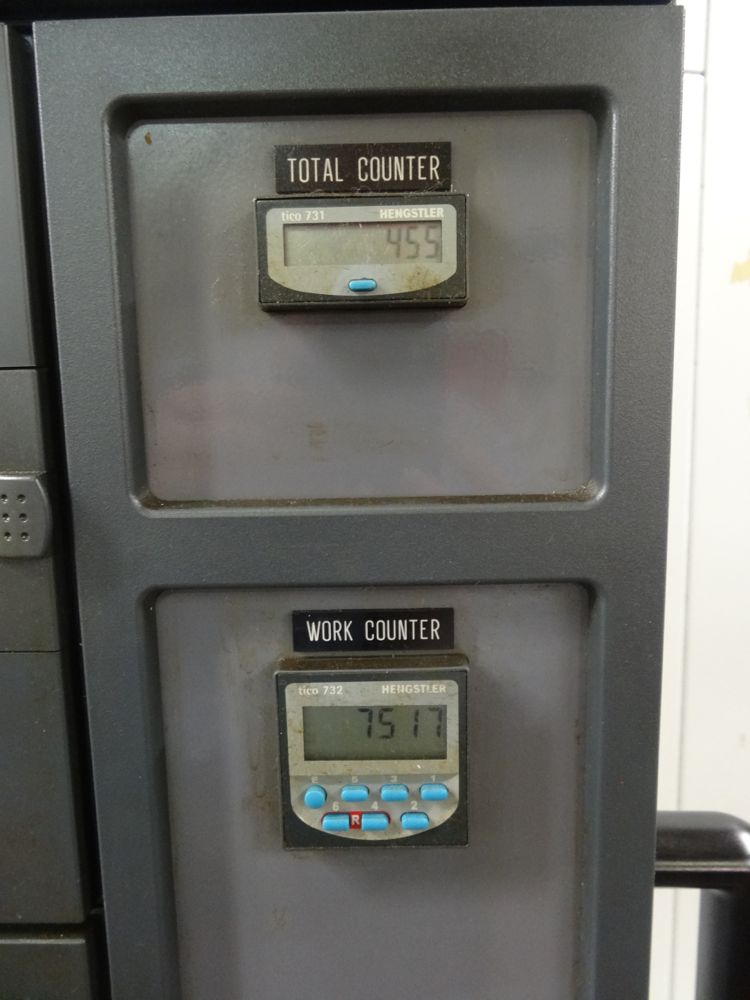

Total counter

Work counter

Bar feed interface

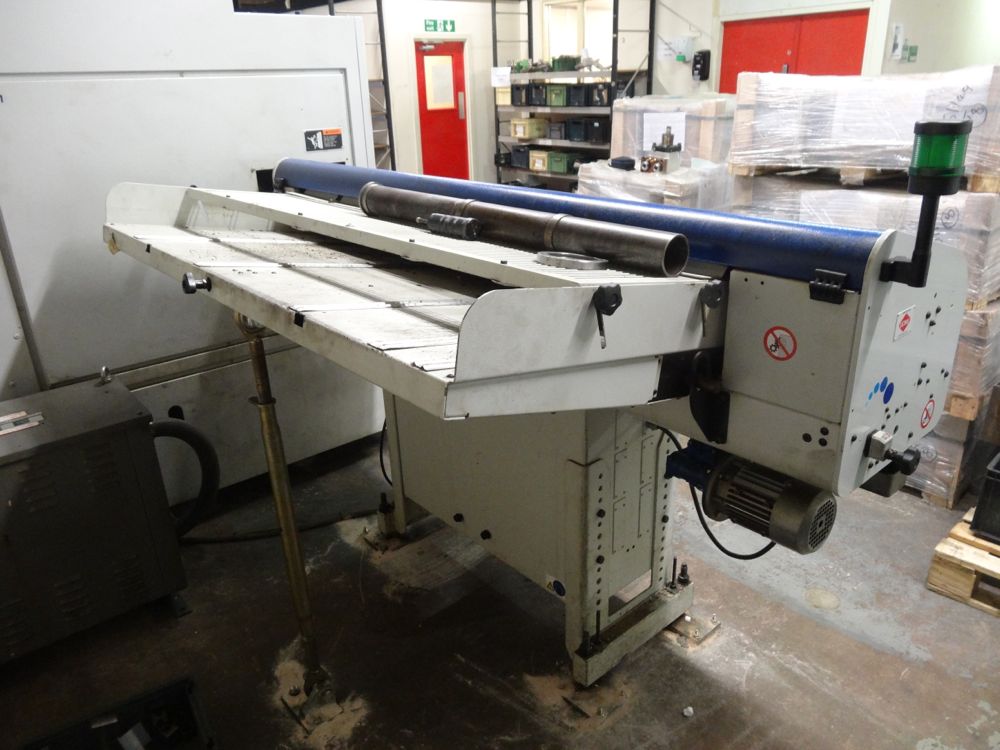

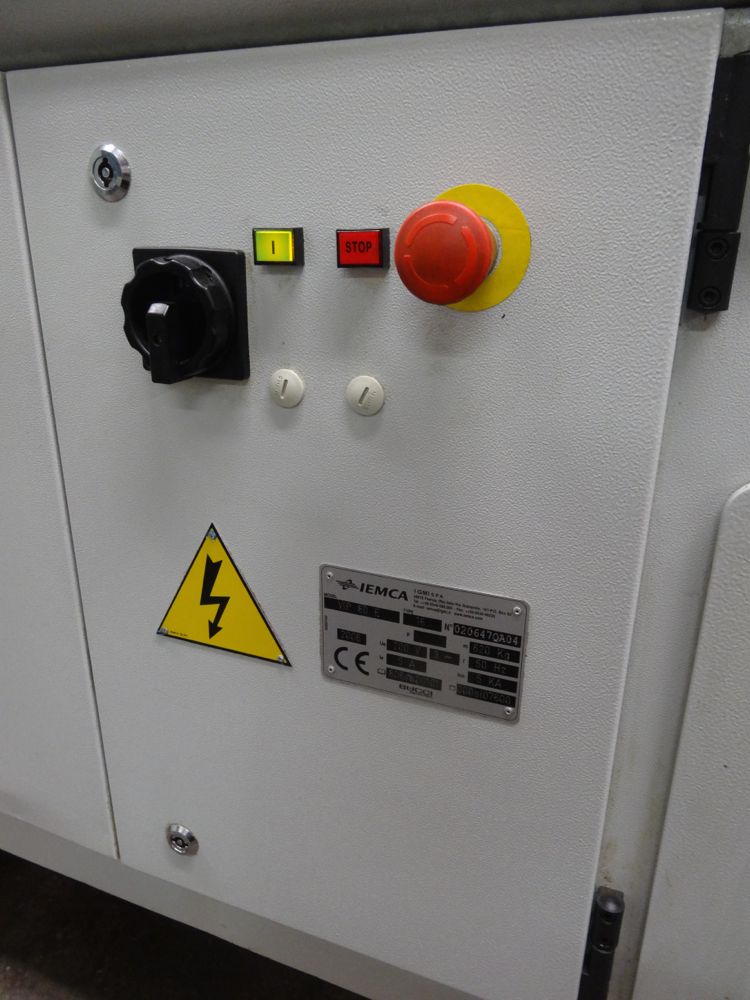

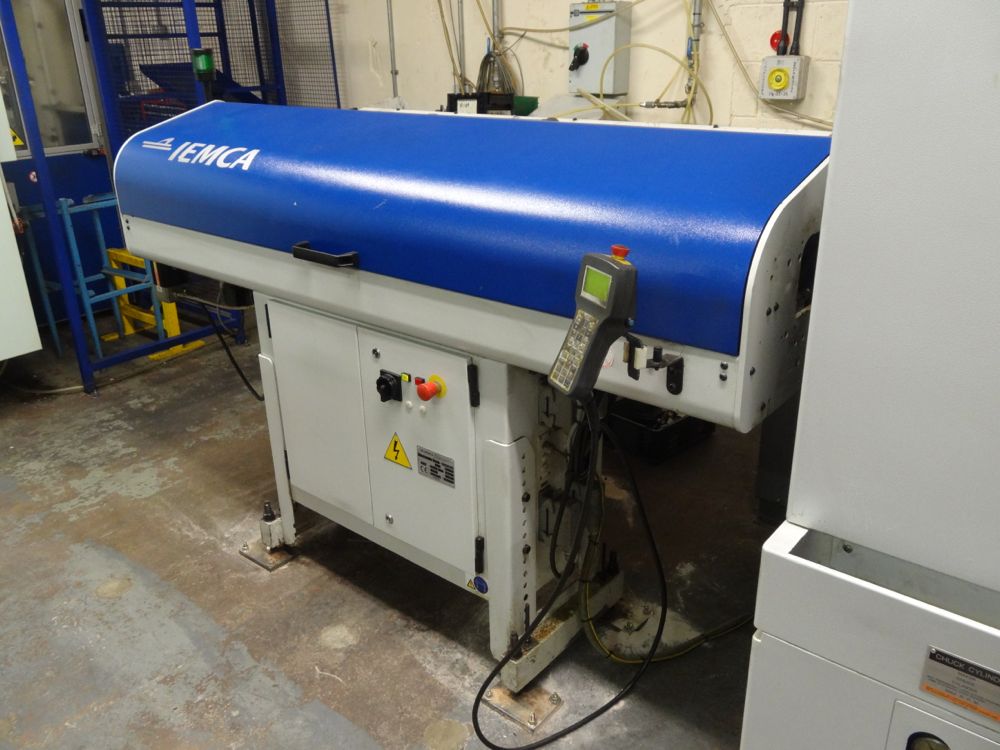

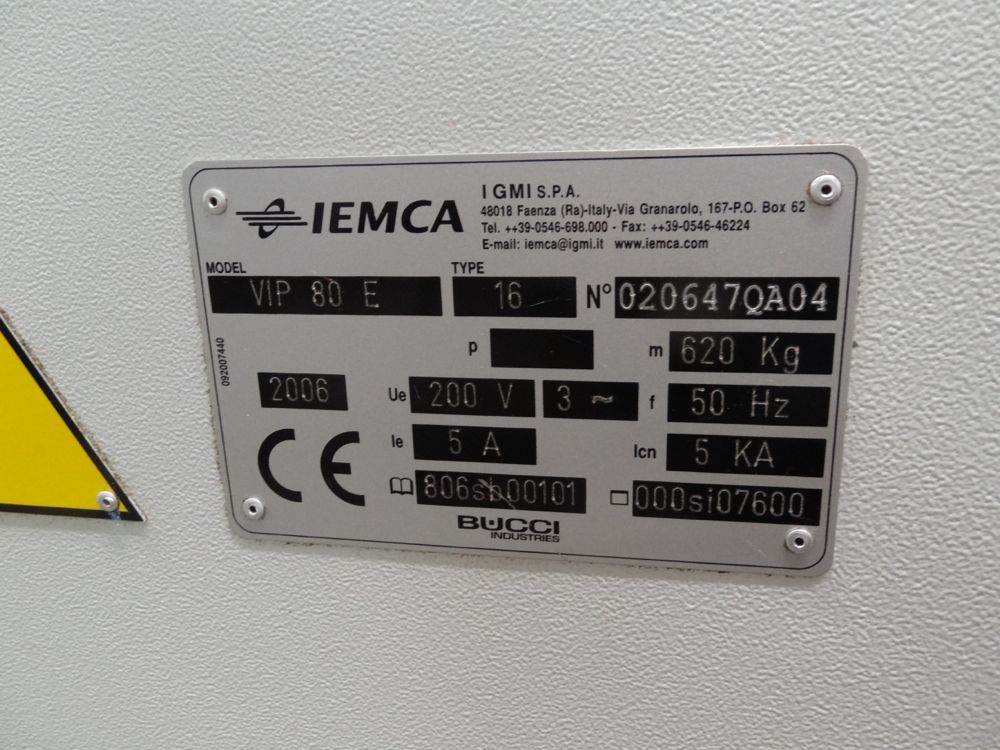

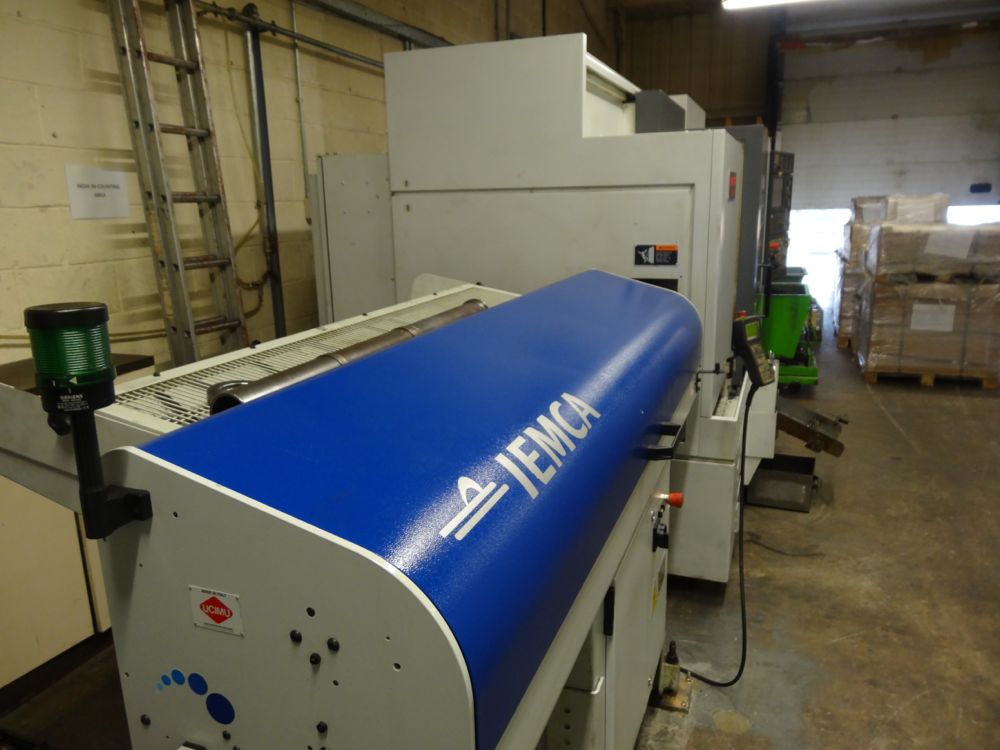

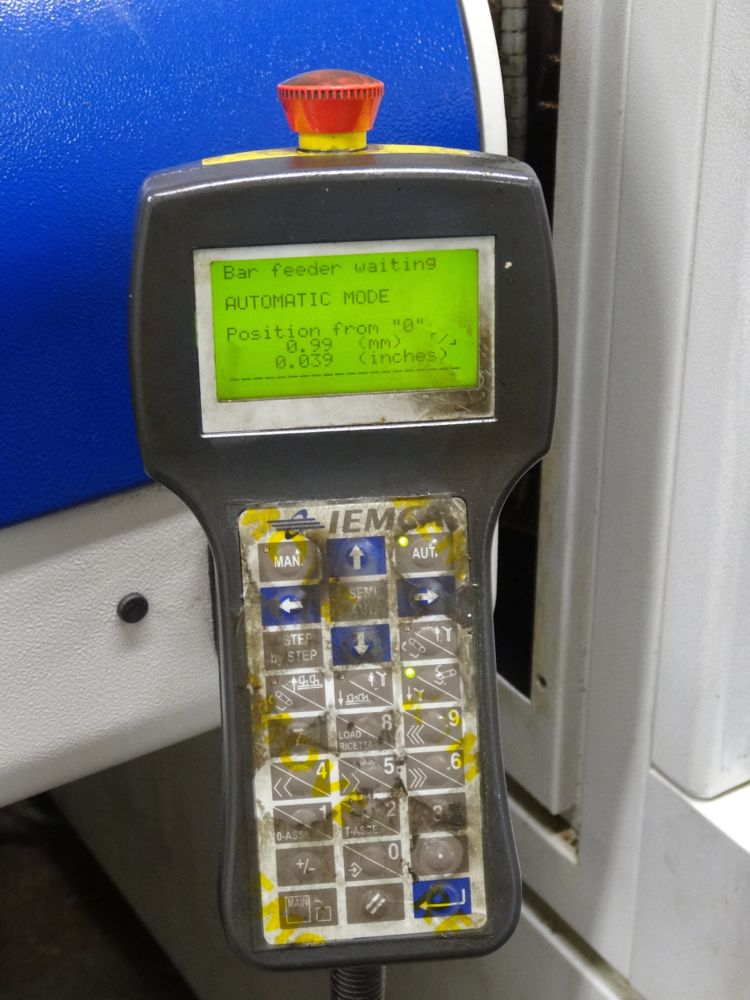

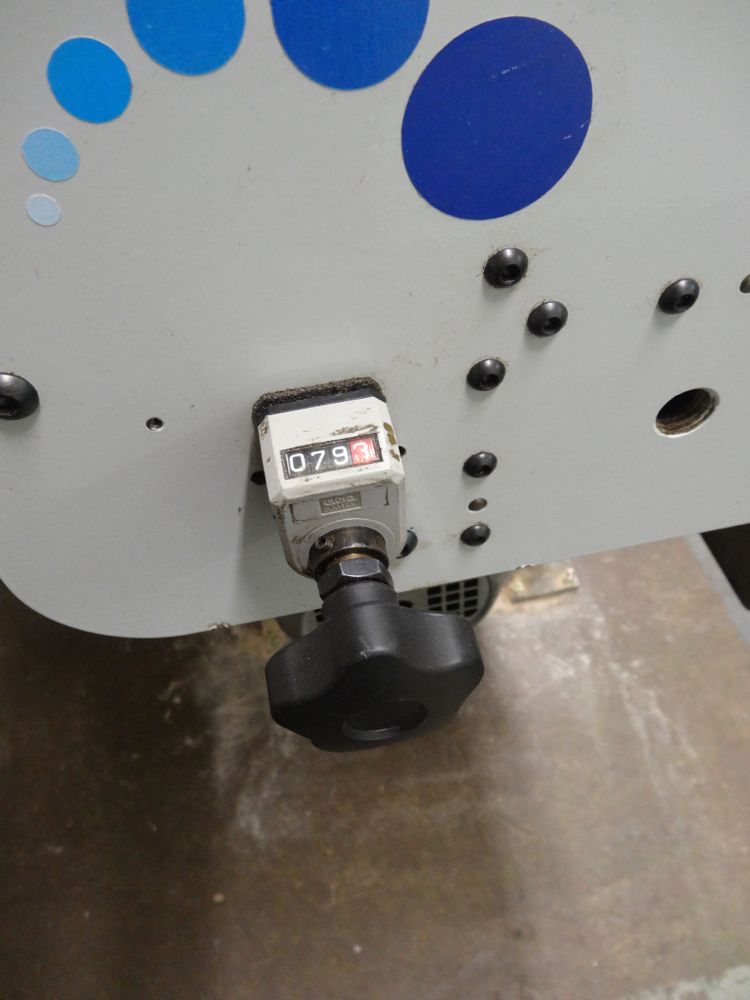

Iemca VIP 80 Evolution bar feed unit

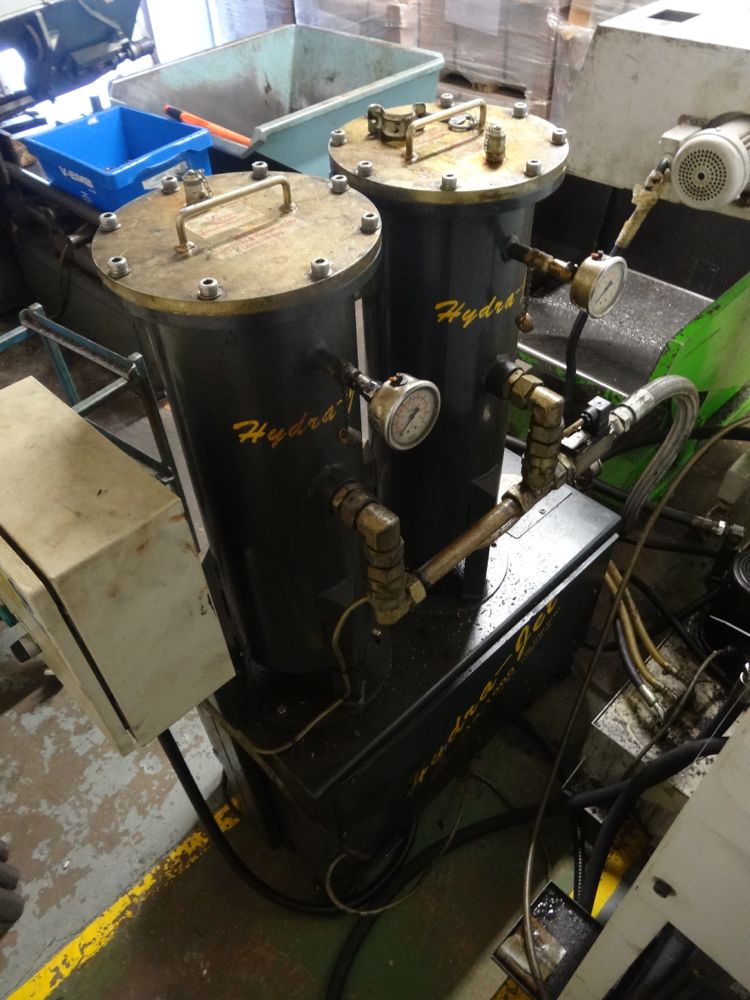

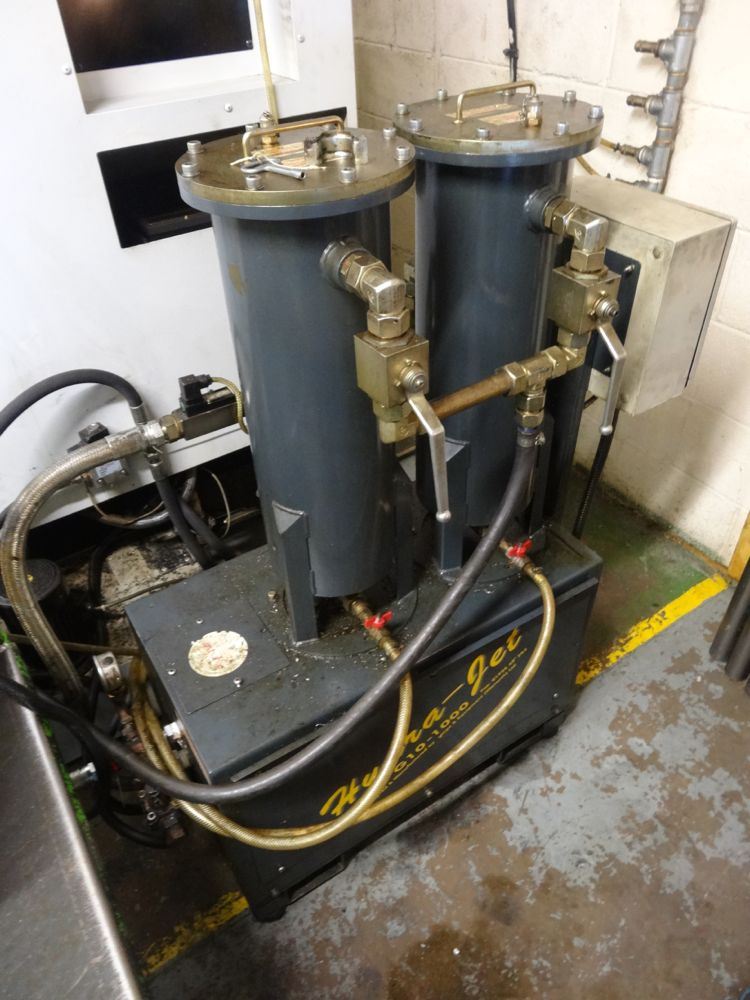

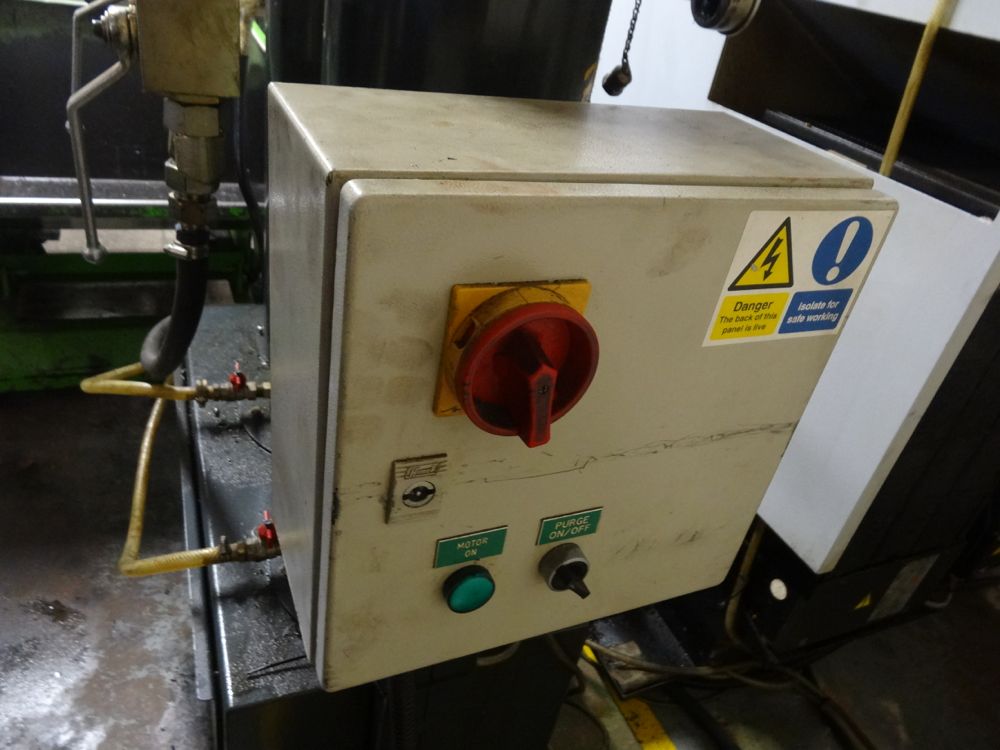

70 Bar coolant unit, with twin cartridge filtration system

Capacity
Swing Over Bed mm (in) 923.8 (36.37) < interference with front cover: 579.8 (22.83)
Swing Over Cross Slide mm (in) 755 (29.72)
Maximum Distance Between Spindle Nose Surfaces mm (in) 961 (37.83)
Max. Turning Diameter mm (in) 356 (14.02)
Standard Turning Diameter mm (in) 275 (10.83)
Max. Turning Length mm (in) 705 (27.76)
Bar Work Capacity mm (in) 80 (3.15)

Travel
X-Axis Travel mm (in) 260 (10.24)
Y-Axis Travel mm (in) -50, +50 (-1.67, +1.67)
Z-Axis Travel mm (in) 795 (31.30)
Spindle 2 B-Axis Travel mm (in) 734 (28.90)

Spindle 1
Spindle Speed Range min -1 4000
Number of Spindle Speed Ranges. Step 2
Spindle Nose Type JIS A-2
Through-Spindle Hole Diameter mm (in) 91 (3.58)
Min. Spindle Indexing Angle 0.001
Spindle Bearing Inner Diameter mm (in) 140 (5.51)
Chuck 10” Solid Chuck & Hollow Chuck

Spindle 2
Spindle Speed Range min -1 6000
Number of Spindle Speed Ranges Step 1
Spindle Nose Type JIS-A5
Through-Spindle Hole Diameter mm (in) 43 (1.69) [73(2.87)]
Min Spindle Indexing Angle 0.001
Spindle Bearing Inner Diameter mm (in) 85 (3.35)
Chuck 6” Solid Chuck & Hollow Chuck

Turret
Turret Type 12 Station (10 station)
Turret Tool Mounting Capacity (Tools) 12 (10)
Height of Angled Tool Shank Section mm (in) 25 (0.98)
Diameter of Boring Bar Shank Section mm (in) 50 (1.97) < Spindle: 32 (1.26) > [32 (1.26)]

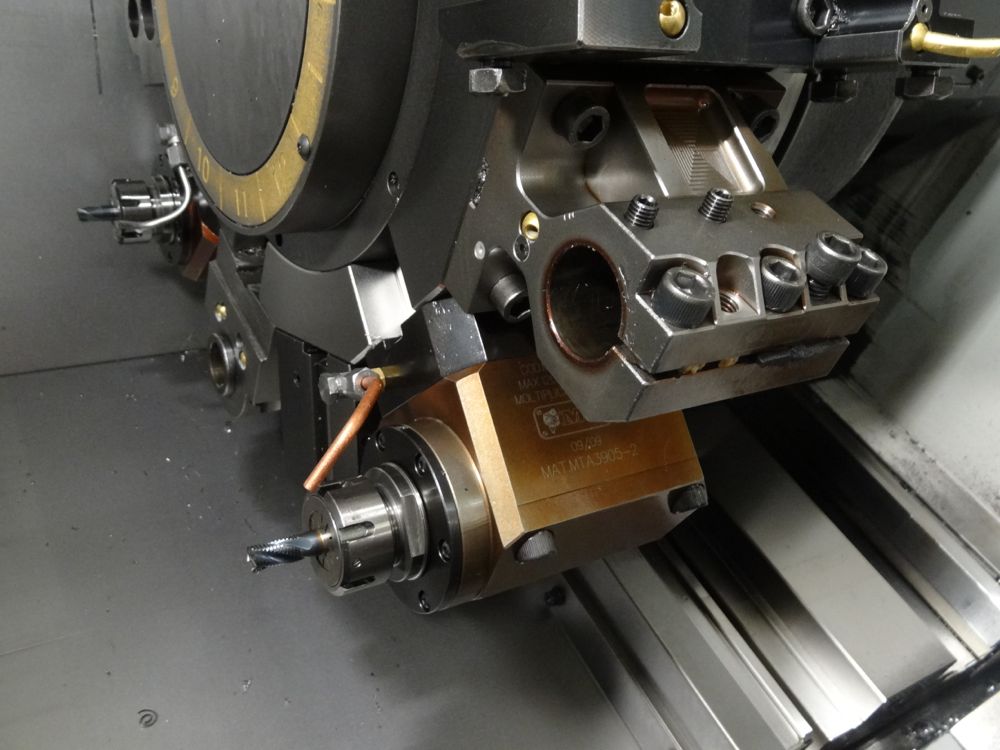

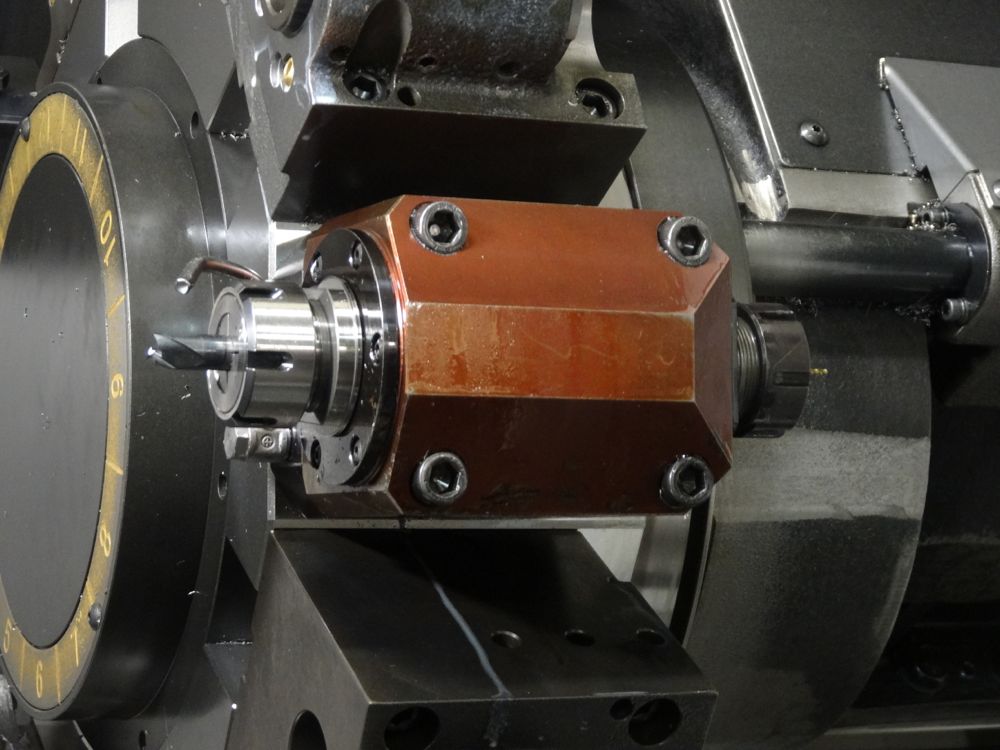

Turret Rotary Tool Spindle
Rotary Tool Spindle Rate min -1 6000
Rotary Tool Machining Capacity mm (in) Drill 26 (1.02) Tap: Max. M20

Feed Rates
Rapid Traverse Rate mm/min (ipm) X,Y,B: 30000 (1181.10) Y: 10000 (393.70)
Jog Feed rate mm/min (ipm) X,Y,Z,B: 0~5000 (0 to 196.85)

Motors
Spindle 1 Drive motor
(30 min./Continuous Rating) kW (HP) 18.5/15 (26/22) [24.79/20.10 (34.84/29.48)]
Spindle 2 Drive motor (30 min./Continuous Rating) 11/7.5 (14.74/10.05)
Rotary Tool Spindle Drive Motor (5 min./ Continuous Rating) 5.5/3.7 (7.37/4.96)
Feed Motors kW (HP)
X, Z: 3.5 (4.69)
Y, B: 2.0 (2.68)
Hydraulic Pump Motor kW (HP) 1.5 (2.01)
Lubricant Pump Motor kW (HP) 0.02 (0.03)
Coolant Pump Motor kW (HP) 0.52 (0.70) <0.325 (0.44)>
Oil Cooler Pump Motor kW (HP) Compressor: 0.5(0.67) Circulating Pump: 0.4(0.54)

Required Power/ Air Sources
Electrical Power Supply (continuous rating) kVA 39.20 [47.0]
Compressed Air Supply
MPa (psi) L/min (gpm) 0.5 MPa (72.50), 100 (26.4)

Tank Capacity
Hydraulic Oil Tank Capacity L (gal.) (2.64)
Lubricant Tank Capacity L (gal) 4 (1.06)Coolant Tank Capacity L (gal) 246 (64.94)
Oil Temperature Controller Capacity L (gal) 10 (2.64)

Machine Size
Floor Space (Chip Conveyor Included) mm (in) 3100 (122.05)
< Chip Conveyor: +684.3 (+26.94)> x 2000 (78.74)
Machine Mass kg (lb.) 6200 (13640)

Please note: Chip Bin Not included

Location: Burnley, UK

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
