Lot 1 - Mori Seiki SH-400

Description:

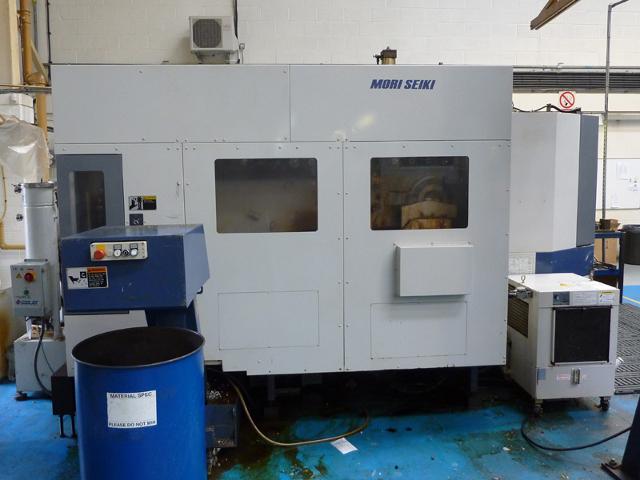

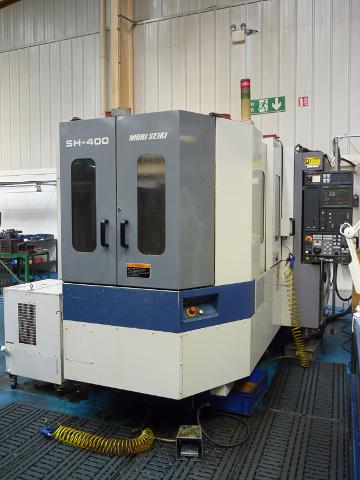

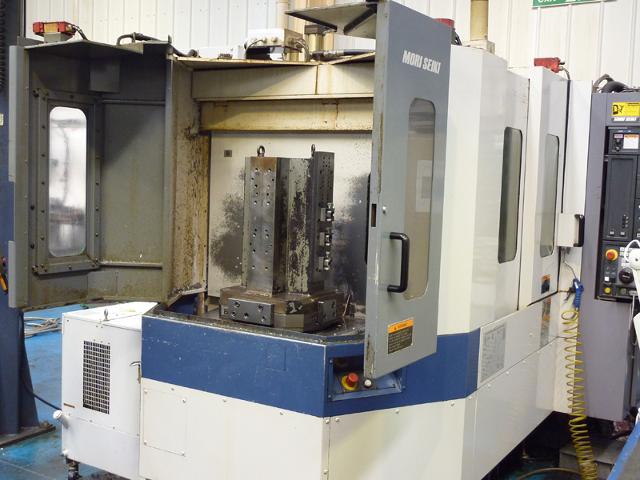

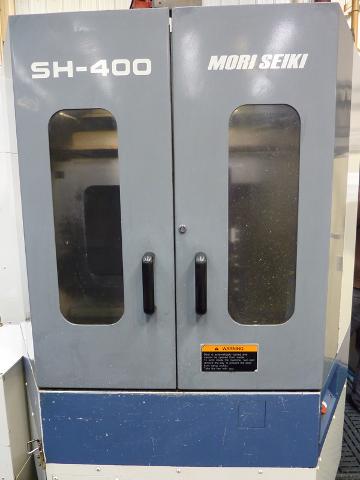

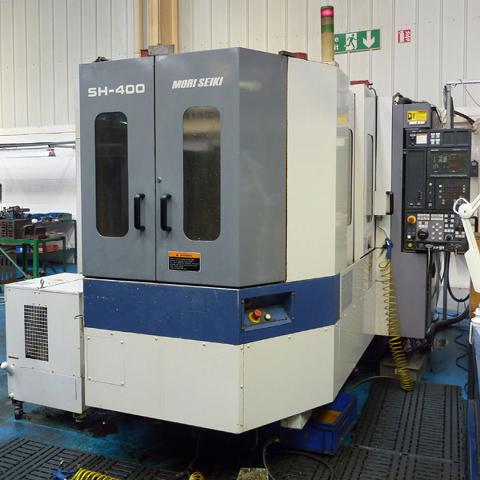

MORI SEIKI SH-400 HORIZONTAL MACHINING CENTRE

New 1998

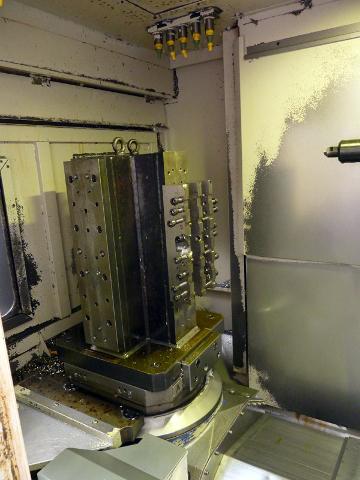

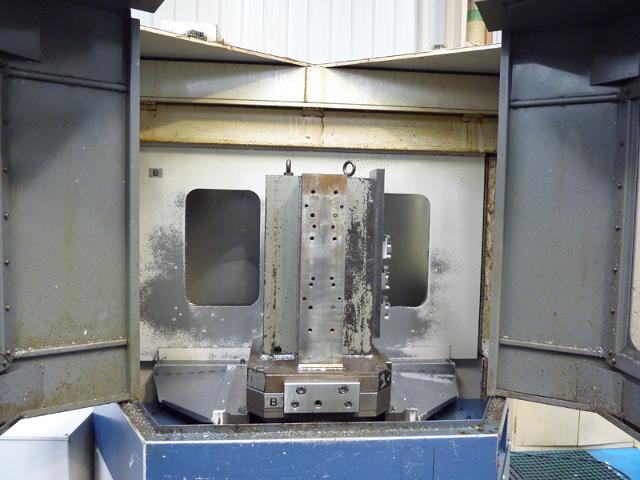

Number of pallets 2
Pallet size (2) 15.7" x 15.7"
Axis travel:
X axis 22"
Y axis 20.1"
Z axis 20.1"
Full B axis 0.001 degrees
Max. workpiece swing dia. 24
Table surface to spindle center 2.0" - 22.0"
Table center to spindle 3.9" - 24.0"
Max. workpiece height 25.6"
Max. table load 1100 lbs.
Table indexing 1 deg. B-axis time 2.5 sec/90 deg.
Rapid traverse rate x, y, z axes 1260 IPM

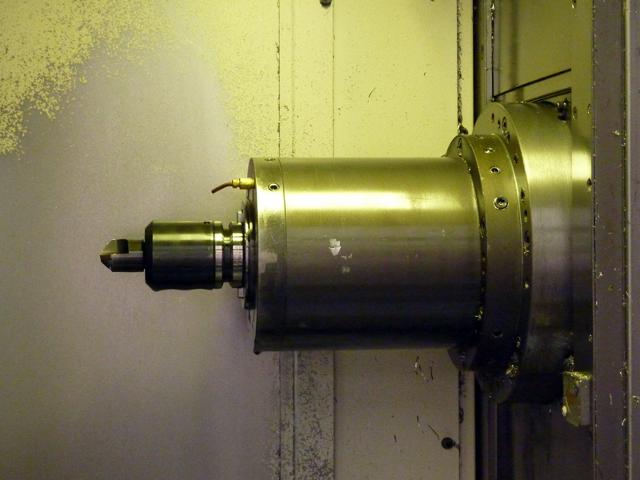

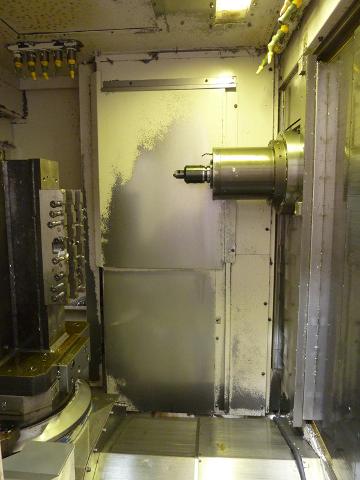

Spindle speed range 12,000 RPM
Spindle taper cat #40
Spindle motor 30 HP

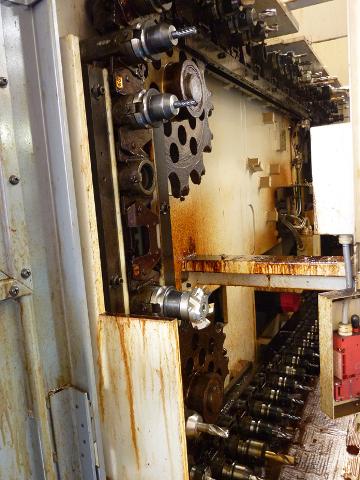

Auto tool change 60 ATC
Max. tool length 11.8"
Max. tool dia. (adj.) 4.9"
Max. tool weight 17.6"
Tool change time (tool to tool) 1.5 sec. C
Chip to chip 3.7
Pallet change time 5 sec.
Machine weight 19,140 lbs.

Equipped With:

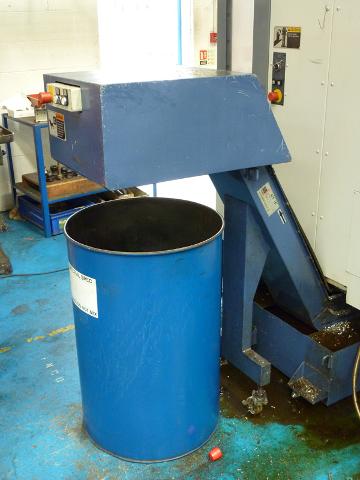

Chip Conveyor

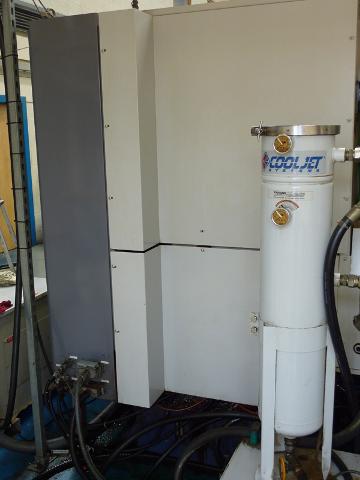

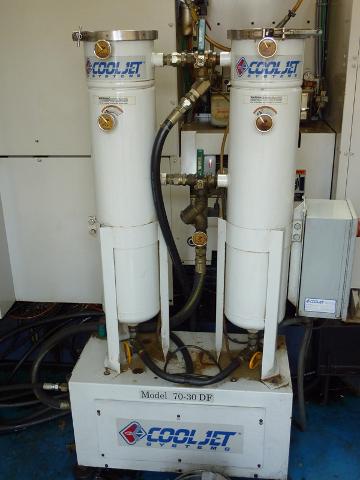

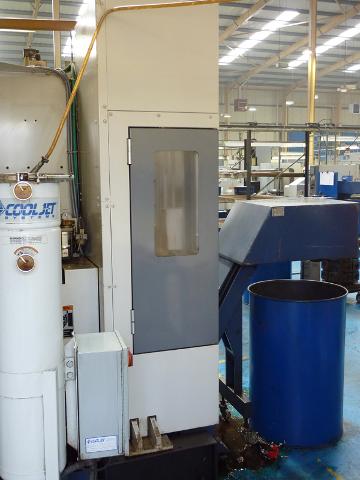

High Pressure Coolant Thru Spindle Chip Blaster Unit

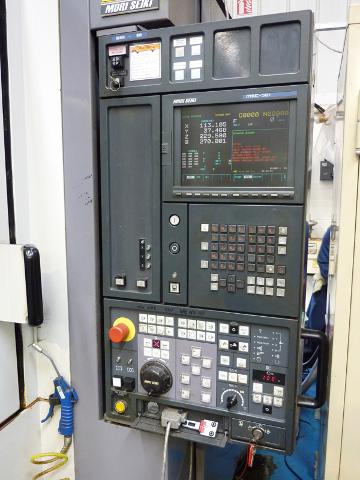

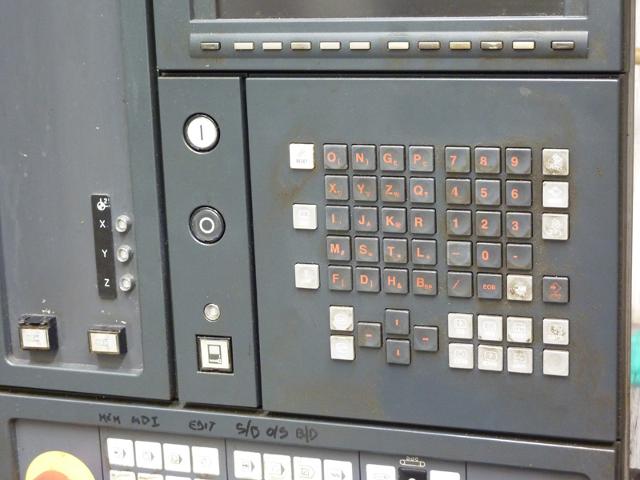

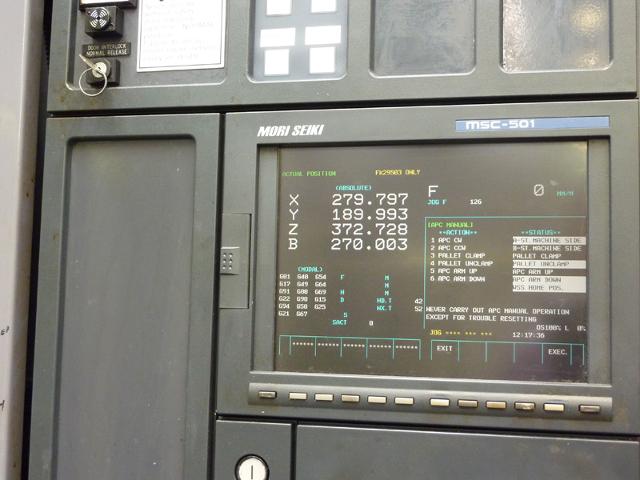

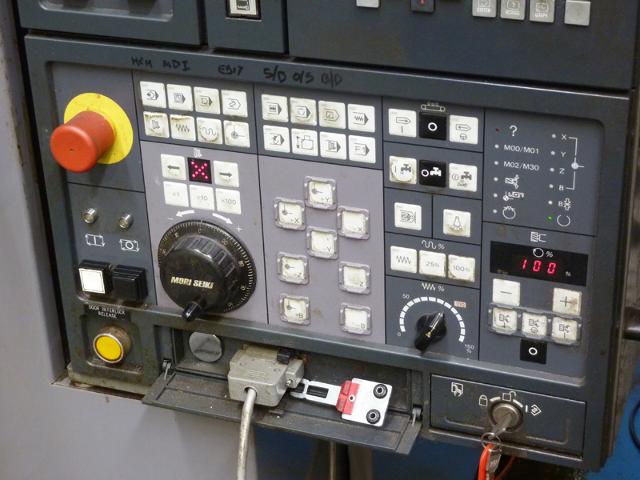

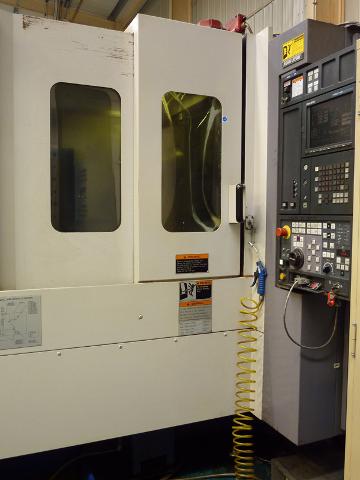

Fanuc MSC501 CNC control
Manuals

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
