Mori Seiki SV50 VMC (1996)

Lot 4 - Mori Seiki SV50 VMC (1996)

Description:

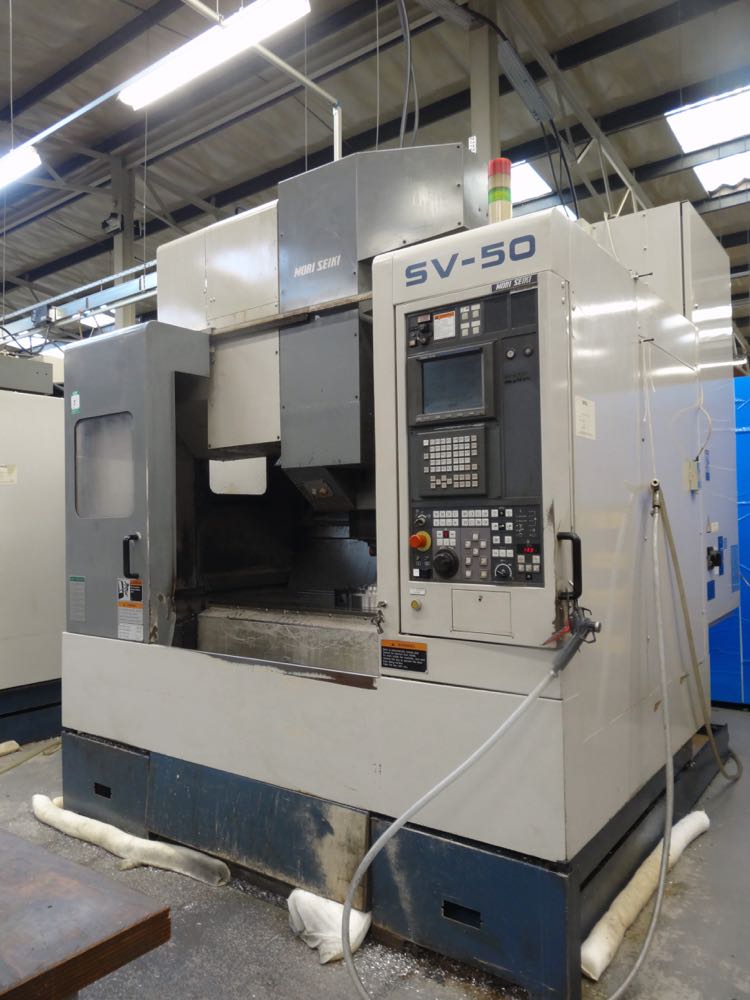

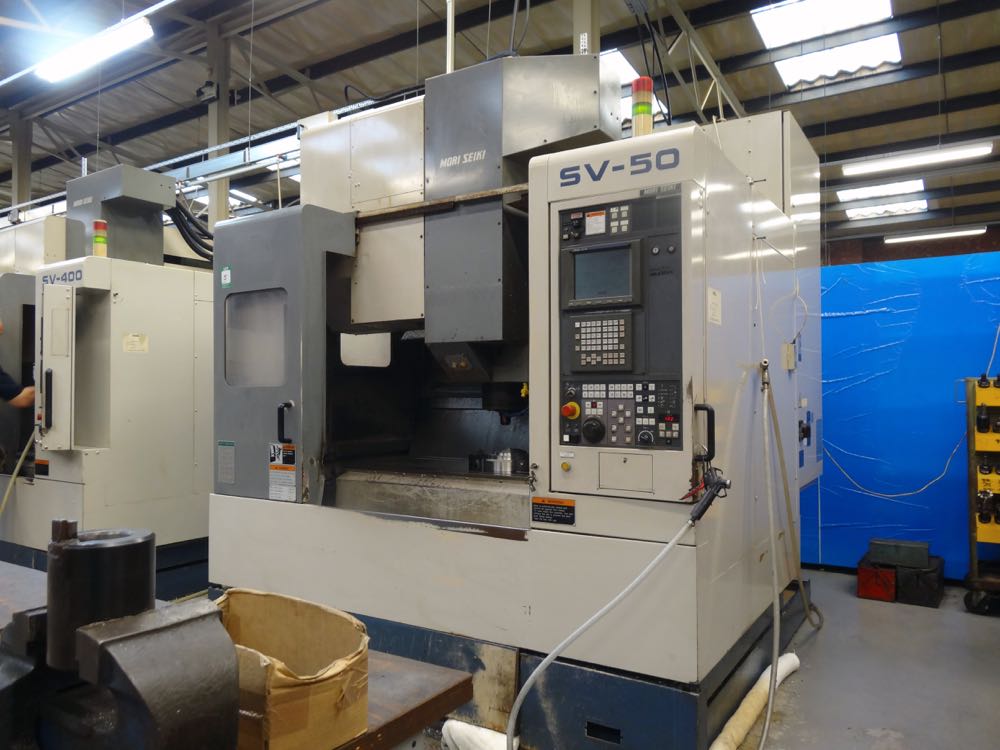

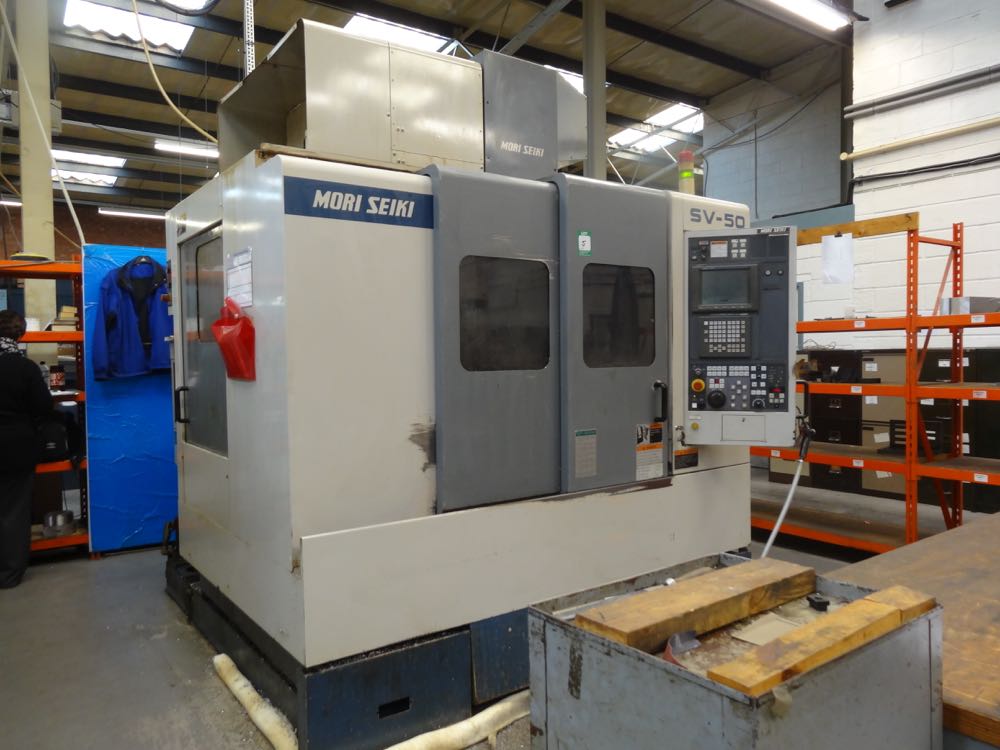

Mori Seiki SV50 VMC

S/n: 495, Year: 1996

Floor space: 2347 x 2580mm
Height: 2850mm
Weight: 6600kg

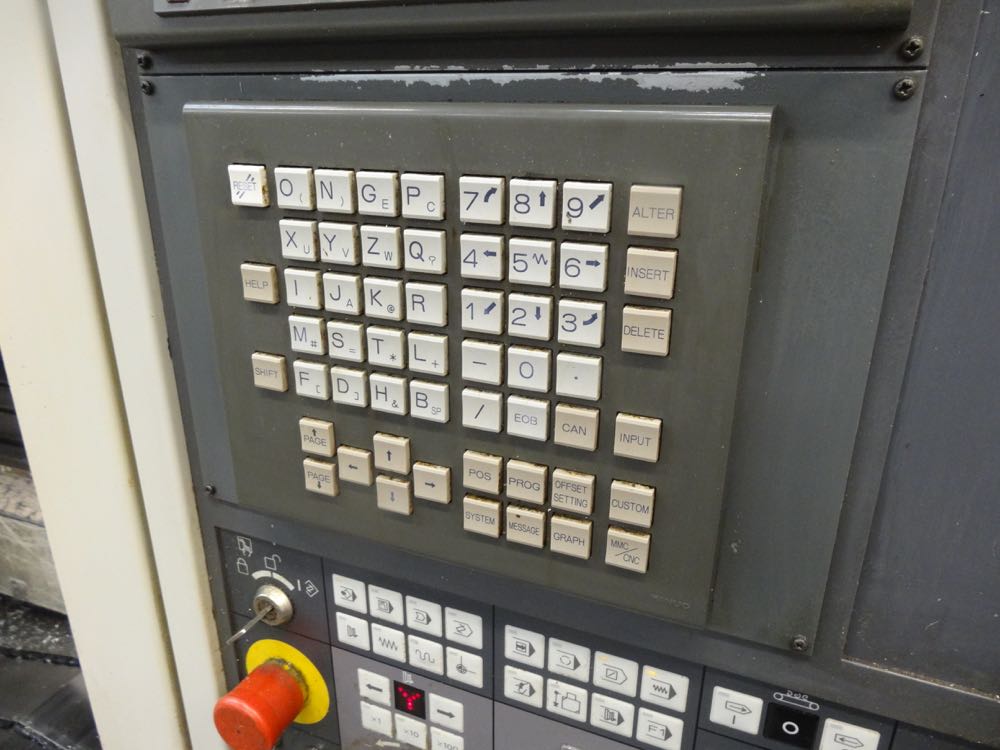

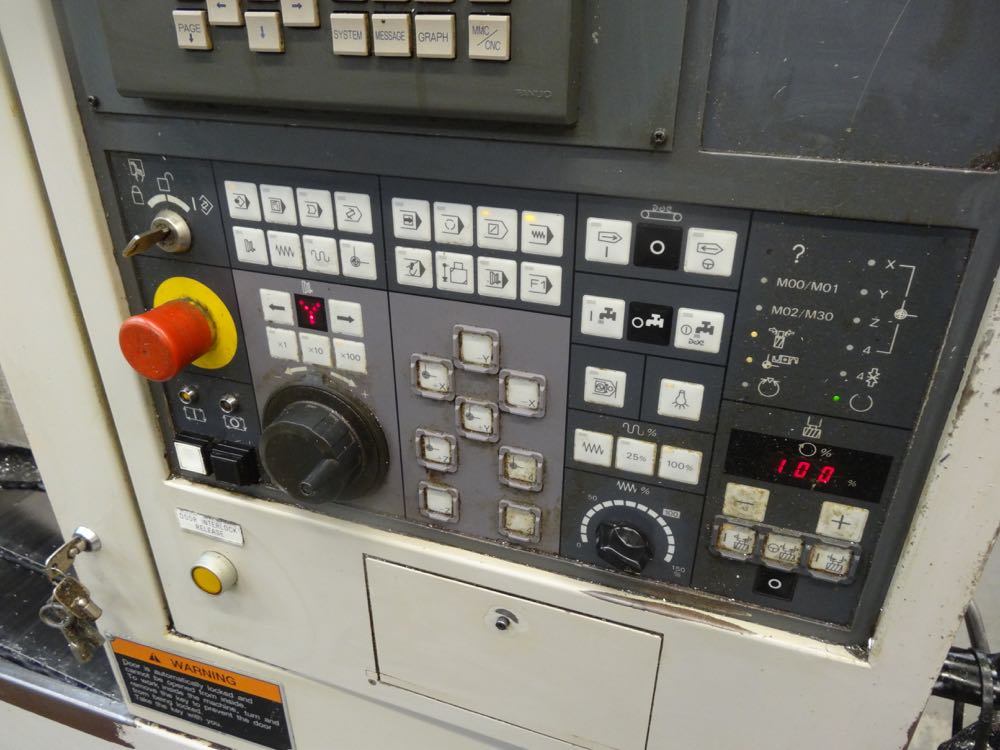

Mori Control

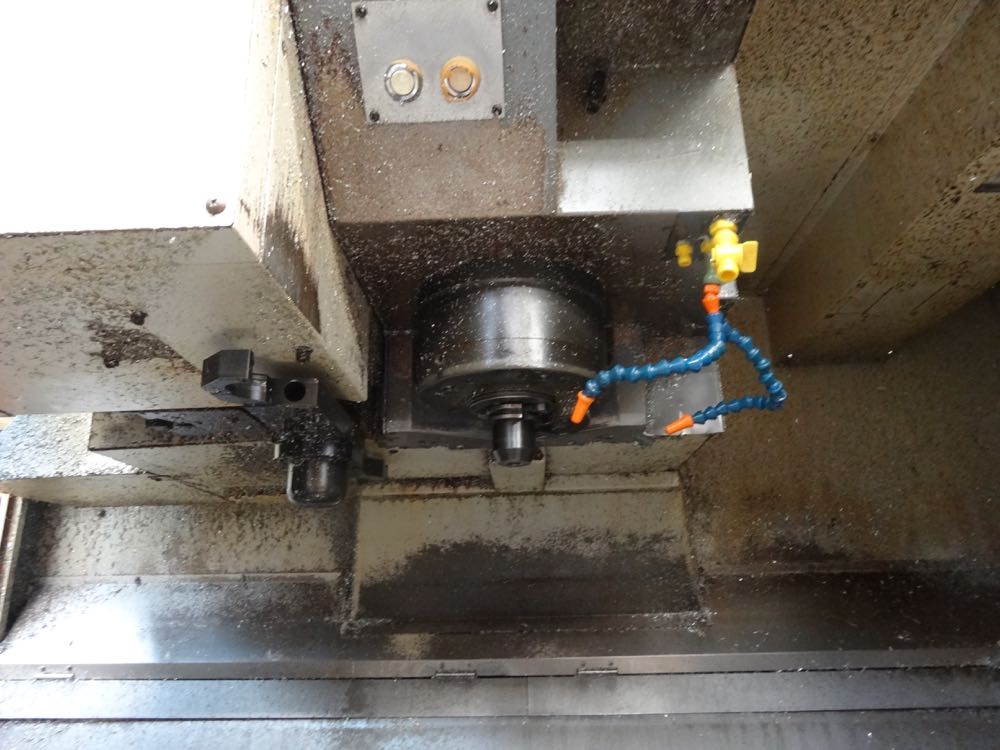

Spindle speed 10000 min -1
Spindle taper: BT40

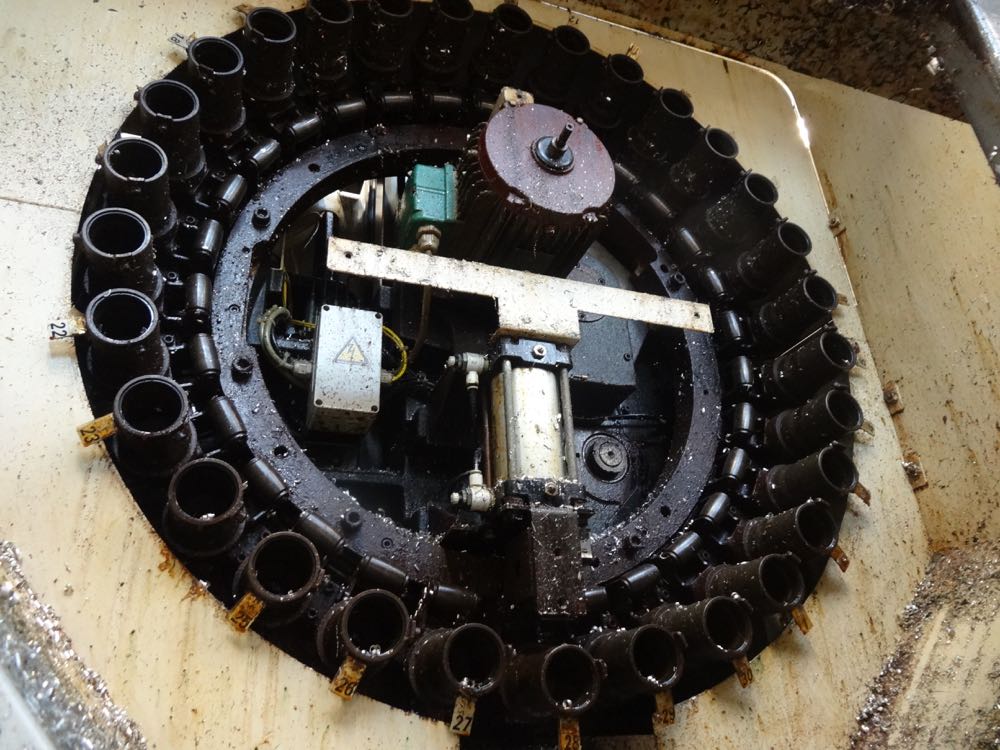

Tool storage cap: 30
Max tool dia: 125mm
Max tool mass: 8kg
No tooling/ tool holders/ vices included

X axis travel: 800mm (longitudinal)
Y Axis travel: 510mm
Z axis travel: 510mm
Distance from table to spindle: 150 - 660mm

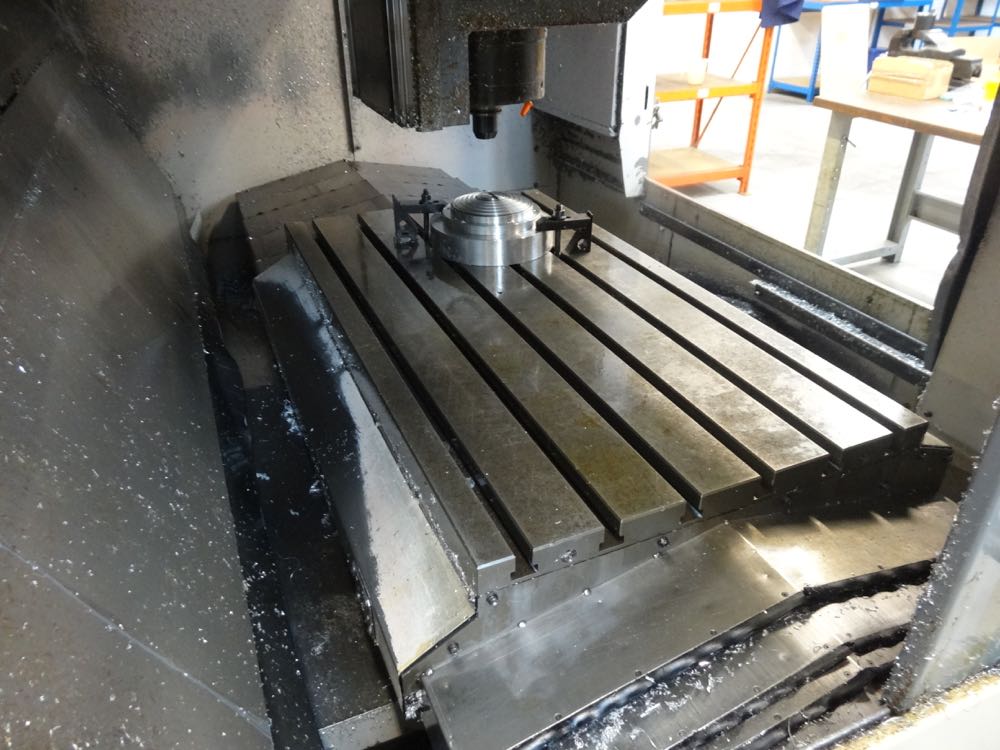

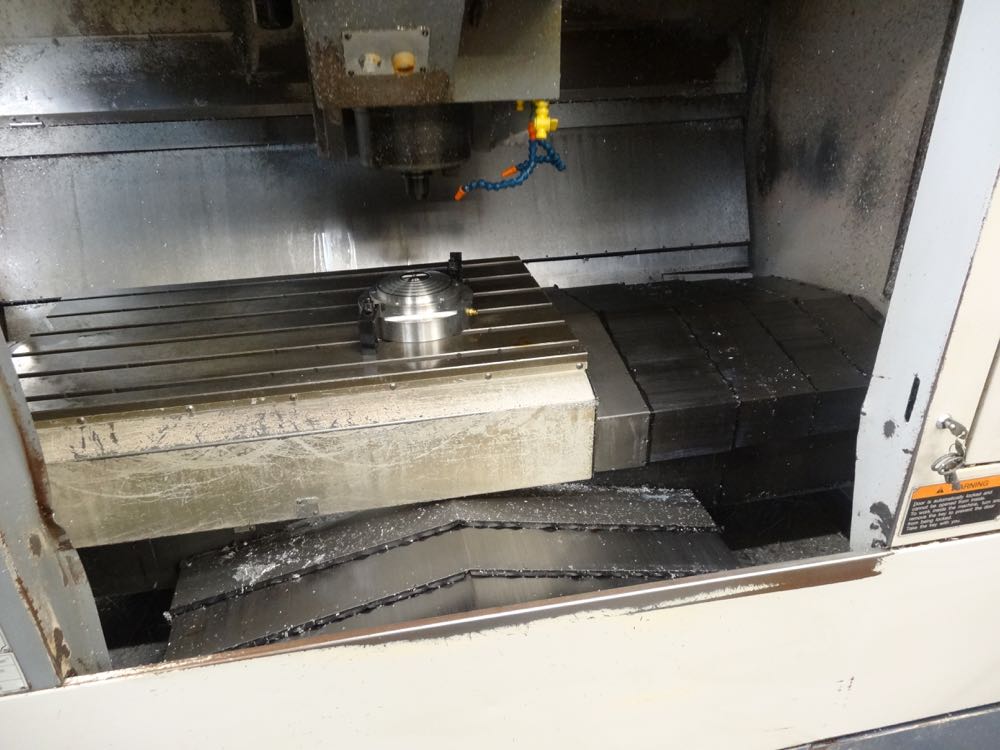

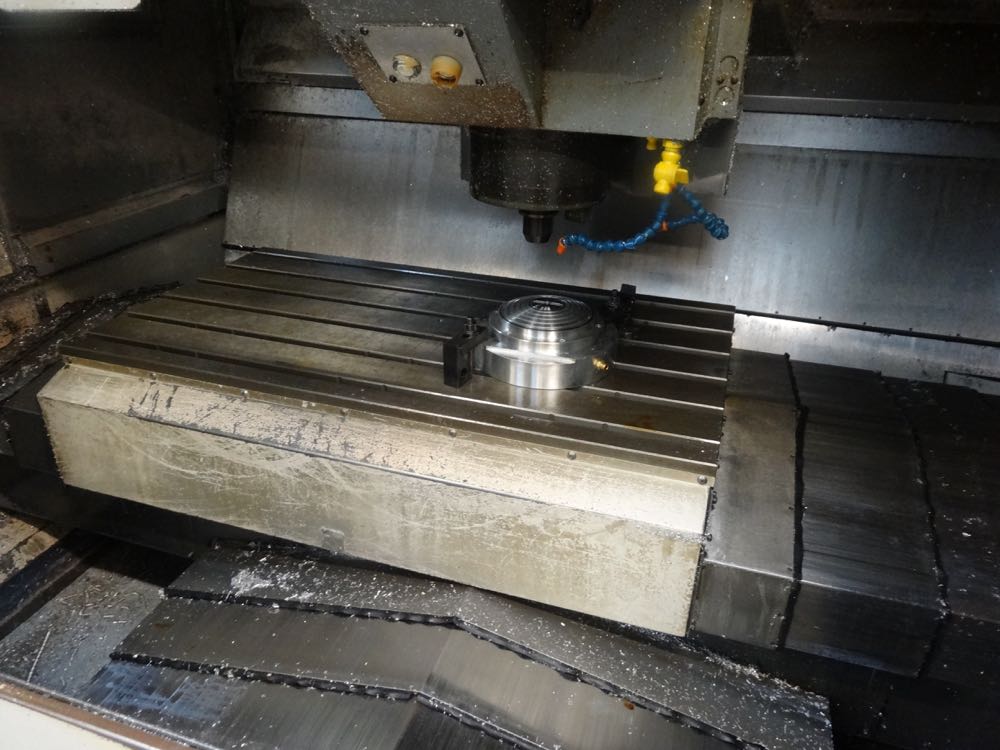

Table working surface: 1100 x 600mm
Table loading capacity: 1000kg
Table surface configuration: 18mm T-slot 6 pieces
Rapid traverse rate: (xyz) 32000mm/min
Feedrate 1-16000mm/min
Jog feedrate: 0-1260

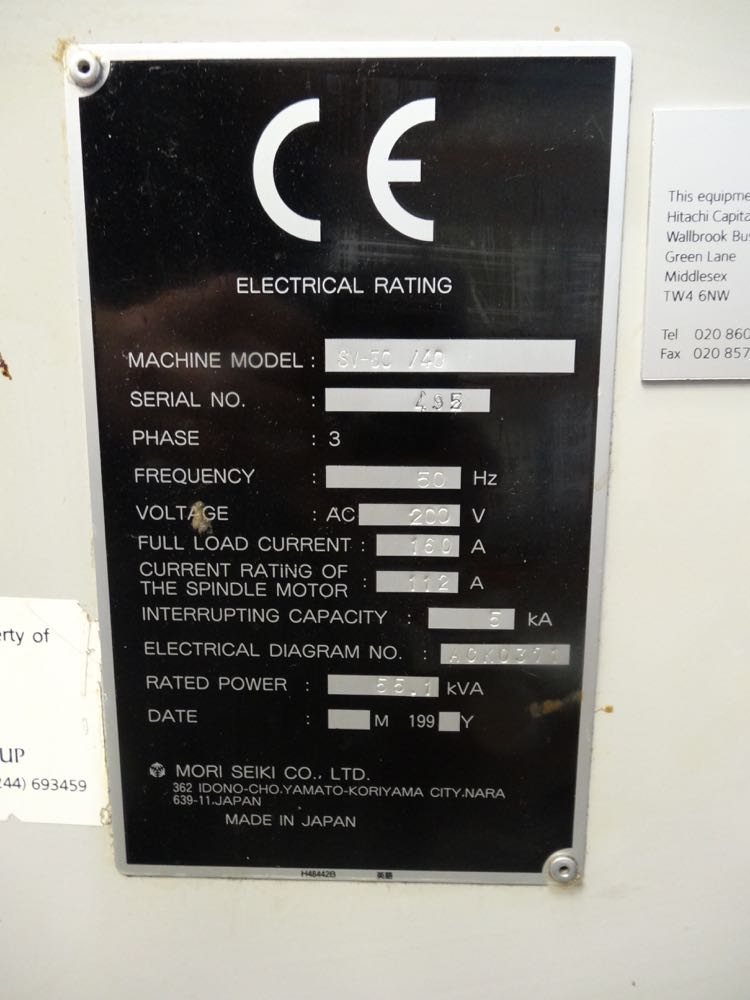

3 Phase
50Hz
200V

No swarf bin included

Transformer:
L x W x H: 790 x 520 x 700

Location: NWP Chelmsford

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
