Mori Seiki SV400 VMC (1997)

Lot 5 - Mori Seiki SV400 VMC (1997)

Description:

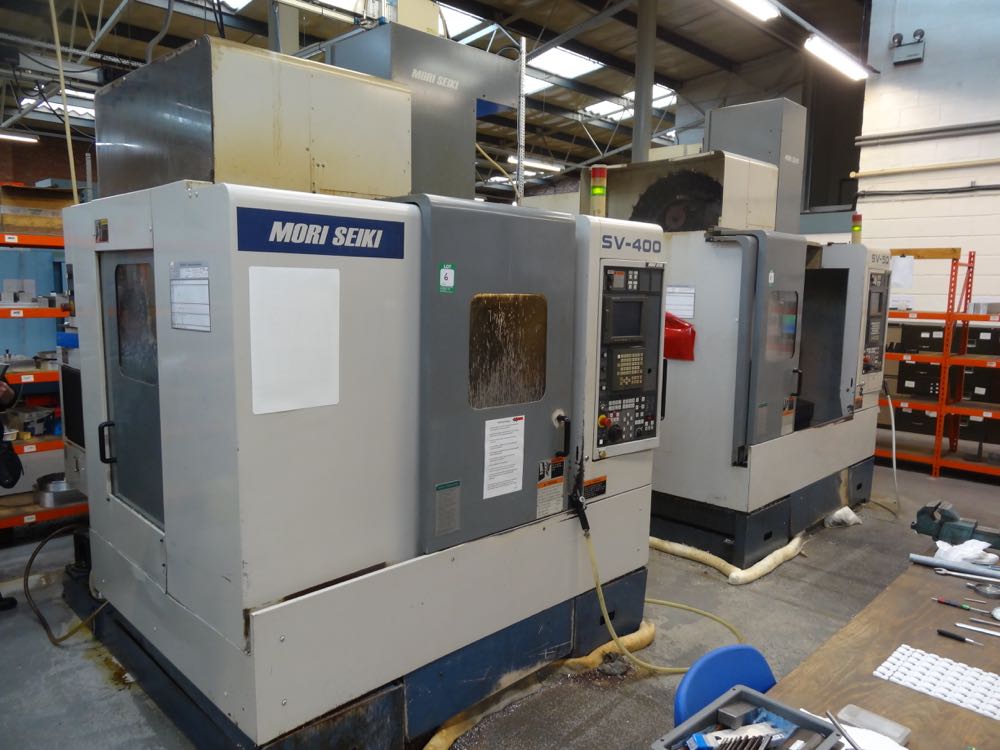

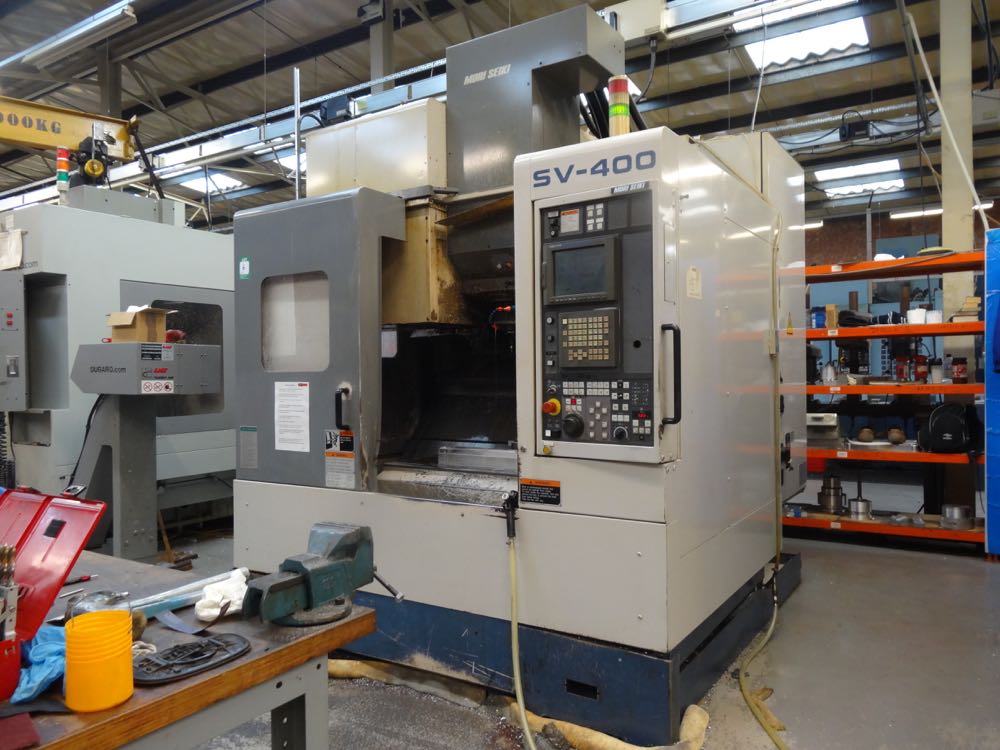

Mori Seiki SV400 VMC

S/n: 100
Year: 7/1997
Machine height: 2703mm
Floor space: 2147 x 2480mm
Mass of machine: 5200kg

X Axis Travel: 600mm
Y Axis Travel: 430mm
Z Axis Travel: 460mm

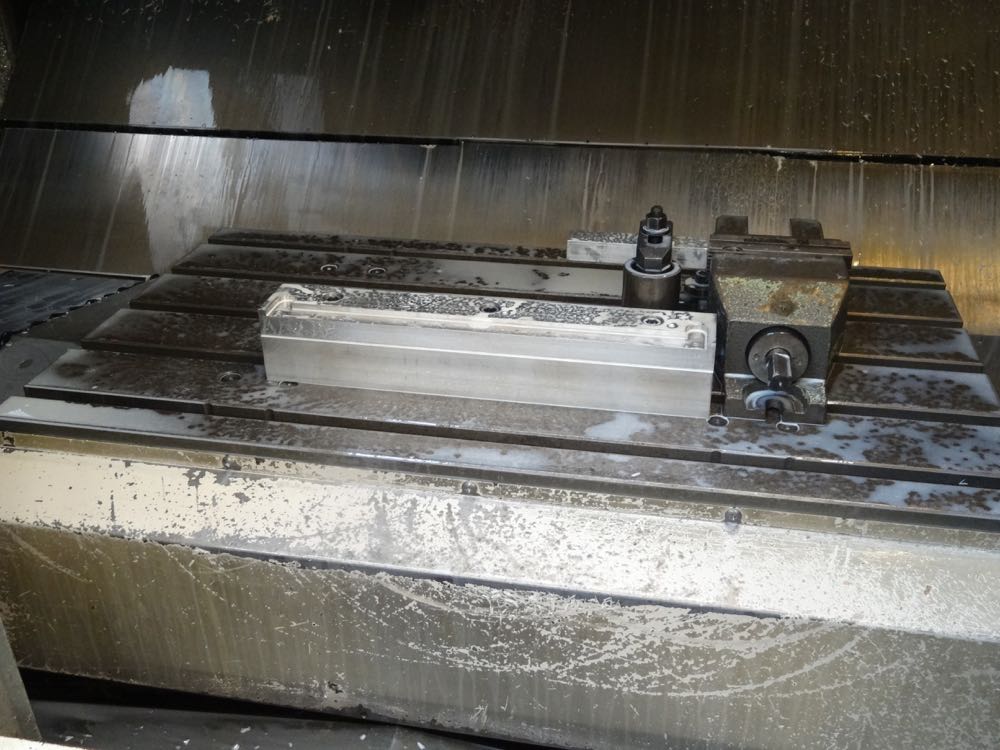

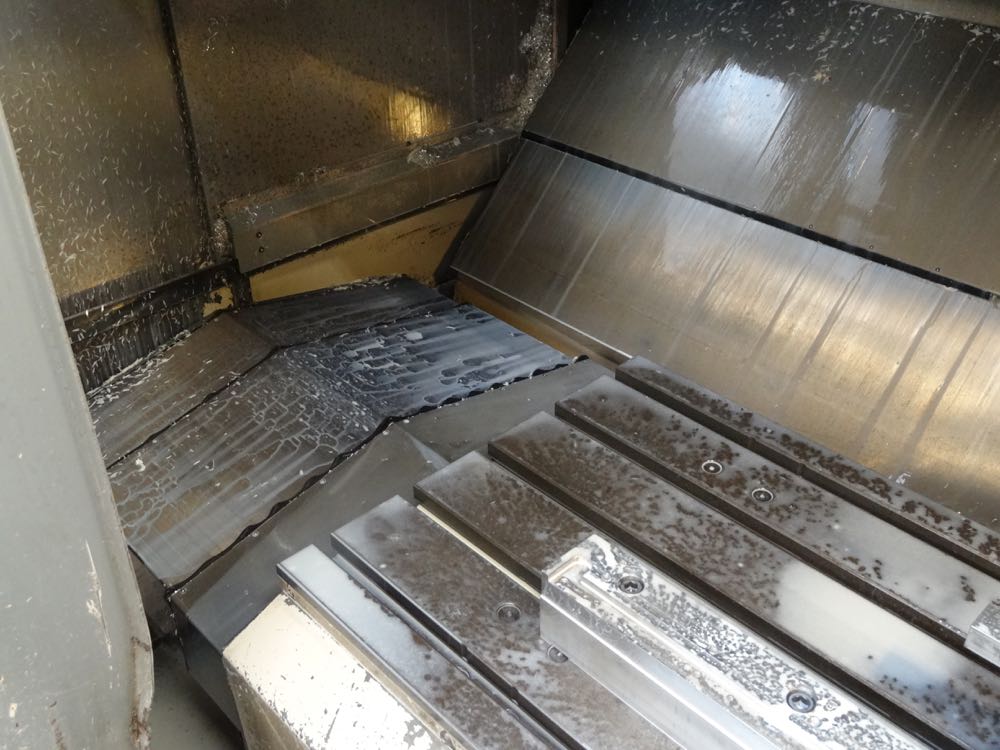

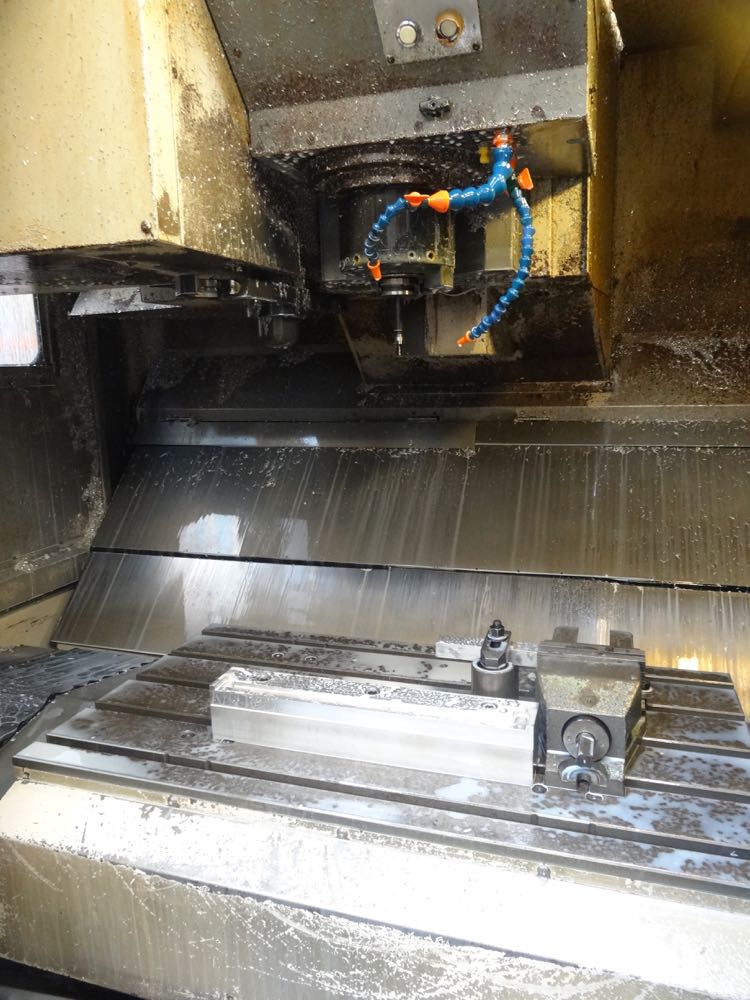

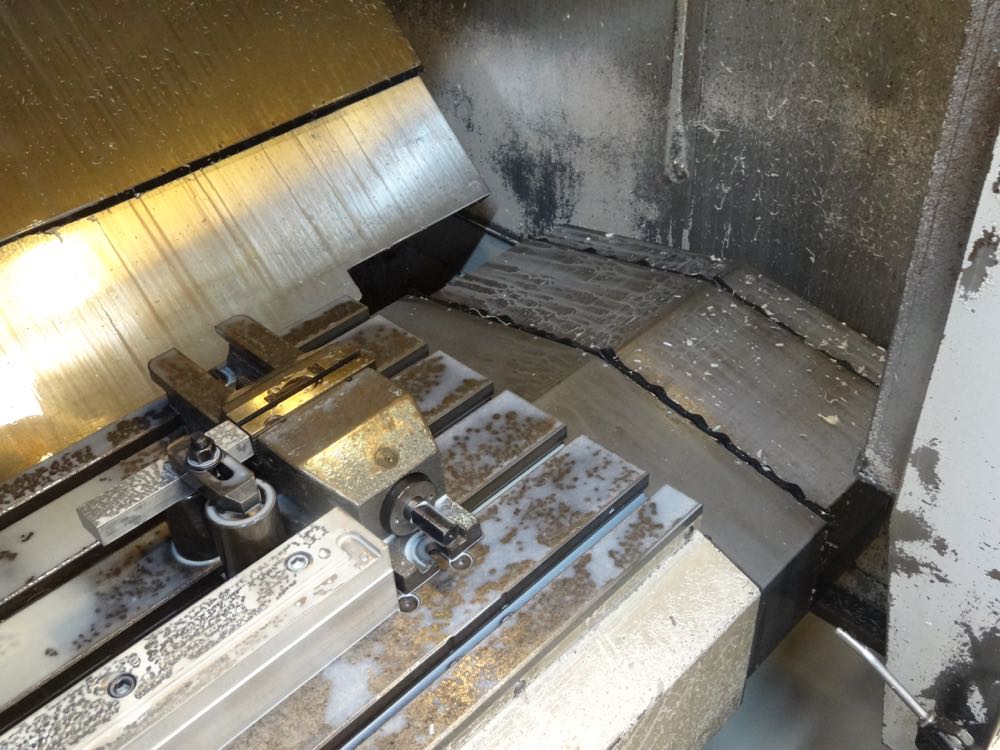

Table working surface: 900 x 500mm
Table loading capacity: 500kg
Table surface configuration: 18mmT slot 5 pieces

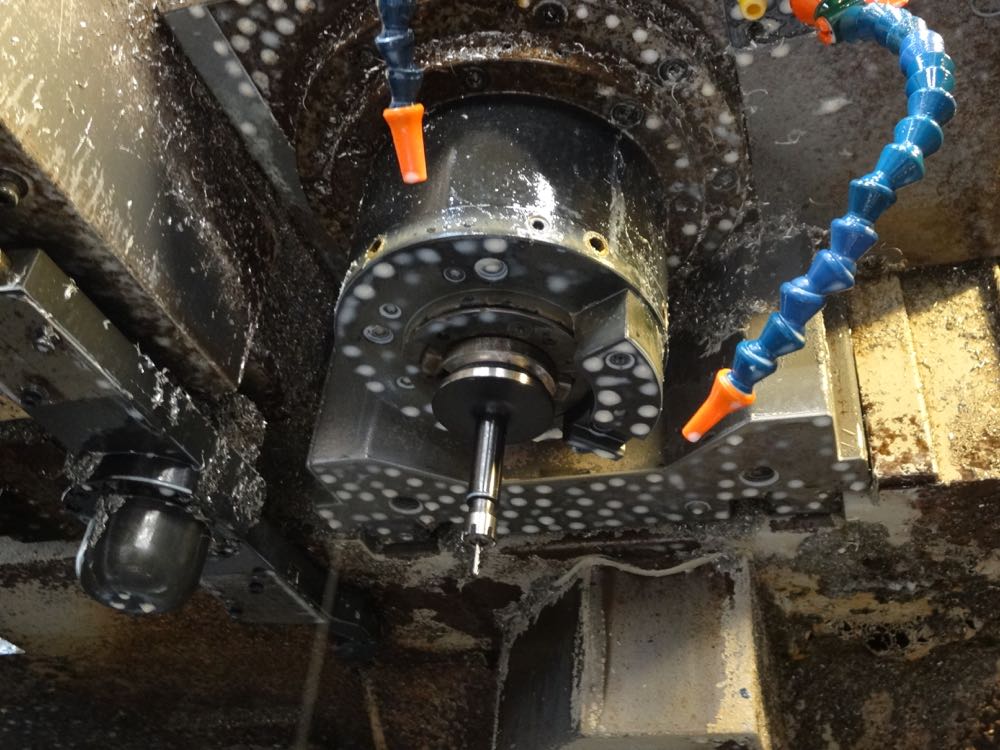

Spindle speed range: 12000
Type of spindle taper hole: no 40
Spindle bearing inner diameter: 70
Rapid traverese rate (xyz): 32000mm/min
Feedrate1-16000mm/min
Jog Feedrate: 0-1260mm/min
Type of tool shank: BT40

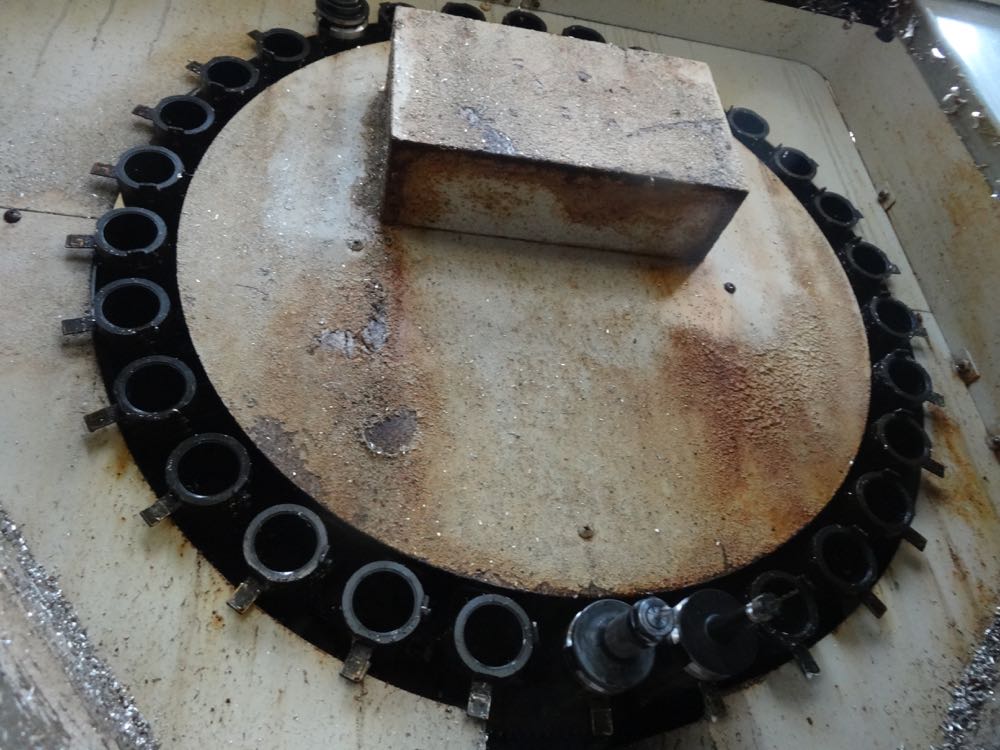

Tool storage capacity: 30
Max tool dia: 125
Max tool length: 300
Max tool mas 8kg

No Tools/ Tool holders/ Swarfbins or vices included with the machine.

Location: NWP Chelmsford

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
