Lot 15 - Mostana 1M63 x 3000mm Gap Bed Lathe
Description:

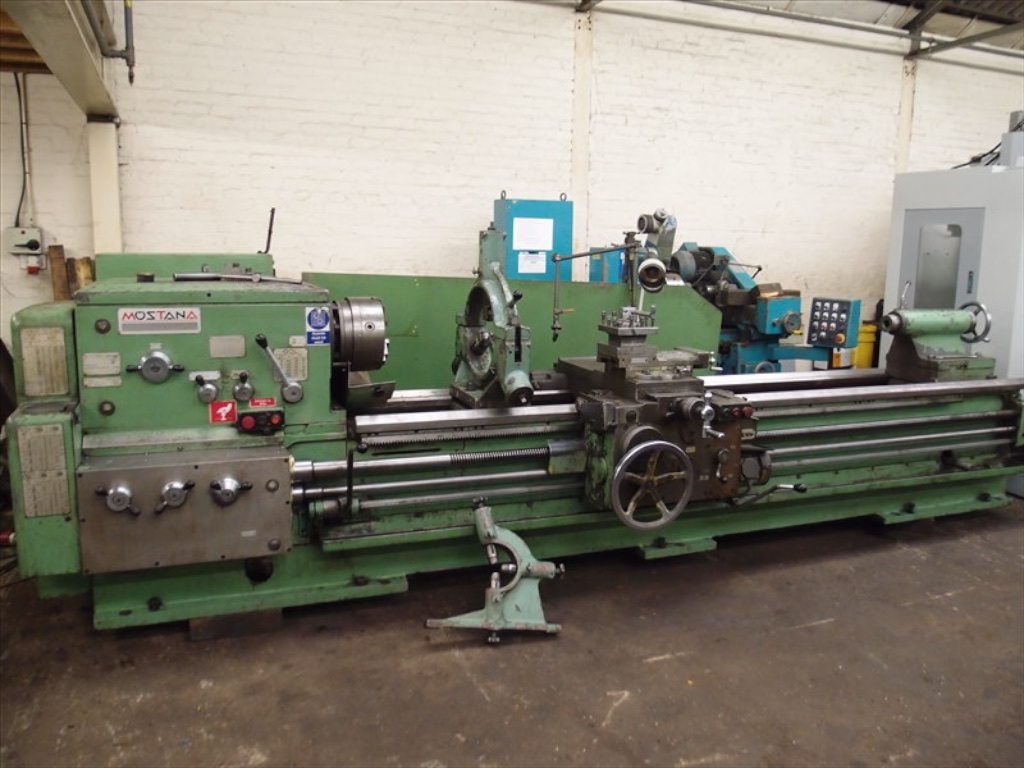

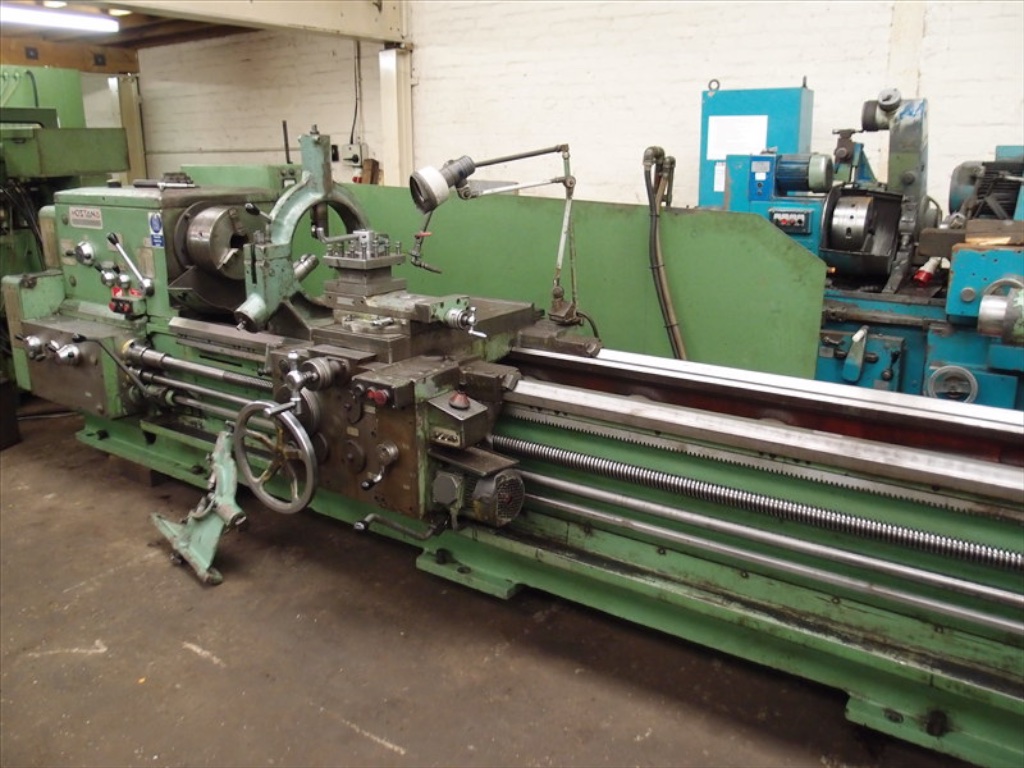

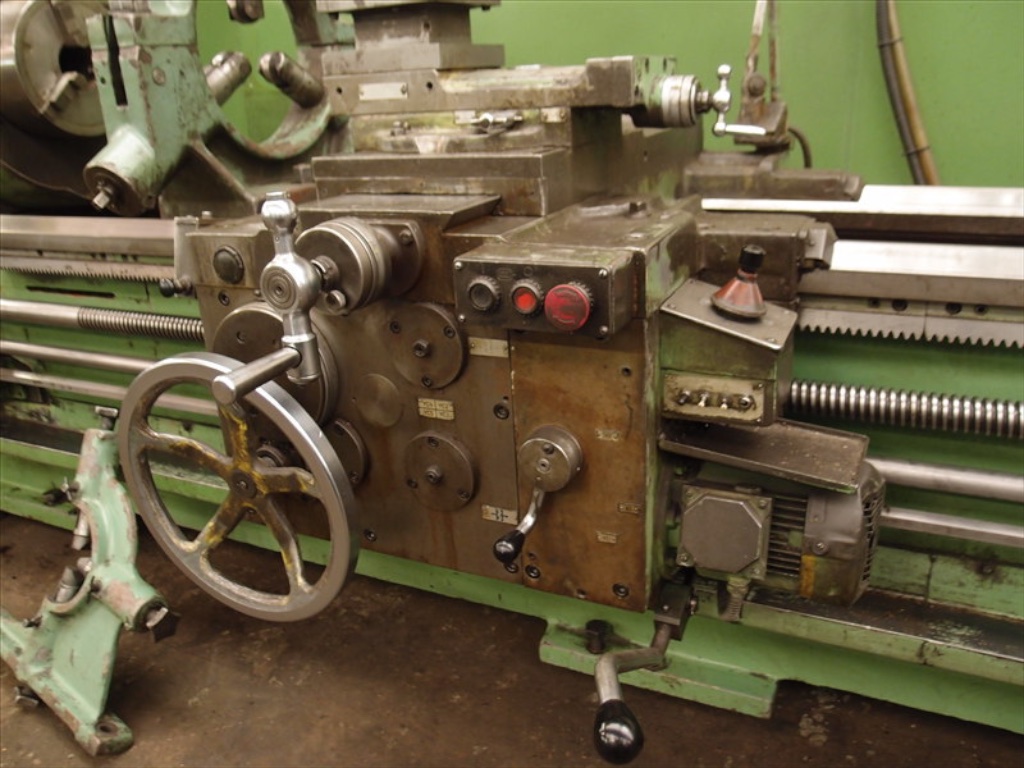

MOSTANA GAP BED CENTRE LATHE
Type 1M63 x 3000
Serial number 794
Year 1993
CAPACITY
Distance between centres 3000 mm
Swing over bed 700 mm
Swing over cross slide 365 mm
Swing in gap 950 mm x 500 mm length of gap.
UNIVERSAL GEARBOX
Longitudinal feeds per rev (32) 0.005 – 1.4 mm/rev
Cross feeds half long. feeds
Threads per inch ¼ - 28 tpi
Inch pitches 112 to 0.5
Metric pitches 1 – 224
Module 0.25 - 56

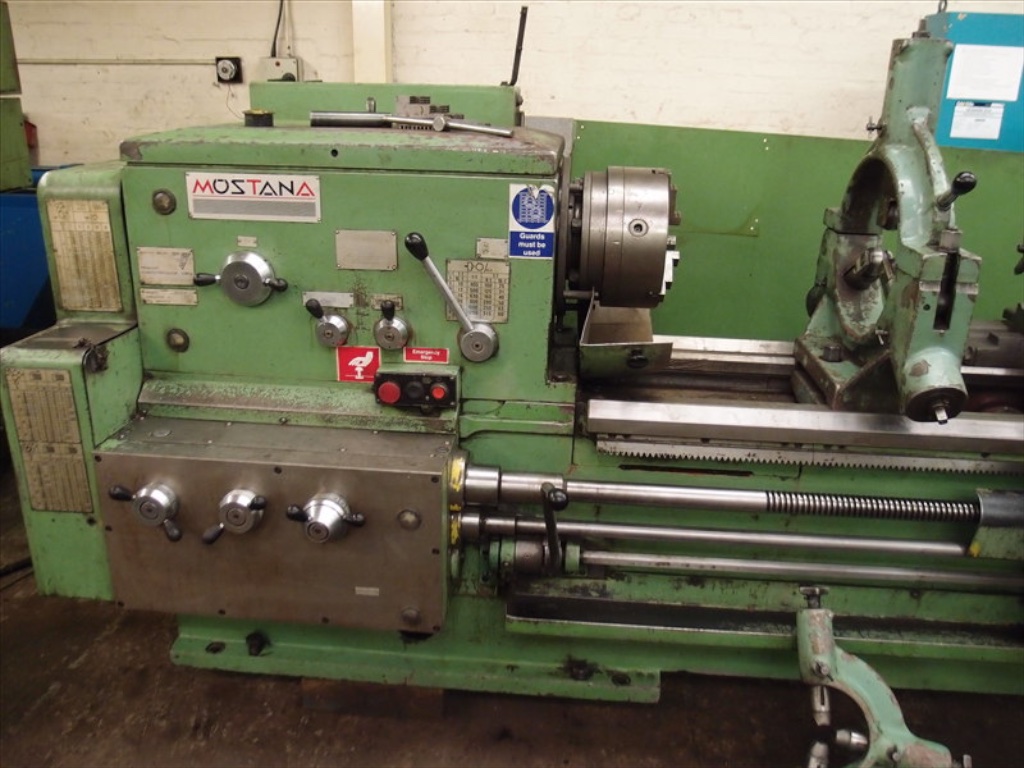

HEADSTOCK
Spindle speeds (22) 10 - 1250 rpm
Main motor 15 kW
Bore through spindle 70 mm
Machine complete with :-

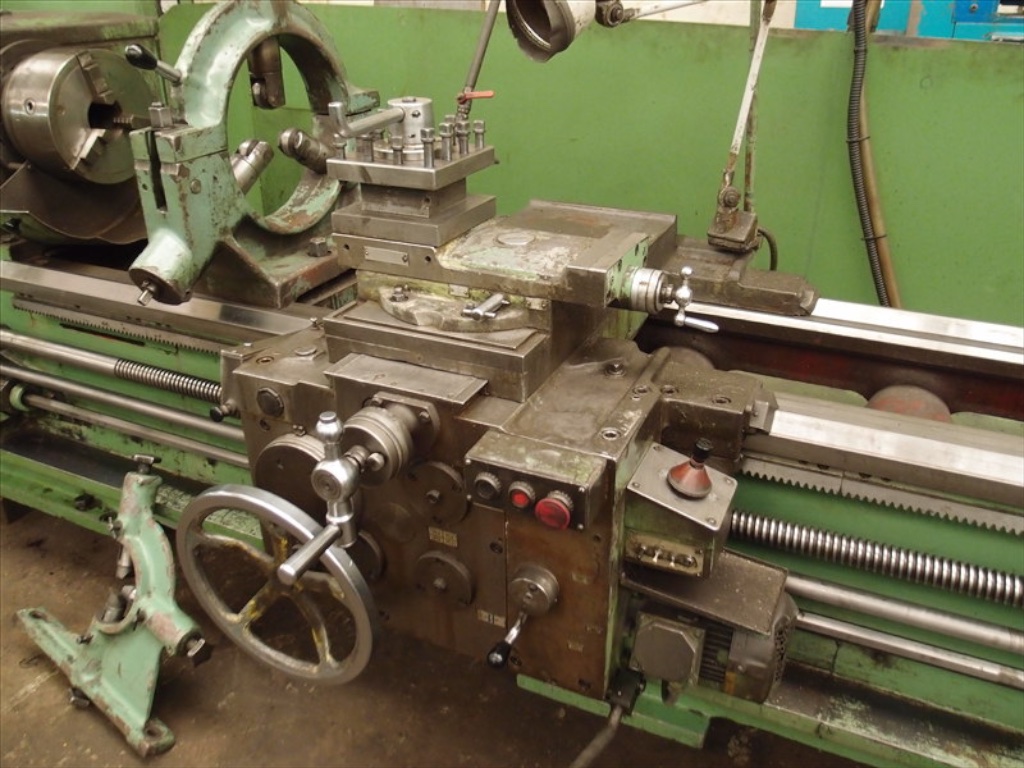

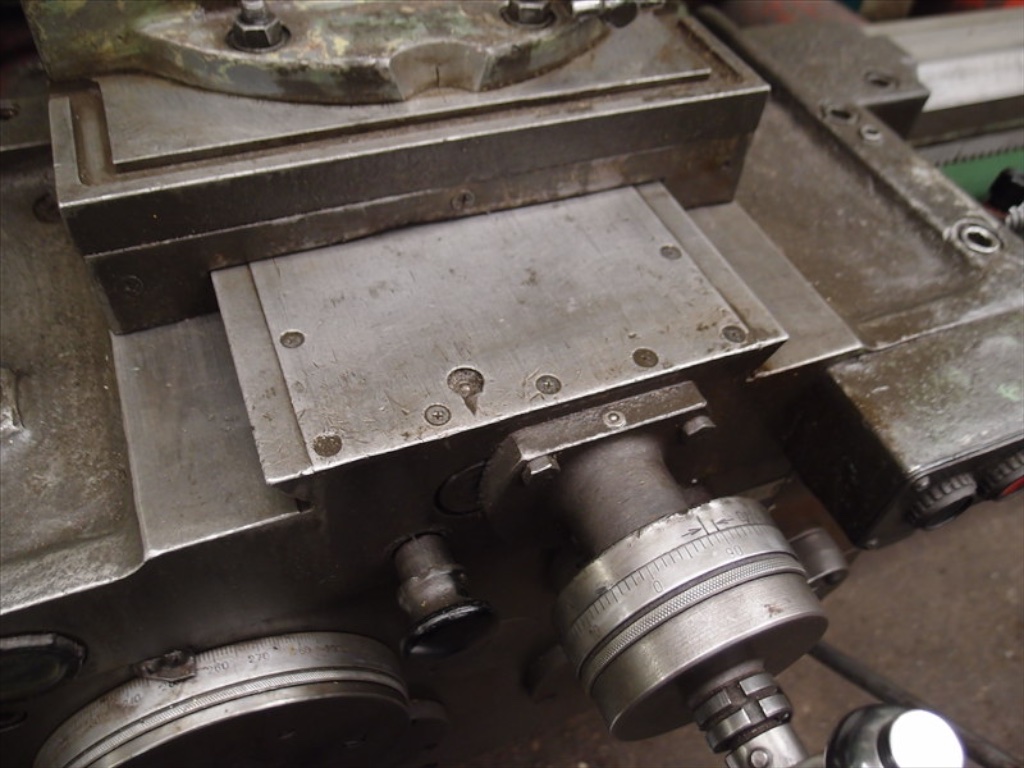

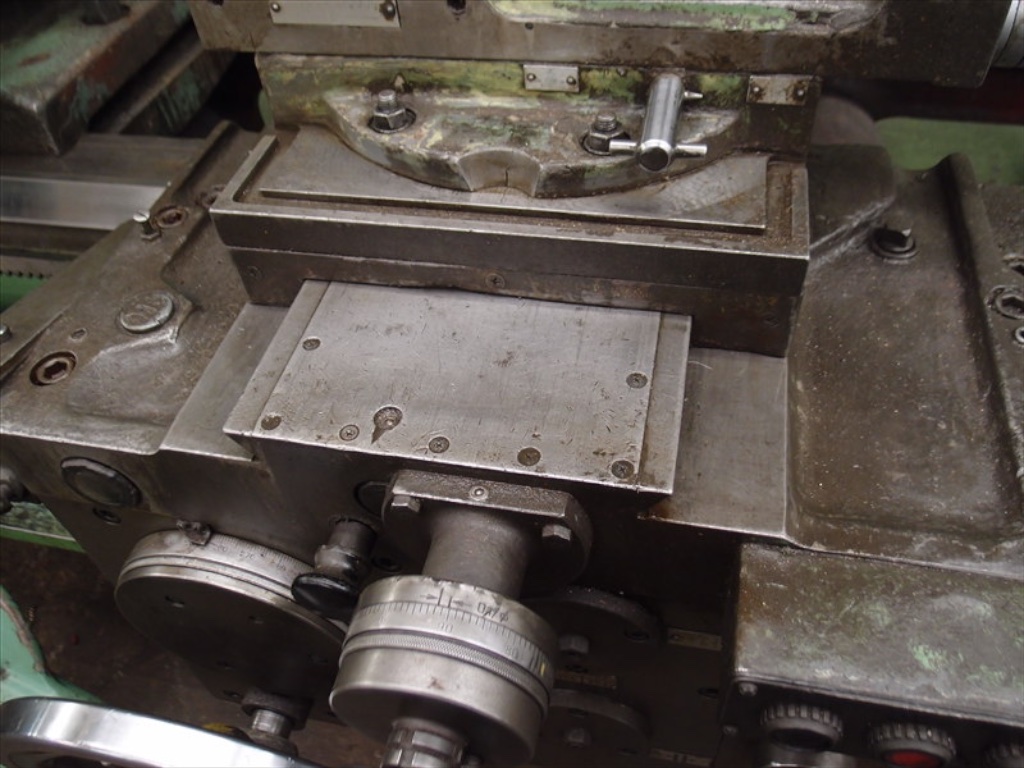

Taper turning through power compound slide.

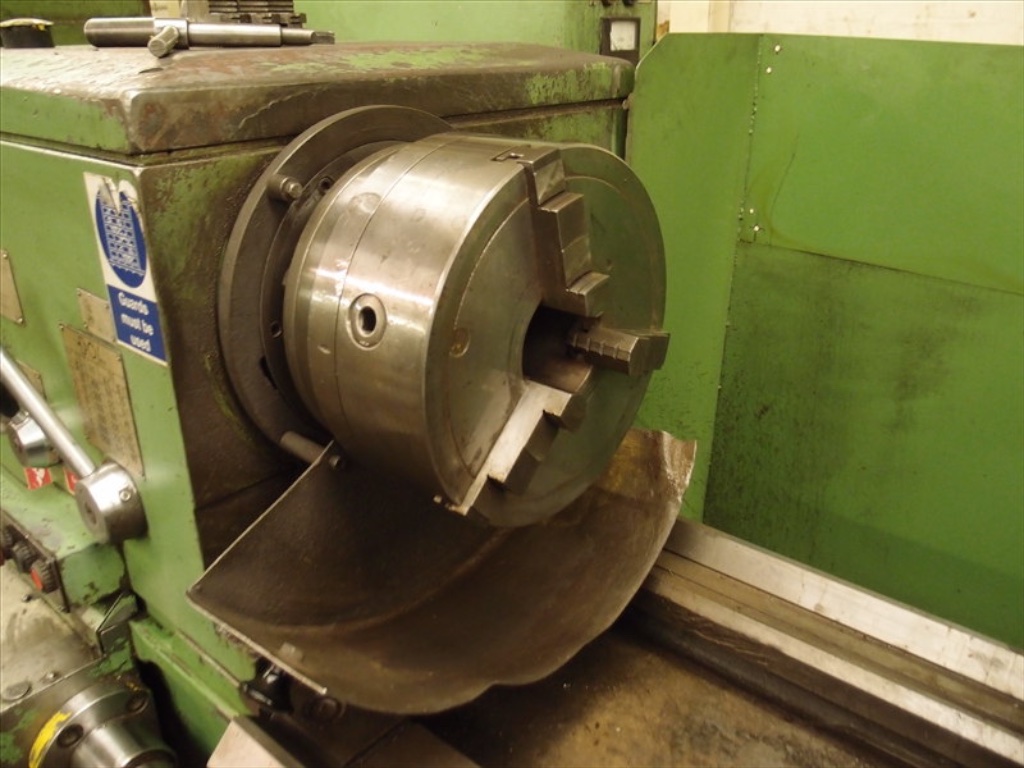

315mm 3-jaw chuck

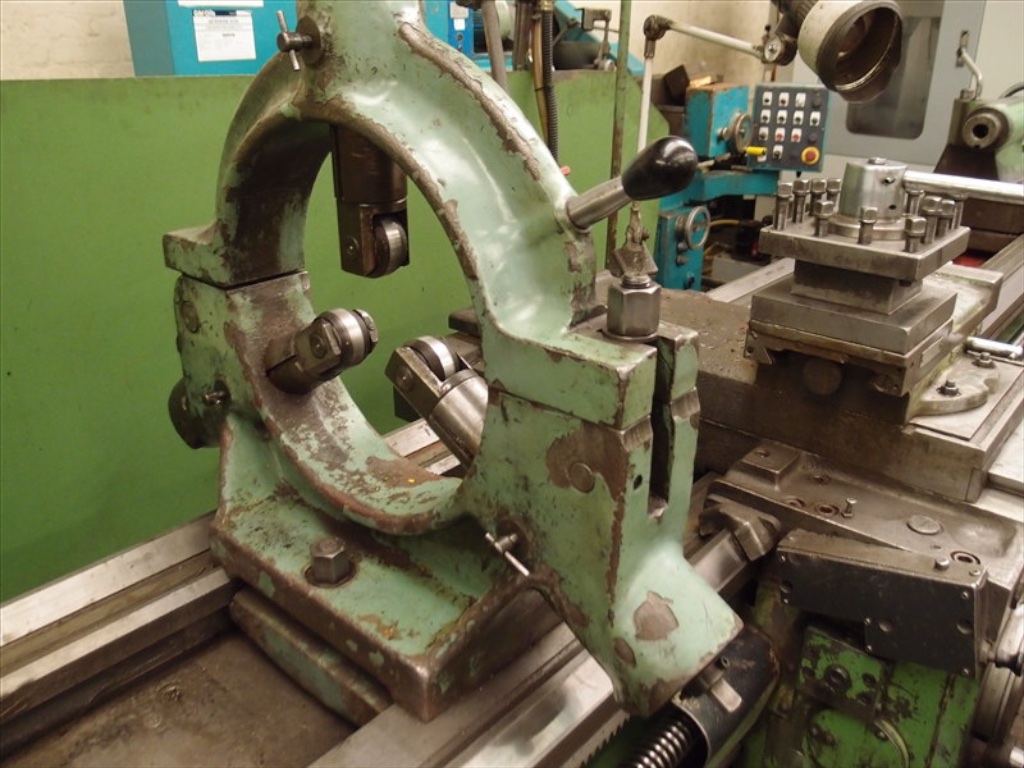

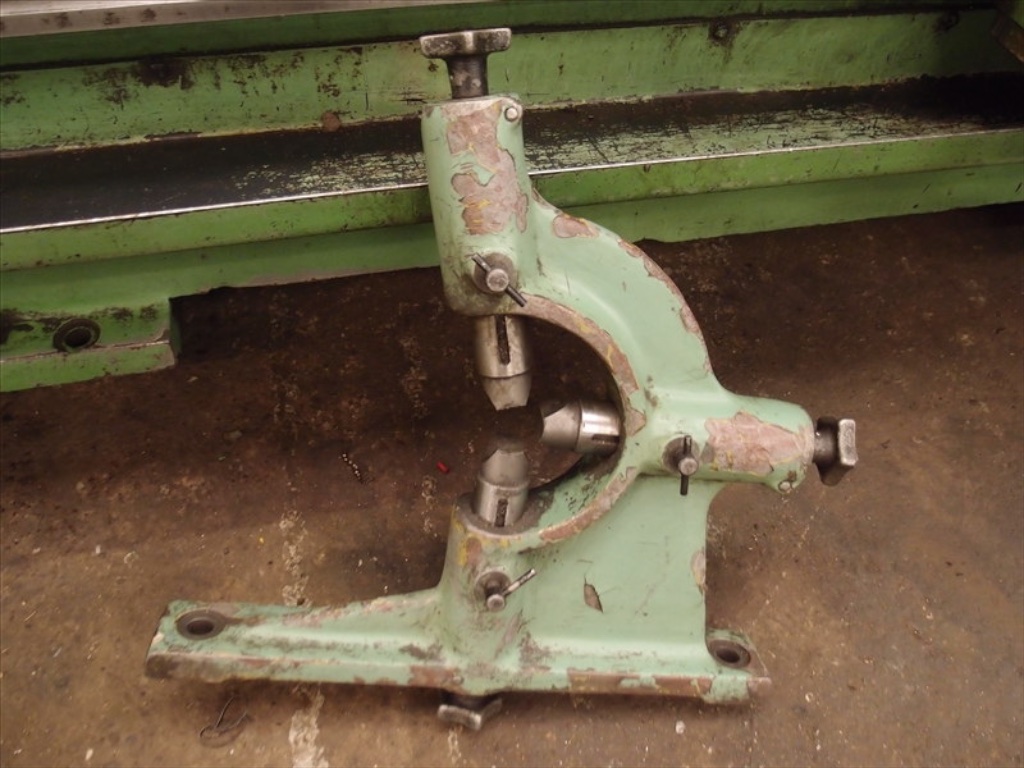

390mm 3 point roller steady
Travelling steady
Rapid power traverse

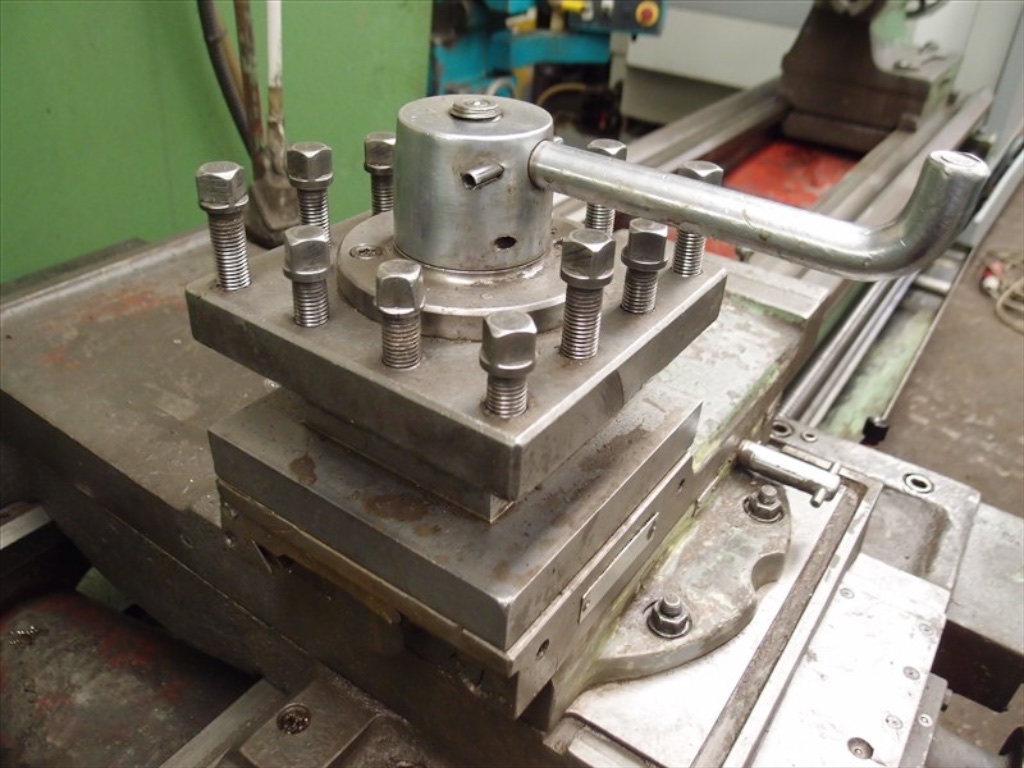

4 Way Toolpost
Coolant and lighting.
Location: Birmingham
*Can be loaded onto lorry free of charge
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
