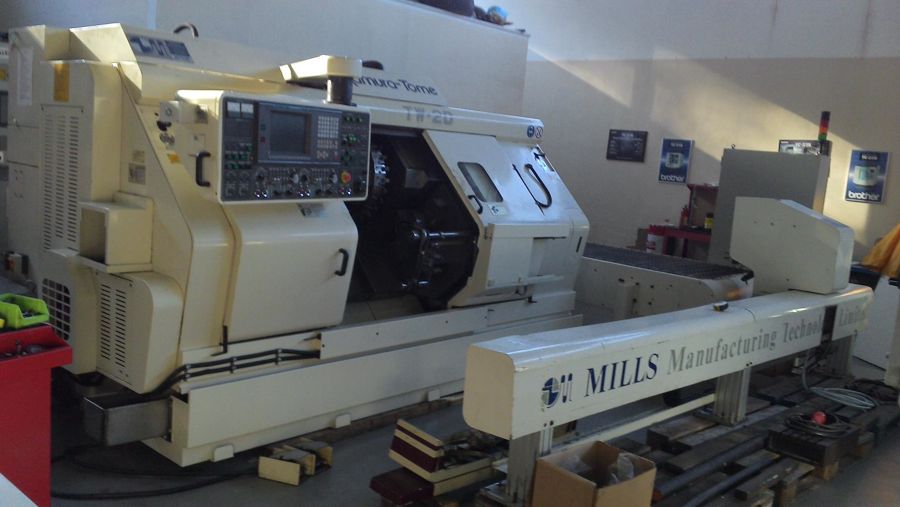

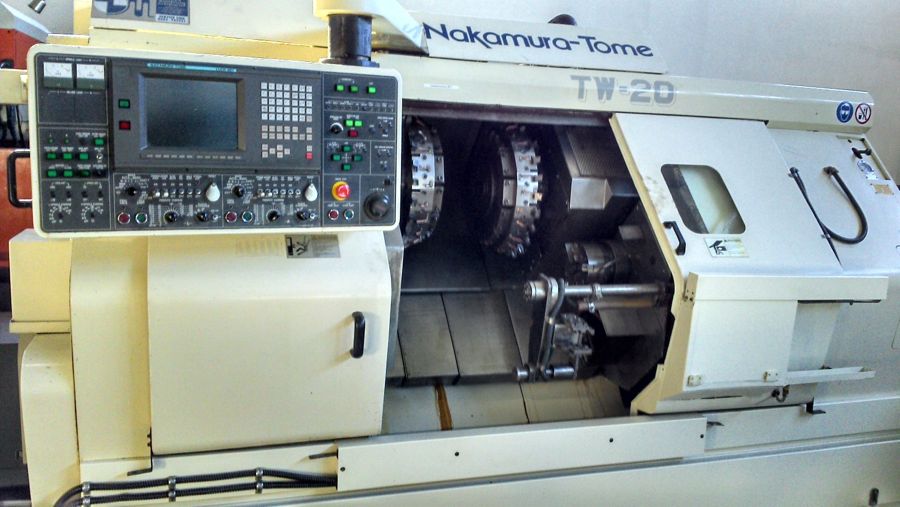

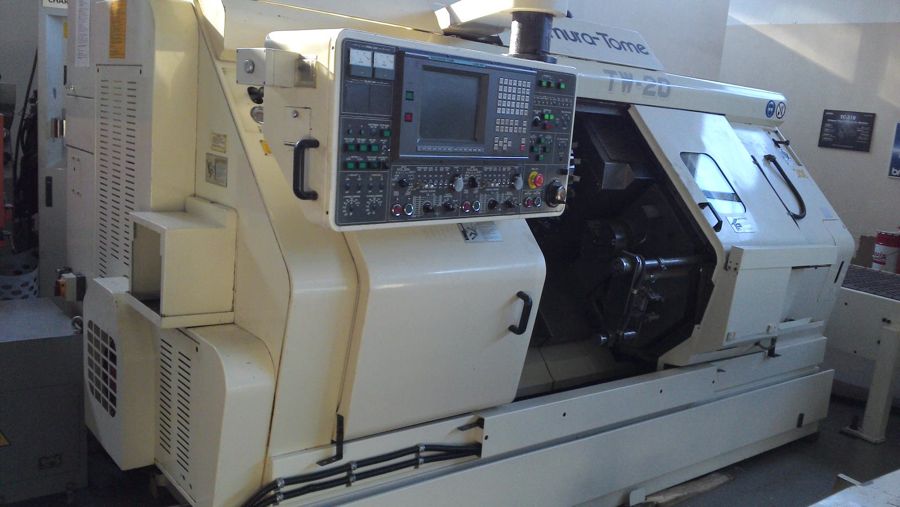

Lot 4 - Nakamura TW20 Multi-Axis CNC Lathe
Description:

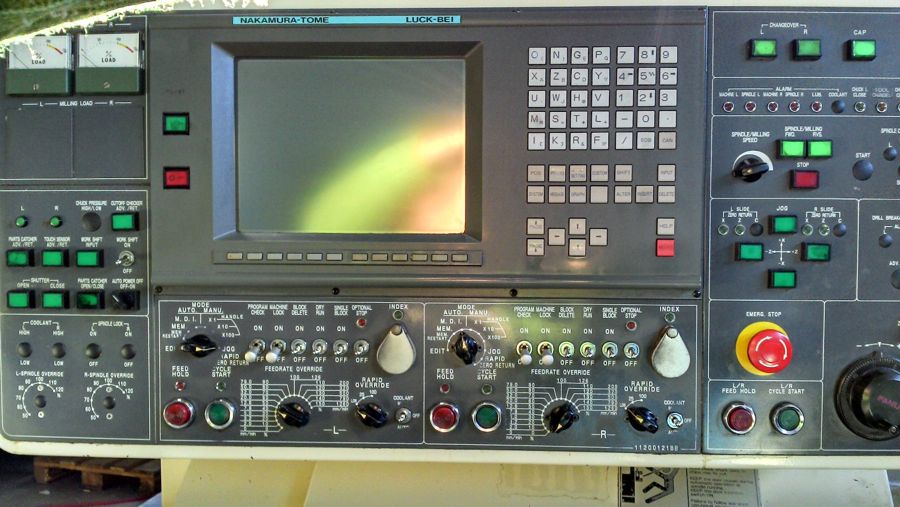

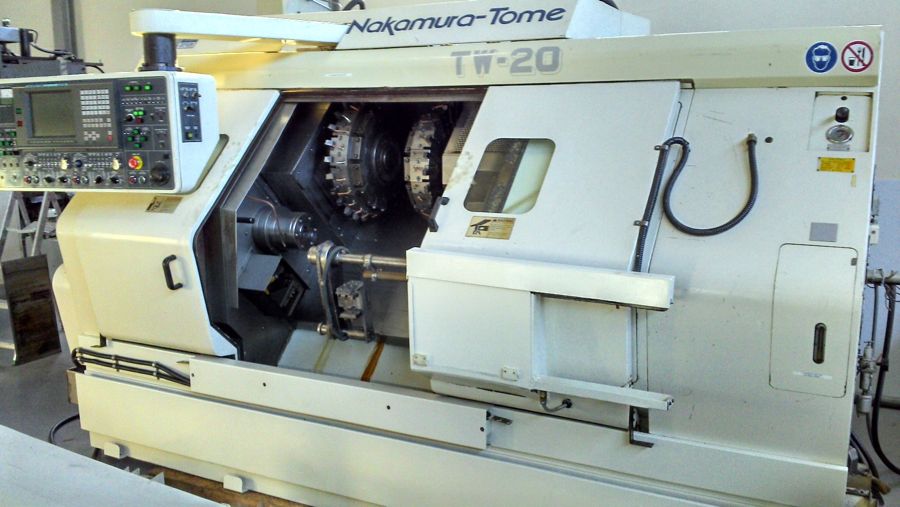

Nakamura TW20 Multi-Axis CNC Lathe with Nakamura Luck-Bei Control (Fanuc 16TT)
Machine and Accessory Specifications - Click Here Download PDF

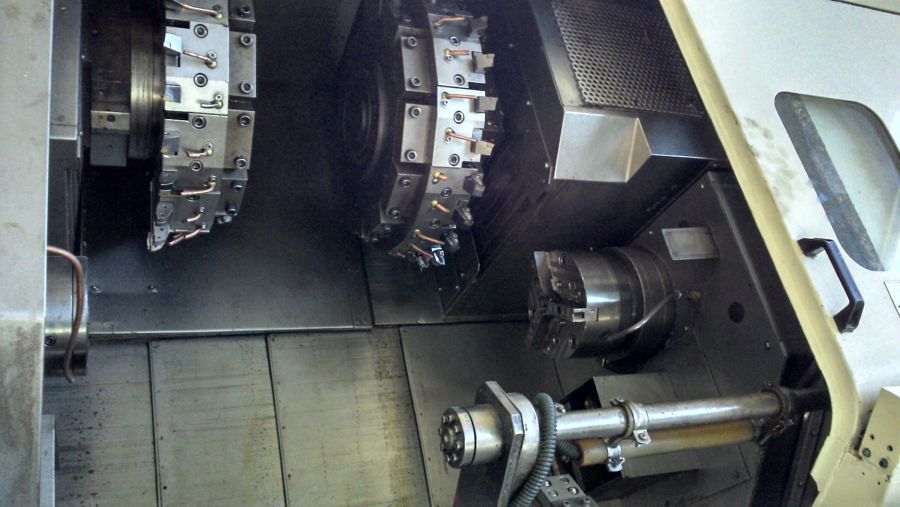

Collet Chuck to Left Hand Spindle,
3-Jaw Chuck to Right Hand Spindle,

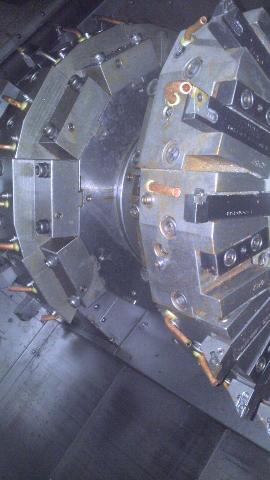

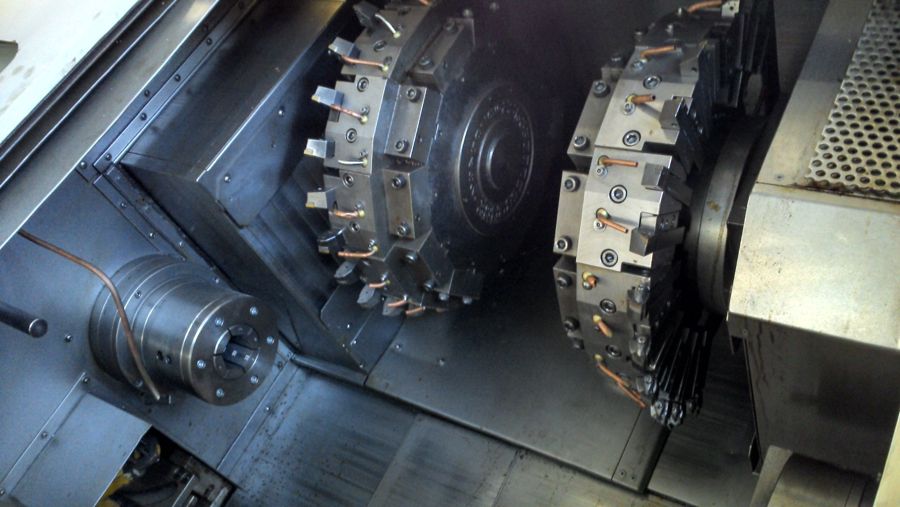

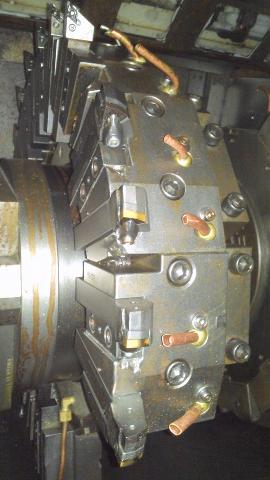

(2) 12-Station Turrets
Swing over Covers: 220mm,
Nominal Turning Diameter: 165mm,
Distance between Main Spindle nose and turret face 340mm,
Bar Capacity: 51mm.
Swarf Conveyor,

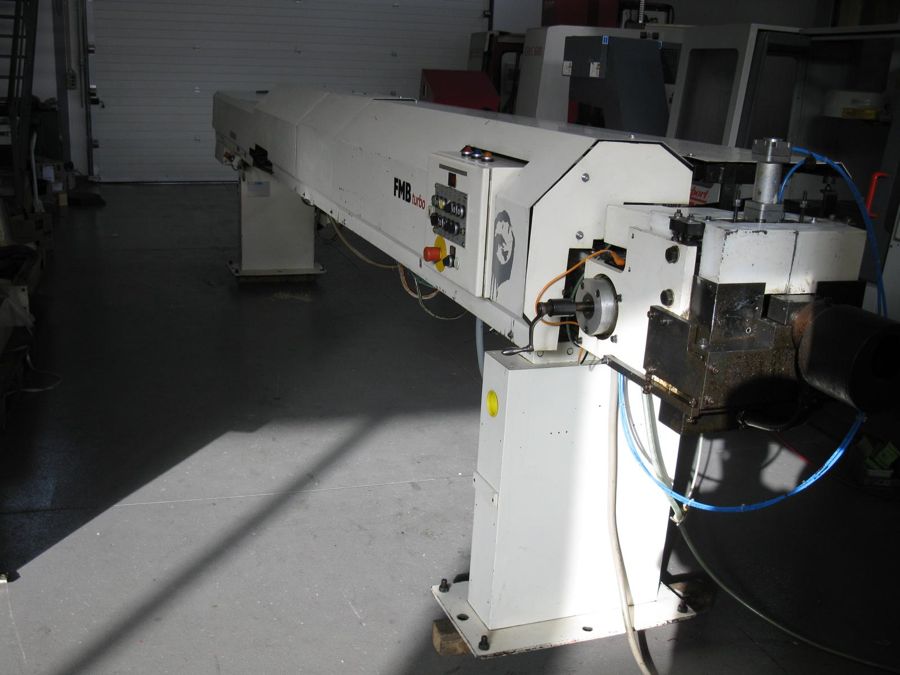

FMB Turbo Bafeed,
Robot Mills for for Catching parts.
Manuals and service books

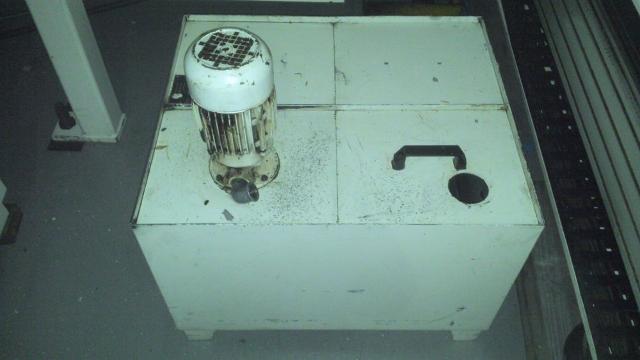

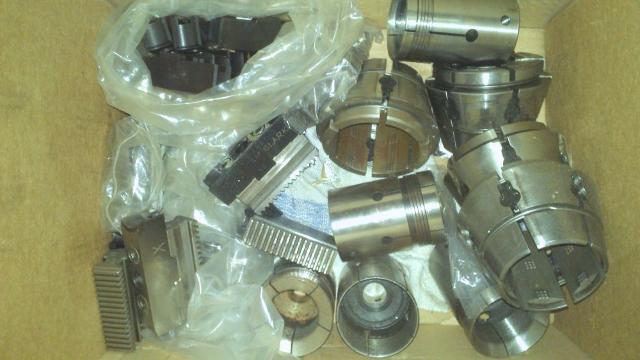

Includes tooling and extras.
(1993)
It has been tested and is in good condition
Machine Dimensions, not including chip conveyor L, W, H: 3100mm x 1745mm x 1895mm
Machine Weight:6500kg
Please Note: This Item is located in MACEIRA PORTUGAL and will be loaded free of charge to a suitable vehicle.
Please contact us for transportation quotation.
Shipment to UK: Machine + options Fills a complete trailer, it cost around 2.200 euros from Portugal to UK.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
