Lot 6 - NEW Colchester Student Gap Bed Lathe
Description:

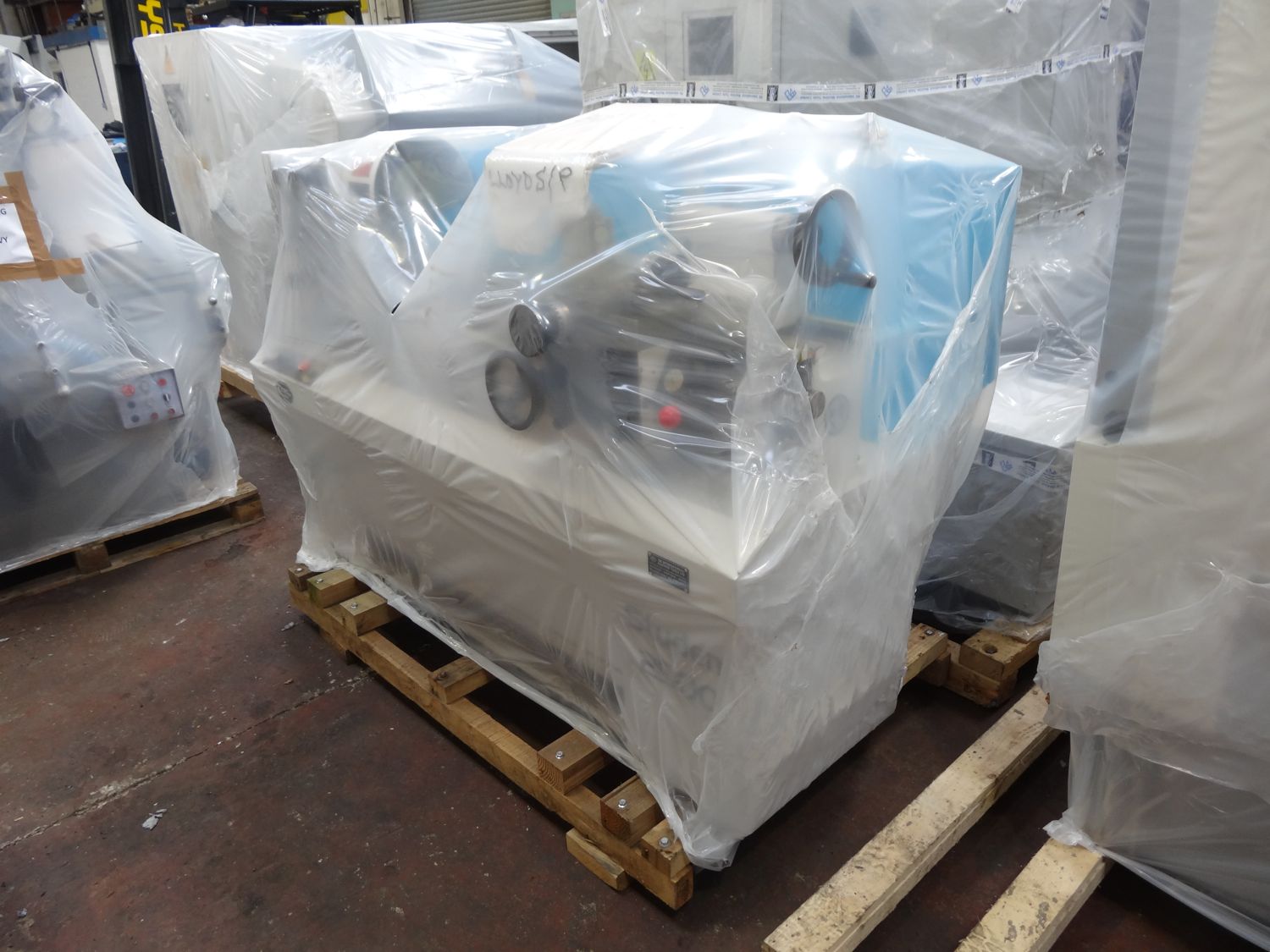

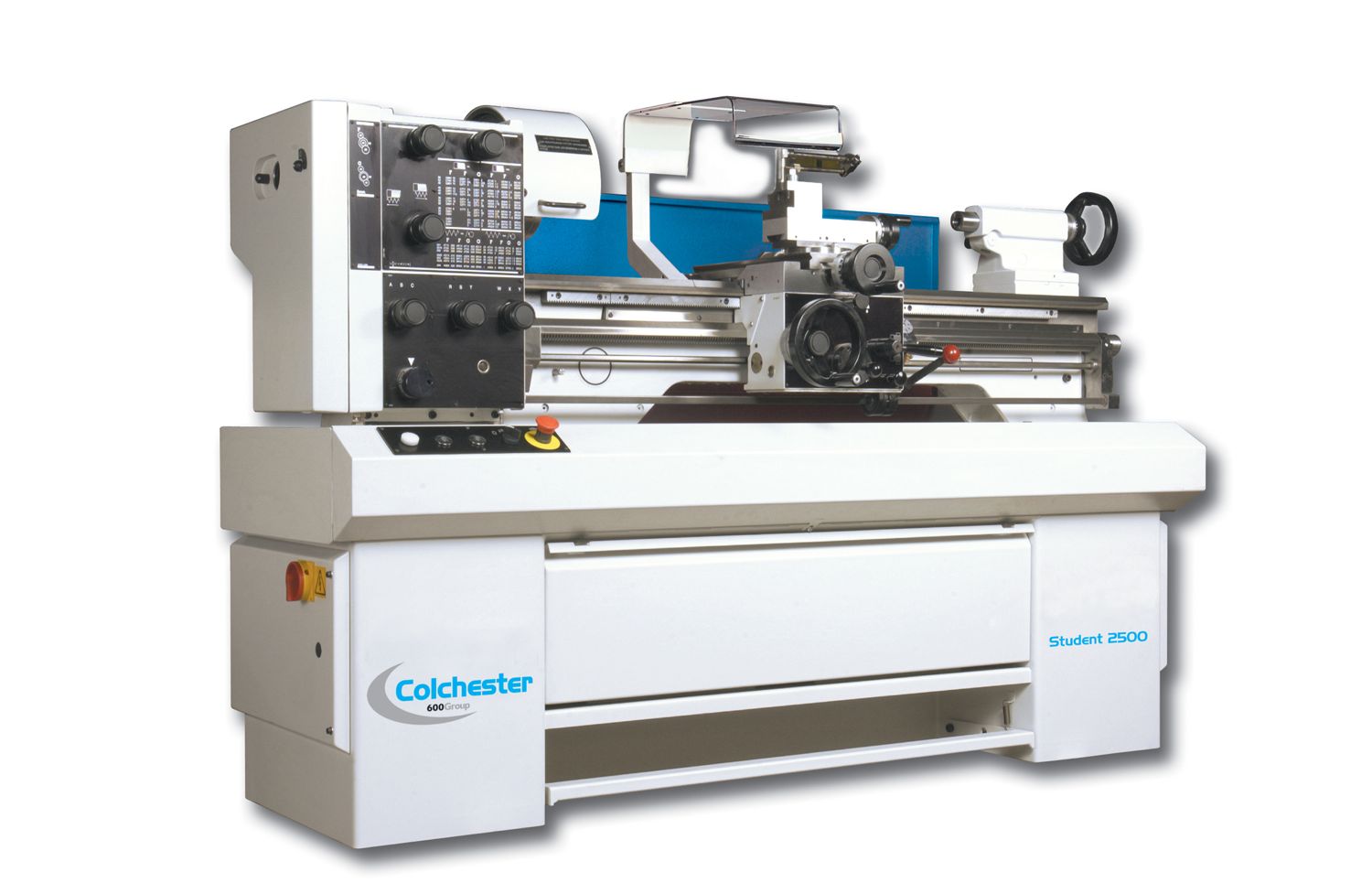

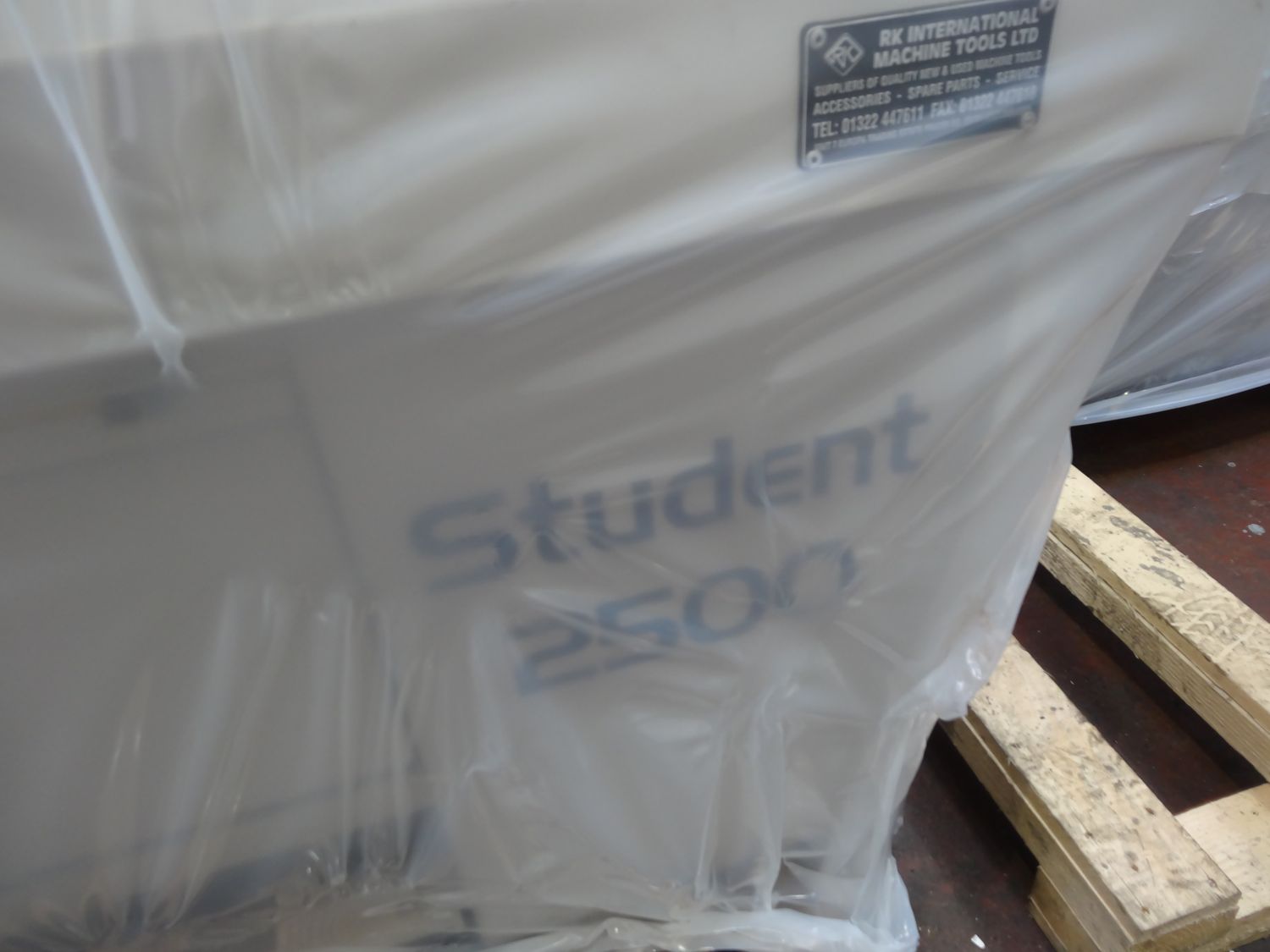

NEW Colchester Student Gap Bed Lathe
12 Spindle Speeds from 40-2500rpm, 1000mm Between Centres, 330mm Swing, 2.2kW (3hp) Spindle Motor, 3 Point Steady.
Fully geared headstock with 12 spindle speeds from 40-2500rpm
2.2kW (3hp) spindle motor
635mm and 1000mm bed lengh options
330mm swing over bed
D1-4 Camlock Spindle nose
Induction hardened and ground bed
Fully Universal gearbos with most metric and imperial threads catered for
Built to standards in excess of DIN 8606 and BS4656 part 1
Optional DRO (no CSS)
Super high precision Gamet spindler taper roller bearings
Height of centres: 167mm
Bed lengh between centre: 635/1000mm
Swing over bed: 330mm
Swing in gap: 480mm
Swing over cross slide: 210mm
Spindle Bore: 40mm
Spindle nose mounting: D1-4 Camlock
Morse taper in nose bush: No.3 MT
Number of speed ranges: 12
Range: 40-2500rpm
Motor: 2.2kW
Number of metric pitches: 45
Range of metric pitches 0.2 to 14mm
Number of imperial pitches: 52
Range of imperial pitches: 2 to 56 TPI
Number of Diametral pitches: 18
Range of Diametral pitches: 5 to 56 DP
Number of module pitches: 18
Range of module pitches: 0.3 to 3.5 MOD
Width over bedways: 140mm
Travel of cross slide: 190mm
Travel of top slide: 92mm
Tailstock travel: 110mm
Taper in tailstock barrel: No.3 MT
Weight: 710/790kg
Dimensions L x W x H: 1.68 x .97 x 1.40 (2.13 x 1.02 x 1.45)
3 Months Manufacturers Warranty (UK Only) is included*
*Please contact manufacturer regarding installation and confirmation of warranty.
Location: 1st Machinery Auction, Coventry, please contact us to make appointment to view, or discuss this machine.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
