Lot 2 - NEW Colchester Tornado T6M 3 Axis CNC Lathe (C Axis - Driven Tooling) with Fanuc Oi TD & Barfeed
Description:

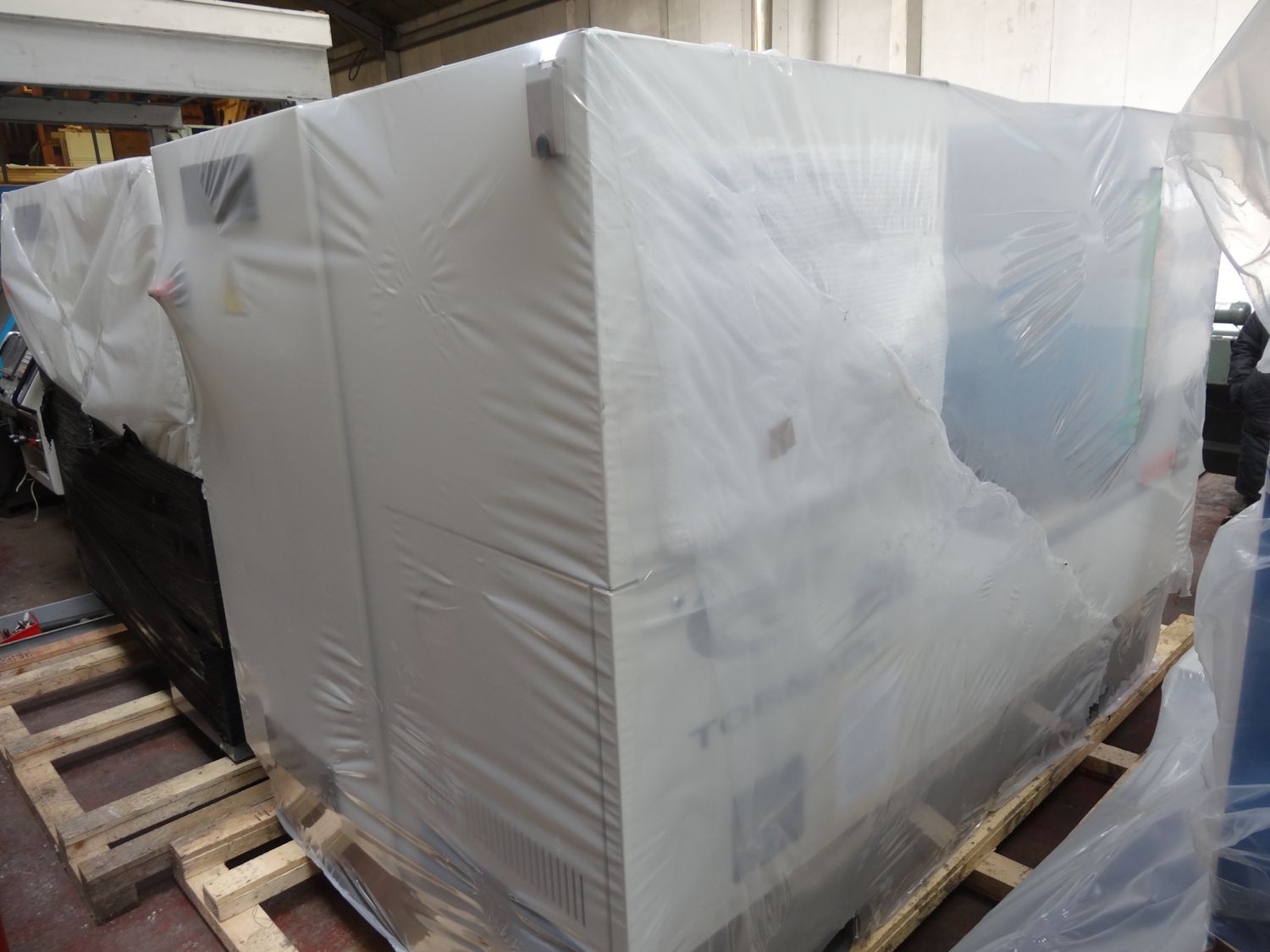

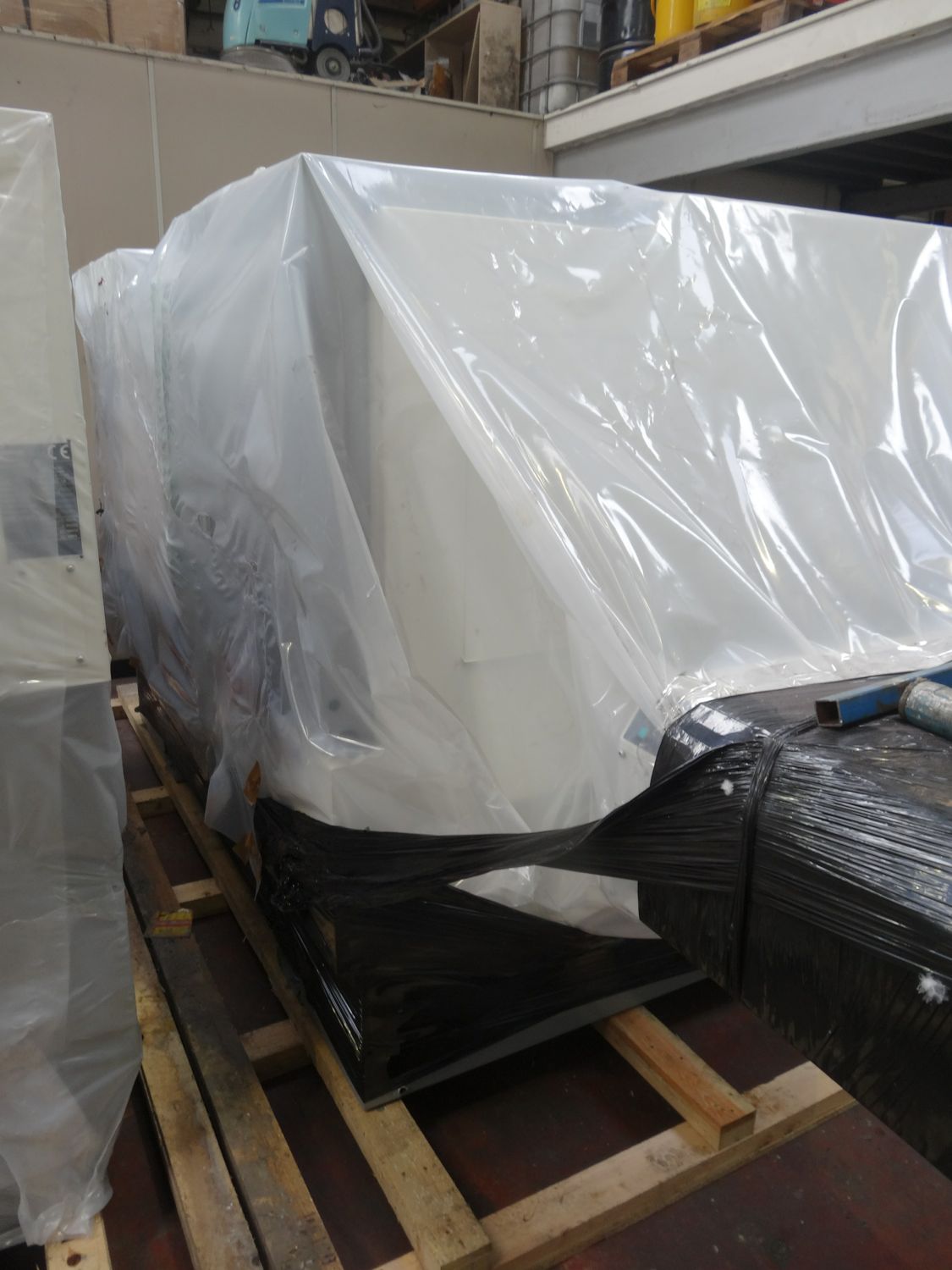

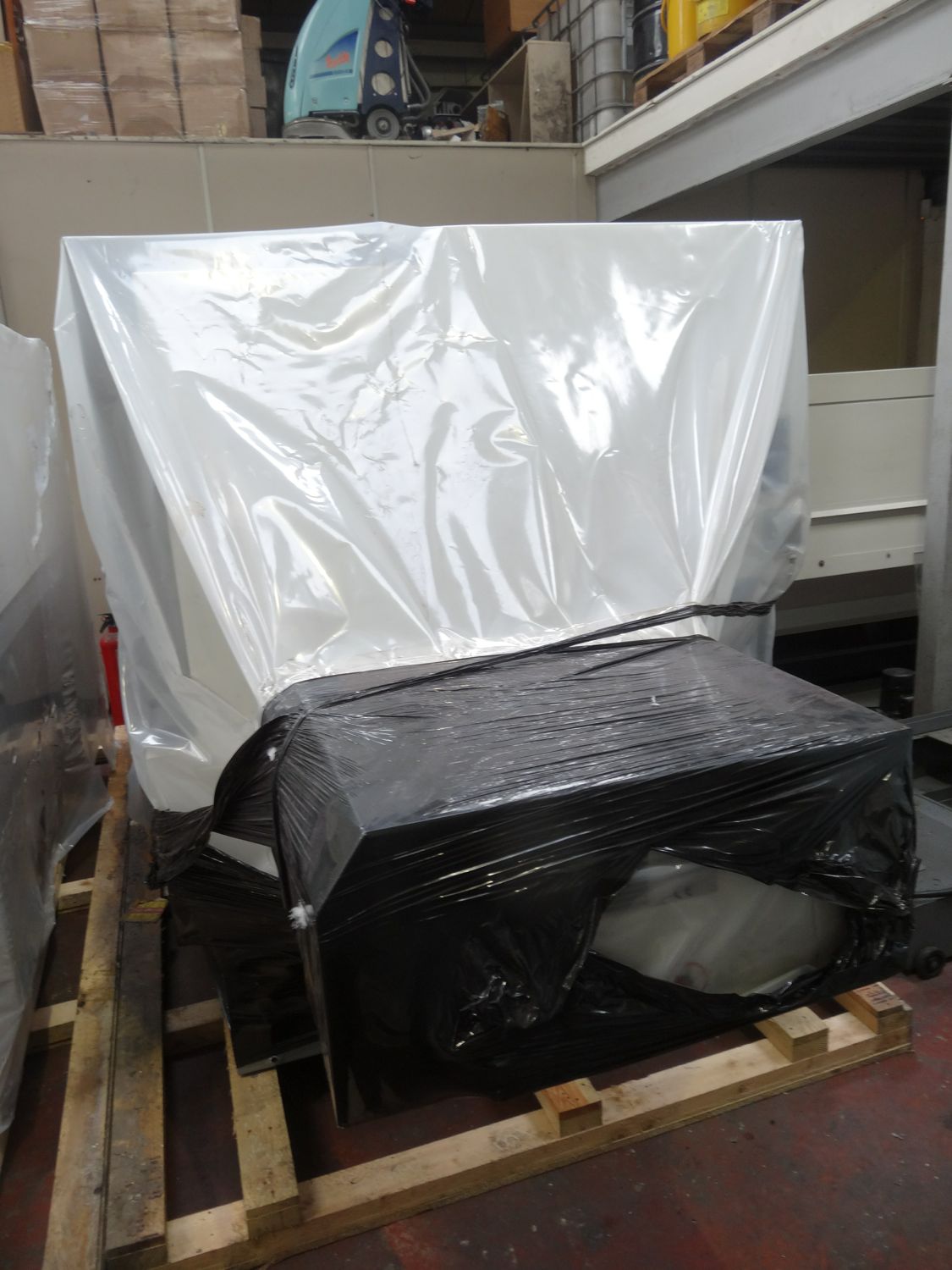

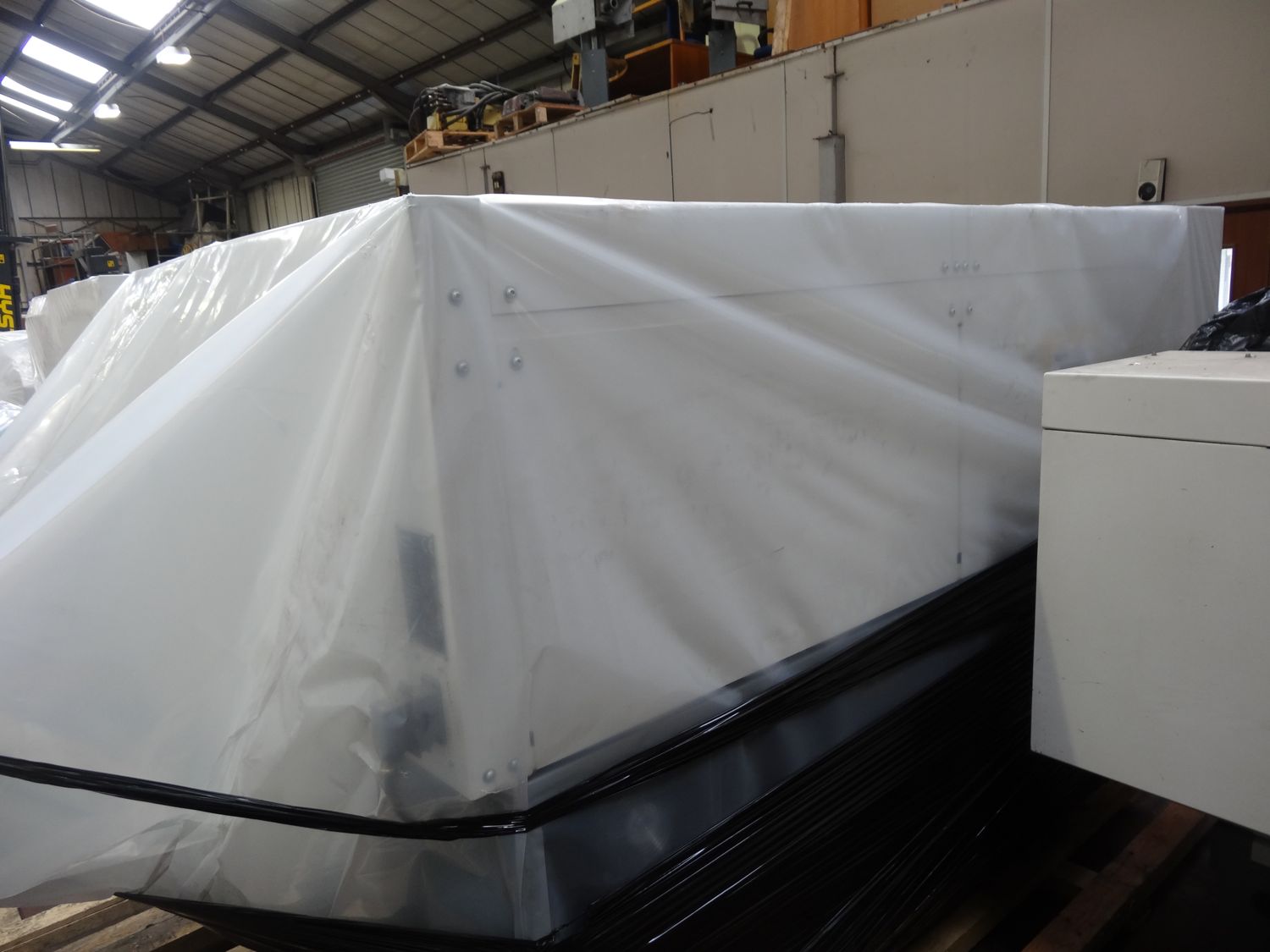

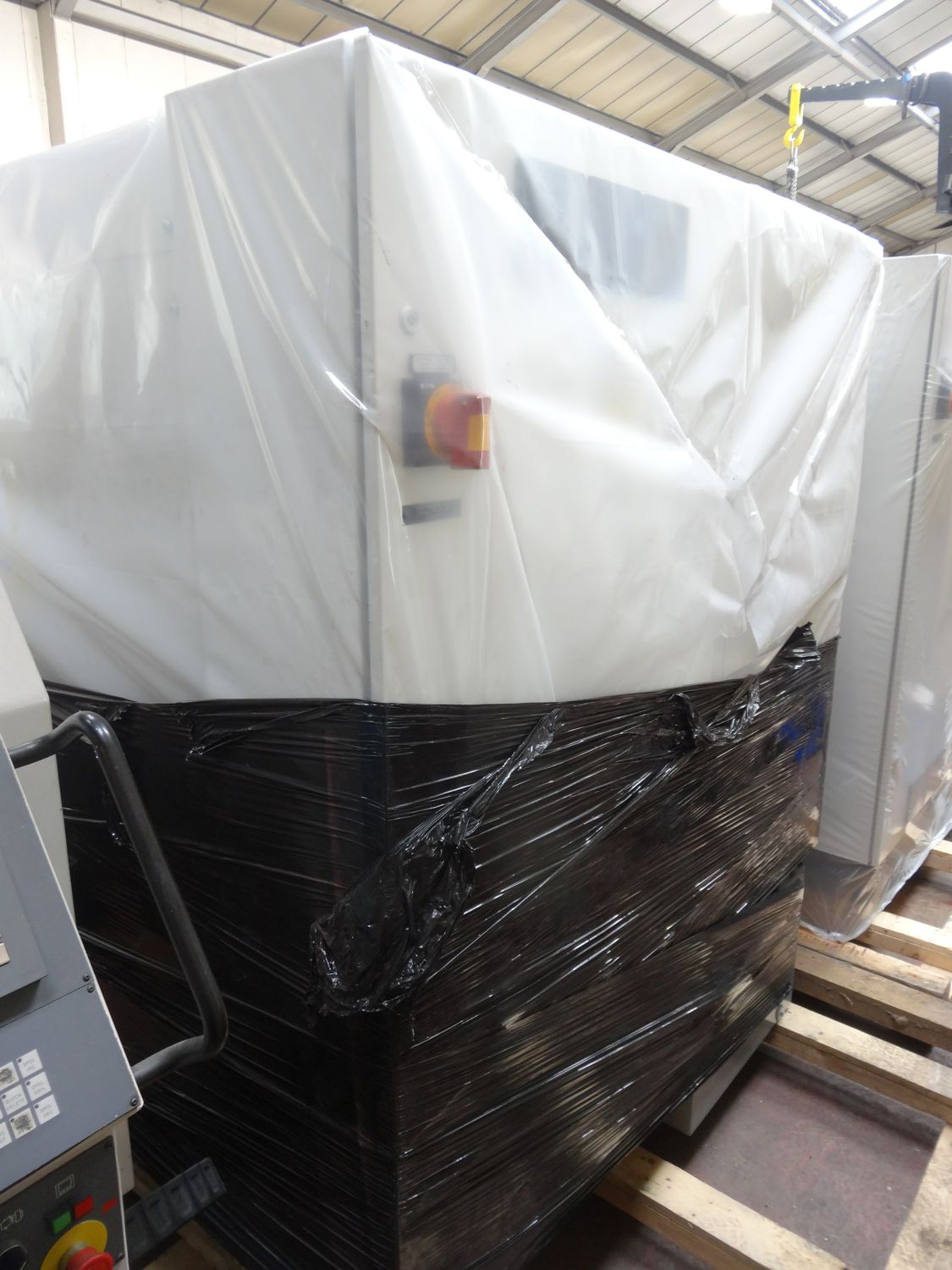

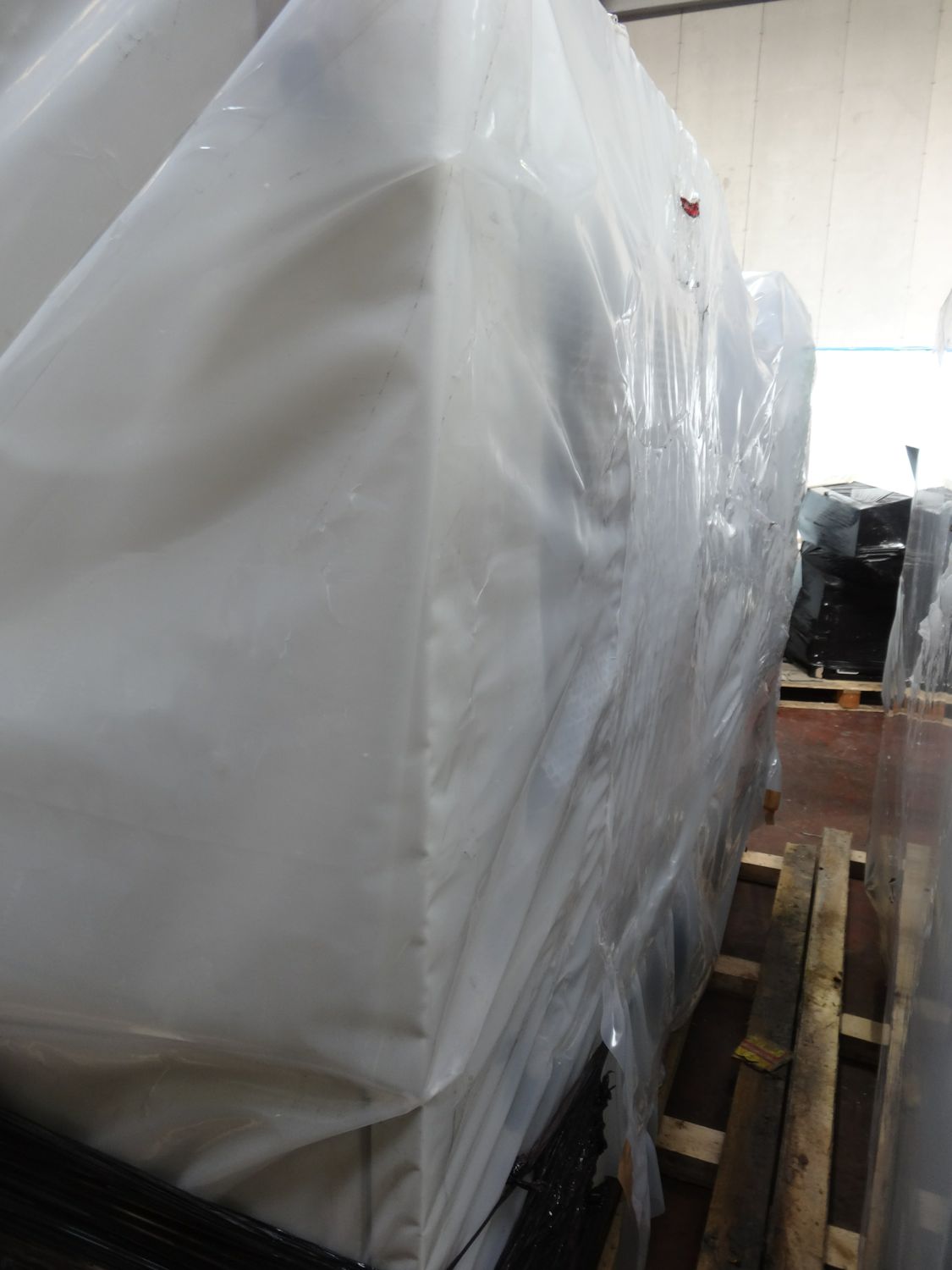

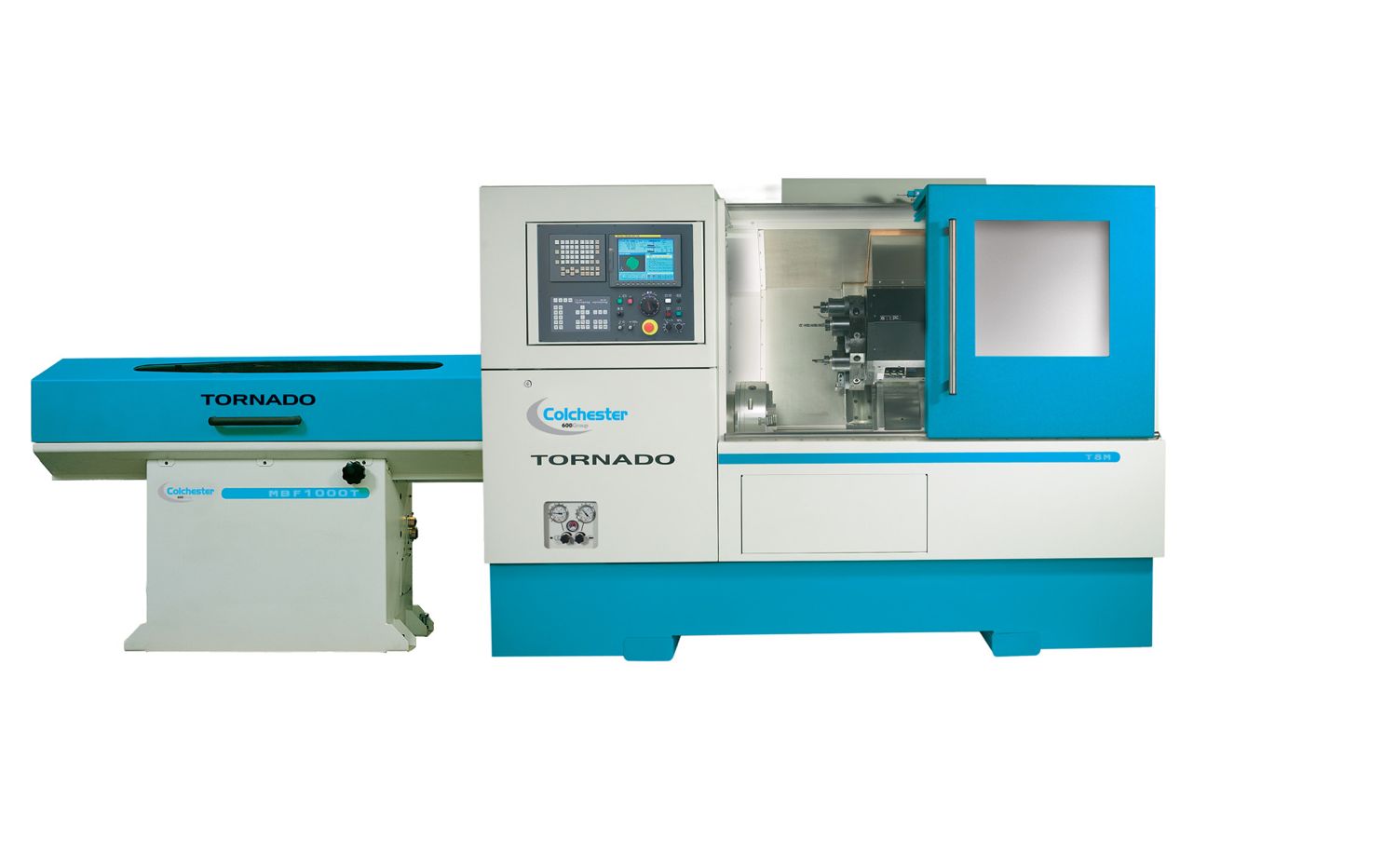

NEW Colchester Tornado T6M 3 Axis CNC Lathe (C Axis - Driven Tooling) with Fanuc Oi TD & Barfeed, Swarf Conveyor and Renishaw Probe
Machine Specification:
Swing over bed: 440mm
Spindle Centre height from floor: 950mm
Max machining diameter : 215mm
Max turning lengh:420mm
Spindle nose: A2-5
Drawtube (Bar) Capacity: 56mm
STANDARD EQUIPMENT
60 Degree slant slide production lathe with 12 station disc turret incorporating 12 driven tool stations, accepting 30VDI tooling, C-axis interpolation, hydraulic operating cylinder and drawtube. This lathe utilises a Fanuc OiTD control system with AC servo axis drives and 15kw (30min rating) spindle drive giving a maxinum spindle speed of 6000 rev/min (A type) and 4000 rev/min (B type). Automatic lubrication system to slideways and ballscrews. Linear rails on X and Z axes for friction less movement and rapid acceleration and deceleration and, for positional accuracy and repeatability.
DRIVEN TOOL SPECIFICATION
Rotating tools: 12
Speed: 5000rev/min
Power (40% duty Cycle): 3.7kw
motor output torque: 5.73Nm
Rotating tool torque: 16.5 Nm
Cutting diameter shank: 16mm
Rotating tool coupling: DIN 56480 16 x 0.8
C-AXIS SPECIFICATION
Mininal programmable increment: 0.001 deg
Positional measurement: Fanuc BZ Encoder
BAR PACKAGE
Accuracy chart
X- Axis linear scale

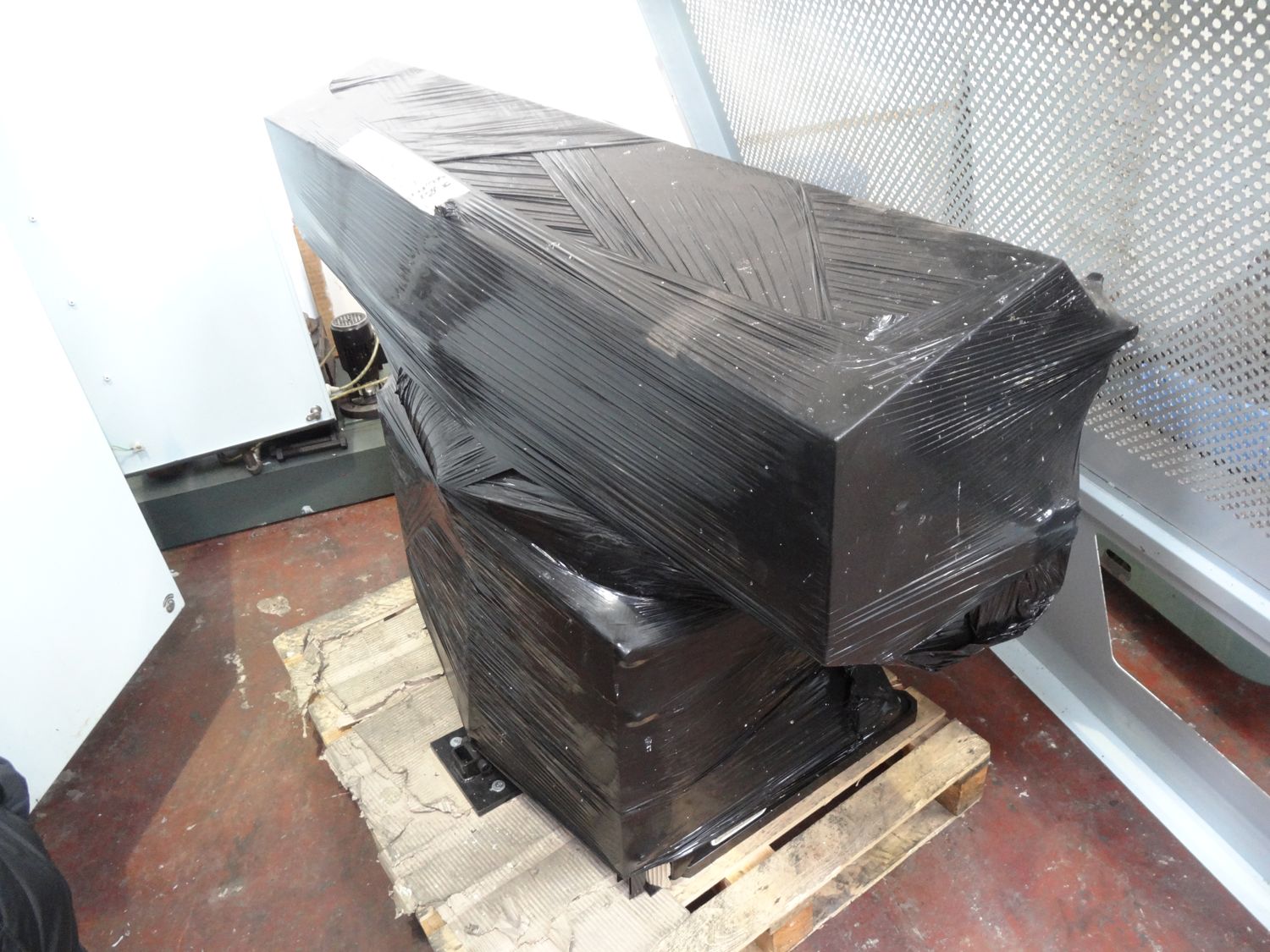

Colechester MBF 1000 barfeed unit
Interlocking Guarding
Machine operating manual
Footswitch for collet chuck
10.4" colour LCD
Manual guide (MGi)
512k Part program memory
G10 Offset value settings
Canned cycle for Drilling
Tool wear/ Geometry Offsets (64 pairs)
Background editing
Coolant system
Parts catcher
Totally enclosed working area
Spindle Orientation
Toolkit
Counter rotational drilling
Auto lubrication to slides
USB Interface
Ethernet link
Run hour & Parts counter
Multi respective cycles I & II
G Code system A/B/C
Direct drawing programming
Rigid Tapping
Electrical equipment for 220, 380, 415V supply
3 Months Manufacturers Warranty (UK Only) is included*
*Please contact manufacturer regarding installation and confirmation of warranty.
Location: 1st Machinery Auction, Coventry, please contact us to make appointment to view, or discuss this machine.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
