Lot 5 - NEW Colchester Triumph VS2500 Lathe
Description:

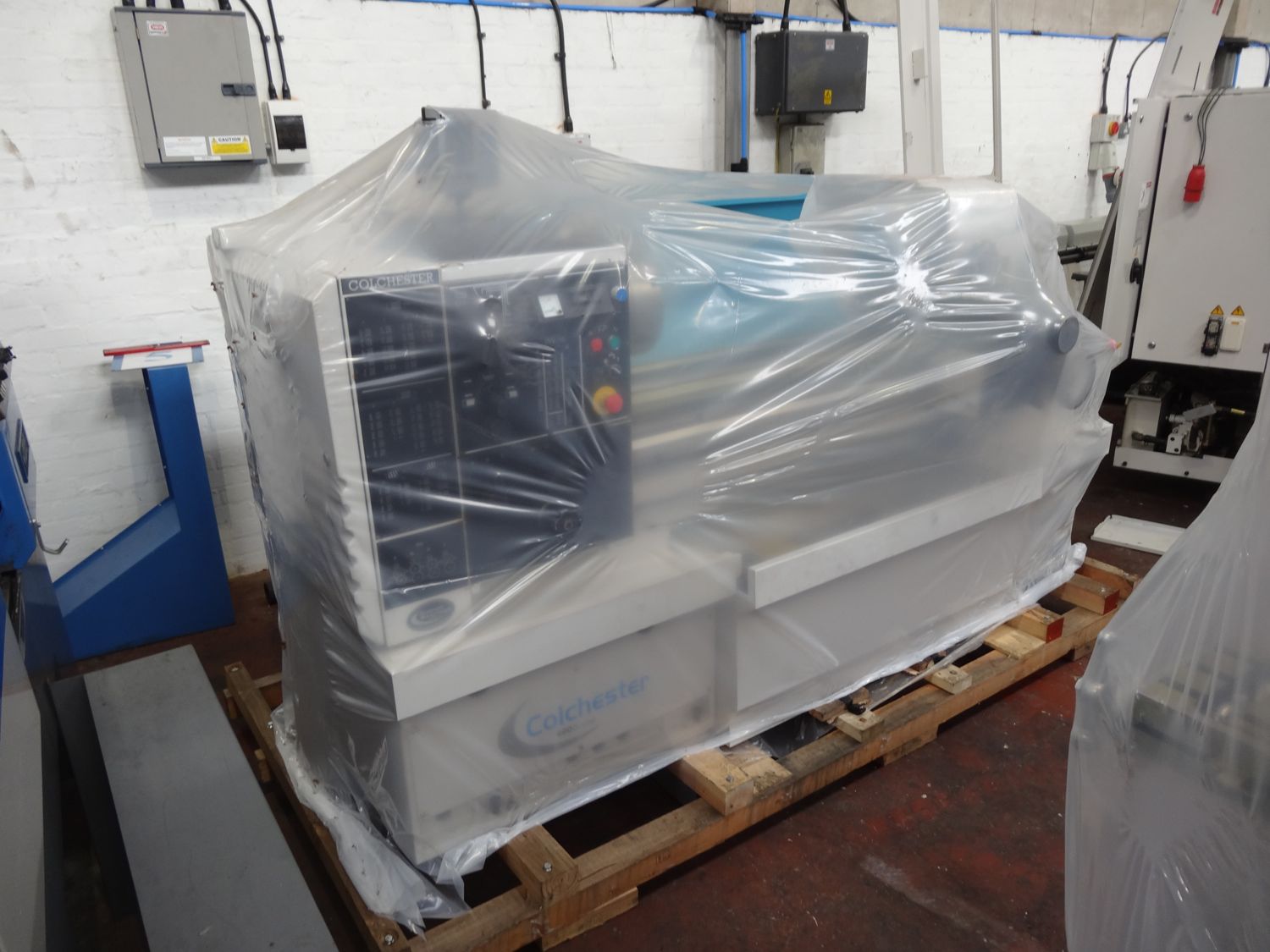

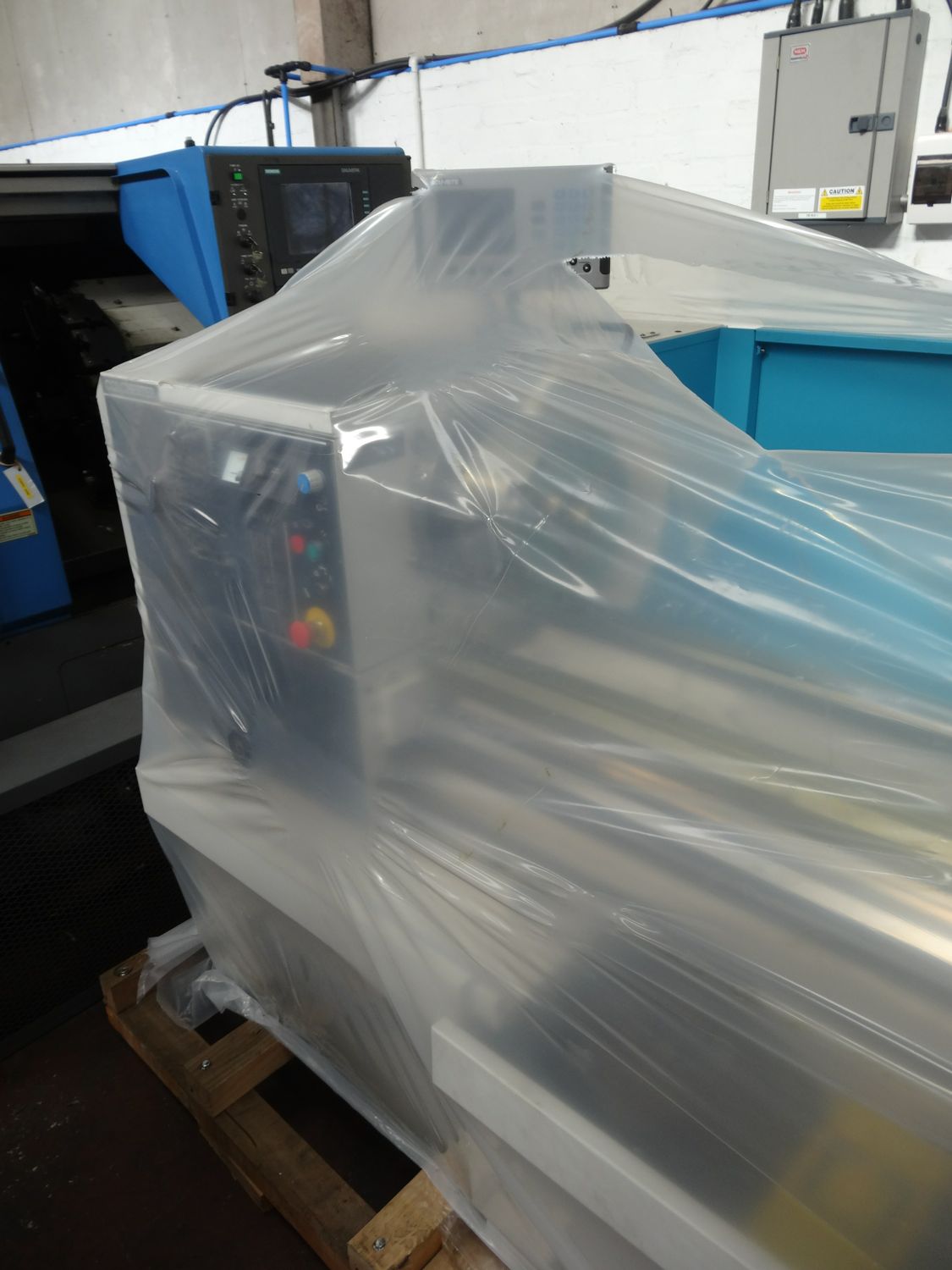

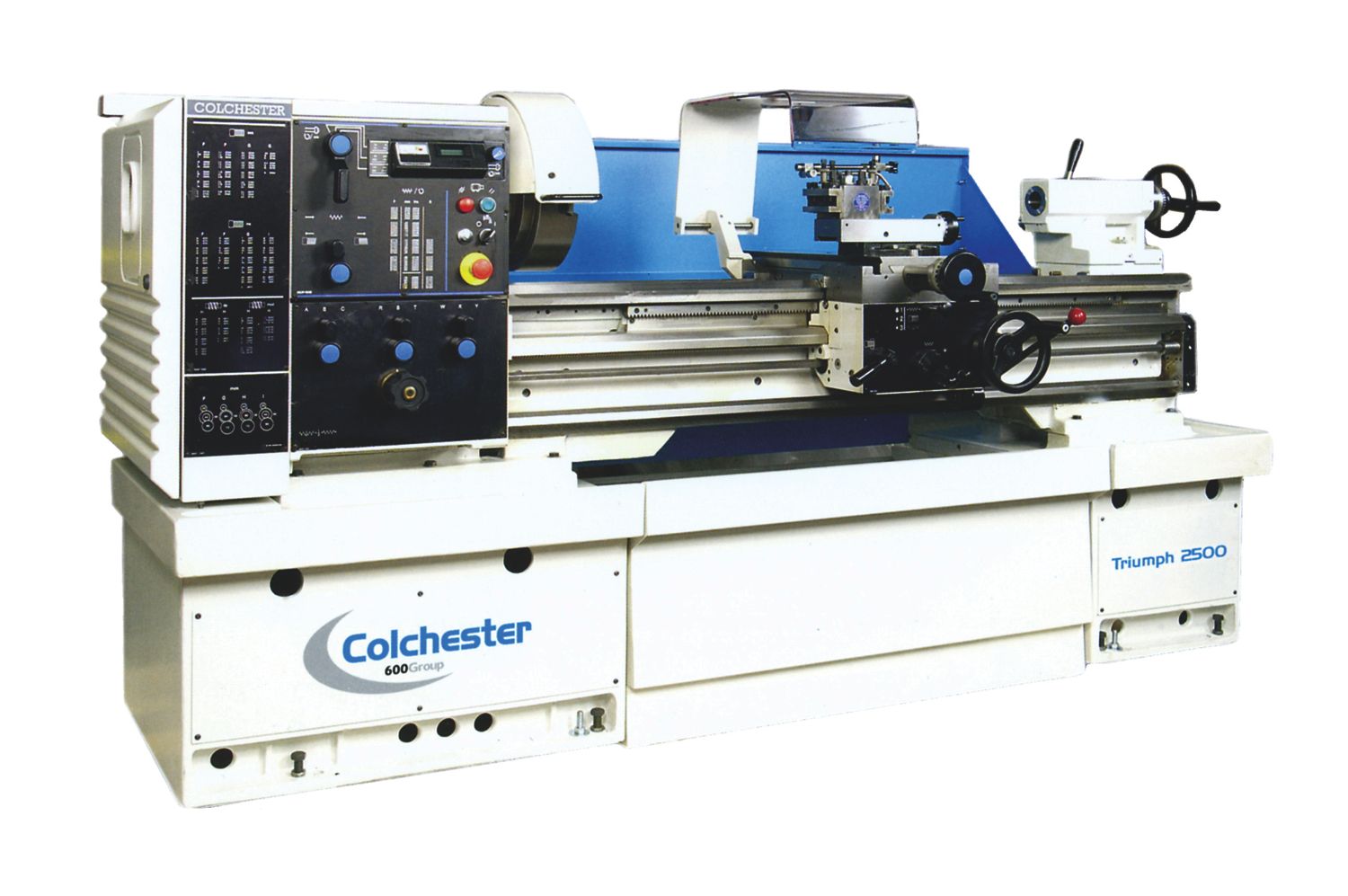

NEW Colchester Triumph VS2500 Lathe
3 Range Variable Speed drive from 14-2500rpm, CSS DRO, 1250mm Between Centres, 400mm Swing, 7.5kW (10hp) Spindle Motor.
Constant power, 3 range variable speed drive from 14-2500rpm
7.5kW (10hp) spindle motor
1250mm gap bed
400mm swing over bed
D1-6 Camlock spindle
Induction hardened and ground bed
Precision hardened and ground gears in headstock
Wide, Rigid bed
CSS DRO as standard
height of Centres: 195mm
Bed lengh between centres: 1250mm
Swing over bed: 400mm
Swing in gap: 585mm
Swing over Cross slide: 246mm
Spindle bore: 54mm
Spindle nose mounting: D1-6 Camlock
Morse taper in nose bush: No.4 MT
Number of speed ranges: 3 variable
Range: 14-2500rpm
Motor: 7.5kW
Number of metric pitches: 51
Range of metric pitches: 0.2 to 14mm
Number of imperial pitches: 56
Range of imperial pitches: 2 to 56 TPI
Number of Diametral pitches: 20
Range of Diametral pitches: 8 to 56 DP
Number of Module pitches: 20
Range of Module pitches: 0.2 to 3.5 MOD
Width over Bedways: 318mm
Travel of cross slide: 250mm
Travel of top slide: 100mm
Tailstock Travel: 145mm
Taper in Tailstock barrel: No.5 MT
Weight: 1800kg
Dimensions L x W x H: 2.72 x 1.35 x 1.65
3 Months Manufacturers Warranty (UK Only) is included*
*Please contact manufacturer regarding installation and confirmation of warranty.
Location: 1st Machinery Auction, Coventry, please contact us to make appointment to view, or discuss this machine.
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
