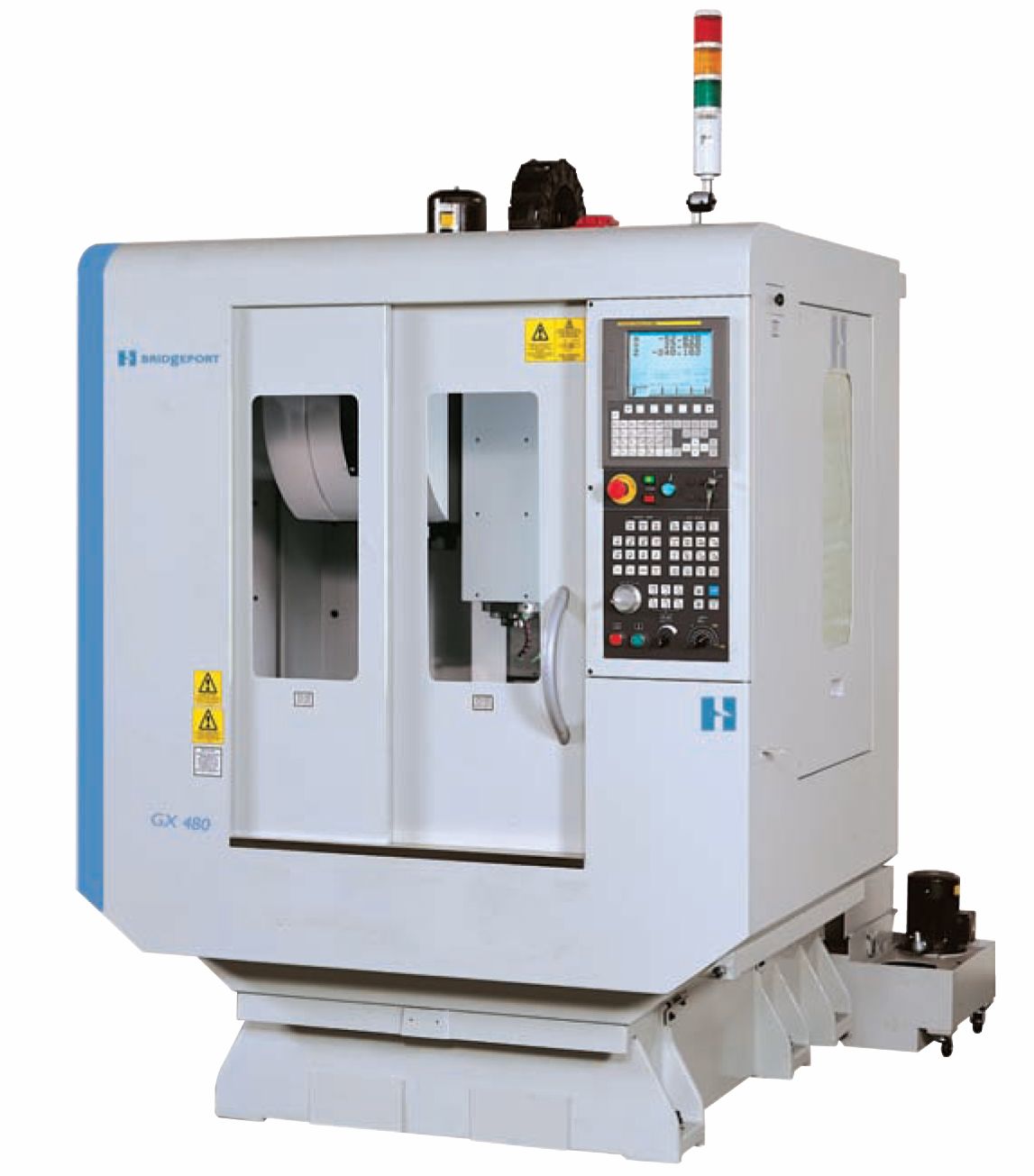

Lot 1 - NEW Hardinge Bridgeport GX480 with Fanuc Oi MB Control, Side Mounted 20 Tool ATC
Description:
NEW Hardinge Bridgeport GX480 with Fanuc Oi MB Control, Side Mounted 20 Tool ATC
Travels X, Y, Z: 480 x 400 x 430mm, Max Spindle Speed: 10,000rpm, Spindle Motor: 7.5kW, ISO40 Taper
Travels x axis 480mm
y axis 400mm
z axis 430mm
Rapid Traverse Rate X,Y & Z axis 36m/min
Acceleration 4.8m/s2
Carousel Type Toolchanger Capacity 16
Spindle Taper BT40 or CAT40
Spindle Power 7.5Kw (S3 15%)
Max Spindle Speed 10,000rpm
Max Torque 48Nm
CNC Control Fanuc Oi MD
Siemens 828D
Coolant Tank 125 Litre
Specification includes: Work light, 25kVA Transformer on UK Supplied Machines Only - Fanuc OiMD, Fully interlocked machine guarding.
4th Axis Prewiring (non APC Machines only)
Renishaw Probe prewire
MACHINE SPECIFICATION
Control unit: Fanuc Oi MD
Travels X-Axis: 480mm
Travels Y-Axis: 400mm
Travels Z-Axis: 430mm
Spindle nose to table surface:150-580mm
Spindle centre to column: 429mm
Table X length: 600mm
Table Y Width: 400mm
Weight on table (Max): 300kg
T-Slots (Size x Spacing): 14mm x 3 x 125mm
Spindle transmission (Fanuc)
Taper: ISO No.40
Main motor power & Maximum speed: 7.5kw (S3 15%)
Maximum torque at motor base speed: 48Nm/1500rpm
Spindle transmission (Siemens): Siemens 828D
Taper: ISO No.40
Main motor power & Maximum Speed: 5.5kw
Maximum torque at motor base speed: 40Nm/1500rpm (S6 - 40%)
Automatic tool changer (ATC)
Taper: ISO No.40
Type: Carousel
Tool holder type: CAT or BT or DIN (SK) or ANSI
Tool selection: Bi-directional
Tool Capacity: 16
Max. Tool diameter (Full Drum): 94mm
Max. Tool diameter( Adj Pockets empty: 130mm
Max. tool Length: 250mm
Max. tool weight: 7kg
Tool change time: 5.5 secs
Tool change time (C-C) ISO 10791: 7.5 secs
OPTIONAL AUTOMATIC TOOL CHANGER(ATC)
Taper: ISO No40
Type: Swing arm
Tool holder type: CAT or BT or DIN (SK or ANSI)
Tool Selection: Bi-directional
Tool capacity: 20
Max. Tool Diameter (Full Drum) 80mm
Max. Tool Diameter (adj pockets empty): 150mm
Max. tool length: 190mm
Max tool weight: 7kg
Tool change time: 2.5 secs
Tool change time (C-C) ISO 10791: 4.5 secs
Tool clamping force: 650kgf
Axes drives:
X, Y, Z- Axis rapid traverse rate: 36m/min
X, Y, Z- Axis maximum feedrate 1~12000mm/min
Accuracy ISO230-2
X, Y, Z- Axis positioning (Full travel): 0.01mm
X, Y, Z- Axis repeatability: 0.005mm
GENERAL SPECIFICATIONS
Machine weight est: 2820kg
Machine overall depth est: 1575mm
Machine overall height est: 2088mm (Z at zero position)
Coolant tank capacity (L/min): 125L (Opt. 175L)
Coolant flow rate (around the spindle): 40L/min (MTH4-20/2)
Air requirements (L/min): 5kg/cm squared
Power requirements (FLA/VOLTS/PHASE: 65FLA/220V/3 phase
3 Months Manufacturers Warranty (UK Only) is included*
*Please contact manufacturer regarding installation and confirmation of warranty.
Location: 1st Machinery Auction, Coventry, please contact us to make appointment to view, or discuss this machine.
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
