Lot 1 - Niigata HN80B Horizontal Machining Centre, Twin 800mm x 800mm pallets
Description:

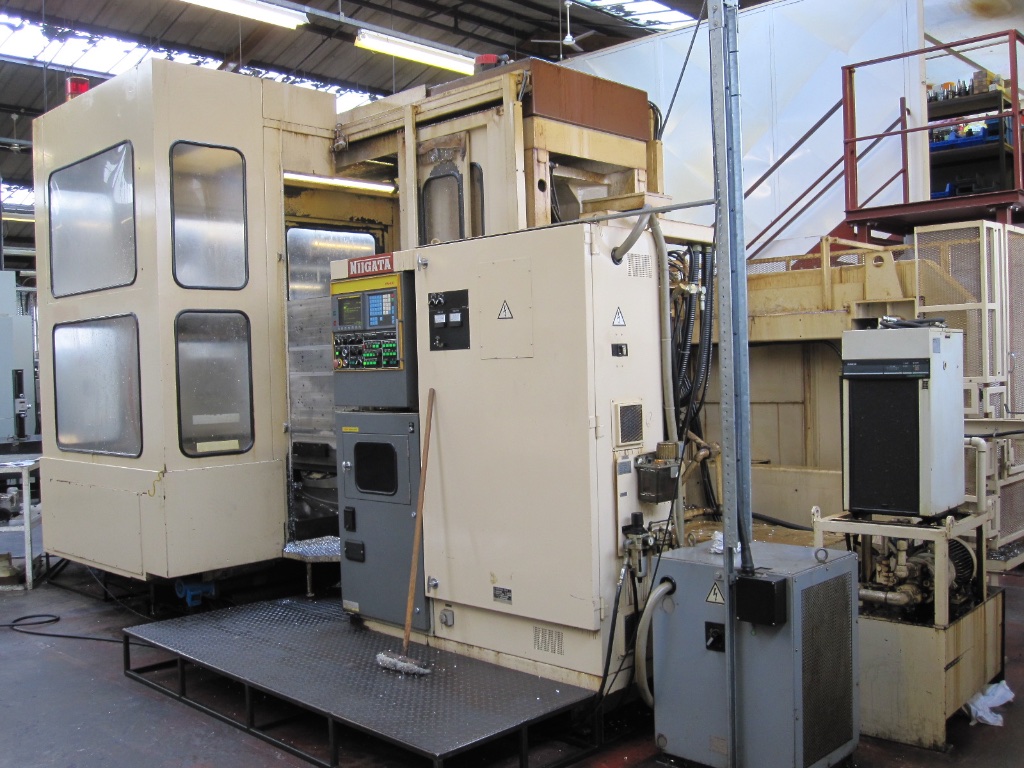

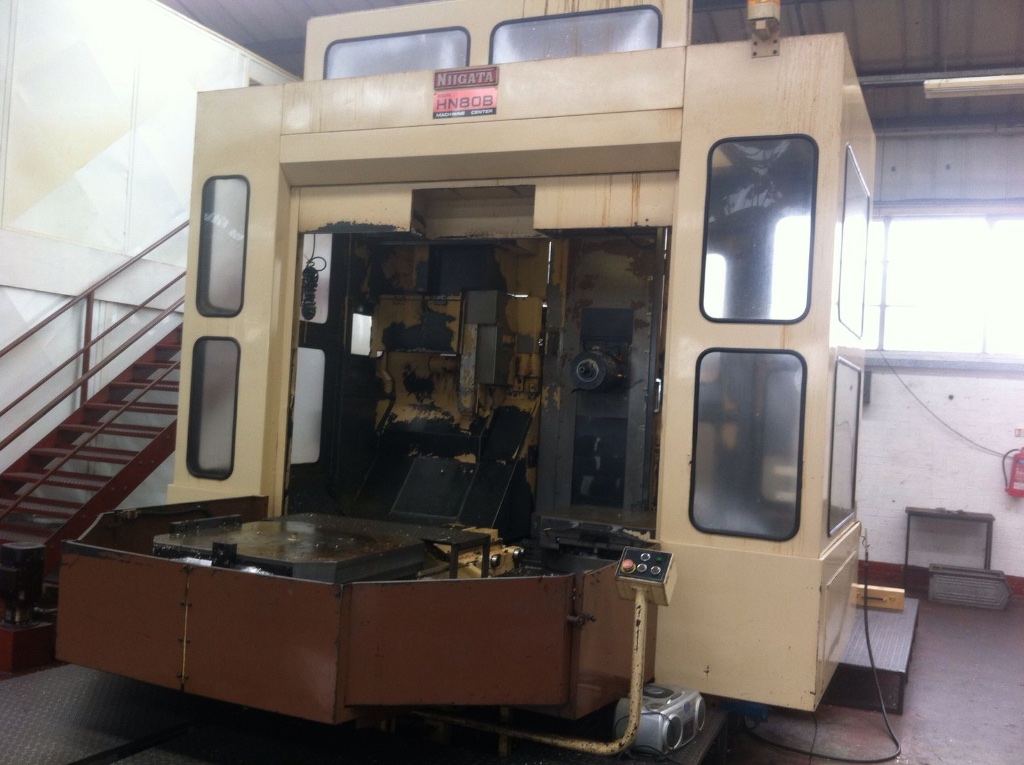

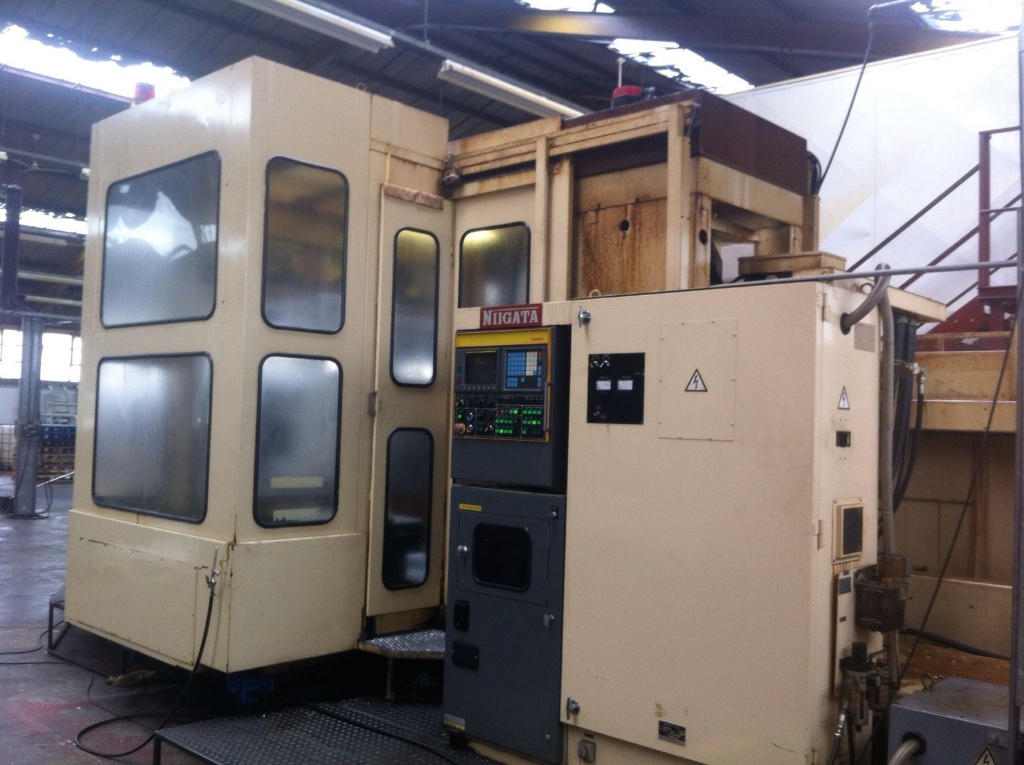

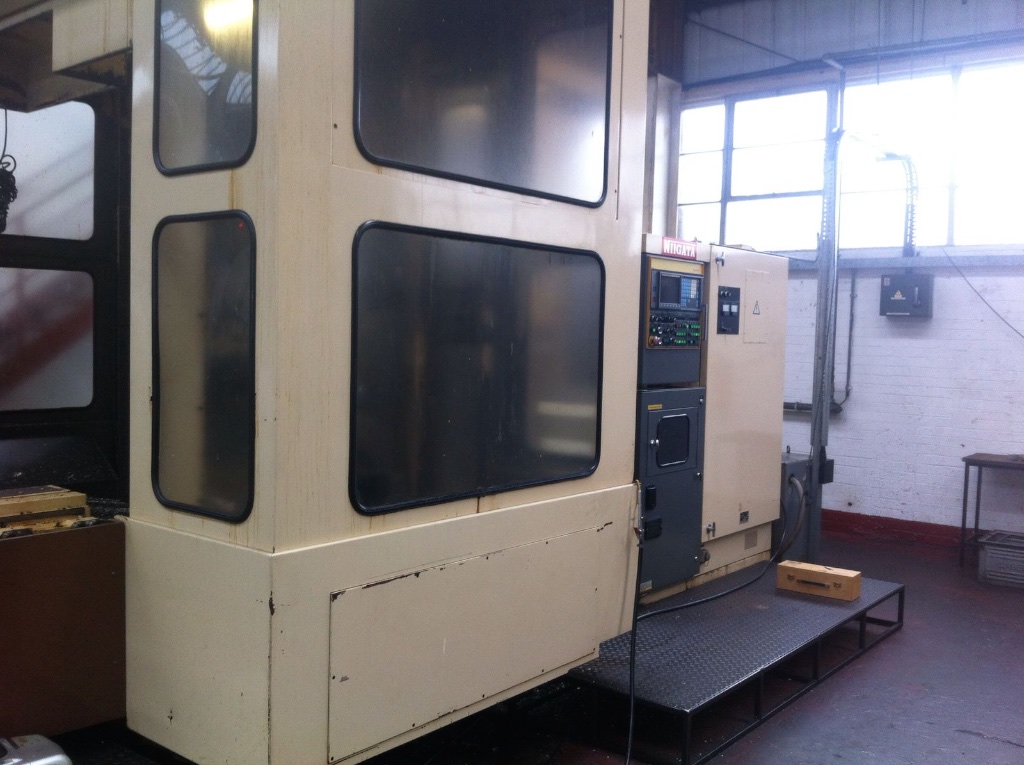

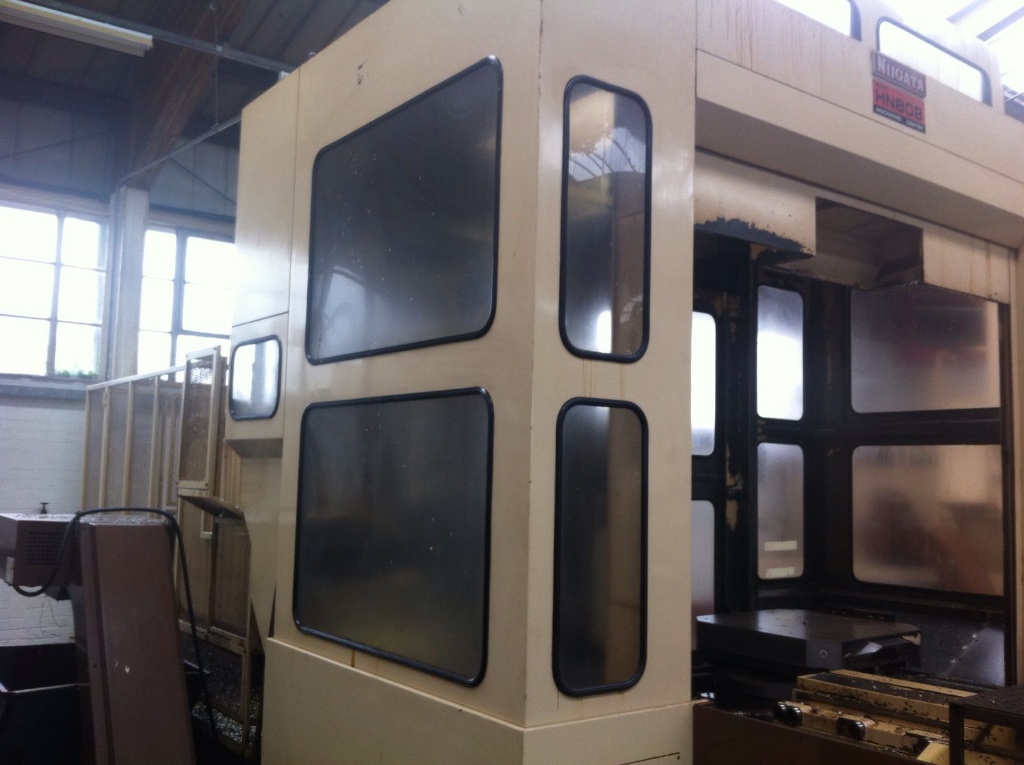

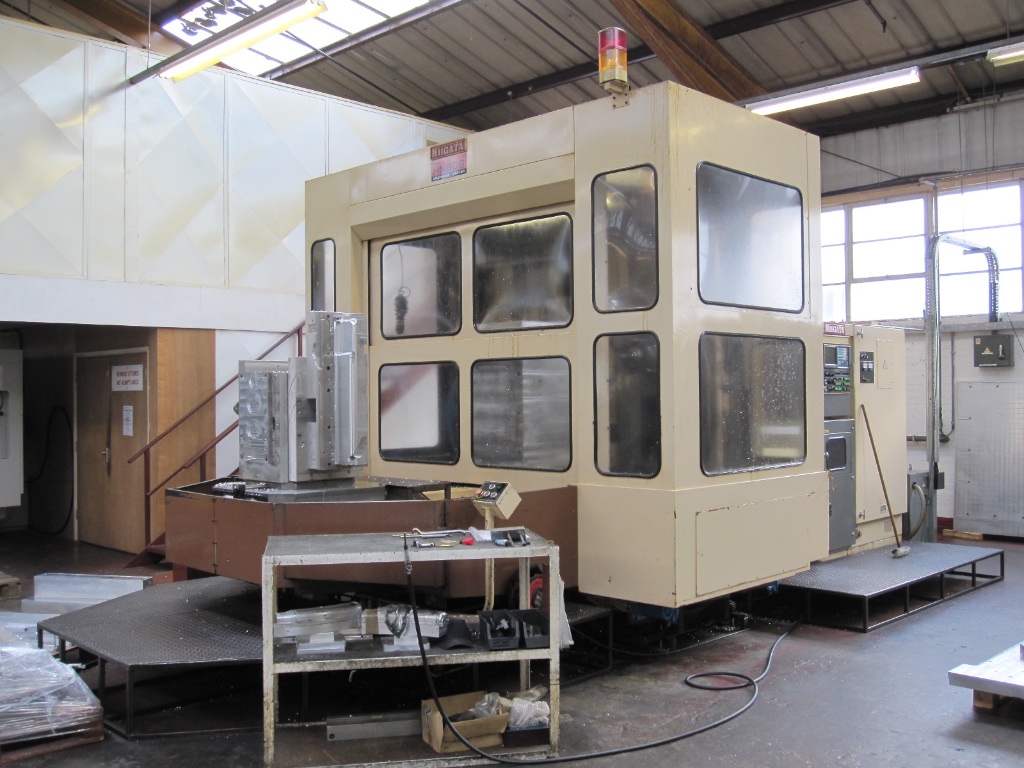

Niigata HN80B Horizontal Machining Centre

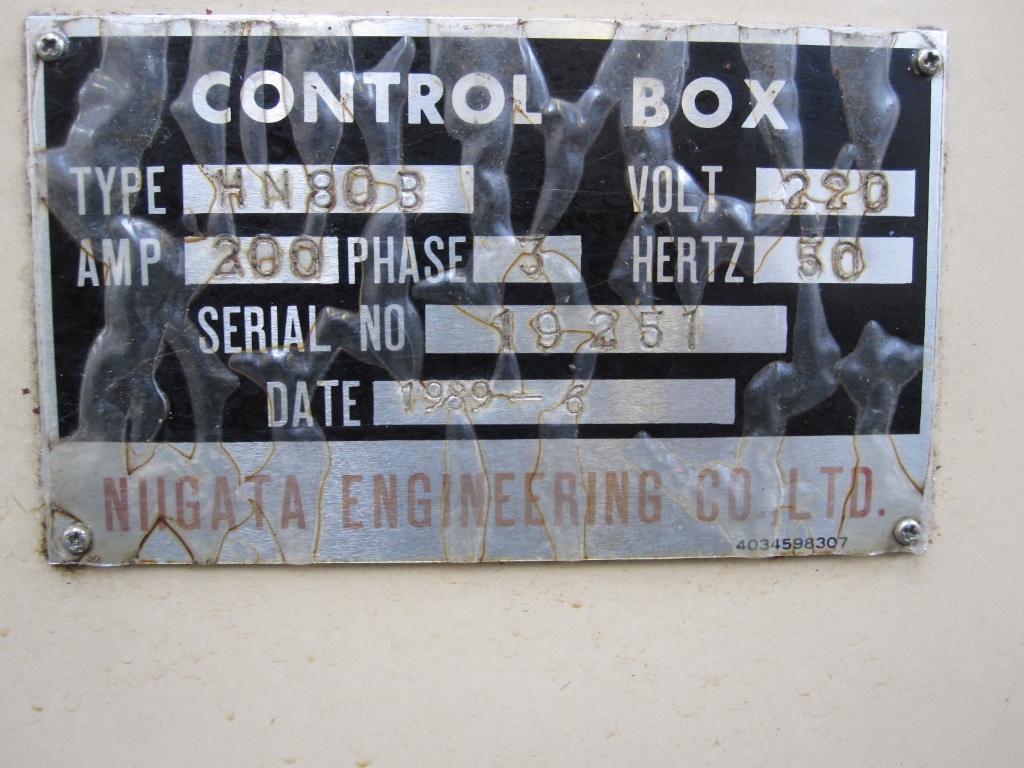

Serial number 19251
Year 1989

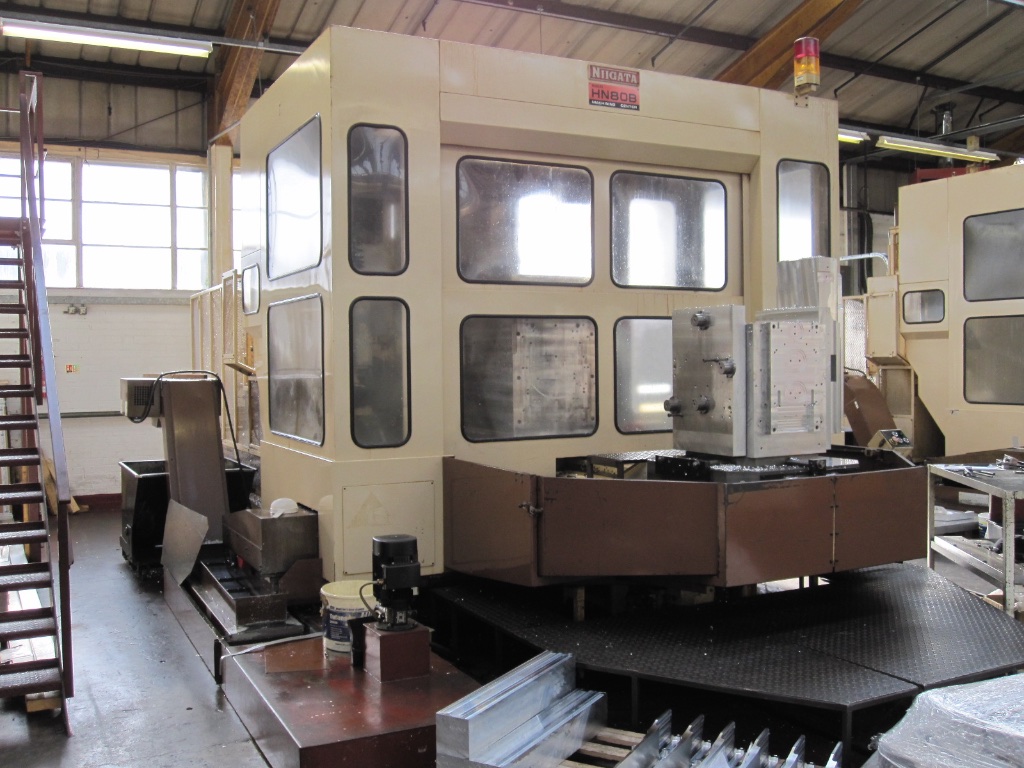

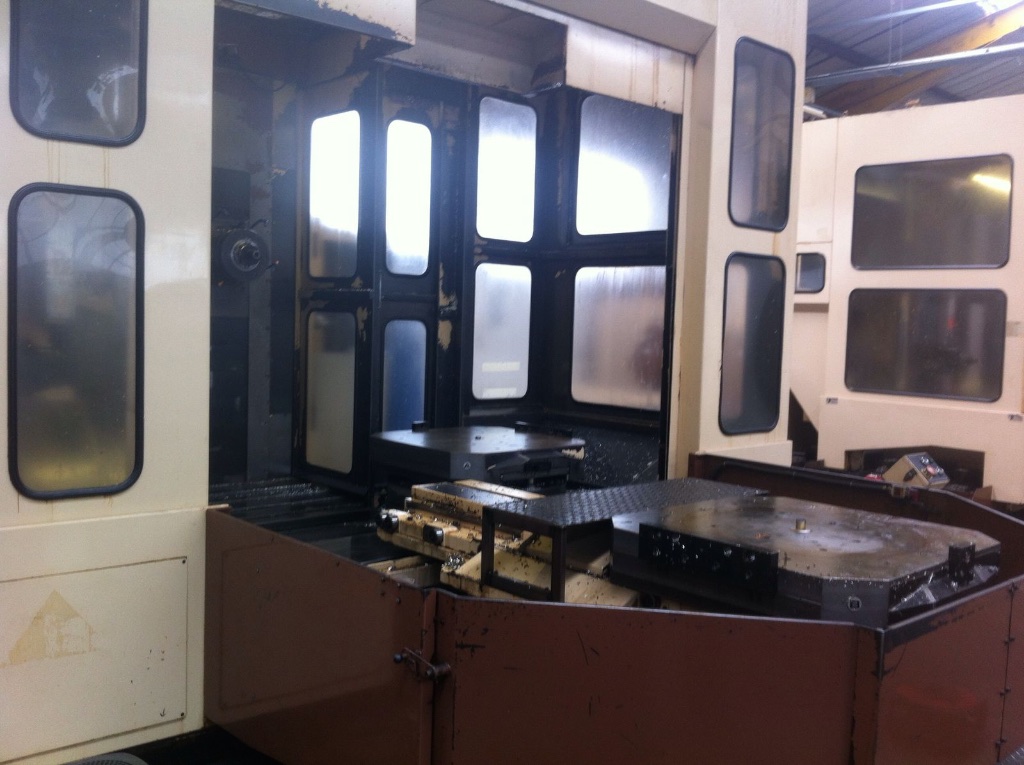

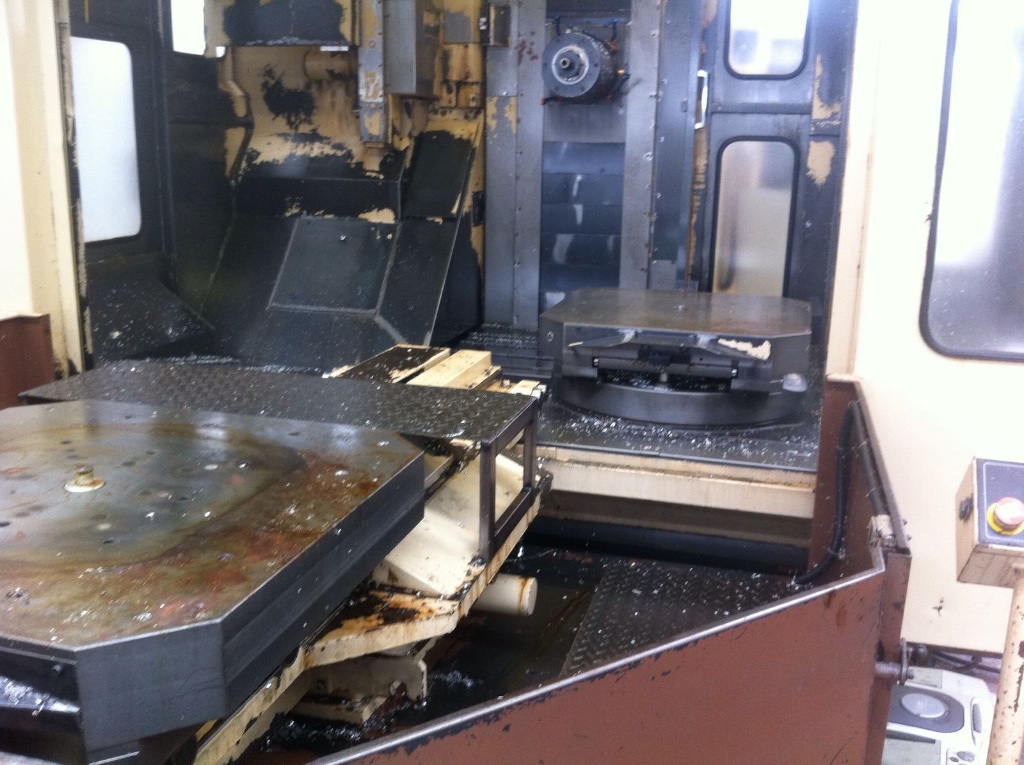

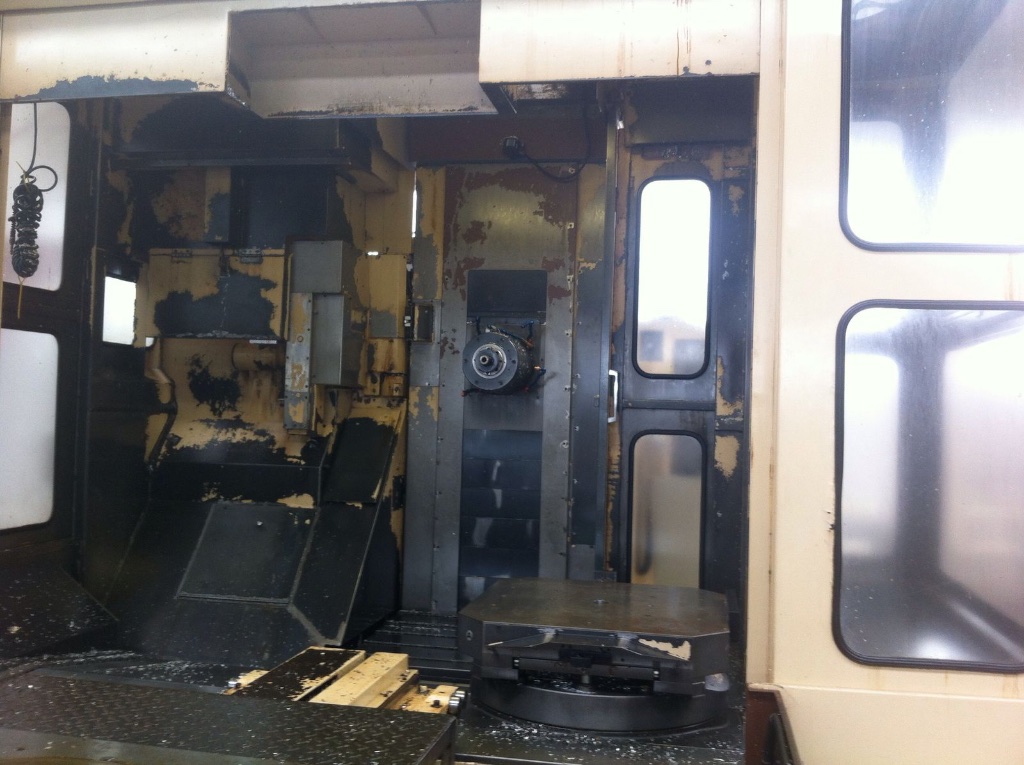

2 pallets 800mm x 800mm
Full 4th axis 0.001 degree increment on pallet rotation
X axis travel 1500mm
Y axis travel 1200mm
Z axis travel 1000mm
60 ATC
4000 rpm
BT50 spindle

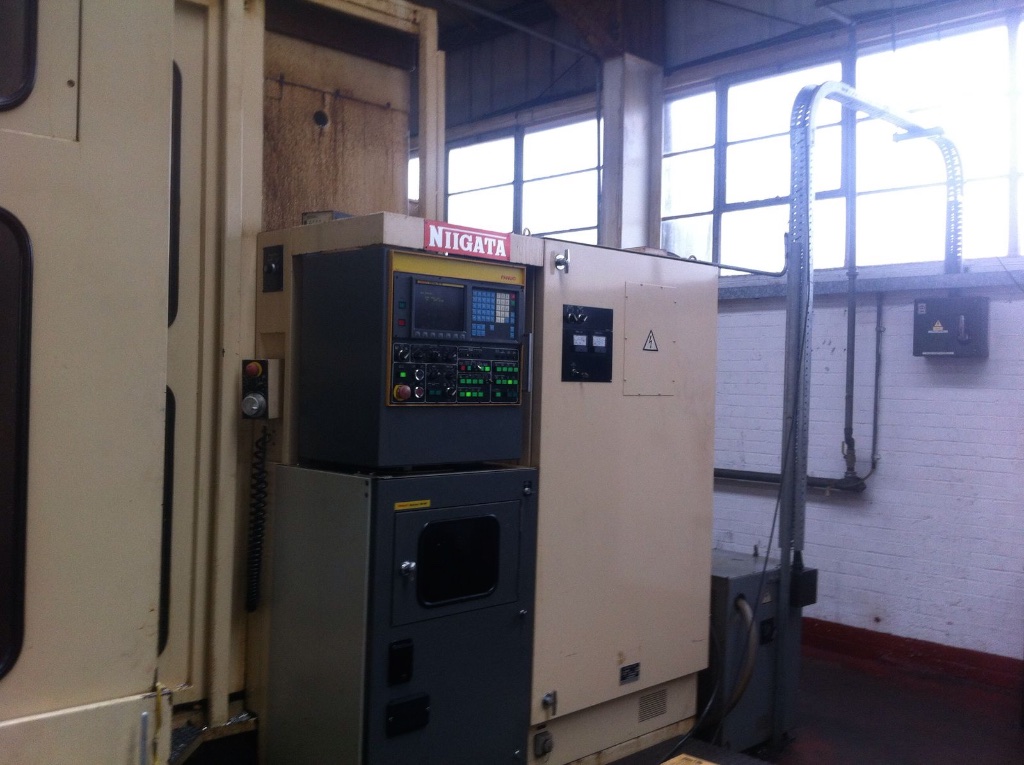

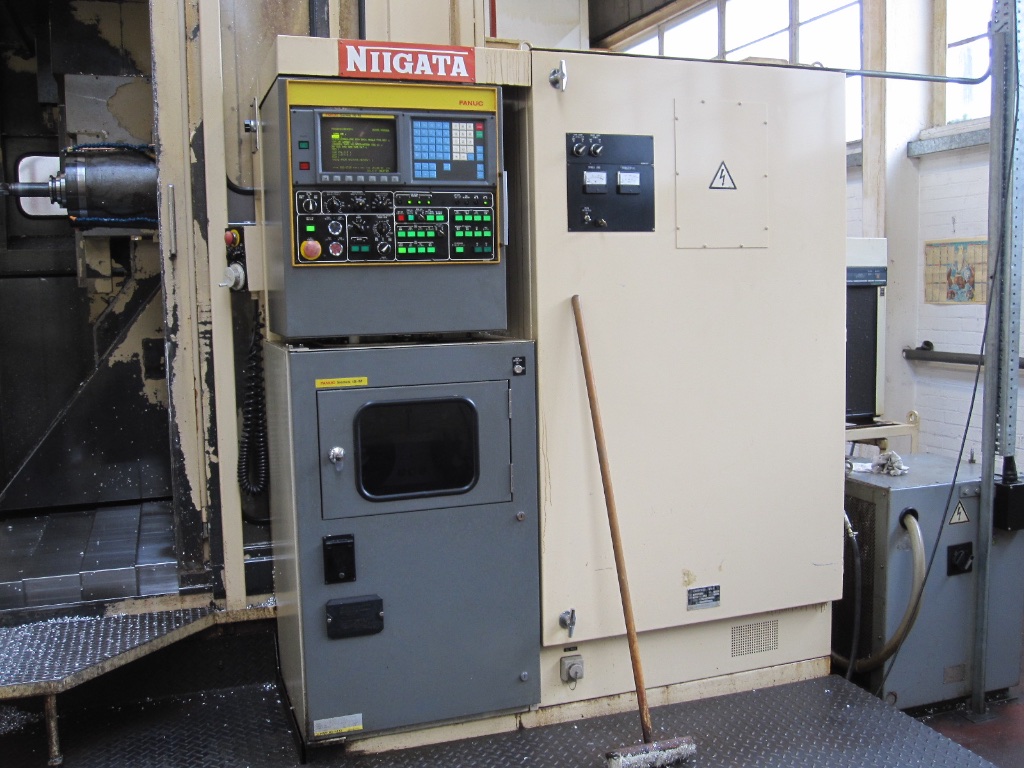

Fanuc 15M control
Manuals

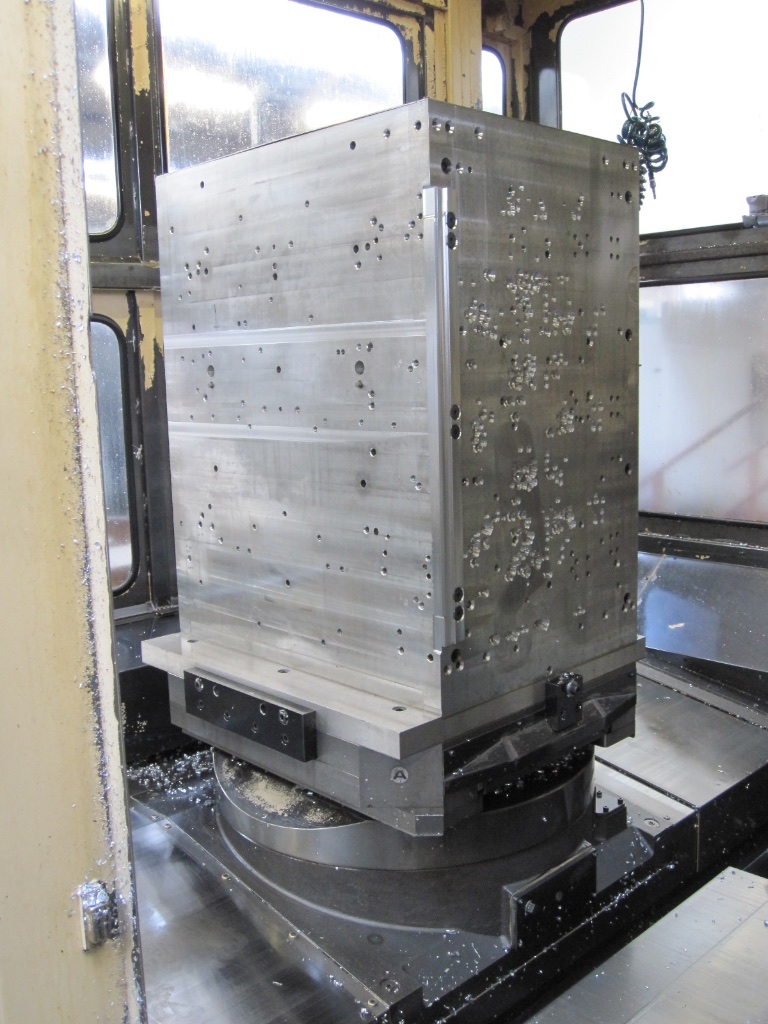

1 fixture cube included with the machine
No tool holders with the machine
Total Weight 17,000kg
Dimensions for removal: main machine piece is 5.2m long x 3.55m wide x 3.23m high (weight 15,000kg)
The complete machine and accessories will fit a 40ft low loader vehicle / 20 foot flat rack plus a twenty foot standard end loader container
The machine is being moved out next week so it will be sold decommissioned and in storage, loading extra at cost
Location for collection: Leicester
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
