Okuma Howa Millac 4H Horizontal Machining Centre (1992)

Lot 5 - Okuma Howa Millac 4H Horizontal Machining Centre (1992)

Description:

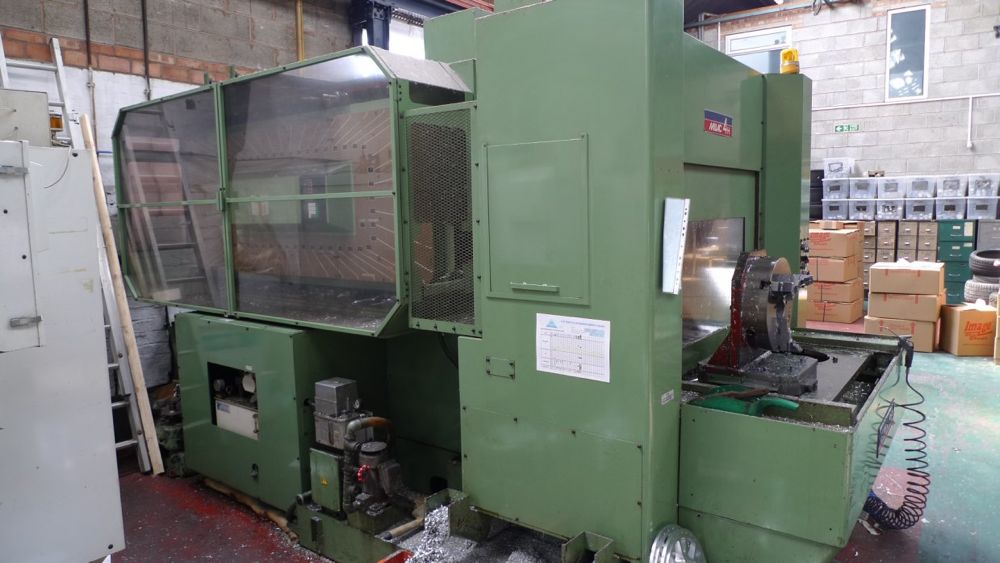

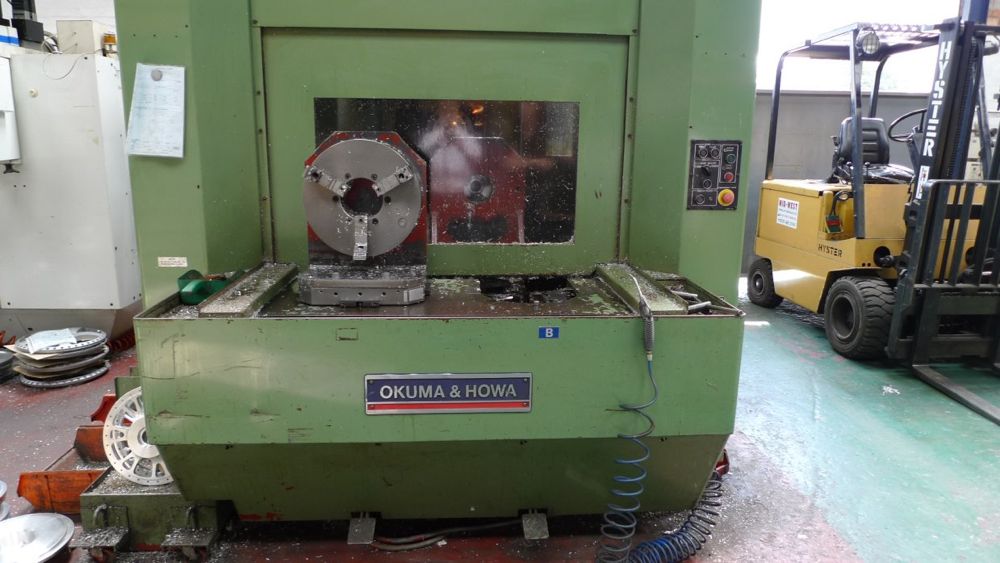

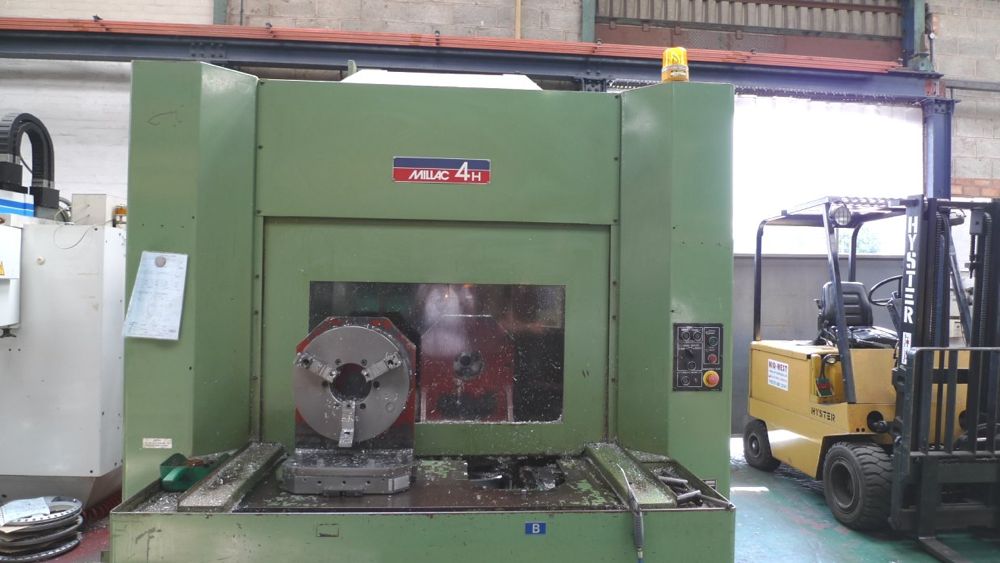

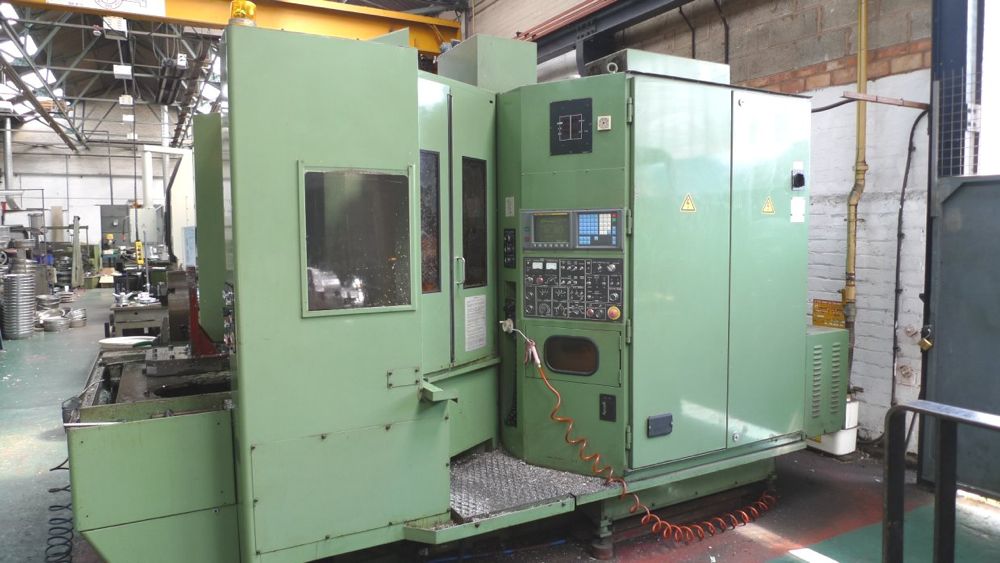

Okuma Howa Millac 4H Horizontal Machining Centre

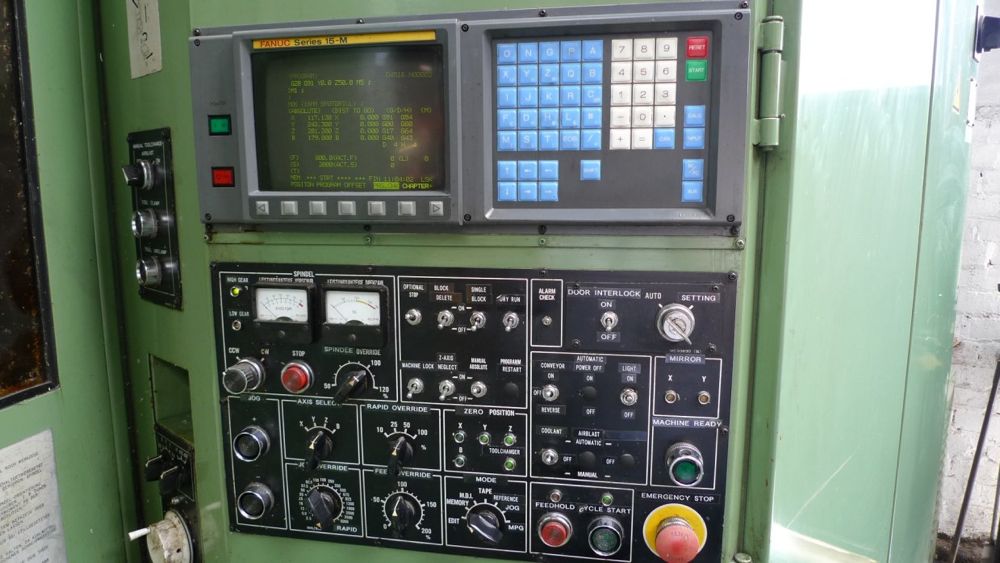

Control: Fanuc 15M Control
Serial No.: 0748
Year of Manufacture:   1992

Specification:
Pallet Size 15.75”
X Axis Travel 22.05”
Y Axis Travel 18.11”
Z Axis Travel 18.11”
Pallet Index .001 Degrees
Spindle Speed 45 – 6,000rpm
Spindle Taper                                                             CAT40
Spindle Motor 20/15HP
Spindle Centre to Table Centre 5.9” – 21.6”
Spindle Nose to Table Centre 1.77” – 15.51”
Tools 50
Number of Pallets 2
Pallet Load Capacity                                                   660lbs
Tool Change Time (T – T/C – C) 4/10 seconds
Rapid Traverse Rates 600ipm
Maximum Tool Diameter                                             4.92”
Maximum Tool Weight 22lbs
Machine Dimensions (L x W x H)                                 138” x 101” x 106”
Machine Weight 16,000lbs (7.2 ton)

Complete with:
9” Monochrome CRT
Heavy Duty Box way Construction
30 Items of Spindle Tooling
Set of Manuals

Location: Hove, East Sussex. Can be loaded for free to Flat Truck

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
