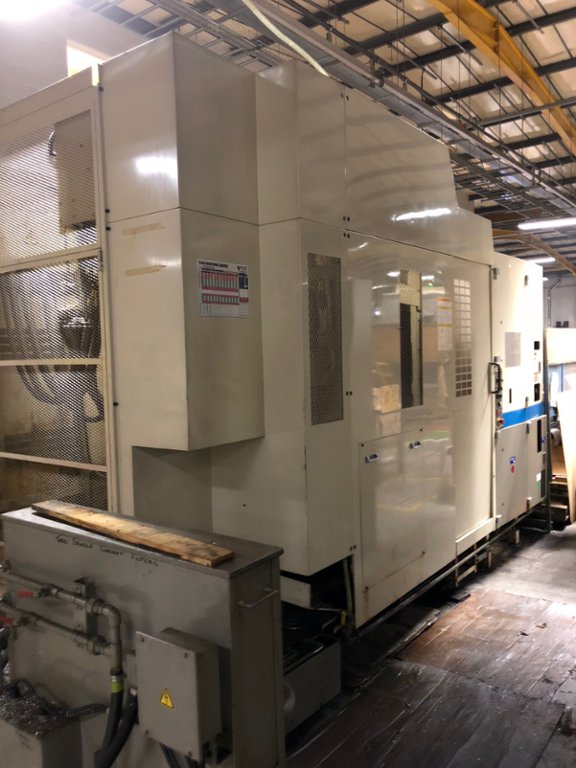

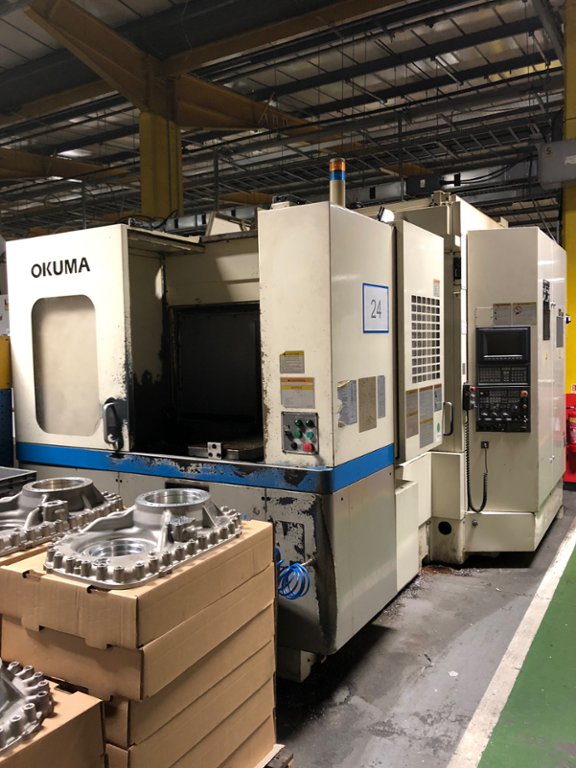

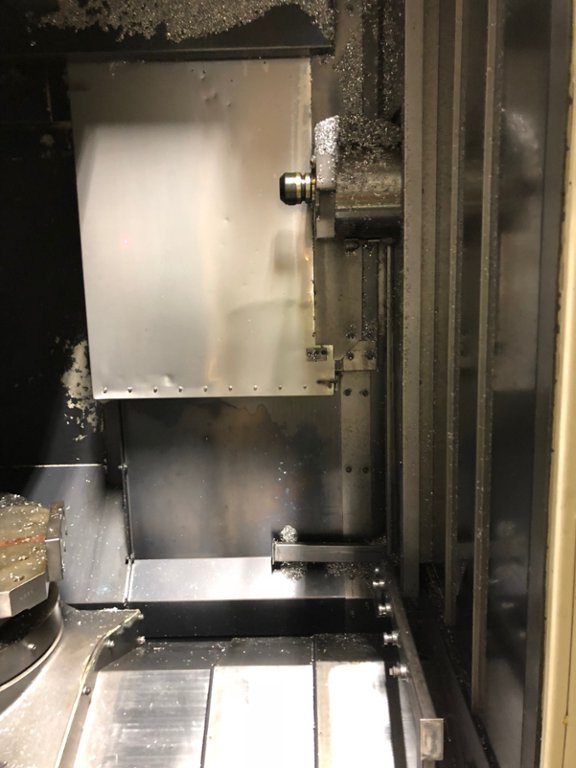

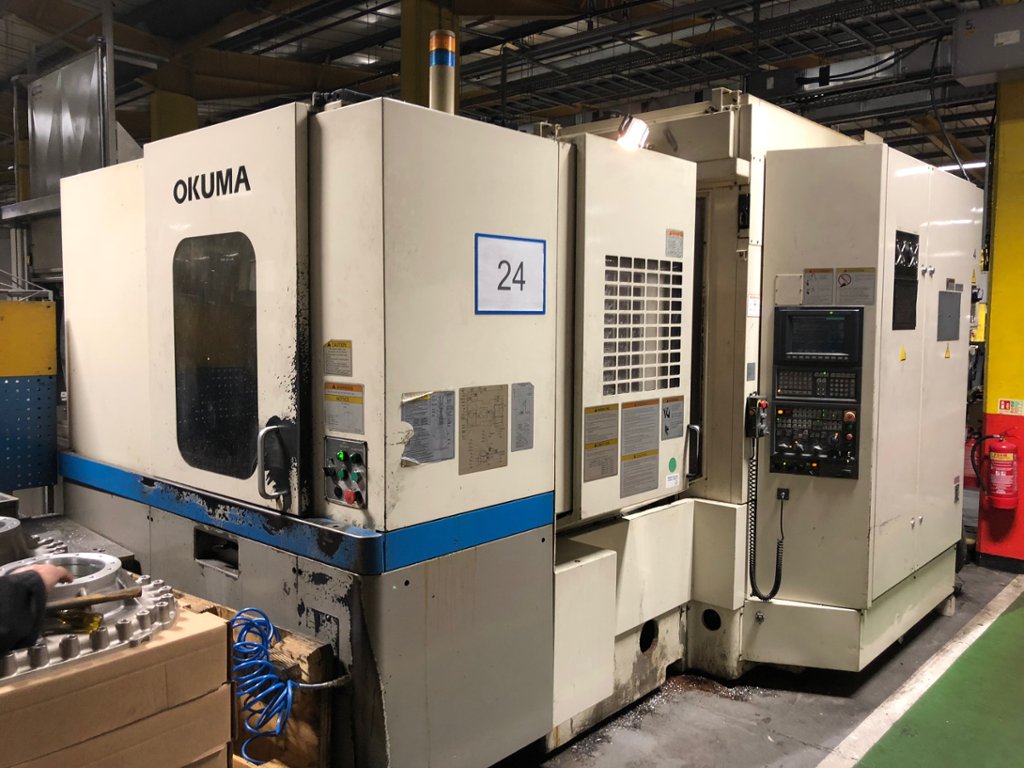

Lot 2 - Okuma MA-40HA Twin Pallet Horizontal Machining Centre
Description:

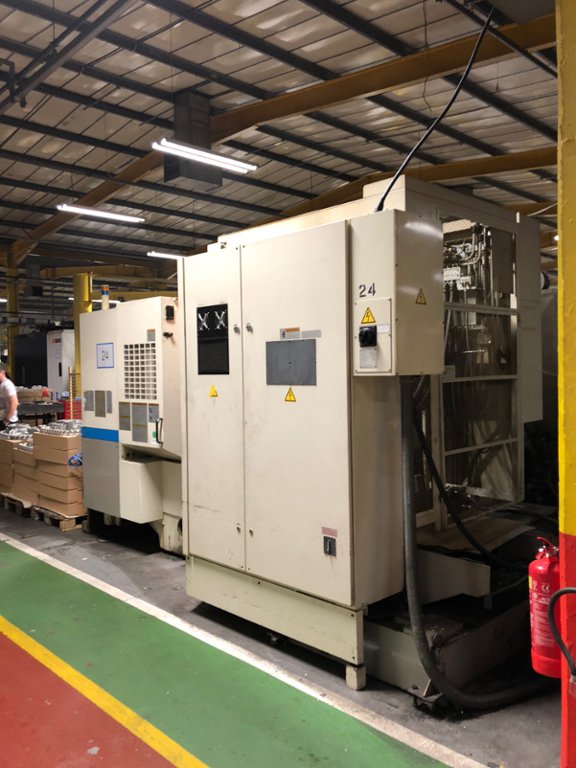

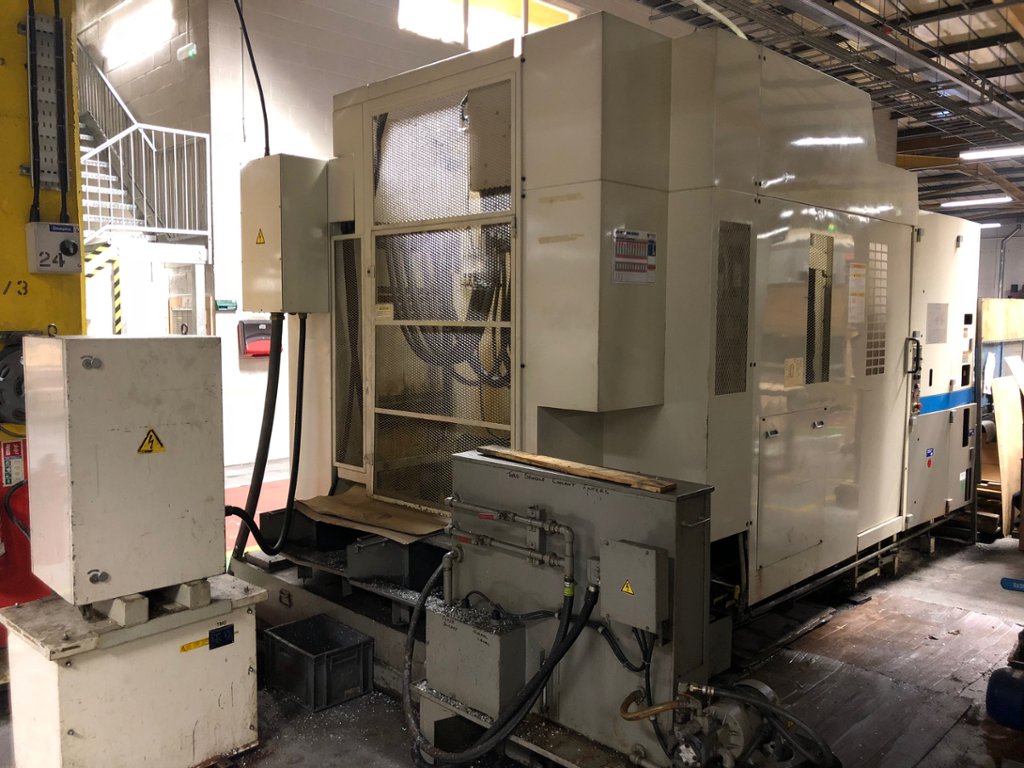

Okuma MA-40HA Twin Pallet Horizontal Machining Centre

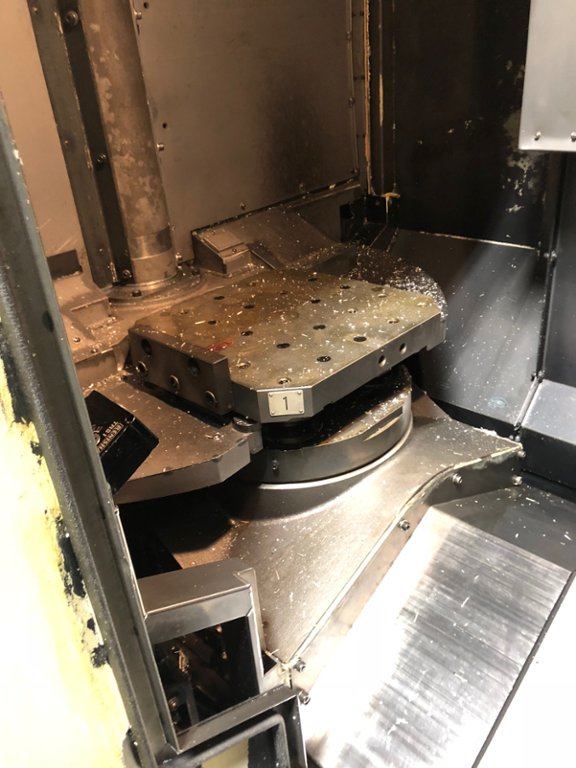

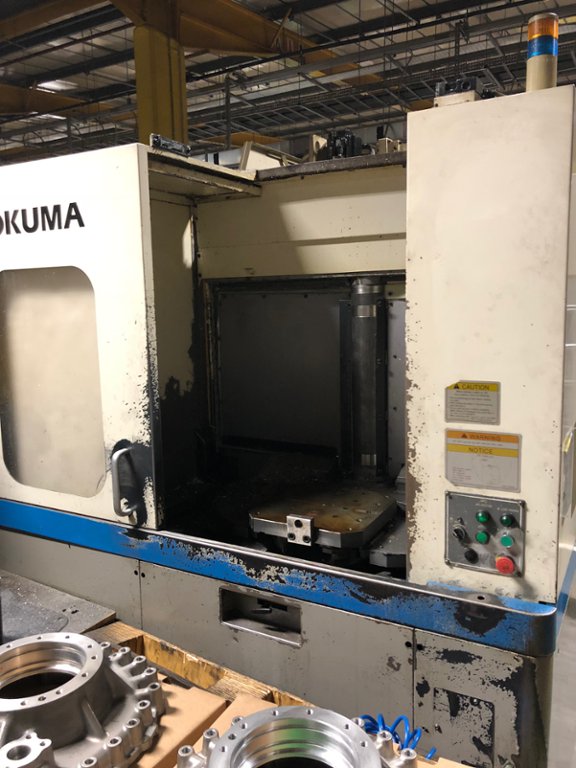

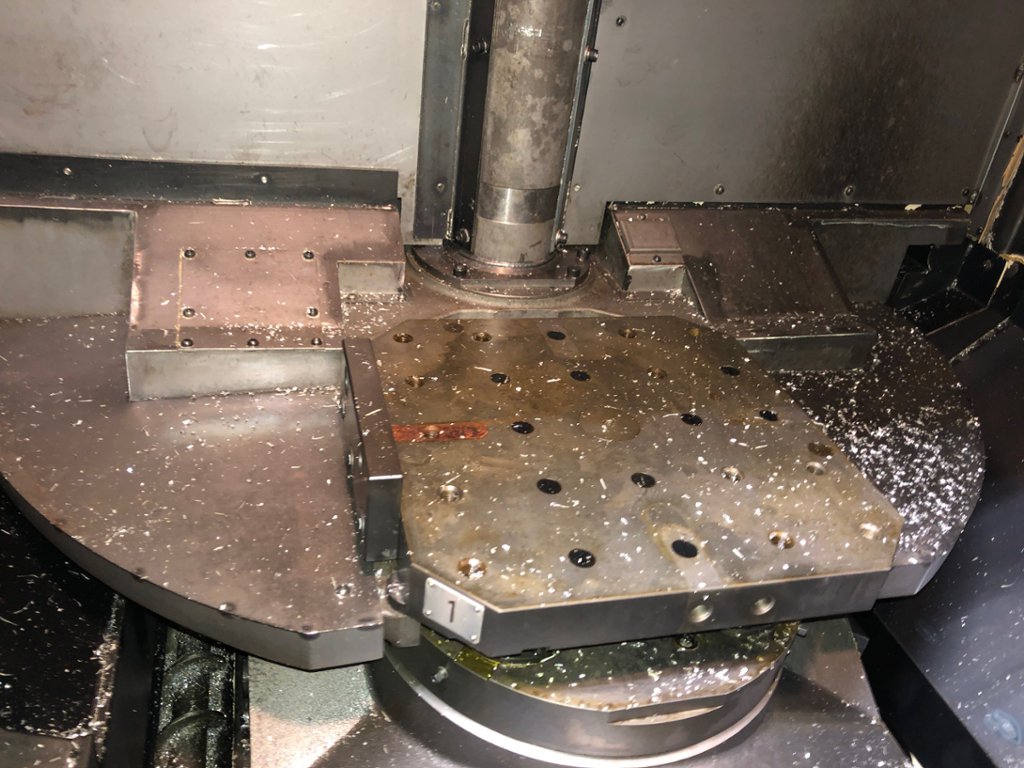

2 off pallets: 400mm x 400mm

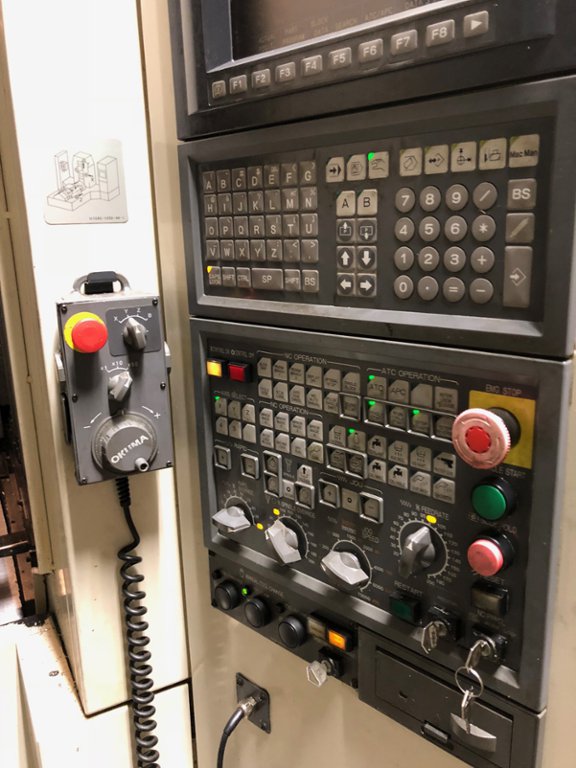

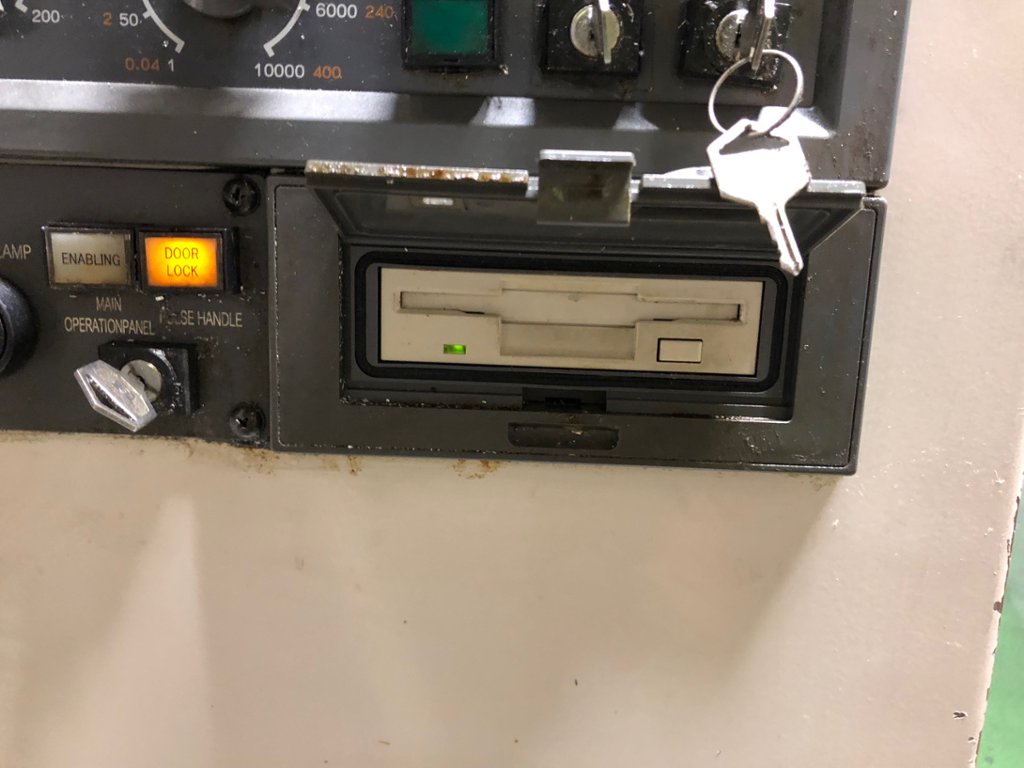

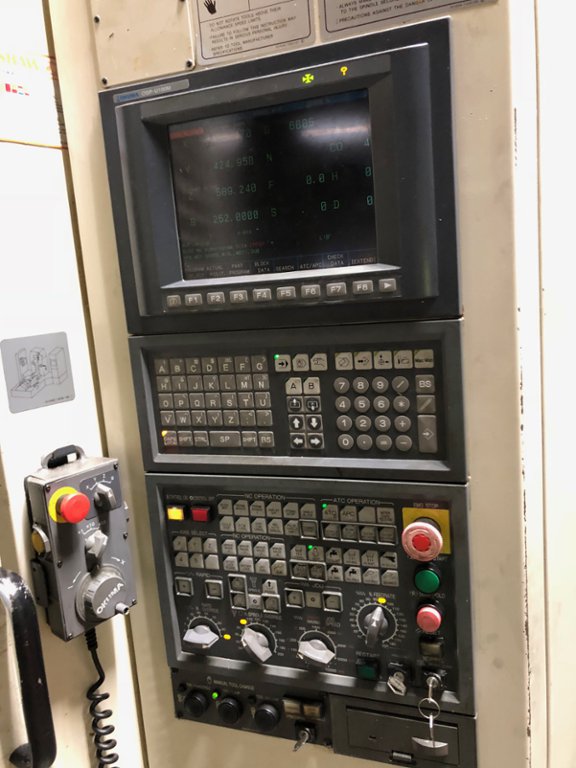

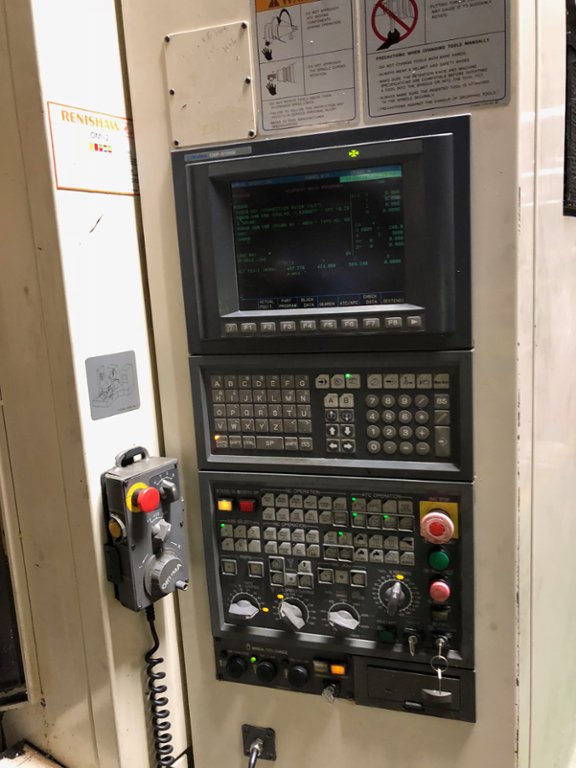

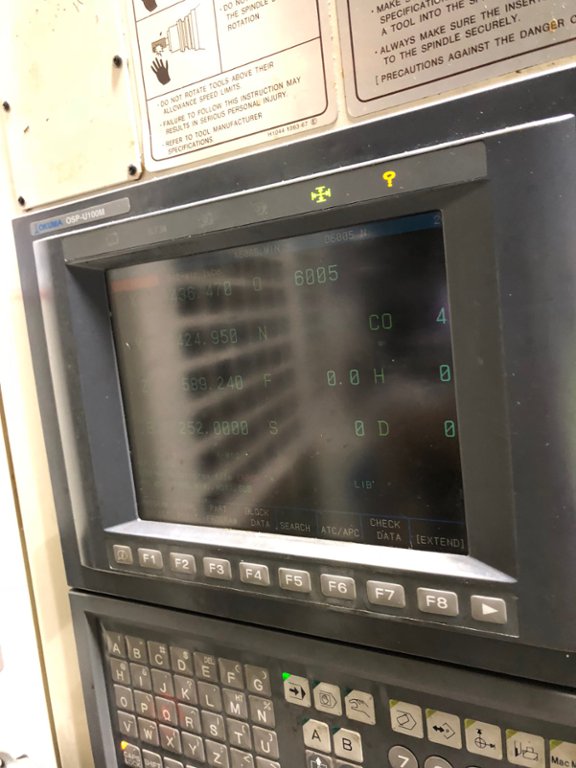

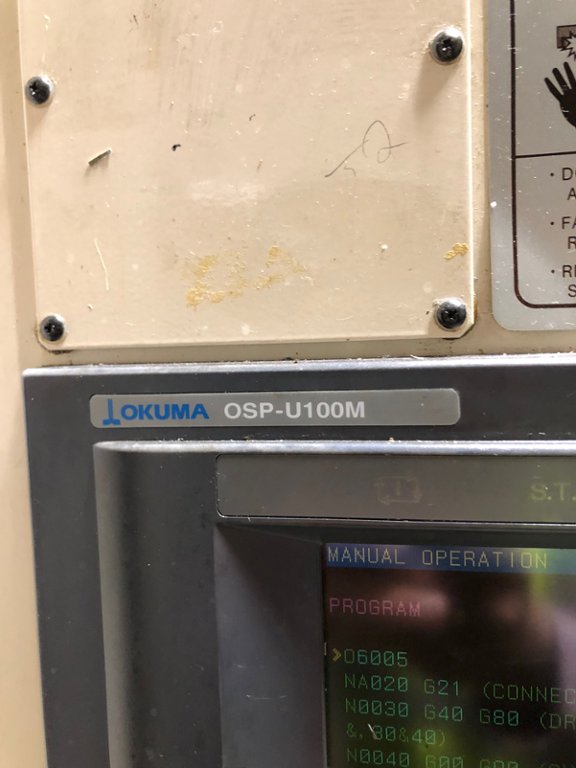

OSP U100M Conversational CNC Control
Travels: X Axis 560mm Y Axis 610mm Z Axis 560mm

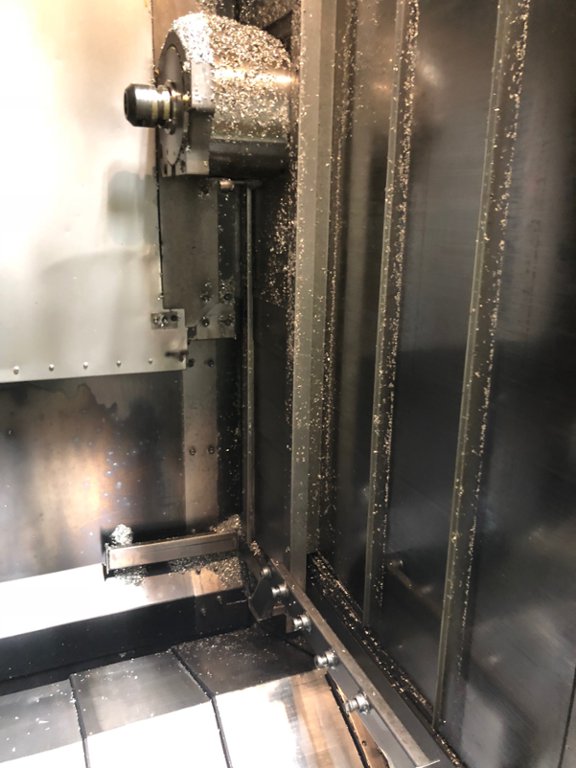

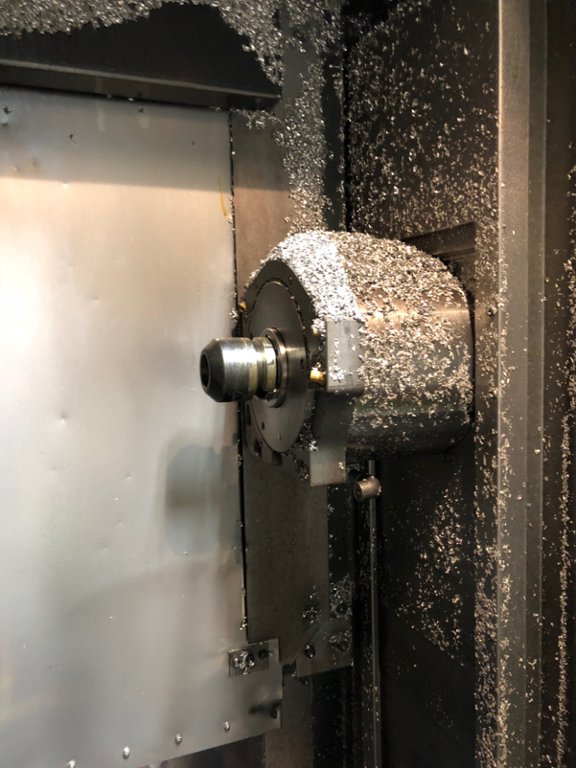

Speed 12,000 RPM

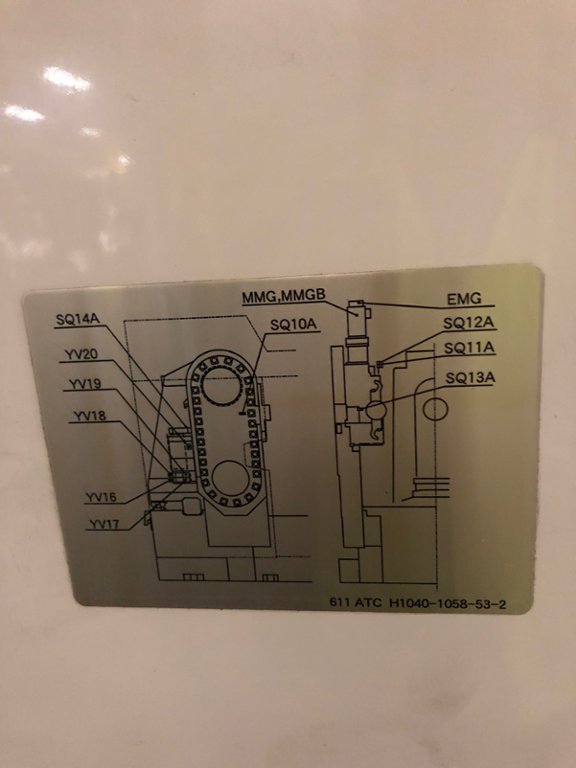

Auto Tool Changer 60 ATC

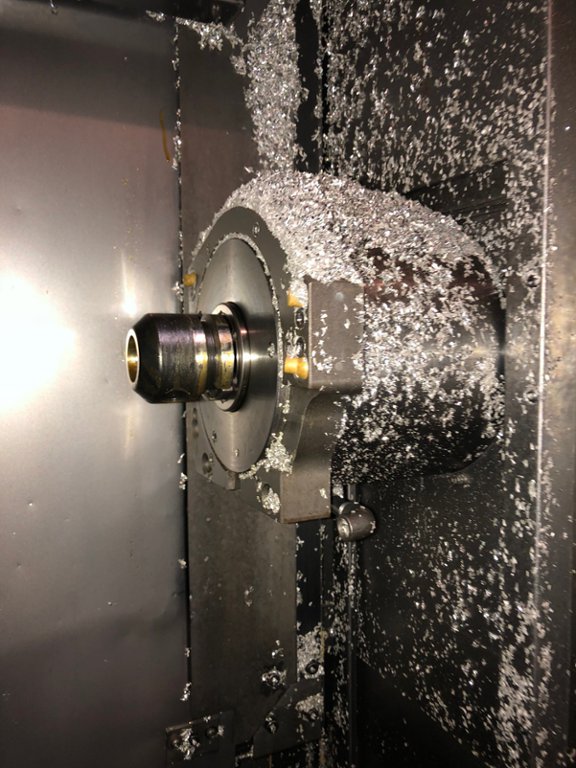

Spindle Taper BT40
Spindle Motor 20 HP
Indexing 1 Degree - 360 positions
Max weight on pallet 400kg
XYZ rapids 30,000mm per min

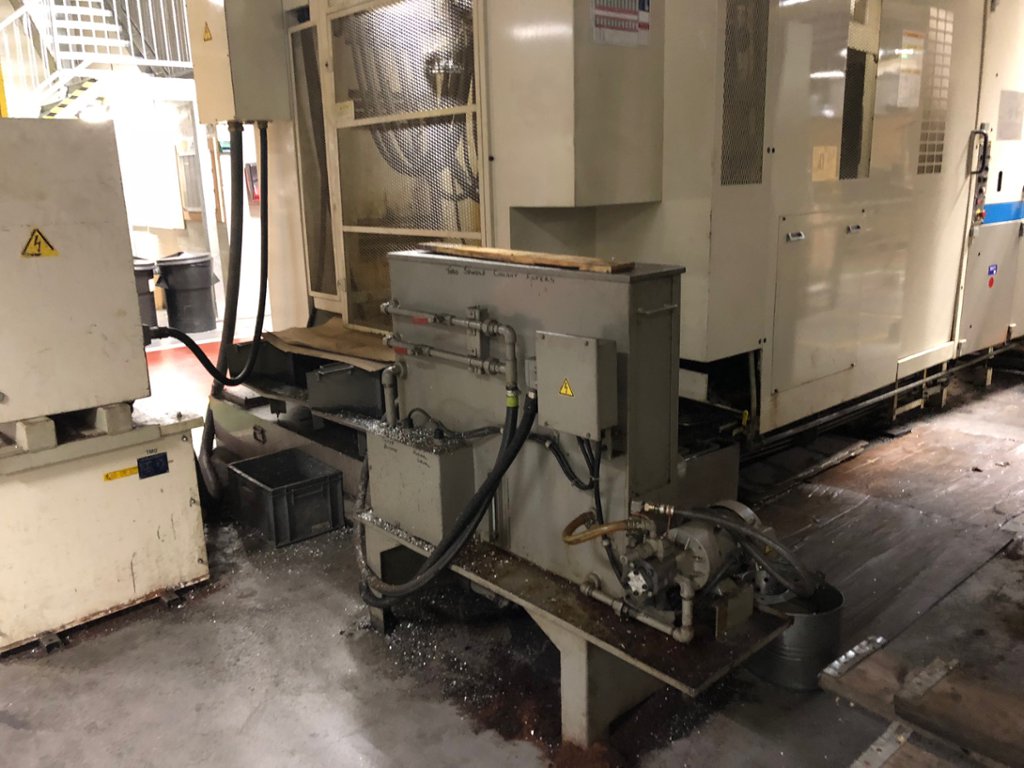

Chip Conveyor

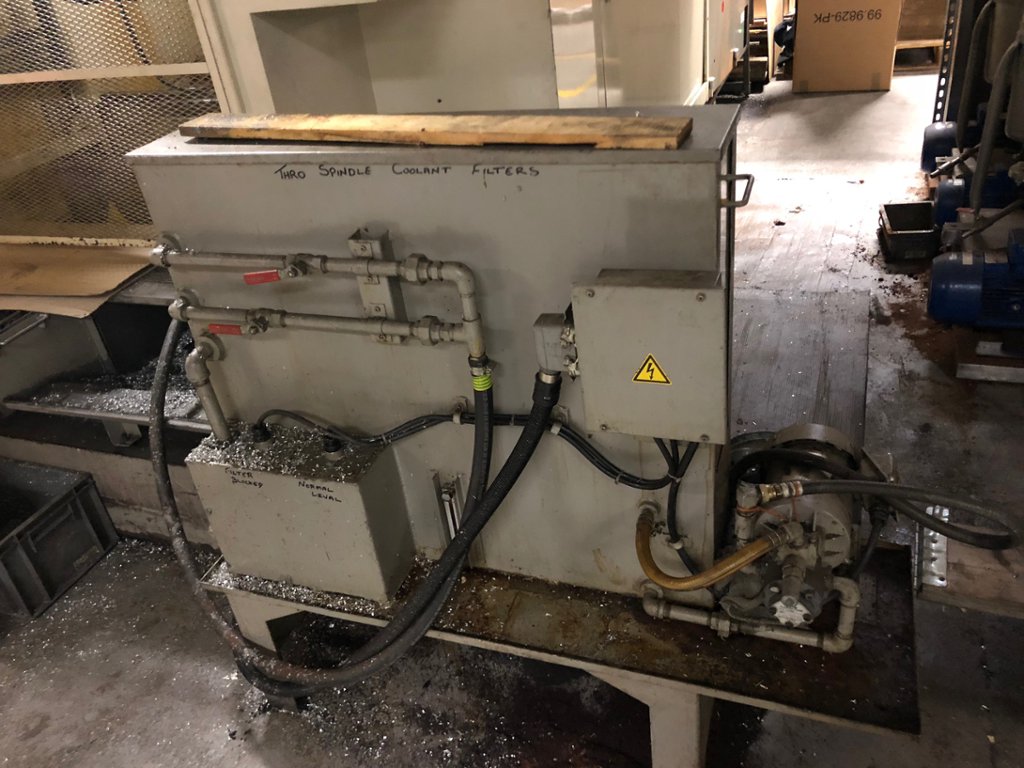

Through Spindle coolant
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
27 Nov 2018 15:53:00 GMT

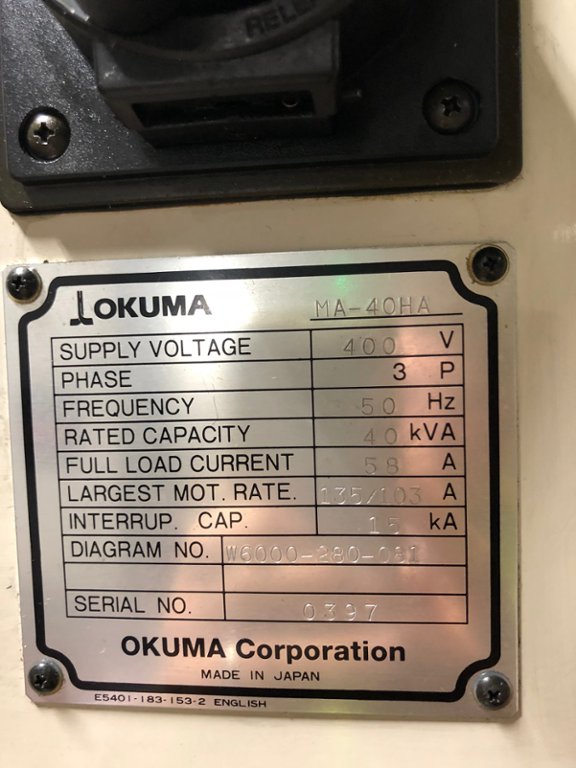

Serial Number: 0397
Location: Leicester
Transport information
- Width: 2,490mm
- Depth: 3,990mm
- Height: 2,730mm
- Weight: 10,000kg
- Other Transport Details: Decommissioned and loaded to suitable transport £350
