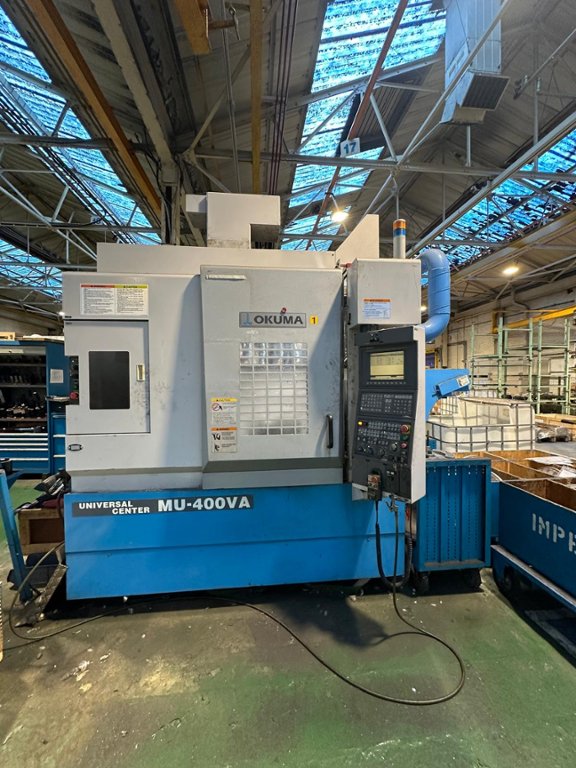

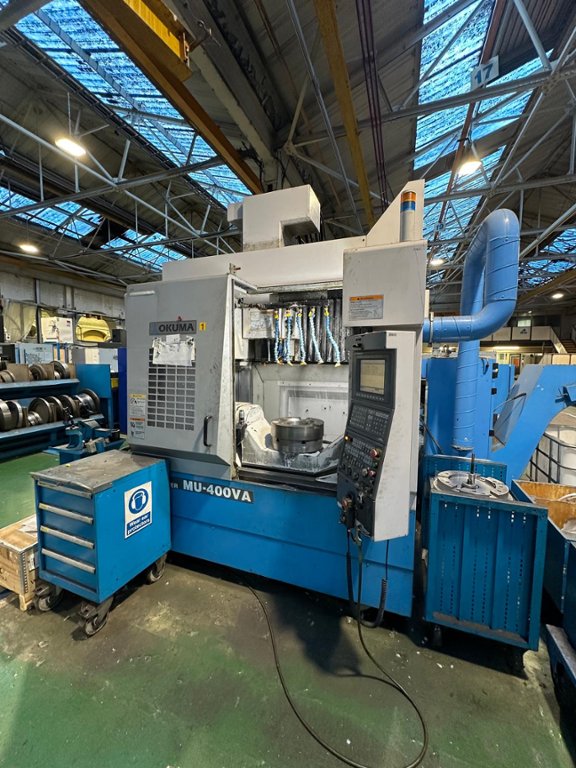

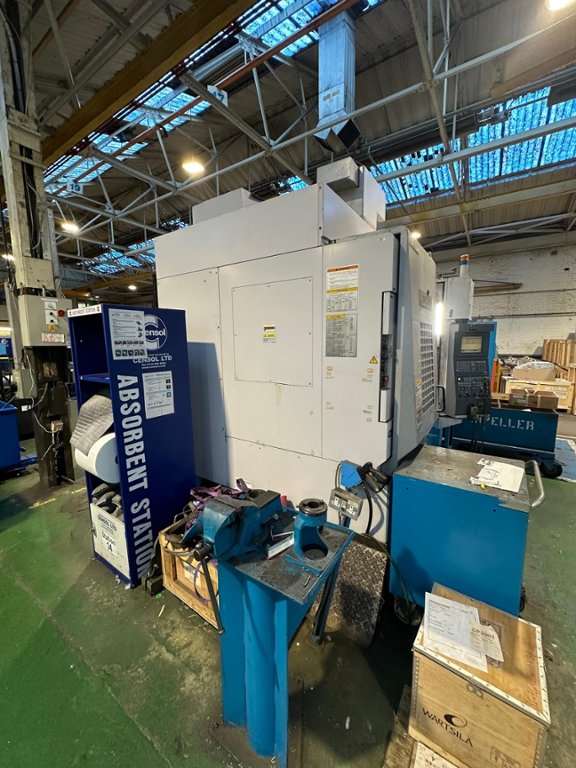

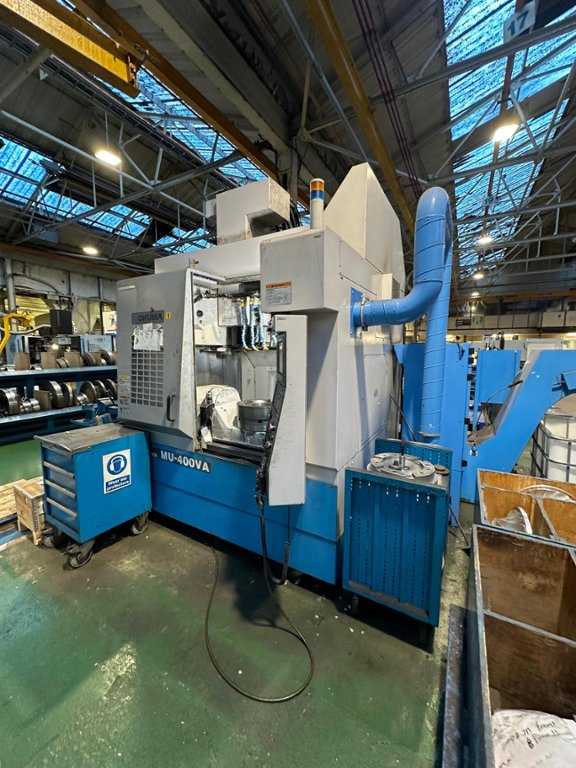

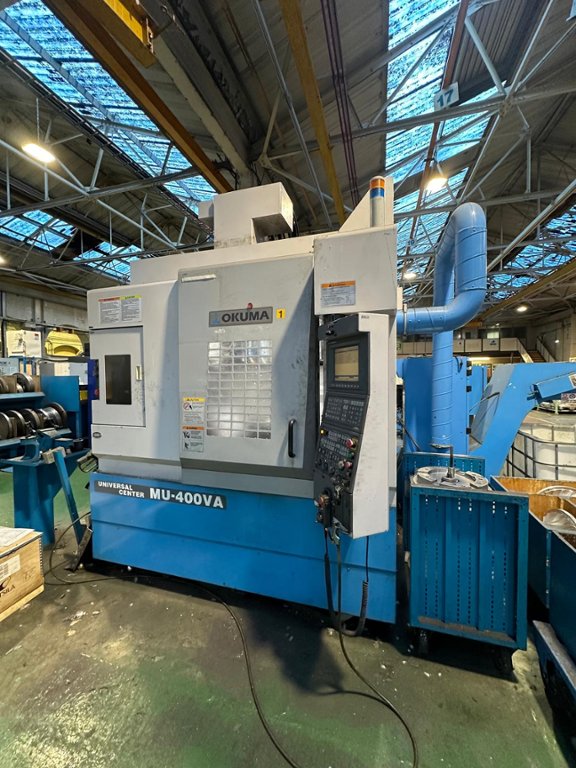

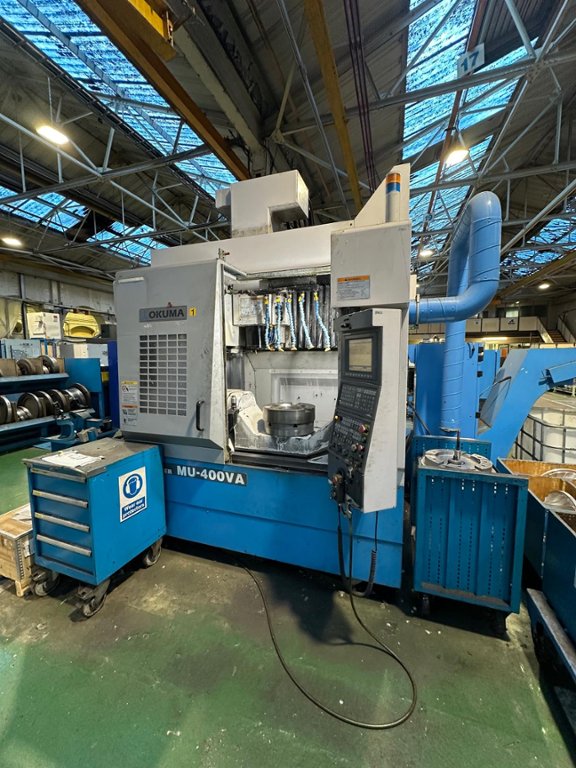

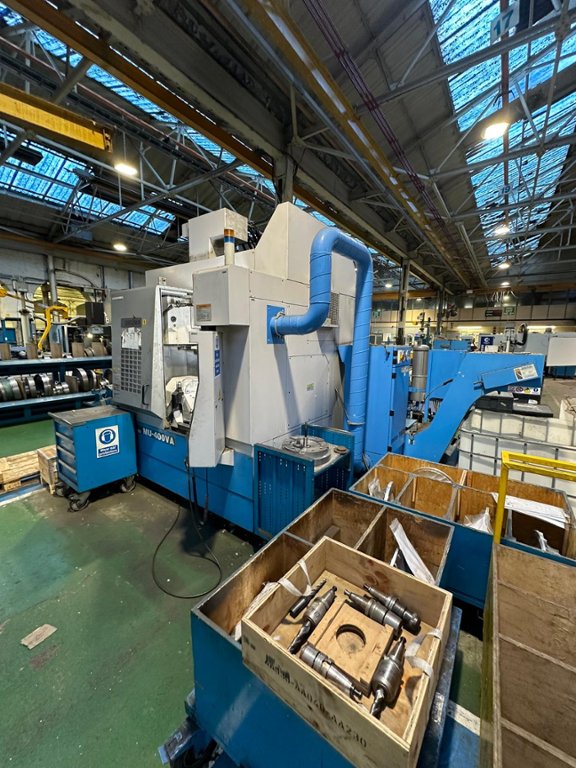

Okuma MU400VA CNC Vertical Machining Centre (2006)

Lot 2 - Okuma MU400VA CNC Vertical Machining Centre (2006)

Description:

Measurements width 2500
Measurements depth 2800
Measurements height 2950
Machine weight 7900 kg

Main Drive
Spindle speed range 15000
Spindle motor power (10min/cont.) 22.5/18.5 kW
Tool taper BT40 BIG+

Movement
X-Axis Movement 762 mm
Y-Axis Movement 460 mm
Z-Axis Movement 460 mm

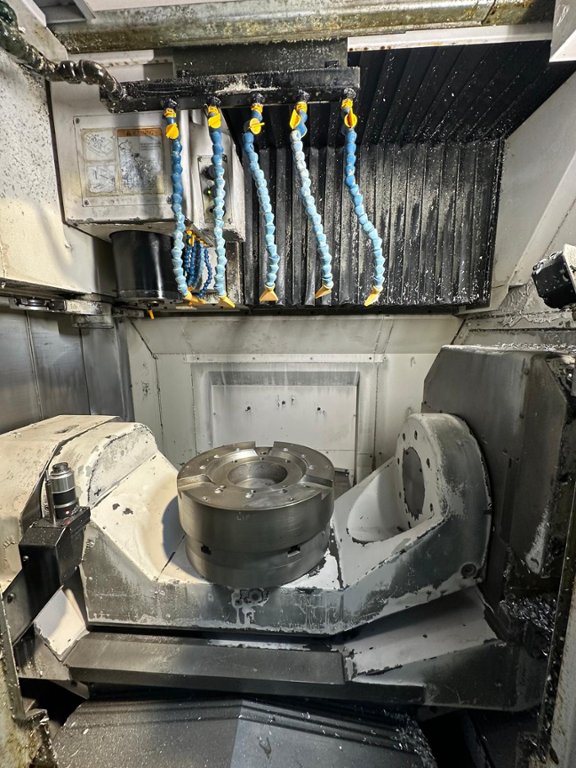

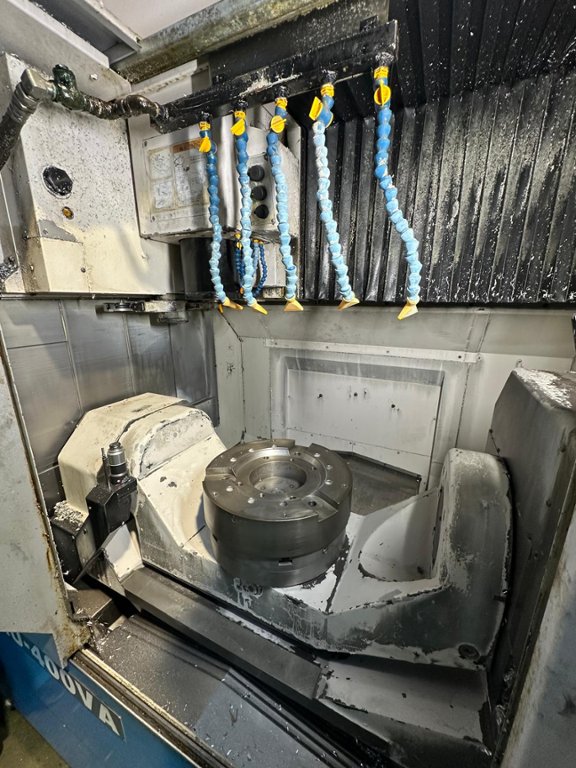

1-AXIS Movement +20/-110
2-AXIS Movement 360

Tools
Slots in storage 20

Additional Equipment
Automatic tool changer
cooling through spindle at 30 bar

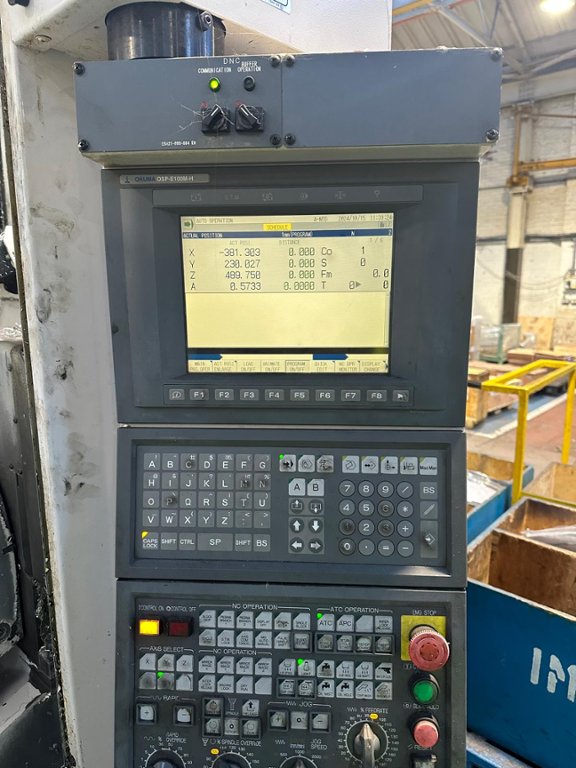

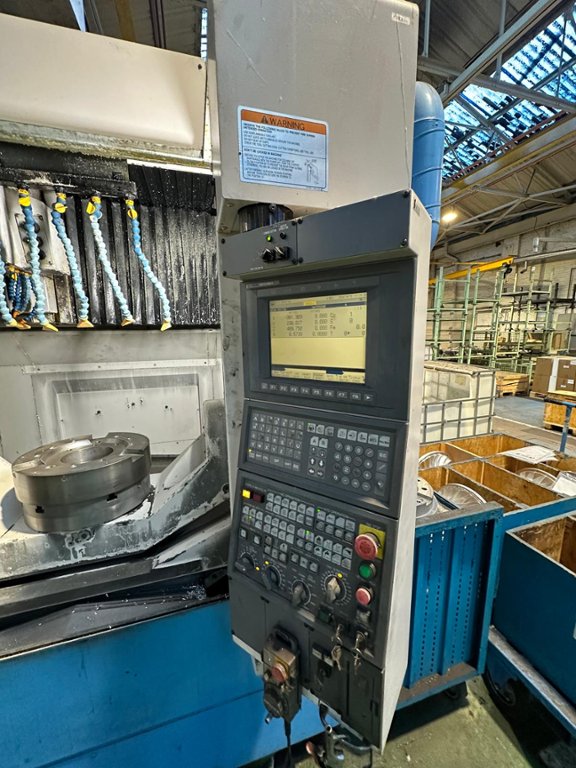

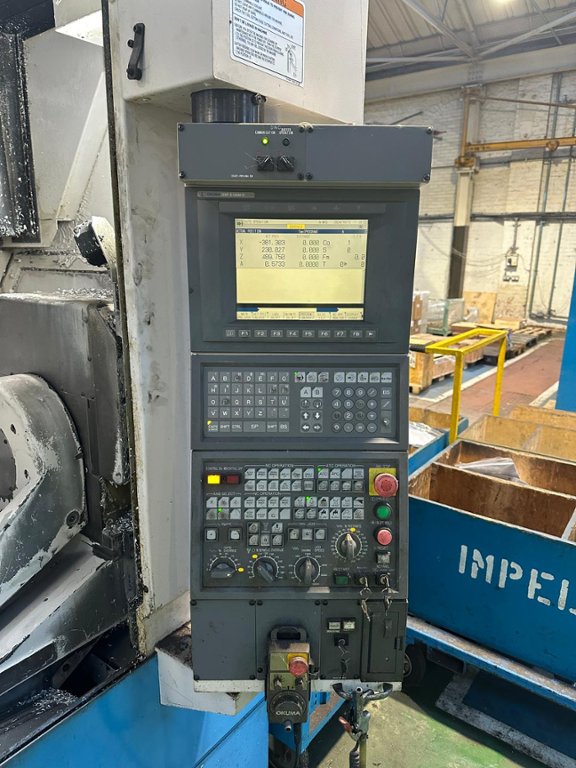

control OSP100

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
