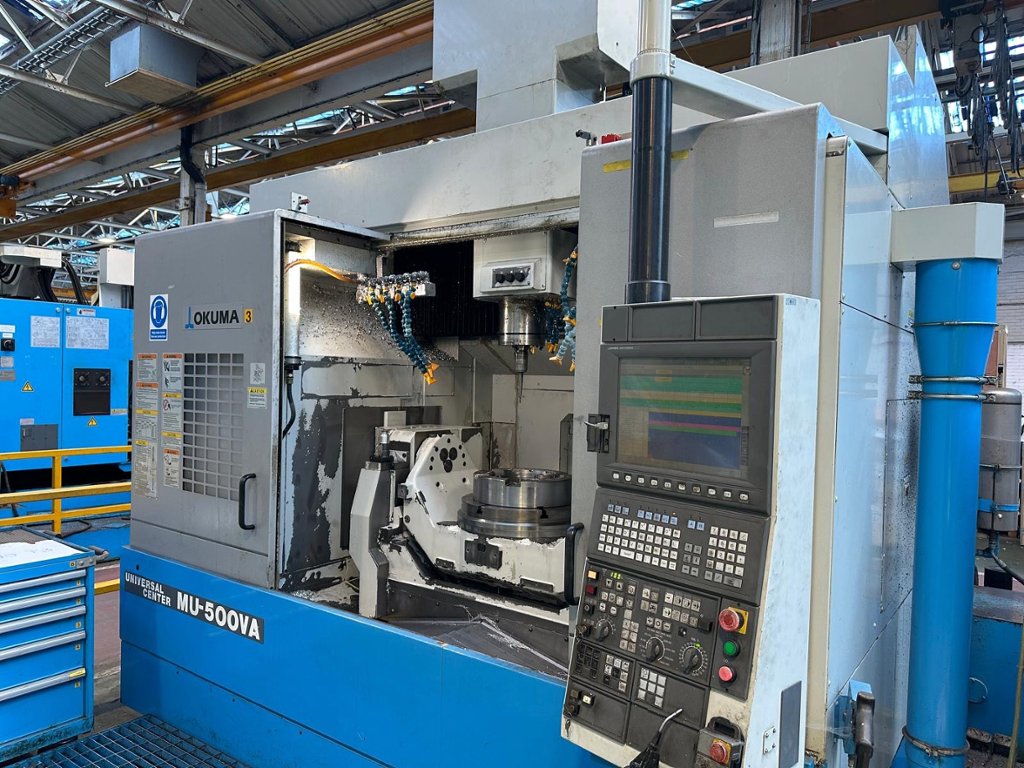

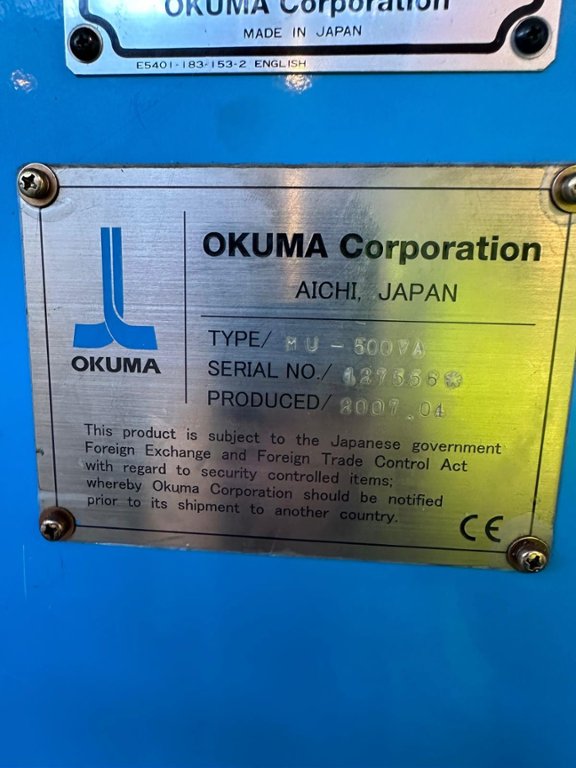

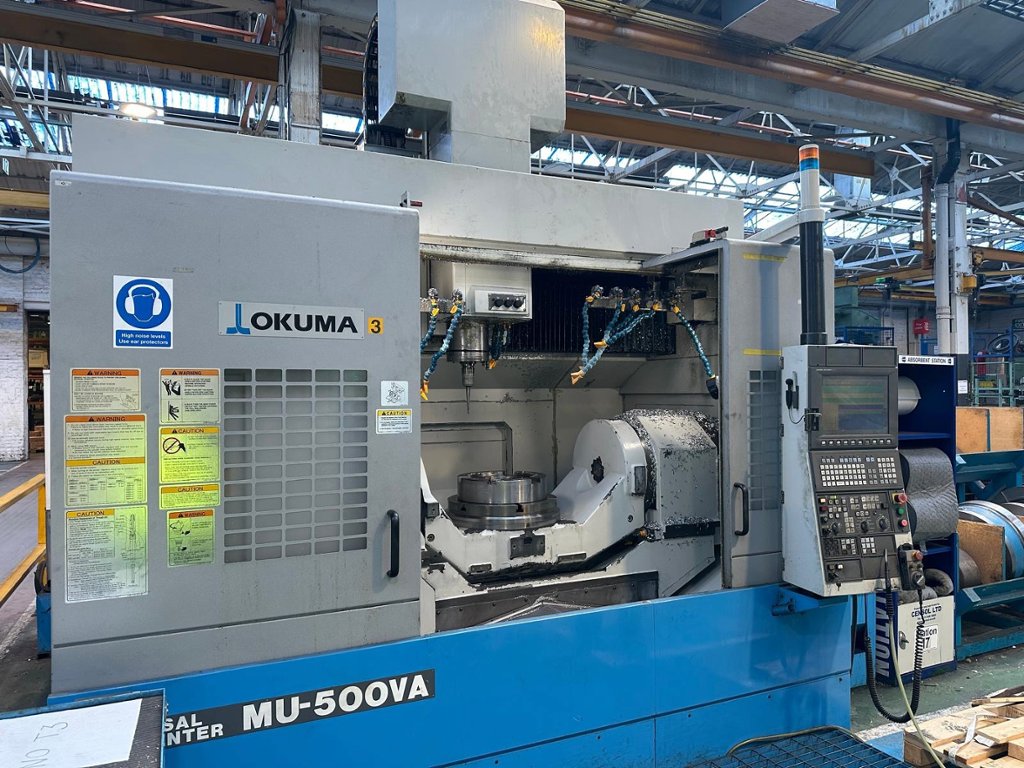

Okuma MU500VA CNC Vertical Machining Centre (2007)

Lot 2 - Okuma MU500VA CNC Vertical Machining Centre (2007)

Description:

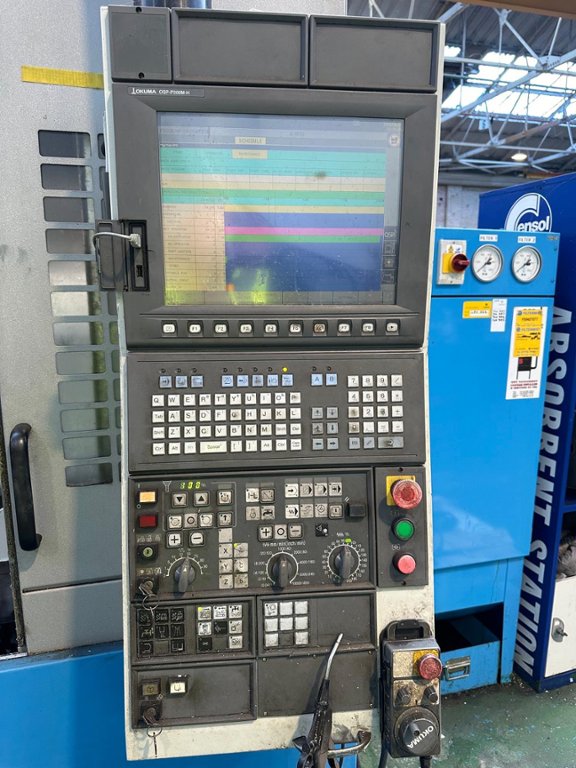

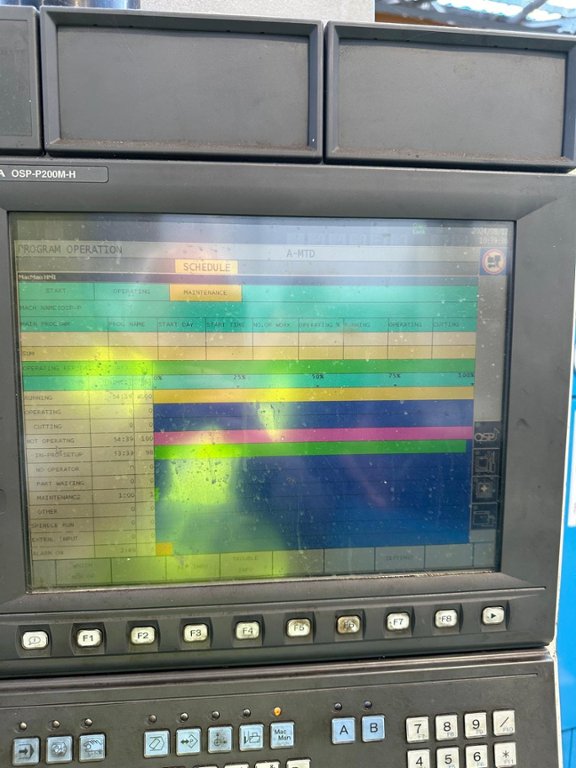

OSP P200M-H Control

Travels

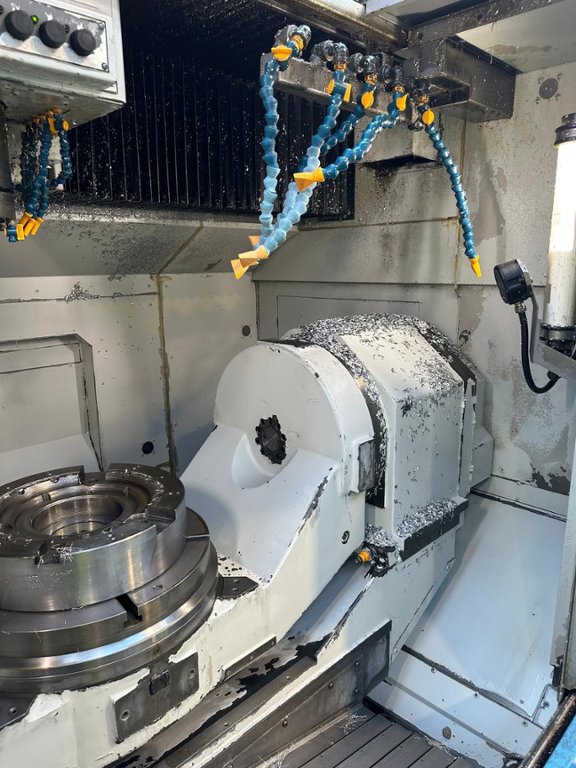

X-axis (saddle left/right) – 1250mm, Y-axis (pallet front/back) – 660mm, Z-axis (spindle up/down) – 540mm, A-axis – +20~-110 deg., C-axis – 360 deg., Table surface to spindle nose – 127~667mm

Table

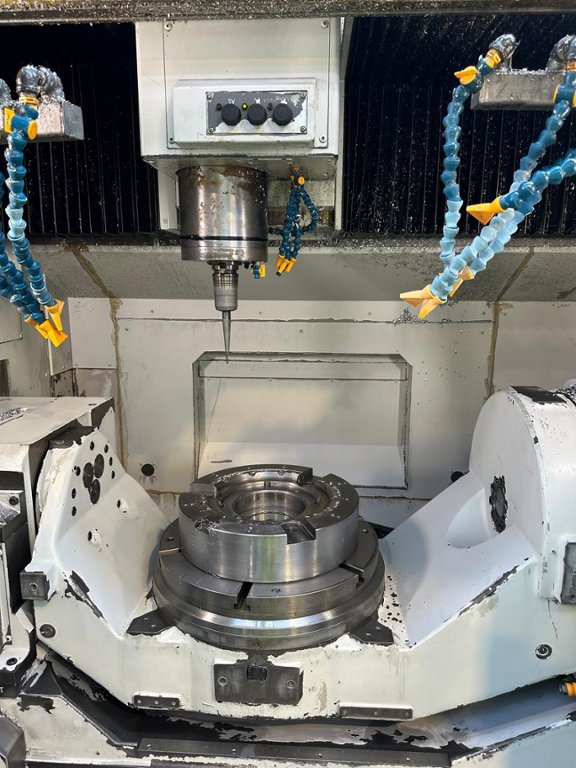

Table size – ø500mm, Max work size – ø730xh500, Floor to table top – 1073mm, Max load capacity – 500kg

Spindle

Spindle speed – 15000rpm, Turning specification – C-axis table 1000rpm , No. of spindle ranges – Infinitely variable, Tapered bore – 7/24 taper No.40, Bearing dia – ø70mm

Feed

Rapid traverse – X-Y: 40m/min, Z:32m/min, Rapid traverse (A-C) – 18,000 deg/min, Cutting feed rate – X-Y-Z: 32m/min

Motors

Spindle (10min/cont) – 11/7.5kW

ATC

Tool shank type – MAS BT40 Big plus, Retention knob type – MAS 2, Tool capacity – 32, Max. tool dia (w/ adjacent tool) – ø90mm, Max. tool dia (w/o adjacent tool) – ø125mm, Max. tool length – 400mm, Max. tool mass – 8kg, Tool selection – Memory random

ATC

Retention knob type – MAS 2, Tool capacity – 20 (Option: 32, 48), Max. tool dia (w/ adjacent tool) – ø90mm, Max. tool dia (w/o adjacent tool) – ø125mm, Max. tool length – 400mm, Max. tool mass – 8kg, Tool selection – Memory random

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
