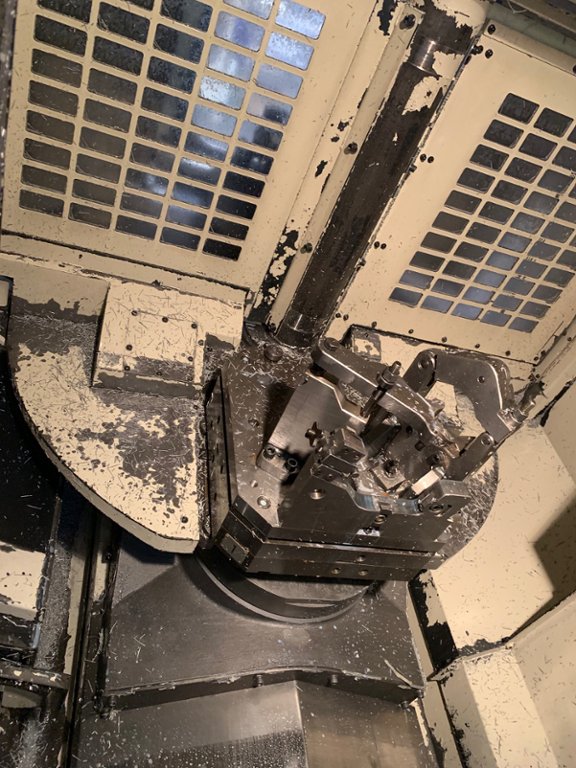

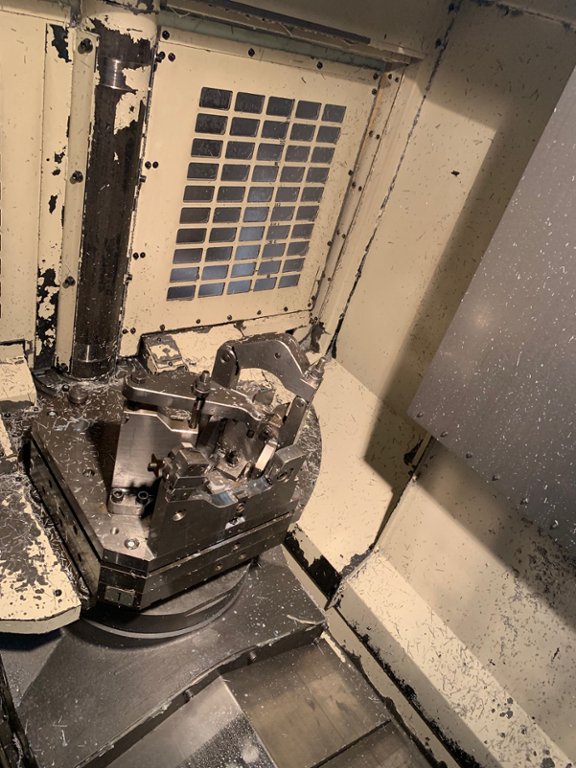

2 off pallets: 400mm x 400mm

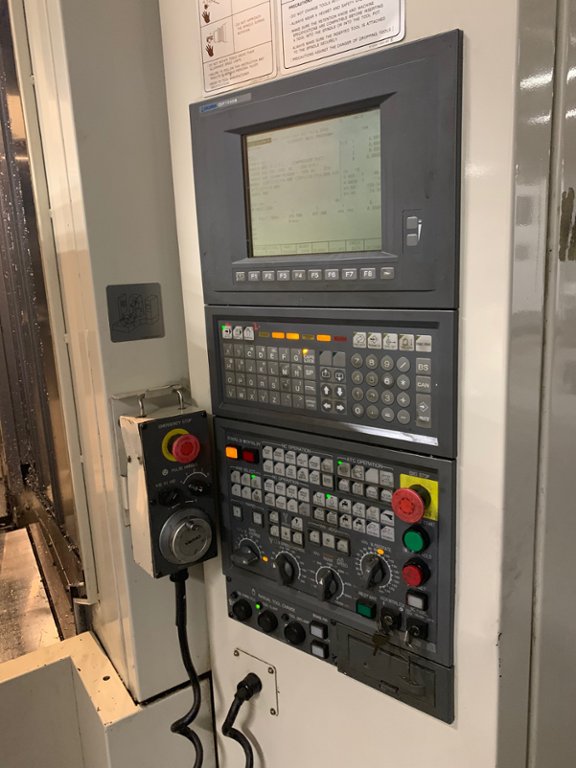

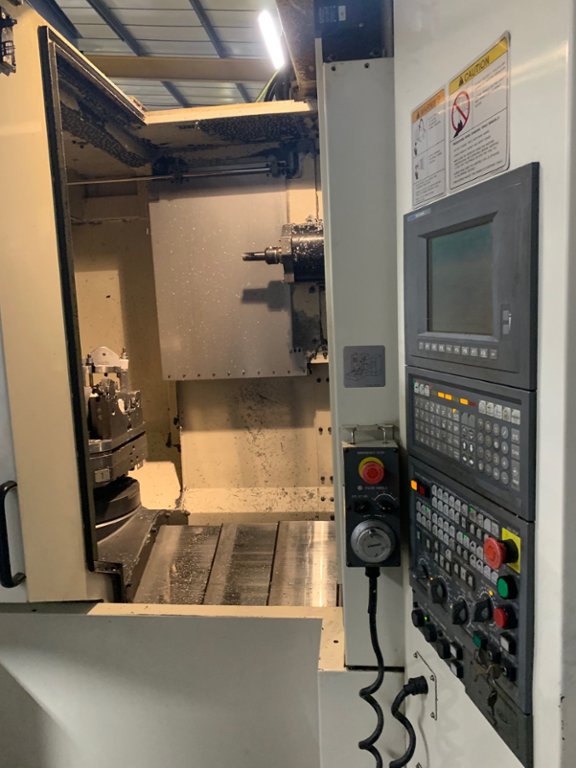

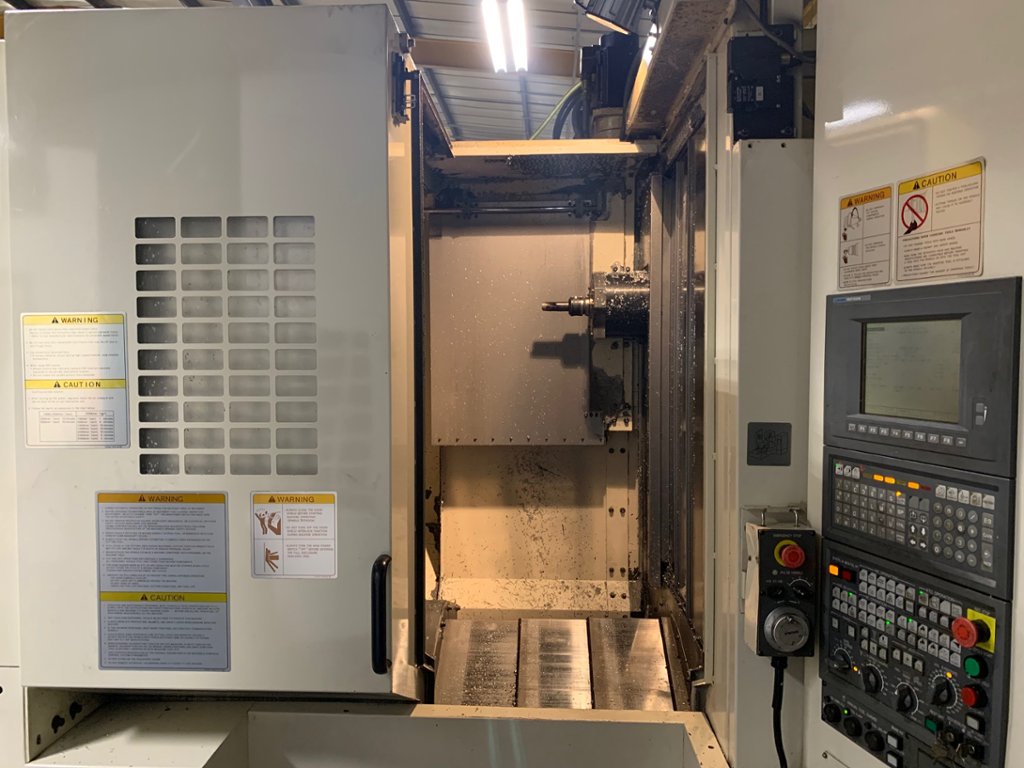

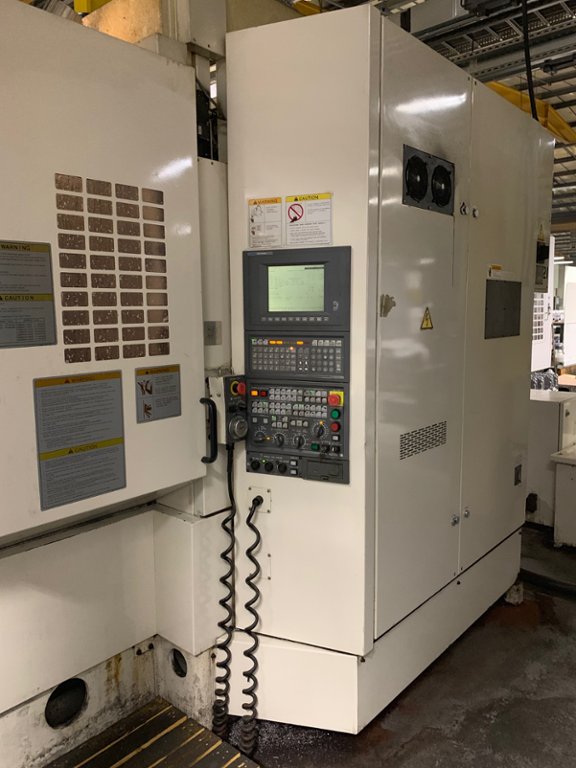

OSP U100M Conversational CNC Control
Travels: X Axis 560mm Y Axis 610mm Z Axis 560mm
Speed 12,000 RPM
Auto Tool Changer 60 ATC

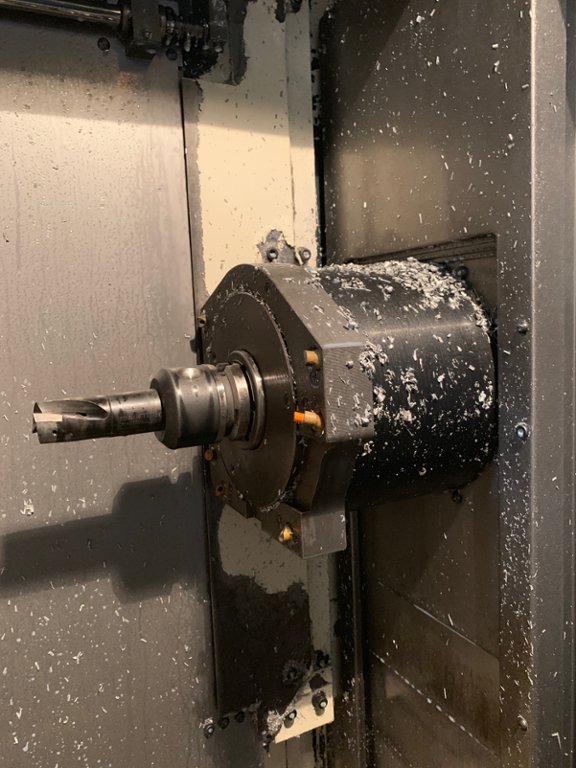

Spindle Taper BT40
Spindle Motor 20 HP

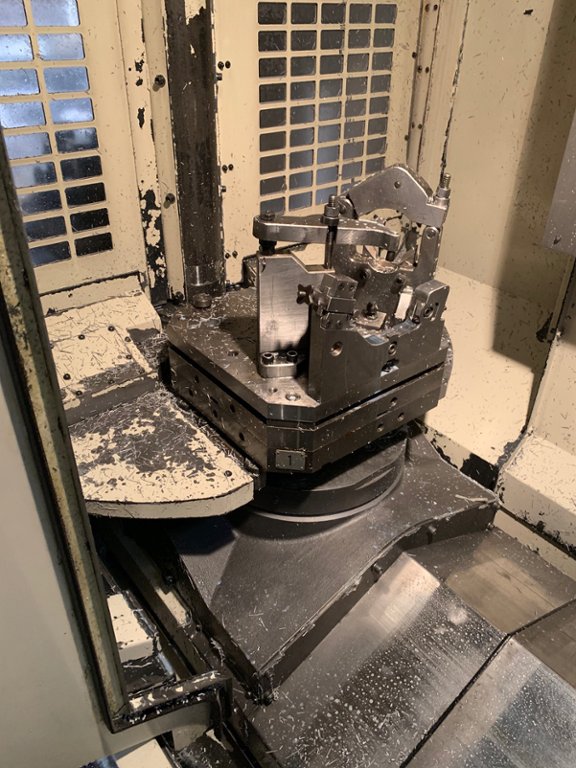

Indexing 1 Degree - 360 positions
Max weight on pallet 400kg XYZ rapids
30,000mm per min Chip Conveyor
Through Spindle coolant

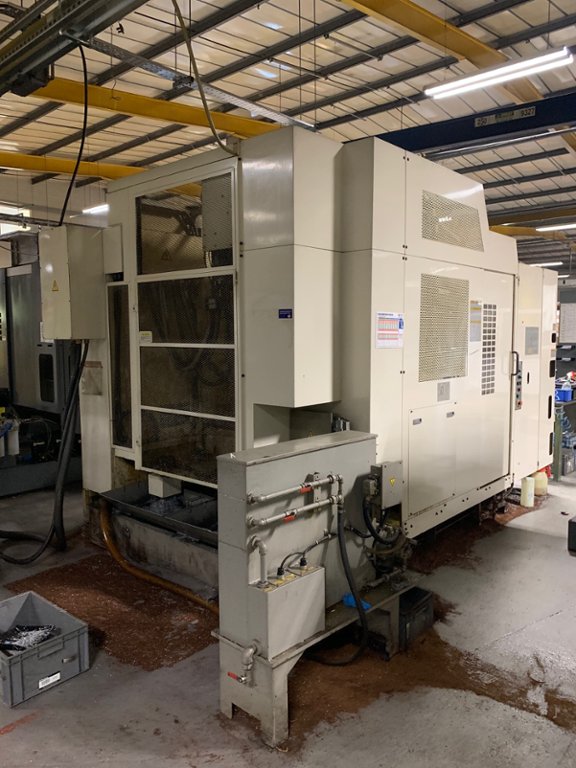

Dimensions 2,490mm x 3,990mm x 2,730mm high
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
