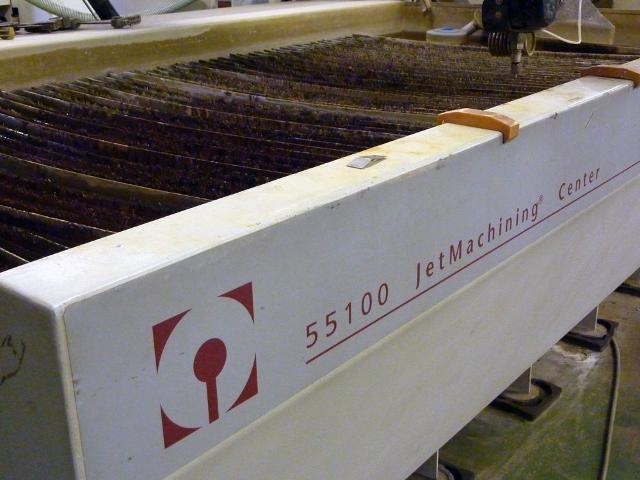

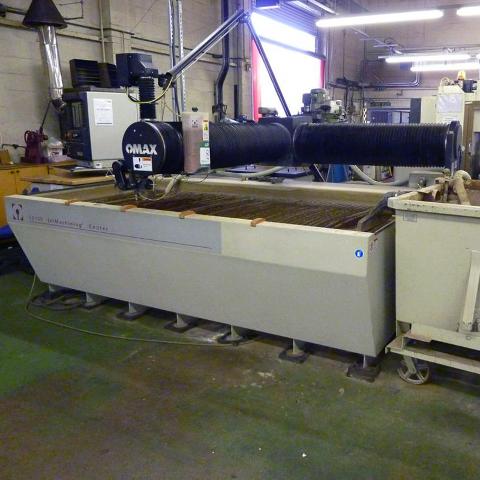

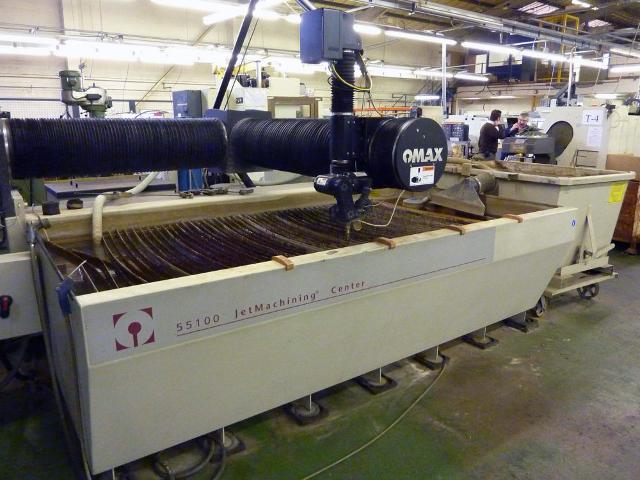

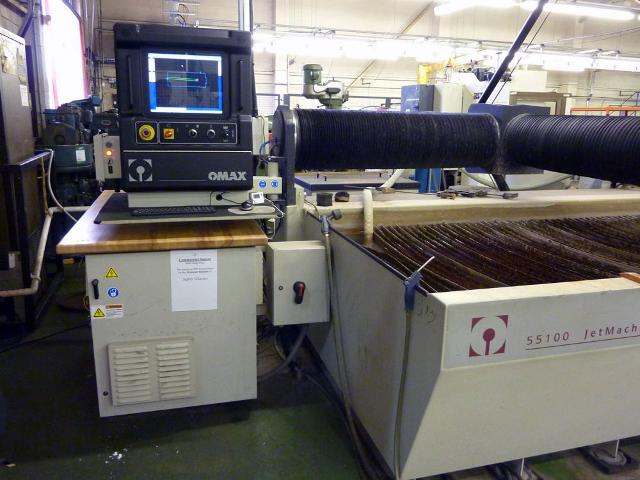

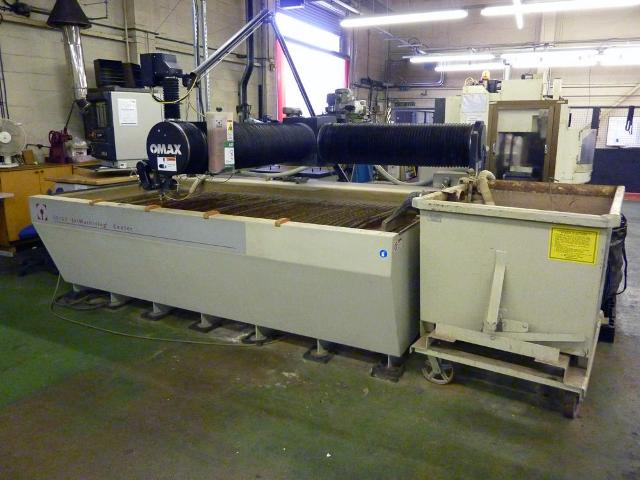

OMAX 55100 WATERJET cutting machine

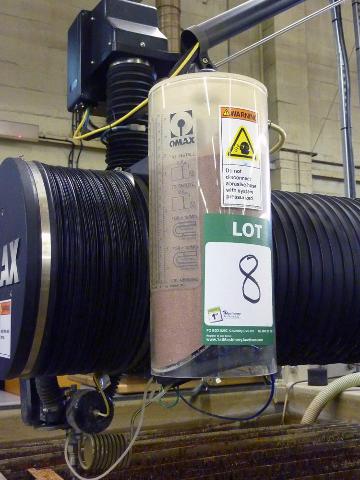

Lot 8 - OMAX 55100 WATERJET cutting machine

Description:

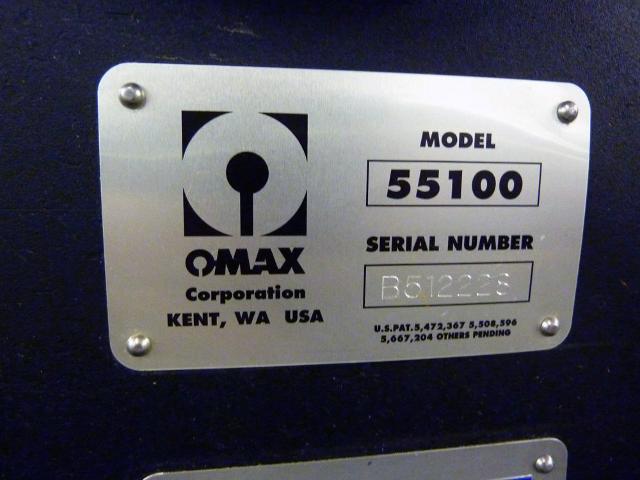

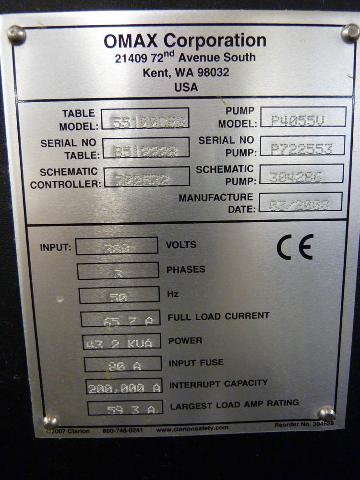

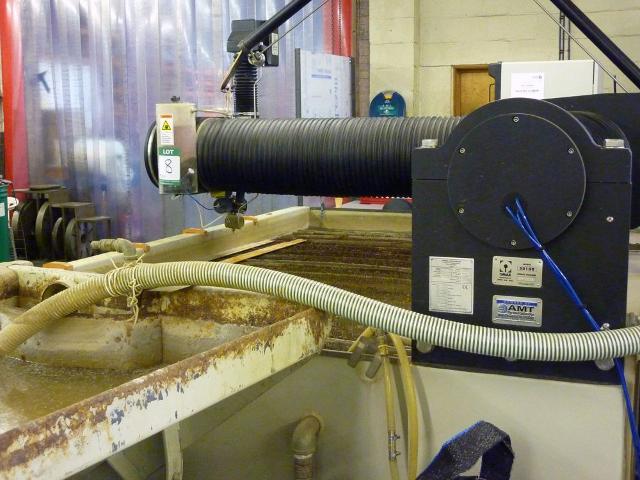

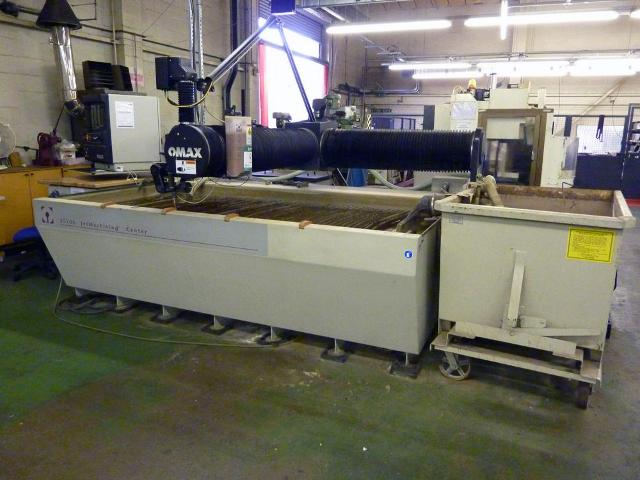

OMAX 55100 WATER JET

MODEL 5100 CES
YEAR 2006

Specifications
Specification Description

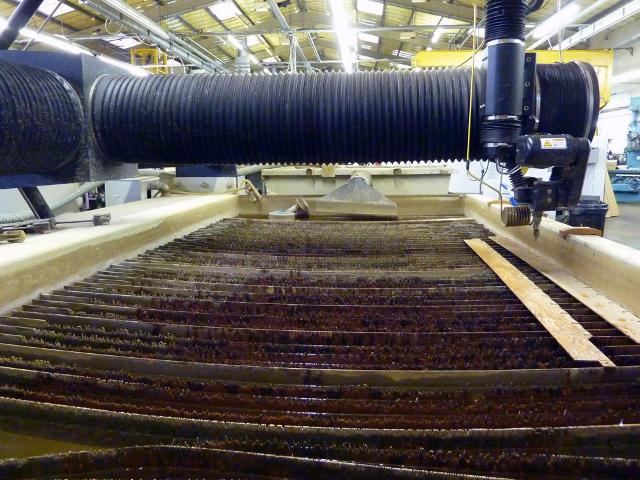

Cutting Head Travel - X, Y travels 100" x 55"
OMAX Direct Drive Pump Horse Power 30 HP Variable Speed
MAX Dimensions inside the tank 126" x 65"
Standard Voltage 380-480 Volts 3 Phase
Optional Voltage 208 - 240 Volts 3 Phase
Maximum Operating Pressure 50,000 PSI
Pressure safety blow down valve
Machine Weight (empty) 8,000 lbs
Operating Weight with water 22,000 lbs
Maximum Supported Load (lbs / square ft) 250 lbs / sq. ft.
OMAX motion control software incorporating Windows XP software

Equipped With:

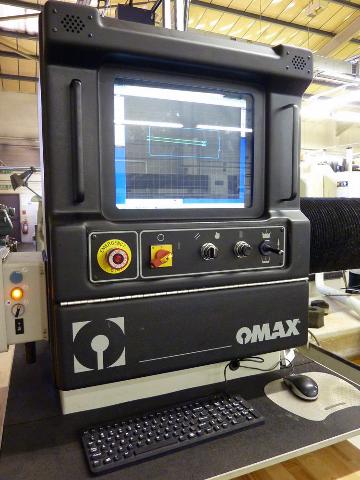

OMAX Integrated CAD/CAM Ssytem Patented Controller

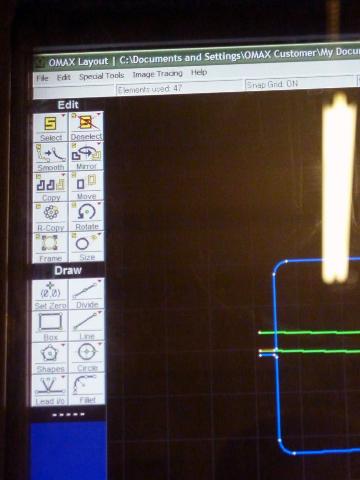

OMAX Intelli-MAX Programming Software
OMAX INTELLI-TRACE Software licence wIll need renewing
OMAX P3050V Direct Drive Pump
Closed Loop A.C. Digital Servo Drives
Precision Ground Ball screws

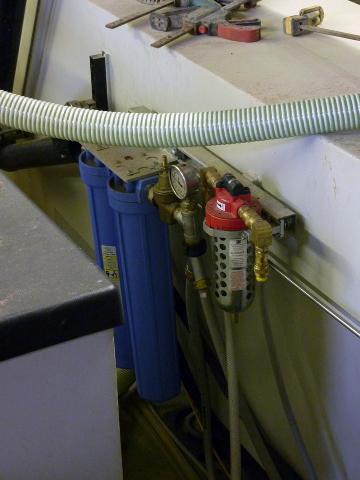

High-pressure plumbing
MAXJET 5 Nozzle Start-up Kit
Remote or local control
Soft Start - No in-rush current upon start

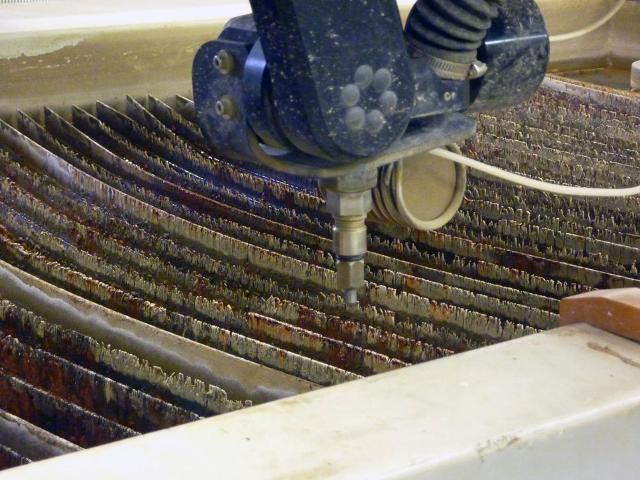

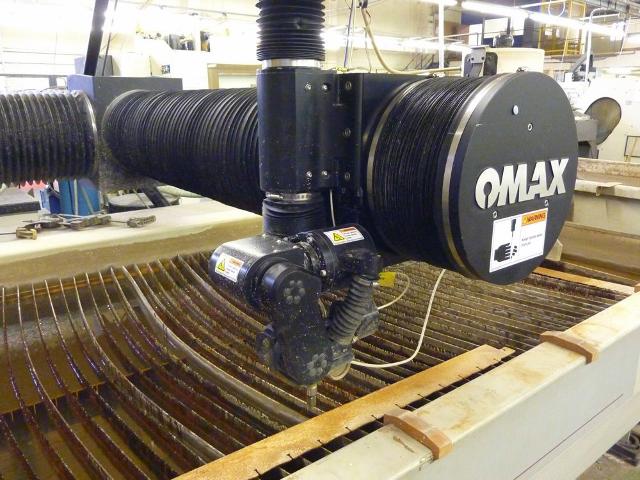

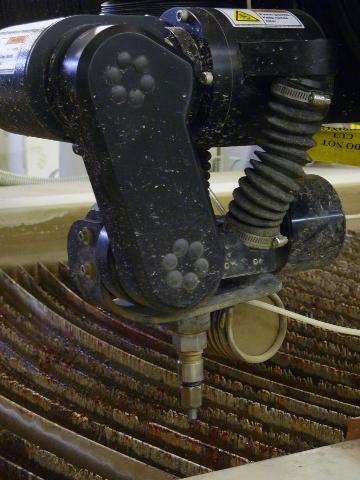

Tilt-A-Jet
Terain follower

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
