Lot 1 - ORT Model RB18B machine with 19 sets of thread rolls
Description:

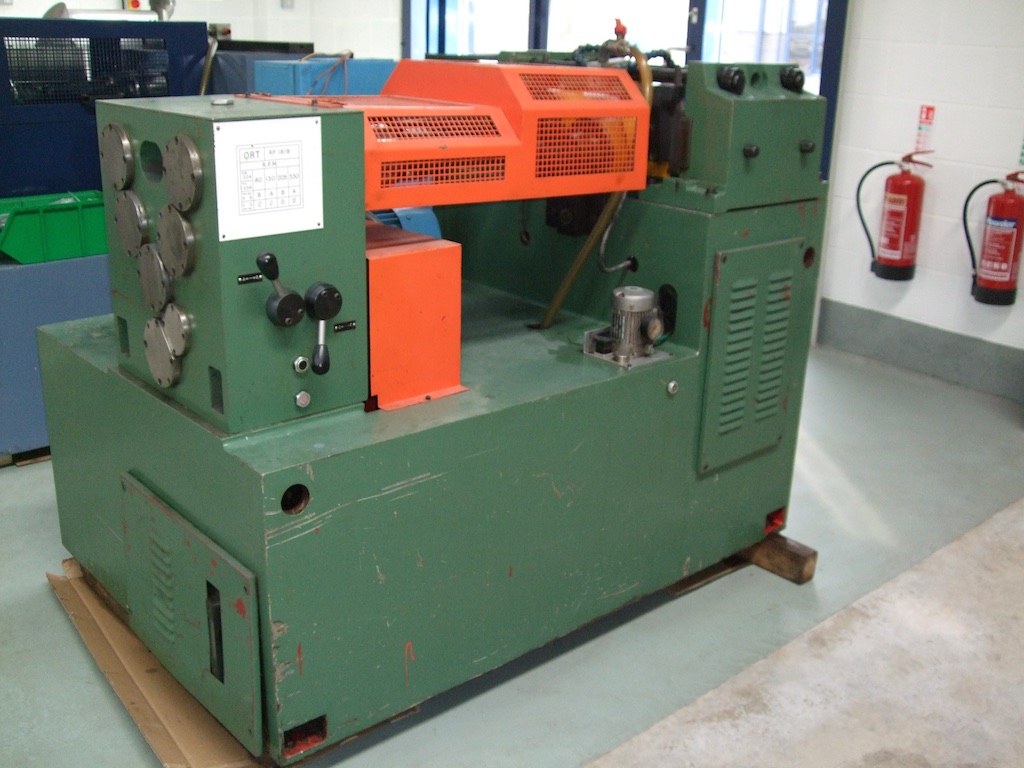

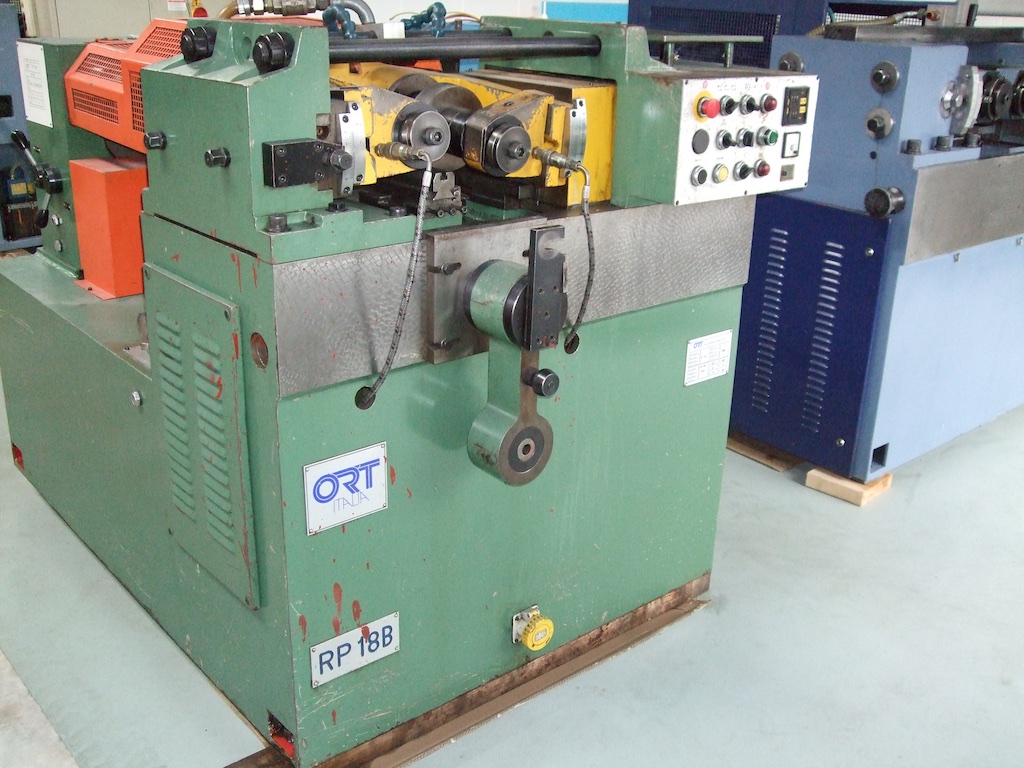

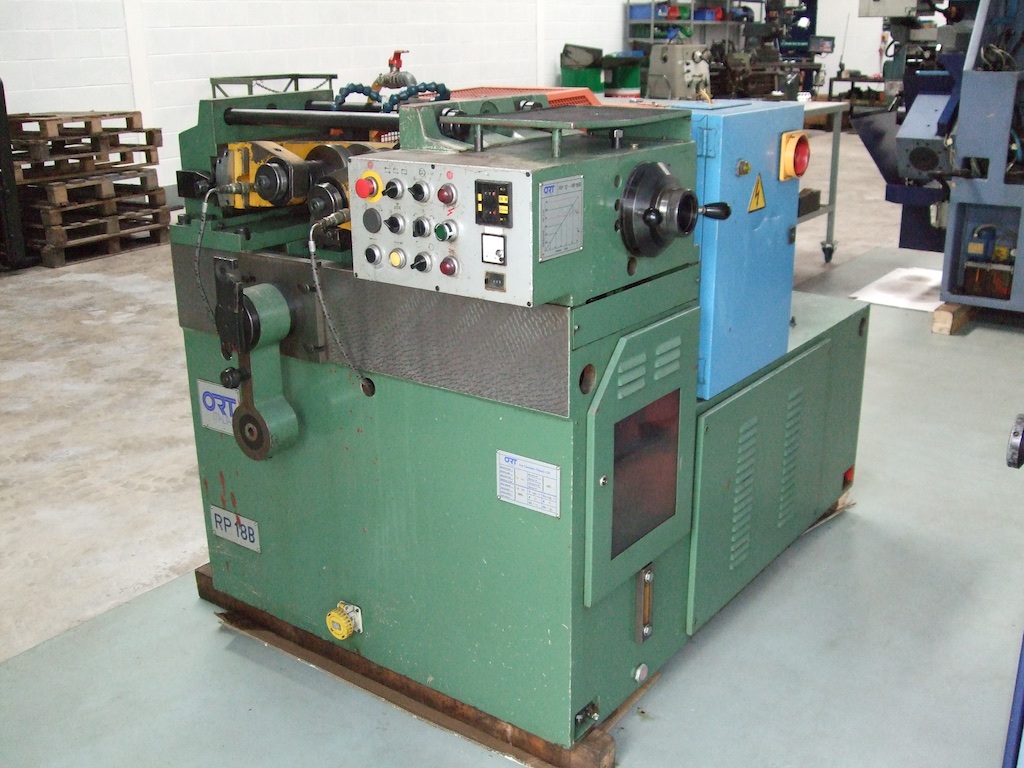

ORT Model RP18B Two Roll Hydraulic Thread Rolling Machine
with swivelling spindles suitable for plunge feed or through rolling.
Maximum rolling pressure 18 tons
Maximum threaded diameter 50 mm
Minimum threaded diameter 2 mm
Maximum length to be plunge rolled 50 mm
Diameter of rolling spindles 54 mm
8 Spindle speeds: 36 to 330 rpm
Rolling spindle power 7.5 KW
Minimum roll diameter 140 mm
Maximum roll diameter 185 mm
Nett weight 2800 kgs
Motorised 415 volts 3 phase 50 cycles supply and complete with coolant equipment,
work rest blade holder , swivel front component support & 19 pairs of used thread
rolls as follows:
Plunge rolls:
Thread size O.D (mm) Width(mm)
-------------------------------------------------------------------------
M10 x 1.5mm pitch 165 35
M20 x 2.5mm pitch 165 60
M24 x 2.0mm pitch 150 120 (2 pairs)
Annular thru-feed rolls:
2.5mm pitch 150 80
3.0mm pitch 155 60 ( 2 pairs)
3.5mm pitch 165 60
4.0mm pitch 155 80
4.5mm pitch 140 100
4.5mm pitch 155 100
11 UNC 160 60
8 UNC 160 60
High speed – double helix annular thru-feed rolls:
M10 x 1.5mm pitch 150 40
M10 x 1.5mm pitch 160 40
M12 x 1.75mm pitch 160 50 ( 2 pairs)
M16 x 2.0mm pitch 160 50
Special 175 50
Location: Derbyshire
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
